Aerpro AMHJP1K User manual

AERPRO AERA10D®Radio Replacement Kit
for 2011-2018 Jeep Wrangler JK
AMHJP1K
Page 1
Introduction and Features
The AMHJP1K is a complete radio replacement kit for Jeep Wrangler JK. All modules and cables are included to retain important
features of the factory system, including: steering wheel-mounted radio controls, factory amplier (if equipped) and AM/FM
reception. Plug & Play wiring harnesses allow for quick and easy installation without the need to cut or splice any wiring.
Important Notes
Recommended Tools
We recommend reading this manual thoroughly to familiarize yourself
with the entire process prior to beginning the installation.
1. Mounting Panel Front Frame
2. AERA10D Display Mounting Panel
3. Side Mounting Brackets
4. Top Support Bracket
5. Main Wiring Harness (RP4-JK07-HAR)
6. Radio Replacement Interface Module (RP4-CH11)
7. AM / FM Antenna Adapter (BAA22)
8. Dual USB Extension (SSUSB2)
Included Components
1
4
6
7
5
2
3
8
1. Does not retain the following factory features:
● uConnect
● In Premium Amplied Systems, only two input channels can be used from the aftermarket radio,
therefore there will be no fading capability of the aftermarket stereo.
2. Directions for removing the display panel are on page 13.
Plastic Panel Tool
7mm Socket
Ratchet
Ratchet Extension
Phillips Screwdriver
Pick Tool
Flush Cutters
Wire Feeder
NOTE: Along with the AMHJP1K components,
additional hardware and wire harnesses from the
AERA10D (UN1810E) kit will also be used in the
installation. There is a component list, hardware
guide, wire harness descriptions and illustrations
in the UN1810E Installation Guide for reference.

AERPRO AERA10D®Radio Replacement Kit
for 2011-2018 Jeep Wrangler JK
AMHJP1K
Page 2

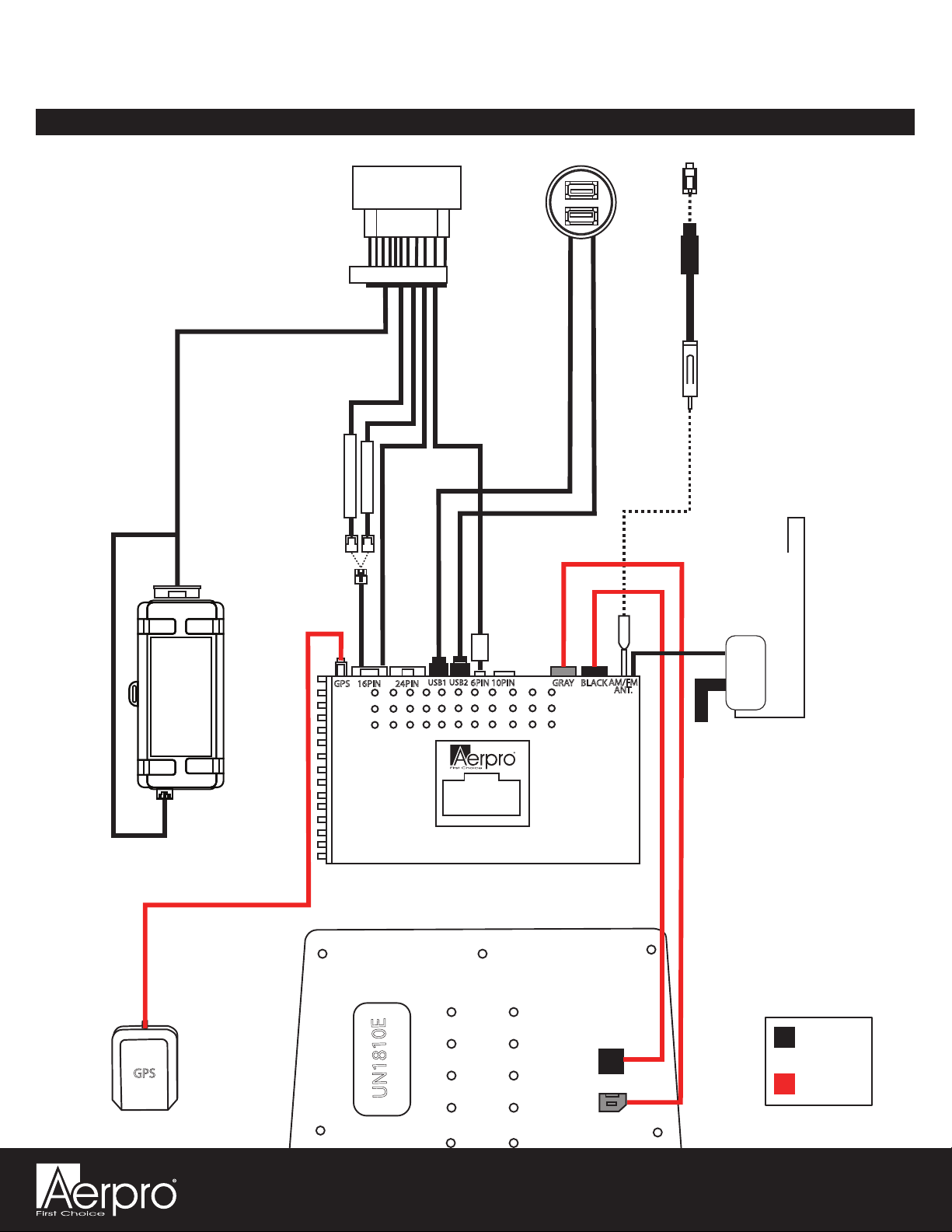

Wiring Diagram Overview
GPS
UN1810E
USB1 USB2 BLACK
GRAY
10PIN6PIN
24PIN16PINGPS AM/FM
ANT.
RP4-JK07-HAR
SWI
AERPRO
Connection
Main Harness
Connection
AMPLIFIED
NON-AMPLIFIED
DAB+
Antenna

AERPRO AERA10D®Radio Replacement Kit
for 2011-2018 Jeep Wrangler JK
AMHJP1K
Page 3
Step 3Step 2
Step 1

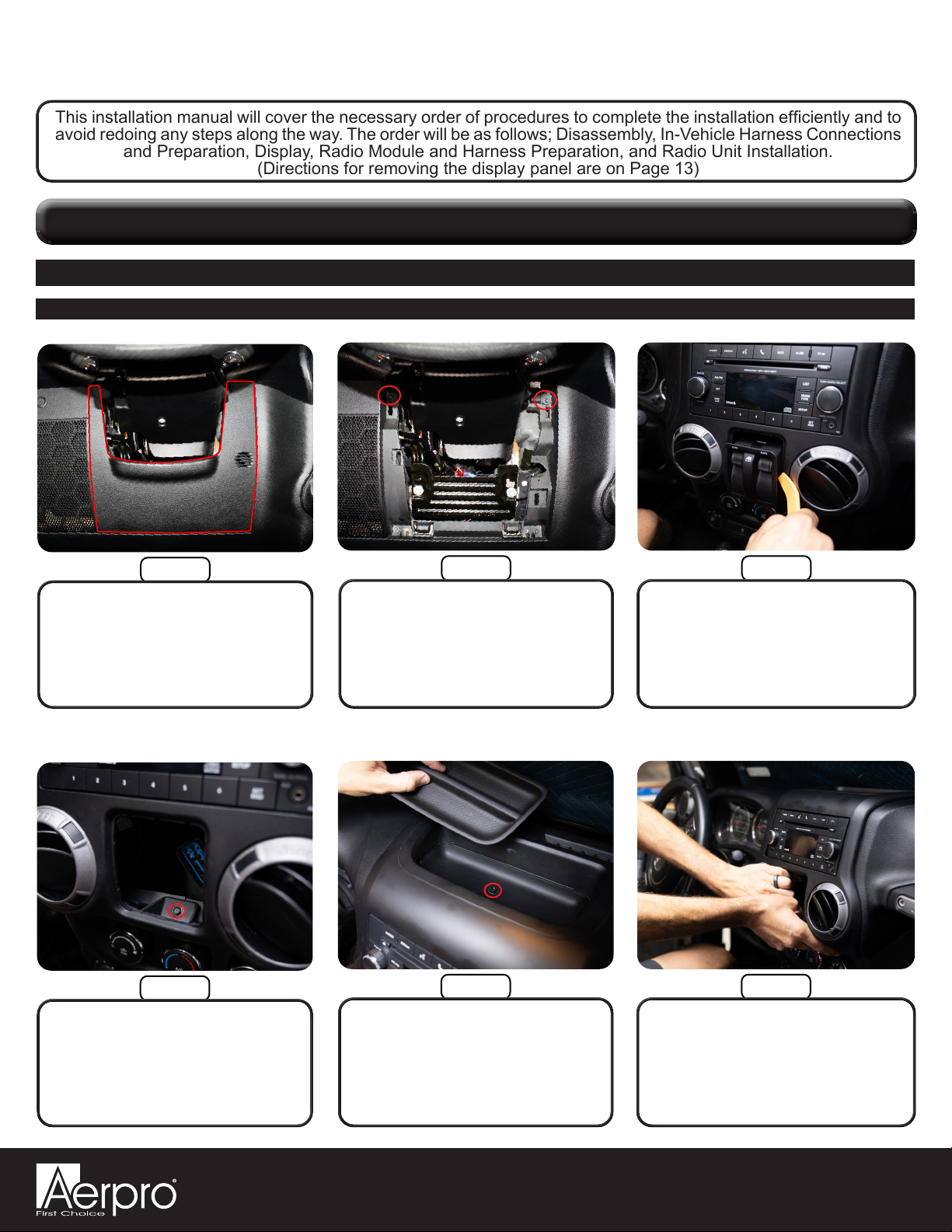

Section 1: Disassembly

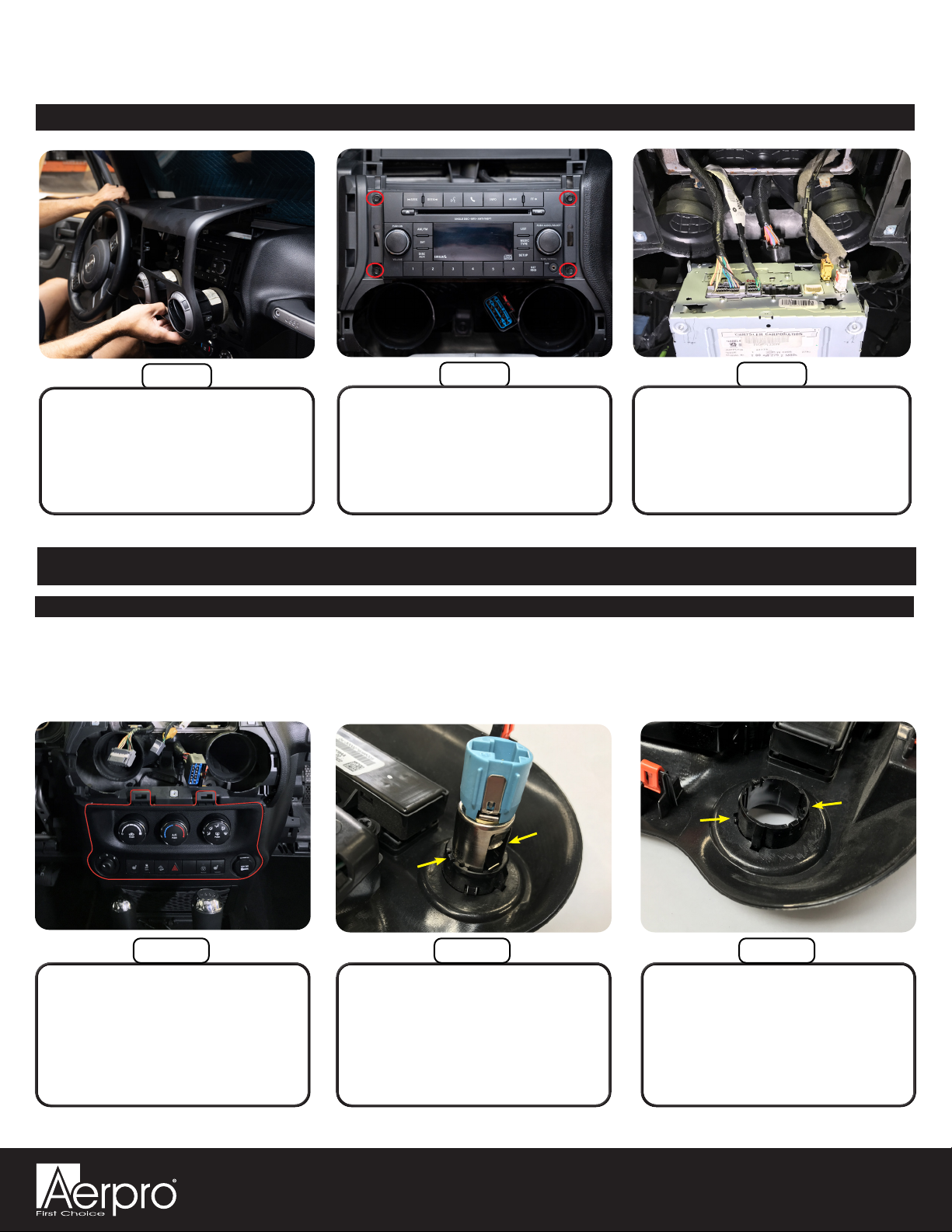

Part One: Radio Removal
Using a plastic trim tool, gently pry
to release and remove the power
window switches or storage pocket
below the radio. Disconnect the
connector on the back of the switch
assembly.
Remove the two 7mm screws
from the bottom edge of the
radio/instrument cluster trim
panel on both sides of the
steering column.
Remove the knee bolster panel
below the steering column using
a plastic trim tool to release
the upper left and right clips
and swing panel downward to
disengage lower tabs.
Step 6Step 5
Step 4
Starting below the radio, reach into
the window switch opening and
rmly grasp the lower bezel and
pull the bezel to release the lower
retaining clips.
Remove the rubber mat from
the storage tray above the radio
and remove the 7mm screw
underneath.
Remove the 7mm screw inside
the switch opening.
This installation manual will cover the necessary order of procedures to complete the installation efciently and to
avoid redoing any steps along the way. The order will be as follows; Disassembly, In-Vehicle Harness Connections
and Preparation, Display, Radio Module and Harness Preparation, and Radio Unit Installation.
(Directions for removing the display panel are on Page 13)
NOTE: LEFT HAND DRIVE VEHICLE PICTURES FOR ILLUSTRATION PURPOSES ONLY

AERPRO AERA10D®Radio Replacement Kit
for 2011-2018 Jeep Wrangler JK
AMHJP1K
Page 4
Section 1: Disassembly (cont.)
Step 9Step 8
Step 7
Disconnect all wire harnesses and
antenna cables from the back of
the factory radio.
Remove the four 7mm screws
securing the radio and pull the
radio from the sub-dash.
Using the storage tray and area
over the gauges, pull the top edge
of the panel to release the upper
retaining clips. Lower the steering
wheel and remove the panel.
Section 2: In-Vehicle Harness Connections and Preparation
Part One: Dual USB Extension (SSUSB2)
Apple CarPlay and Android Auto require access to a USB port. The SSUSB2 is designed to extend the USB ports on the back of
the AERA10D to where they are accessible once the radio is installed.
For this installation, the factory 12V power outlet will be replaced with the SSUSB2. You may chose to follow these steps, or
mount the USB ports somewhere else in the vehicle.
Step 1
Step 1 Step 2 Step 3
Remove the climate control /
switch panel by pulling outward
and releasing the retaining clips.
Unplug all connectors from the
backside of the panel.
Remove the metal insert from the
power outlet by releasing the two
retaining clips with a small pick
tool and pushing out the front
side.
Remove the plastic sleeve by
depressing the two tabs and
pushing out the front.

AERPRO AERA10D®Radio Replacement Kit
for 2011-2018 Jeep Wrangler JK
AMHJP1K
Page 5
Section 2: In-Vehicle Harness Connections and Preparation (cont.)
Part One: Dual USB Extension (SSUSB2) (cont.)
Step 4 Step 5
Reconnect and reinstall the
climate control panel. Route the
two USB cables up to the radio
opening, making sure to route
them behind the metal bracket.
Install the optional USB cover and
feed the USB cables through the
front of the panel. Secure with the
anged nut and then lock with the
lock nut.
Step 1
Part Two: GPS Antenna
Step 1 Step 2 Step 3
Clean the indicated area above
the right side of the instrument
cluster.
From the AERA10D box, stick
the metal plate to the surface and
place the magnetic GPS antenna
on the plate.
Route the blue GPS connector
behind the metal bracket and into
the radio opening. Bundle and
secure the excess antenna cable
behind the instrument cluster.
The GPS antenna is required for proper operation of Apple CarPlay and Android Auto. The GPS antenna and mounting
plate are included in the AERA10D hardware.

AERPRO AERA10D®Radio Replacement Kit
for 2011-2018 Jeep Wrangler JK
AMHJP1K
Page 6
Part Three: AM / FM / DAB+ Antenna Adapter
Step 1 Step 2
Connect the BAA22 Antenna
Adapter to the factory antenna
cable (white connector).
Position the DAB+ Antenna
and route the antenna cable
through to the radio opening.
These are the connections for
the basic installation. If adding
cameras, ampliers or external
microphone, those connections
should be made at this point, before
mounting the radio module.
Section 2: In-Vehicle Harness Connections and Preparation (cont.)
Section 3: Display, Radio Module and Harness Preparation
Step 3Step 2
Step 1
Partially screw in the four M4x10
screws from the AMHJP1K
hardware into the side holes of the
mounting panel. NOTE: Ensure
screw tip is ush and does not
exceed the plastic thickness.
Use four M4x12 from the
AERA10D hardware to attach the
display to the mounting panel.
Place the AERA10D display into
the front of the mounting panel
and carefully turn the panel over
onto a soft surface while holding
the display in place.
Part One: Display Mounting Panel Preparation

AERPRO AERA10D®Radio Replacement Kit
for 2011-2018 Jeep Wrangler JK
AMHJP1K
Page 7
Step 2 Step 3
Step 1
Using two M4x4 screws from the
AERA10D box, mount the support
bracket to the top of the radio
module in the location shown.
Align and attach one of metal side
brackets to the right side of the
radio module using two M5 x 10
screws from the AERA10D box.
Align and attach the remaining
metal side bracket to the left side
of the radio module using two M5 x
10 screws from the AERA10D box.

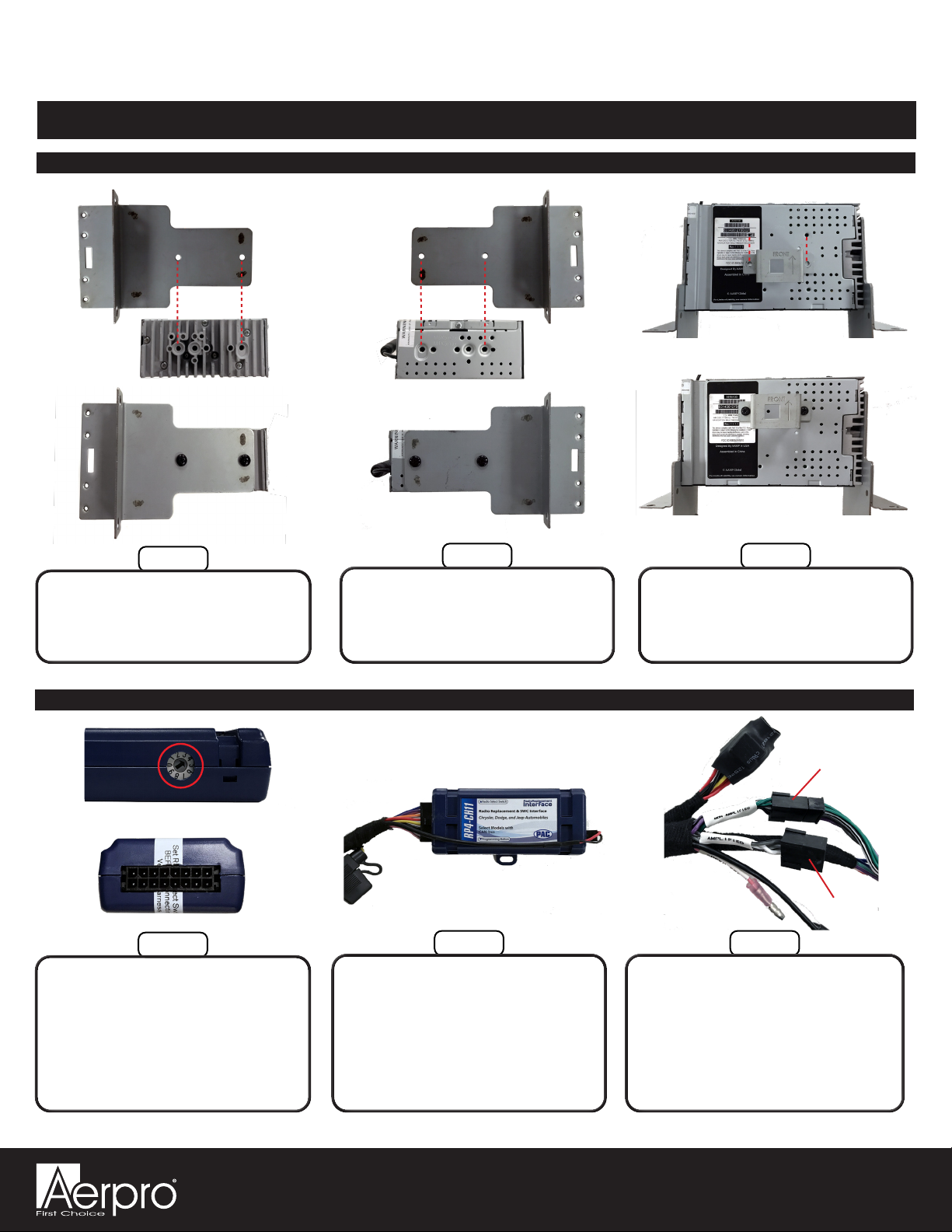

Part Two: Attaching the Radio Module Mounting Brackets
FRONT arrow should point
towards the Aerpro logo.
Step 3Step 2
Step 1
If the vehicle is equipped with
a factory amplier, connect the
8-pin connector to the AMPLIFIED
connector. All others connect to the
NON AMPLIFIED 8-pin connector.
Set the dial on the side of the
RP4-CH11 interface to Number 4.
Remove the warning sticker
covering the 16-pin plug on the
end of the interface.
Part Three: Main Harness Connections (RP4-JK07-HAR)
NON-AMPLIFIED
AMPLIFIED
Connect the 16-pin and 4-pin
connectors on the RP4-JK07-HAR
Main Harness to the RP4-CH11
interface module.
Section 3: Display, Radio Module and Harness Preparation (cont.)

AERPRO AERA10D®Radio Replacement Kit
for 2011-2018 Jeep Wrangler JK
AMHJP1K
Page 8
Step 6Step 5
Step 4
Attach the RP4-CH11 interface to the
top of the radio module using a M4 x
4 screw from the AERA10D hardware
in the threaded hole shown.
Connect the 16-pin and 6-pin
connectors on the RP4-JK07-HAR
Main Harness to the AERA10D
radio module.
From the AERA10D box, connect
the blue LVDS and 8-pin display
cables to the radio module.
Part Three: Main Harness Connections (RP4-JK07-HAR) (cont.)
Part One: Harness and Cabling Connections
Section 3: Display, Radio Module and Harness Preparation (cont.)
Section 4: Radio Unit Installation
Step 3Step 2
Step 1
Inside the vehicle, plug in the two
USB cables and connect the GPS
antenna to the radio module.
Before attempting to mount the
radio unit into the dash, ensure
that all excess cables, wires and
connectors are tucked into the
sides, not directly behind the radio.
Connect the AM/FM antenna
adapter. Connect the vehicle’s
gray 22-pin radio plug to the
RP4-JK07-HAR main harness.

AERPRO AERA10D®Radio Replacement Kit
for 2011-2018 Jeep Wrangler JK
AMHJP1K
Page 9
Part Two: Mounting the Radio Assembly
Section 4: Radio Unit Installation
Step 3
Step 6
Step 2
Step 5
Step 1
Step 4
With the two display cables routed
over the top of the radio module,
slide the assembly into place. Take
caution that no wiring gets pinched
between metal brackets.
Install the four 7mm screws
removed from the factory radio to
secure the radio assembly.
If the vehicle does not have a
factory radio support bracket,
insert the included clip-on nut
onto the top bracket as shown.
Reinstall the factory 7mm screw
in the upper storage tray. If using
the clip-on nut in Step 3, use the
included #10-24 X ½” Philips
machine screw to secure.
The top support bracket on the
radio assembly needs to go over
the top of the factory radio support
bracket with the factory nut
centered in the bracket cut-out.
Lower the steering wheel and
align and reinstall the instrument
cluster / radio panel. Ensure that
all retaining clips are fully seated.

AERPRO AERA10D®Radio Replacement Kit
for 2011-2018 Jeep Wrangler JK
AMHJP1K
Page 10

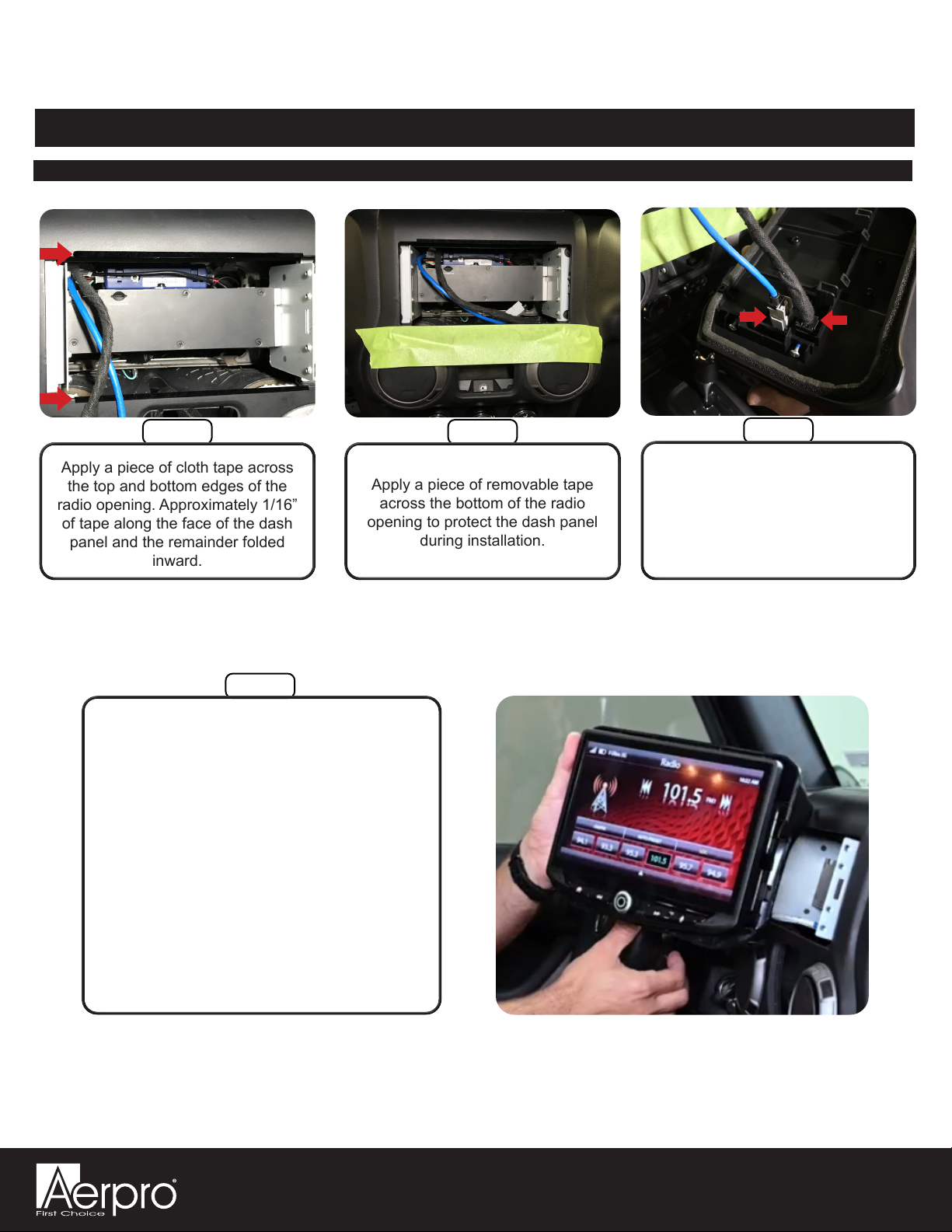

Part Three: Attaching the Display Panel
Section 4: Radio Unit Installation (cont.)
Step 3
Step 4
Step 2Step 1
Apply a piece of removable tape
across the bottom of the radio
opening to protect the dash panel
during installation.
Apply a piece of cloth tape across
the top and bottom edges of the
radio opening. Approximately 1/16”
of tape along the face of the dash
panel and the remainder folded
inward.
Connect the two display cables to
the back of the display.
Once the radio display is connected, and
before attaching the display panel, it is
recommended to power up the radio and
check functionality...
Volume, Balance, Fade
AM/FM Reception
Digital Radio Reception
Bluetooth
USB
Apple Carplay
Android Auto
Steering Wheel Controls
Camera(s)
1/16”
1/16”

AERPRO AERA10D®Radio Replacement Kit
for 2011-2018 Jeep Wrangler JK
AMHJP1K
Page 11
Step 6

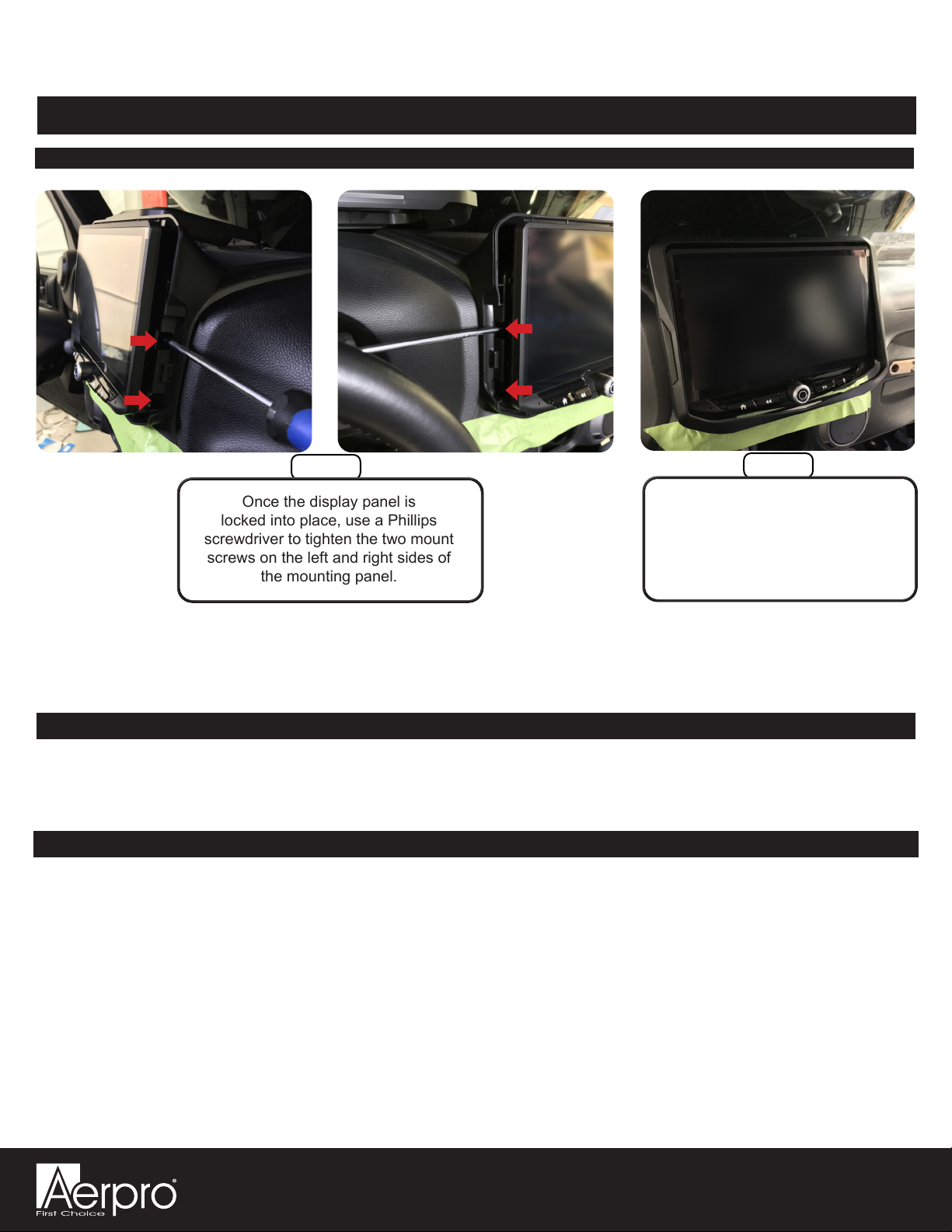

Holding the mounting panel at the sides:
1. Position the bottom edge almost touching the air vents.
2. Firmly push the assembly against the dash panel.
3. Slide the assembly up until it snaps in place.
Note: Once the locking clips engage, the panel will
stay in place.
1
1
3
2
2
Step 5
To attach the display assembly, align
the location ribs on the sides of the
mounting panel to the side brackets
to center the panel side to side.
Part Three: Attaching the Display Panel (cont.)
Section 4: Radio Unit Installation (cont.)
Installer Note!
If you are having trouble locking the display
in place, try the tips below...
Conrm the four side mounting screws are ush
and not protruding beyond the thickness of the
plastic. (FIG A)
Press the display assembly harder against the
dash panel as you slide it into place.
(Step 6 / Part 2)
FIG A

AERPRO AERA10D®Radio Replacement Kit
for 2011-2018 Jeep Wrangler JK
AMHJP1K
Page 12
Step 8
Install the front frame by hooking
at the top rst, then snapping in
the sides and bottom. Remove
the tape by pulling downward.
Part Three: Attaching the Display Panel (cont.)
Section 4: Radio Unit Installation (cont.)
Step 7
Once the display panel is
locked into place, use a Phillips
screwdriver to tighten the two mount
screws on the left and right sides of
the mounting panel.
Reset / Restoring Interface Factory Settings
You can restore the RadioPRO interface module to factory default settings by pressing and holding the programming button
on the side of the module until the status LED starts blinking red. Once the LED starts blinking red, release the button. You
must release the button while the LED is blinking red in order to perform the reset. This reset will restore all settings to factory
defaults.
Email: T[email protected]
Phone: [phone] FAX: [phone]
Technical Support
Reinstall the remaining screws, panels and switch pod to complete the installation

AERPRO AERA10D®Radio Replacement Kit
for 2011-2018 Jeep Wrangler JK
AMHJP1K
Page 13
Removing the Display Panel
Step 5
Step 3
Step 1 Step 2
While holding the display with
one hand, insert a soft plastic
panel tool under either bottom
corner and slightly pry up to
release the display panel.
Once the side clips are
disengaged, swing the bottom
edge upwards to unhook the top
of the frame and remove.
Remove the front frame by rst
releasing the side clips at the
locations indicated by arrows.
Using a very thin pry tool or
similar, carefully release the side
clips as shown on both sides.
Step 4
Using a Phillips screwdriver, remove
the two mounting screws on the
left and right sides of the mounting
panel.
