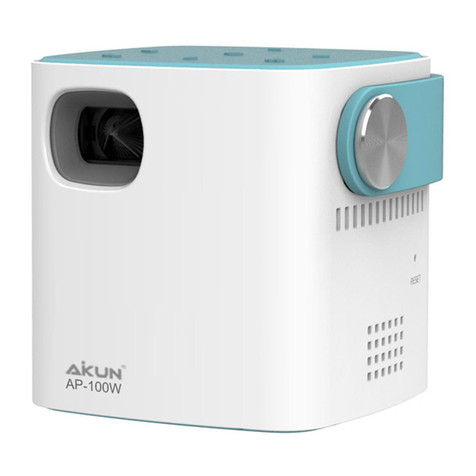

AIKUN LIGHTIST AP-100W User manual

1
AP100W
Operating Instruction
● Be sure to read the instructions and use them correctly..
● the battery may discharge when you first use the product, so please use it after charging.
● The image of the manual is to help the user understand, and the actual difference.

2
Safety Instructions
※ Before using the product, please read the following carefully and use the product correctly.
- Do not dismantle, repair, rebuild, if you need to repair please be sure to contact the service center.
(Quality assurance is not applicable to arbitrarily decomposed products)
-No foreign matters such as drinks or water are allowed to enter the product. Failure, risk of electric shock.
- Please do not bend or be pressed by heavy objects when connecting wires. Danger of fire or electric shock.
- Please use dry towel and soft wet towel to wipe the appearance of the product. Using towels or detergents with more moisture will
cause damage to appearance, breakdown, electric shock, etc..
- Please do not put this product near direct light, candle light, hot air balloon (stove, microwave oven, etc.). It will lead to product
deformation, explosion and fire.
- Please do not impact the product. Stay away from places where there are vibrations or types of magnets. It is the cause of product
failure.-
Please do not install the product in wet places, places with too high temperature (above 30 ˚ C) or places with too low temperature
(below 5 ˚ C). Danger of fire or false start..
- When not in use, please separate the micro USB cable from the product and keep it in a dry place without water and humidity..

3
■ Products Features
New generation lens
Clearer and longer service life
[portable mini projector]
- it is small in size, light in weight, convenient for mobile, business trip or leisure / outdoor activities.
[wireless connection]
-WI - fi B / g / N 2, GHz lozzer, Bluetooth 4.0 support to connect speakers through external Bluetooth is completely feasible.
-Support Android phone and iPhone screen simulation.
[audio output]
-0.7W * 2 speakers for rich speaker volume.

4
■ components

5
■ Description
ITEM
Function
1
Cooling hole
Cooling hole
2
Micro SD Card (TF)
Micro SD Card (TF)
3
focusing
Projection focusing function
4
Optical lens
Optical lens
5
Speaker
Speaker
6
RESET Hole
RESET Hole
7
Micro USB Port
Micro USB Port
8
LED Status light
Display battery status
9
IR
Remote control reception
10
Button
Prower, HOME, BACK

6
■Screen size and projection distance
The upper and lower end of the beam picture may be blurred on the characteristics of the beam projector. This is an optical feature, not
a product failure. The appropriate projection distance is 1.0 ~ 2.0m.
This product has manual focusing function. Please focus manually.
The recommended distance between the screen and the product and the screen size are the same..
Distance (cm)
Size (inch)
Diagonal angle (cm)
Length and width (cm)
30
9.3
23.5
35*52
100
31
78.7
73*51
200
61
154.9
133*75
.* the longer the projection distance is, the more blurred the picture is. It is recommended to use within 1.0 - 2.0m.

7
■ The action status of the indicator
LED Display state
Product charging (green light)
Charging complete (blue light).
Battery low (red light on)
Abnormal charging state of the product (orange light).

8
■ Product use
Initial startup screen
Press and hold the movie button for 1-2 seconds to turn on

9
■ Brightness adjustment
Click the button below to adjust the brightness of the screen(" ").

10
■ Wi-Fi
Click the button below to setting the Wi-Fi connection(" ").

11
■ application
Click the button below into the application(" ").

12
■ Internet
Click the button below into the Internet (" ").

13
■ Wireless connection / mirroring
Android
Use the key at the top of the product or the wireless connection icon on the home screen of the remote control(" ").
[ANDROID Select "wireless" to enter.
“AndroidXXXX” Select and connect.

14
During Android wireless connection, Bluetooth speakers may not be able to connect due to wireless transmission characteristics, and voice
may not match.
When using data without Wi Fi connection on a smartphone, there may be a penalty for using LTE / 3G data..
Depending on the smartphone manufacturer's specifications, the names and icon locations of these menus may vary. For more information,
please contact the smartphone manufacturer.

15
IOS
Wi-Fi Connect to the same wireless router as your smartphone.
Use the key at the top of the product or the wireless connection icon on the home screen of the remote control((" ").
IOS Select "wireless" to enter.
Android Select and connect.

16
During IOS wireless connection, Bluetooth speakers may not be able to connect due to wireless transmission characteristics, and voice may
not match.
When using data without Wi Fi connection on a smartphone, there may be a penalty for using LTE / 3G data..
Depending on the smartphone manufacturer's specifications, the names and icon locations of these menus may vary. For more information,
please contact the smartphone manufacturer.

17
■ Music
Click(" ").
After running the selected file, the music will play.
※ before playing the "music" function, please confirm whether the music file in the machine exists before operation.

18
■ File Browser
Click (" ") Internal Memory
After entering the file browser, you can browse the files in micro SD memory and internal repository.

19
■ YouTube
Click(" ") .
Press the "YouTube" button and you will enter YouTube(" ")

20
■ Setting function
Click (" ")
Wi-Fi Connection
check that the network name (SSID) and security key for the wireless router
When Wi Fi is on, the system will automatically search for connectable networks and display a list.
Select the network connection you want to use. If security is set, enter a password.
When the connection is complete, the Wi Fi flag will be created in the upper right corner when the following "connected" is displayed.
