Alrite Mirage 3000 User manual

USER MANUAL

BEFORE OPERATING THIS APPLIANCE

PLEASE READ THESE INSTRUCTIONS CAREFULLY

LAWNMOWER

Disclaimer: Due to constant upgradation, features and specifications are subject to change without notice

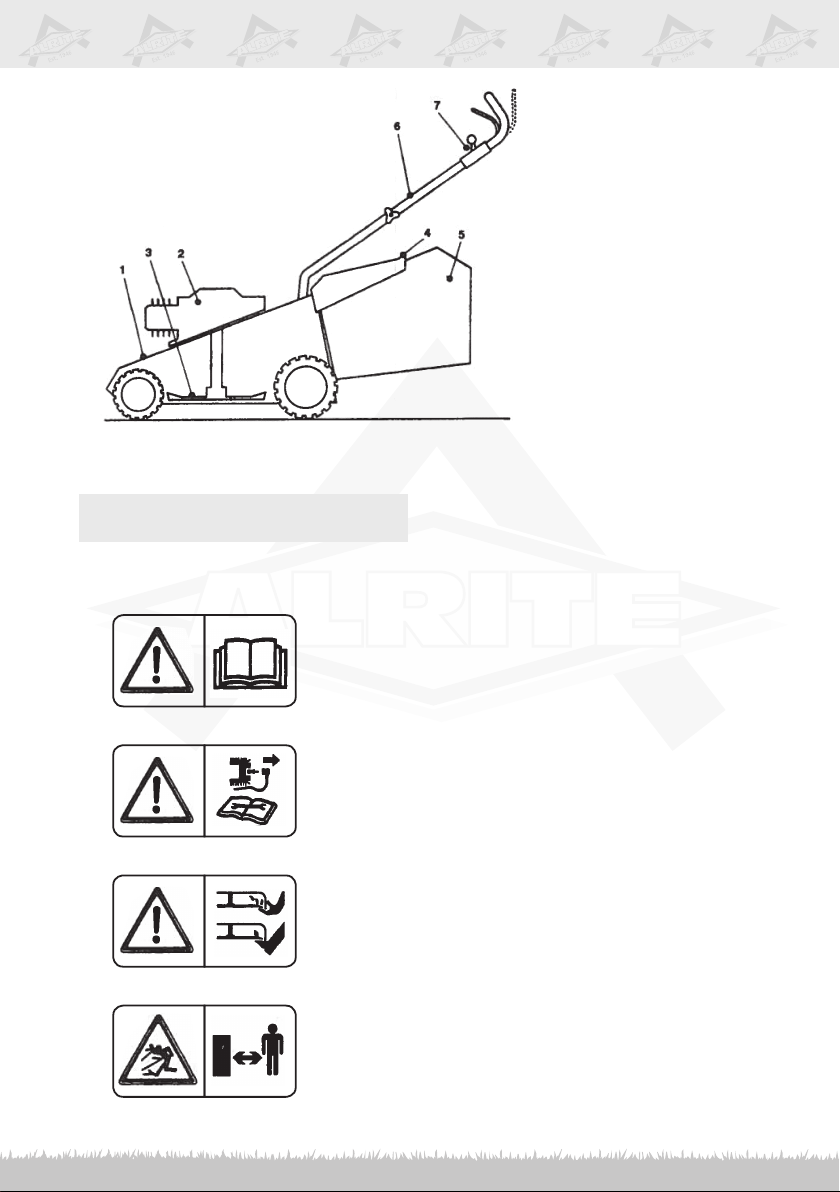

1. Chassis

2. Motor

3. Blade

4. Stone Deﬂector

5. Grass Catcher

6. Handle

7. Throttle control

INSTRUCTION LABEL

DO NOT OPERATE WITHOUT EITHER STONE GUARD OR GRASS CATCHER IN PLACE

Danger of thrown of object. keep other

people at a safe distance whilst working

Important : Read the instruction handbook

before using the machine

Warning: Remove the spark plug and read

instructions before carrying out any repair or

maintenance

Danger of Cutting yourself. Blades in

movement. Do not put hands or feet near or

under the opening of the cutting plate

ROUTINE MAINTENANCE

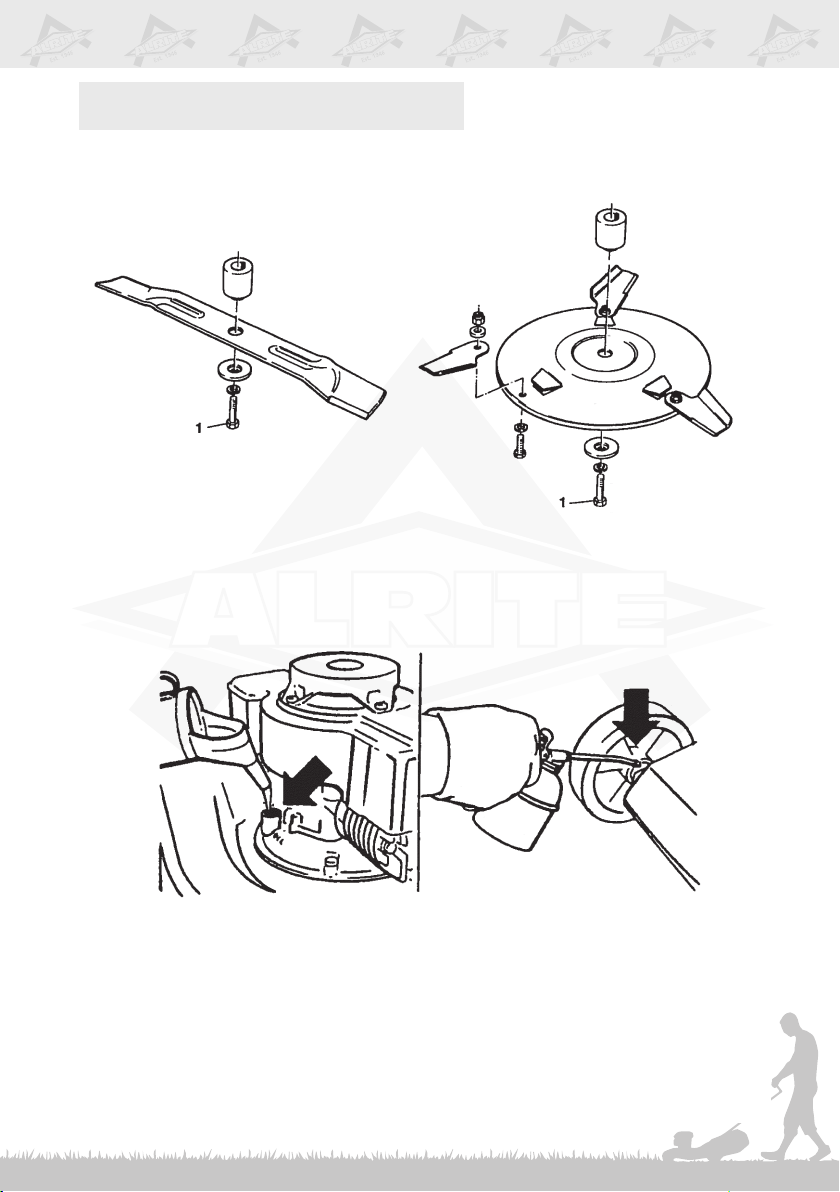

After work has been carried out on blade, reassemble as shown in the drawing,

tightening the central screw (1) to 4 - 4.5 kgm

Check the oil level and top up as per the instructions in the engine handbook. Oil the

wheel axles. Store the lawnmower in a dry place.

IMPORTANT: Before starting the engine for the rst time, carefully read

instructions as set out in the engine handbook

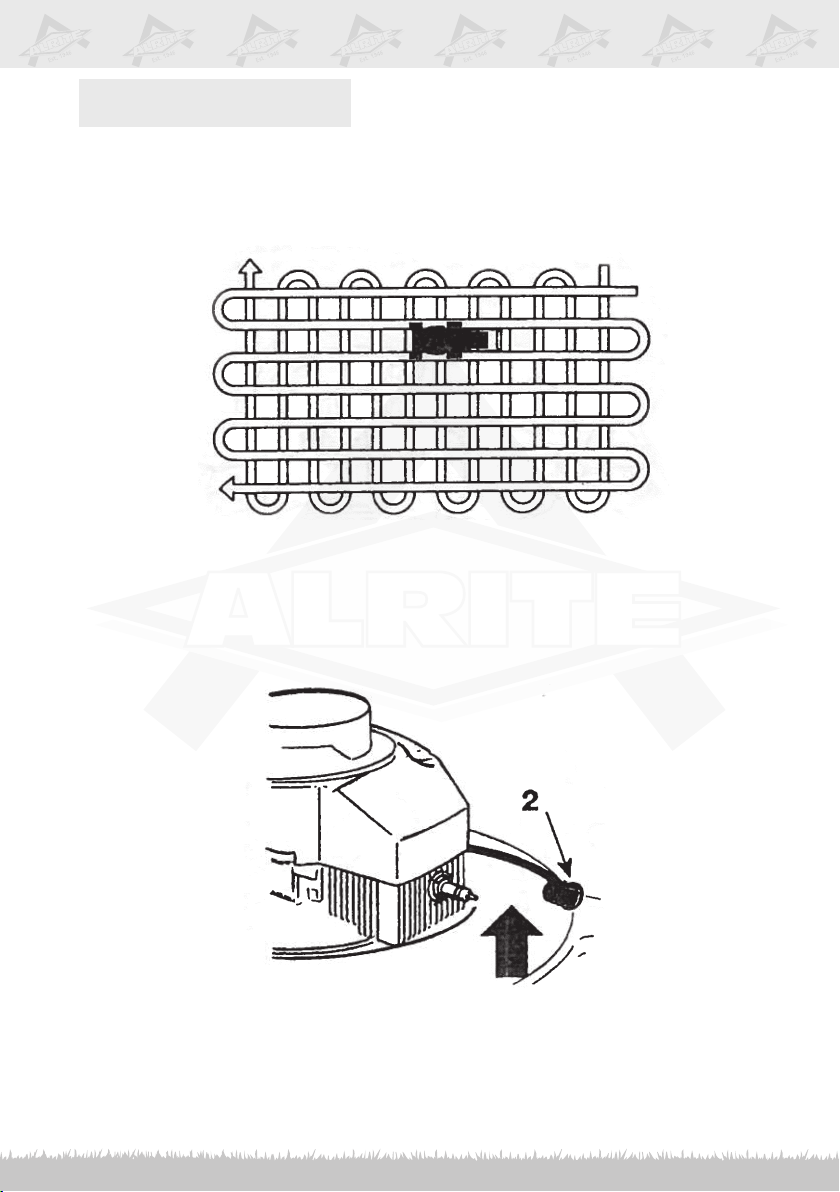

GRASS CUTTING

The lawn’s appearance will be improved if it is always cut to the same height and is cut

in alternate directions.

Once cutting is ﬁnished, wait for the blade to stop before carrying out any type of work

on the machine.

SAFETY REGULATIONS

TO BE FOLLOWED CAREFULLY

A) TRAINING

1) Read the instructions carefully. Be familiar with the controls and the proper

use of the equipment. Learn how to stop the engine quickly.

2) Only use the lawnmower for the purpose for which It was made, that Is, the

cutting and collection of grass. Any other use can be dangerous and result

in damage to the machine.

3) Never allow children or people unfamiliar with these instructions to use

the lawnmower. Local regulations may restrict the age of the operator.

4) Never use the lawnmower:

- When people, especially children, or pets are nearby;

- If the operator has taken medicine or substances that can aﬀect his

ability to react and concentrate.

5) Keep in mind that the operator or user Is responsible for accidents or

hazards occurring to other people or their property.

B) PREPARATION

1) While mowing, always wear substantial footwear and long trousers. Do not

operate the equipment when barefoot of wearing open sandals.

2) Thoroughly inspect the area where the equipment Is to be used and

remove all objects which may be thrown by the machine (stones, sticks,

metal wire, bones, etc.).

3) WARNING: DANGER! Engine fuel is highly ﬂammable!

- Store fuel in containers speciﬁcally designed for this purpose.

- Refuel using a funnel and outdoors only. Do not smoke while

refuelling or whenever handling the fuel.

- Add fuel before starting the engine. Never remove the cap of the fuel

tank or add fuel while- the engine Is running or when the engine is

hot.

- If fuel is spilled, do not attempt to start the engine but move the

machine away from the area of spillage and avoid creating any source

of ignition until the fuel has evaporated and the vapour dispersed.

- Replace all fuel tanks and containers caps securely.

4) Substitute faulty silencers.

5) Before using, always carry out an overall visual inspection, particularly of

the blade, seeing that the screws and cutter assembly are not worn or

damaged. Replace worn or damaged blades and screws In sets to preserve

balance.

6) Before mowing, attach the discharge opening guards (grass catcher or

deﬂector).

C) OPERATION

1) Do not operate the engine in a conﬁned space where dangerous carbon

monoxide fumes can collect.

2) Mow only in daylight or good artiﬁcial light.

3) Avoid operating the equipment in wet grass or when raining.

4) Always be sure of your footing on slopes.

5) Walk, never run and do not allow yourself to be pulled along by the

lawnmower.

6) Mow across the face of slopes, never up and down.

7) Exercise extreme caution when changing direction on slopes.

6) Do not mow on slopes of more than 20°.

9) Exercise extreme caution when pulling the lawnmower towards you.

10) Stop the blade if the lawnmower has to be tilted for transportation when

crossing surfaces other than grass, and when transporting the lawnmower

to and from the area to be mowed.

11) Never operate the lawnmower with defective guards, or without safety

devices, for example deﬂectors and/or grass catchers, in place.

12) Do not change the engine governor settings or over speed the engine.

13) On those models with drive traction, disengage the drive clutch before

starting the engine.

14) Start the engine or start the motor carefully according to instructions and

with feet well away from the blade.

15) Do not tilt the lawnmower when starting the engine or switching on the

motor. Start the engine or motor on a ﬂat surface that is free of obstacles

and tall grass.

16) Do not put hands or feet near or under rotating parts. Keep clear of the

discharge opening at all times.

17) Never pick up or carry a lawnmower while the engine is running.

18) Stop the engine and disconnect the spark plug wire:

- Before carrying out any work beneath the cutting deck or unclogging

the chute;

- Before checking, cleaning or working on the lawnmower;

- After striking a foreign object. Inspect the lawnmower for damage

and make repairs before restarting and operating the lawnmower;

- If the lawnmower starts to vibrate abnormally (immediately check

and remove the cause of the vibration);

19) Stop the engine:

- Whenever you leave the lawnmower unattended. Remove the key

from those models having electric starters. Before refuelling.

- Every time the grass catcher is removed or replaced.

20) Reduce the throttle setting during engine shut down and turn the fuel oﬀ

at the conclusion of mowing, following the instructions contained in the

engine handbook.

21) When mowing always keep a safe distance from the rotating blade. This

distance is the length of the handle.

D) MAINTENANCE AND STORAGE

1) Keep all nuts, bolts and screws tight to be sure the equipment is in safe

working condition. Regular maintenance is essential for safety and for

maintaining performance levels.

2) Never store the equipment with fuel in the tank Inside a building where

vapour may reach a ﬂame or a spark or a source of extreme heat.

3) Allow the engine to cool before storing in an enclosed space.

4) To reduce the ﬁre hazard, keep the engine, exhaust silencer, battery

compartment and fuel storage area free of grass, leaves, or excessive

grease. Do not leave garden rubbish containers within a room.

5) Check the deﬂector and grass catcher frequently for wear or deterioration.

6) For reasons of safety, do not use the equipment with worn or damaged

parts. Parts are to be replaced and not repaired. Use genuine spare parts

(blades should always bear the symbol (M). Parts which are not of an

equivalent quality can damage the equipment and be dangerous for your

safety.

7) If fuel tank has to be drained, this should be done outdoors and when the

engine is cool.

8) Wear strong work gloves when removing and reassembling the blade.

9) Check the blade’s balance after sharpening.

Should you have any doubts or problems, do not hesitate

to contact the nearest Service Centre or your Sales outlet.

ASSEMBLY

Your Mirage mower is packed partially assembled for convenience of storage and

handling. All that you are required to do is assemble the handle and should it be

required. the grassbox.

GRASSBOX ASSEMBLY

Push the bottom half of the grassbox into the groove of the top half of the grassbox

and secure the two halves with the bolts and nuts provided. (Some grassboxes clip

together without bolts).

FITIING THE GRASS CATCHER

To ﬁt the grassbox simply raise the rear safety ﬂap using the handle provided. Insert the

lower lip of the grassbox Into the aperture. Tilt the grassbox forward and allow the lip

of the safety ﬂap to latch onto the lip at the top of the grassbox.

To remove’the grassbox simply raise the safety ﬂap and lift the grassbox out.

HANDLE ASSEMBLY

(For domestic and utility models only)

Assemble the top and bottom halves of the handle using the bolts and plastic knobs

provided. Tighten the knobs so as to secure the handle ﬁrmly. The knobs will be on the

Inside of the lower handle.

CUTTING HEIGHT ADJUSTMENT

The height adjustment lever is situated near the right rear wheel of the mower. To

adjust the height, disengage the lever from the ratchet and move to the desired

position.For safety this adjustment Is best done with the engine switched oﬀ. Do not

bend the lever further than absolutely necessary as this may result in premature failure

of the spring.

FOR PETROL ENGINE MACHINES

BEFORE ST4RTING

1. Check the instructions in the engine manufacturer’s handbook.

2. On petrol engined machines, check that the engine oil level is correct and that

the correct petrol requirement has been poured into the tank.

TO STARTTHE ENGINE

1. Set the cutting height so as to prevent obstruction to the cutting blades.

2. Set the throttle control to the“start” position.

3. Pull the starter cord.Once the machine has started, move the throttle to the “run”

position.

4. Allow the engine to warm up before putting It under load.

TO STOP THE ENGINE

1. Set the throttle to the “stop” position.

2. Certain petrol engines are ﬁtted with a stop button which must be depressed in

order to stop the engine.

Part

No DESCRIPTION

1 LID MOTOR COVER

2 COVER MOTOR

3A FAN - ATB

3B FAN - FEMCO

4 2200W MOTOR (GREEN BOSS)

4A 2600W MOTOR (GREEN BOSS)

5 COVER MOTOR BOTTOM

6 NUT

7 BOLT

8 BUSH SET

9 BUSH SET

11 NUT

12 MOTOR BRACKET -STEEL

13 BASKET

14 BLADE SET -TURBO

Part

No DESCRIPTION

14A BLADE - BAR

15 BOLT - ELECTRIC

17 BOSS GREEN

17A BOSS YELLOW

18 CUTTING DISC

19 WASHER

20 SCREW

21 LOWER HANDLE

22 CABLE HOOK

23 CLAMP

24 SWITCH

25 HANDLE

26 CABLE 25M - 2200W

26A CABLE 25M - 2600W

27 SCREW

ALRITE ENGINEERING

MIRAGE SERVICE DEALER SPARES LIST

PARTSLIST D46 ELECTRIC

ITEM NO. PART NO. DESCRIPTION

1E1 LID MOTOR COVER

2E2 COVER MOTOR

3A E5ATB FAN - ATB

3B E5 FAN - FEMCO

4E6ATB 2200W MOTOR (GREEN BOSS)

4A E6ATC 2600W MOTOR (GREEN BOSS)

5E7 COVER MOTOR BOTTOM

6AS54 NUT

7E8 BOLT

8E9/E10 BUSH SET

9E9/E10 BUSH SET

11 AS46 NUT

12 MB1 MOTOR BRACKET -STEEL

13 E7 BASKET

14 D30A BLADE SET -TURBO

14A D30B BLADE - BAR

15 E13I BOLT - ELECTRIC

17 E11ATB BOSS GREEN

17A E11A BOSS YELLOW

18 D28A CUTTING DISC

19 ESW1 WASHER

20 GS3 SCREW

21 D1C LOWER HANDLE

22 CH1 CABLE HOOK

23 D3 CLAMP

24 E15S SWITCH

25 D1B HANDLE

26 E16A CABLE 25M - 2200W

26A E16E CABLE 25M - 2600W

27 E18 SCREW

Please Note: This Pricelist only serves as a guide for pricing as it is not possible under the

Retail Price Maintenance Act to fix retail prices. ALL PRICES INCLUDE VAT.

ALRITE MIRAGE 3000 LAWN MOWER DIAGRAM & SPARE LIST

For safety use, make sure a three-month clean the machine. Before working, make sure inspect the ﬁlter and the nozzle,

make sure there is no impurity. After working, make sure there is no water in the pump and the hose.

If the machine need to be repaired in the guarantee period, please return the machine to the shop. You need to provide the

certiﬁcate of purchase in order to repair or get the substitute.

Before Packaging, The machine should be cleaned, then use closed packaging, packaging should be ﬁrm. Storage the

machine in dry.

For transportation safety. The machine should comply with ISTA.

Meaning of crossed –out wheeled dustbin:

Do not dispose of electrical machines as unsorted municipal waste, use separate collection facilities.

Contact you local government for information regarding the collection systems available.

If electrical machines are disposed of in landﬁlls or dumps, hazardous substances can leak into the groundwater and get

into the food chain, damaging your health and well-being.

When replacing old machines with new ones, the retailer is legally obligated to take back your old machine for disposals

at least free of charge.

INSPECTION & MAINTENANCE



Purchaser’s Name & Address

Product Name

Product Serial No.

Invoice / DN No.

Date of Delivery

Dealer’s Ofﬁce Seal

Dealer Sign

Customer Sign.

I/We accept the terms and conditions of Warranty

as in the Warranty Card.

Purchaser’s Name & Address

Product Name

Product Serial No.

Invoice / DN No.

Date of Delivery

Dealer’s Ofﬁce Seal

Dealer Sign

Customer Sign.

I/We accept the terms and conditions of Warranty

as in the Warranty Card.

Purchaser’s Name & Address

Product Name

Product Serial No.

Invoice / DN No.

Date of Delivery

Dealer’s Ofﬁce Seal

Dealer Sign

Customer Sign.

I/We accept the terms and conditions of Warranty

as in the Warranty Card.

Alrite Mirage 3000 Lawn Mower

Warranty Card CUSTOMER COPY

Warranty Card DEALER’S COPY

Warranty Card COMPANY COPY

1. LIMITED WARRANTY PERIOD : For a period of six months from the date of Sale / delivery of the product which ever is earlier. 2. LIMITED

WARRANTY OBLIGATION : Replacement of defective part(s) by authorized dealer are free of charges. If found defective by reasons of defective

material / poor workmanship, parts will be replaced and there will be no value re-imbursement. 3. TERMS & CONDlTlONS : a. Claims under

warranty will be accepted on submission of Warranty Card duly ﬁlled and stamped by authorized dealer together with the original purchase

document. : b. Shipping / transportation / Incidental charges incurred in replacing defective parts under warranty shall be borne by the purchaser.

WARRANTY null & void if

(i) Lack of maintenance, (ii) Incorrect use of the machine or tampering, (iii) Use of non-genuine spare parts, (iv) Usage of acids, solvents, or any

ﬂammable materials, (v) Non-usage of ﬁlter water / clear water / soft water & using water above 40°C temperature, (vi) While using the pressure

washers to draw water which is contaminated with dust & solvents (eg. paint thinners, gasoline, oil, etc.), (vii) Repair done by unauthorized

service people, (viii) Those parts subject to wear & tear due to normal operations and plastic parts, rubber items etc, (ix) Loose connections,

faulty electrical ﬁxtures & ﬂuctuations in power supply.

4. Should any failure occur during or after the warranty period, customer does not have the right to interrupt payment / price discount.

5. Incidental or consequential damages like inconvenience commercial loss, loss of tie, mental agony etc.

6. Loss of any nature due to operation or non-operation is not covered under warranty.

7. All free service are at Dealer’s service point only.

8. Warranty ceases if service is not done periodically.

9. The attached card should be completed and returned to Ratnagiri Impex Pvt. Ltd. for registration immediately after sale / delivery.

10. The warranty is void unless you register the warranty card with Ratnagiri Impex Pvt. Ltd.

11. The decision of Ratnagiri Impex Pvt. Ltd., in settling the warranty is ﬁnal in all respects.

12. All disputes are subject to Bangalore Courts Jurisdiction
