About this user manual
5
About this user manual
Thank you for choosing our product. We hope you enjoy using this
appliance.
Read the safety instructions carefully before using the appliance for the
first time. Note the warnings on the appliance and in the user manual.
Always keep the user manual close to hand. If you sell the appliance or give it away,
please ensure that you also pass on this user manual. It is an essential component of
the product.
Explanation of symbols
If a block of text is marked with one of the warning symbols listed below, the hazard
described in that text must be avoided to prevent the potential consequences
described there from occurring.
DANGER!
This keyword denotes a high-risk hazard situation which will result in death or serious
injury if it is not avoided.
WARNING!
This keyword denotes a medium-risk hazard situation which can result in death or a
serious injury if it is not avoided.
CAUTION!
This keyword denotes a low-risk hazard situation which can result in moderate or
minor injuries if it is not avoided.
NOTICE!
This keyword serves as a warning for possible damage to property.
This symbol provides useful additional information for assembling or
operating the appliance.
About this user manual
6
Follow the instructions in the user manual!
Warning: risk of electric shock!
Warning: danger due to combustible and/or highly flammable
substances!
R600a
Warning: danger due to the highly flammable R-600a refrigerant.
Warning: risk of explosive materials!
• Bullet point/information on steps during operation
− Instruction to be carried out
b
a

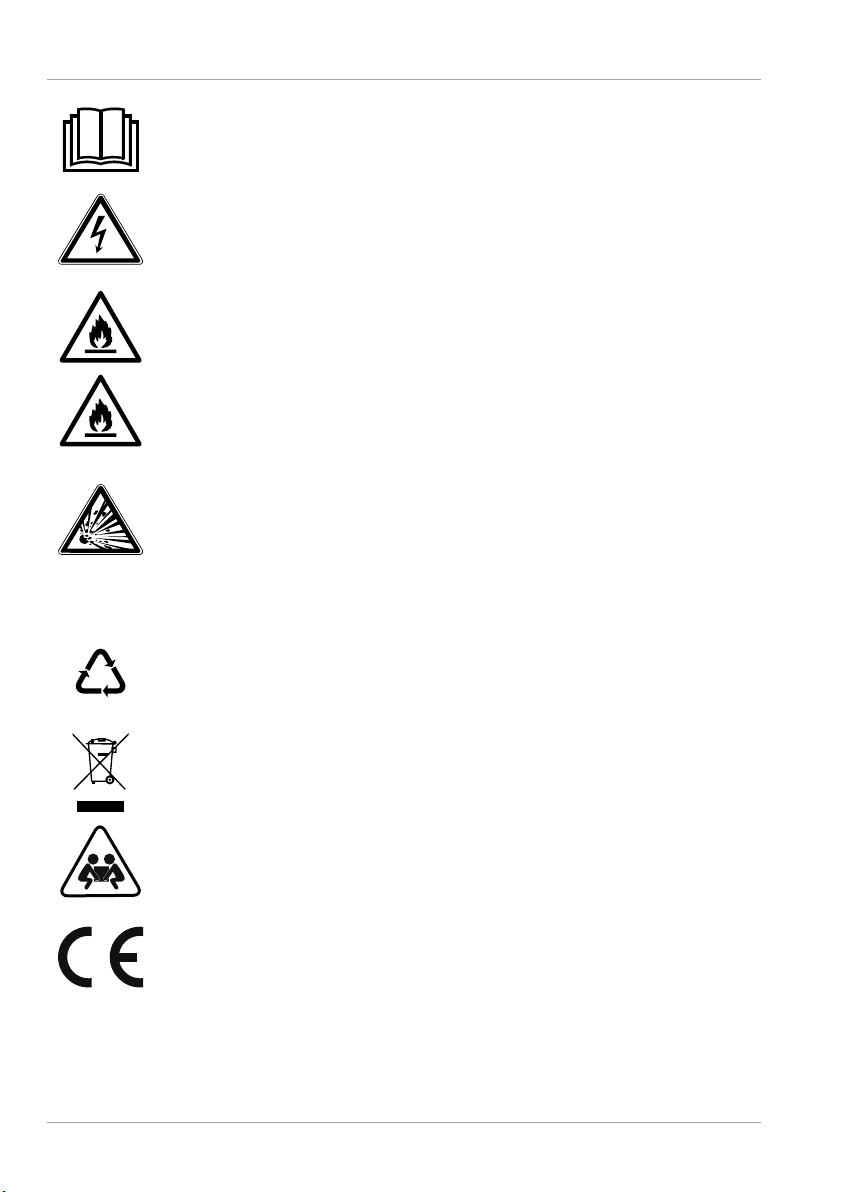

Packaging material label regarding waste separation. Label includes
abbreviations (a) and numbers (b) with the following meaning: 1–7:
plastics/20–22: paper and cardboard/80–98: composite materials.
Dispose of the appliance in compliance with environmental regulations
(see section “Disposal”)
Caution! The appliance is heavy!
Seek the assistance of another person to move the appliance or use
mechanical aids!
Products that feature this symbol meet the requirements of the EU
directives (see section entitled “Declaration of Conformity”).
Proper use
7
Proper use
This appliance is intended to be used for cooling food. This
appliance is designed for use in private households and similar
household applications, such as:
−Staff kitchens in shops, offices and other workplaces
−In agriculture and by guests in hotels, motels and other
types of accommodation
−Bed-and-breakfast establishments
−Catering establishments and wholesale use
When used in commercial areas, the regulations that apply there
must be observed.
Please note that we shall not be liable in cases of improper use:
−Do not modify the appliance without our consent and
do not use any auxiliary equipment that we have not
approved or supplied.
−Only use replacement parts or accessories that we have
supplied or approved.
−Comply with all the information in this user manual,
especially the safety information. Any other use is
considered improper and can cause personal injury or
property damage.
Safety information
8
Safety information
IMPORTANT SAFETY INSTRUCTIONS – READ CAREFULLY AND KEEP FOR
FUTURE REFERENCE!
− This appliance can be used by children over the age of 8 and
by persons with reduced physical, sensory or mental abilities or
by those with limited experience and/or knowledge, provided
that they are supervised or have been instructed in how to use
the appliance safely, and have understood the associated risks.
− Children must not be allowed to play with the appliance.
− Children between the ages of 3 and 8 are allowed to load and
remove items from refrigerating appliances.
− Cleaning and user maintenance must not be carried out by
children, unless they are aged 8 or over and are supervised.
DANGER!
Risk of choking and suffocation!
There is a risk of choking and suffocation due to swallowing or
inhaling small parts or plastic wrap.
− Keep all packaging materials used (bag, pieces of polystyrene
etc.) out of reach of children.
− Keep children away from the appliance inner. If the refrigerator
door is closed, there is a risk of suffocation!
Safety information
9
General safety instructions
WARNING!
Risk of injury!
The appliance’s refrigeration system contains R-600a refrigerant.
If the refrigerant escapes, there is a risk of injuries.
− WARNING! Do not damage the refrigerant circuit.
− If the refrigeration system has nevertheless become damaged,
ventilate the room. Avoid naked flames and ignition sources.
Have the appliance repaired by a qualified technician before
using it again.
− If refrigerant comes into contact with the skin or eyes, this can
lead to injuries. If necessary, rinse the eyes with clean water
and consult a doctor.
− WARNING! Do not operate electrical appliances inside
the cooling chamber that do not conform to the design
recommended by the manufacturer.
− Tampering with the refrigerant circuit is prohibited and
invalidates the warranty.
WARNING!
Risk of fire!
There are flammable liquids in the coolant circuit and the
compressor.
− Note the fire hazard warning signs on the back of the appliance
or the compressor.
− Avoid naked flames and ignition sourceswhen using,
maintaining and disposing of the appliance.
Safety information
10
Transport
CAUTION!
Risk of injury!
The appliance is heavy. There is a risk of injury from the strain of
lifting the appliance.
− Seek the assistance of at least one other person in order to
move the appliance.
NOTICE!
Risk of damage!
Risk of damage to the appliance if transported incorrectly.
− Make sure that the packaging is not damaged.
− Carefully remove the packaging material and check the
appliance for transport damage.
− Never connect a damaged appliance. In the event of damage,
contact our Service Centre.
− Always transport the wine cooler in its packaging and with the
transport lock.
− Ensure that no part of the refrigerant circuit is damaged when
transporting and installing the appliance.
− Where possible, always transport the appliance upright. If tilted
to an angle of more than 40° during transport, wait 2–3 hours
before connecting it to the mains and switching it on to enable
the refrigerant circuit to settle after transport.
− Do not place the appliance on its side or back, as this can cause
oil from the compressor to enter and block the refrigerant
circuit.
− Do not expose the appliance to rain or spray water.
Safety information
11
Installation and electrical connection
Location
NOTICE!
Risk of damage!
Risk of damage to the appliance due to improper handling.
− Install the refrigerating appliance in a dry and ventilated room.
The room should be approx. 4m² to ensure that sufficient
air volume is available if the refrigeration system becomes
damaged.
− Take the space requirements into consideration when setting up
the appliance (see “Setting up and levelling the refrigerator” on
page 19).
− The appliance is suitable for climate classes ST and N (see
the type plate). The cooling performance of the appliance
is guaranteed at ambient temperatures from 16 °C to 38°C.
If temperatures deviate from this range, the appliance
performance may be reduced.
− Do not use the appliance outdoors.
− Do not expose the appliance to extreme conditions. Avoid:
−high humidity or wet conditions
−extremely high or low temperatures
−direct sunlight
−open flames.
− Never place the appliance with the front edge along the edge
of a table top or shelf, because there is a risk of the appliance
tipping forwards and falling if the door compartment is
overloaded. Take care to ensure that there is adequate space
in front of the appliance so that when opening the door, the
door lies on the storage surface when the appliance is tipped.
Safety information
12
Always load the cooling chamber first and then the door
compartment.
WARNING!
Risk of fire!
Insufficient air circulation can lead to heat accumulation.
− Make sure that the ventilation openings in the housing, around
the appliance and in the installation niche are not blocked.
− To ensure adequate ventilation, a minimum clearance of 30
cm to the top, 10 cm to the sides and 10 cm to the back must be
observed.
− Do not install near heat sources such as hobs, radiators,
underfloor heating etc. If installation near a heat source cannot
be avoided, use an appropriate insulation panel or maintain
the following minimum clearances to the heat source:
−from electric or gas ovens or similar: approx. 10 cm
−from oil or coal-fired ovens: approx. 30 cm
−If installed next to another refrigerating appliance, a
minimum distance of 10cm from the side is required.
− The appliance is not designed to be an integrated appliance.
Before connection
WARNING!
Risk of electric shock!
There is a risk of electric shock due to live parts.
− After installing the appliance, check that the mains connection
cable is not squashed or damaged.
− Do not operate the appliance if it has been visibly damaged or
the mains cable or plug is defective.
− In the event of damage, contact our Service Centre.
Safety information
13
Mains connection
WARNING!
Risk of electric shock!
There is a risk of electric shock due to live parts.
− Connect the appliance to a properly installed, earthed safety
socket which is easily accessible and close to the place of
installation. The local mains voltage must match the voltage
stated in the technical specifications for the appliance.
− The power socket must be easily accessible so that you can
unplug the appliance from the mains quickly if necessary.
− WARNING! Ensure the mains cable is out of harm’s way and will
not trip people up. Do not allow the mains cable to become
trapped or damaged.
− Do not use an extension cable.
− WARNING! Do not connect portable multiple sockets or power
supplies to the back of the appliance.
− In order to de-energise the appliance completely, pull the
mains plug out of the socket.
Use of the appliance
WARNING!
Risk of explosion!
Flammable gases and liquids can cause explosions if stored in the
appliance.
− Do not store any explosive materials, e.g. aerosol containers
containing propellant gas, in the appliance.
Safety information
14
WARNING!
Risk of injury/risk to health!
Improper handling of the appliance can lead to injuries.
− Do not misuse the plinth, drawer compartments, doors etc. as a
step or for support.
The appliance may not work properly (temperature increase)
if the appliance is exposed to temperatures that fall below the
specified intended temperature range for a prolonged period of
time (below 16°C).
In case of power failure or a switched off appliance, stored
foodstuffs may spoil. There is a risk of food poisoning.
− If there has been a power failure, check that the food which is
stored in the appliance still looks and smells safe to eat.
− Do not store medicines, laboratory specimens or other
temperature-sensitive products that are subject to the Medical
Devices Directive 2007/47/EC inside the refrigerator.
− Ensure cleanliness and correct storage of food.
Cleaning and maintenance
WARNING!
Risk of electric shock!
There is a risk of electric shock due to live parts.
− Before starting any cleaning or maintenance work, pull the
mains plug out of the earthed mains socket (pull on the
plug, not the mains cable). If the plug is not accessible, the
corresponding fuse for the mains electricity supply to the
house needs to be switched off.
− Do not touch the mains plug with wet hands.
Safety information
15
WARNING!
Risk of explosion and fire!
An accumulation of gas can lead to explosions.
− Do not use any flammable liquids to clean the appliance or any
part of the appliance.
NOTICE!
Risk of damage!
Damage to the appliance caused by improper handling.
− Do not operate any electrical appliances for cleaning inside the
refrigerator. Both appliances may be damaged irreparably.
− WARNING! Do not use any mechanical appliances or means to
accelerate defrosting other than those recommended by the
manufacturer.
− Do not use any abrasive or harsh cleaning agents on the inside,
door or housing of the appliance as these could damage the
surfaces.
− Do not allow oil and grease to come into contact with the plastic
parts and the door seal as the surface can become porous and
brittle.
Faults
WARNING!
Risk of electric shock!
There is a risk of electric shock due to live parts.
− Never try to open and/or repair an appliance component
yourself.
Information on the appliance
16
− If there is damage to the mains connection cable on this
appliance, it must be replaced by the manufacturer, their
customer service department, or another suitably qualified
person. This is necessary to avoid hazards.
− In the event of a fault, contact our Service Centre or another
suitable professional repair workshop.
Disposal
DANGER!
Risk of choking and suffocation! Risk of injury!
To avoid risks to children, proceed as follows before disposing of
the appliance:
− Remove the refrigerator door and the seal or tape the
refrigerator door closed.
− Leave the wire shelf in the appliance so that no-one, for
example children, can climb into the appliance.
Information on the appliance
• The appliance uses refrigerant R-600a (HCFC- and CFC-free) in the refrigerant
circuit.
• The refrigerant circuit has been checked for leaks. This complies with the
relevant safety regulations for electrical appliances.
• Energy efficiency class E
• Climate class N, ST
The different climate classes are explained in the following table.
Climate class Meaning Ambient temperature
SN Appliances for subnormal
climate
+10°C to +32°C
N Appliances for normal climate +16°C to +32°C
ST Appliances for subtropical
climate
+16°C to +38°C
T Appliances for tropical climate +16°C to +43°C
Package contents
17
Information regarding refrigerant R-600a
R-600a and cyclopentane are used as 100% HCFC-free refrigerant and insulating
materials in this appliance. This helps to protect the ozone layer and reduces the so-
called greenhouse effect.
These appliances can be identified by the “Refrigerant R-600a” notice on the type
plate.
− Ensure that the refrigerant circuit is not damaged, as small quantities of R-600a
can contribute to the greenhouse effect if released.
− This applies both when transporting the appliance and throughout its service
life.
− Also ensure that you dispose of this appliance correctly according to local
regulations.
Package contents
DANGER!
Risk of choking and suffocation!
There is a risk of choking and suffocation due to swallowing or
inhaling small parts or plastic wrap.
− Keep the plastic packaging out of the reach of children.
− Remove the product from the packaging and remove all packaging material.
− Please check your purchase to ensure that all items are included and in perfect
condition. If anything is missing or damaged, please contact us within 14 days of
purchase.
The following items are supplied with your product:
Table top fridge, incl.
• 1 x shelf
• 1 x storage tray
Appliance overview
18
Appliance overview
A
11
10
8
9
6
5
A
B
C
D
E
12
2
3
1
4
7
1Storage tray
2Container shelf
3Bottle rack
4Refrigerator door
5Lower hinge with adjustable foot
6Adjustable foot
7Mains cable with plug (on the back, not shown)
8Cooling chamber
9Temperature control, can be set to level 0–5 (at rear, not shown)
10 Wire shelf
11 Ice cube compartment
12 Upper hinge
Before operation
19
The type plate is located on the back of the appliance.

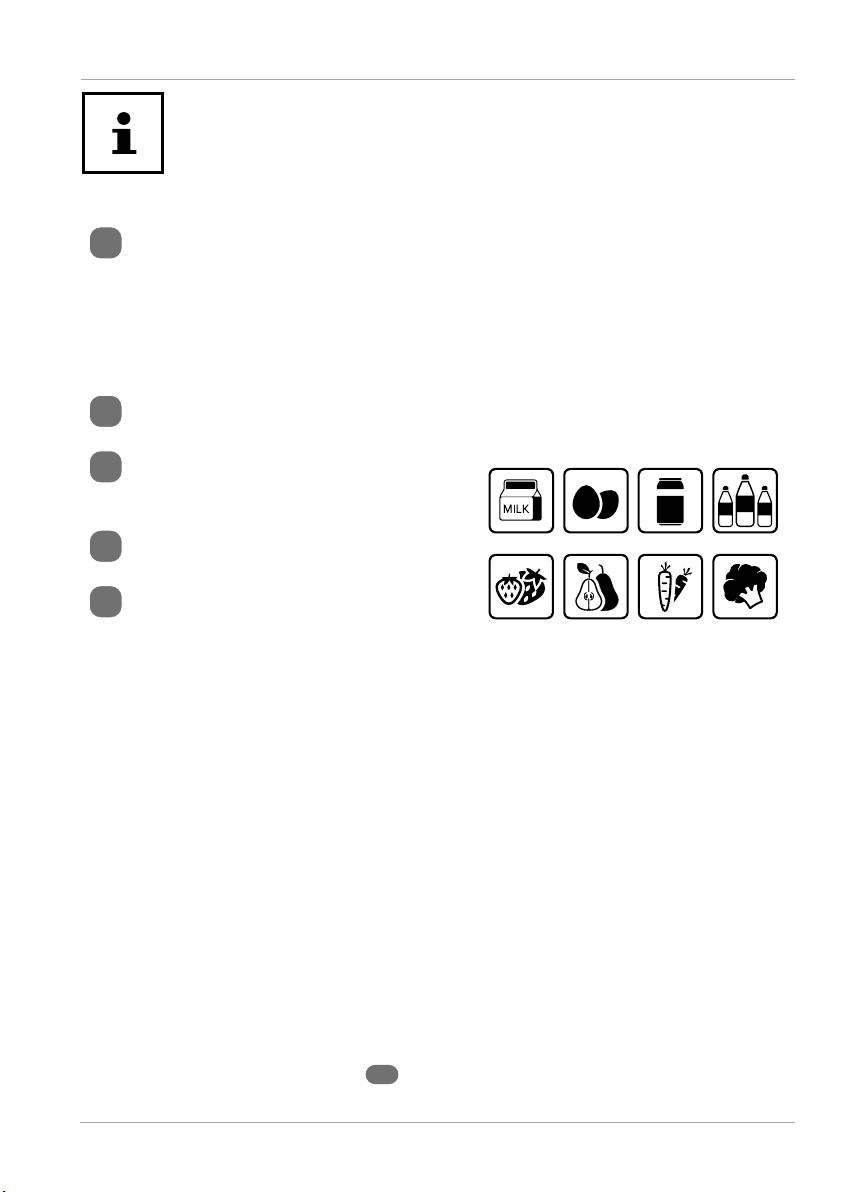

Store the food in appropriate containers as follows:
AThe ice cube compartment is suitable:
• for making ice cubes
• for storing fresh pork, beef, fish, chicken, some ready-made
products etc. (we recommend that these products are eaten the
same day, preferably do not store for longer than 3 days).
• Not suitable for freezing fresh food.
BRecommended for cheese, baked
goods, ready meals
The recommended storage of food is
indicated by the following symbols
in the cooling chamber:
CRecommended for eggs, butter,
products to be consumed the same
day
DRecommended for jam, tins, glass
containers
ERecommended for milk, drinks
Before operation
− Unpack the appliance and remove the adhesive tape.
Use a mild cleaning agent to remove any adhesive residues.
− Dispose of the expanded polystyrene padding separately from the other
packaging.
− Rinse the inside of the appliance and the fittings with lukewarm water and mild
cleaning agent and allow to dry.
Setting up and levelling the refrigerator
The refrigerator must be levelled on a flat surface by screwing in the screw feet to
compensate for any unevenness in the floor.
Place the appliance in an appropriate location (see also section “Location” on page
11).
Level the refrigerator with a spirit level.
To fully open the refrigerator door 3, the room dimensions stated below must be
available (see Fig. 1 and 2).
Before operation
20
1
ca. 51 cm
ca. 30 cm
ca. 98 cm
ca. 88 cm
ca. 5 cm
5cm 5 cm
2
Changing the door hinge over to the opposite side
The refrigerator is supplied with a door hinged on the right-hand side. If you would like
to change the door hinge over to the opposite side, proceed as follows.
Required tools:
• Small flat-head screwdriver
• Phillips screwdriver
The mains plug 8has been unplugged.
− Empty the refrigerator – including the shelf.
− Remove the hinge cover on the right-hand side, for example using a flat-head
screwdriver.

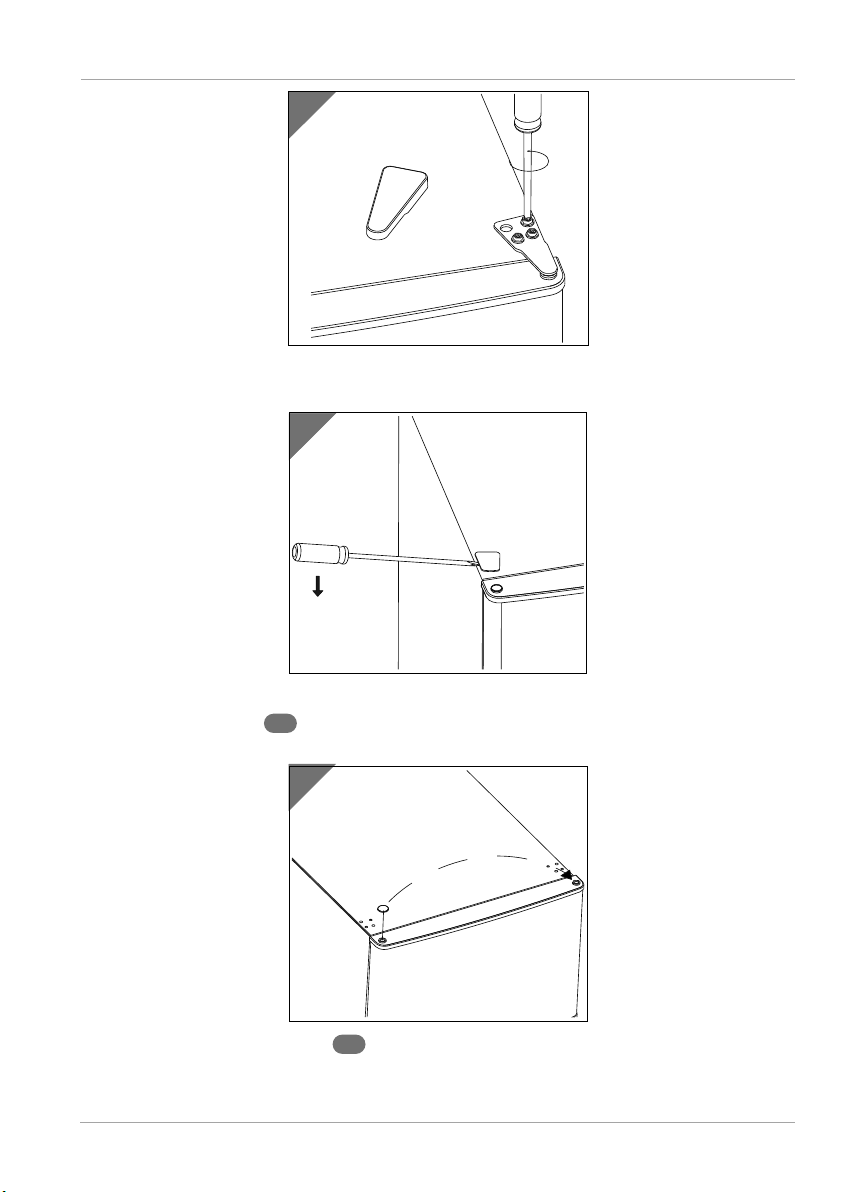

3
− Use a Phillips screwdriver to loosen the three screws on the upper hinge 12 (see
Fig. 3).
Before operation
21
4
− Remove the screw hole cover on the left-hand side, for example using a flat-
head screwdriver.
5
− Remove the blind plug for the hinge pin from the left-hand side of the
refrigerator door 4and insert it in the hole on the right-hand side. Place the
refrigerator on its back.
6
− Unscrew the lower hinge 5and then unscrew the adjustable foot.
Table of contents
