AMPTech 3 User manual

SOFTCLOSE AUTOMATIC
MODEL 3
INSTALLATION INSTRUCTIONS
V. M3 SOC20-MKIII

Table of Contents
About these instructions 3
Preparations 5
List of the tools required for the installation 5
List of the scope of delivery 6
Installation 7
Remove the door panel from 7
Remove the window paneRemove the 9
Plastic the door 11
Replace the lock unit and cabling 13
Power supply 20
Installation of the rear door 28
System test 33
Checklist 34
Dismantling 35
2

About these instructions
Product descriptions
All specifications and descriptions of the products in this installation
manual were verified and checked at the time of creation and applied to
the respective versions in the manual named version. We reserve the right
to modify and improve the products at any time.
Errors and inaccuracies
If you notice any errors or inaccuracies in this installation guide, or if you
notice that some descriptions are not complete, please use the following
email for your feedback: [e-mail].
Copyright
This document is protected by copyright and is the intellectual property of
AMP Engineering GmbH. The contents of this manual may not be
modified, reproduced or copied in whole or in part without the express
written consent of AMP Engineering GmbH. Likewise, the commercial use
of this manual is prohibited.
Safety instructions
The Softclose automatic system has been designed to enable convenient
and safe opening and closing of the doors. Nevertheless, as such it does
not replace visual inspection. Therefore, always check that the doors are
closed before starting a journey or when removing yourself from your Tesla.
In any case, the safety instructions marked " 🚫 CAUTION:..." in these
instructions must be observed. In case of disregarding the safety
instructions and resulting damages to the AMPTech components or even
vehicle parts, the warranty claim as well as any liability for damages or
consequential damages expires due to own fault (see GTC's on
www.amptech.store/agb/, V. Liability). If you have any questions or
problems with the Softclose automatic, please contact AMPTech under the
phone number [phone] or the e-mail [email protected]ore.
3

Preparations
To ensure that the installation can be carried out quickly, tools required for
the installation should be provided before starting. The tools required are
listed below.
List of required tools for the installation
tool list
Position
Description
1
chuck
2
soft surface (ceiling o. Ä.)
4
Shear
5
Plastikmontierhebel
7
ratchet / ratchet
8
socket set / nut
9
cordless screwdriver
10
tape
11
cutting tool (knife)
12
Torx set
13
flashlight
14
tape
15
antirust
16
cable lubricant
17
guidewire
18
Alubutyl
💡 Tip
A commercially available toolbox contains many of the
tools you need.
4

Please check the scope of delivery of the order before starting the
installation.
List on the package
delivery
Position
Description
1
4 SoftClose motors
2
4 lock units
3
4 harnesses
4
4 support rails
5
6 screws
6
12 rubber stopper
7
4 plastic caps
8
Power Splitter Y-cable
9
2x power supply harnesses
10
cable tie
After checking the contents and the provision of tools can be continued
with the installation instructions
5

Installation instructions
Before proceeding to the removal of the door panels and footwell trim, it is
advisable to expose storage areas for the parts removed during the
installation. In addition, it is helpful to keep the clamps and screws that will
be removed sorted.
These installation instructions describe the installation of the softclose
mechanism on the two doors of the vehicle on the left in the direction of
travel. On the right-hand side of the vehicle in the direction of travel, the
installation is identical and can therefore be carried out according to the
same instructions.
💡 Tip
Start the installation from the driver's door.
Remove the door mounting lining Remove lever
levering
●Remove the tweeter with a plastic mounting lever by placing the
plastic mounting lever below the speaker and levering it upward
(Figure 1
Figure 1: Levering the tweeter

Installation Guide
●Loosen the connector plug behind the speaker. This is locked with a
barb. To do this, lever the plug with a flat-blade screwdriver and pull
the plug out at the same time (Figure 2)
Figure 2: Loosening the bar mounting
●Lever out the reflector on the outside of the driver's door with a
plastic mounting lever (Figure 3)
Figure 3: Removing the reflector
●Loosen the plastic cover on the bottom of the door panel armrest
(Figure 5).
●Loosen all three screws (T27, Torx) used to secure the door trim.
These are located under the reflector, underneath the removed
plastic cover and underneath the door armrest (Figure 4, 5 and 6)
7

Installation Guide
Figure 4 (left), Figure 5 (center), Figure 6 (right):to be
Screws Removed from the door panel
●Slide a plastic mounting lever under the door panel and reach under
the door panel at the bottom of the door panel with both hands. Pull
the door trim jerkily with both hands to release it. The door trim is
hooked at the upper end. You can lift the door trim out upwards.
●Feed the tweeter cable through the grommet
●Remove the felt cover so that you can access the bowden cable and
the plug connections of the cable harness.
💡 Tip
The felt cover is susceptible to cracking. Therefore,
remove the felt cover carefully.
●Remove the Bowden cable from the device.
●Loosen all the clamps with which the wiring harness is attached to
the door trim.
●Loosen the plug connections. These are connected according to the
barb principle
window pane remove
●connecting the plug of the window pane the motor (Figure 7)
8

Installation Guide
Figure 7: plug of the window pane motor
●Remove the two rubber seals on the door (Figure 8). Depending on
the position, the window pane itself or the frame of the window pane
can be seen behind the rubber seals
Figure 8: rubber seals
●Position the window pane so that both screws in the window pane
socket can be seen through the opening
●Disconnect the window pane motor connector. You can place the
door panel on an exposed storage surface
💡 Tip
Mark the position of the window pane (e.g. with
insulating tape). This way you can put the window back
in the same position later.
9

Installation Guide
●Loosen both screws from the window pane socket (14mm,
hexagonal). A second person should hold the window pane at all
times (Figure 9).
🚫 Attention: After the door panel and all plugs have been
loosened, the window moves higher than normal. The door must therefore
no longer be closed to prevent the window pane from hitting the chrome
strip!
🚫 Attention: Should Remove the window panes second person be
called in to!
Figure 9: Removing the screws in the window frame
●Remove the seal from the window pane. This is fixed at the outer end
with plastic clips in the door casserole and can be lifted up after
these have been released.
●Carefully lift the window pane out of the door and place it on a safe
surface.
💡 Tip
Tilt direction of the window pane in thewhen curvature
lifting it out.
Remove the plastic cover from the door.
●Disconnect the connectors below the tweeter that has already been
removed (Figure 10). These connectors must also be disconnected
from the rail below. To do this, lever the retainer of the plugs out of
the barb on the underside of the plugs and then slide the plugs
downwards out of the rail. The blue-colored plug in Figure 10 is not
held by a barb
10

Installation Guide
Figure 10: Connector below the tweeter
●Disconnect the plugs above the speaker (Figure 11). The upper
connector of the airbag sensor is secured with a locking pin. Pull the
locking pin down and then lever it to remove the connector
plug.Figure 11: Plug connections to be removed
●Disconnect the wiring harness from the plastic trim of the door by
loosening the clamps at the attachment points with a pulling
motion
●Remove the five screws (8mm, hexagonal) around the motor of the
window pane to detach it from the plastic trim behind it (Figure 12)
11

Installation Guide
Figure 12: Screws to be removed from the window pane
●Press the safety clamp out of the holder (Figure 13)
Figure 13: Safety
●Loosen all 12 screws (8mm, hexagonal) of the plastic trim (Figure 14).
The plastic trim is fixed at the upper left and right edge each with a
safety clip. Pull out the plastic trim at the upper left and right edges
and feed the wiring harness through the opening in the plastic trim.
Removing the plastic cladding
🚫 Attention: MotorThe window stays in the door!
12

Installation Guide
Figure 14: Screws to be removed from the plastic cladding Guide
●Feed the cables through the opening of the plastic trim and remove
the plastic trim from the door
Replacing the lock unit and wiring
●Remove the rubber seal (Figure 15) and loosen the nut that can be
seen behind it (10mm, hexagon). Push the black-colored cross strut
backwards so that the associated screw slips through the opening.
This allows the black-colored cross strut to be tilted and makes it
easier for you to reach the door's clamping unit.
Figure 15: To remove rubber seal
●Remove the three screws (T15 Torx), to remove the closing unit
(Figure 16)
13

Installation Guide
Figure 16: Screw the clamping unit
●Loosen the locking pin of the plug on the lock unit and uncouple the
plug. Tilt the black-colored cross strut away from the lock unit and
remove the lock unit from the door. Pull the bowden cable out of the
bushing
💡 Tip
The AMPTech lock units are clearly differentiated by the
Bowden cable head. The lock units for the front doors
have a cap instead of a bowden cable lug. The lock units
for the two rear doors have a Bowden cable lug (Figure
17).

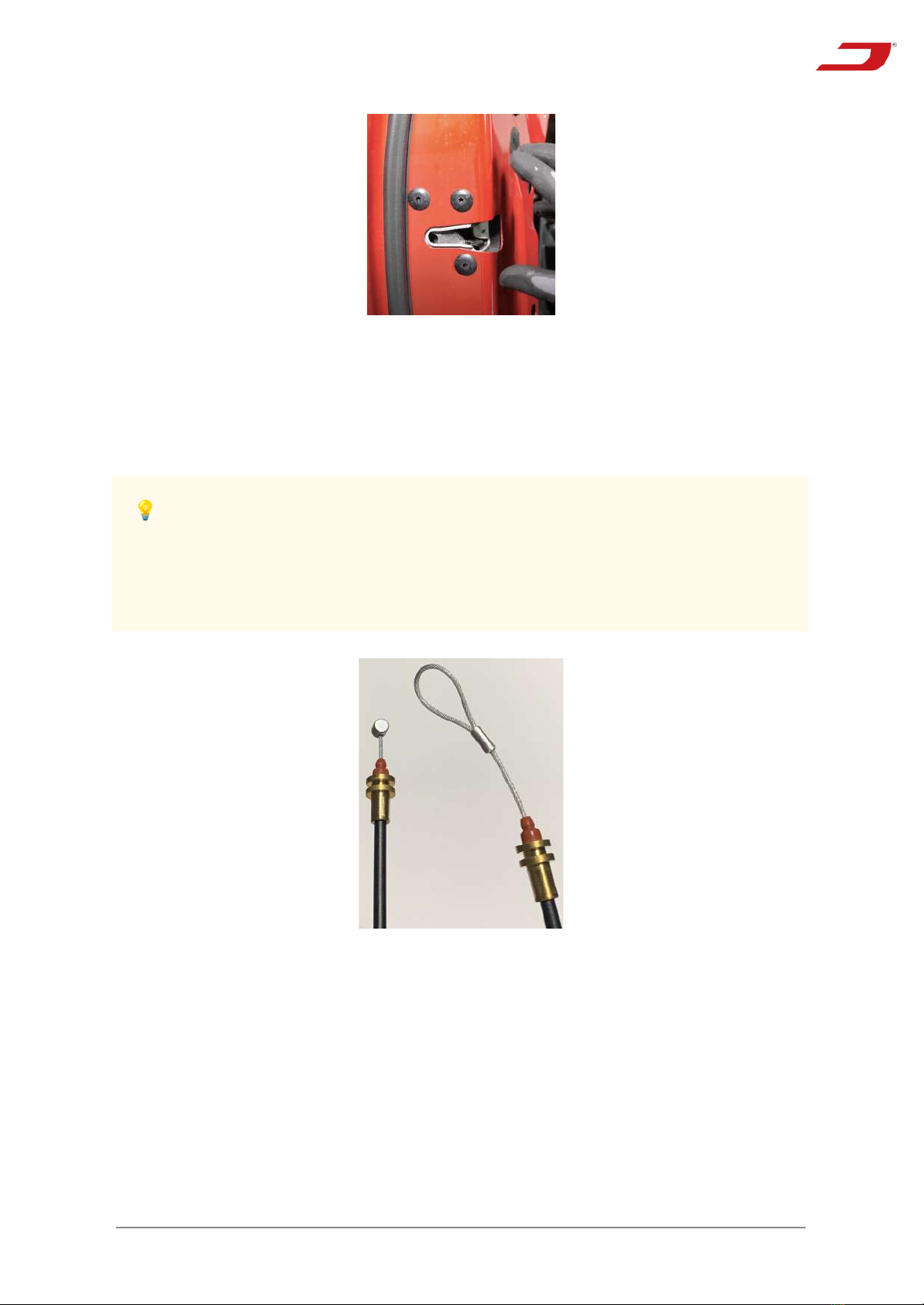

Figure 17: Bowden cable head (left) and Bowden cable tab (right)
●Attach the Bowden cable of the motor to the lock unit. There is a
device for this on the lock unit (Figure 18 and 19)
14

Installation Guide
Figure 18 (left) and 19 (right): Attaching the motor Bowden cable to the lock
unit Attach
●the correct plastic cap from the scope of delivery to the device
(Figure 20)
Figure 20: Bowden cable cover
💡 Tip
It is recommended that the plug at the Bowden cable
end of the lock unit before reinsertion. This is
time-saving, but not necessary. Make sure that the
15

Installation Guide
length of the cable for the front door must be longer
than for the rear door. The harnesses are designed
accordingly (Figure 21).
Figure 21: Cable harness
●Two different mounting rails are included in the scope of delivery
(Figure 22)
Figure 22: Mounting rail front door (left), rear door (right)
●The mounting rails on the left side in Figure 22 are installed in the
front doors and the mounting rails on the right side are installed in
the rear doors. First, the installation of the left mounting rail will be
discussed
●Press 3 rubber plugs into each of the marked locations (Figure 22).
The larger hole remains free
16

Installation Guide
●Attach the motor to the rubber plugs by pushing the head of the
rubber plugs into the latch provided on the motor (Figure 23)
Figure 23: Insertion of the rubber stopper
●Disconnect the thin orange cable at the motor and insulate it. The
cable currently performs no function
●Insert the rail with the motor in the front of the door and press the
mounting rail into the two body screws (Figure 24)
Figure 24: Fastening Without motor
17

Installation Guide
●Push the white colored clamp that holds the OEM harness out of the
socket. Position the other end of the rail so that the hole on the rail
and the socket of the white colored clamp are on top of each other.
Fasten the rail in this position with a screw from the scope of delivery
and press the white-colored clamp into the slotted hole of the rail
located under the hole (Figure 25).
Figure 25: Fastening the rail
●Connect the gray colored connector of the wiring harness with the
red locking pin to the connector of the engine
●Align the lock unit with the door body and secure the lock unit with
the same screws you loosened
●Connect the previously removed connector to the lock unit (Figure
26)
Figure 26: Upper connection of the lock unit
●Connect the black colored connector of the wiring harness to the
connector at the lower end of the lock unit
18

Installation Guide
●Pull the bowden cable of the lock unit through the grommet and
seal with the rubber plug hanging on the bowden cable wire
supply
●Remove the plastic cover between the dashboard and the door.
Lever on the upper end of the plastic cover with a plastic mounting
lever and then lift the plastic cover out upwards
●Loosen the terminal (Figure 27)
Figure 27: Fuse terminal
●Remove the footwell trim by simply pulling it off
●Loosen the fasteners of the footwell trim on the driver's side (Figure
28)
Figure 28: fortifications of the floorboards
19

Installation Guide
●Pull off the left fairing with a jerk and disconnect the connectors
behind it
●In order to loosen the fairing on the right in Figure 28, two further
fasteners must be loosened, which are revealed under the left fairing
(Figure 29)
Figure 29: Fastening of the right footwell trim
●Pull off the right trim
🚫 Attention: Since now the voltage supply is laid
the vehicle must be switched off! You switch off the vehicle on the
on-board computer in the settings under the menu item "Safety". To do
this, press the button "Switch off vehicle" and then wait then wait approx. 5
minutes. During this time doors must neither be opened nor closed. be
closed. Also make sure that there are no heavy objects in the area.
.
💡 Tip
A dull sound from the battery signals that the vehicle is
switched off.
●The basic structure of the power supply is shown schematically in
Figure 30
20
