Ancona Aero Island User manual

USER INSTRUCTIONS
RANGE HOODS
Model: Aero Island 36
IMPORTANT SAFETY INSTRUCTIONS
Carefully read the following important information regarding
installation safety and maintenance.
Keep these instructions for future reference.
RANGE HOODS
USER INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
Carefully read the following important information regarding
installation safety and maintenance.
Keep these instructions for future reference.
Model: Aero Island
06/28/2012

IMPORTANT SAFETY NOTICE
READ ALL INSTRUCTION BEFORE INSTALLING AND OPERATING THIS APPLIANCE
Model # Aero Island 36
•
•
• Activating any switch ON before completing installation may cause ignition or an explosion.
• Due to the size and weight of this range hood, two people installation is recommended.
•
•
•
•
•
•
•
•
• Old duct work should be cleaned or replaced if necessary to avoid the possibility of a grease fire.
•
•
The installation in this manual is intended for qualified installers, service technicians or persons with similar
qualified background. Installation and electrical wiring must be done by qualified professionals and in accordance
with all applicable codes and standards, including fire-rated construction.
Range hood may have very sharp edges; please wear protective gloves if it is necessary to remove any parts for
installing, cleaning or servicing.
To reduce the risk of fire, electric shock, or injury to persons:
For general ventilating use only. DO NOT use to exhaust hazardous or explosive materials and vapors.
The combustion air flow needed for safe operation of fuel-burning equipment may be affected by this unit's
operation. Follow the heating equipment manufacturer's guideline and safety standards such as those published by
the National Fire Protection Association (NFPA), and the American Society of Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE), and other local code authorities.
Before servicing or cleaning unit, switch power OFF at service panel and lock service panel to prevent power from
being switched ON accidentally.
Clean grease laden surfaces frequently. To optimize performance and to disperse air properly, make sure to vent air
outside. DO NOT vent exhaust into spaces between walls, crawl spaces, ceiling, attics or garages.
Ducted fans MUST always be vented to the outdoors.
Use only metal ductwork and this unit MUST be grounded.
Sufficient air is needed for proper combustion and exhausting of gases through the duct to prevent back drafting.
When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hid- den utilities.
All electrical wiring must be properly installed, insulated and grounded.
Check all joints on duct work to insure proper connection and all joints should be properly taped.
Use this unit only in the manner intended by the manufacturer. If you have questions, contact the vendor.
2

IMPORTANT SAFETY NOTICE
READ ALL INSTRUCTION BEFORE INSTALLING AND OPERATING THIS APPLIANCE
To reduce the risk of stove top grease fire:
Keep all fans, spaces, filters, grease tunnel*, oil container* and grease-laden surfaces clean. Grease should not be
allowed to accumulate on fan, baffle, spaces, filter, grease tunnel*and oil container*.
Use high settings on cooking range only when necessary.
Never leave surface units unattended at high settings. Boil overs cause smoking and greasy spillovers that may
ignite. Heat oils slowly on low or medium settings.
Always use appropriate cookware and utensils size.
Note: * if included with your model
To reduce the risk of injury to persons in the event of a stove top grease fire:
SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn OFF the burner.
BE CAREFUL TO PREVENT BURNS. NEVER PICK UP A FLAMING PAN—you may be burned. KEEP
FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames DO NOT go out
immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
DO NOT USE WATER, including wet dishcloths or towels — a violent steam explosion will result.
Use an extinguisher ONLY if:
• You know you have a Class A, B, C extinguisher, and you already know how to operate it.
• The fire is small and contained in the area where it is started.
• The fire department is being called.
• You can fight the fire with your back to an exit.
To reduce the risk of injury to persons in the event of a gas leaks:
Extinguish any open flame.
DO NOT turn on the lights or any type of appliance.
Open all doors and windows to disperse the gas. If you still smell gas, call the gas company and fire department.
Your safety and the safety of others is very important. We have provided many important safety messages in this manual and
on your appliance. Always read and obey all safety messages. All safety messages will tell you what the potential hazard is, tell
you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.
•
• Always turn range hood ON when cooking at high heat or when cooking flaming foods.
•
•
• Clean ventilating fan frequently.
•
• Always use cookware appropriate for the size of the surface element
•
•
•
•
•
•
3
Model # Aero Island 36
.

3

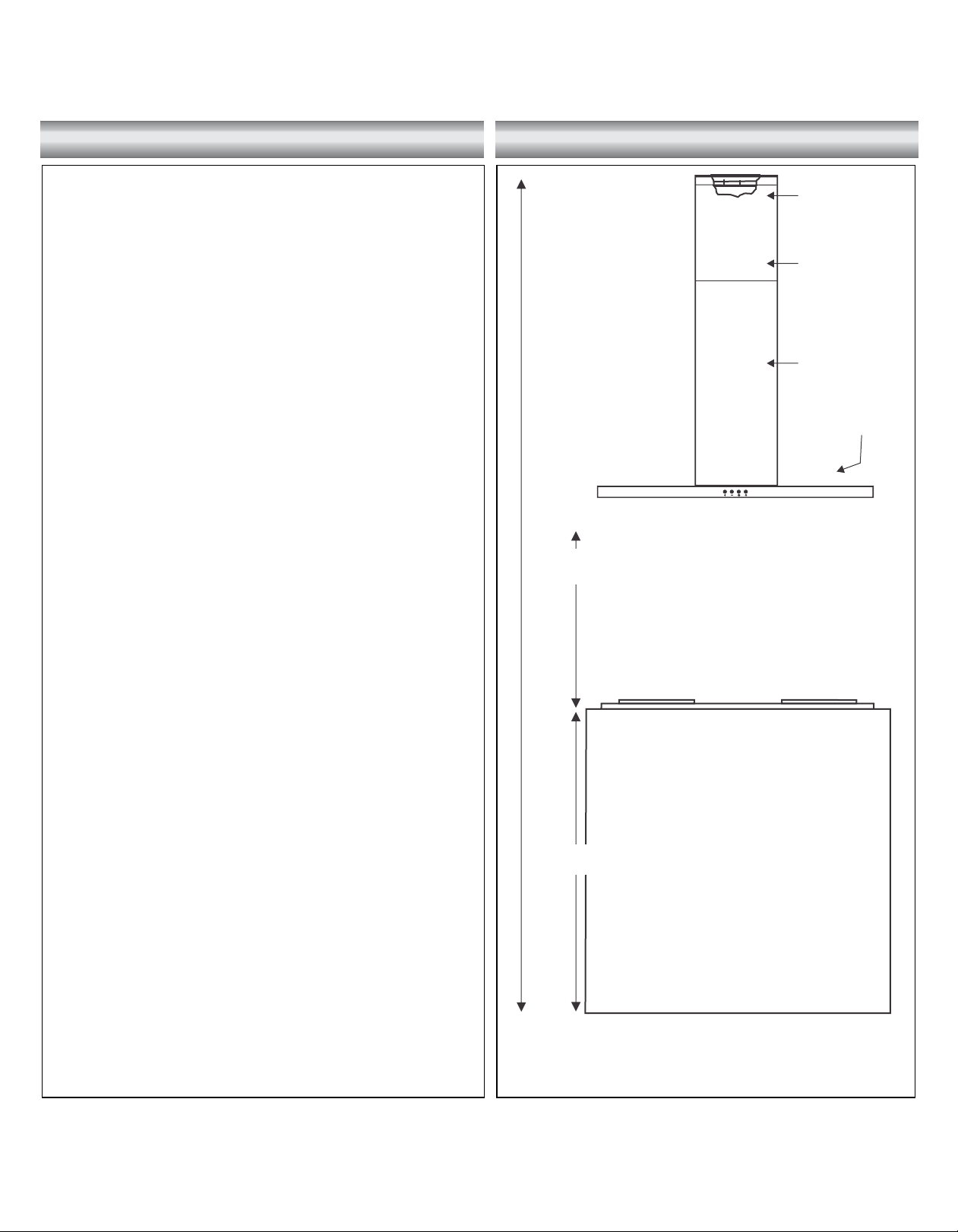

VENTING REQUIREMENTS : HEIGHT & CLEARANCE:
• Vent system must terminate to the outside
(Roof or side wall).
• DO NOT terminate the vent system in an attic or
other enclosed area.
• DO NOT use 4" (10.2 cm) laundry-type wall caps.
• Use metal/aluminum vent only. Rigid metal/
aluminum vent is recommended.
• DO NOT use plastic vent.
• Always keep the duct clean to ensure proper
airflow.
• Calculate the following figures before installation:
Distance from the floor to the ceiling
Distance between the floor to the
countertop/stove
Distance between the cooking surface to the
range hood (recommend 24" to 30") minimum of
30" is required for gas stove top
For the most efficient & quiet operation:
• A distance of 24" to 30" is recommended between
stove top and the bottom of range hood. 30"
minimum is required for gaz stove tops.
• It is recommended that the range hood be vented
vertically through the roof through 6" (15.3 cm) or
bigger round metal/aluminum vent work.
• The size of the vent should be uniform.
• Use no more than three 90° elbows.
• Make sure there is a minimum of 24" (61 cm) of
straight vent between the elbows if more than one
elbow is used.
• DO NOT install two elbows together.
• The length of vent system and number of elbows
should be kept to a minimum to provide efficient
performance.
• The vent system must have a damper. If roof or
wall cap has a damper, DO NOT use damper (if
supplied) on top of the range hood.
• Use silver tape or duct tape to seal all joints in the
vent system.
• Use caulking to seal exterior wall or roof opening
around the cap.
1.
2.
3.
4. Height of hood and duct cover.
Min : 24”
Min : 24”
Max : 30”
Maximum ceiling clearance
100" at 30" hood mounting
height above countertop or
stove. (may vary with
different model). Chimney
extensions available for
higher ceiling
36” base
Min:24”
Max:30”
Support
Structure
Standard
Upper
Chimney
Standard
Lower
Chimney
Range hood
Countertop/Stove
* Higher ceiling requires chimney extension.
Available at your local resellers
Model # Aero Island 36
5
Height of hood and duct cover.

3-1/4
CALCULATING VENT SYSTEM LENGTH:

• This range hood is factory set for venting through the roof or wall.
• Vent work can terminate either through the roof or wall. To vent through a wall, a 90° elbow is needed.
IMPORTANT:
• NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or
garages. All exhaust must be ducted to the outside.
• Use metal/aluminum duct work only.
• Fasten all connections with sheet metal screws and tape all joints with certified Silver Tape or Duct Tape.
• Use caulking to seal exterior wall or roof opening around the cap.
7
Model # Aero Island 36
VENTING METHODS:

IMPORTANT:
It is the customer's responsibility to contact a qualified electrical installer.
If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine
that the ground path is adequate.
A 120-Volt, 60 Hz, AC-only, fused electrical supply is required on a separate 15-amp circuit, fused on both
sides of the line.
DO NOT ground to a gas pipe.
Check with a qualified electrician if you are not sure that the range hood is properly grounded. DO NOT
have a fuse in the neutral or ground circuit.
IMPORTANT: Save this Installation Guide for electrical inspector's use.
The range hood should be connected directly to the fused disconnect (or circuit breaker) box through
flexible armored or non-metallic sheathed copper cable. UL/CSA listed strain relief must be provided at
Observe all governing codes and ordinances.
The range hood must be connected with copper wire/plug only.
each end of the power supply cable.
8
Model # Aero Island 36
ELECTRICAL REQUIREMENT:

Advanced Preparations:
• Be familiar with the controls of the range hood by reading through Range Hood Operations, Page 14.
• Place the range hood on a flat, stable surface. Connect the range hood to a designated standard outlet (120-
Volt,60Hz, AC only) and turn on the range hood. Verify all operations of the range hood by referring
to Range Hood Operations.
• Place all supplied parts and required hardware on a flat, stable surface and verify the existence of all supplied parts
listed on Page 4.
NOTE: To avoid damage to your hood, prevent debris from entering the vent opening.
• Determine and mark the center line on the ceiling where the range hood will be installed. Make sure there is
proper clearance within the ceiling or wall for exhaust vent.
• Due to the weight and size of this unit, please make sure that the support system or framework being used is stable
and secure in the wall.
• Put a thick, protective covering over counter top, cook top or range to protect from damage or dirt. Remove any
hazardous objects around the area when installing.
If moving the cooking range is necessary to install the hood, turn OFF the power on an electric range at the
main electrical box. SHUT OFF THE GAS BEFORE MOVING A GAS RANGE
Preparations:
CAUTION
9
Model # Aero Island 36
PREPARATION:

Installations (refer to Page 4 for parts):
NOTE: Use threaded drywall anchors only when
mounting the hood on sheet rock. Mounting
the hood on wall studs or lumbars is highly
•
recommended with a minimum of 30" for gas stove tops.
•
•
•
•
•
•
•
•
•
•
•
recommended.
Step 1: Measuring
To reach 9ft ceiling make sure hood is installed at 30" from cooking surface
If you require longer chimney flue to reach your ceiling please contact vendor.
Step 2: Installing the hood mounting bracket
Determine and mark the center line on the ceiling where the range hood will be installed. Make sure
there is proper clearance within the ceiling or wall for exhaust vent
The ceiling must be able to bear at least 40 kg (88 lbs.) of weight, and the thickness of the ceiling must
be at least 30 mm (1.18 in.)
Drill 1*170 mm (6.7") round hole in the ceiling.
Run house electrical wires to the electrical box on the bracket.Black to Black, White to White, and
Green to Green or Bare wires.
In line with the hanging board, drill 12 holes in the ceiling. See fig. # 1
Using appropriate screws attach the hanging board to the ceiling
Use supplied screws and nuts with washer to attach the angle iron into the hanging board. See fig. #2
Calculate the total length of the angle iron required so that the overlap angle iron is no less than 100 mm
(39.4") and that the distance from the bottom of the range hood and the cooking surface is between 61 to
76 cm (24" to 30")
Attach the 2 sections of the angle iron together for each corner using provided flat screws and nuts.
Measure the distance between stove top and the bottom of range hood. A distance of 24" to 30" is
10
Fig # 1
Fig # 2
Model # Aero Island 36
INSTALLATION:

Electrical Wires

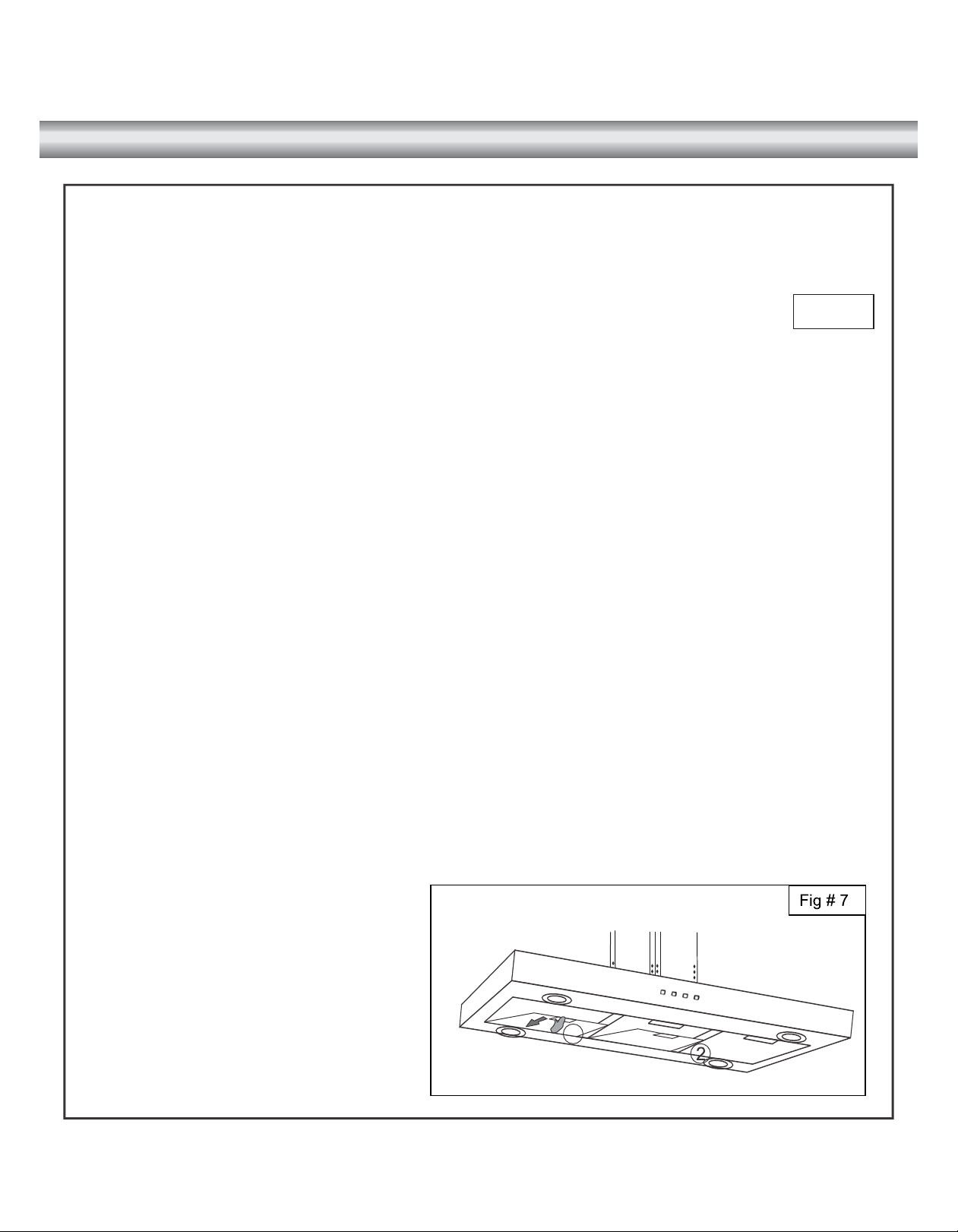

Step 6: Installing filters
· To install filters, refer to Figure # 7 for the following four steps:
§Angle baffle filters toward back of the hood
§Slide the handle toward the metal filter handle and push up
§Release the handle until it fits into resting positions
§Repeat to install all baffle filters.
Step 5: Finishing installation
· Slide the inner flue up to the ceiling and attached it ceiling bracket using screws (.). See fig# 6
· Remove the protective coating from the hood and the outer flue.
· Installation is finished.
12
Model # Aero Island 36
INSTALLATION CONTINUE:
1
f
. See fig# 6
Fig # 6
Push the button on handle of the filter
Upper
Chimney
Flexible Flue
(not included)
Electrical
Wires
Lower
Chimney

9
1
811
3
4
5
6
2
7
1
2
3
4
5
6
7
8
9
10
11
Upper & Lower Chimneys
Motor Box
Lights
Light Covers
Control Buttons
Filters
Hood Assembly
Vent/Damper
Angle Mounting Brackets
Ceiling Bracket
Electrical Box
2
1
4
4
1
3
1
1
8
1
1
10

Increase
Speed
Decrease
Speed Timer Light
Control Panel Layout and Buttons Configurations:
Electronic Controls with Time Delay
• Lights:
o Press the light key once, the backlight is on, and the lights are on.
o Press it for a second time, the backlight is off and the lights are off.
• Power settings:
o Press the key once and the motor starts to operate at low speed.
o Press the key again and the motor will reach Medium speed.
o Press the key once more and the motor will reach High speed
o Press the Key to lower speeds in succession until the motor stops working (power off).
• Timer function:
o The control module provides the option to run the motor for a predetermined time period in order to
evacuate remaining vapors from the kitchen.
o Press the timer key when the motor is working and the motor will continue working for 10 minutes
and will stop working thereafter
14
Model # Aero Island 36
CONTROL PANEL OPERATION :
.

1) If the range hood or halogen light does not
operate after installation:
2) The range hood vibrates when the blower is on:
3) The blower or fan seems weak:
4) The lights work but the blower is not spinning at
all, is stuck or is rattling.
5) The hood is not venting out properly:
•
make sure that all power has been turned back
ON, fused not blown and all electrical wiring
are properly connected.
• The range hood might not have been secured
properly on to the ceiling or wall.
• Check that the duct sized used is at least 6" or
3-1/4 x 10". Range hood WILL NOT function
efficiently with insufficient duct size. For
example: 7" duct over 6" hole and loosely
secured.
• Check if duct is clogged or if damper unit
(half-circular flapper) is not installed correctly
or opening properly. A tight mesh on a side
wall cap unit might also cause restriction to the
air flow.
• The blower might be jammed or scraping the
bottom due to shipping damage. Please contact
us immediately.
• Make sure the distance between the stove top
and the bottom of the hood is within 24" and
30" in distance; with minimum 30" for gaz
stove top.
• Reduce the number of elbows and length of
duct work. Check if all joints are properly
connected, sealed, and taped.
Check if the range hood has been plugged in,
15
Model # Aero Island 36
TROUBLE SHOOTING
:
If the range hood or halogen light does not operate
after installation:
The lights work but the blower is not spinning at
all, is stuck or is rattling:
:
The hood is not venting out properly:

below).

20w
halogen
bulb
screw driver
Halogen
light
housing
Halogen
light
cover
Replacing the light bulb:
•
• Make sure the range hood is unplugged or turn OFF breaker.
Place a flat-head screwdriver between light cover and housing to remove cover.
Wear a cotton glove or use a cloth to handle the replacement
bulb (DO NOT handle with bare fingers as this may shorten the life of the bulb). Push gently but
securely into light socket. NOTE: DO NOT push too hard as bulb "legs" may break off.
• Turn ON breaker and range hood to test for operation
This range hood uses halogen bulb: 20W 12V type G4
o
o Gently pull defective bulb straight out and discard.
o
o Replace light cover.
17
Model # Aero Island 36
REPLACING THE BULBS:
.

CIRCUIT DIAGRAM:
Total Input Power 410W

9 3/5 (244mm)
8 2/5 (213mm)
6 2/5 (163mm)
10 2/5 (265mm)
4 3/10 (109mm)
11” (279mm)
10 1/5” (260mm)
7 1/5” (183mm)
19
Model # Aero Island 36
MOUNTING BRACKET:

20
Model # Aero Island 36
MEASUREMENTS AND DIAGRAMS:

28 cm

29


89.8 cm
60.6 cm



3.7 cm

 

59.4 cm 117.9 cm
