Architectural Acoustics Quadra 15P User manual

Quadra®15PUser Manual

Intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
Intended to alert the user of the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the product.
CCAAUUTTIIOONN::Risk of electrical shock DO NOT OPEN!
CCAAUUTTIIOONN::To reduce the risk of electric shock, do not remove cover. No user serviceable parts inside.
Refer servicing to qualified service personnel.
WWAARRNNIINNGG::To prevent electrical shock or fire hazard, do not expose this appliance to rain or moisture.
Before using this appliance, read the operating guide for further warnings.
Este símbolo tiene el propósito, de alertar al usuario de la presencia de “(voltaje) peligroso” sin
aislamiento dentro de la caja del producto y que puede tener una magnitud suficiente como para
constituir riesgo de descarga eléctrica.
Este símbolo tiene el propósito de alertar al usario de la presencia de instruccones importantes sobre la
operación y mantenimiento en la información que viene con el producto.
PPRREECCAAUUCCIIOONN::Riesgo de descarga eléctrica ¡NO ABRIR!
PPRREECCAAUUCCIIOONN::Para disminuír el riesgo de descarga eléctrica, no abra la cubierta. No hay piezas útiles
dentro. Deje todo mantenimiento en manos del personal técnico cualificado.
AADDVVEERRTTEENNCCIIAA::Para evitar descargas eléctricas o peligro de incendio, no deje expuesto a la lluvia o
humedad este aparato Antes de usar este aparato, Iea más advertencias en la guía de operación.
Ce symbole est utilisé dans ce manuel pour indiquer à l’utilisateur la présence d’une tension dangereuse
pouvant être d’amplitude suffisante pour constituer un risque de choc électrique.
Ce symbole est utilisé dans ce manuel pour indiquer à l’utilisateur qu’il ou qu’elle trouvera d’importantes
instructions concernant l’utilisation et l’entretien de l’appareil dans le paragraphe signalé.
AATTTTEENNTTIIOONN::Risques de choc électrique NE PAS OUVRIR!
AATTTTEENNTTIIOONN::Afin de réduire le risque de choc électrique, ne pas enlever le couvercle. Il ne se trouve à
l’intérieur aucune pièce pouvant être reparée par l’utilisateur. Confiez I’entretien et la réparation de
l’appareil à un réparateur Peavey agréé.
AAVVEERRTTIISSSSEEMMEENNTT: Afin de prévenir les risques de décharge électrique ou de feu, n’exposez pas cet
appareil à la pluie ou à l’humidité. Avant d’utiliser cet appareil, lisez attentivement les avertissements
supplémentaires de ce manuel.
Dieses Symbol soll den Anwender vor unisolierten gefährlichen Spannungen innerhalb des Gehäuses
warnen, die von Ausreichender Stärke sind, um einen elektrischen Schlag verursachen zu können.
Dieses Symbol soll den Benutzer auf wichtige Instruktionen in der Bedienungsanleitung aufmerksam
machen, die Handhabung und Wartung des Produkts betreffen.
VVOORRSSIICCHHTT:: Risiko Elektrischer Schlag! Nicht öffnen!
VVOORRSSIICCHHTT:: Um das Risiko eines elektrischen Schlages zu vermeiden, nicht die Abdeckung enfernen. Es
befinden sich keine Teile darin, die vom Anwender repariert werden könnten. Reparaturen nur von
qualifiziertem Fachpersonal durchführen lassen.
AACCHHTTUUNNGG::Um einen elektrischen Schlag oder Feuergefahr zu vermeiden, sollte dieses Gerät nicht dem
Regen oder Feuchtigkeit ausgesetzt werden. Vor Inbetriebnahme unbedingt die Bedienungsanleitung lesen.
2

3
IIMMPPOORRTTAANNTT SSAAFFEETTYY IINNSSTTRRUUCCTTIIOONNSS
WWAARRNNIINNGG::When using electrical products, basic cautions should always be followed, including the following:
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any of the ventilation openings. Install in accordance with manufacturer’s
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus
(including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has
two blades with one wider than the other. A grounding type plug has two blades and a third
grounding plug. The wide blade or third prong is provided for your safety. If the provided plug
does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience
receptacles, and the point they exit from the apparatus.
11. Note for UK only: If the colors of the wires in the mains lead of this unit do not correspond with
the terminals in your plug‚ proceed as follows:
a) The wire that is colored green and yellow must be connected to the terminal that is marked
by the letter E‚ the earth symbol‚ colored green or colored green and yellow.
b) The wire that is colored blue must be connected to the terminal that is marked with the letter
N or the color black.
c) The wire that is colored brown must be connected to the terminal that is marked with the
letter L or the color red.
12. Only use attachments/accessories provided by the manufacturer.
13. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with
the apparatus. When a cart is used, use caution when moving the cart/apparatus combination
to avoid injury from tip-over.
14. Unplug this apparatus during lightning storms or when unused for long periods of time.
15. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has
been damaged in any way, such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
16. Never break off the ground pin. Write for our free booklet “Shock Hazard and Grounding.”
Connect only to a power supply of the type marked on the unit adjacent to the power supply
cord.
17. If this product is to be mounted in an equipment rack, rear support should be provided.
18. Exposure to extremely high noise levels may cause a permanent hearing loss. Individuals vary
considerably in susceptibility to noise-induced hearing loss, but nearly everyone will lose some
hearing if exposed to sufficiently intense noise for a sufficient time. The U.S. Government’s
Occupational Safety and Health Administration (OSHA) has specified the following permissible
noise level exposures:
Duration Per Day In Hours Sound Level dBA, Slow Response
890
692
495
397
2100
1 1/2 102
1105
1/2 110
1/4 or less 115
According to OSHA, any exposure in excess of the above permissible limits could result in some hearing loss. Ear plugs or protectors to
the ear canals or over the ears must be worn when operating this amplification system in order to prevent a permanent hearing loss, if
exposure is in excess of the limits as set forth above. To ensure against potentially dangerous exposure to high sound pressure levels, it
is recommended that all persons exposed to equipment capable of producing high sound pressure levels such as this amplification
system be protected by hearing protectors while this unit is in operation.
SSAAVVEE TTHHEESSEE IINNSSTTRRUUCCTTIIOONNSS
RReeaadd TThhiiss!!

4
Thank you for purchasing this powered version of the Quadra® 15. The 15P features a bi-amped
power section that provides 800 Watts peak dynamic power for the woofer and 200 Watts peak
dynamic power for the compression driver tweeter, both with Architectural Acoustics®SPS™
compression. The Quadra 15P also includes a 15" Black Widow® BWX woofer, RX™22 compression
driver and mixed-mic and line-level balanced inputs with Volume control and Loop-Thru jacks.
• Bi-amplified powered system with 500 Watts total power
• Both power amps have SPS™compression
• Black Widow®BWX 15" premium woofer
• 2" RX™22 titanium compression driver
• Peak SPLs in excess of 130 dB with music
• 1/4" TRS and M/F XLR line-level balanced inputs
• Separate mixed-mic XLR input
• Molded-in horn with exceptionally smooth response and pattern control
• Loop Out/In jacks allow linkage of multiple units
• Multiple handgrips
IInnttrroodduuccttiioonn::
FFeeaattuurreess::

5

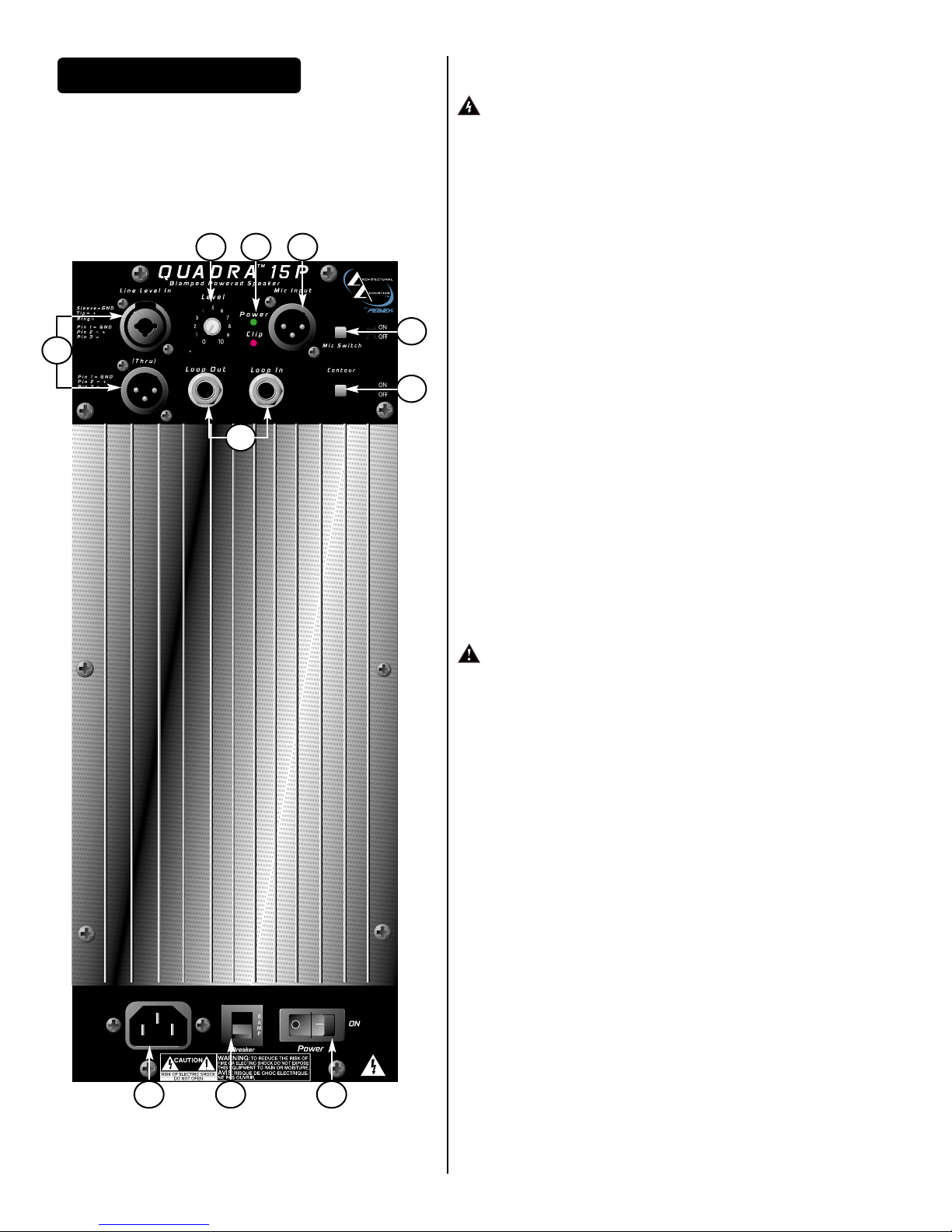

RReeaarr PPaanneell FFeeaattuurreess((11)) CCIIRRCCUUIITT BBRREEAAKKEERR
The unit is AC power line circuit breaker protected from
overloads and fault conditions with a resettable 8 Amp breaker.
If this unit trips the breaker, turn the power switch to the OFF
position, reset the breaker by pushing the center lever in all the
way and then reactivate the power switch. If the breaker lever
does not stay in, it may need to cool first.
If the unit continually trips the breaker, DO NOT continue
resetting the breaker. Instead, have the unit checked by a
qualified service technician.
((22)) IIEECC PPOOWWEERR CCOORRDD CCOONNNNEECCTTIIOONN
The removable AC power cord plugs into this socket to supply
AC line voltage to the power switch.
((33)) OONN//OOFFFF SSWWIITTCCHH
This switch supplies AC power to the system electronics when
switched to the ON position.
((44)) PPOOWWEERR LLEEDD
Illuminates when the preamp electronics receive power, and
should illuminate when the On/Off Switch is in the ON position
and the AC power cord is connected and plugged into the wall
outlet.
((55)) PPRRIIMMAARRYY IINNPPUUTTSS//OOUUTTPPUUTTSS
The input and output jacks are in parallel so the audio input
signal can be daisy-chained to other devices. The “output”
level is the same as the “input” level, and there is no isolation
between the various jacks. The input is medium impedance
balanced. Jack (5a) is a combo female XLR and 1/4" TRS
connector, and jack (5b) is a male XLR.
((66)) VVOOLLUUMMEE
Controls the gain (level) of the Quadra® 15P system. When used
with the Primary Input/Output jacks (5), it directly sets the
system output level. If the microphone input is being utilized in
conjunction with the Primary In/Out jacks, then the mic level is
set using this knob, and the ancillary signal (music into the
In/Out jacks) level is then set using the source or feed (mixer).
((77)) MMIICC OONN SSWWIITTCCHH
When this switch is in the ON position, it connects the mic
input jack (8) to the preamp circuitry. To minimize noise or hum
pickup from the mic input, switch this to the OFF position when
not using a microphone.
2 31
4 86
7
5
9
10

6
((88)) MMIICC IINNPPUUTT
Female XLR input jack for using a microphone with the Quadra® 15P system. This connector provides
+15V phantom power and gain suitable for most of today’s “hot” microphones. When using this
input with the regular inputs (5), the volume for the mic should be set first using the Volume (6)
control, and the level fed to the regular inputs should be set to the desired level using the source
level control (mixer).
((99)) CCOONNTTOOUURR SSWWIITTCCHH
When this switch is in the ON position, the mid-range is reduced by approximately 4 dB.
((1100)) LLOOOOPP--TTHHRRUU JJAACCKKSS
Loop Out receives the signal after the balanced inputs and the Volume control, and sends it to
another Quadra 15P via its Loop In jack. These are unbalanced high-Z jacks, so do not run the cable
very far.
CCAAUUTTIIOONNSS
This unit must be disconnected from the AC power source before any work is done on it. Refer all
servicing to qualified service personnel.
The heat sink on the back plate can become hot to the touch. Do not cover the heat sink or block
from ventilation.
Be sure to keep the microphone away from the front of the speaker after switching the mic input ON
and while setting the microphone level, or very loud feedback will occur! Damage to the system is
likely if this occurs.
DO NOT connect the inputs of the Quadra 15P to the output of a power amplifier. The inputs are
meant to be driven from a line-level strength signal.
DO NOT remove the protective metal grille.
DO NOT use the Input/Output jacks as mixers or run more than one signal source at a time into
them. The Input/Output jacks (5) are all hard-wired together to allow use of any of the connector
types as an input, and to allow a further send or “daisy-chaining” of the input signal to some other
audio device (such as another Quadra 15P). Attempting to run two different signals directly into the
Quadra 15P could damage the outputs of the source units. Use a mixer to combine two or more
signals into a single signal before sending to the Quadra 15P input.
WWAARRNNIINNGG:: The Quadra 15P is extremely efficient and powerful! This sound system can permanently
damage hearing! Use extreme care setting the overall maximum loudness!
The apparent sound level of the Quadra 15P can be deceiving due to its clear, clean sound output.
The lack of distortion or obvious distress can make the sound level seem much lower than it actually
is. This system is capable of SPLs in excess of 130 dB at 1 meter from the speaker!
OOppeerraattiinngg
IInnssttrruuccttiioonnss

FFLLYYIINNGG TTHHEE QQuuaaddrraa1155PP
CCaauuttiioonn::Suspending or flying the Quadra 15P must be done by a certified structural engineer.
IImmppoorrttaanntt SSaaffeettyy IInnffoorrmmaattiioonn ffoorr MMoouunnttiinngg tthhee PPeeaavveeyy AArrcchhiitteeccttuurraall AAccoouussttiiccss QQuuaaddrraa 1155PP ssppeeaakkeerr
ssyysstteemmss::
CCaauuttiioonn:: Before attempting to suspend the Quadra 15P, consult a certified structural engineer.
Speakers can fall from improper suspension, resulting in serious injury and property damage. Other
enclosures must not be suspended below one, nor should additional weight be suspended from one
of these units. Use only the correct mating hardware. All associated rigging is the responsibility of
the user.
Always use all four inserts of a given group as a set; NEVER use just one insert to fly a cabinet! The
four insert groupings contain a top group of four and a bottom group of four, and some models also
have a group of four on the rear plane of the cabinet.
Maximum enclosure angle from vertical hang: 30˚
Always loop a suitable safety chain or wire rope through the top handle of the enclosure, and firmly
attach it to a suitable structural member as indicated by a certified structural engineer.
The recommended range of torque for the mounting bolt is 3 to 3-1/2 lb./feet of torque. DO NOT
OVERTIGHTEN! If an insert spins, it has been damaged and the cabinet cannot be flown!
Never transport the cabinet while mounted on an array bracket or other mounting bracket, as this
may unduly stress the mounting inserts.
WWAARRNNIINNGG!!(note to structural engineer)
For the Quadra 15P, the thread insertion depth of the mounting bolt should not be more than 1/2"
past the surface of the cabinet.
If this thread insertion depth is exceeded, the inserts may be damaged or unseated, severely
compromising the mounting integrity of the cabinet!
The correct mounting bolt diameter and threads per inch are: 1/4" X 20. Use of a grade five bolt is
recommended.
GGEETTTTIINNGG AACC PPOOWWEERR TTOO TTHHEE QQuuaaddrraa 1155PP
The Quadra 15P comes with an 8' IEC connection AC power cord. It is likely that some sort of
extension cord will be used with this powered speaker system, so make sure that the extension cord
is no longer than necessary and is of a sufficient current capacity to maintain safety. To maximize the
power output capability of the Quadra 15P’s internal amplifiers and to minimize the voltage drop that
all extension cords cause, do not power anything else from the extension cord used to power the
Quadra 15P. Running just one extension cord back to the wall plug for the entire sound system will
not maximize performance.
The third wire ground plug on the AC plug should NEVER be removed or broken off, as this seriously
compromises safety.
7
UUssee ooff tthhee
QQuuaaddrraa®®1155PP

SSppeecciiaall NNoottee ffoorr PPeerrmmaanneenntt IInnssttaallllaattiioonn
When installing the Quadra® 15P, use AC power runs and a consult certified electrician to make sure
that all AC wiring complies with local codes and regulations. It is also advisable to properly affix a
cable clip to the cabinet to secure the IEC power cord (2) so it cannot vibrate loose.
UUSSIINNGG TTHHEE QQuuaaddrraa 1155PP WWIITTHH AA SSUUBBWWOOOOFFEERR
The built-in pole adapter allows use with the Peavey Q-W™118 subwoofer and the accessory pole it
is designed to use, Peavey part #00326540.
The pole used is 36-3/16" long, and has a nominal diameter of 1-3/8".
GGEETTTTIINNGG AA SSIIGGNNAALL TTOO TTHHEE QQuuaaddrraa 1155PP
There are a variety of ways to input a signal to the Quadra 15P system.
Microphone input usage is covered in a specific section below. The balanced line-level input/s allow
the use of a 1/4" phone plug; either a standard single-ended (tip-sleeve) plug or a balanced TRS
(tip-ring-sleeve) plug; OR either a male or female XLR plug. Do not connect cables to the jacks while
the units are ON and the Volume is turned up!
While a standard, single-ended 1/4" phone plug will work well and the balanced input circuitry will
provide some interference rejection, a balanced cable using either a TRS 1/4" phone plug or an XLR
plug will provide superior interference rejection and performance. With some difficult interference
problems, it may be helpful to lift the shield ground on a balanced cable at the Quadra 15P end only.
Check any input changes carefully, always turning the Volume control down before plugging and
unplugging cables.
Use of high quality premium cables is recommended with the Quadra 15P, as these usually have
better shielding and materials and will provide greater long-term reliability. It is usually a good idea
to leave some slack at the Quadra 15P’s input, and also to tape the cables down or run them under a
cable guard.
VVOOLLUUMMEE CCOONNTTRROOLL AADDJJUUSSTTMMEENNTT
The Quadra 15P is equipped with a Volume control to facilitate use in many different applications.
With the Volume control adjusted fully clockwise, gain is at maximum and the input sensitivity is 0.5
V RMS for full-rated output. When driving the Quadra 15P from a mixer, it may be advantageous to
reduce the input sensitivity by turning the Volume control to the halfway point. The Quadra 15P will
then more closely match a typical power amp input.
If the mixing board indicates clipping on its output signals, then the Quadra 15P’s power capability is
not being utilized cleanly. If this occurs, reduce the mixer output level and turn up the Volume
control on the Quadra 15P.
The amplifiers in the Quadra 15P are equipped with SPS™and an LED indicator to show if it is
engaged or not. If the sound seems heavily compressed, check this indicator; if it is blinking more
than occasionally, then the drive level from the mixer (or the Volume control on the Quadra 15P)
needs to be reduced.
When first switching on the sound system, turn on all upstream electronics first, then the Quadra
15P with its Volume control fully counterclockwise (all the way down). Begin checking levels with the
mixer output level controls all the way down, and bring them up slowly with the Quadra 15P’s
Volume control set to the desired setting (halfway up recommended to start).
8

UUSSIINNGG TTHHEE MMIICC IINNPPUUTT WWIITTHH SSIIMMUULLTTAANNEEOOUUSS MMUUSSIICC PPLLAAYYBBAACCKK
With the mic input (8) switched ON (7), a microphone signal will be sent to the Quadra 15P’s preamp
electronics. Be sure to keep the mic away from the front of the speaker after switching the mic input
ON, and while setting the microphone level, or very loud feedback will occur! The person using the
microphone should stand to the side and slightly to the rear of the Quadra 15P, not out in front of the
speaker system. When not using the mic input, be sure to switch off the mic switch (7) for lowest
noise and hum pickup.
Set the microphone level using the Volume control (6), keeping in mind any possible volume
changes during the performance or presentation, and the possibility that the microphone may be
brought closer to the Quadra 15P later on. For best results, the microphone should be held close to
the person’s mouth, instead of a foot or more away. Do not “eat” the mic; that is, do not put your
lips directly onto the mic, as this can often result in a boomy sound. Best results are obtained when
the mic is approximately 2" to 3" away from the mouth.
When using the mic input (8) and the regular inputs (5) for simultaneous music and speech/singing,
the volume for the mic should be set first using the Level control (6) as described above. The level
fed to the regular inputs should be set to the desired level and matched to the microphone levels
using the source level control or a mixer.
UUSSIINNGG OOFF MMUULLTTIIPPLLEE QQuuaaddrraa 1155PPss
(or other Impulse®series powered products)
This unit’s multiple parallel inputs allow daisy-chaining from one to another. Run the first cable from
the mixer to the first Quadra 15P, then connect a cable from one of the first Quadra 15P’s inputs to an
input on the second Quadra 15P. This can be continued for several units, depending on the length
and total capacitance of all the cables. With a low source impedance, such as a typical mixer output,
and typical balanced cables, two or three Quadra 15Ps can be daisy-chained from one output using
30' or 40' cables without obvious loss of high frequencies.
The Loop-Thru jacks (10) can also be used to connect one other Quadra 15P or one other Impulse
series powered unit, while conveniently controlling volume from just one of the units. Connect a
well-shielded 1/4" to 1/4" phone plug patch cord from the Loop Out jack of the unit connected to
the signal source and plug it into the other unit’s Loop In jack. The Volume control of the first unit
now controls the volume for both identically.
Do not connect cables to the jacks while the units are ON and the volume is turned up!
AAPPPPLLIICCAATTIIOONNSS
The Quadra 15P can be used in a variety of applications, such as sound reinforcement, public
address, side fill system or music playback. With the optional monitor stand kit, the Quadra 15P
makes an excellent stage monitor. Presentations or karaoke can be performed by using the mic
input and regular line-level inputs in conjunction.
A typical signal source for the line-level inputs (5) of the Quadra 15P is a sound reinforcement mixing
console (mixer) or the output from a CD player, Minidisc player or tape deck.
9

NNoo OOuuttppuutt aatt AAllll
First, make sure the unit has AC power and is turned ON. If so, the Power LED (4) should be
illuminated. If it is not, check that the ON/OFF switch (3) is in the ON position, check the IEC power
cord connection (2), making sure it is fully engaged and seated. Make sure the AC line cord is
plugged into a working AC outlet and check the circuit breaker (1) {see the REAR PANEL/Circuit
Breaker section for safety instructions}.
Next, run a cable from the Quadra 15P’s inputs to some other device capable of determining this (for
example, a power amp and speaker) to make sure the inputs of the Quadra 15P are receiving a
signal. If there is still no output, make sure the Volume control has been turned up to a reasonable
level (one-third to halfway).
Has the Quadra 15P been exposed to direct sunlight or excessive heat? If so, it may have triggered
the unit‘s thermal protection. Turn off the unit and cool as best as the situation allows (DO NOT use
liquids for this purpose!).
If there is still no output, it may help to read the owner’s manual completely.
HHuumm oorr BBuuzzzz
As this can be AC outlet-related, try plugging the Quadra 15P into a different AC outlet. Hum
problems may result from using different circuit breakers for the mixer and the Quadra 15P.
Make sure the microphone input (8) is disengaged when not in use by checking the Mic On switch
(7). It should be in the OFF position.
Make sure that shielded cables have been used to transport the signal to the Quadra 15P’s inputs.
Speaker cables with 1/4" or XLR plugs are most likely to hum.
Check to make sure light dimmers are not on the same circuit as the Quadra 15P or the mixer (or any
source devices). If light dimmers are in use, then it may be necessary to turn them full ON or full OFF
to eliminate or reduce hum to tolerable levels. This is an AC wiring/light dimmer interference
problem, and not the fault of the Quadra 15P. The third wire ground plug on the AC plug should
NEVER be removed or broken off, as this seriously compromises safety.
DDiissttoorrtteedd oorr FFuuzzzzyy SSoouunndd
First, make sure the mixer (or signal source) is not clipping or being overdriven. This can sometimes
occur when the Volume control (6) on the Quadra 15P has been set too low (too far
counterclockwise), and it takes a lot of signal to drive the unit to full power.
Make sure the input plugs are fully seated in the input jacks (5) on the rear panel of the Quadra 15P.
Check to see that the proper inputs are being used (5) for line-level signals not the mic input (8).
Make sure that a power amp has not been plugged into the input jacks of the Quadra 15P.
If an extension cord is being used to provide AC power to the unit, make sure it is of sufficient
current capacity and not also being used to supply power to any other units. See “GETTING AC
POWER TO THE Quadra 15P” for details.
10
TTrroouubblleesshhoooottiinngg

The Quadra® 15P has built-in EQ to extend and smooth the natural response of its speakers. Bass
Boost and HF EQ have been applied, and the system has a nominally flat response that should
require little, if any, additional EQ. If excessive additional bass boost or HF boost have been added
externally to the Quadra 15P, it may cause premature overload at high SPLs. Try backing off of any
external EQ (mixer, rack EQ) and see if that clears up any tendency to distort. If the Contour switch
(9) has been engaged, defeat it by making sure it is in the OFF position.
Even though the Quadra 15P is an extremely powerful, high output unit, it does ultimately have
limits and may need additional powered units (or a subwoofer) to provide enough sound output or
coverage.
If the system still exhibits problems after checking everything listed to check, and anything else you
can check safely, carefully note all conditions and check with your Peavey dealer for advice.
Your Quadra 15P is a sturdy and durable product that will provide years of reliable use if properly
maintained. Use common sense and read the safety warnings to avoid hazardous operating
conditions.
To tighten the bolts on the rear panel, remove the front speaker grille and woofer, and then reach in
from the front to stop the nuts from spinning. The unit must be disconnected from the AC power
source before any work is done on it. Refer all servicing to qualified service personnel.
SSuunnlliigghhtt//HHeeaatt
Avoid prolonged exposure to direct sunlight, as this may cause the unit to overheat and thermally
shut off. Excessively hot operating conditions can also cause a thermal shutdown.
Do not store in extremely hot or cold conditions or extremely high humidity. Always allow unit to
return to room temperature before use.
CClleeaanniinngg
Never clean the Quadra 15P while it is plugged in or turned on! When the unit has been fully
disconnected from AC power sources, a dry cloth can be used to remove dirt. Never use strong
solvents on the Quadra 15P, as they could ruin the cabinet. Do not allow ANY fluids to drip inside
the Quadra 15P!
TToouucchhuupp
If the QUADRA 15P cabinet becomes scratched or abraded, it can be touched-up using a black
permanent marker. First, if the area to be touched-up is larger than a short scratch, rub it lightly with
an unsoaped plastic scrub pad. Wipe the scratched or abraded area a little at a time with the black
permanent marker and wipe away the surplus with a lint-free cloth. For an overall finish
enhancement and protective coating, use gloves to apply either WD-40®or Armor-All®protectant to
the surface of the plastic cabinet only. Rub the cabinet vigorously with a dry, lint-free cloth if it
becomes slippery form excessive protectant application.
If the grille becomes discolored, you can use a cleaner such as 409®or Fantastic®to remove it. Rub a
clean, slightly dampened cloth across the front surface of the grille.
VVeennttiillaattiioonn
Provide at least 6" of clearance on all sides for adaquet ventilation.
11
CCaarree aanndd
MMaaiinntteennaannccee

After the first few months of use and periodically thereafter, check the hardware of the Quadra®15P
for tightness, including the rear panel screws and the screws that hold the baffle and rear cabinet
together. The unit is subject to a great deal of vibration, and this could cause them to loosen with
use.
The Peavey Architectural Acoustics®Quadra 15P is a powered, bi-amplified two-way speaker system
engineered to provide the highest levels of performance possible in a compact, powered
loudspeaker. Capable of over 130 dB peak SPLs, this system can pump out a huge amount of sound.
The enclosure utilizes high-impact polypropylene in an injection-molded plastic trapezoidal form,
with a coated, perforated metal grille to offer an aesthetically pleasing-yet-durable powered speaker
system.
This two-way powered system is comprised of an 800 Watt dynamic peak power amplifier driving a
15" BWX Black Widow®woofer (1508-4 SPS) with a Kevlar™impregnated cone, surround and dust
cap specially treated for excellent weather resistance. The RX™22 compression driver is driven by a
200 Watt peak dynamic power amplifier and features a 2" titanium diaphragm, covered by U.S.
Patent #6064745 (UK GB 2 329 789) for the Radialinear Planar Phase Correction System used in its
phase plug. It is coupled to a patented Quadratic Throat Geometry constant directivity horn (U.S.
Patent #6059069) with a coverage pattern of 90˚ x 45˚, molded integrally into the enclosure.
Balanced inputs provided to the preamp/EQ electronics are one combo female XLR and 1/4" TRS
phone jack, and one male XLR, all connected in parallel. A separate, switchable microphone input
(female XLR) is also provided. The power amplifiers providing the bi-amplification are low distortion
units pushing 400 Watts RMS into the nominal 4 Ohm load of the woofer and 100 Watts RMS into
the nominal 6 Ohm load of the tweeter. They were selected for their reliability and superb musical
performance capability. Both amplifiers feature our patented SPS™compression, which virtually
eliminates audible power amplifier clipping.
Multiple molded-in handles make transport easy, while multiple mounting points (top, bottom and
rear) for the Peavey Versamount™70 and a molded-in stand adapter provide maximum utility.
The Quadra 15P powered loudspeaker system shall have a frequency response from 56 Hz to 18 kHz.
The peak SPLs with inaudible distortion shall reach 130 dB with music as a source, when measured
at a distance of 1 meter and driven to full output capacity. The system shall utilize a 15" BWX Black
Widow®woofer and an RX™22 compression driver tweeter. The nominal radiation pattern shall be 90˚
in the horizontal plane and 45˚ in the vertical plane.
This powered, bi-amplified loudspeaker system shall have a group of medium impedance input
connectors consisting of one combo female XLR and 1/4" TRS phone jack and one male XLR, all on
the rear panel and connected in parallel. Additionally, a separate, switchable microphone input
(female XLR) shall be provided. A Loop Out and a Loop In jack shall be provided. A Volume control
will be located next to the input jack group.
The system’s power amplifiers shall have an unfiltered frequency response of 10 Hz to 30 kHz, which
deviates no more than +0, -1 dB up to rated power; a damping factor greater than 100 @ 1 kHz into
4 Ohms; hum and noise better than 90 dB below rated power; and THD and IMD less than 0.1%.
The woofer amplifier shall be capable of 400 Watts into a 4 Ohm nominal load and the tweeter
amplifier shall be capable of 100 Watts output into a 6 Ohm load, and both shall incorporate
independent SPS™compression.
The input signal shall be electronically divided into high frequencies and low frequencies by a
staggered pole, third order slope, line-level crossover at 1.8 kHz. The low frequencies shall be
processed to provide bass boost, subsonic filtering and overall response shaping, and the high
frequencies shall be equalized for constant directivity horn EQ and response shaping.
12
DDeessccrriippttiioonn
AArrcchhiitteeccttuurraall aanndd
EEnnggiinneeeerriinngg
SSppeecciiffiiccaattiioonnss

The enclosure shall be constructed of 1/4" injection-molded polypropylene with a UL flame rating
and internal reinforcing ribs. A handgrip shall be molded into each side of the woofer and on the top
rear edge.
A vinyl-coated, perforated metal grille shall be provided for woofer protection. The cabinet shall
incorporate four tall, sturdy rubber feet for floor-standing use and four mounting point inserts on the
top and bottom each for flying use.
The outside dimensions shall be 28.5" high by 21.25" wide (11.5" wide in rear) by 17" deep, and the
weight shall be 69 lbs. Power requirements shall be: 660 Watts, 120 V AC, 60 Hz Domestic and
240 VAC, 50 Hz (European). The loudspeaker system shall be called a Peavey Architectural
Acoustics®Quadra®15P.
13
MMoouunnttiinngg DDiimmeennssiioonnss

EEnncclloossuurree::
Peavey Architectural Acoustics®Quadra15P
(domestic)
FFrreeqquueennccyy rreessppoonnssee::
54 Hz to 18 kHz
LLooww ffrreeqquueennccyy lliimmiitt ((--33 ddBB ppooiinntt))::
54 Hz
UUssaabbllee llooww ffrreeqquueennccyy lliimmiitt ((--1100 ddBB ppooiinntt))::
45 Hz
IInntteerrnnaall ppoowweerr aammpplliiffiieerrss ((@@ 112200 VVAACC lliinnee))::
Woofer - 800 Watts peak dynamic power
400 Watts at clipping
Tweeter - 200 Watts peak dynamic power
100 Watts at clipping
NNoommiinnaall sseennssiittiivviittyy ((11 WWaatttt @@ 11 mmeetteerr,, sswweepptt ssiinnee
iinnppuutt iinn aann aanneecchhooiicc eennvviirroonnmmeenntt))::
100 dB
MMaaxxiimmuumm ssoouunndd pprreessssuurree lleevveell @@ 11 mmeetteerr::
130 dB music peak
NNoommiinnaall rraaddiiaattiioonn aannggllee::
90˚ horizontal by 45˚ vertical
TTrraannssdduucceerr ccoommpplliimmeenntt::
Black Widow®BWX 15" woofer, model 1508-4 SPS
and RX™22 2" titanium diaphragm compression
driver tweeter
BBooxx ttuunniinngg ffrreeqquueennccyy ((FF--bbooxx))::
54 Hz
EElleeccttrrooaaccoouussttiicc ccrroossssoovveerr ffrreeqquueennccyy::
1,600 Hz
CCrroossssoovveerr ttyyppee::
Internal electronic two-way crossover with CD
horn EQ, level matching, active bass boost and
subsonic filtering. Unit’s horn is spatially aligned
with woofer, so there is no need for phase
alignment or signal time delay.
CCrroossssoovveerr ssllooppeess::
18 dB/octave (third order) low pass, 18 dB/ octave
(third order) high pass, both with staggered poles
and driver EQ
EElleeccttrroonniicc iinnppuutt iimmppeeddaannccee ((nnoommiinnaall))::
10 k Ohms unbalanced, 20 k Ohms balanced
IInnppuutt ccoonnnneeccttiioonnss::
One combo female XLR and 1/4" phone jack and
one male XLR, all providing balanced operation in
parallel. One male XLR microphone level input,
that is ON/OFF switchable. Also has a 1/4" phone
jack-based loop-thru that allows one other
Quadra 15P unit to be linked to the first unit for
signal source and Volume control.
CCoonnttoouurr sswwiittcchh::
Reduces mid-range by approximately 4 dB, from
300 Hz to 2 kHz
EEnncclloossuurree mmaatteerriiaallss aanndd ffiinniisshh::
Injection-molded, high-impact polypropylene of a
nominal thickness of 1/4" with internal ribbing
and bracing and with textured finish, having a UL
flame-rating. Enclosure material is black.
MMoouunnttiinngg::
Flying via Versamount™70 (top or bottom of
cabinet), and four rubber feet for floor use. Array
brackets are available.
DDiimmeennssiioonnss::
Front 28.50" H x 21.25" W x 17.00" D
(724 mm x 540 mm x 432 mm)
Rear 26.75" x 11.63" x 17.00"
(679 mm x 295 mm x 432 mm)
OOppttiioonnaall aacccceessssoorriieess::
Floor monitor adjustable legs kit
NNeett wweeiigghhtt::
69 lbs.
SShhiippppiinngg wweeiigghhtt::
77 lbs.
AAddddiittiioonnaall RReemmaarrkkss::
Also available as a passively crossed-over unit,
Quadra 15, 8 Ohms
EELLEECCTTRROONNIICCSS AANNDD AAMMPPLLIIFFIIEERR SSPPEECCIIFFIICCAATTIIOONNSS::
EElleeccttrroonniicc iinnppuutt iimmppeeddaannccee ((nnoommiinnaall))::
Primary balanced input: 10 k Ohms unbalanced,
20 k Ohms balanced
Link-Thru input: High-Z
IInnffrraassoonniicc ffiilltteerr pprrootteeccttiioonn::
36 dB/octave roll-off
FFoorr bbootthh ppoowweerr aammppss::
Nominal Amplifier Frequency Response:
+0, -1 dB from 10 Hz to 30 kHz
HHuumm aanndd nnooiissee::
Greater than 90 dB below rated power.
DDDDTT™™ccoommpprreessssiioonn ddyynnaammiicc rraannggee::
Greater than 26 dB
TTHHDD aanndd IIMM::
Typically less than 0.1 %
WWooooffeerr ppoowweerr aammpp::
Damping Factor:
Greater than 100 @ 1000 Hz, 4 Ohms
PPoowweerr rreeqquuiirreemmeennttss ooff QQuuaaddrraa 1155PP SSyysstteemm
((ddoommeessttiicc))::
660 Watts maximum, 180 Watts nominal, 120 VAC,
60 Hz
14
QQuuaaddrraa®®1155PP
SSppeecciiffiiccaattiioonnss

15
20 50 100 200 500 1k 2k 5k 10k 20k
Frequency (Hz)
60
70
80
90
100
110
dB SPL (re 20 Pa)

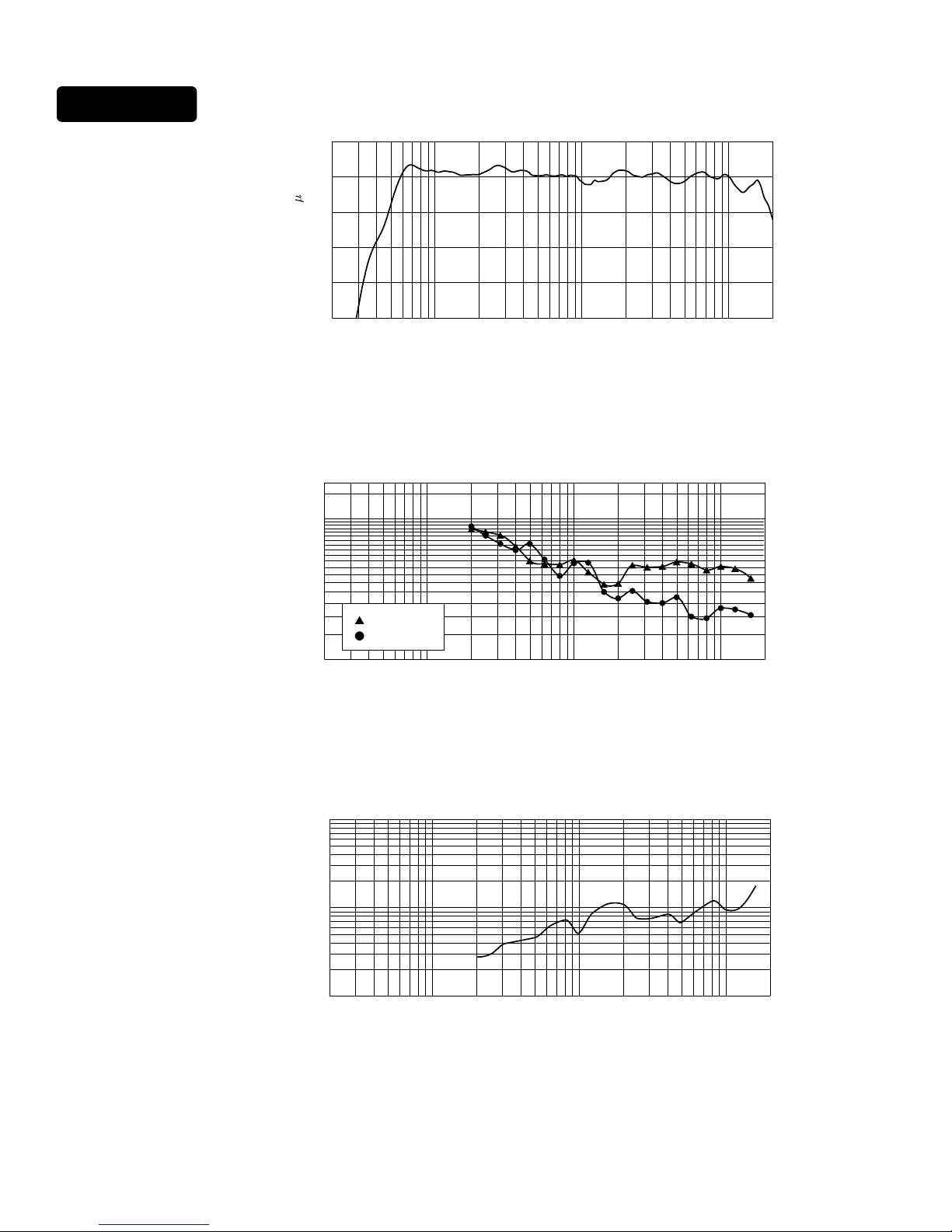

Amplitude Response (1W 1m On-Axis)
Figure 1
20 50 100 200 500 1k 2k 5k 10k 20k
Frequency (Hz)
1
10
100 Q & Directivity Index
Q
Figure 3
20
10
Di
0
20 50 100 200 500 1k 2k 5k 10k 20k
Frequency (Hz)
30
40
60
80
100
140
180
300
360
Beamwidth (Degrees)
Beamwidth
Vertical
Horizontal
Figure 2
GGrraapphhiiccss

16
20 50 100 200 500 1k 2k 5k 10k 20k
Frequency (Hz)
40
50
60
70
80
90
100
110
dB SPL (re 20 Pa)

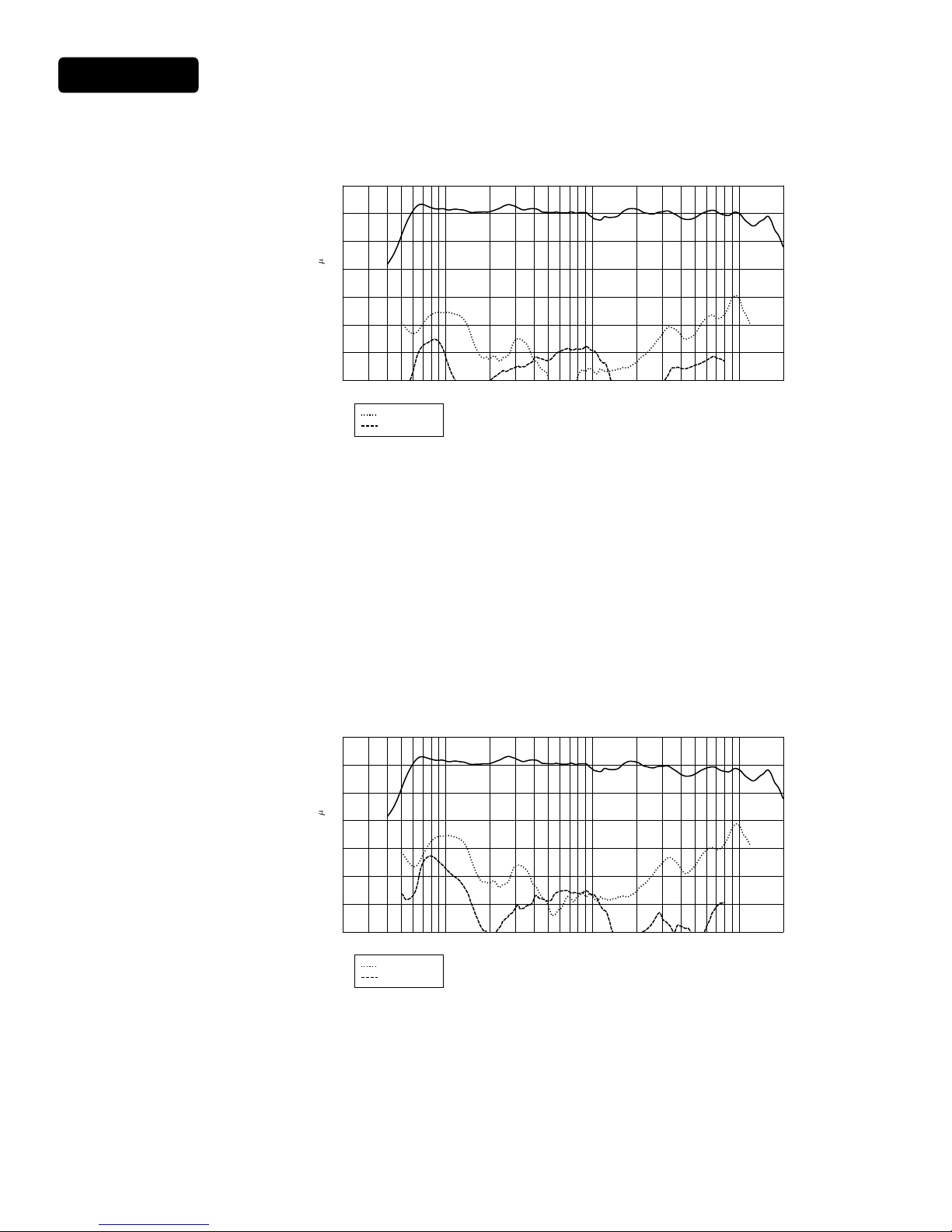

Harmonic Distortion at 100 dB
3rd Harmonic
2nd Harmonic
20 50 100 200 500 1k 2k 5k 10k 20k
Frequency (Hz)
50
60
70
80
90
100
110
120
dB SPL (re 20 Pa)
Harmonic Distortion at 110 dB
3rd Harmonic
2nd Harmonic
GGrraapphhiiccss

17
-90o
-60o
-30o
0o
30o
60o
90o
200 Hz
-90o
-60o
-30o
0o
30o
60o
90o
315 Hz
-90o
-60o
-30o
0o
30o
60o
90o
500 Hz
-90o
-60o
-30o
0o
30o
60o
90o
800 Hz
-90o
-60o
-30o
0o
30o
60o
90o
1.25 kHz
-90o
-60o
-30o
0o
30o
60o
90o
1 kHz
-90o
-60o
-30o
0o
30o
60o
90o
1.6 kHz
-90o
-60o
-30o
0o
30o
60o
90o
2.5 kHz
-90o
-60o
-30o
0o
30o
60o
90o
2 kHz
-90o
-60o
-30o
0o
30o
60o
90o
250 Hz
-90o
-60o
-30o
0o
30o
60o
90o
400 Hz
-90o
-60o
-30o
0o
30o
60o
90o
630 Hz
Quadra®15P

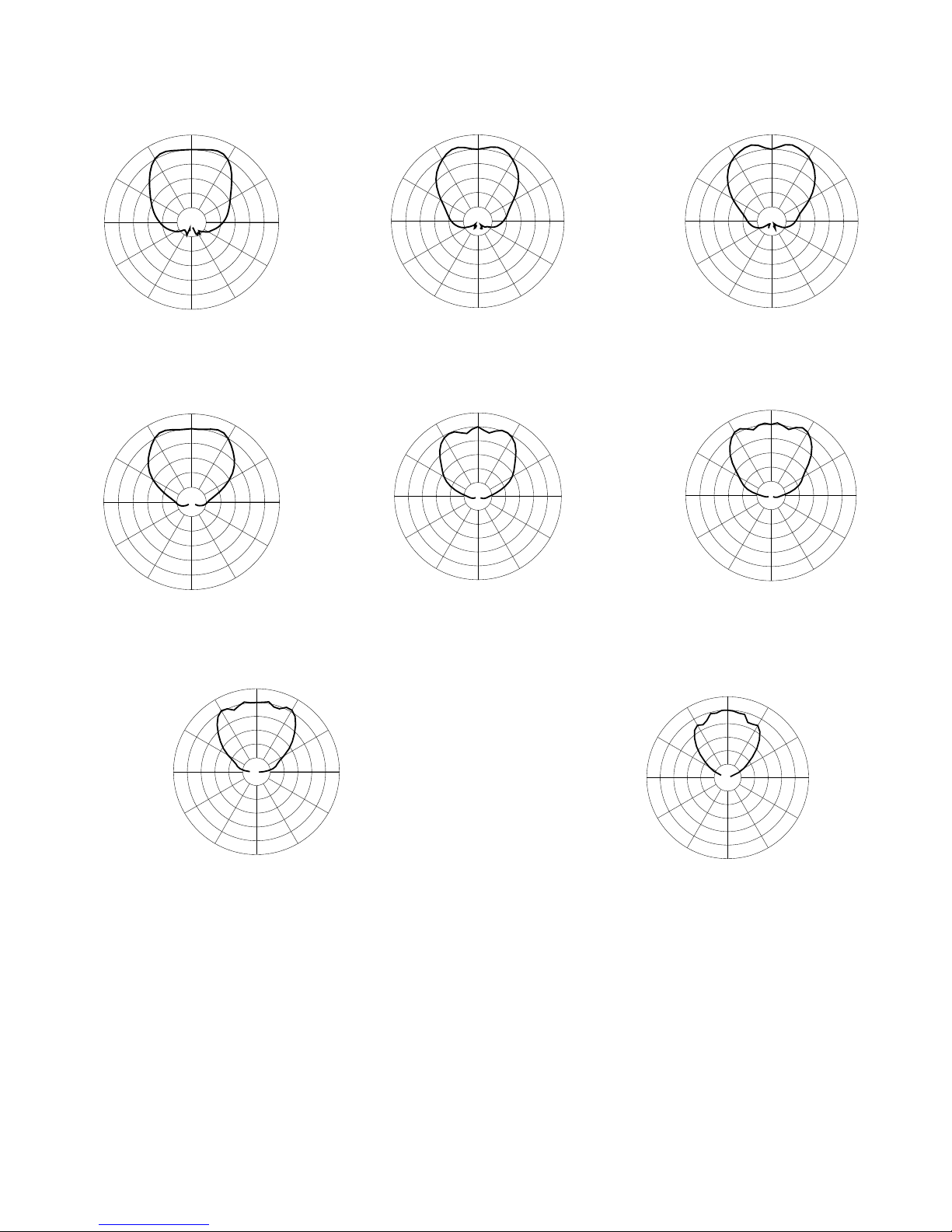

Horizontal Polar Patterns 6 dB per Division

18
-90o
-60o
-30o
0o
30o
60o
90o
3.15 kHz
-90o
-60o
-30o
0o
30o
60o
90o
5 kHz
-90o
-60o
-30o
0o
30o
60o
90o
8 kHz
-90o
-60o
-30o
0o
30o
60o
90o
12.5 kHz
-90o
-60o
-30o
0o
30o
60o
90o
16 kHz
-90o
-60o
-30o
0o
30o
60o
90o
4 kHz
-90o
-60o
-30o
0o
30o
60o
90o
6.3 kHz
-90o
-60o
-30o
0o
30o
60o
90o
10 kHz
Quadra®15P
Horizontal Polar Patterns 6 dB per Division

19
0o
30o
60o
90o
-30o
-60o
-90o
200 Hz
0o
30o
60o
90o
-30o
-60o
-90o
315 Hz
0o
30o
60o
90o
-30o
-60o
-90o
500 Hz
0o
30o
60o
90o
-30o
-60o
-90o
800 Hz
0o
30o
60o
90o
-30o
-60o
-90o
1.25 kHz
0o
30o
60o
90o
-30o
-60o
-90o
1 kHz
0o
30o
60o
90o
-30o
-60o
-90o
1.6 kHz
0o
30o
60o
90o
-30o
-60o
-90o
2.5 kHz
0o
30o
60o
90o
-30o
-60o
-90o
2 kHz
0o
30o
60o
90o
-30o
-60o
-90o
250 Hz
0o
30o
60o
90o
-30o
-60o
-90o
400 Hz
0o
30o
60o
90o
-30o
-60o
-90o
630 Hz
Quadra®15P

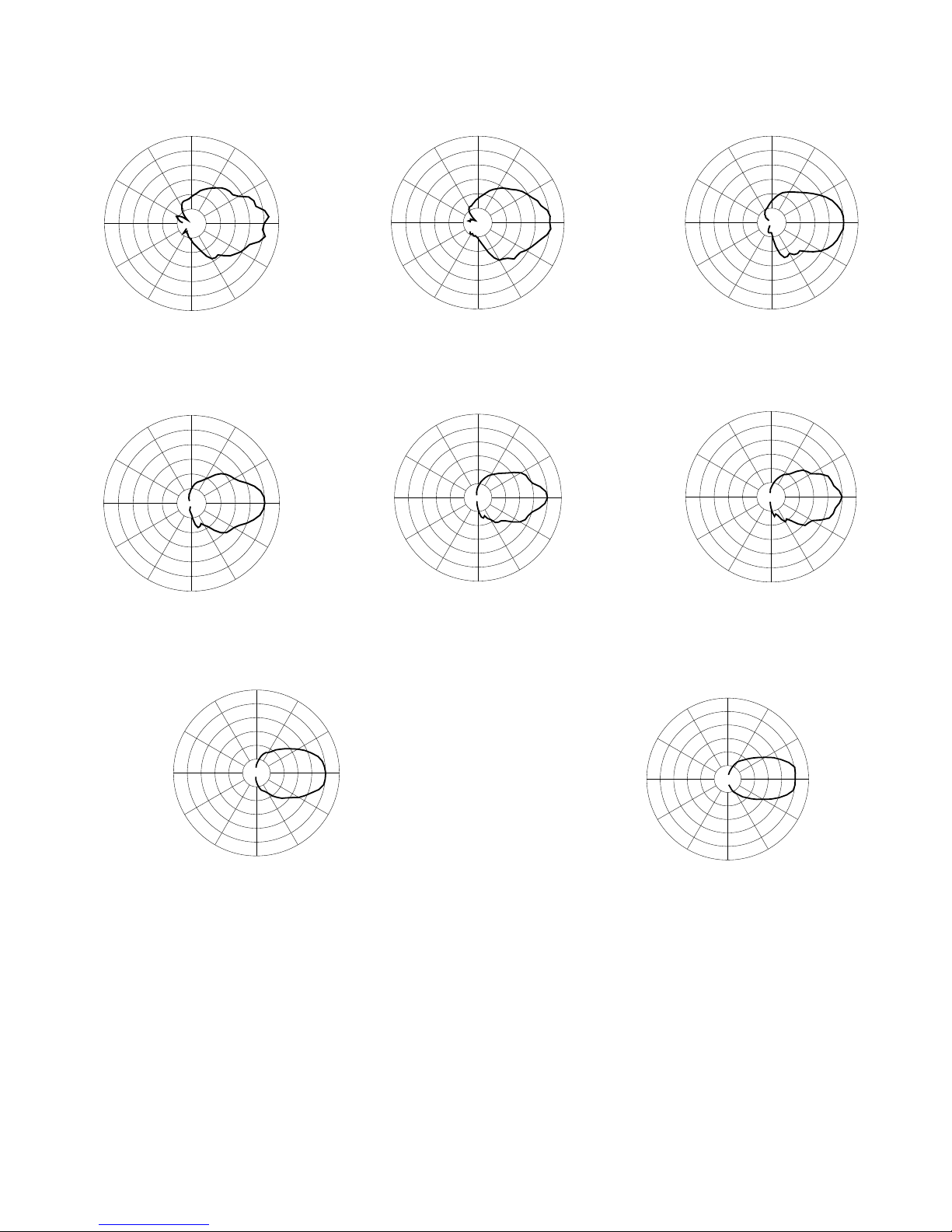

Vertical Polar Patterns 6 dB per Division

20
0o
30o
60o
90o
-30o
-60o
-90o
3.15 kHz
0o
30o
60o
90o
-30o
-60o
-90o
5 kHz
0o
30o
60o
90o
-30o
-60o
-90o
8 kHz
0o
30o
60o
90o
-30o
-60o
-90o
12.5 kHz
0o
30o
60o
90o
-30o
-60o
-90o
16 kHz
0o
30o
60o
90o
-30o
-60o
-90o
4 kHz
0o
30o
60o
90o
-30o
-60o
-90o
6.3 kHz
0o
30o
60o
90o
-30o
-60o
-90o
10 kHz
Quadra®15P
Vertical Polar Patterns 6 dB per Division
