AREBOS AR-HE-TBM13 User manual

User’s manual – AREBOS Bench drill 500W
1
Bench drill 500 W
AR-HE-TBM13
Please follow all security measures in this user’s manual to ensure a secure use.
Thank you for trusting AREBOS.

User’s manual – AREBOS Bench drill 500W
2
List of contents
1. Safety instructions ..........................................................3
1.1 Explanation of the symbols.........................................................3
1.2 Safety rules .................................................................................4
1.3 Safety work area.........................................................................4
1.4 Precautions against accident hazards .........................................6
1.5 Residual risks ..............................................................................6
2. Technical Data ................................................................7
3. Scope of delivery.............................................................8
4. Construction ...................................................................9
4.1 Unpacking................................................................................... 9

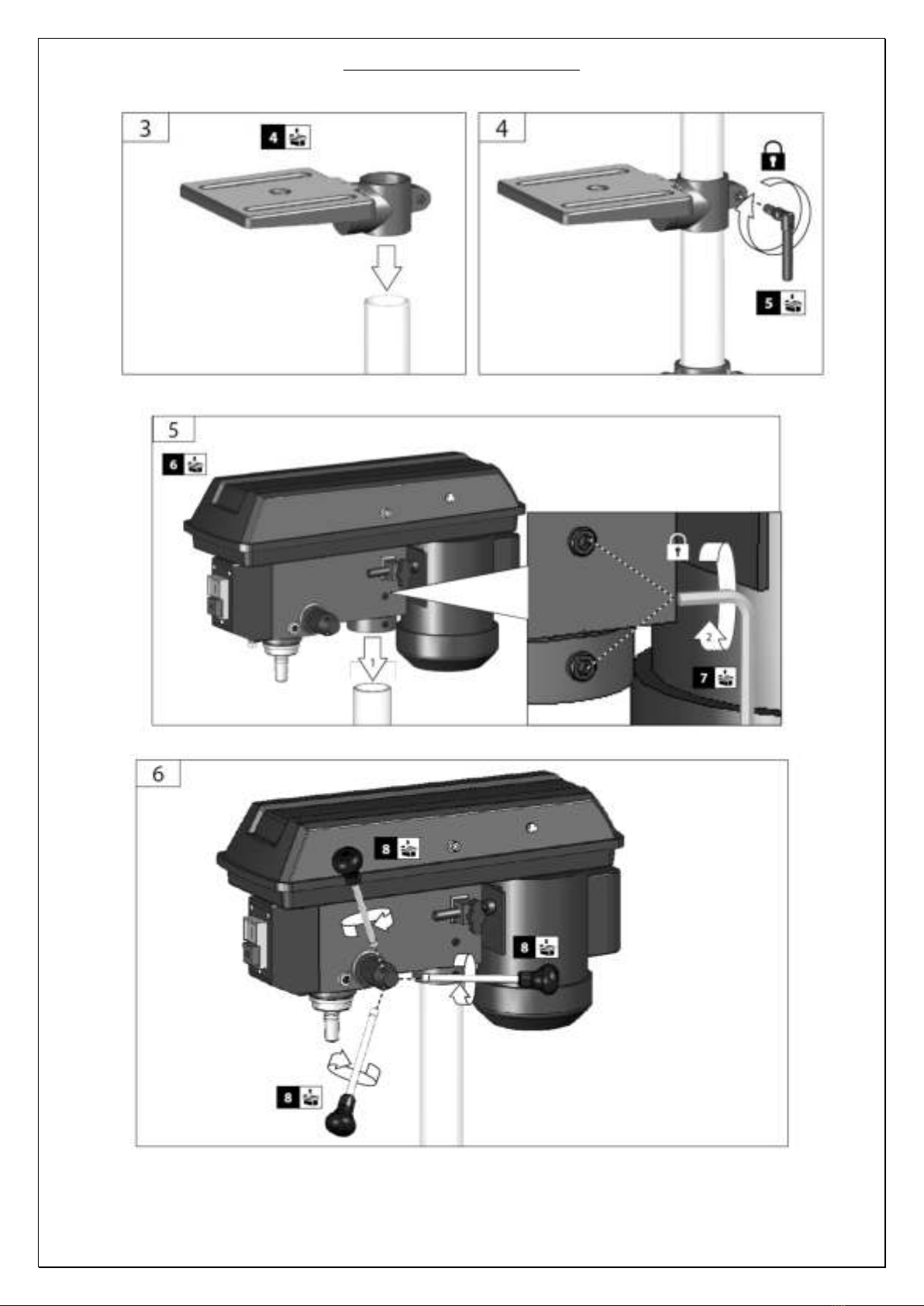

4.2 Assembly of the device ...............................................................9
4.3 Clamping the drill bit ................................................................ 12
4.4 Spindle speed ........................................................................... 12
4.5 Clamping the workpiece ........................................................... 13

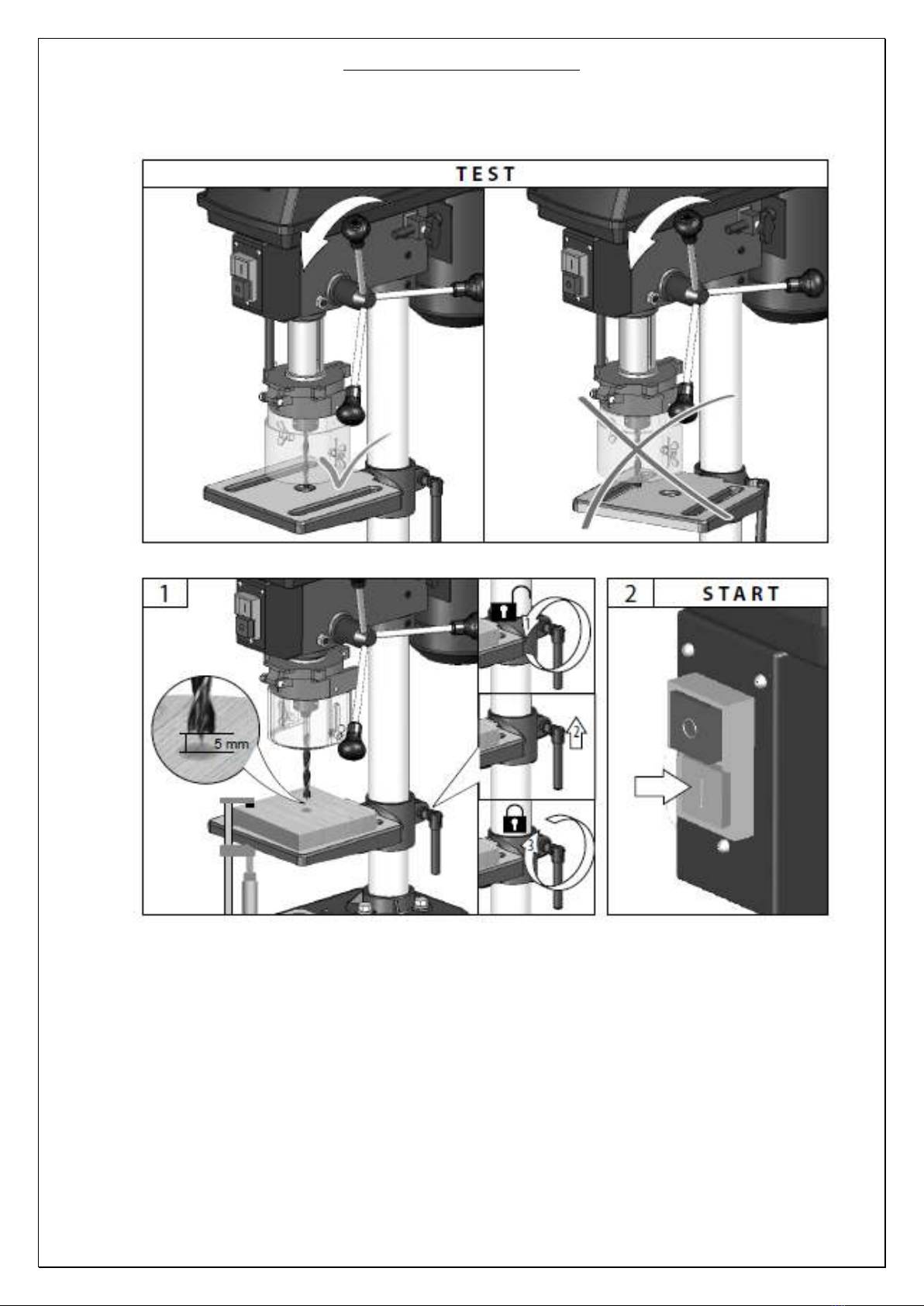

4.6 Test run..................................................................................... 14
4.7 Maintenance............................................................................. 16
5. Intended Use ................................................................16
6. Putting into service .......................................................17
6.1 Before use................................................................................. 17
6.2 Safety precautions when handling the machine....................... 17
6.3 Mains connection ..................................................................... 17
7. Inspection and maintenance plan .................................18
8. Maintenance and Cleaning............................................18
8.1 Maintenance............................................................................. 18
8.2 Cleaning .................................................................................... 18
8.3 Service Information .................................................................. 18
8.4 Storage ..................................................................................... 19
9. Environmentally friendly disposal .................................20
9.1 Disposal and packaging............................................................. 20
9.2 Disposal of old equipment........................................................ 20
EU Declaration of Conformity ............................................21

User’s manual – AREBOS Bench drill 500W
3
Thank you for purchasing our product. Please read the operating instructions carefully before using
the product for the first time. If you give the product to a third party, this manual must be handed
over with it. Keep the instruction manual for future reference. The drawings in this manual may
not match the physical objects. Please refer to the physical objects.
1.Safety instructions
1.1 Explanation of the symbols
By means of a CE marking, it can be recognized that a product complies with the
legal requirements of European legal standards and therefore may be traded
within the European Community.
This product must not be disposed of with household waste!
Warning! Read the safety instructions carefully. Failure to follow the safety
precautions could result in serious injury or damage. Keep the operating
instructions in a safe place.
Warning! Wear ear protection!
Warning! Wear a mask!
Warning! Wear safety glasses!
Take special care when using this article.

User’s manual – AREBOS Bench drill 500W
4
1.2 Safety rules
•Keep all safety information and instructions for the future. The term "power tool" used in
the safety instructions refers to mains operated power tools (with mains cable) and battery-
operated power tools (without mains cable).
•Warning! Read all safety notes and instructions. Failure to observe the safety instructions can
cause electric shock, fire and/or serious injury.
•Attention! The machine must be securely fastened to the floor with suitable screws as
there is a risk of tipping over.
1.3 Safety work area
•Keep your workspace in order. Disorder in the work area can result in accidents.
•Take environmental influences into account. Do not expose power tools to rain. Do not use
power tools in a damp or wet environment. Ensure that the working area is well lit. Do not
use power tools where there is a risk of fire or explosion.
•Protect yourself from electric shock. Avoid body contact with earthed parts (e.g. pipes,
radiators, electric cookers, refrigerators).
•Keep other persons away. Do not allow other persons, especially children, to touch the
power tool or the cable. Keep them away from your work area.
•Keep unused power tools safe. Unused power tools should be stored in a dry, elevated or
locked location out of the reach of children.
•Do not overload your power tool. You will work better and safer in the specified power
range.
•Use the correct power tool. Do not use low-power machines for heavy work. Do not use the
power tool for purposes for which it is not intended. For example, do not use a hand-held
circular saw to cut tree branches or wood chips.
•Wear suitable clothing. Do not wear wide clothing or jewellery, they may be caught by
moving parts. When working outdoors, non-slip footwear is recommended. Wear a hair net
for long hair.
•Use protective equipment. Wear protective goggles. Use a breathing mask for dust-
generating work.
Do not wear gloves.
Do not wear long hair loose. Use a hair net.
Attention! Laser beam! Do not look into the beam!

User’s manual – AREBOS Bench drill 500W
5
•Connect it to a vacuum cleaner. If there are connections for dust extraction and collection,
make sure that they are connected and used correctly.
•Do not use the cable for purposes for which it is not intended. Do not use the cable to
disconnect the plug from the outlet. Protect the cable from heat, oil, and sharp edges.
•Secure the workpiece. Use clamping devices or a vice to hold the workpiece. It is therefore
held more securely than with your hand.
•Avoid abnormal posture. Ensure a secure stand and maintain balance at all times.
•Maintain your tools with care. Keep the cutting tools sharp and clean to work better and
safer. Follow the lubrication and tool change instructions. Check the connection wiring of the
power tool regularly and have it replaced by an approved specialist if damaged. Check
extension cords regularly and replace them if damaged. Keep handles dry, clean and free of
oil and grease.
•Disconnect the plug from the socket. When not using the power tool, before maintenance
and when changing tools such as saw blade, drill bit, milling cutter.
•Do not leave any tool keys inserted. Before switching on, check that the keys and setting
tools have been removed.
•Avoid unintentional start-up. Make sure that the switch is turned off when the plug is
plugged into the socket.
•Use an extension cord for outdoor use. In the open air, only use extension cables approved
for this purpose and marked accordingly.
•Be careful. Pay attention to what you are doing. Get to work with common sense. Do not use
the electrical tool if you are not concentrated.
•Check the power tool for possible damage. Before continuing to use the power tool, carefully
inspect protective devices or slightly damaged parts to ensure that they are functioning
properly and in accordance with their intended purpose. Check that the moving parts
function properly and are not jammed or that parts are damaged. All parts must be properly
assembled and meet all conditions to ensure proper operation of the power tool. Damaged
safety devices and parts must be repaired or replaced by a recognised specialist workshop in
accordance with their intended use, unless otherwise specified in the instructions for use.
Damaged switches must be replaced at a customer service workshop. Do not use power tools
if the switch cannot be switched on and off.
•Caution! The use of other tools and accessories may result in injury.
•Have your power tool repaired by a qualified electrician. This power tool complies with the
relevant safety regulations. Repairs may only be carried out by a qualified electrician using
original spare parts.
•Never obscure warning labels on the power tool.
•Mount the power tool on a firm, level and horizontal surface. If the power tool can slip or
wobble, the insertion tool cannot be guided evenly and safely.
•Keep the work surface clean except for the workpiece to be machined. Sharp-edged drilling
chips and objects can lead to injuries. Material mixtures are especially dangerous. Light metal
dust can burn or explode.
•Guide the insert tool only switched on against the workpiece. Otherwise there is a risk that
the insert tool will get caught in the workpiece and the workpiece will be taken with it. This
can lead to injuries.
•Do not enter the drilling area with your hands while the power tool is running. There is a risk
of injury if you come into contact with the insert tool.
•Never remove drill chips from the drilling area while the power tool is running. Always move
the drive unit first to the rest position and switch off the power tool.
•Do not remove any drilling chips with bare hands. Hot and sharp-edged metal chips in
particular pose a risk of injury.

User’s manual – AREBOS Bench drill 500W
6
•Break long drilling chips by interrupting the drilling process by briefly turning back the turning
wheel. There is a risk of injury due to long drilling chips.
•Keep handles dry, clean and free of oil and grease. Greasy, oily handles are slippery and lead
to loss of control.
•Use fixtures to clamp the workpiece. Do not machine workpieces that are too small to clamp.
If you hold the workpiece by hand, you cannot secure it sufficiently against twisting and
injure yourself.
•Turn off the power tool immediately if the insert tool blocks. The insert tool will lock if: the
power tool is overloaded or it cants in the workpiece to be machined.
•Do not touch the insert tool after machining until it has cooled down. The insert tool
becomes very hot when working.
•Inspect the cable regularly and have a damaged cable repaired only by an authorised service
centre. Replace damaged extension cables. This will ensure that the safety of the power tool
is maintained.
•Keep the unused power tool safe. The storage area must be dry and lockable. This prevents
the power tool from being damaged during storage or from being operated by inexperienced
persons.
•Never leave the tool before it has come to a complete stop. Trailing insert tools can cause
injuries.
•Do not use the power tool with a damaged cable. Do not touch the damaged cable and
disconnect the power plug if the cable is damaged during work. Damaged cables increase the
risk of electric shock.
1.4 Precautions against accident hazards
•Do not look directly into the laser beam with an unprotected eye.
•Never look directly into the beam path.
•Never point the laser beam at reflective surfaces, persons or animals. Even a low-power laser
beam can cause damage to the eye.
•Caution! If procedures other than those specified here are used, this can result in dangerous
beam exposure.
•If the cross-cut saw is not used for an extended period of time, the batteries should be
removed.
•Do not replace the laser with another type of laser.
•Repairs to the laser may only be carried out by the manufacturer of the laser or an
authorized
1.5 Residual risks
•The power tool is built according to the state of the art and the recognized safety regulations.
Nevertheless, individual residual risks may occur during operation.
•Danger to health from electricity if incorrect electrical connection cables are used.
•Furthermore, despite all precautions taken, there may be non-obvious residual risks.
•Residual risks can be minimized if the "Safety Instructions" and the "Intended Use" as well as
the operating instructions are observed in their entirety.
•Do not stress the machine unnecessarily: excessive pressure during sawing will quickly
damage the saw blade. This can lead to a reduction in machine performance during
processing and a reduction in cutting accuracy.
•Avoid accidental start-up of the machine: the operating button must not be pressed when
inserting the plug into the socket.
•Use the tool recommended in this manual. This will ensure that your saw performs optimally.

User’s manual – AREBOS Bench drill 500W
7
•Keep your hands away from the working area when the machine is in operation. Before
carrying out any adjustment or maintenance work, switch off the machine and unplug it from
the power supply.
2.Technical Data
Model
AR-HE-TBM13
Rated input voltage
230 V~/50 Hz
Nominal power
500 W (S2 15 min)
Engine speed
1450 min-1
Output speed (infinitely variable)
550/950/1450/1950/2500 min-1
Drill chuck holder
B16
Drill chuck
1,5 –13 mm
Size drilling table
164 x 162 mm
Angle adjustment
45°/0°/45°
Drilling depth
50 mm
Column diameter
46 mm
Height
590 mm
Footprint
298 x 190 mm
Weight
14.5 kg
Laser class
II
Wavelength Laser
650 nm
Laser Power
< 1 mW
Sound power level LpA
72,6 dB (A)
uncertainty KpA
3 dB
Sound power level LWA
82 dB (A)
Uncertainty KWA
3 dB
Vibration emission value ah
1.58 m/s2
Uncertainty K
1,5 m/s2
Cable length
1.5 m
Plug type
Schuko plug type F
•Hint! Wear hearing protection.
Exposure to noise can cause hearing loss. Vibration total values (vector sum of three
directions) determined according to EN 61029.

User’s manual – AREBOS Bench drill 500W
8
3.Scope of delivery

User’s manual – AREBOS Bench drill 500W
9
4.Construction
4.1 Unpacking
•Open the packaging and carefully remove the device.
•Remove the packaging material and any packaging and transport locks (if present).
•Check that the scope of delivery is complete.
•Check the device and accessories for transport damage.
•If possible, keep the packaging until the end of the warranty period.
•Attention! The device and packaging materials are not children's toys! Children must not play
with plastic bags, foils or small parts! There is a danger of swallowing and suffocation!
4.2 Assembly of the device

User’s manual – AREBOS Bench drill 500W
10

User’s manual – AREBOS Bench drill 500W
11

User’s manual – AREBOS Bench drill 500W
12
4.3 Clamping the drill bit
4.4 Spindle speed
To adjust the speed of the drill, set the belt drive to the respective "height". Open the belt box (see 2.
Technical data; picture no.6) by loosening the cross screw. Between the motor and the switch for the
laser, loosen the wing screw by hand so that the belt relaxes. The belt can now be conveniently set to
the desired speed. Reassemble the unit in reverse order.

User’s manual – AREBOS Bench drill 500W
13
Tension the belt so that it can be twisted by approx. 90°. The belt box must be closed again with the
cross screw.
4.5 Clamping the workpiece

User’s manual – AREBOS Bench drill 500W
14
4.6 Test run

User’s manual – AREBOS Bench drill 500W
15

User’s manual – AREBOS Bench drill 500W
16
4.7 Maintenance
5.Intended Use
•The machine may only be used in a technically perfect condition and in compliance with all
safety instructions.
•This device may only be used as intended. The manufacturer cannot be held responsible for
any damage resulting from non-compliance with the provisions of the generally applicable
regulations as well as the provisions of these instructions.
•It is strictly forbidden to dismantle, modify, alienate or install any other protective devices
on the machine.

User’s manual – AREBOS Bench drill 500W
17
•Even with proper use and compliance with all safety regulations, residual risks may still exist:
-Noise emission
-Dust emission
-Hand-arm vibrations
-Risk of burns
-Tool and workpiece heat up during operation
-Risk of injury
-Sharp tools and workpiece edges
6.Putting into service
6.1 Before use
•Check the on/off switch incl. emergency stop switch for proper function
•Perform a view check before each operation
•In particular, check safety devices, electrical operating elements, electrical cables and screw
connections for damage and tight fit.
Replace any damaged parts before operation.
•Make sure that the table clamp lever is firmly tightened before starting the machine.
•Make sure that the drill is securely fastened in the chuck.
•Remove the clamping wrenches. Always check that the spanners have been removed before
turning on the machine.
•Attention! Keep body parts and clothes away from moving parts of the device.
6.2 Safety precautions when handling the machine
•Use protective equipment that is tailored to your needs. Wear a hair net for long hair.
•Do not wear gloves when using a drill. Do not attempt to drill a material that does not have a
flat surface unless you are using a suitable support.
•Never start the drill with the drill pressed against the workpiece.
•Always use clamps, jaws or a vice to secure the workpiece to the table.
•Adjust the drill to the speed appropriate for the job.
•Switch off the machine immediately in the event of a blockage. Disconnect the power plug
and remove the jammed workpiece.
•Do not remove chips or splinters while the machine is running.
6.3 Mains connection
•Attention! Operation is only permitted with a residual current circuit breaker (RCD max.
residual current 30mA).
•Only connect to single-phase alternating current and only to the mains voltage specified on
the rating plate. Only connect to sockets with earthing contact.
•Only connect the machine to the socket when switched off.

User’s manual – AREBOS Bench drill 500W
18
7.Inspection and maintenance plan
Regular maintenance period
Before each commissioning
After each commissioning
If necessary
Check safety equipment.
✓
Check V-belt and tighten if
necessary.
✓
Lubricate the column and
table with a thin layer of oil.
✓
Clean taper mandrel.
✓
Clean the machine from
drilling dust or metal chips.
✓
8.Maintenance and Cleaning
8.1 Maintenance
•Caution! Disconnect the mains plug before any adjustment, maintenance or repair.
•Have work that is not described in these operating instructions carried out by a specialist
workshop. Only use original parts. Allow the unit to cool before carrying out any
maintenance or cleaning work. There is a risk of burns!
•Before each use, check the unit for obvious defects such as loose, worn or damaged parts,
correct seating of screws or other parts. Replace damaged parts.
•Perform a visual inspection before each operation.
•The device must not be used if it is damaged or safety devices are defective.
•Replace worn and damaged parts.
•Attention! If the connecting cable of this device is damaged, it must be replaced by the
manufacturer or its customer service or a similarly qualified person in order to avoid hazards.
•Repairs and work not described in this manual should only be carried out by qualified
personnel.
•Only use original accessories and square parts.
8.2 Cleaning
•Always keep the machine clean, especially air vents. Never spray the machine body with
water!
•Do not clean plastics with solvents, flammable or toxic liquids. Only use a damp cloth for
cleaning.
•Treat all moving parts with an environmentally friendly oil.
•Only a regularly maintained and well-maintained appliance can be a satisfactory aid.
•Lack of maintenance and care can lead to unforeseeable accidents and injuries.
•Clean the ventilation openings and the surface of the device with a soft brush, a brush or a
cloth.
•Remove chips, dust and dirt with a vacuum cleaner if necessary.
•Lubricate moving parts regularly.
8.3 Service Information
•It should be noted that the following parts of this product are subject to normal or natural
wear and tear or that the following parts are required as consumables.

User’s manual – AREBOS Bench drill 500W
19
•Wear parts: Carbon brushes; V-belts, batteries, drills
8.4 Storage
•Store the device and its accessories in a dark, dry and frost-free place that is inaccessible to
children. The optimum storage temperature is between 5 and 30˚C.
•Keep the power tool in its original packaging.
•Cover the power tool to protect it from dust or moisture.
•Keep the operating instructions with the power tool.

User’s manual – AREBOS Bench drill 500W
20
9.Environmentally friendly disposal
9.1 Disposal and packaging
•The packaging of your unit consists of materials that are necessary to guarantee effective
protection during transport. These materials are fully recyclable and therefore reduce the
environmental impact. Dispose of the packaging in a bin for recyclable materials.
Danger of suffocation! Do not leave the packaging material lying around carelessly. It could
become a dangerous toy for children.
9.2 Disposal of old equipment
•Old appliances must be disposed of in accordance with the guidelines and regulations of the
local waste disposal authority. Check with your local administration for the address of the
nearest recycling centre and deliver your appliance there.
The symbol of the crossed-out dustbin on a Waste electrical or electronic
equipment indicates that it must not be disposed of with household waste at
the end of its life. Collection points for waste electrical and electronic
equipment are available free of charge in your area. You can obtain the
addresses from your city or local government. You can find out about other
return options created by us on our website www.arebos.de.
The separate collection of Waste electrical or electronic equipment is intended
to enable the reuse, recycling or other forms of recovery of Waste electrical or
electronic equipment and to avoid the negative consequences of disposal on
the environment and human health.
Our customer service number: Tel. [phone]
Fax: [phone] / E-Mail: [e-mail]
Office adress: Canbolat Vertriebs GmbH • Gneisenaustraße 10-11 • 97074 Würzburg
You can find the return address in the imprint: https://www.arebos.de/impressum/
