Autohomes 1994 Explorer User guide

Motorhome
Owners Handbook
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Campervans

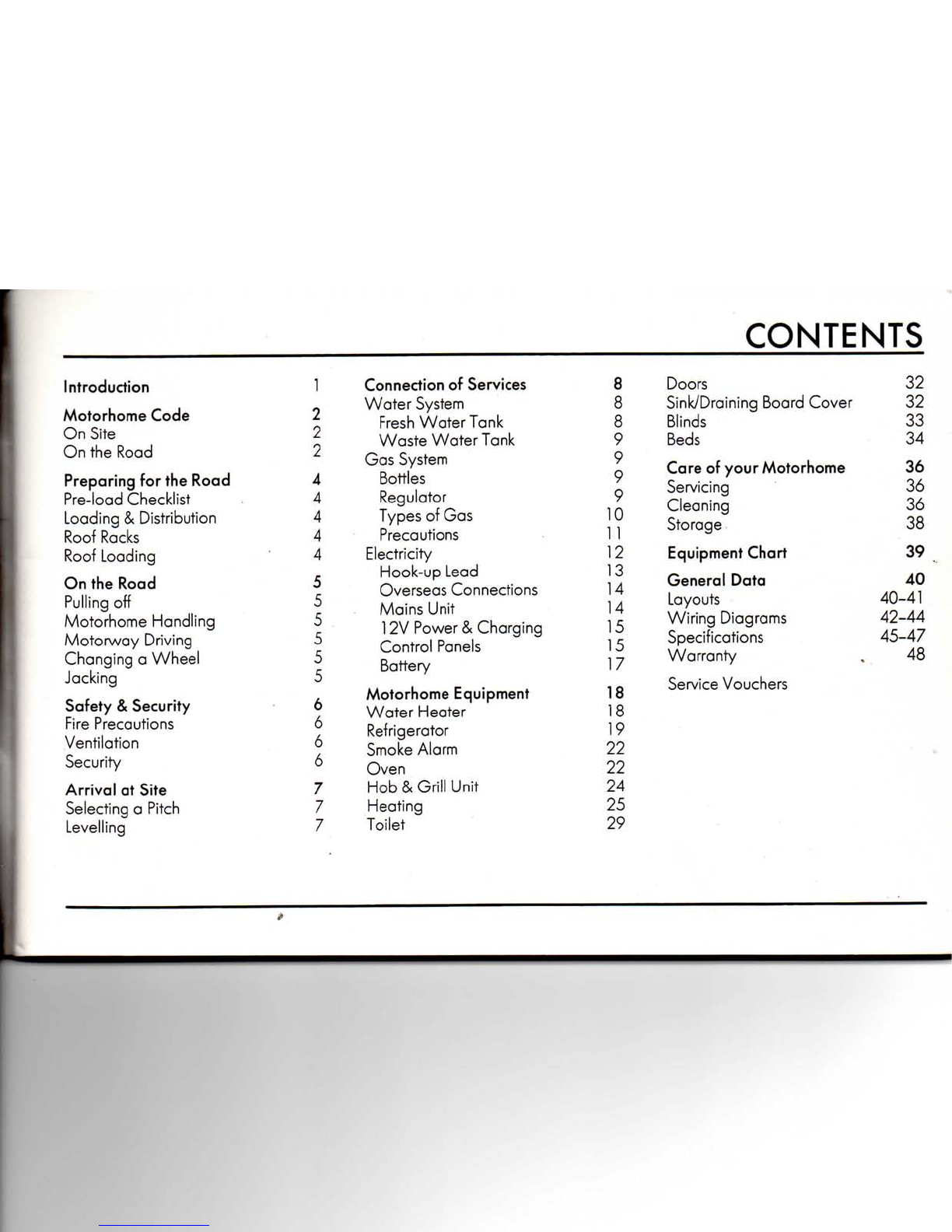

CONTENTS
Introduction 1
Motorhome Code 2
On Site 2
On the Road 2
Preparing forthe Road 4
Pre-load Checklist4
Loading & Distribution 4
Roof Racks4
Roof Loading4
Onthe Road 5
Pulling off5
Motorhome Handling5
Motorway Driving 5
Changing a Wheel5
Jacking 5
Safety & Security 6
Fire Precautions6
Ventilation6
Security 6
Arrival at Site 7
Selectinga Pitch7
Levelling7
Connection of Services 8
Water System 8
Fresh Water Tank 8
WasteWater Tank 9
Gas System 9
Bottles 9
Regulator9
Types ofGas10

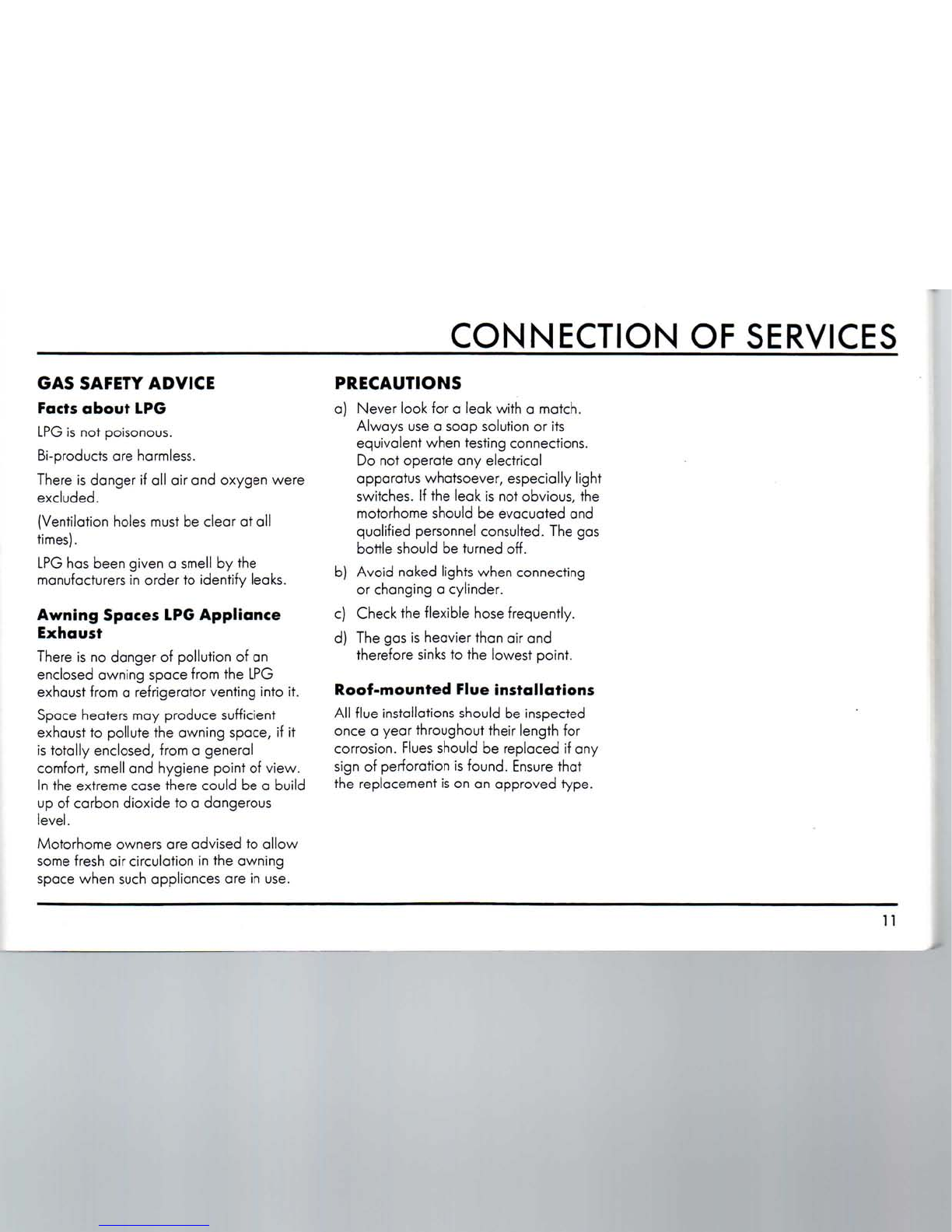

Precautions1 1

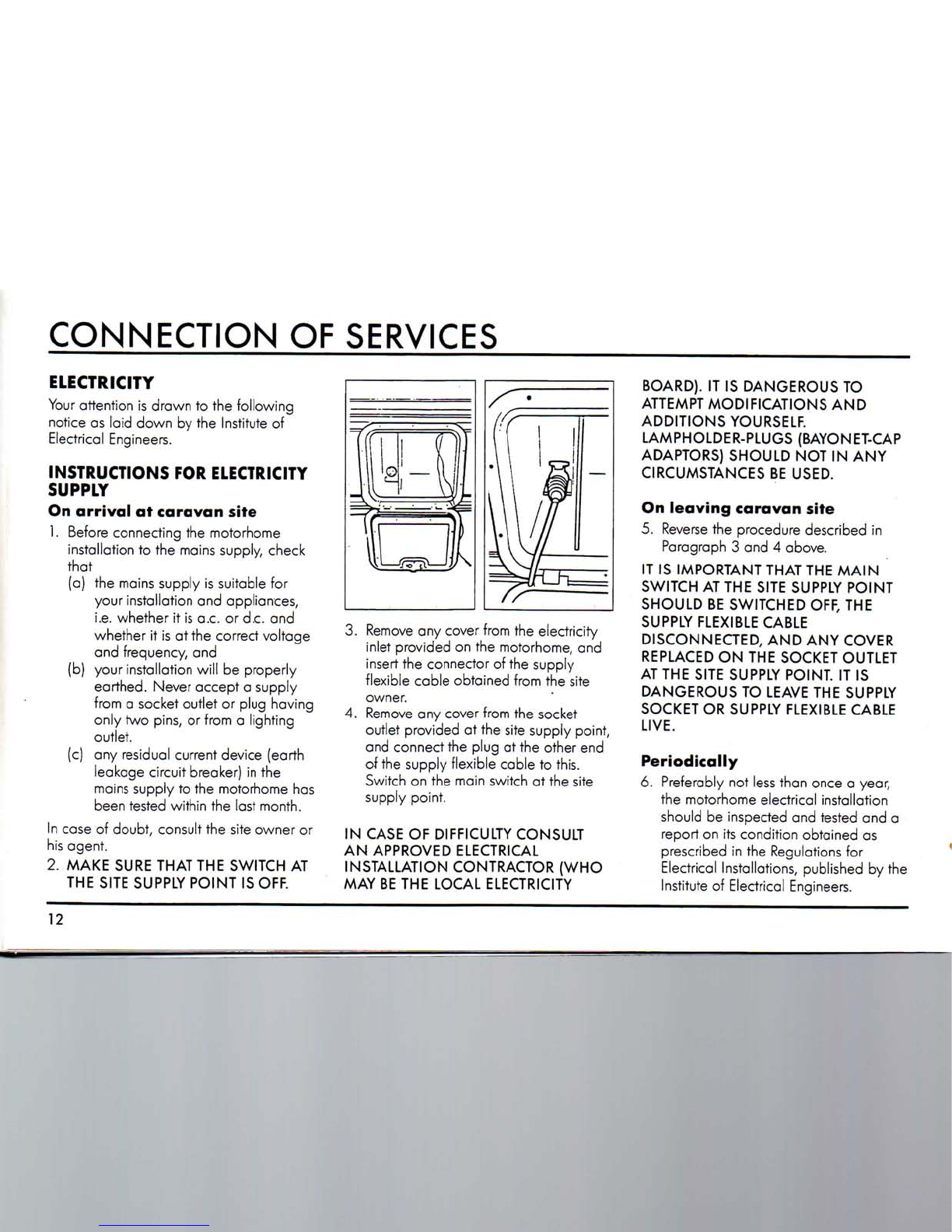

Electricity12
Hook-up Lead 13

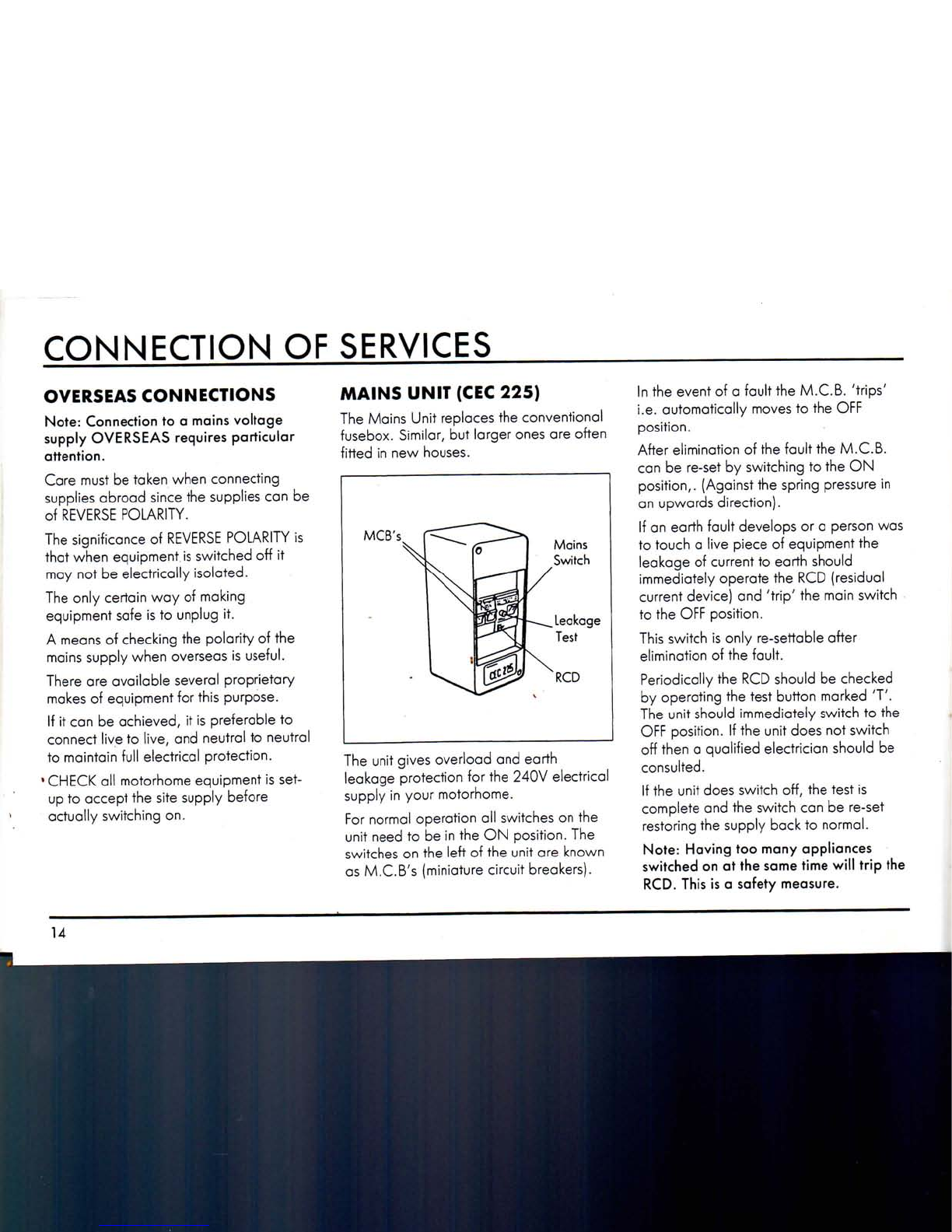

OverseasConnections14
Mains Unit 14
12VPower& Charging15
Control Panels 1 5
Battery 17
Motorhome Equipment 18
WaterHeater18
Refrigerator19
SmokeAlarm22
Oven 22
Hob & Grill Unit 24
Heating 25
Toilet 29
Doors
32
Sink/Draining Board Cover
32
Blinds
33
Beds
34
Care of your Motorhome
36
Servicing 36
Cleaning 36
Storage 38
Equipment Chart
39
General Data
40
Layouts
40-41
Wiring Diagrams
42-44
Specifications
45-47
Warranty 48
ServiceVouchers
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Campervans

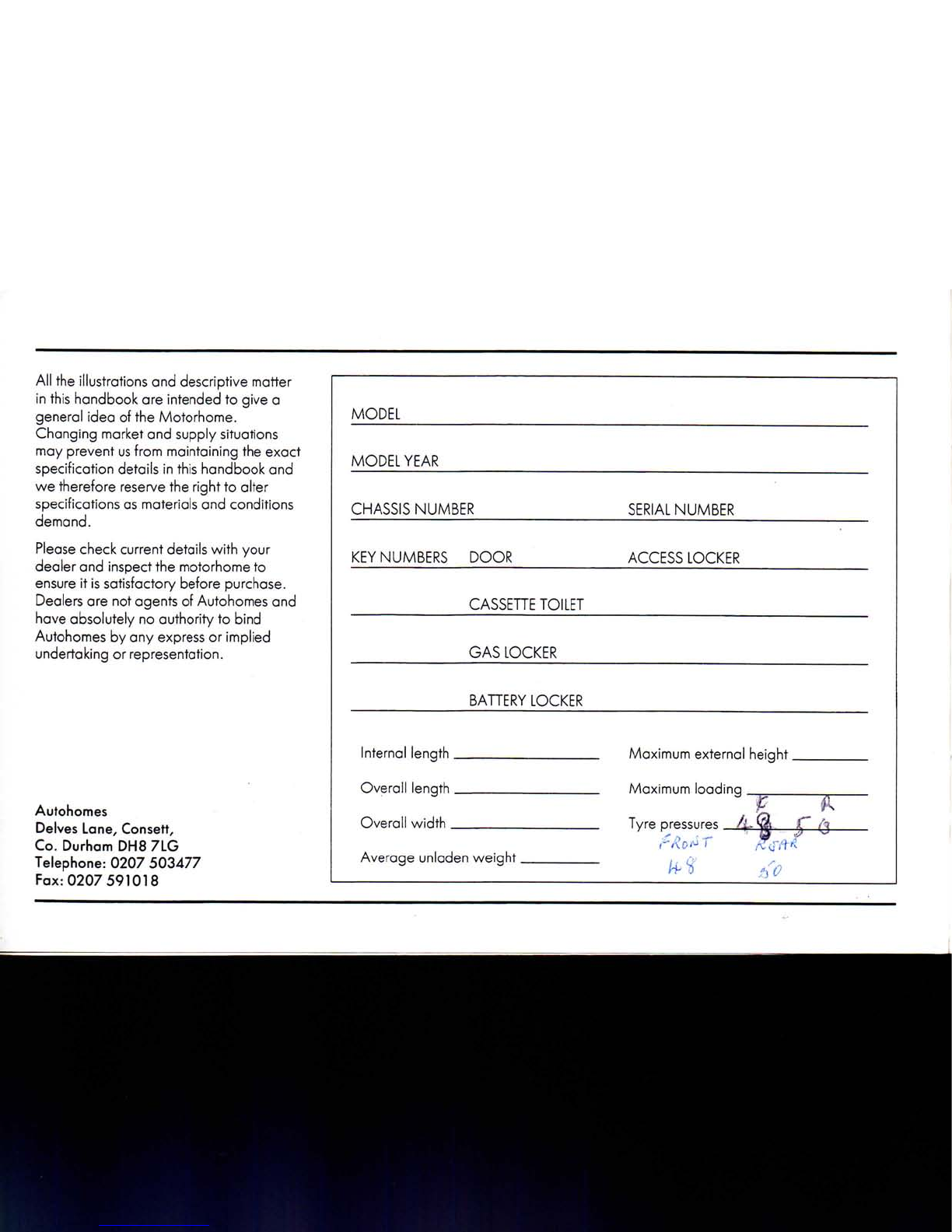

Allthe illustrations anddescriptivematter
in this handbookareintendedtogive a
general idea oftheMotorhome.
Changing marketandsupply situations
may prevent us frommaintainingthe exact
specification details in this handbookand
we thereforereservethe right toalter
specificationsasmaterialsandconditions
demand.
Please check currentdetailswithyour
dealer andinspectthemotorhometo
ensure itis satisfactorybeforepurchase.
Dealersarenotagents of Autohomesand
have absolutelynoauthoritytobind
Autohomesbyany express or implied
undertaking or representation.
Autohomes
Delves Lane, Consett,
Co. Durham DH87LG
Telephone: [phone]
Fax: [phone]
MODEL
MODEL YEAR
CHASSIS NUMBER
SERIAL NUMBER
KEY NUMBERS DOOR ACCESSLOCKER
CASSETTE TOILET
GAS LOCKER
BATTERY LOCKER
Internal length .
Overalllength
Overallwidth _
Maximumexternalheight.
Maximumloading .
Average unladenweight.
T 7^
Tyre pressures vjfr ,;~/-;
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Campervans

INTRODUCTION
Welcome totheworldofAutohomes.
Youarenowtheowner ofa quality
AutohomesMotorhome.Autohomeshave
prepared theOwnersHandbook for your
guidance tohelpyouderivethegreatest
amount of pleasurefromtheuse of your
Motorhome. Autohomesrecommendthat
youreadthepagesof this Handbook
thoroughly so thatyouare fully
conversant with all theMotorhome
systems. If there is anythingyou wish to
knowwhich this Handbook fails to cover
we are sure thatyourAutohomes
AuthorisedDealer will bepleased to
help.
Note:
The Autohomes range of Coach built
Caravans are designed forusein normal
UK climatic conditions.
Important:
The serial number of yourmotorho.me
shouldbequoted in allcorrespondence, it
can befoundstampedon a platefixed
beneath themotorhomedoor. There is
also a serial no.onthecab chassis,
whichshouldalsobequoted.
AutohomesAuthorisedDealers will be
able tosupplyanyreplacement parts for
yourMotorhome,shouldtheneedarise,
along with anyaccessoriesyoumay
require.Pleasenotethat itis notpossible
topurchasereplacement parts or
accessoriesdirectfromthemanufacturer,
Autohomes.
Weare sure you will havemanyhappy
times with yourMotorhomebutplease
remembera happycarefreetime is based
on proper,thoroughandresponsible
preparation, carefuldriving with regard to
'The Rules of theRoad',otherroad users
and above all ensuring yourMotorhome
isinafirst classroadworthycondition.
Autohomesrecommendthatyour
Motorhome is serviced by anAuthorised
AutohomesDealer once everytwelve
months.
Happy Caravanning!
Fire Retardant Foams
UndertheCondition of theConsumer
ProtectionAct1987,Autohomeshave a
responsibility toensurethat their product
isas safe as possible. With this in mind all
Autohomesareequipped with
CombustionModifiedHigh Resilient
(C.M.H.R.)foamcushions. These foams
are verymuchsaferfrom a fire point of
viewthanthosepreviouslyused. In
addition all upholstery is made of fire
retardantfabric.
1
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Campervans

MOTORHOME CODE
Thepurposeofintroducinga Code of
Conduct forMotorCaravannersistobe
seentobedoingallwecanasan
industry toensurethatmotorcaravansare
looked onsympatheticallyby legislators
and otheropinion formers.
Themainelementsshouldcoversuch
things asresponsible camping, safeand
considerate driving,parking,andother
areaswherea motorcaravannercould
cause abuseornuisanceifheorsheisnot
careful.
Hereisa brief outlineofthemainpoints:
ON SITE
-Keeptoroadways unless otherwise
directed.
-Adheretospeed limits. Notethat
thesearegenerally 1 Omph.
(Remember that the stopping
distance on grass in considerably
greater than on Tarmac.)
- Ensure thatall fresh water
taps/connections areturnedoffafter
use.
-Have care andconsiderationwhen
using allfacilities (toilets and
showers etc.)andleave clean and
tidy.Youngchildrenshouldbe
escorted.
-Ifthevehicleisnotfittedwitha
wastewatertanka suitable
receptacle shouldbeputbelowall
wastewaterpipes.Donotletthese
containersoverflow.
-Disposeofallwastewaterwhere
instructed.
-Emptyeffluentfrom chemical toilets
whereinstructed.
-Putall litter incontainersmarkedfor
thepurpose.
-Donotmakeexcessivenoise.
-Petrolgenerators, unless silenced,
shouldbeusedwithconsideration.
-Alldogsandotherpetsshouldbe
keptundercontrol.
-Adhereandtakenoteofall fire
precautionsnotingthewhereabouts
ofthe fire points.
- Unless permissionhas been granted
barbecues shouldnotbeused.
Whenpermissionhas been given
considerationshouldbegiventothe
annoyance thatcanbecausedto
other users ofthe site. Similarly,
open fires arenotallowed.
-Awningsand tents shouldonlybe
usedwhenpermissionhas been
obtained.
-Leavethepitch clean andtidy.
-Onleaving, check outwiththe
reception payingtherequireddues.
-Campingawayfromlicensed sites,
withoutthelandownersorhis
agentspermission,isnotallowedin
theUnitedKingdom.
ONTHE ROAD
-Motorcaravansshouldonlybe
parked inapprovedplaces.
-When using a motor caravan on
eitherthepublichighwayorprivate
roadstheHighway Code shouldbe
complied withand full consideration
given tootherroad users.
2
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Campervans

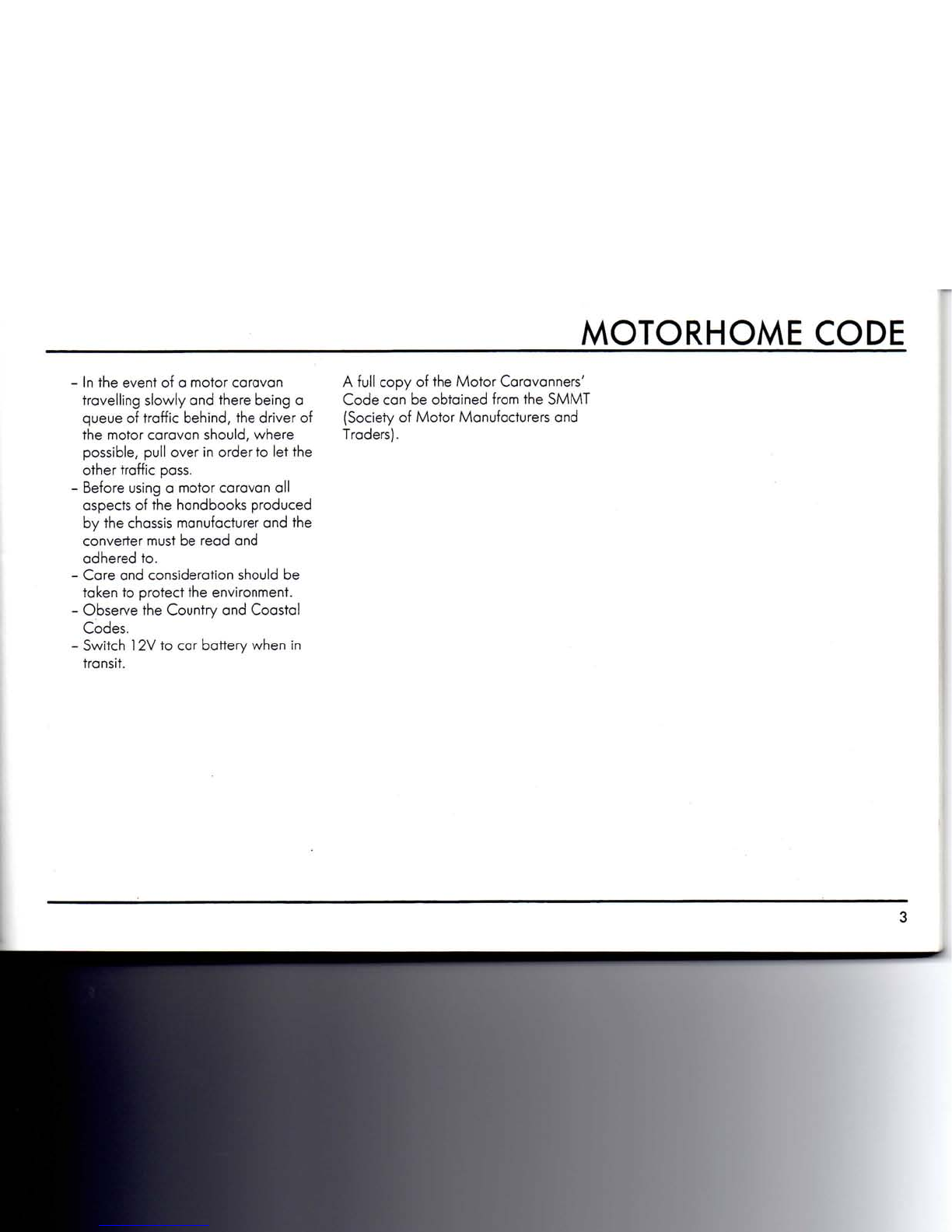

MOTORHOMECODE
-Intheeventofa motor caravan
travelling slowly andtherebeinga
queue oftrafficbehind,thedriverof
themotor caravan should,where
possible,pulloverinordertoletthe
othertrafficpass.
-Before using a motor caravan all
aspects ofthehandbooksproduced
by the chassis manufacturerandthe
converter must bereadand
adhered to.
- Care andconsiderationshouldbe
taken toprotecttheenvironment.
-ObservetheCountryandCoastal
Codes.
-Switch 1 2Vtocarbatterywhenin
transit.
A full copy oftheMotorCaravanners'
Code canbeobtainedfromthe SMMT
(SocietyofMotorManufacturersand
Traders).
3
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Campervans

PREPARING FOR THE ROAD
PRE-LOAD CHECKLIST
BEFORE LOADINGCHECK:
-loosearticles are stowedsecurely. Do
notstow tins, bottles or heavy items in
overhead lockers.
- all lockersandcupboarddoors are
closed andsecured.
- all rooflights are closedandsecured.
-maintable is stored inits transit
position.
-fridge is on12V operationanddoor
lock is set.
- all windowsare fully closedand
latched.
Leave all curtainsand blinds open to
aid rear visibility.
- gas cylindersarecorrectlypositioned,
secured andturned off.
-battery is secureandconnecting cable
is disconnectedandstowed.
ROOFRACKS
Somemodels of Autohomesarefitted
with a roof rackandladder as standard.
Care is needed when using this facility.
Autohomesrecommend you exercise
extremecautionwhenloadingand
unloading.
DO NOT ALLOW CHILDREN TO CLIMB
ONTO THE ROOF.
DO NOT EXCEED THE STATED
MAXIMUMLOAD. ITEMS FITTED OTHER
THAN STANDARD EQUIPMENT WILL
DEPLETE THE PAYLOAD STATED INTHIS
HANDBOOK.
ROOFLOADING
The roof rackand roof area (uptothe
glass reinforcedplasticoverthecab
section) are capable of withstanding an
average person's weight of13 stones
(or 82.5kg).
Somemodelsarefitted with glass
reinforcedplasticpodsoverthecab.
UNDER NO CIRCUMSTANCES WALK
ON THE OVER CAB SECTION.
N.B. Whenloading the roof rack,make
sure theload is spreadevenly.
LOADINGAND DISTRIBUTIONOF
WEIGHT INTHE MOTORHOME
Do not exceed recommendedmaximum
loading for yourmotorhome.
4
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Campervans

ON THEROAD
Pulling Off
Engage theclutchsmoothly.
Avoid wearandtearonclutchand
transmission bytakingextra care.
Change gearssmoothly.
Trynotto jerk theclutch.
Motor-home Handling
Donotbumpkerb with wheels.
Whenpassingothervehiclesallowmore
thanthenormalclearance.
Allowlongertogetupspeedtopass.
Donotsuddenly swing out.
Carryoutallmanoeuvresas smoothly as
possible.
Usenearsidewing mirror tocheck
motorhomehasclearedwhen
overtaking.
Motorway Driving
1.ReducingSpeed:
i)Inhighor cross winds.
ii)Downhill.
iii)Inpoor visibility.
2. High sidedvehiclescauseair
buffetingsoextracare must betaken
whenpassingorbeingpassed.As
much spaceaspossibleshouldbe
given.
Changing a Wheel
1. Ensure handbrakeisapplied.
2.Removethehubcap.
3.Usewheelbracetoslackenoffwheel
nuts onthewheeltobe changed.
4. Position scissor jackatthe
appropriatejackingpoint.
5.Jackupthemotorhome until the
wheelforremovalis just offthe
ground.
6.Removethewheel nuts andremove
thewheel.
7.Fitsparewheeland reverse the
above procedure.
WARNING: Ensure the wheel isofthe
same construction and size astheone
that has been removed.
Jacking
Front andRear— jackingpointasper
vehiclehandbook.
5
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Campervans

SAFETY &SECURITY
Important: Yourattention is drawn to
thenoticeaffixed in themotorhome
advisingon fire prevention,ventilation
and whattodo in case of fire.
Children
Do notleavechildrenalone in the
motorhome in anyevent,keeppotentially
dangerous items outofreach as athome,
e.g. matches,drugs,etc.
Fire Extinguishers
Itis recommended thata 1 kg(21b)
minimum capacity dry powder fire
extinguisherbecarriedinsideyour
motorhomeatalltimes.(When using a
drypowderextinguisher, itis suggested
thatthemotorhomebe evacuated until
thepowderhassettledtoavoid
inhalation.)
A fanpan fire shouldnothavean
extinguisheraimedat it butbesmothered
with afire blanket.
In case offire
1.Geteveryoneoutofthemotorhome
asquicklyaspossible using whichever
exit is thequickestincludingwindows.
Do notstoptocollectanypersonal
items.
2.Raisethealarm— Call the fire
brigade.
3. Turn offgascontainervalve if safe to
do so.
Ventilation and Condensation
AllAutohomescomplywith British
Standard5601Part 1. Theventilation
pointsonyourmotorhomearefixed
pointsofventilationwhicharestatedby
the British Standards.Underno
circumstances must theseventsbe
blocked or obstructed. Itis advisedthat
fixedventilationpointsare checked and
cleaned (if necessary)on a regularbasis.
SECURITY
Chassis number
Record yourmotorhome chassis number
(whichcanbefoundstampedon a plate
fixed beneath the motorhome door), and
your cab chassis serial no.(whichcanbe
found on a plateunderthebonnet).Make
a noteof this numberinthe space
provided atthe front of this handbook
and makea separatenoteofthenumber
tokeepsafeathome.
Motorhome Theft
Thetheft of a motorhomecan occur inthe
most unlikely circumstances;from a
motorwayservice area, evenfroman
owner'sdriveway.Secureallwindows
and doorswhenyourmotorhome is
unoccupied even if onlyfora short length
oftime.
Additional security
Consider fitting any device whichmight
deter or prevent intrusion bythieves. A
wheel lockpreventsremovalofthe
wheel. Windowetchingofthe chassis
number is a costeffectivedeterrent.
Free crime prevention
Advice aboutsecuringyourmotorhome,
protecting yourvaluables,property
marking,eitherathomeor whilst on site,
can beobtainedfromtheCrime
PreventionOfficerthroughyour local
Police Station.
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Campervans

ARRIVAL AT SITE
CheckSiteRegulations
Selecting a Pitch
Carefully selectwhereyou wish to place
yourmotorhome.The site shouldbe as
level as possible,preferablenotunderor
near trees,welldrainedand away from
possible boggy areas.Considerhowyou
will movethemotorhomewhen itis time
toleavethe site. Onslopingground itis
better topitch facing downhill,especially
duringtherainyseason.
Levelling
Winddowntherearcornersteadies (if
fitted) onto load spreaders(blocks of
wood a minimumof 6 inches (15.25cm)
square)taking care notto lift the
motorhome wheels.
NOTE: CornersteadiesareNOTwheel
jacks.
Itis importantthatthemotorhome is
correctly levelledtoensurethecorrect
workingoftherefrigerator,cookeretc.
7
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Campervans

CONNECTION OF SERVICES
Connection ofservicesaredealtwith
under separateheadings.Inallcases
become familiarwithmanufacturers'
instructions.
Before making connections ofany
description tothe motorhome ensure ALL
equipment is turned offand that where
appropriate switches are moved tothe
on site positions.
TheCascade Water Heater, wherefitted
must NOTBEswitchedon until water
flows fromthehotwatertapswhich
indicates thewaterheateris full.
TheCascade Water Heater shouldnot
be usedon BATTERY CHARGERONLY
(i.e.withouta 1 2Vbatteryincircuit)as
this maycausetheheatertooperate
incorrectly.
Undernocircumstances connect The
Cascade Water Heater directlytoa
mainswatersupply.
WATER SYSTEM
a) Fresh Water Tank
Fill thetankwith fresh waterfroma known
drinkingwatersupplyusinga hosepipe
which isrecommendedforusewith
drinkingwateralternativelybymeansofa
container, andfunnel;thetankis full when
thewater runs fromtheoverflow pipe.
NOTE: Itisrecommendedthatthe fresh
water tankis sterilised atthebeginningof
each season'susewithoneofthe
proprietaryproductsfollowingthe
instructions given.
TO SHOWER
IF FITTED
WASTE WATER SYSTEM
8
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Campervans

CONNECTION OF SERVICES
b) Waste Tank
Autonomiesarefittedwitha wastewater
tankwhich accepts allwastewaterfrom
the sink, handbasinandshower(where
applicable).
When full thewastewatertankcanbe
emptied using theoutletvalveprovided
underthemotorhome,thepositionof this
valve varies according tothemodel of
motorhome.
Cold Weather Use
You will findthatcertainpipes(waste
water)runoutsideandunderneathyour
Motorhome. In colderweather it maybe
desirabletoinsulatethesepipes. This can
be doneby using foaminsulationtubing
fromyour local DIY store.
GAS SYSTEM
Turn ongasatmaincylinder.
GENERAL INFORMATION
Gas Bottles
Bottled L.P. gas is themostconvenient
portable sourceoffuelforyour
motorhome.
Make sure thatheating,cooking
appliances andgascylindersare
switchedoffbeforeyoumovethe
motorhome.
Regularly check flexiblegashose, joints
and connectionsfortightness. Finally
make sure that each gas appliance is
workingefficientlytothe
recommendations ofthe appliance
manufacturers.
The regulator
Theregulator is a governing device which
adapts thebottle pressure toonethat
suits theequipment in themotorhome.
Thegas system shouldbe checked onan
annual basis.
BUTANE
PROPANE
Note: Regulator valves should always
be in the'OFF' position when the
motorhome is on the move.
WARNING
Some industrial LPGappliancesoperates
at high pressure andrequire a 'high
pressure'regulator. This oftenhasan
adjustinghandleon it. NEVER usesuch a
regulatorona motorhome.
Propane andButanegasregulatorsare
not interchangeable.
9
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Campervans

CONNECTION OFSERVICES
Hoses
Hoses should be made from Neoprene,
which is blackand should conform to BS
321 2. Rubber hosing should never be
used. Itis goodpractice to replace hoses
annually,and a jubilee clip isa
worthwhile addition to preventaccidental
removal of thehose.
TYPES OF GAS
Butane
Butane is supplied in the U.K.in Green,
Blue or Aluminium bottles.
All these have a male left handthread
except for CampingGaswhich has a
female right handandCalor, aluminium
and 321b bottles whichhave a special
clip-onconnection.
Continental bottles usually have a male
left handthread similar tobutnot identical
with U.K. Butane.
Butane is suitable foruseat temperatures
down to2°C but willnot work below
that.
Propane
Propane is supplied in Red, or partly red
bottles whichhave a female left hand
threadedconnector.
Scandinavian countries usethe same
connector.
Germany or Austria supply Propane with
a maleconnection.
Propane will work at temperatures as low
as -40°C and is therefore suitable forall
winter caravanning.
SPACE
HEATER
WATER
HEATER
SHUT OFF VALVE
\ GAS
SYSTEM
10
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Campervans

CONNECTION OF SERVICES
GAS SAFETY ADVICE
Facts about LPG
LPG is notpoisonous.
Bi-productsare harmless.
There is danger ifallair andoxygenwere
excluded.
(Ventilationholes must beclearat all
times).
LPGhasbeengiven a smell by the
manufacturers in ordertoidentifyleaks.
Awning Spaces LPG Appliance
Exhaust
There is nodanger of pollution of an
enclosed awningspacefromtheLPG
exhaustfrom a refrigeratorventinginto it.
Space heatersmayproduce sufficient
exhaust to pollutetheawning space, ifit
is totallyenclosed,from a general
comfort, smell andhygienepoint of view.
In theextremecasetherecouldbe a build
up of carbondioxide toa dangerous
level.
Motorhomeownersareadvised to allow
some fresh air circulation in theawning
space whensuchappliancesare inuse.
PRECAUTIONS
a)Neverlook fora leak with a match.
Always usea soap solution orits
equivalentwhentestingconnections.
Donotoperateanyelectrical
apparatus whatsoever,especially light
switches. If theleak is notobvious, the
motorhomeshouldbe evacuated and
qualifiedpersonnelconsulted. The gas
bottleshouldbeturned off.
b)Avoidnaked lights whenconnecting
orchanging a cylinder.
c)Checktheflexiblehosefrequently.
d) The gas is heavierthan air and
therefore sinks to thelowestpoint.
Roof-mounted Flueinstallations
Allflue installations shouldbeinspected
once a yearthroughout their length for
corrosion. Flues shouldbereplaced if any
sign of perforation is found. Ensure that
thereplacement is onanapprovedtype.
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Campervans

CONNECTION OFSERVICES
ELECTRICITY
Yourattention is drawntothefollowing
notice as laiddownbythe Institute of
Electrical Engineers.
INSTRUCTIONSFORELECTRICITY
SUPPLY
On arrival at caravan site
1. Before connecting themotorhome
installationtothemainssupply, check
that
(a)themainssupply is suitable for
yourinstallationand appliances,
i.e. whether itis a.c. or d.c. and
whether itis atthecorrectvoltage
and frequency,and
(b)yourinstallation will beproperly
earthed. Never accept a supply
from a socketoutlet or plughaving
onlytwopins,orfrom a lighting
outlet.
(c)anyresidualcurrent device (earth
leakage circuitbreaker) in the
mainssupplytothemotorhomehas
been tested within the last month.
In case of doubt,consultthe site owner or
his agent.
2. MAKE SURETHAT THE SWITCH AT
THE SITE SUPPLYPOINT IS OFF.
3.Removeany cover fromtheelectricity
inlet providedonthemotorhome,and
insert the connector ofthesupply
flexible cable obtained fromthe site
owner.
4.Removeany cover fromthesocket
outletprovidedatthe site supplypoint,
and connect theplugattheotherend
ofthesupplyflexible cable to this.
Switchonthemainswitchatthe site
supplypoint.
IN CASE OFDIFFICULTY CONSULT
AN APPROVED ELECTRICAL
INSTALLATION CONTRACTOR (WHO
MAY BETHE LOCAL ELECTRICITY
BOARD). ITIS DANGEROUS TO
ATTEMPT MODIFICATIONS AND
ADDITIONS YOURSELF.
LAMPHOLDER-PLUGS (BAYONET-CAP
ADAPTORS) SHOULDNOT IN ANY
CIRCUMSTANCES BE USED.
On leaving caravan site
5.Reverse theproceduredescribed in
Paragraph 3 and 4 above.
ITIS IMPORTANTTHAT THE MAIN
SWITCHAT THESITE SUPPLYPOINT
SHOULD BE SWITCHEDOFF, THE
SUPPLY FLEXIBLE CABLE
DISCONNECTED, ANDANY COVER
REPLACED ON THE SOCKET OUTLET
AT THESITE SUPPLYPOINT. ITIS
DANGEROUS TO LEAVE THE SUPPLY
SOCKET ORSUPPLY FLEXIBLE CABLE
LIVE.
Periodically
6.Preferablynot less than once a year,
the motorhomeelectricalinstallation
shouldbeinspectedandtestedand a
reporton its condition obtained as
prescribed in theRegulationsfor
Electrical Installations, publishedbythe
Institute of ElectricalEngineers.
12
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Campervans

CONNECTIONOF SERVICES
WIRINGOFCONNECTINGCABLEAND MOTORHOME MAINS INLET
PITCH SUPPLY
OUTLET CABLEPLUG
WARNING
ITIS ESSENTIAL THATCONNECTIONS
ARE MADE EXACTLYAS SHOWN. IF
TERMINALMARKINGSARENOT IN
ACCORDANCEWITHTHEDIAGRAM
THEY MUSTBEIGNORED. IFIN DOUBT
CONSULTA QUALIFIEDELECTRICIAN.
CABLECOUPLER
CARAVAN MAINS INLET
13
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Campervans

CONNECTION OFSERVICES
OVERSEAS CONNECTIONS
Note: Connection toa mains voltage
supply OVERSEAS requires particular
attention.
Care must betakenwhenconnecting
supplies abroad sincethe supplies can be
of REVERSE POLARITY.
Thesignificance of REVERSE POLARITY is
thatwhenequipment is switched offit
may notbeelectricallyisolated.
Theonlycertainway of making
equipmentsafe isto unplug it.
Ameans of checkingthepolarity of the
mainssupplywhenoverseas is useful.
There areavailableseveralproprietary
makes of equipmentfor this purpose.
Ifit canbe achieved, itis preferable to
connect live to live,andneutral to neutral
tomaintain full electricalprotection.
•CHECKallmotorhomeequipment is set-
up to accept the site supplybefore
actually switchingon.
MAINS UNIT (CEC 225)
TheMains Unit replacestheconventional
fusebox. Similar, butlargeronesareoften
fitted in newhouses.
MCB's
S
MCB's
S 0
I Mains
Switch
/
-/
—^Leakage
Test
•
i
' RCD
The unit givesoverloadandearth
leakage protection for the 240V electrical
supply in yourmotorhome.
Fornormaloperation all switchesonthe
unit need to be in the ON position. The
switchesonthe left of the unit areknown
asM.C.B's(miniaturecircuitbreakers).
Intheevent ofa faulttheM.C.B. 'trips'
i.e.automaticallymoves to the OFF
position.
Afterelimination of thefaulttheM.C.B.
can be re-set byswitching to the ON
position,.(Againstthe spring pressure in
an upwardsdirection).
If anearthfaultdevelops ora personwas
totouch a live piece of equipmentthe
leakage of currenttoearthshould
immediatelyoperatetheRCD(residual
currentdevice)and 'trip' themainswitch
totheOFFposition.
This switch is onlyre-settableafter
elimination of thefault.
PeriodicallytheRCDshouldbe checked
by operatingthe test buttonmarked 'T'.
The unit shouldimmediatelyswitch to the
OFFposition. If the unit doesnotswitch
offthen a qualifiedelectricianshouldbe
consulted.
If the unit doesswitchoff,the test is
complete andtheswitchcanbe re-set
restoring thesupply back tonormal.
Note: Having too many appliances
switched onatthe same time willtripthe
RCD. This isa safety measure.
14
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Campervans

CONNECTION OF SERVICES
THE12V SYSTEM
The 1 2 Volt Distribution Paneland Battery
controlandmonitorthe 1 2 volt electrical
system, includingthesecondbattery(see
illustration).
Toaccurately test theconditionofyour
second battery, turn the 1 2 volt switchon
and observethecolourofthe light. A
green light indicatesa satisfactorylevelof
charge anda red light indicatesan
unsatisfactorylevelof charge. Thecolour
of this light indicatoris irrelevant whilst
any 1 2 volt appliancesarebeingused.
Thered light mayglow whilst anyofthe
12 volt appliancesareinusebut this is
notindicativeofthebatterychargelevel.
There arewaterlevel monitors forthe
fresh andwastewater tanks whichgive
an indicationoftheavailablecapacities
of each tank.
Whenwaterispresentinthe fresh water
tanktheindicatorneedle will light.
Ared light will glowwhenthewaste
watertankis full.
O/-5Is
R••QQQQQ
(V°
JAUK
avii
U® a ® " ' " "
Water
Level
O o
1"d
^^^^^
NMM
O >
Water
Level
O o
1"d
12 VOLT CONTROL PANEL - Marque
Auxiliary Switch Designation
CP3V/CP400
AuxReferto Wiring Diagram
AuxI Referto Wiring Diagram
AuxIIReferto Wiring Diagram
Zig Water Level Gauge
1. Fill theinboardwatertank.
2. With thepushbutton(2)'IN' adjust
thethumbscrew(3)marked'set' until
theneedleonthedial(1) lays over
the'1'.To check levelatanytime
simply push inbuttonandthedial
immediatelyindicateshowmuch
waterisavailable.
15
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Campervans

CONNECTION OF SERVICES
Fuses
The fuses protectthelighting,cassette
toilet,waterpump,extractorfanandthe
space heater.Inadditiontothese fuses,
thereisa 25amp fuse fittedadjacentto
thesecondarybatterytoprotectagainst
polarity.
WARNING: Inthe event ofa fuse
blowing, checkforthe fault in that circuit
before replacing the fuse. Itis important
to remember that the fuse is fitted forthe
protection ofa circuit andisa safeguard
against fire and injury. Only a suitably
qualified electrician should be allowed
to work onthe electrical system and
appliances in your motorhome.
ZIGX-2 CHARGER
TheZigX-2isa fully automaticbattery
charger connected toa sixcell lead acid
battery with a nominalvoltageof13.8
volts. The unit will chargeandrecharge
thebatteryby raising theterminalvoltage
toequalthatoftheoutputofthebattery
charger. Asthebatteryvoltageincreases,
theinputcurrentfromthebatterycharger
automatically reduces until itceasesto
ZIGX-2 BATTERY CHARGER
flow, this provides fast andefficient
batterychargingandeliminatesthe
possibility ofovercharging, unless the
batteryisfaulty.
WARNING: Ifthe battery is
discharged, the load drawn bythe
accessories inuse must not exceed the
rated output ofthe charging system.
The 1 2 voltelectricalsupplyistakenfrom
thesecondarybattery with theexception
oftherefrigeratorwhichistakenfromthe
vehicle battery.Theinternal lights, water
pump, warmairheater,watergauges,
extractorfanand 1 2 voltsocketareona
common circuitprotectedbya 25amp
fuse.Each appliance, with theexception
ofthesocket,hasitsownON/OFF
switch.
Therefrigeratorisona separatecircuit
protected bya 25amp fuse with the
supplycontrolledbytheengineignition
switchviaa relay.Therelayand fuses
can befoundadjacenttothebattery.
Internal Lighting
Lightingisprovidedby transistorised
fluorescent lights. Twotypesarefitted,
one with a single 8 watttubeandthe
other with a 13watttube. Bulbs fittedto
the2.1watt spotlights, attherearofthe
dinette, areoftheconventionalbayonet
fitting anduseapproximately1.75amps.
Water Pump
With theisolatingswitchON,thewater
pump iscontrolledbya built-in pressure
switch.Thepump uses approximately7
ampswhenrunning.
16
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Campervans

CONNECTION OF SERVICES
12volt Internal Socket
Maximumloadshouldnot exceed 3
amps.
Battery
AllAutohomesarefitted with a battery
box which is vented,heavyduty, 1 2V
batteryshouldbepurchased to provide
power for lights, fridgeandother
electrical appliances. The recommended
size fora battery boxis either a 60or90
amp powerbox ofa proprietarybrand
leisure battery. The battery must also
have a tubeventingcapability.
Warning:Explosivegasesmaybe
presentatthebattery— preventflames
and sparks.
Yourmotorhome has beenfitted with an
in-line fuse between the batteryterminal
and strip connector. Itis recommended
thatthe fuse ratingfitted inthis location
doesnot exceed 25A.
When fitting the battery,ensurethat the
correct polarity is observedandthat
terminals aresecurelyfastened.
Ensure thebattery is secured with the
strap provided.
Undernormalcircumstances it should not
be necessary to removethebatteryother
than for routineinspection of terminals
(possibly once a year).
17
www.vwT4camper.info - a useful website for owners and enthusiasts of VW T4 Campervans
