ConteraIP®Omni LX Remote Setup
Installation Manual
8MP 20MP
AV8476RS AV20476RS

1
ConteraIP®Omni LX RS Installation Manual
Table of Contents
About Our Warranty ...................................................................................................................................... 2
Global (3 Year) Limited Warranty ............................................................................................................. 2
Camera Overview ......................................................................................................................................... 3
Package Contents......................................................................................................................................... 4
Installation ..................................................................................................................................................... 5
Surface Mounting ...................................................................................................................................... 5
Pendant Mount ........................................................................................................................................ 12
Wall Mount .............................................................................................................................................. 15
Pole Mount .............................................................................................................................................. 18
Corner Mount .......................................................................................................................................... 20
Camera Power Up....................................................................................................................................... 22
Alarm I/O Functions .................................................................................................................................... 24
Reset to Factory Default ............................................................................................................................. 25
Audio/SD Card Info ..................................................................................................................................... 26
Camera Discovery, Setup, and Configuration............................................................................................. 27
Camera Discovery................................................................................................................................... 28
Camera Preset Configurations............................................................................................................ 29
Home Position / 360 Degrees Preset Configuration........................................................................ 34
180 / 270 Degree Preset Configuration ........................................................................................... 36
Create Custom Preset Configuration............................................................................................... 38
Web Interface Navigation........................................................................................................................ 40
Image .................................................................................................................................................. 43
Video & Audio...................................................................................................................................... 48
Network ............................................................................................................................................... 50
Privacy Mask ....................................................................................................................................... 54
Event ................................................................................................................................................... 55
System ................................................................................................................................................ 60
Administration...................................................................................................................................... 62
Support................................................................................................................................................ 63

2
ConteraIP®Omni LX RS Installation Manual
About Our Warranty
Global (3 Year) Limited Warranty
ARECONT VISION COSTAR warrants to Purchaser (and only Purchaser) (the “Limited Warranty”), that:
(a) each Product shall be free from material defects in material and workmanship for a period of thirty-six
(36) months from the date of shipment (the “Warranty Period”); (b) during the Warranty Period, the
Products will materially conform with the specification in the applicable documentation; (c) all licensed
programs accompanying the Product (the “Licensed Programs”) will materially conform with applicable
specifications. Notwithstanding the preceding provisions, ARECONT VISION COSTAR shall have no
obligation or responsibility with respect to any Product that (i) has been modified or altered without
ARECONT VISION COSTAR’s written authorization; (ii) has not been used in accordance with applicable
documentation; (iii) has been subjected to unusual stress, neglect, misuse, abuse, improper storage,
testing or connection; or unauthorized repair; or (iv) is no longer covered under the Warranty Period.
ARECONT VISION COSTAR MAKE NO WARRANTIES OR CONDITIONS, EXPRESS, IMPLIED,
STATUTORY OR OTHERWISE, OTHER THAN THE EXPRESS LIMITED WARRANTIES MADE BY
ARECONT VISION COSTAR ABOVE, AND ARECONT VISION COSTAR HEREBY SPECIFICALLY
DISCLAIMS ALL OTHER EXPRESS, STATUTORY AND IMPLIED WARRANTIES AND CONDITIONS,
INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR
PURPOSE, NON-INFRINGEMENT AND THE IMPLIED CONDITION OF SATISFACTORY QUALITY.
ALL LICENSED PROGRAMS ARE LICENSED ON AN “AS IS” BASIS WITHOUT WARRANTY.
ARECONT VISION COSTAR DOES NOT WARRANT THAT (I) THE OPERATION OF THE PRODUCTS
OR PARTS WILL BE UNINTERRUPTED OR ERROR FREE; (II) THE PRODUCTS OR PARTS AND
DOCUMENTATION WILL MEET THE END USERS’ REQUIREMENTS; (III) THE PRODUCTS OR
PARTS WILL OPERATE IN COMBINATIONS AND CONFIGURATIONS SELECTED BY THE END
USER; OTHER THAN COMBINATIONS AND CONFIGURATIONS WITH PARTS OR OTHER
PRODUCTS AUTHORIZED BY ARECONT VISION COSTAR OR (IV) THAT ALL LICENSED PROGRAM
ERRORS WILL BE CORRECTED.
The ConteraIP®Omni LX Remote Setup (RS) motors are meant to be used for setup purposes or moving
to preset positions no more than one time per day. Excessive use will void the warranty. This camera is
not meant to be used as a traditional PTZ (pan tilt zoom) speed dome camera.
For RMA and Advance Replacement information visit http://www.avcostar.com

3
ConteraIP®Omni LX RS Installation Manual
Camera Overview
The ConteraIP®Omni LX Remote Setup (RS) is an industry-game-changing first-of-its-kind omni-
directional, remote-configurable, multi-sensor, multi-megapixel camera built to provide outstanding high-
resolution video coverage for a wide range of applications. The unmatched coverage and capabilities of
the ConteraIP®Omni LX RS provides organizations of all sizes the flexibility to deploy a surveillance
camera system that truly matches their current and future requirements for complete situational
awareness.
ConteraIP®Omni LX RS is available with a choice of 8 or 20-megapixel (MP) resolutions. The number of
cameras required for a project can be dramatically reduced with a single ConteraIP®Omni LX RS
because of its four customizable remote sensor gimbals which allow fast and easy installation. You simply
install the hinged mounting plate, connect the PoE+ (Power-over-Ethernet) IP cable, and then remotely
configure the camera. When configuring the camera, you can select a “Preset” choice for 180°, 270°, or
360° views. Or, use the intuitive interface to remotely pan, tilt, zoom and focus each sensor. Also, two
custom presets created by the user can be saved to memory. The camera is integrated with the industry’s
leading VMS/NVR platforms, and the microSD card slot supports up to 256GB of storage capacity for
convenient onboard storage.
ConteraIP®Omni LX RS is ideal for applications with normal or challenging lighting conditions. The Omni
combines a day/night mechanical IR cut filter for the highest image quality at any time of day. For clear
color images in low-light, NightView™ offers strong low-light sensitivity for capturing details in extremely
poor-lit scenes. Power can be supplied via a single PoE+ (802.3at) compliant network cable or via a 12–
48V DC/24V AC power supply.
ConteraIP®Omni LX RS is designed for demanding environments. Certified with rigorous dust and water
tests, the camera carries an IP66 rating. The rugged dome housing is IK-10 rated to withstand the
equivalent of 55 kg (120 lbs) of force for vandal-prone applications.
Under Vision®was the first to bring H.264 to the mainstream market and recently developed
SNAPstream™ (Smart Noise Adaptation and Processing) technology for reducing bandwidth without
impacting image quality. Today we are proud to offer our next generation H.265 with SNAPstream+™
smart codec capable of delivering high quality video while saving over 50% of the data rate to reduce or
prevent strain on the network.
The ConteraIP®Omni LX RS is ONVIF (Open Network Video Interface Forum) Profile S, G, Q and T
compliant, providing interoperability between network video products regardless of manufacturer.

4
ConteraIP®Omni LX RS Installation Manual
Package Contents
•AV8476RS / AV20476RS
Description
QTY
AV8476RS / AV20476RS IP camera
1
Mounting Template
1
Accessory Pack
1

5
ConteraIP®Omni LX RS Installation Manual
Installation
Surface Mounting
We recommend placing the ConteraIP®Omni LX RS camera directly on the hard ceiling.
Template, anchors and screws are provided for mounting the camera.
1. Determine a secure location to mount the camera.
2. Use the supplied security L-key to loosen the four screws securing the dome cover. Do not
remove screws from the dome cover.
3. Remove and discard the protective foam.

6
ConteraIP®Omni LX RS Installation Manual
4. Reattach the dome cover to the camera.
5. If the 180°, 270°, or 360° preset configurations are being used, orient the camera such that the
arrow denoting the front of the camera is pointing towards the center of the desired field of
view.
6. Attach the mounting plate to the ceiling using the supplied mounting hardware.

7
ConteraIP®Omni LX RS Installation Manual
7. Attach the camera to the mounting plate as shown in the image below. The camera will “hang”
from the hinge once properly attached.
8. Use a Phillips head screwdriver to loosen the three (3) screws on main housing cover to access
the network port.

8
ConteraIP®Omni LX RS Installation Manual
9. Run the Ethernet Cable (and the supplied power cable, I/O cable if necessary) through the
cable entry holes on the mounting plate.
10. Prepare the network cable (and the supplied power cable, I/O cable if necessary) with the
supplied grommets by using the insertion tool or terminate the RJ-45 connector to the cable
after passing through the grommet.

9
ConteraIP®Omni LX RS Installation Manual
NOTE: The supplied grommet is required when mounting the camera outdoors or in a wet environment.
Ensure the grommet properly seats flush with the camera housing to create a water-tight seal.
11. Connect the network cable (and the supplied power cable, I/O cable if necessary) to the
corresponding connectors inside the camera.

10
ConteraIP®Omni LX RS Installation Manual
12. Align the holes on main housing cover with the holes on mounting plate, and then install the
main housing cover back on the camera.
NOTE: If using the side connection of the NPT port, you need to install the supplied grommet without a
hole on the main housing cover, and then remove the cap covering the side entrance, otherwise; leave
the cap in place. If using the NPT port, always use Teflon tape around the threads to ensure proper
sealing. The conduit fits ¾” NPT standard.

11
ConteraIP®Omni LX RS Installation Manual
13. Use the supplied security L-key to attach the camera to the mounting plate.

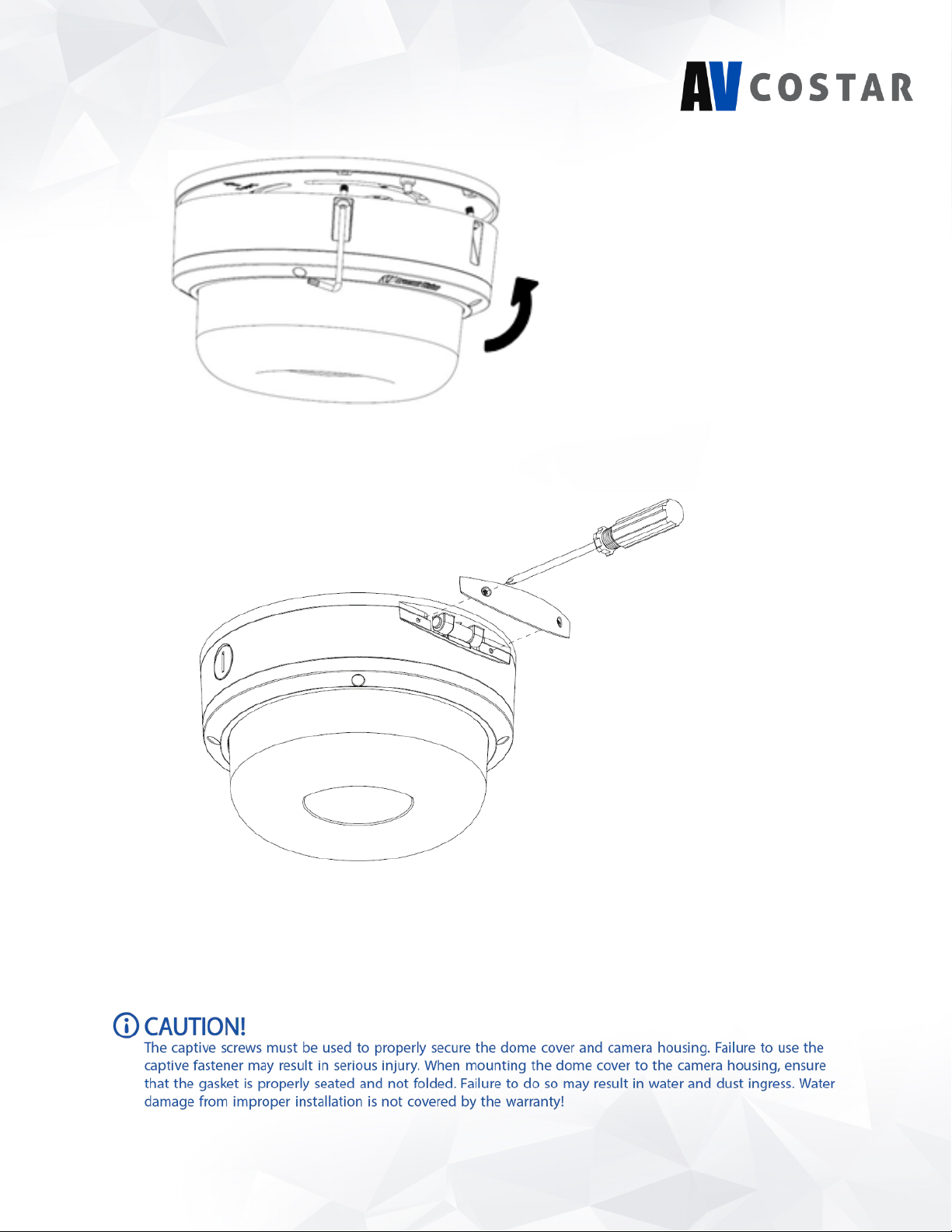

14. Swing the camera up into place, and then use a Phillips head screwdriver to the camera to the
mount plate. Use caution to not bend or pinch the cables during this step.
15. Secure the cover plate as shown in the image below.
16. Remove the protective film at the end to avoid leaving fingerprints, scratches, or any damage
on the dome cover during the installation.
NOTE:To configure the camera, reference the camera discovery, set-up, and configuration section.

12
ConteraIP®Omni LX RS Installation Manual
Pendant Mount
Reference #
Pendant Mount Components Required
1 Pendant mount (AV-PMJB-W) with an integrated junction box
2 ConteraIP®Omni LX RS camera
3 CORS-CAP-W mounting cap
For a proper pendant mount installation, the AV-PMJB-W pendant mount and CORS-CAP-W mounting
cap are required (sold separately).
1. Determine a proper location to place the ConteraIP®Omni LX RS camera.
2. Use the mounting template, and prepare the mounting provisions.
3. Connect CORS-CAP-W, pendant pole and mount together.
NOTE: The thread size of top shield, pendant pole and mount is 1.5” NPT.

13
ConteraIP®Omni LX RS Installation Manual
4. Attach the pendant mount to the ceiling using the 4 wood screws are provided for mounting or
other optional hardware.
5. Run the ethernet cable and outside power cable (if necessary) through the rubber gasket which is
supplied through the pendant mount. Ensure the gasket is sealed properly.
6. Use the L-key to loosen the four torx-in screws which are provided to secure the dome cover.
7. Remove the dome cover and the protective foam in the middle. Do not remove the torx-in screws
from the dome cover.
8. Reattach the dome cover to the camera.
9. If the user chooses to use the configuration presets (180°, 270°, or 360°) for adjusting the arrow
on the template towards to the center of desired field of view. This will create the same center for
the field of view for the camera.

14
ConteraIP®Omni LX RS Installation Manual
10. Attach the mounting plate to the CORS-CAP-W with the screws which are supplied.
11. Follow the same steps as Surface Mount Installation to complete the installation.
To configure the camera, reference the Camera Discovery, Set-up and Configuration section.

15
ConteraIP®Omni LX RS Installation Manual
Wall Mount
Reference # Required Wall Mount Components
1 Wall mount (AV-WMJB-W) with an integrated junction box
2 ConteraIP® Omni LX RS camera
3 CORS-CAP-W mounting cap
For a proper wall mount installation, the AV-WMJB-W wall mount and CORS-CAP-W wall mount cap are
required (sold separately).
1. Determine a proper location to place the ConteraIP®Omni LX RS camera.
2. Use the mounting template, and then prepare the mounting provisions.
3. Connect CORS-CAP-W cap and wall mount together.
NOTE: The thread size is 1.5” NPT for Top shield, Pendant pole and Mount.
4. Attach the wall mount to the wall by using the four drywall screws which are provided or any
optional hardware suitable for the mounting surface.

16
ConteraIP®Omni LX RS Installation Manual
5. Run the ethernet cable and outside power cable (if necessary) through the rubber gasket which is
supplied, then let them pass through the wall mount. Ensure the gasket is sealed properly.
6. Use the L-key to loosen the four torx-in screws which are provided to secure the dome cover.
7. Remove the dome cover and the protective foam in the middle. Do not remove the torx-in screws
from the dome cover.
8. Reattach the dome cover to the camera.

17
ConteraIP®Omni LX RS Installation Manual
9. Attach the mounting plate to the CORS-CAP-W with the screws supplied.
10. Follow the same steps as Surface Mount Installation to complete the installation.

18
ConteraIP®Omni LX RS Installation Manual
Pole Mount
Reference # Required Pole Mount Components
1 Wall mount (AV-WMJB-W) with integrated junction box
2 ConteraIP®Omni LX RS camera
3 CORS-CAP-W mounting cap
4 AV-PMA-W pole mount adapter
For a pole mount installation, AV-WMJB-W wall mount, AV-PMA-W pole mount, and CORS-CAP-W
mount cap are required (sold separately).
1. Use the mounting template, and then prepare the mounting provisions.
2. Connect the wall mount cap and wall mount together.
3. Attach the Junction Box Adapter to the Pole Mount Adapter.

19
ConteraIP®Omni LX RS Installation Manual
4. Remove the conduit plug on the junction box adapter, then connect ¾” NPT conduit to the
junction box adapter.
Reference # Description
1 Remove conduit plug
2 Connect ¾” NPT conduit to junction box adapter (Recommended:
use of waterproof tape)
NOTE: Use silicon or water pipe seal tape to make sure there is no water leakage between conduit
pipe and junction box adapter.
5. Run the ethernet cable and outside power cable (if necessary) through the rubber gasket which is
supplied, then pass through the Junction Box Adapter and AV-WMJB-W, Wall Mount Adapter.
Ensure the gasket is sealed properly.
6. Attach the Wall Mount Adapter (AV-WMJB-W) to the Pole Mount Adapter (AV-PMA-W) as shown
below.
Reference # Description
1 Steel straps with compression screws
2 AV-WMJB-W wall mount
3 CORS-CAP-W mount cap
4 AV-PMA-W pole mount
5 Apply Teflon waterproof tape to the thread of ¾” NPT pipe to avoid
water leakage
7. Use two Steel Straps which are supplied to attach the Pole Mount Adapter to the pole and tighten
the compression screws.
8. Refer to the Wall Mount section for attaching the camera to the Wall Mount Adapter (AV-WMJB-
W).
9. To configure the camera, refer to the Camera Discovery, Set-up and Configuration section.
