BK Electronics BSBP 200 User manual

British Sub Bass Panel 200 Watt

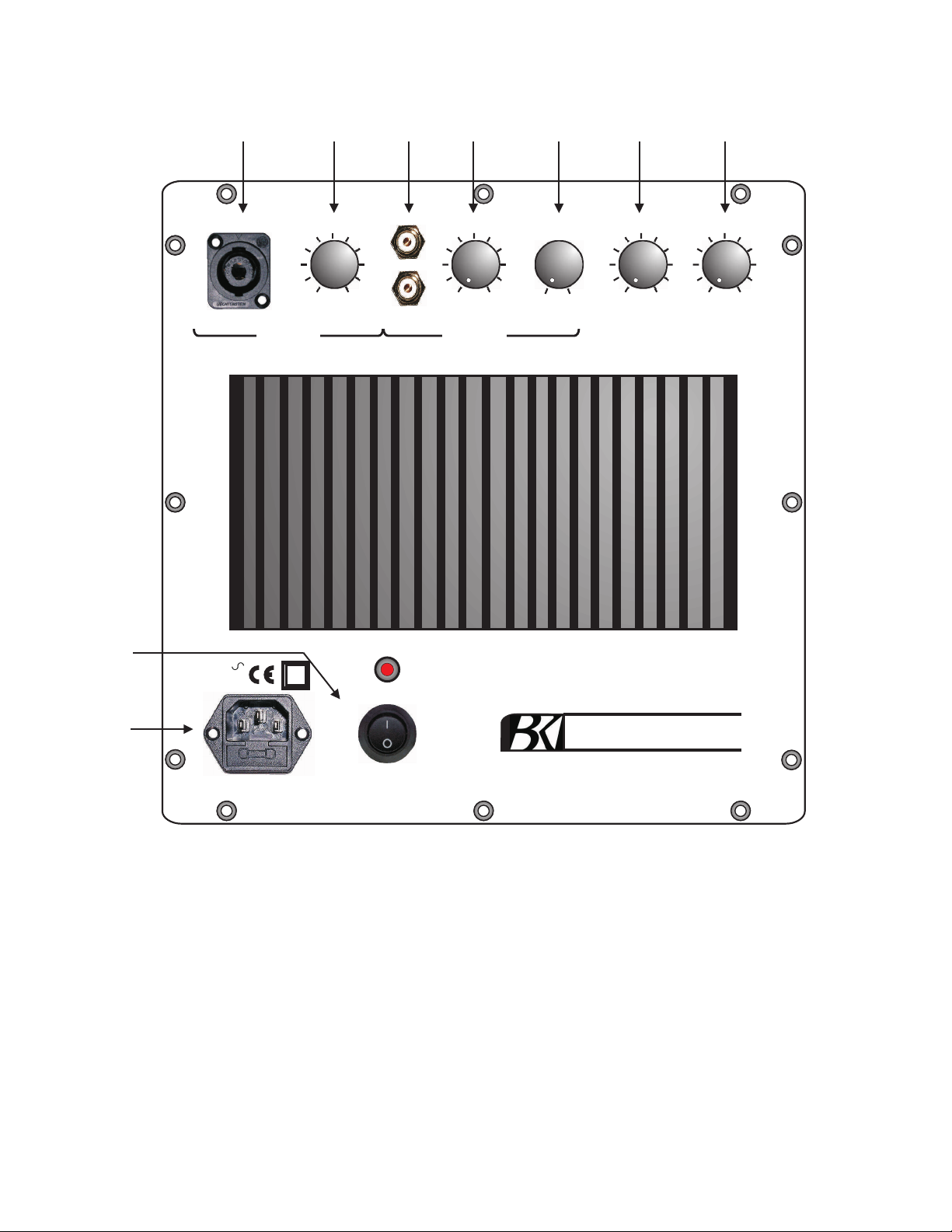

Instructions
1) High Level Input connector for connection to amplifier output
2)
3)
t
4)Low Level Gain Adjust
5)Low Level Filter Bypass - In = Filter in operation - Out = Filter Bypassed.
6)Frequency Contour, set up so as to integrate with main loudspeakers.
7)Continously variable phase control
8)Power Off/On Switch
9)IEC mains input connector. (Fuse Drawer contains spare 2AT fuse)
igh Level Gain Adjust
Low Level Input RCA connectors for connection to pre-amp output, Dolby output or
other dedicated sub outputs
In the Out /
L.F.E. Position the filter is opened wide to allow the optimum performance from processor
1 2 3456
230V
50-60Hz
T2AL
OFF
ON
TO AVOID RISK OF ELECTRIC SHOCK DO NOT REMOVE
PANEL NO USER SERVICEABLE PARTS INSIDE. REFER
TO QUALIFIED SERVICE PERSONNEL.
INPUT PHASE
0O
180 O
In Out 40Hz 120Hz
FREQUENCY
Min Max
GAIN
Min Max
GAIN
Min Max
FILTER
LFE
L
R
(Mono)
INPUT
LOW LEVELHIGH LEVEL
7
9
8
Designed and manufactured by :-
www.bkelec.com
[phone]
B.K. Electronics
Southend-On-Sea
Essex. England
BSBP 200 Sub-Bass Amplifier

Wiring Instructions
High Level Speakon connector Wired as follows:-
Red lead to right output of amplifier
Yellow Lead to Left output of amplifier
Black Lead to any one of the amplifier negative outputs
INPUT
In Out
GAIN
Min Max
FILTER
LFE
L
R
(Mono)
LOW LEVEL
INPUT
In Out
GAIN
Min Max
FILTER
LFE
L
R
(Mono)
LOW LEVEL
INTEGRATED AMP / PRE-OUT
LFE / Sub Out
PROCESSOR
LEFT
RIGHT
Figure 2.
To Connect to the Amplifier Using the low level input
GAIN
Min Max
INPUT
HIGH LEVEL
Figure 1.
BlackRed BlackRed
RIGHTLEFT
Yellow RedBlack
To Connect to a Power Amplifier Using the High Level Input
Neutrik Speakon Interconnect

1/4“ 6.25mm Spade Terminals
Wiring Instructions
This amplifier panel is designed to run 200W
into an 8 Ohm load and 275W into a 4 Ohm
load . Operation into loads lower than 4 Ohms
will substantially reduce the lifetime of the
panel
