BODYMAX CTX5 User manual

SEBR2720.01.01
L 148 | W 202 | H 224
~ 300 Min.
CM
199 kg
BodyMax CTX5
SKU: SEBR2720
Assembly and Operating Instructions

2CTX5

3
Content
1 GENERAL INFORMATION 7
1.1 Technical Data 7
1.2 Personal Safety 8
1.3 Set-Up Place 9
2 ASSEMBLY 10
2.1 General Instructions 10
2.2 Scope of Delivery 10
2.3 Assembly 15
2.4 Optional Leg Press Plate 40
2.4.1 Scope of Delivery - Leg Press Plate 40
2.4.2 Assembly - Leg Press Plate 40
3 STORAGE AND TRANSPORT 41
3.1 General Instructions 41
4 TROUBLESHOOTING, CARE AND MAINTENANCE 42
4.1 General Instructions 42
4.2 Faults and Fault Diagnosis 42
4.3 Maintenance and Inspection Calendar 43
5 DISPOSAL 43
6 RECOMMENDED ACCESSORIES 44
7 ORDERING SPARE PARTS 45
7.1 Serial Number and Model Name 45
7.2 Parts List 46
7.3 Exploded Drawing 49
8 WARRANTY 50
9 CONTACT 52

4CTX5

5
Dear customer,
Thank you for choosing training equipment from BodyMax.
BodyMax is your reliable partner for home and commercial gym equipment. We are specialized in
cardio and strength training machines for home and commercial use. Our products are not only
strong, durable, and aordable but also designed to t your personal needs.
The BodyMax headquarter is based in Rutherglen, Glasgow. Our brand was created with the intention
of providing innovative exercise equipment at aordable prices for users of all training levels.
You can nd further information at www.bodymax-tness.com.
Disclaimer
©2016 BodyMax® is a registered brand of the company Sport-Tiedje GmbH. All
rights reserved. Any use of this trademark without the explicit written permission
of Sport-Tiedje is prohibited.
Product and manual are subject to change. Technical data can be changed without
advance notice.
Intended Use
The equipment may only be used for its intended purpose.
The equipment is only suitable for home use. The equipment is not suitable for semi-professional
(e.g. hospitals, associations, hotels, schools, etc.) and commercial or professional use (e.g. tness
studios).

6CTX5
ABOUT THIS MANUAL
Please carefully read the entire manual before installation and rst use. The manual will help you to
quickly set up the system and explains how to safely use it. Make sure that all persons exercising with
the equipment (especially children and persons with physical, sensory, mental or motor disabilities)
are informed about this manual and its contents in advance. In case of doubt, responsible persons
must supervise the use of the equipment.
Due to ongoing changes and software optimisations, the manual may have to be updated. If
you notice any discrepancies during assembly or use, please refer to the manual uploaded to the
webshop. The latest manual is always available there.
This equipment has been manufactured according to the latest safety knowledge. As far as possible,
potential safety hazards which could cause injury have been eliminated. Make sure to carefully follow
the instructions and that all parts are securely in place. If required, read through the
instructions again to correct any mistakes.
Please pay close attention to the safety and maintenance instructions given here.
The contract partner cannot be held liable for damage to health, accidents or
damage to the equipment when it is not used in accordance with these instructions.
The following safety instructions may appear in this manual:
࣑ATTENTION
This notice indicates potentially hazardous situations which, if not avoided, may result in
property damage.
⚠CAUTION
This notice indicates potentially hazardous situations which, if not avoided, may result in slight
or minor injuries!
⚠WARNING
This notice indicates potentially hazardous situations which, if not avoided, may result in death
or serious injuries!
⚠DANGER
This notice indicates potentially hazardous situations which, if not avoided, will result in death
or serious injuries!
LNOTICE
This notice indicates further useful information.
Retain these instructions in a safe place for future reference, maintenance or when ordering
replacement parts.

7
1 GENERAL INFORMATION
1.1 Technical Data
Weight and Dimensions
Packaging dimensions (L x W x H) approx.: 221 cm x 95 cm x 38 cm
Set-up dimensions (L x W x H) approx.: 148 cm x 202 cm x 224 cm
Article weight (gross, incl. packaging) approx.: 219 kg/482 lbs
Article weight (net, excl. packaging) approx.: 199 kg/438 lbs
Maximum load: 215 kg/474 lbs
Maximum user weight (dip/chin up bars): 150 kg/331 lbs
Cable length: 247.5 cm ; 474 cm ; 409.5 cm ; 170.5 cm ; 971.5 cm
Cable width: 0.5 cm
Cable material: Steel
Cover material: Nylon
Pulley diameter: 95 mm ; 50 mm
Transmission ratio: 2:1 & 1:1
Optional Leg Press Plate
Packaging dimensions (L x W x H) approx.: 122 cm x 38 cm x 14 cm
Set-up dimensions (L x W x H) approx.: 113 cm x 34 cm x 13 cm
Article weight (gross, incl. packaging) approx.: 12 kg/26 lbs
Article weight (net, excl. packaging) approx.: 11 kg/24 lbs

8CTX5
1.2 Personal Safety
⚠DANGER
+ Before you start using the equipment, you should consult your physician that this type of
exercise is suitable for you from a health perspective. Particularly aected are persons who:
have a hereditary disposition to high blood pressure or heart disease, are over the age of 45,
smoke, have high cholesterol values, are overweight and/or have not exercised regularly in
the past year. If you are under medical treatment that aects your heart rate, medical advice
is absolutely essential.
+ Note that excessive training can seriously endanger your health. Please also note that
heart rate monitoring systems can be inaccurate. If you notice any signs of weakness,
nausea, dizziness, pain, shortness of breath, or other abnormal symptoms, stop exercising
immediately and seek advice from your doctor if necessary.
⚠WARNING
+ This equipment may not be used by children under the age of 14.
+ Children should not be allowed unsupervised access to the equipment.
+ Persons with disabilities must have a medical license and must be under strict observation
when using the equipment.
+ The equipment is strictly for use by one person at a time.
+ If your equipment provides a safety key, the clip of the safety key must be attached to your
clothing before starting your training. In the event of a fall, the EMERGENCY STOP of the
equipment can be initiated.
+ Keep your hands, feet and other body parts, hair, clothing, jewellery and other objects well
clear of moving parts.
+ During use, wear suitable sports clothing rather than loose or baggy clothing.When wearing
sports shoes, make sure they have suitable soles, preferably made of rubber or other non-
slip materials. Shoes with heels, leather soles, studs or spikes are unsuitable. Never exercise
barefoot.
⚠CAUTION
+ If your equipment needs to be connected to the power supply with a mains cable, make
sure that the cable is not a potential tripping hazard.
+ Make sure that nobody is within the range of motion of the equipment during training so as
not to endanger you or other persons.
࣑ATTENTION
+ Do not insert any objects of any kind into the openings of the device.

9
1.3 Set-Up Place
⚠WARNING
+ Do not place the equipment in main corridors or escape routes.
⚠CAUTION
+ Choose a location in which to place the equipment such that there is enough free space/
clearance to the front, the rear and to the sides of the equipment.
+ The training room should be well ventilated during training and not be exposed to any
draughts.
+ Choose the place in which to set up the equipment such that there is enough free space/
clearance to the front, the rear and to the sides of the equipment.
+ The set-up and mounting surface of the equipment should be at, loadable and solid.
+ If your device is to be mounted on the wall/ceiling, make sure that you use the appropriate
assembly material to avoid possible damages or personal injuries. The contractual partner
accepts no liability for this.
࣑ATTENTION
+ The device may only be used in one building, in suciently tempered and dry rooms
(ambient temperatures between 10°C and 35°C). The equipment should not be used
outdoors or in rooms with high humidity (over 70%) like swimming pools.
+ A oor protective mat/equipment underlay can help to protect high-quality oor coverings
(parquet, laminate, cork, carpets) from dents and sweat and can help to level out slight
unevenness.

10 CTX5
2 ASSEMBLY
2.1 General Instructions
⚠DANGER
+ Do not leave any tools, packaging materials such as foils or small parts lying around,
as otherwise there is a danger of suocation for children. Keep children away from the
equipment during assembly.
⚠WARNING
+ Pay attention to the instructions attached to the equipment in order to reduce the risk of
injuries.
⚠CAUTION
+ Ensure to have sucient room for movement in each direction during assembly.
+ The assembly of the equipment must be carried out by at least two adults. If in doubt, seek
the help of a third technically skilled person.
࣑ATTENTION
+ To prevent damage to the equipment and the oor, assemble the equipment on a mat or
packaging board.
LNOTICE
+ In order to make the assembly as simple as possible, some screws and nuts to be used can
already be pre-assembled.
+ Ideally, assemble the equipment at its later set-up place.
2.2 Scope of Delivery
The scope of delivery consist of the following parts. At the beginning, check whether all parts
and tools belonging to the device are included in the scope of delivery and whether damage has
occurred. In the event of complaints, the contractual partner must be contacted directly.
⚠CAUTION
If parts of the scope of delivery are missing or damaged, the assembly must not be carried out.

11

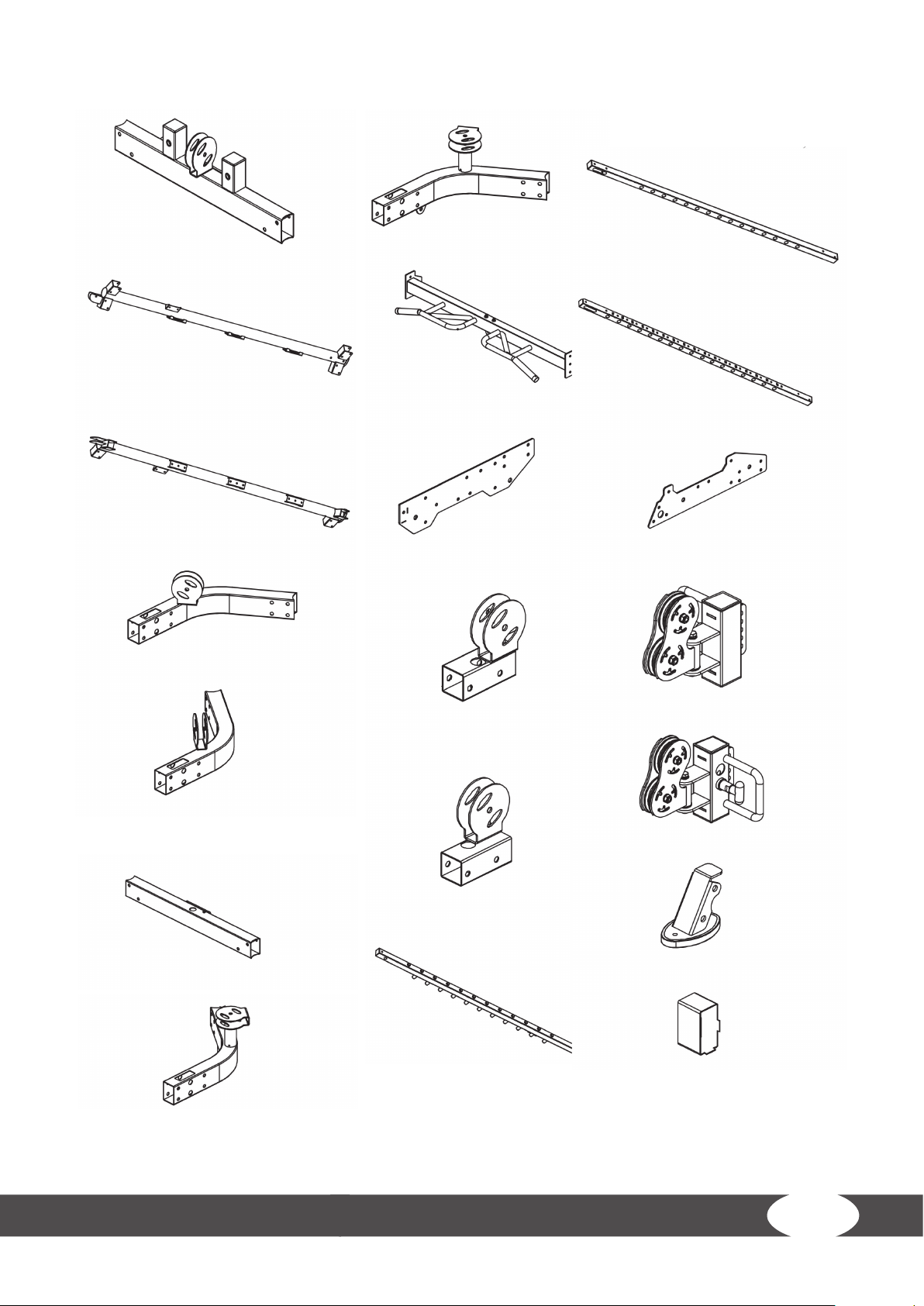

(1) Connection tube
(2) Upright frame left
(3) Upright frame right
(4) Bending tube left
(5) Bending tube right
(6) Upper connection tube
(7) Upper bending tube right
(8) Upper bending tube left
(12) Chin up bar
(13) Upper plate 4x (19) Lower plate 4x
(14) Pulley frame tube right
(15) Pulley frame tube left
(16) Upright tube 2x
(17) Tube with hole left
(18) Tube with hole right
(20) Sliding tube right
(21) Sliding tube left
(22) Foot tube cover 2x
(23) End tube 2x

12 CTX5

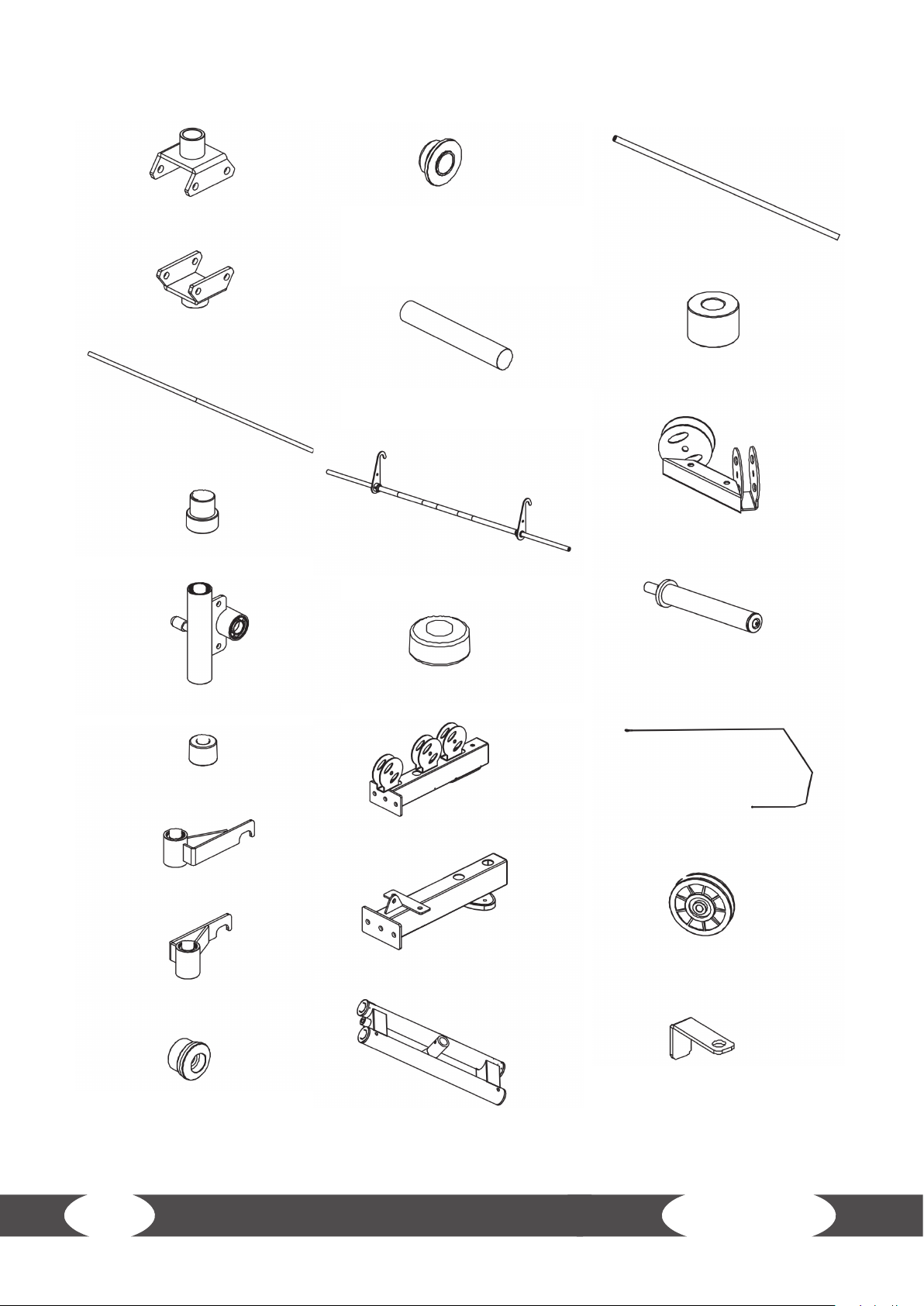

(25) Lower base 2x
(26) Upper base 2x
(27) Guide rod 2x
(28) Lock sleeve 2x
(29) Sliding sleeve 2x
(30) Rubber pad with groove 2x
(31) Safety hook right
(32) Safety hook left
(35) End cap 2x
(36) Check ring 2x
(37) Pipe 2x
(41) Barbell rod
(43) Rubber pad 2x
(44) Upper connection tube short
(45) Lower connection tube
(46) Big sliding sleeve
(47) Guide rod, hollow 2x
(48) Rubber pad 2x
(53) Double pulley bracket
(55) Back barbell plate holder 2x
(56) Wire - 2745mm 2x
(57) Pulley - 95mm 25x
(58) Pulley plate 6x

13

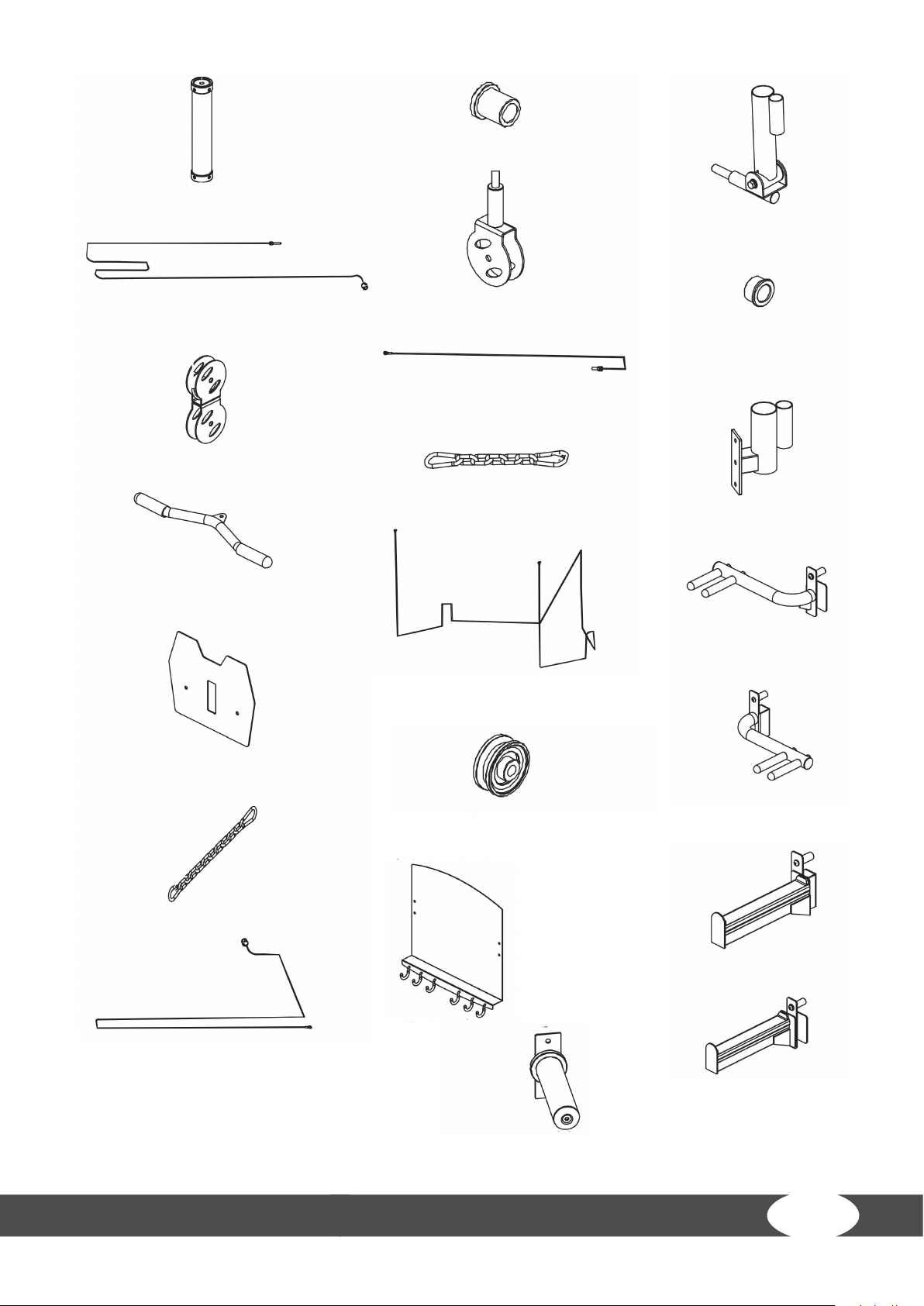

(61) Weight 2x
(62) Wire - 4740mm
(63) Hanging pulley frame 3x
(64) Short bar
(65) Foot plate
(66) Chain with snap hooks
(67) Wire - 4185mm 2x
(68) Pulley spacer sleeve 16x
(69) Pulley frame
(70) Wire - 1705mm
(71) 5section chain with snap hooks
(72) Wire - 9715mm
(73) Pulley - 50mm 4x
(74) Shield
(76) Barbell plate holder 6x
(79) Core trainer
(80) Powder metallurgy sleeve 2x
(81) Barbell rod cup
(83) Dip bar left
(84) Dip bar right
(85) Barbell rod holder right
(86) Barbell rod holder left

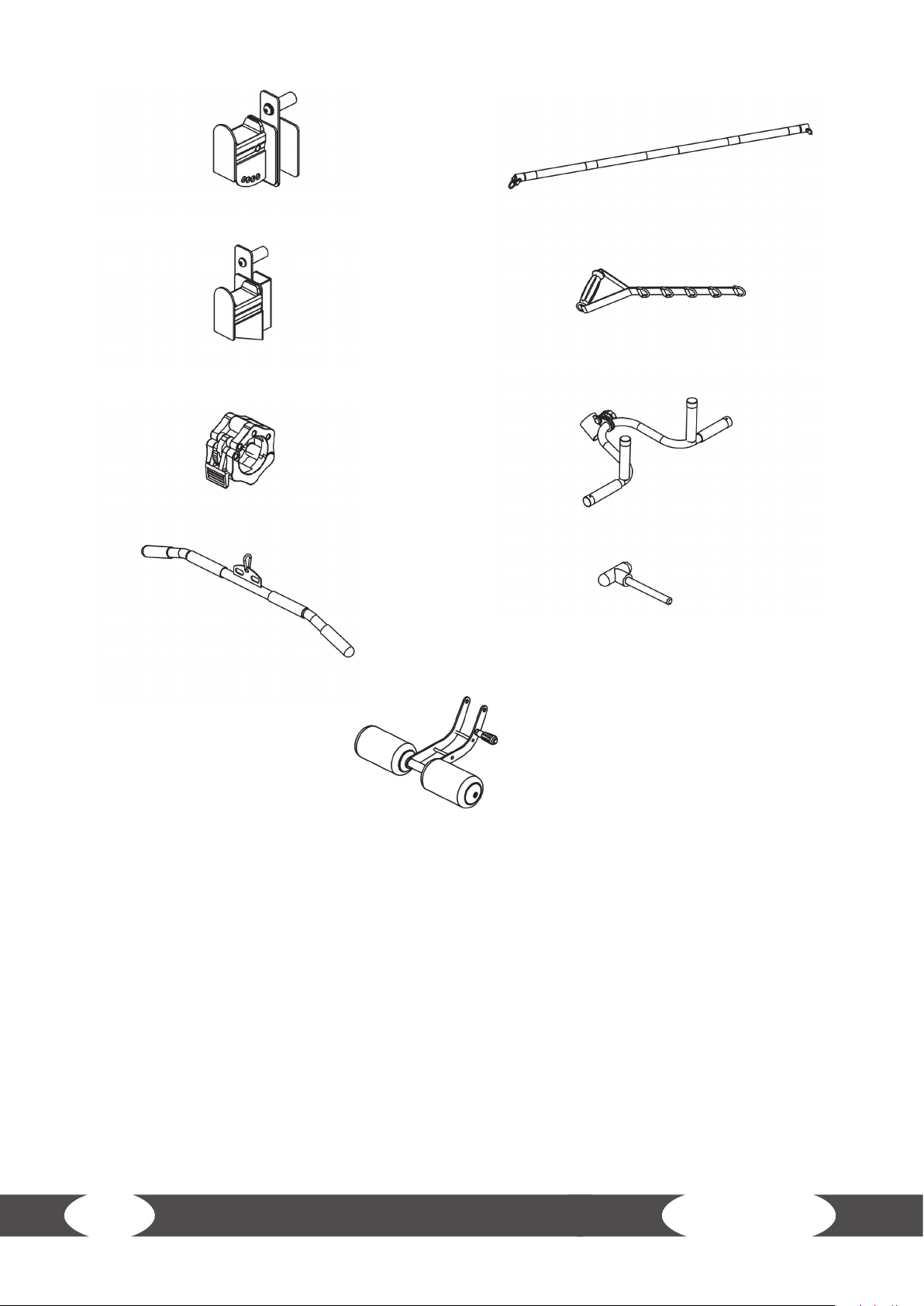

14 CTX5
(87) Barbell rod holder short left
(88) Barbell rod holder short right
(89) Barbell clamp collar 2x
(90) Long bar
(91) Ship rod
(92) Hand belt 2x
(93) Pull lift device
(94) T-shaped pin
(95) Leg curl tube

15
2.3 Assembly
Before assembly, take a close look at the individual assembly steps shown and carry out the assembly
in the order given.
LNOTICE
+ First loosely screw all parts together and check that they t properly. Tighten the screws
using the tool only when you are instructed to do so.
+ If you have diculty recognising the graphics, we recommend that you open and/or
download the PDF instructions stored in the webshop on your end device (e.g. smartphone,
tablet or PC). There you have the option of zooming in closer. Please note that the Adobe
Acrobat Reader programme must be installed on your end device in order to open the le.

16 CTX5

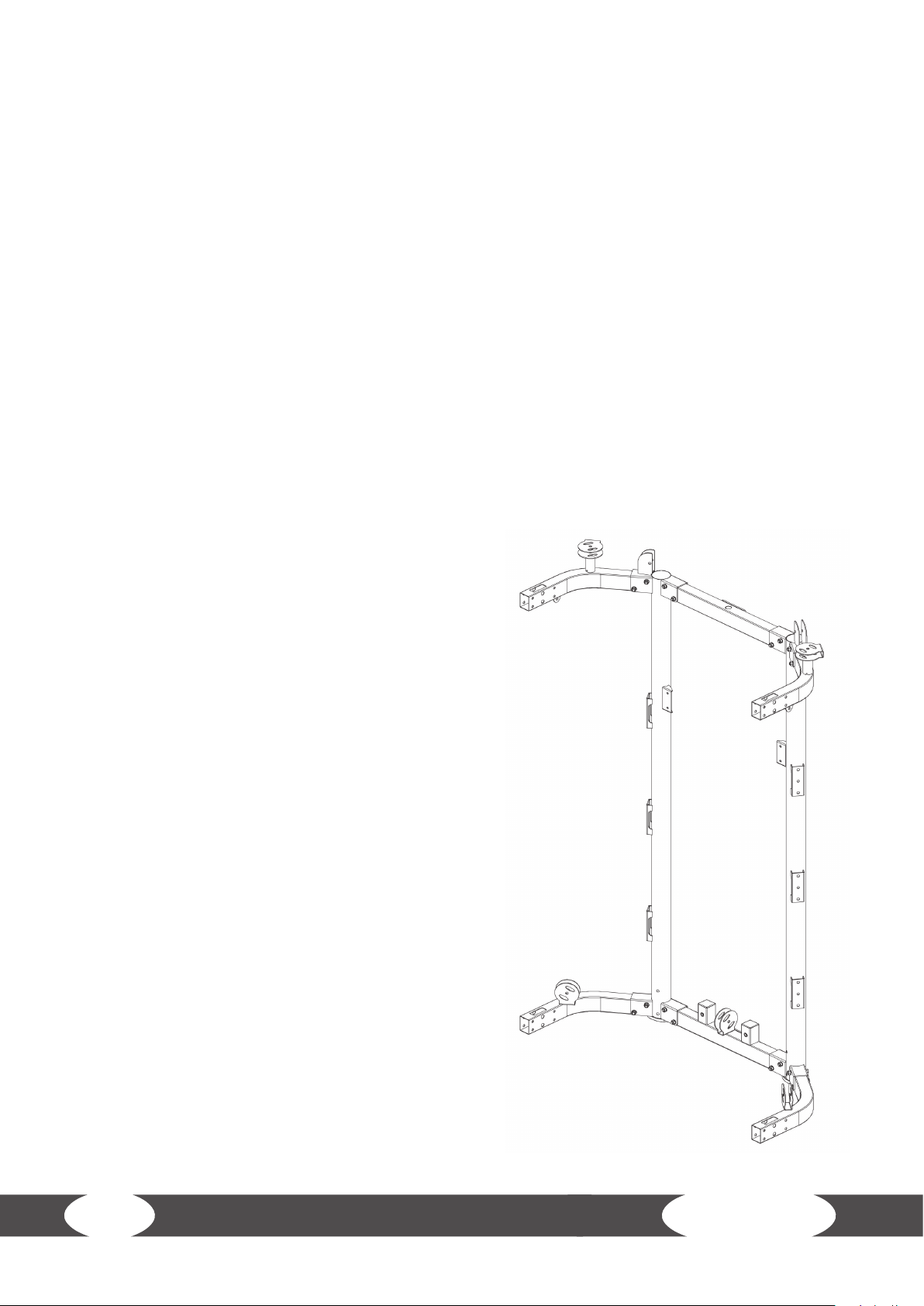

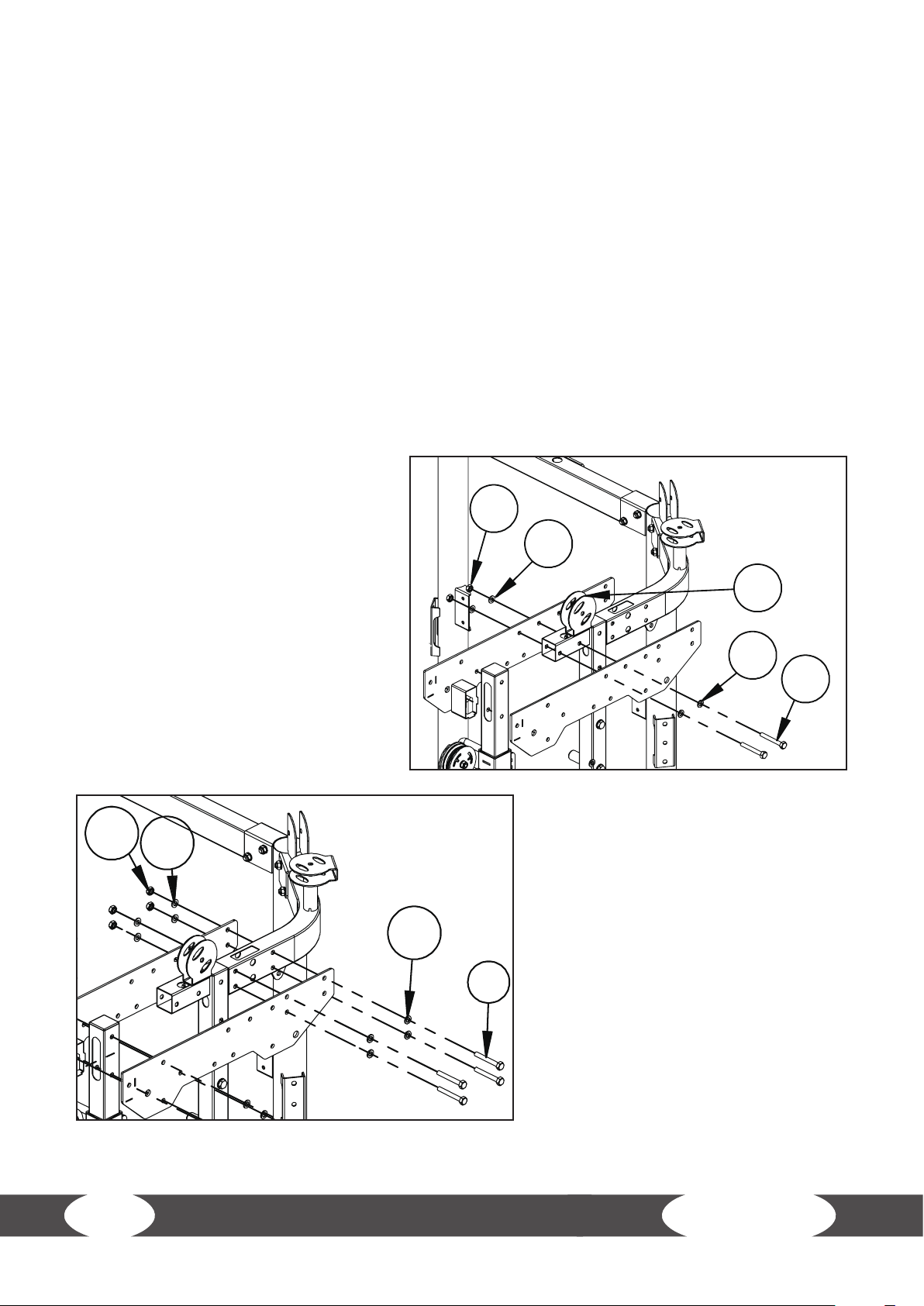

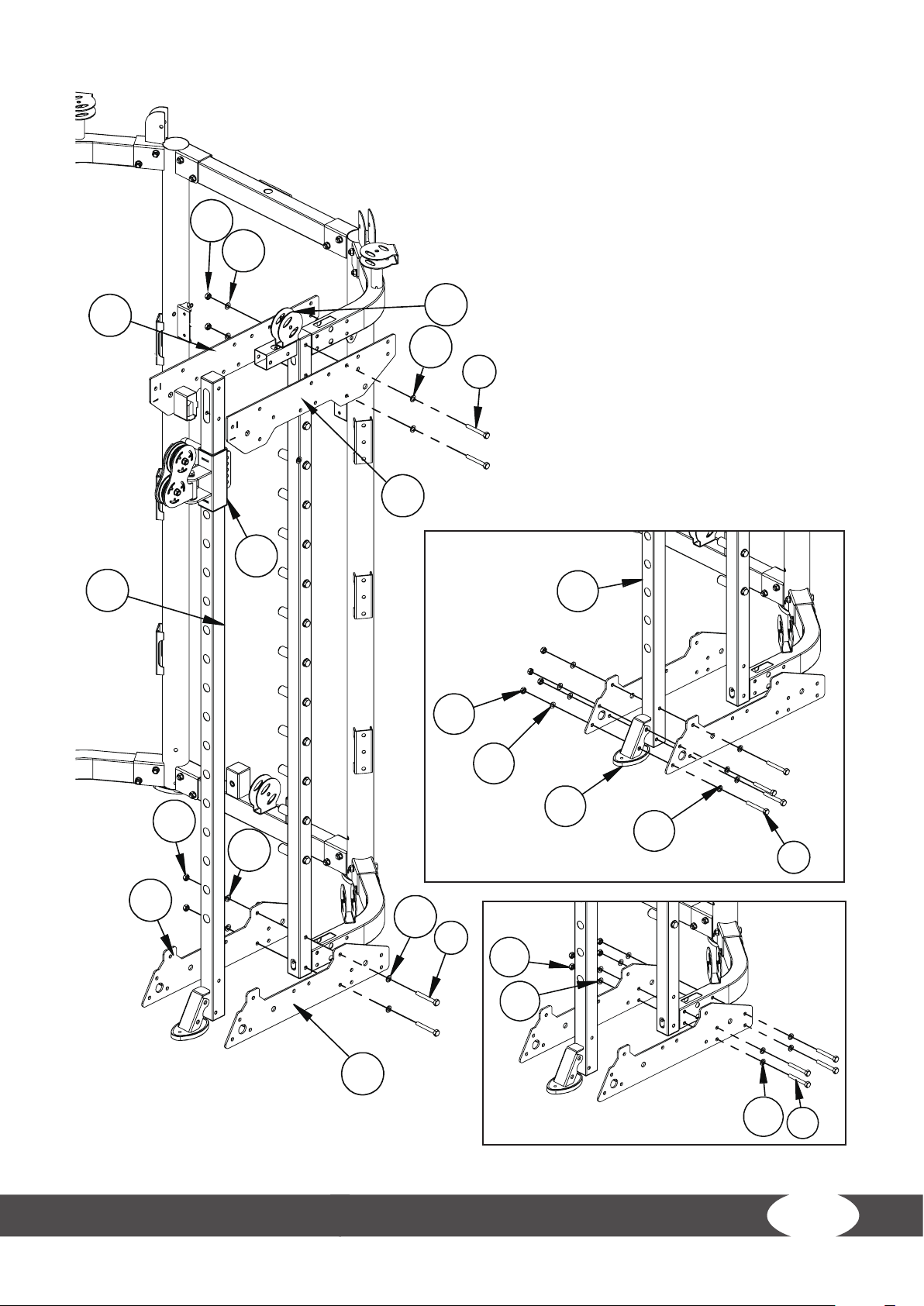

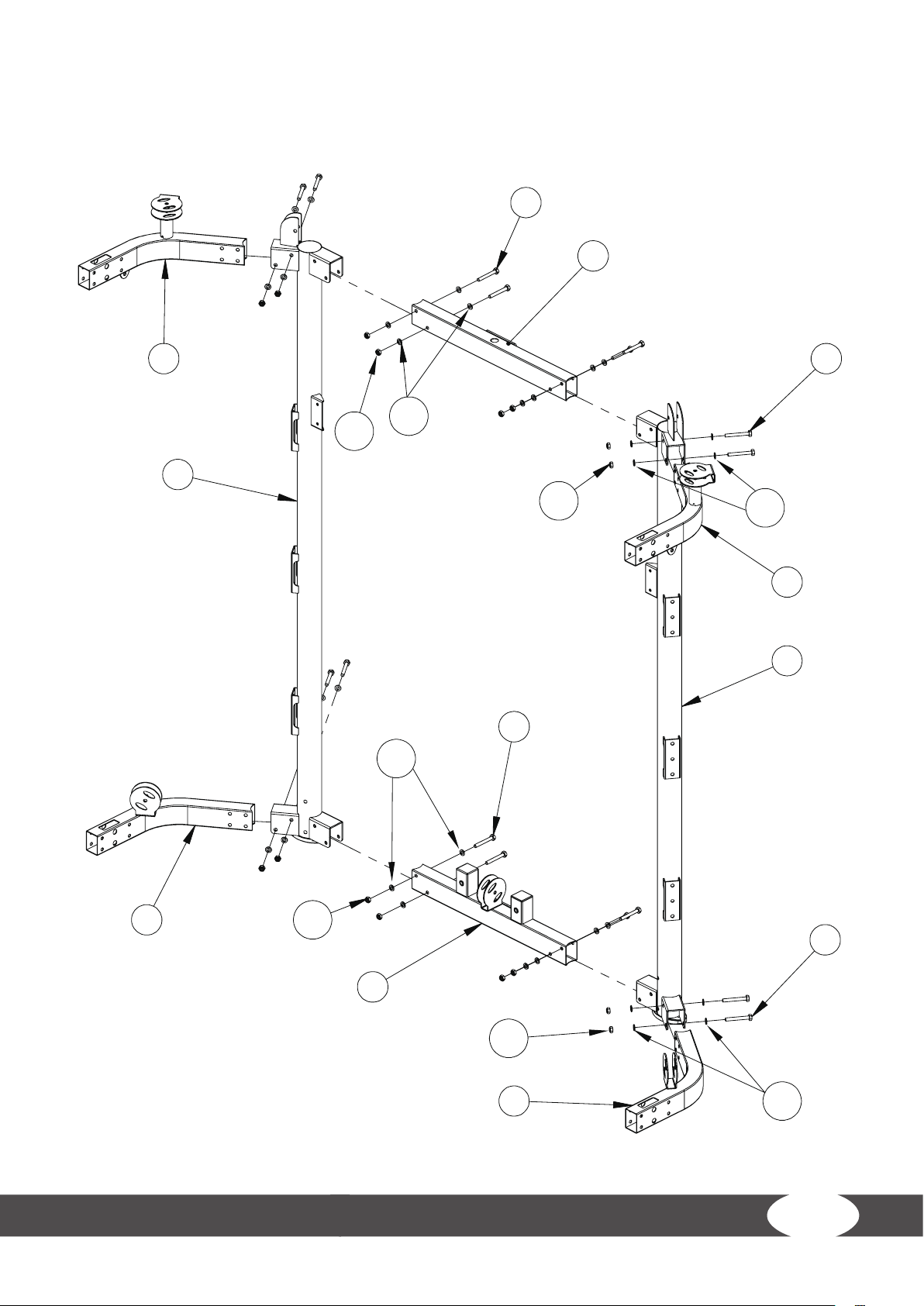

Step 1: Assembly of the Main Frame
LNOTICE
+ Install all bolts and nuts before tightening. Do not over tighten.
+ Not all bolts, washers and nuts are shown in the drawing as they are identical. For each bolt
connection, use one bolt (9), two washers (11) and one nut (10).
1. Attach the left bending tube (4) to the bottom of left upright frame (2) with two bolts (9), four
washers (11) and two nuts (10).
2. Attach the right bending tube (5) to the bottom of right upright frame (3) with two bolts (9), four
washers (11) and two nuts (10).
3. Attach the connection tube (1) to the bottom of the left and right upright frames (2 & 3) with a
total of four bolts (9), eight washers (11) and four nuts (10).
4. Attach the upper connection tube (6) to the top of the left and right upright frames (2 & 3) with
a total of four bolts (9), eight washers (11) and four nuts (10).
5. Attach the left upper bending tube (8) to the top of the left upright frame (2) with two bolts (9),
four washers (11) and two nuts (10).
6. Attach the right upper bending tube (7) to the top of the right upright frame (3) with two bolts
(9), four washers (11) and two nuts (10).
7. Tighten bolts and nuts.

explosion drawing
8
2
6
4
1
5
3
7
9
10
11
9
9
10
9
11
11
10
10
11
17

Assembly step（2）explosion drawing
12
13
15
14
16
18
17
19
21
20
22
9
24
11
10
11
9
99
9
24
24
9
23
23
11
10
11
11
10
11
11
Fig. A
Assembly step（2）explosion drawing
12
13
15
11
16
18
17
19
21
20
22
9
24
11
10
11
9
9
24
24
24
9
9
24
24
9
23
23
11
10
11
11
11
10 Fig. B
18 CTX5
Step 2: Assembly of the Tubes and Chin Up Bar, Part 1
LNOTICE
+ Install all bolts and nuts before tightening. Do not over tighten.
1. Attach one upright tube (16) together with two upper plates (13) to the right upper bending
tube (7) with two bolts (9), four washers (11) and two nuts (10).
2. Attach the upright tube (16) together with two lower plates (19) to the right bending tube (5)
with two bolts (9), four washers (11) and two nuts (10).
3. Attach the right pulley frame tube (14) to the upper plates (13) with two bolts (9), four washers
(11) and two nuts (10) [g. A].
4. Attach the upper plates (13) to the right upper bending tube (7) with four bolts (9), eight
washers (11) and four nuts (10) [g. B].
5. Attach the right sliding tube (20) to the right tube with holes (17).
6. Attach the right tube with holes (17) and the foot tube cover (22) to the lower plates (19) with
four bolts (9), eight washers (11) and four nuts (10) [g. C].
7. Attach the lower plates (19) to the
right bending tube (5) with four
bolts (9), eight washers (11) and four
nuts (10) [g. D].
8. Repeat the steps 1 to 7 on the left
side.
LNOTICE
+ For the left side, use the left
pulley frame tube (15), left
sliding tube (21) and left tube
with holes (18).
+ Do not tighten bolts and nuts
yet.

Assembly step（2）explosion drawing
12
13
15
14
16
18
17
19
21
20
9
24
11
9
9
9
24
24
9
23
11
10
11
11
10
11
13
13
10
11
11
19
19
Assembly step（2）explosion drawing
12
13
15
14
16
18
17
19
21
20
22
9
24
11
10
11
9
9
24
24
24
9
9
24
24
9
23
23
11
11
11
17
Fig. C
Assembly step（2）explosion drawing
12
13
15
14
16
18
17
19
21
20
9
24
11
10
11
9
9
24
24
24
9
9
24
24
9
23
23
11
10
11
11
Fig. D
19

Assembly step（2）explosion drawing
12
13
18
17
19
22
9
24
11
10
11
9
24
24
24
9
24
24
23
23
11
10
11
11
10
11
20 CTX5

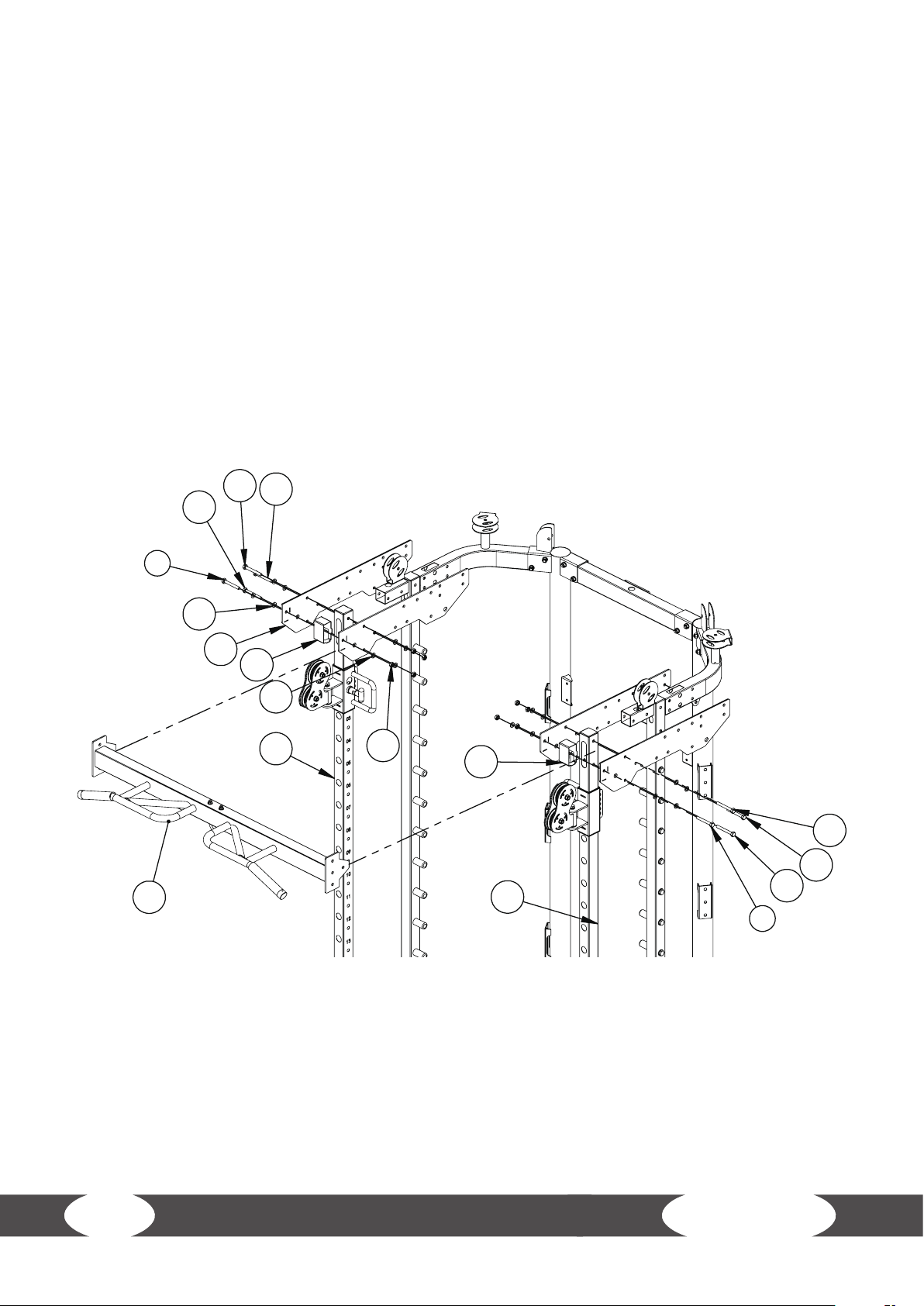

Step 2: Assembly of the Tubes and Chin Up Bar, Part 2
LNOTICE
+ Install all bolts and nuts before tightening. Do not over tighten.
1. Attach one end tube (23) between the upper plates (13) with one bolt (9), two washers (11) and
one nut (10) on each side of the machine.
2. Attach the chin up bar (12) to the inner side of the upper plates (13) and to the left and right
tubes with holes (18 & 17) with a total of six bolts (24), twelve washers (11) and six nuts (10).
3. Now tighten all bolts and nuts.
