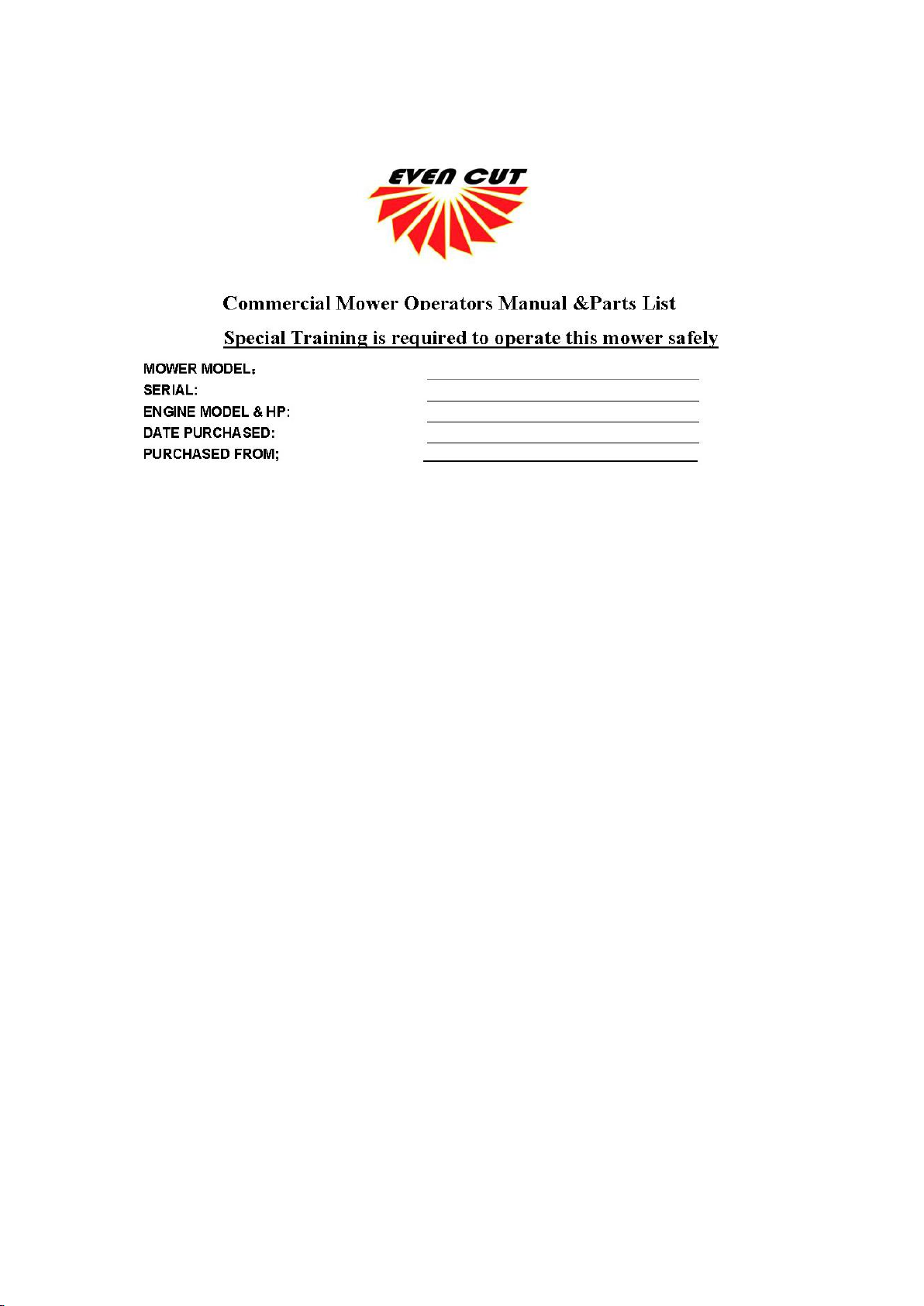

BRADLEY MOWERS EVEN CUT 22DP User manual

High Wheel Commercial Mower
22DP • 22BP • 24SP
www.BradleyMowers.com
OWNER’S MANUAL & PARTS LIST
Rev. 11/2018

IMPORTANT MESSAGE
This machine comes with an Owner’s Manual and List. The useful life and good service
you receive from this machine depends to a large extent on how well you read and
understand this manual . Treat your machine properly, lubricate and adjust it as instructed,
and it will give you many years of reliable service.
Your safe use of this product is one of our prime objectives. Many safety features are bult
in，but we also rely on your good sense and care to achieve accident-free operation. For
best protection, study the manual thoroughly. Learn the proper operation of all controls.
Observe all safety precautions. Follow all instructions and warnings completely. Do not
remove or defeat any safety features.
See a Havener Enterprises, Inc. dealer for any service or parts needed. Havener
Enterprises, Inc. service ensures that you continue to receive the best results possible
from Havener Enterprises, Inc. products. You can trust Havener Enterprises, Inc.
replacement parts because they are manufactured with the same high precision and
quality as the original parts.
Havener Enterprises, Inc. designs and builds its equipment to serve many years in a safe
and productive manner. For longest life, use this machine only as directed in the manual,
keep it in good repair and follow safety warnings and instructions.

3
IMPORTANT INSTRUCTIONS:
Read the owner’s manual and make it readily available for future reference.
Be familiar with the operation of the mower. Extreme emphasis should be placed on
operator safety and the mower's safety features.
Know the correct mower and engine service and maintenance requirements, and be able
to perform or have performed the service and recommended lubrication as required.
GENERAL
Before servicing, check the mower for such items as belt tension and cutting height
adjustment, to be sure mower functions properly. Check attachment of the rear guard and
inspect to make sure the chute guard is secure.
HANDLEBARS
This mower is shipped with the handlebars detached. Handlebars must be bolted into
position before use. All controls must be properly mounted to the handlebars before
starting.
RAPAIRS OR SERVICE
IMPORTANT: If service or parts are required, be prepared to supply the service person
with the model and serial number of the mower and engine. Include a complete
description of the problem encountered.
TRAINING
Read the operating and service instruction manual carefully and completely. Be familiar
with all safety controls and the proper use of the equipment.
NEVER
let a child operate a power mower.
Keep the area of operation clear of all persons, especially small children and pets.
PREPARATION
1. Never operate your power mower unless ALL GUARDS are securely attached Do not
remove rear guard!
2. Thoroughly inspect area where the mower will be used. Remove all stones, sticks,
bones and other foreign objects.
3. Wear long pants and substantial shoes when operating the mower. Do not operate
mower-wearing sandals, tennis shoes, sneakers, shorts or loose-fitting clothing that
could be caught in moving parts.

4
4. Check gas level before starting engine. Do not fill gas tank indoors, when the engine is
running, or while the engine is still hot, Wipe off any spilled gasoline before starting
engine.
5. Mow only in daylight.
6. Never operate a mower in wet grass. Always be sure of your footing, keep a firm hold
on the handle, and walk.NEVER RUN!
7. NEVER operate a mower without proper eye and hearing protection, i.e.: safety
glasses face shield or goggles.
STARTING & STOPPING
1. Fill the engine crankcase with oil. Refer to the engine instruction manual supplied with
this mower.
2. Fill the gas tank. Refer to engine manual.
3. Pump primer bulb on engine, or set throttle control to proper position.
4. TO START
5. Hold lever against the handlebar and pull recoil starter cord See figure 3
6. NOTE: Return cord slowly-DO NOT LET HANDLE SNAP!
REMEMBER:
The lever control must be held against handlebar to operate the mower. See Figure 1
When the lever is release, the engine and blade will stop.
GOING FORWARD:
Slowly press the control lever down and the mower will start to move forward (Note: Only
the 24B6.75SP can do this).
TO STOP
1. Release all lever controls, engine, and blade will stop. See Figure 2
2. IMPORTANT: Release the lever control this will STOP the blade and engine. If this
feature fails to function, DO NOT OPERATE MOWER. Disconnect the spark plug wire
and see your Even Cut dealer.
REMEMBER: The safety features on this mower are for your protection. Do not tamper
with or remove these components.
1 2 3

5

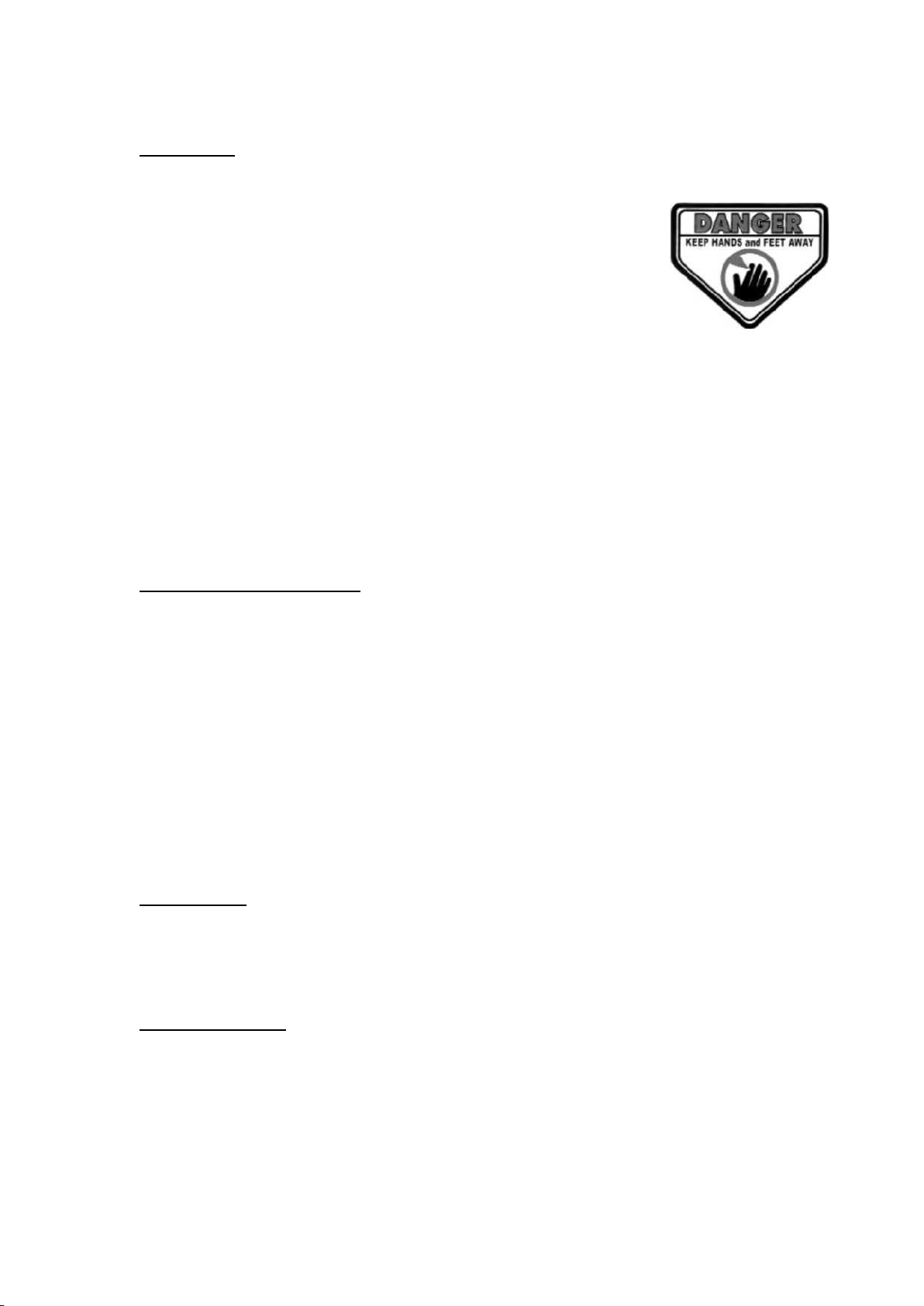

OPERATION
1. Do not change the engine governor setting or over speed the
engine.
2. Do not put hands or feet near or under rotating parts. Stay clear of
discharge area while the engine is running (Figure.5).
3. Stop the mower when crossing gravel drives, walks, roads, or any
other area where thrown objects may be a hazard.
4. After striking a foreign object, or if the mower vibrates abnormally,
stop the engine, disconnect, and secure the spark plug wire,
Inspect the mower for any damage before restarting.
5. Before cleaning, repairing, or inspecting, make certain the blade and all other moving
parts have come to a complete stop. Disconnect the spark plug and secure the wire
away plug to prevent accidental starting.
6. Do not run the engine indoors.
7. Mow across the face of slope, never up and down. Exercise extreme caution when
changing directions on slopes. Do not mow excessively steep slopes.
MAINTENANCE & STORAGE
1. In order for your safety controls to function at the peak of efficiency, they must be
inspected and adjusted regularly. Initial inspection shall take place after the first two (2)
hours. Belt tension is a very critical part of your safety inspection, and should be
checked frequently.
2. Keep all nuts, bolts and screws tight to assure safe mower operation.
3. Never store equipment with gas in the tank or in a building near a spark or flame.
Allow the engine to cool before storing in any enclosure.
4. To reduce fire hazard, keep mower free of grass, leaves or excessive grease.
5. Have your mower service and inspected every year by your authorized Even Cut
dealer, and if you perform repairs yourself, use only Even Cut replacement parts.
IMPORTANT:
If service or parts are required, be prepared to supply the service person with the model
and serial number of the mower and engine Include a complete description of the problem
encountered.
ENGINE GENERAL
Follow the engine manual supplied with this mower for proper engine maintenance and
service. The engine on your Even Cut mower is an item for which the manufacturer
maintains a national service organization. FOR ENGINE PARTS AND REPAIR
INSTRUCTIONS, CONTACT THE ENGINE MANUFACTURER'S DEALER. Your engine is
designed for long lasting service when given proper care. For the proper care instructions,
READ YOUR ENGINE MANUAL!
Figure 5

6
SPECIAL SERVICE INSTRUCTIONS
Check oil level before every mowing.
Change Oil every eight to ten hours of operation. Use high quality SAE 30 oil.
Use unleaded gasoline.
Keep your engine clean. Dirt and grass accumulation can result in serious damage to the
precision parts of your engine.
ENGINE SERVICE
Refer to engine owner's manual.
CAUTION: BE SURE TO HANDLE FUEL OUTDOORS, AWAY FROM SPARK OR
FLAME.
LUBRICATION
To lubricate your Even Cut Mower, apply bearing grease through the fitting on the hub
housing. You may use an air pressure or hand-held grease gun. To lubricate the wheels
on your Even Cut Mower high quality grease may be packed inside the wheel hubs.
CUTTING HEIGHT ADJUSTMENT
Your Even Cut is adjustable to a accommodated your cutting height requirements by lower
and raising the front and rear wheels.
BLADE SHARPENING-CAUTION
CAUTION: WHEN ADJUSTING, REPLACING OR MOVING THE MOWER BLADE, THE
SPARK PLUG WIRE MUST BE DISCONNECTED TO AVOID ACCIDENTAL STARTING.
CLEANING YOUR EVEN CUT MOWER
Clean your Even Cut after each use. Let the engine cool, and then wipe the grass and
debris from mower and engine. Check mower pan for grass and dirt build-up. Disconnect
the spark plug and tip mower on its side (muffler side up) to clean underneath deck.
Check the blade and mounting hardware at frequent intervals for wear and tightness.
Replace worn parts with Even Cut original equipment parts for safety

7
Unpacking
Instructions

8

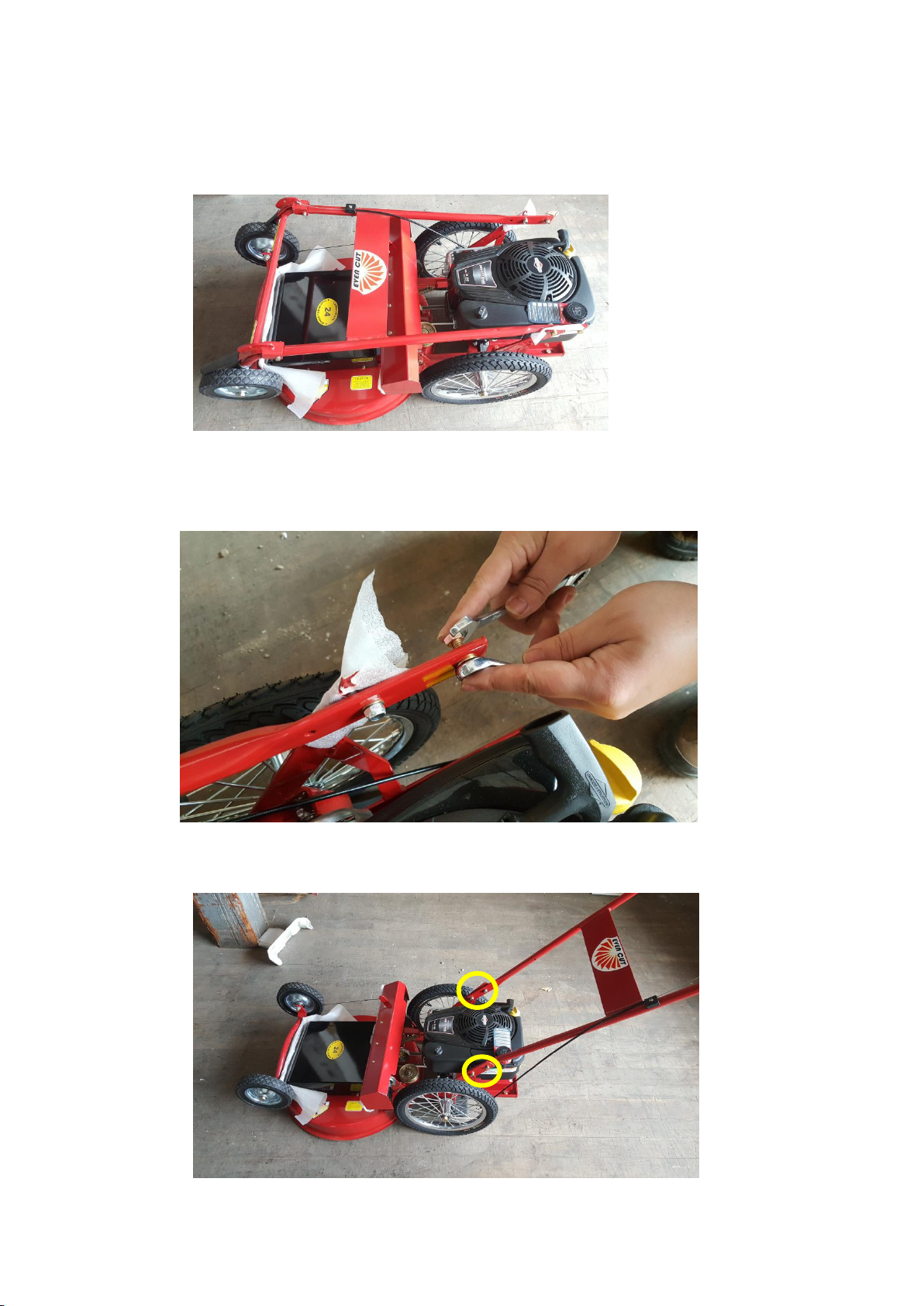

1.Take out the mower from the carton.
2.Take down the handle bar by using two 13mm wrenches.
3.Assemble the handle bar and tighten the four bolts as shown below:

9

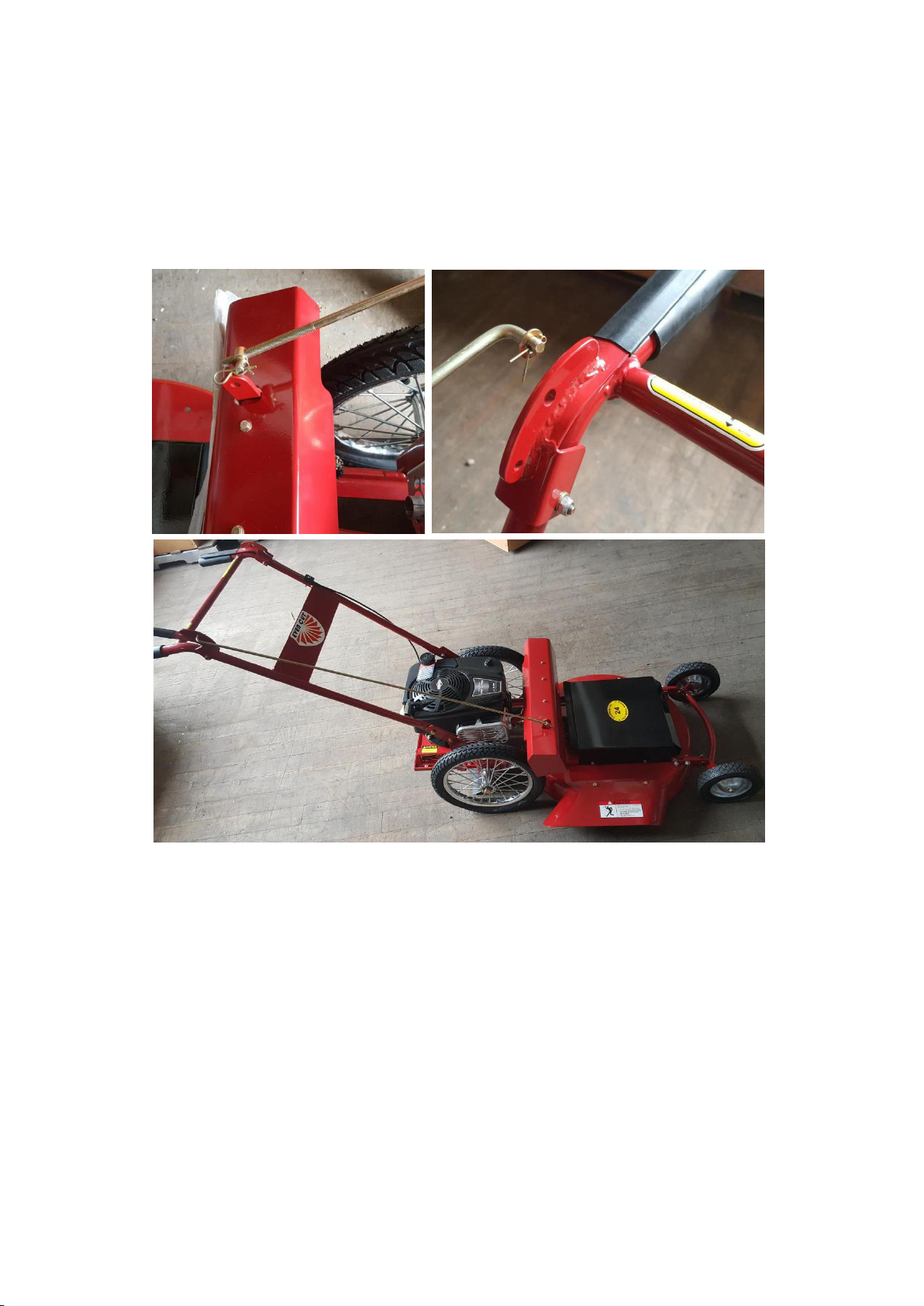

4.Hook up the throttle cable as shown below:
5.Install the front wheel.
Take down the pin roll to lower the front wheel and then insert the pin roll back.
6.Install the grass chute and tighten the two blots as shown below marked in yellow.

10
7.Install the walking rod as shown below.
Please noted only the 24SP mower has this part.

11

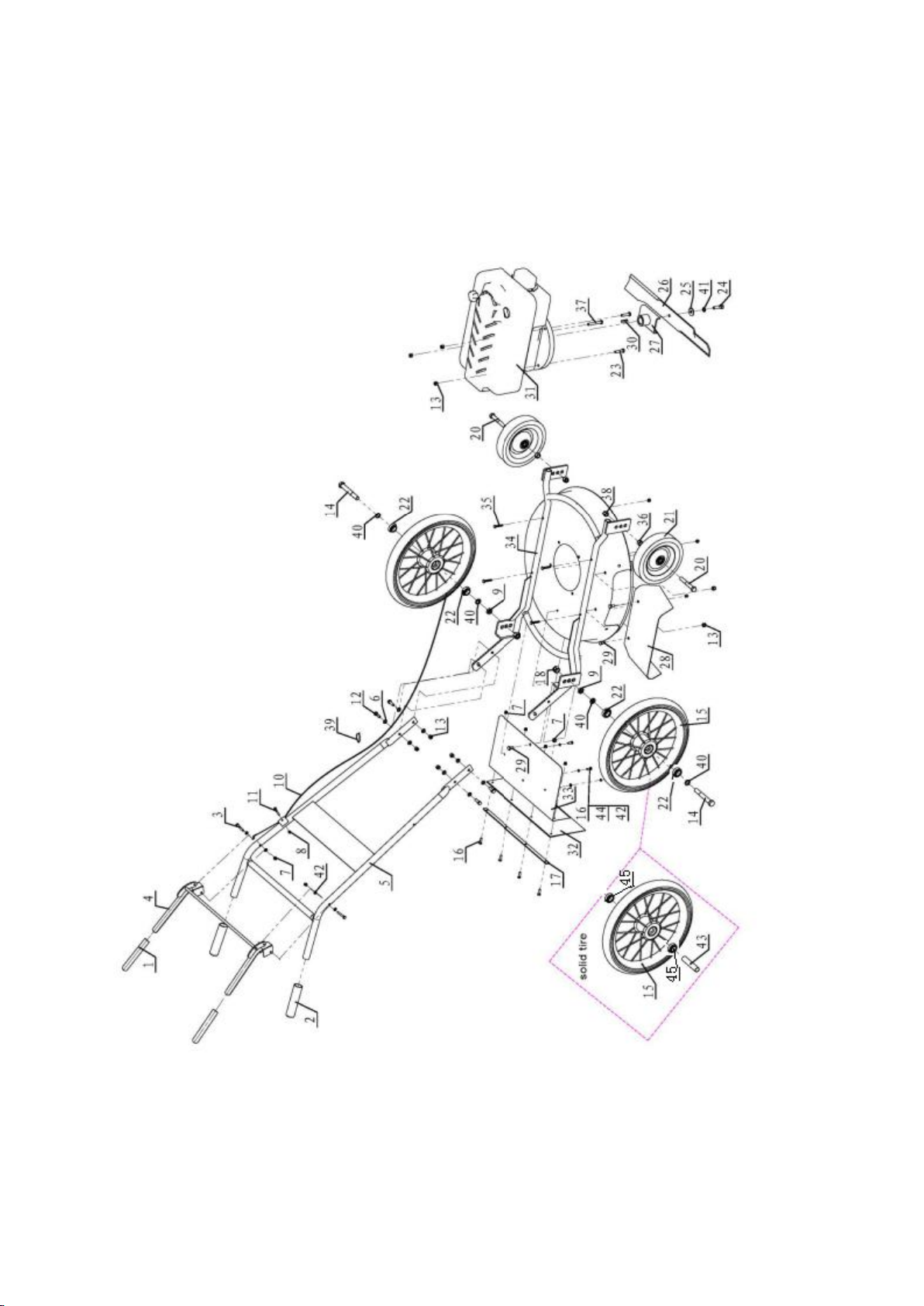

22DP Assembly

12
22DP Assembly
Item No.
Part Number
Description
Qty
1
400-001
Grip
1
2
400-034
Handle Grip
2
3
200-327
Hexagon Bolt M6*45 GB5782
2
4
400-003
Bail
1
5
400-035
Plow Handle
1
6
200-021
Plain Washer 8 GB95-85
4
7
200-009
Nylon Nut M6 GB889-86
11
8
200-013
Nylon Nut M5 GB889-86
1
9
200-174
Nut Thin M14 GB6172.1
2
10
400-029
Safety Cable
1
11
200-173
Bolt M5*40 GB818-85
1
12
200-119
Hexagon Bolt M8*25 GB5783-86
4
13
200-030
Nylon Nut M8 GB889-86
9
14
400-025A
Back Wheel Axle-Hex Head
2
15
400-026
Back Wheel 16x2.125
2
400-026P
Back Wheel-Pneumatic 16x2.125
2
16
200-072
Hexagon Bolt M6*20 GB5783-86
4
17
422A-001
Bracket
1
18
200-172
Nylon Nut M14 GB889-86
2
19
200-120
Hexagon Bolt M6*16 GB5783-86
3
20
400-008
Front Wheel Axle
2
21
400-009
Front Wheel
2
22
200-318
Bearing 6202-2RS
4
23
200-049
Hexagon Bolt M8*35 GB5783-86
2
24
400-014
Engine Bolt
1
25
400-044
Washer
1
26
422A-002
Straight Blade 22"
1
27
422A-003
Blade Saddle 22.2mm
1
422A-003A
Blade Saddle 25mm
1
28
422A-006
Chute
1
29
200-178
Hexagon Bolt M8*16 GB5783-86
3
30
200-106
Woodruff key 4*6.5*16 GB1099-79
1
200-106A
Flat key 6.35*6.35*30 GB1096-86
1
31
N/A
Engine Assembly
1
32
400-011
Rear Deflector
1
33
422A-004
Flange Deck
1
34
422A-005
Mover Frame For 22"(A)
1
35
200-177
Hexagon Bolt M6*35 GB5783-86
4
36
200-107
Hexagon Nut M12 GB6170-86
2
37
200-220
Hexagon Bolt M8*70 GB5782-86
1
38
200-007
Nylon Nut M12 GB889-86
2
39
200-062
Wire Tie
1
40
400-020a
Spacer, Bearing
4
41
200-347
Lock Washer 10 GB7244
1
42
200-301
Plain Washer 6 GB95-85
7
43
424A-039A
Spacer for Wheel
2
44
200-053
Lock washer 6 GB93
3
45
424A-068
standard 3/4″ball bearing
4

13
Solid tire
22BP Frame Assembly

14
Item No.
Part Number
Description
Qty
1
400-001
Grip
1
2
400-034
Handle Grip
2
3
200-327
Hexagon Bolt M6*45 GB5782
2
4
400-003
Bail
1
5
400-035
Plow Handle
1
6
200-021
Plain Washer 8 GB95-85
4
7
200-009
Nylon Nut M6 GB889-86
5
8
200-013
Nylon Nut M5 GB889-86
1
9
200-174
Nut Thin M14GB6172.1
2
10
400-005
Safety Cable
1
11
200-173
Bolt M5*40GB818-85
1
12
200-119
Hexagon Bolt M8*25 GB5783-86
8
13
200-030
Nylon Nut M8 GB889-86
10
14
200-062
Wire Tie
1
15
200-036
Hexagon bolt M6X20 GB5783
4
16
422B-006
Rear Deflector
1
17
400-025A
Back Wheel Axle-Hex Head
2
18
200-318
Bearing 6202-2RS
4
19
400-026
Back Wheel 16x2.125
2
400-026P
Back Wheel-Pneumatic 16x2.125
2
20
200-174
Nut thin M14 GB6172.1
1
21
422B-003
Mover Frame For 22"(B)
1
22
400-010
Chute Ext
1
23
200-178
Hexagon Bolt M8*16 GB5783-86
2
24
200-091
Hexagon Bolt M8*20 GB5783-86
2
25
422B-004
Deck Weldment
1
26
400-008
Front Wheel Axle
2
27
400-009
Front Wheel
2
28
200-107
Hexagon Nut M12 GB6170-86
2
29
200-109
Clecis Pin 10*20 GB882-86
2
30
200-103
Hexagon Bolt M10*30 GB5783-86
4
31
400-016
Height Adjustment
4
32
400-017
Space
2
33
200-006
Nylon Nut M10GB889-86
5
34
200-069
Hair Pin Cotter
2
35
200-007
Nylon NutM12GB889-86
2
36
400-018
Front End
1
37
400-020a
Spacer, Bearing
4
38
424A-039
Spacer for Wheel-Pneumatic
2
424A-039A
Spacer for Wheel
2
39
WM2836-052
Idle Pulley
1
40
200-068
Hexagon Bolt M10*55 GB5782-86
1
41
200-331
Plain washer 6 GB96
4
42
200-042
Plain Washer 6 GB95-85
4
43
200-147
Plain Washer 10 GB96
1
44
400-042
Spacer
1
45
424A-068
standard 3/4″ball bearing
4
22BP Frame Assembly

15
22BP Gearing Assembly

16
22BP Gearing Assembly
Item
No.
Part Number
Description
Qty
1
200-030
Nylon Nut M8 GB889-86
11
2
Engine Assembly
1
3
200-106
Key 4*6.5*16 GB1099-79
1
200-106A
Key 6.35*6*22
1
4
200-119
Hexagon Bolt M8*25 GB5783
4
5
200-021
Plain Washer 8 GB95-85
7
6
400-030
Engine Mount
1
400-030A
Engine Mount
1
7
200-029
Nut Flange M8 GB6177-86
2
8
200-179
Hexagon Bolt M8*50 GB5783-86
2
9
400-031
Engine Pulley 22.2mm
1
400-031A
Engine Pulley 25mm
1
10
200-116
Bolt Screws M8*8 GB77
3
11
200-049
Hexagon Bolt M8*35 GB5783-86
2
12
200-220
Hexagon Bolt M8*70 GB5782-86
1
13
400-021
Fly Wheel
1
14
400-044
Washer
1
15
400-014
Engine Bolt
1
16
400-033
Belt
1
17
422B-005
Master Link For 22"(B)
1
18
200-042
Plain Washer 6 GB95-85
4
19
200-036
Hexagon Bolt M6*20 GB5783-86
2
20
200-124
Hexagon Nut M12*1.5 GB6171-86
1
21
200-078
Lock Washer 12 GB93-87
1
22
400-032A
Pulley
1
23
200-110
Bearing 6203-2RS
2
24
422B-002A
Hub Shaft
1
25
400-015a
Bearing Housing
1
26
200-025
Hexagon Bolt M8*30 GB5783-86
4
27
400-019
Blade Spacer
1
28
422B-001
Blade 22"
1
29
200-096
Lock Washer 16 GB93-87
1
30
200-017
Hexagon Nut M16*1.5 GB6171-86
1
31
422B-007A
Cutter Housing Assembly
1
32
200-347
Lock Washer 10 GB7244
1
33
400-043
Spacer sleeve
1
34
200-313
Hexagon bolt M6X25
2

17
Item No.
Part Number
Description
Qty
1
200-135
Hexagon Bolt M5*12
4
2
424A-041
Sprocket Cover
1
3
424A-062
Bearing PFL203
2
4
424A-002a
Shaft Mount Weldment
1
5
200-030
Nylon Nut M8 GB889-86
2
6
200-021
Plain Washer 8 GB95-85
4
7
424A-060
Spring Hanging Plate Welding
Element
1
8
200-119
Hexagon Bolt M8*25 GB5783
2
9
424A-061
Spring
1
10
100-120a
Plain Washer 1.5*16.5id*26.5 od
4
11
424A-005
Crawler
2
24SP Transmission Assembly

18
12
424A-006
Spring
2
13
424A-007
Drive Pin
2
14
424A-008
RH Ratcher Block
1
15
200-042
Plain Washer 6 GB95-85
4
16
200-114
Roll Pin5*30
5
17
200-117
Drive Chain#35
1
18
424A-040A
Cross Shaft
1
19
424A-011
LH Ratcher Block
1
20
200-083
Screws M8*10 GB79
1
21
424A-012
Set Collar
1
22
424A-013
SP Tube
1
23
424A-014
Sprocket 10 Tooth
1
24
200-071
Plain Washer 12
1
25
200-115
Bearing R8-2RS
2
26
200-120a
Hexagon Bolt M6*12 GB5783
4
27
200-053
spring washer 6
4
28
200-113
Bearing 99502
2
29
200-009
Nylon Nut M6 GB889-86
4
30
200-011a
Bolt M6*20 GB801
4
31
424A-040B
Sprocket
1
32
424A-063
Sprocket joint
1
33
424A-064
Small sprocket shaft
1
34
424A-065
Key 5x5x18
1
35
424A-066
pulley
1
36
200-043
Plain washer 6 GB5287
1
24SP Transmission Assembly

19
24SP Frame Assembly

20
Item No.
Part Number
Description
Qty
1
400-001
Grip
2
2
400-034
Handle Grip
2
3
200-327
Hexagon Bolt M6*45 GB5782
2
4
400-028
Bail weldment
2
5
400-035
Plow Handle
1
6
200-021
Plain Washer 8 GB95-85
5
7
200-009
Nylon Nut M6 GB889-86
10
8
200-013
Nylon Nut M5 GB889-86
1
9
400-005
Safety Cable
1
10
200-173
Bolt M5*40 GB818-85
1
11
200-119
Hexagon Bolt M8*25 GB5783-86
10
12
200-030
Nylon Nut M8 GB889-86
10
13
200-062
Wire Tie
1
14
424A-017
SP Rod
1
15
200-069
Hair Pin Cotter
4
16
400-025A
Back Wheel Axel
2
17
400-026
Back Wheel 16x2.125
2
400-026P
Back Wheel-Pneumatic 16x2.125
2
18
200-318
Bearing 6202- 2RS
4
19
200-097
Nut Flange M14 GB6177-86
2
20
200-172
Nylon Nut M14 GB889
2
21
200-036
Hexagon bolt M6X20 GB5783
4
22
422B-006
Rear Deflector
1
23
200-178
Hexagon Bolt M8*16 GB5783-86
2
24
424A-021
Mower Frame For 24"(A)
1
25
200-091
Hexagon Bolt M8*20 GB5783-86
4
26
424A-022
Deck Weldment
1
27
400-010
Chute
1
28
400-008
Front Wheel Axel
2
29
400-009
Front Wheel
2
30
200-107
Hexagon Nut M12 GB6170-86
4
31
200-109
Clevis Pin 10*20 GB/T 882-86
2
32
200-103
Hexagon Bolt M10*30 GB5783-86
4
33
400-016
Height Adjustment
4
34
400-017
Spacer
2
35
200-006
Nylon Nut M10 GB889-86
5
36
400-018
Front End
1
37
200-007
Nylon Nut M12 GB889-86
4
38
200-036
Hexagon Bolt M6*25 GB5783-86
4
39
200-121
Hexagon Bolt M12*35 GB5783-86
2
40
424A-025
Torsion Spring LH
1
41
424A-026
Lg SP Mount
2
42
424A-027
Torsion Spring RH
1
43
100-042
Swivel, Brake Rod
1
44
400-020a
Spacer, Bearing
2
45
200-325
Plain Washer 6 GB96
4
46
200-042
Plain Washer 6 GB95-85
4
47
200-068
Hexagon Bolt M10*55 GB5782-86
1
48
200-147
Plain Washer 10 GB96
1
49
WM2836-052
Idle Pulley
1
50
400-042
Spacer
1
51
424A-039A
Spacer for wheel
2
52
424A-068
standard 3/4″ball bearing
4
24SP Frame Assembly
