Brookstone DV MicroCam User manual

DV MicroCam
THUMB-SIZED—
GOES ANYWHERE,
CAPTURES ANY MOMENT

Table of conTenTs
CautionsandWarnings....................................................2
LocationofPartsandControls.............................................3
Accessories...............................................................4
ChargingtheBattery......................................................5
CheckingtheBattery......................................................5
MountingtheVideoCamera................................................5
InsertingthemicroSDCard................................................6
RecordingaVideoManually................................................6
RecordingaVoiceActivatedVideo(VOX)...................................7
TakingaSnapshot.........................................................8
RTCTimeSettingandUpdate..............................................8
CheckingtheMemory.....................................................9
SavingandPlayingaFile ..................................................9
Using as a PC Camera (Windows®only).....................................9
CareandMaintenance....................................................10
Specifications............................................................11
Troubleshooting..........................................................13
Notes...................................................................16
Warranty.................................................................17
1

2
baTTeRY PRecaUTIon
Dispose of this unit as you would a battery.
safeTY aPPRoval InfoRmaTIon
This product meets the requirements of FCC and CE, and is granted the
FCC and CE certification.
It is authorized to bear the FCC and CE mark.
This product has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This product complies with standards including Low Voltage Device Directive 73/23/
EEC; EMC Directive 89/336/EEC and R&TTE Directive1999/5/EC. It passed the
subject tests by the authority concerned and is authorized to bear CE mark.
save These InsTRUcTIons

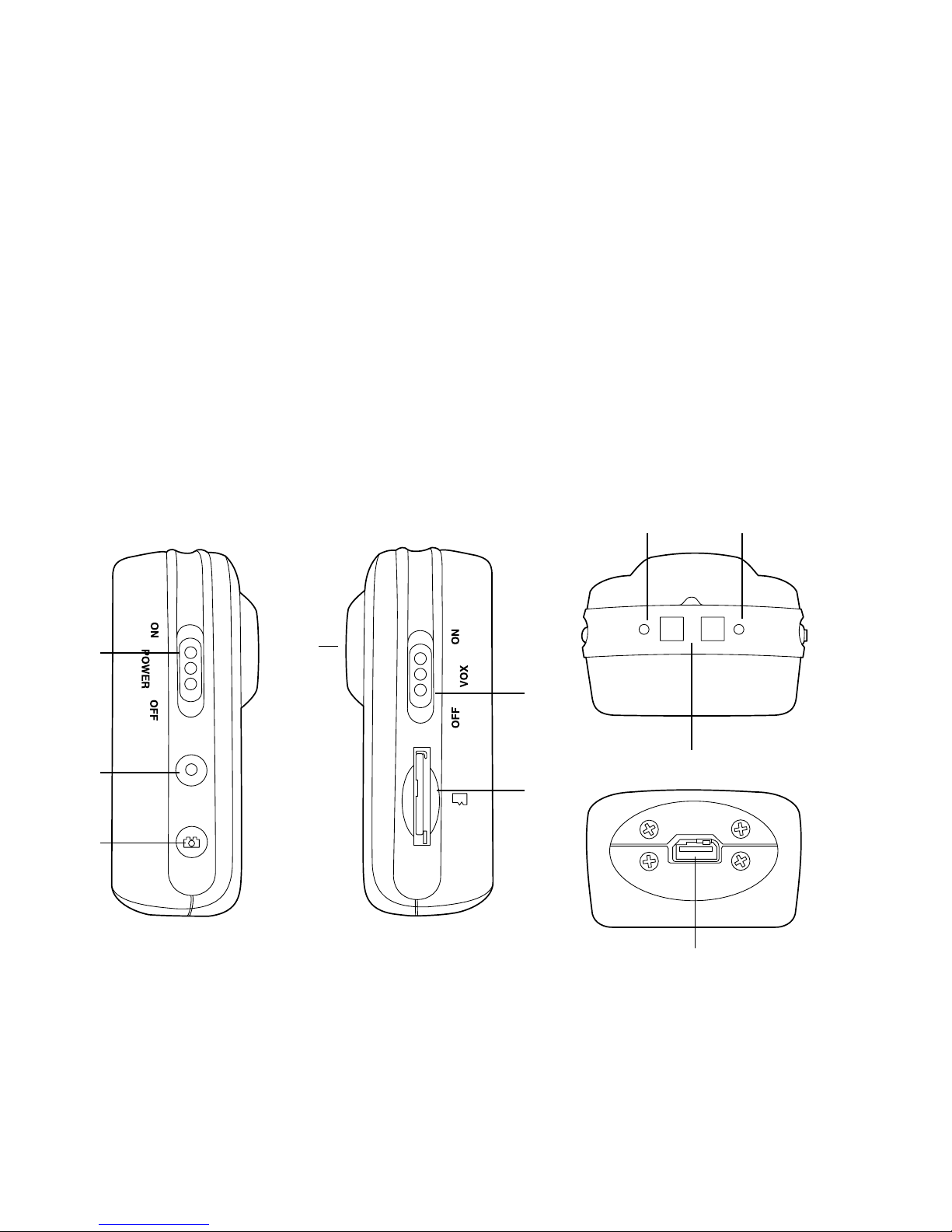

locaTIon of PaRTs and conTRols
