Butts of Bawtry TBT2519 User manual

Rotary Hammer Drill
TBT2519
INSTRUCTION MANUAL
CAUTION:
Before using this
hammer drill or any of
its accessories, read
this manual and follow
all its Safety Rules and
Operating Instructions.
SAVE THESE INSTRUCTIONS FOR REFERENCE
•
Safety
Instructions
•Assembly
•Operation
•Maintenance
•Parts List

SPECIFICATIONS
DRILL TBT2519 110v 60Hz
SDS Chuck……………….
Accessory chuck SDS
SDS fitting
38mm
No Load Speed ………….
Voltage
400 /min（approx.）
110v 60Hz
Reversible ……………….. No
Input power 800 w（approx.）
Impact hammer action 4200min¯¹（approx.）
Sound power level 105dB(A) （approx.）
Hand arm Vibration 29m/s²（approx.）
Weight………………… 7.5 kgs（approx.）
The SDS Rotary hammer drill power tool noise output may exceed
85dB(A) at the workplace. In this instance, wear ear protection.
Wear safety-hearing protection
Wear Dust mask
Wear safety goggles
Wear safety shoes
Wear hard hat
3
WARNING
!

GENERAL SAFETY RULES
Read all instructions Failure to follow all
instructions listed below may result in electric
shock, fire and/or serious injury. The term
“power tool” in all of the warnings listed below
refers to your mains operated (corded) power
tool or battery operated (cordless) power tool.
SAVE THESE INSTRUCTIONS
WORK AREA
Keep work area clean and well lit. Cluttered
and dark areas invite accidents.
Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools
create sparks, which may ignite the dust or
fumes.
Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
ELECTRICAL SAFETY
Power tool plugs must match the outlet.
Never modify the plug in any way. Do not
use any adapter plugs with earthed
(grounded) power tools. Unmodified plugs
and matching outlets will reduce risk of electric
shock.
Avoid body contact with earthed or
grounded surfaces such as pipes, radiators,
ranges and refrigerators. There is an
increased risk of electric shock if your body is
earthed or grounded.
Do not expose power tools to rain or wet
conditions. Water entering the power tool will
increase the risk of electric shock.
Do not abuse the cord. Never use the cord
for carrying, pulling or unplugging the
power tool. Keep cord away from heat, oil,
sharp edges or moving parts. Damaged or
entangled cords increase the risk of electric
shock.
When operating a power tool outdoors, use
an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces
the risk of electric shock
PERSONAL SAFETY
Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired
or under the influence of drugs, alcohol or
medication. A moment of inattention while
operating power tools may result in serious
personal injury.
Use safety equipment. Always wear eye
protection. Safety equipment such as dust
mask, non-skid safety shoes, hardhat, or
hearing protection used for appropriate
conditions will reduce personal injury.
Avoid accidental starting. Ensure the switch
is in the OFF position before plugging in.
Carrying power tools with your finger on the
switch or plugging in power tools that have the
switch ON invites accidents.
Remove any adjusting key or wrench before
turning the power tool on. A wrench or key
left attached to a rotating part of the power tool
may result in personal injury.
Do not overreach. Keep proper footing and
balance at all times. This enables better
control of the power tool in unexpected
situations.
Dress properly. Do not wear loose clothing
or jewellery. Keep your hair, clothing and
gloves away from moving parts. Loose
clothes, jewellery or long hair can be caught in
moving parts.
If devices are provided for the connection of
dust extraction and collection facilities,
ensure these are connected and properly
used. Use of these devices can reduce dust
related hazards.
POWER TOOL SAFETY
WARNING
!
4

POWER TOOL USE AND CARE
Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the
rate for which it was designed.
Do not use the tool if the switch does not
turn it ON or OFF. Any power tool that cannot
be controlled with the switch is dangerous and
must be repaired.
Disconnect the plug from the power source
before making any adjustments, changing
accessories or storing power tools. Such
preventive safety measures reduce the risk of
starting the power tool accidentally.
Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions to
operate the power tool. Power tools are
dangerous in the hands of untrained users.
Maintain power tools. Check for
misalignment or binding of moving parts,
breakage of parts and any other condition
that may affect the power tools operation. If
damaged, have the power tool repaired
before use. Many accidents are caused by
poorly maintained power tools.
Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting
edges are less likely to bind and are easier to
control.
Use the power tool, accessories and tool
bits etc., in accordance with these
instructions and in the manner intended for
the particular type of power tool, taking into
account the working conditions and the
work to be performed. Use of the power tool
for operations different from intended could
result in a hazardous situation.
SERVICE
Tool service must be performed only by qualified
personnel. Service or maintenance performed by
unqualified personnel could result in risk of injury.
When servicing a tool, use only identical
replacement parts. Follow instructions in the
Maintenance section of this manual. Use of
unauthorized parts or failure to follow Maintenance
instructions may create a risk of electric shock or injury.
SPECIFIC SAFETY RULES
For your safety, do not plug in your Power tool
until you have read and understood this Owner’s
Manual.
WEAR EYE PROTECTION. Use face or dust
mask along with safety goggles. Use hearing
protection, particularly during extended periods
of operation, wear safety shoes, wear hard hat
“Wear ear protectors with impact drills.
Exposure to noise can cause hearing loss”
DO NOT wear gloves, jewellery, neckties or
loose clothing.
DO NOT drill, cut or sand material too small to be
securely held.
ALWAYS keep hands out of the path of the drill
bit and saw blade. Avoid awkward hand positions
where a sudden slip could cause your hand to
move into the path of the drill bit or saw blade.
SECURE WORKPIECE. Use clamps or a vice to
hold the work when practical. It is safer than
using your hand and it frees both hands to
operate the tool.
MAKE SURE there are no nails or foreign
objects in the part of the workpiece to be cut,
drilled or sanded.
POWER TOOL SAFETY
5
WARNING
!
SAVE THESE INSTRUCTIONS FOR REFERENCE

SPECIFIC SAFETY RULES – cont’d
TO AVOID INJURY from accidental
starting, always remove the Plug from the
electrical socket before installing or
removing a drill or chisel bit.
When using SDS drill only use bits that
are configured with the correct slots for
SDS chucks.
BEFORE STARTING the operation, jog the
drill switch to make sure the drill bit does
not wobble or vibrate.
DO NOT USE fly cutters or multiple-part
hole cutters, as they can come apart or
become unbalanced in use.
MAKE SURE the spindle has come to a
complete stop before touching the SDS
chuck or attempting to change the drill bit
also beware that the bit will be hot, let it
cool down before changing as it could burn
and cause injury .
ALWAYS MAKE SURE THE DRILL OR
CHISEL IS FIRMLY SEATED IN THE SDS
CHUCK before starting the drill.
Some of the following symbols may be used
on your tool. Please study them and learn
their meaning. Proper interpretation of these
symbols will allow you to operate the tool
better and safer.
V volts
A amperes
Hz hertz
W watt
Kw kilowatts
F farads
microfarads
l litres
Kg kilograms
bar bars
Pa pascals
h Hours
min minutes
s seconds
No load speed
./min or min¯¹ Revolutions or
reciprocations per minute
direct current
alternating current
²two-phase alternating
current
2N two-phase alternating
current with neutral
three-phase alternating
current
3N three-phase alternating
current with neutral
Rated current of the
appropriate fuse-link in
amperes
Time-lag miniature fuse-
link where X is the symbol
for the time/current
characteristic, as given in
EN 60127
protective earthing at
earthing terminal, Class I
tools
Diameter
Off position
Arrow
Warning symbol
alternating or direct current
splash proof construction
watertight construction
class II construction
IPXX IP symbol
Hammer symbol
Drill symbol
POWER TOOL SAFETY
DRILL SAFETY
6
SYMBOLS

SDS Chuck
Trigger
Handle
ModelCT0721
230v/50Hz
cable
Model CT0722
110v 60Hz
cable
Motor Housing
KNOW YOUR ROTARY HAMMER DRILL
7

ACCESSORIES & CARTON CONTENTS
AVAILABLE ACCESSORIES
Use only accessories recommended for this
Rotary hammer drill. Follow instructions that
accompany accessories. Use of improper
accessories may cause injury to the
operator or damage to the cordless drill.
Do not use any accessory unless you have
completely read the instructions or Owner’s
Manual for that accessory.
Various Drills and chisels
If any part is missing or damaged, do not
plug the drill into the power source until the
missing or damaged part is replaced.
Carefully unpack the tools see “Components
chart” at right hand side of this page
NOTE: See illustration of components on Page
9.
To avoid fire or toxic reaction, never use
gasoline, naphtha, acetone, lacquer
thinners or similar highly volatile solvents
to clean the tool.
CARTON CONTENTS – cont’d
WARNING
!

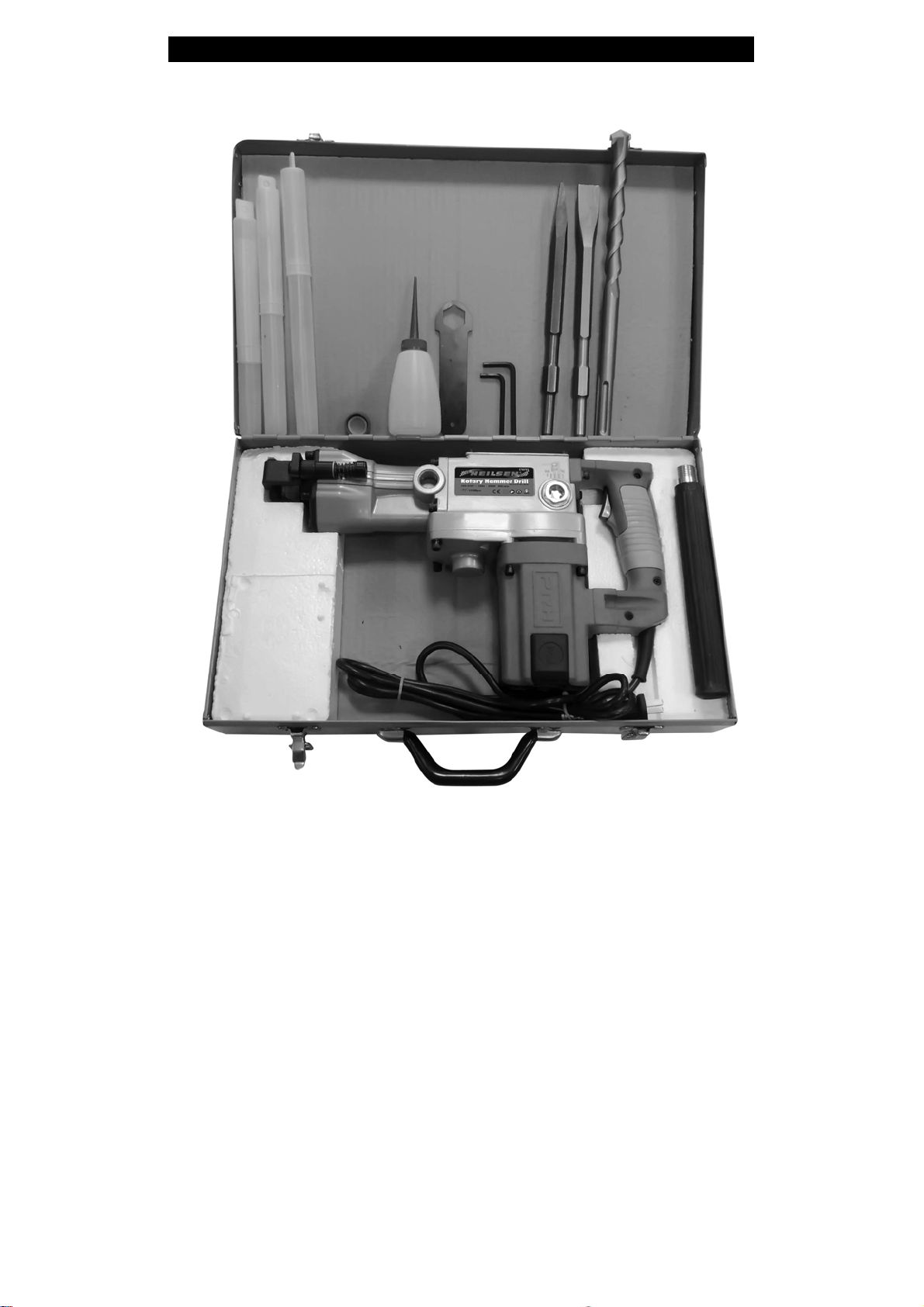

CARTON CONTENTS
WARNING
!
WARNING
!
Drill no CT0721/CT0722
KEY DESCRIPTION QTY
A 38mm SDS Rotary
Hammer Drill 1
B SDS Chisels 2
C SDS Masonry drills 1
D Steel carry case 1
E Oil pot 1
F Wrench 1
G Hex Wrench 2
H Carbon brush 1
8

CARTON CONTENTS
9

Always make sure the power tool is
isolated from the power supply before
fitting any attachment

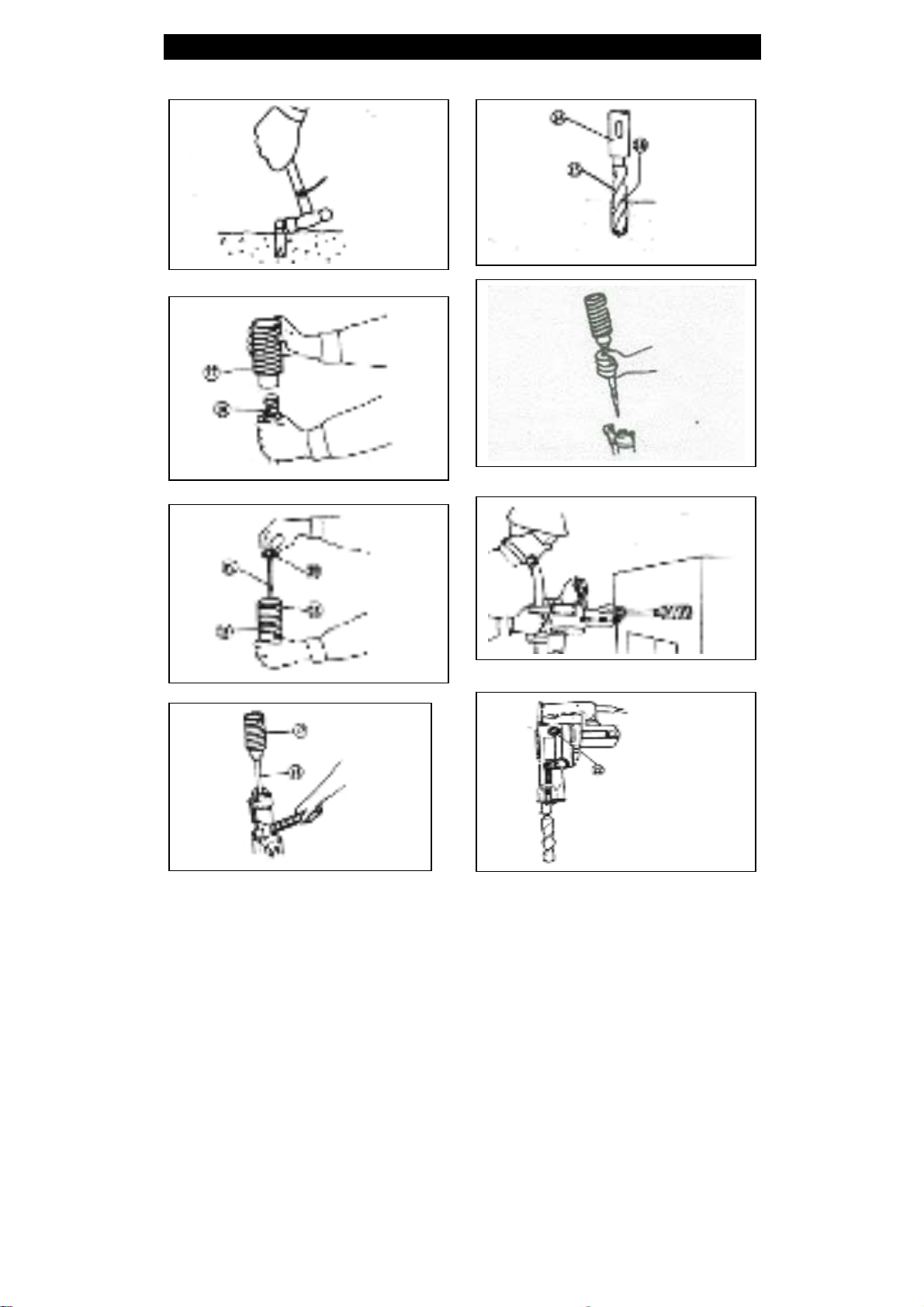

Moving the handle. See (Fig 1)
To change the handle from left to right. Place
handle to screw opening and turn clock wise to
tighten. Always make sure the handle is tight
before any job takes place as a loose handle
could invite injuries.
Turn left
Turn right
Fig 1
Switching the drill on/off
The drill has an On/Off switch (Fig 2) built in to
the handle. Holding the drill with both hands
simply squeeze the trigger and the motor will
start. To switch off release the trigger.
Trigger
switch
Fig 2
WARNING
The rotary hammer drill continues for a few
second after the trigger has been release, be
careful when putting it down.
Fitting a drill bit, chisel bit into the SDS
housing.
The bits have slots in the shank; these locate
with tabs in the drill. Grip and pull back the
black shrouding see (Fig 3) and insert the bit
you want to use, push the bit inwards until a
resistance is felt, it may be necessary to spin
the bit until the shaft drops completely in to
place. Once you are satisfied the bit has seated,
release the black shroud, this should lock the bit
into place.
Note
The bit will be gripped firmly by its shank and
will not be able to be removed, if the bit is not
located and can be removed, you must repeat
the procedure until it is lock in place.
Do not use the drill until you are satisfied
the bit is secured.
To remove the bit pull back the shroud and the
bit can be removed.
Fig 3
This rotary hammer drill does not have
reverse direction, so always take care not to
force the drill in case the drill bit gets stuck.
Always make sure you keep the drill going in
and out to remove debris to make sure the
drill does not get stuck.
This drill does not have torque facility. It is
not recommended to use screwdriver bits in
this drill as it could damage the screwdriver
head or bit and could cause serious injury
NOTE: Drilling at a slow drilling speed
for an extended period of time may
cause the drill motor to overheat. If the
drill gets hot, stop drilling and allow it
to cool for at least 15 minutes.
ASSEMBLY & OPERATION
10
WARNING
!
WARNING
!

1-1
2
4
6
1-2
3
5
7
ASSEMBLY & OPERATION
11

8
10
12
14
9
11
13
15
ASSEMBLY & OPERATION
12

17
16
The above pictures have numbers in circled
in them. See list below.
1 Tool
2 Retainer
3 Front cover
4 Stopper
5 Plug
6
Snap off this portion after
driving in the self-drilling
anchor.
7 Turning Handle
8 Anchor adapter
9 Striking by hammer drill
10 Move right and left
11 Hole depth
12 Drift Key
13 Wrench out
14 Taper shank adapter
15 Drill bit (with tapered shank
16
Hole depth indicating groove:
A standard depth conforming
to the anchor outside diameter
is indicated.
17 Core bit
18 Core bit shank
19 Center pin
20 Guide plate
21 Core bit tip
22
Oil gauge
Check the oil quantity by
holding the body upright.
23 Re-supply oil when the oil
level is low
24 Wear limit
25 No of carbon brush.
Precautions on using SDS hammer drill.
1/ Before using the SDS hammer drill always
make sure the oil supply is full and the screw
is tight.
2/ The handle must always be attached to the
drill before operation takes place. Always
Place the handle on the side that suits the job
in hand, do not use the drill without the
handle as this could invite injuries.
3/ Safe operation, always make sure you
have a stable posture and safe footing before
operating the SDS drill.
4/ When working at a high level, always
make sure that no person or persons are
under you, as this could invite injuries to
those persons under you.
5/ Before starting any job like breaking,
chipping a wall, floor or ceiling, thoroughly
confirm that no items such as an electric
cable, water pipe or conduit are buried inside
as this could cause injury or flooding.
ASSEMBLY & OPERATION
13

6/ Properly set the bit holder.
7/ The bit can become very hot during
operation exercise extreme caution as this
could cause injury.
8/ Always wear protective safety glasses
9/ Always wear ear defenders or ear plugs
10/ Always wear suitable dust mask
11/ Always wear protective foot wear.
12/ Always wear hard hat
Information on how to use the SDS drill.
Prior to operation
1. Power source
Ensure that the power source to be
utilized conforms to the power requirements
specified on the product nameplate.
2. Grounding
This tool should be grounded while in use
to protect the operator from electric shock.
The tool is equipped with a three conductor
cord and grounding type receptacle, The
green (or green and yellow)conductor in the
cord is the grounding wire. Never connect the
green (or green and yellow) wire to a live or
neutral terminal.
3. Power switch
Ensure that the power switch is in the off
position. If the plug is connected to a power
receptacle while the power switch is in the on
position, the power tool will start operating
immediately . inviting serious injury.
4. Extension cord.
When the work area is away from the
power source, use an extension cord of
sufficient thickness and rated capacity. The
extension cord should be kept as short as
practicable
Fig 1 – 1
25mm
1/ Raise the retainer and insert the shank
portion of a drill bit into the hexagonal hole on
the front cover until it reaches the extremity.
2/ By slightly tapping the top of the bit holder
with a wooden mallet, replace the bit holder
to grip the bit firmly.
Fig 1 - 2
38mm
1/ Pushing the stopper to arrow A direction,
turning the retainer to arrow B direction. After,
insert the tool shank into the hexagon hole on
the front cover.
2/ Pushing the stopper to arrow A direction
turning the retainer to arrow B in the opposite
direction. After, apart the stopper.
Note: When dismounting the bull points
reverse the procedures described above.
How to use the hammer drill.
How to drill holes
(1) Pull the switch trigger after applying the
drill bit tip to the drilling position.
(2) It is unnecessary to forcibly press the drill
main body to the work area. It is sufficient to
slightly press the drill to an extent that chips
are freely discharged.
CAUTION
Although a safety clutch is built in this drill,
the drill can be suddenly halted when it
strikes against a buried reinforcing bar or
stone, and the drill starts a reverse operation
as a reaction and can kick back.
Always continue a hole-drilling job while
strongly gripping both the side handle and
the main handle.
How to clip or crunch.
By applying the drill bit tip to the chipping or
crushing position, operate the drill by utilizing
its own weight.
Forcible pressing or thrusting is unnecessary
and will wear the drill and bits, this could
shorten then life of the drill and bits.
ALL ACCESSORIES CAN BE
PURCHASED FROM YOUR LOCAL TOOL
DEALER or HIRE SHOP.
ASSEMBLY & OPERATION
14

Drilling and driving-in operations for self-
drilling anchors.
When self-drilling anchors (Fig 4) are used,
the anchors can be driven in. In this case,
use the optional accessories for self-drilling
anchors such as the anchor adaptor.
1/ When an impact anchor adaptor is
used,(1) attach the turning handle to the
anchor adaptor and create a base hole by
applying drill impact to the hole position while
manually turning the handle. (Fig 5). In this
case the plug is not attached to the anchor.
(2) When a predetermined depth has been
attained, pull out the anchor tentatively. (Fig
6). (3) By employing a syringe, blow out the
chips and dust.
(4) Attach the plug to the anchor tip and drive
in the anchor again with the electric hammer
drill.
(5)After driving in the anchor, use the drift
key to separate the anchor. (see Fig 7)
(6)By employing a manual hammer or pliers,
snap off the tapered portion of the anchor.
(see Fig 8)
Caution.
Since the snapped off tapered portion will fly
about, pay attention to the snapping direction
As this may cause injury.
2/ When a rotation and impact anchor
adapter is used,
(1) attach a self-drilling anchor to the anchor
adaptor.
(2) Turn on the switch and drill a base hole
with the self-drilling anchor.
At the start of the hole-drilling slightly tilt the
drill to determine the hole position.
(3) After drilling clear out dust from the hole
with the syringe, attach the plug to the
anchor tip and drive in the anchor with a
hand hammer.
(4) For further operations, follow procedures
(5) and (6) described above. When an impact
anchor adaptor is used.
When a taper shank adaptor is used
(1)Attach a drill bit with tapered shank to the
taper shank adaptor.
(2) Turn on the switch, and drill a hole until it
reaches the hole depth indicating groove.
(see Fig 9)
(3) After clearing out the dust and particles
with the syringe, attach a plug to the anchor
tip and drive in the anchor with a manual
hammer or pliers.
How to handle a core bit
When a core bit is used, large caliber holes
and blind holes can be drilled. In this case,
use optional accessories for core bits (such
as a center pin and core bit shank) for more
rational operation.
1. Mounting.
Caution
Prior to mounting a core bit, always
disconnect the plug from the power supply
receptacle.
(1) Mount the core bit on the core bit shank
(Fig 10) make sure you oil the screw portion
of the core bit shank for easy dismount.
(2) Mount the core bit shank on the drill main
body in the same manner as in mounting the
drill bit and the bull point. (Fig 11)
(3) Insert the center pin into the guide plate
until it reaches the extremity.
(4) Fit in the guide plate by aligning its
concaved position with the core bit tip when
the position of the concave is shifted by
turning the guide plate right or left, the guide
plate never slips off even when the drill is
used in a downward direction. (Fig 12)
2. Drilling holes.
(1) Insert the plug into a power supply
receptacle.
(2) A spring is built in the center pin. By
straight and gentle pressing to the wall or
floor surface, the entire surface of the core bit
tip attains contact to start the hole drilling job.
(3) When the hole depth reaches
approximately 5mm, the hole position can be
determined. Then remove the center pin and
guide plate from the core bit and continue the
drilling job.
Caution
When removing the center pin and guide
plate, always disconnect the plug from the
power supply receptacle.
15
ASSEMBLY & OPERATION

How to dismount the core bit
(1) By holding the drill (with the core bit
inserted) in an upward position, drive the drill
to repeat impact operation two or three times,
whereby the screw is loosened and the drill
becomes ready for disassembly. (2)
Remove the core bit shank from the drill, hold
the core bit with one hand and strongly strike
the head of the hexagonal portion of the core
bit shank with a hand hammer two or three
times, whereby the round head screw is
loosened and the drill is ready for
disassembly.
Oil feeding
Caution.
Prior to oil feeding, always disconnect the
plug from the power supply receptacle.
Since an oil chamber is built in this electric
hammer drill, it can be used for
approximately 20 days without supplying
lubrication oil, assuming that the drill is used
continuously 3 –4 hours daily.
Feed oil into the oil tank as described below
before using the hammer drill. (see Fig 15
and 16)
(1) When the drill is held upright look through
the oil gauge window to see if oil is visible, if
no oil shows oil must be installed before
operating. If drill is used without oil this could
seriously damaged the drill and forfeit any
warranty given
(2) Before feeding oil, use the provided
wrench to remove the oil gauge. Be careful
not to lose the rubber packing attached below
the oil gauge.
(3) Check the oil level once daily, confirming
that oil is filled.
(4) After feeding oil, securely clamp the oil
gauge.
Note: Oil for the electric hammer drill is sold
separately, use Shell oil (ROTELLA 40)
engine oil or equivalent, this is sold at most
shop or filling stations anywhere.
Maintenance and inspection
1. Inspecting the tool
When using dull tool bits this can cause
motor malfunction and degraded efficiency.
Always replace dull bits with new ones
without delay when abrasion is noted.
2. Inspecting the mounting screws
Regularly inspect all mounting screws and
ensure that they are properly tightened.
Should any of the screws be loose, retighten
them immediately. Failure to do so could
result in serious injury.
3. Maintenance of the motor.
The motor unit winding is the very “heart” of
the power tool. Exercise due care to ensure
the winding does not become damaged
and/or wet with oil or water.
4. Inspecting the carbon brushes (Fig 17)
The motor employs carbon brushes which
are consumable parts. Since an excessively
worn carbon brush could result in motor
trouble, replace the carbon brush with a new
one which has the same carbon brush no.
shown in the figure when it becomes worn to
or near the “wear limit” in addition always
keep carbon brushes clean and ensure that
they slide freely within the brush holders.
Replacement steps.
The carbon brush can be removed by
removing the tail cover and brush cap in that
order at the interior.
5. Inspection of the dust cover.
The function of the dust cover is to protect
the inside mechanism.
When the interior of the dust cover is worn,
replace with new dust cover. To remove the
dust cover pull it out.
INSTALLING BITS
Never hold the chuck body with one hand
and use the drill power to rotate the drill
body to loosen or tighten bits. You may
severely injure your hand.
ASSEMBLY & OPERATION
MAINTENANCE
16

Be prepared for binding and bit
breakthrough. When these situations occur,
the drill bit has the tendency to grab the
workpiece. This action will kick the drill
opposite to the direction of drill bit rotation
and could cause loss of control when
breaking through material as you complete
drilling the hole. If you are not prepared, this
loss of control can result in possible serious
injury.
GENERAL
When servicing, use only identical
replacement parts. Use of any other part
may create a hazard or cause product
damage.
DO NOT use solvents when cleaning plastic
parts. Most plastics are susceptible to damage
from various types of commercial solvents and
may be damaged by their use. Use clean cloth
to remove dirt, dust, oil, grease etc.
Do not at any time allow brake fluids,
gasoline, petroleum-based products,
penetrating oils, etc. to come in contact with
plastic parts. They contain chemicals that
can damage, weaken or destroy plastic.
DO NOT abuse power tools. Abusive practices
can damage the tool as well as the workpiece.
DO NOT attempt to modify tools or create
accessories not recommended. Any such
alteration or modification is misuse and
could result in a hazardous condition
leading to possible serious injury. It will also
void the warranty.
17
Have you read “POWER TOOL
SAFETY”, “DRILL SAFETY” and
“SYMBOLS” on pages 4,5 & 6 of this
manual? If not, please do it now before
you operate this drill. Your safety
depends on it!
Every time you use the drill you should
verify the following:
1. SDS bit is secure.
2. Oil level is full.
3. Select to the function you want to
do before you engage in the
proposed operation
4. All safety apparel. Safety Glasses
Safety Shoes. Safety Gloves. Ear
Defenders and Safety Hat are
being worn.
Failure to adhere to these safety rules
can greatly increase the chances of
injury.
WARNING
!
MAINTENANCE
WARNING
!

PARTS DIAGRAM
18

When servicing, use only identical replacement parts. Use of any other parts may create a
HAZARD or cause damage to your power tool.
Any attempt to repair or replace electrical parts on this power tool may create a hazard
unless repair is performed by a qualified technician.
WARNING
!
19
PARTS LIST

APPLICATION TOOL BITS
The tool bits shown can be purchased from Tool shops, Hire shops etc.
20

APPLICATION TOOL BITS
The tool bits shown can be purchased from Tool shops, Hire shops etc.
APPLICATIONS
оDrilling holes in concrete
оDrilling anchor bolt holes
оCrushing concrete, chipping, digging, Drilling and squaring
(by applying optional accessories).
(Application Examples)
Installation of piping and wiring, sanitary facility instillation,
machinery instillation, water supply and drainage work,
Interior jobs, harbor facilities and other civil engineering work.
21
