CentoLight SCENIC 100W WW-CW User manual

Carefully read this manual and properly take care of it
Leggete questo manuale e conservatelo per future consultazioni
User Manual
Manuale Utente
1x100W COB Warm White + Pure White LED Studio Projector
Proiettore da Studio con 1x LED COB da 100W Bianco Caldo + Puro
ENG
ITA
SCENIC 100W WW-CW

22
Dear customer,
First of all thanks for purchasing a CENTOLIGHT® product. Our mission is to satisfy
all possible needs of light designers and professionals of entertainment lighting, by
offering a wide range of products based on the latest technologies.
We hope you will be satisfied with this fixture and, if you want to collaborate, we
are looking for a feedback from you about product operation and possible im-
provements to be introduced in the next future. Go to our website www.centolight.
com and send an e-mail with your opinion; this will help us to build equipment ever
closer to professional’s real requirements.
The CENTOLIGHT Team
Gentile Cliente,
Grazie per aver scelto un prodotto CENTOLIGHT®. La nostra missione è quella di
soddisfare ogni possibile richiesta da parte di light designers e professionisti dell’il-
luminotecnica per l’intrattenimento, offrendo una vasta gamma di apparecchiature
basate su tecnologie di ultima generazione.
Speriamo di aver soddisfatto le vostre aspettative e, se voleste collaborare, sarem-
mo lieti di ricevere un vostro feedback sulla qualità del prodotto al fine di migliorare
costantemente la nostra produzione. Visitate il nostro sito www.centolight.com ed
inviateci una mail con la vostra opinione; questo ci aiuterà a sviluppare nuovi pro-
dotti quanto più vicini alle vostre esigenze.
Il Team CENTOLIGHT

33
Eng
Table of ConTenTs
1 - Before You Begin 4
1.1. What is included- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4
1.2. Unpacking Instructions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4
1.3. Accessories - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4
1.4. Disclaimer - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5
2 - Safety Instructions 5
2.1. Symbols Meaning - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5
3 - MOUNTING AND RIGGING 6
3.1. Rigging - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6
3.2. Water / Moisture - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7
3.3. Heat - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7
3.4. Servicing - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7
4 - Introduction 7
4.1. Features - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 8
4.2. Product Overview - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 8
4.3. Product Dimensions- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 8
5 - Product Setup 9
5.1. Rear Panel Description- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 9
5.2. DMX Terminator - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 11
5.3. 3-Pin vs 5-Pin DMX cables - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 11
6 - Menu Operation 11
6.1. Set DMX Address - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 12
6.2. DMX Channel Assignments and Values - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 12
6.3. Pure/Warm White Mix Manual Adjusting - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 13
6.4. Strobo Effect - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 13
6.5. Fan Speed Control - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 14
6.6. Dimmer Curves - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 14
6.7. Master/Slave Mode - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 15
7 - Troubleshooting 15
8 - Specication 16
9 - Declaration of Conformity 17
10 - Warranty And Service 18
11 - Warning 18

44
SCENIC 100W WW-CW User Manual
Eng
1 - before You begin
Thank you for purchasing SCENIC 100W WW-CW. Enjoy your new equipment and
make sure to read this manual carefully before operation! This user manual is made
to provide both an overview of controls, as well as information on how to use them.
1.1. What is included
Package include:
y1x CENTOLIGHT SCENIC 100W WW-CW PAR light
y1X 2m DMX Cable (3-pin XLR-M to 3-pin XLR-F)
y1x Barndoor
yThis User Manual
ATTENTION: Packaging bag is not a toy! Keep out of reach of children!!! Keep in
a safe place the original packaging material for future use.
1.2. Unpacking Instructions
Carefully unpack the product immediately and check the content to make sure all
the parts are in the package and are in good condition.
If the box or the contents (the product and included accessories) appear damaged
from shipping, or show signs of mishandling, notify the carrier or dealer/seller imme-
diately. In addition, keep the box and contents for inspection.
If the fixture must be returned to the manufacturer, it is important that it is returned
in the original manufacturer box and packing. Please do not take any action without
first contacting your dealer or getting in touch with our after-sales support service
(visit www.centolight.com for details).
1.3. Accessories
CENTOLIGHT can supply a wide range of quality accessories that you can use with
your SCENIC Series equipment, like Consumables, Cables, Splitters, DMX controllers,
and a wide range of other fixtures.
All products in our catalogue has been long tested with this device, so we recom-
mend you to use Genuine CENTOLIGHT Accessories and Parts.
Ask your CENTOLIGHT dealer or check out our website www.centolight.com for any
accessories you could need to ensure best performance of the product.

55
SCENIC 100W WW-CW User Manual
Eng
1.4. Disclaimer
The information and specifications contained in this User Manual are subject to
change without notice. CENTOLIGHT assumes no responsibility or liability for any
errors or omissions and reserves the right to revise or to create this manual at any
time.
Copyright© 2021 CENTOLIGHT. All rights reserved.
2 - safeTY insTruCTions
yRead these instructions
yKeep these instructions
yHeed all warning
yFollow all instructions
2.1. Symbols Meaning
The symbol is used to indicate that some hazardous live termi-
nals are involved within this apparatus, even under the normal
operating conditions, which may be sufficient to constitute the
risk of electric shock or death.
The symbol is used to describe important installation or config-
uration problems. Not following advice and information on how
to avoid such problems may lead to product malfunction.
This symbol indicates a protective grounding terminal.
WARNING: Describes precautions that should be observed to prevent the
danger of injury or death to the operator.
To protect the environment, please try to recycle packing materi-
al and exhausted consumables as much as possible.
This symbol indicates that the fixture is intended to indoor use
only. Keep the machine dry and do not expose to rain and mois-
ture.
Don’t throw this product away just as general trash, please deal
with the product follow the abandon electronic product regula-
tion in your country.

66
SCENIC 100W WW-CW User Manual
Eng
3 - MounTing anD rigging
Pay attention to safety! Please respectively consider the EN 60598-2-17 and the
national standard during the installation. Only authorized technicians can carry
out the installation.
3.1. Rigging
yThe installation of the fixture has to be built and constructed in a way that it
can hold 10 times the weight for 1 hour without any harming demolition. The
installation must always be secured with a secondary safety attachment, e.g. an
appropriate catch net. This secondary safety attachment must be constructed in
a way that no part of the installation can fall down if the main attachment fails.
yWhen rigging, de-rigging or servicing the fixture staying in the area below the
installation place, on bridges, under high working places and other endangered
areas is forbidden. The operator has to make sure that the safety measure and
the machine’s technical installation is approved by an expert before taking into
operation for the first time and after changes before taking into operation an-
ther time. He has also to make sure that an expert approves safety measure and
the machine’s technical installation once a years.
IMPORTANT: Overhead rigging requires extensive experience, including (but not
limited to) calculating working load limits, installation material being used, and
periodic safety inspection of all installation material and the projector. If you
lack these qualications, do not attempt the installation yourself, but instead
use a professional structural rigger. Improper installation can result in bodily
injury or property loss.
yIf the fixture shall be lowered from the ceiling or high joists, professional trussing
systems have to be used. The fixture must never be fixed swinging freely in the
room.
CAUTION: Use appropriate clamps to rig the xture on the truss. Make sure that
the device is xed properly! Ensure that the structure (truss) to which you are
attaching the xtures is secure.

77
SCENIC 100W WW-CW User Manual
Eng
3.2. Water / Moisture
yThe product is for indoor use. In order to prevent risk of fire or electric shock, do
not expose to rain or moisture
yThe unit can not be used near water; for example near a bathtub, a kitchen sink,
a swimming pool, etc.
3.3. Heat
yDo not use in a confined space. Always install the product in a location with
adequate ventilation, at least 20in (50 cm) from adjacent surfaces. Be sure that
no ventilation slots on the product’s housing are blocked.
yThe apparatus should be located away from heat sources such as radiators,
stoves or other appliances that produce heat.
Don not use it when maximum ambient temperature is higher than 50°C. Work
temperature ranges from -20°C to 50°C (-4°F to 122°F).
3.4.Servicing
yDo not implement any servicing other than those means described in the man-
ual. Refer all servicing to qualified service personnel only. The internal compo-
nents of the equipment must be purchased from the manufacturer. Only use
accessories/attachments or parts recommended by the manufacturer.
4 - inTroDuCTion
CentoLight SCENIC 100W WW-CW is a compact and lightweight LED PAR for indoor
use. The light source features a 100W LED with COB technology, which in addition
to increasing heat resistance and cooling area of the chip itself, improves brightness
and the emission efficiency.
The LED chip is composed of two zones with different color temperatures (50W
warm-white; 50W pure-white). The two colors are managed separately (in both
manual or DMX modes), so it is possible to mix them and get all possible shades of
white.
The fixture comes with Fresnel lens and adjustable barn doors for up to 60° angle.
The SCENIC 100W WW-CW features a digital processor, which controls dimming
curve and fan speed according to the internal temperature. This increases security,
reliability and LED chip lifespan.

88
SCENIC 100W WW-CW User Manual
Eng
4.1. Features
yHigh brightness / long lifespan LED (up to 10500 lux @ 1 meter, full color mode)
yWarm and Pure white mixing (2 independent LED chips)
yFresnel lens and adjustable Barn-doors for up to 60° angle.
yFan speed controlled by temperature
yAdvanced dimmer system with several curves.
yExtremely lightweight, only 4lbs (1.81kg)
4.2.Product Overview
Bracket
Adjustment
knob
Barndoor
Fresnel
Lens
4.3.Product Dimensions
160 mm (6.30”)
370 mm
(14.57”)
225 mm (8.86”)
170 mm
(6.69”)
180 mm
(7.09”)
100 mm
(3.94”)

99
SCENIC 100W WW-CW User Manual
Eng
5 - ProDuCT seTuP
DISPLAY
MENU UP DOWN ENTER
DMX OUT DMX IN
1
2
4
3
5.1. Rear Panel Description
The operation panel includes the LED display and control button operation area.
1) 4 Digit LED Display
It shows the operating mode and other system information.
2) Control Buttons
MENU Button - Short-press it to switch the setting pages.
UP Button - It scrolls up individual items in the selection menu and sub-menus for
system settings (DMX address, Operation Mode, etc.), and increases values/settings
of parameters.
DOWN Button - It scrolls down individual items in the selection menu and sub-
menus for system settings (DMX address, Operation Mode, etc.), and increases
values/settings of parameters.
ENTER Button - Press ENTER to access menu levels and confirm parameter value
changes.
3) Power and Wiring
yAlways make sure that the voltage of the outlet to which you are connecting
the product is within the range stated in paragraph “8 - Specification” on page
16 or rear panel of the product (AC110V-240V 50/60Hz).

1010
SCENIC 100W WW-CW User Manual
Eng
yMake sure the power cord is not crimped or damaged. Never connect this prod-
uct to a dimmer pack or rheostat.
yNever disconnect the product from power cord by pulling or tugging on the cord.
yTo avoid electric shock, all fixtures must be connected to circuits with a suitable
ground and circuit breaker.
4) Dmx Connection
When use a DMX controller, please make sure that there is no interference
sources (e.g. intercom, high frequency radio waves and radiation source).
DMX INDMX OUT
DMX INPUT - Male 3-pin a XLR socket for connection to a DMX control device
DMX OUTPUT - Female 3-pin XLR socket for sending the DMX control signal to
another spark machine or other DMX device.
DMX machines are designed to receive data through a serial Daisy Chain. A Daisy
Chain connection is where the DATA OUT of one fixture connects to the DATA IN of
the next fixture. The order in which the machines are connected is not important
and has no effect on how a controller communicates to each of them. Use an order
that provides for the easiest and most direct cabling.
3-Pin XLR
Pin 1: GND
Pin 2: DMX -
Pin 3: DMX +
OUTPUTINPUT
DMX use of 3-Pin XLR Connectors
DMX Termonator
Unit 1 Unit 2 Last Unit
DMX 512
Connect machines using shielded 2-conductor twisted pair cable with 3-pin XLR
male to female connectors. The shield connection is pin 1, while pin 2 is Data Nega-
tive (S-), and pin 3 is Data positive (S+).
CAUTION: Wires must not come into contact with each other; otherwise the x-

1111
SCENIC 100W WW-CW User Manual
Eng
tures will not work at all, or will not work properly.
5.2. DMX Terminator
DMX is a resilient communication protocol, however errors still occasionally occur.
In order to prevent electrical noise from disturbing and corrupting the DMX control
signals, a good habit is to connect DMX output of last fixture in the chain to a DMX
terminator, especially over long signal cable runs.
The DMX terminator is simply an XLR connector with a 120Ω (ohm), 1/4 Watt resistor
connected across Signal (-) and Signal (+), respectively, pins 2 and 3, which is then
plugged into the output socket on last projector in the chain. The connections are
illustrated below.
120ohm, 1/4W
Resistor
DMX Terminator
Complimentary signal cable can transmits signals to 20 unit xtures at most.
Signal amplier is a must to connect more xtures.
5.3. 3-Pin vs 5-Pin DMX cables
DMX connection protocols used by controllers and fixtures manufacturers are not
standardized around the world. However, two are the most common standards:
5-Pin XLR and 3-Pin XLR system. If you wish to connect this fixture to a 5-Pin XLR in-
put fixture, you need to use an adapter-cable or make it by yourself. Below you can
see the wiring correspondence between 3-Pin and 5-Pin plug and socket standards
5-Pins XLR (plug)
Pin 1: GND (Screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
Pin 4: N/C
Pin 5: N/C
3-Pins XLR (socket)
Pin 1: GND (Screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
5-Pins XLR (socket)
Pin 1: GND (Screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
Pin 4: N/C
Pin 5: N/C
3-Pins XLR (plug)
Pin 1: GND (Screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
6 - Menu oPeraTion
By pressing MENU button, the display will show the main function menu.

1212
SCENIC 100W WW-CW User Manual
Eng
No. Menu Function
1 d5-- 5-channel DMX control mode (need to connect a DMX controller)
2 d.2-- 2-channel DMX control mode (need to connect a DMX controller)
3 n--- n000 to n255: Pure White from dark to bright
4 y--- y000 to y255: Warm White from dark to bright
5 F--- F000 to F255: flash speed, from slow to fast
6 T--- on: high temperature with half power function on
off: high temperature with half power function off
7 dS--
dr-0: Standard Dimmer Curve
dr-1: Dimmer Curve1
dr-2: Dimmer Curve2
dr-3: Dimmer Curve3
dr-4: Dimmer Curve4
6.1. Set DMX Address
When selecting a starting DMX address, always consider the number of DMX chan-
nels. If you choose a starting address that is too high, you could restrict the access
to some of the product’s channels. SCENIC 100W WW-CW uses 2 DMX channels
or 5 DMX channel (according to the DMX mode chosen), which defines the highest
configurable address to 511 or 508 to have all channels controllable.
Set the SCENIC 100W WW-CW starting address in the 001 - 508 DMX range to
enable control of up to 102 products in the 5-channel control mode. Set the SCNIC
100W WW-CW starting address in the 001 - 511 DMX range to enable control of up
to 256 products in the 2-channel control mode.
To change DMX address in case of 5-channel operation, press MENU till you reach
“d5--” page and press ENTER; you then see current DMX channel. Press UP or
DOWN to select desired value. Then press ENTER to confirm, and press MENU to
return to menu main page.
To change DMX address in case of 2-channel operation, press MENU till you reach
“d.2--” page and press ENTER; follow same instructions as 5-channel mode.
6.2. DMX Channel Assignments and Values
When use DMX control , the system takes 2 or 5 channels (depending on DMX code
selected. Below you can see the channel assignments for both modes.
1) 5-ch DMX512 Channel Chart
Channel Function Specification
CH1 All Dimmer 0-255 RGBW Dimmer, from dark to bright
CH2 PW dimmer 0-255 Pure white, from dark to bright

1313
SCENIC 100W WW-CW User Manual
Eng
CH3 WW dimmer 0-255 Warm white, from dark to bright
CH4 Flash 1-255 flash speed, from slow to fast
CH5 Macro
function
000-020: Standard Dimmer Curve
021-040: Dimmer Curve1
041-060: Dimmer Curve2
061-080: Dimmer Curve3
081-100: Dimmer Curve4
101-149:No Function
150-155: after 3s, high temperature with half power function off
156-199: No Function
200-205: after 3s, high temperature with half power function on
206-255: No Function
2) 2-ch DMX512 Channel Chart
Channel Function Descritpion
CH1 PW dimmer Pure white from dark to bright
CH2 WW dimmer Warm white from dark to bright
6.3. Pure/Warm White Mix Manual Adjusting
CentoLight SCENIC 100W WW-CW features one 100W LED with COB (Chip On
Board) technology. This LED is divided in two 50W sections, each at different color
temperature: pure-white and warm-white. The intensity of each channel is adjust-
able from 0 to 255.
1) Pure White Adjustment
To set the intensity of pure white, press MENU button until you reach “n---” page.
Press ENTER; you see the current value. Then press UP or DOWN to increase or
decrease the intensity between 0 and 255. Press ENTER to confirm and menu to go
back to the selection of menu pages.
2) Warm White Adjustment
To set the intensity of warm white, press MENU button until you reach “Y---” page.
Press ENTER; you see the current value. Then press UP or DOWN to increase or
decrease the intensity between 0 and 255. Press ENTER to confirm and menu to go
back to the selection of menu pages.
6.4.Strobo Eect
This PAR allows the user to get the Strobo effect with adjustment of the flash fre-
quency. To adjust the strobe speed, press MENU until you reach the “F ---” page.
Press ENTER; you see the current value. Then press UP or DOWN to increase or
decrease the intensity between 0 and 255. Press ENTER to confirm and menu to go
back to the selection of menu pages.

1414
SCENIC 100W WW-CW User Manual
Eng
6.5. Fan Speed Control
SCENIC 100W WW-CW is equipped with a digital processor that controls fan speed
and LED temperature, and can reduce maximum power. When this temperature in-
creases up to 80°C, maximum power consumption reduces to 50%; when decreases
to 58°C, max. power consumption returns to 100%.
This function can be activated or deactivated by the user according to the needs. To
set it, press MENU until you reach the “T ---” page. Press ENTER; you see the current
value. Then press UP or DOWN to choose ON or OFF. Press ENTER to confirm and
menu to go back to the selection of menu pages.

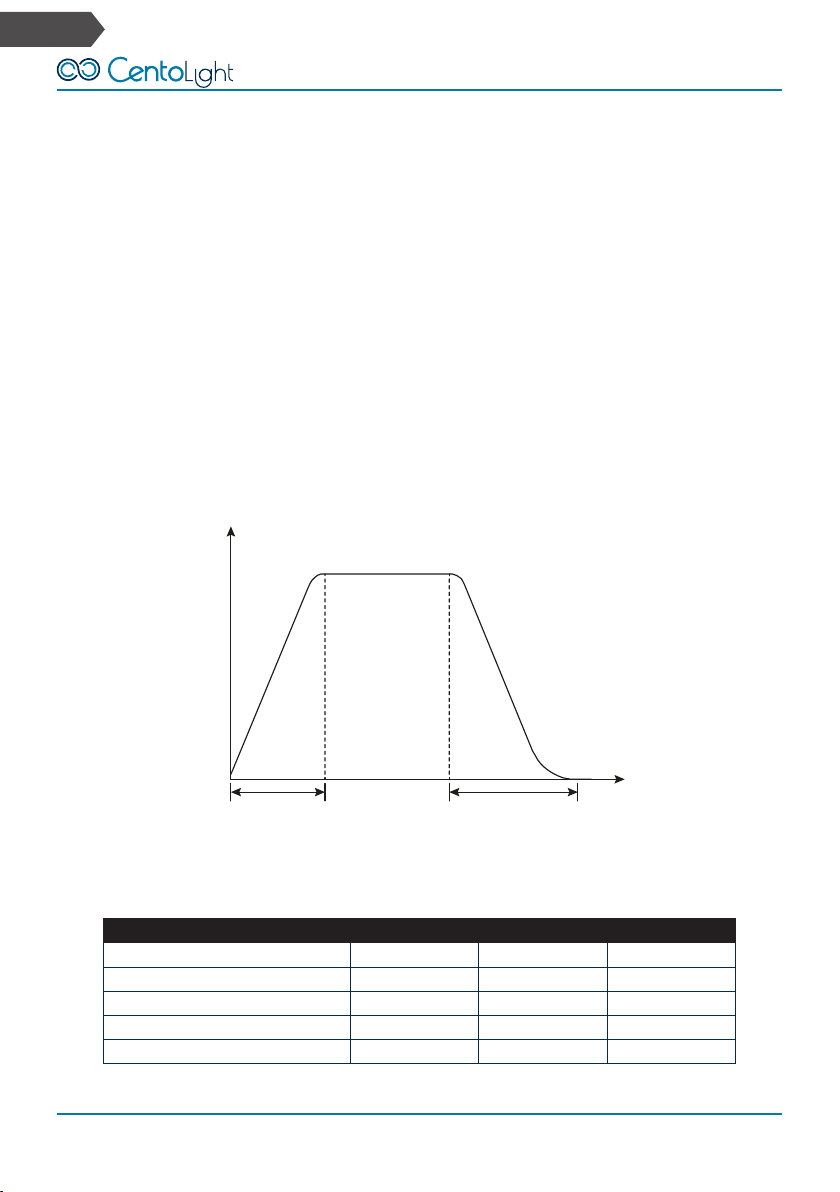

6.6.Dimmer Curves
SCENIC 100W WW-CW offers 5 dimmer curves (Normal + 4 Curves) with different
times for T-up and T-down (see the picture below and the following table). It allows
you to adapt the dimmer control to various applications (for example, theater, photo
studio, live music, etc.).
100%
50%
0%
0 t
(ms)
Dimmer
T up T down
To adjust it, press MENU until you reach the “dS--” page. Press ENTER; you see the
current value. Then press UP or DOWN to choose between 0 and 4. Press ENTER to
confirm and menu to go back to the selection of menu pages.
Ramp Effect Menu T-up (ms) T-down (ms)
Standard Dimmer Curve dr-0 0 0
Dimmer Curve 1 dr-1 980 1010
Dimmer Curve 2 dr-2 1210 1320
Dimmer Curve 3 dr-3 1600 1710
Dimmer Curve 4 dr-4 1850 1980

1515
SCENIC 100W WW-CW User Manual
Eng
6.7. Master/Slave Mode
In case you need to control more SCENIC 100W WW-CW simultaneously (all fixtures
operate exactly the same way) without the use of a DMX controller, you can use the
Master/Slave function. There is no specific function to be activated on the display;
simply the master unit must be connected first, all the others in daisy-chain through
the DMX IN-OUT connections. All units should be in the same channel mode 5ch or
2ch, and DMX channel has to be the same.
7 - TroubleshooTing
Problem Probable Cause(s) Remedy
No response from fixture
when power is applies No power to fixture Check power cables
Check mains plug
Fixture does not reset
correctly Electronic failure Contact service technician*
No light, LED cuts out
intermittently, or burns out
too quickly
LED missing or blown Disconnect fixture and replace
the LED
Fixture or LED is too hot
Allow fixture to cool. If prob-
lem persists, contact service
technician*
Fixture resets but does
not respond correctly to
controller (DMX mode
operation)
Controller not connected Connect controller
Incorrect addressing of the
fixtures
Check address setting on fixture
and controller
Bad data link connection
Inspect cables and correct poor
connections and/or broken
cables.
Conflict between tracking
and vector control
Eliminate scene cross-fade on
controller
Data link not terminated Insert termination plug in output
of last fixture**
Defective fixture or 2 devices
transmitting on link
Bypass fixtures one at a time
until normal operation is
regained: unplug both connec-
tors and connect them directly
together
* To contact CentoLight service, see “10 - Warranty And Service” on page 18 or visit www.centolight.com
** For instruction on how to install a DMX terminator, see “5.2. DMX Terminator” on page 11.

1616
SCENIC 100W WW-CW User Manual
Eng
8 - sPeCifiCaTion
Light source 100W COB LED
Color 50W Warm-White (3200°K) + 50W Pure White (6500°K)
Optical System 60° Fresnel lens with adjustable barn-doors
Lux@ 1m 10500 (full color); 5700 (cool white); 5000 (warm white)
Lux@ 2m 2680 (full color); 1400 (cool white); 1300 (warm white)
Control mode DMX512 5CH/2CH
Master/slave modes Yes
Manual Control Yes
Fan Operation Fan stops if the LED temperature is at 40 °C (104°F)
Fan in action with threshold at 58 ~ 60 °C (136 ~ 140°F)
Fan Noise
0dB (under 58°C - 136°F)
44.0 dBA @ 0.5m (above 58°C - 136°F)
46.1 dBA close to fixture (above 58°C - 136°F)
IP Rate IP20
Working Temperature -20°C to 50°C (-4°F to 122°F)
Housing ABS
Voltage 110V-240V / 50-60Hz
Power Consumption 120W
Fixture Size (LxHxD) 150 x 195 x 220 mm (5.91 x 7.68 x 8.66 in)
Fixture Weight 1,81 kg (4.00 lbs.)
Carton Size (LxHxD) 245 x 195 x 290 mm (9.64 x 7.68 x 11.42 in)
Carton Weight 2,45 kg (5.40 lbs.)
Note: Our products are subject to a process of continual further development. Therefore modifications to
the technical features remain subject to change without further notice.

1717
SCENIC 100W WW-CW User Manual
Eng
9 - DeClaraTion of ConforMiTY
V1.0-Mar21
TO: whom it may concer
EU DECLARATION OF CONFORMITY
We, FRENEXPORT SPA,
of Via Enzo Ferrari, 10 – 62017 Porto Recanati (MC) Italy
Declare under our sole responsibility that following products:
Models: CENTOLIGHT SCENIC 100W WW-CW
Description: LED PAR
conform to the essential requirements of:
•European Low Voltage Directive 2014/35/EU
•European EMC Directive 2014/30/EU
comply with the following standards:
•EN60598-2-17:1989+A2:1991
•EN60598-1:2015
•EN62031:2008+A1:2013+A2:2015
•EN62471:2008
•EN55015:2013
•EN61000-3-2:2014
•EN61000-3-3:2013
•EN61547:2009
conform to RoHS directive 2017/2102/EU and related amendments.
Porto Recanati, 25/03/2021
Position: _______________________

1818
SCENIC 100W WW-CW User Manual
Eng
10 - WarranTY anD serviCe
All CENTOLIGHT products feature a limited two-year warranty. This two-year
warranty starts from the date of purchase, as shown on your purchase receipt. The
following cases/components are not covered by this warranty:
yAny accessories supplied with the product
yImproper use
yFault due to wear and tear
yAny modification of the product effected by the user or a third party
CENTOLIGHT shall satisfy the warranty obligations by remedying any material or
manufacturing faults free of charge at CENTOLIGHT’s discretion either by repairing
or exchanging individual parts or the entire appliance. Any defective parts removed
from a product during the course of a warranty claim shall become the property of
CENTOLIGHT.
While under warranty, defective products may be returned to your local CENTOLI-
GHT dealer together with the original proof of purchase. To avoid any damages in
transit, please use the original packaging if available. Alternatively, you can send
the product to CENTOLIGHT SERVICE CENTER – Via Enzo Ferrari, 10 – 62017 Porto
Recanati - Italy. In order to send a product to service center, you need an RMA num-
ber. Shipping charges have to be covered by the owner of the product.
For further information please visit www.centolight.com
11 - Warning
PLEASE READ CAREFULLY – EU and EEA (Norway, Iceland and Liechtenstein) only
This symbol indicates that this product is not to be disposed of with your
household waste, according to the WEEE Directive (2012/19/UE) and your
national law.
This product should be handed over to a designated collection point, e.g.,
on an authorized one-for-one basis when you buy a new similar product or to an
authorized collection site for recycling waste electrical and electronic equipment
(WEEE).
Improper handling of this type of waste could have a possible negative impact on
the environment and human health due to potentially hazardous substances that
are generally associated with EEE. At the same time, your cooperation in the correct
disposal of this product will contribute to the effective usage of natural resources.
For more information about where you can drop off your waste equipment for recy-
cling, please contact your local city office, waste authority, approved WEEE scheme
or your household waste disposal service.

1919
Manuale Utente SCENIC 100W WW-CW
Ita
soMMario
1 - Prima Di Iniziare 20
1.1. Cosa è Incluso - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 20
1.2. Istruzioni per il Disimballaggio - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 20
1.3. Accessori - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 20
1.4. Limiti di Responsabilità - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 21
2 - Istruzioni di Sicurezza 21
2.1. Significato dei simboli - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 21
3 - Montaggio e Appendimento 22
3.1. Installazione Sospesa - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 22
3.2. Acqua / umidità - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 22
3.3. Calore - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 23
3.4. Manutenzione - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 23
4 - Introduzione 23
4.1. Caratteristiche - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 23
4.2. Panoramica del Prodotto - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 24
4.3. Dimensioni del Prodotto- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 24
5 - Setup del prodotto 25
5.1. Descrizione del pannello posteriore- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 25
5.2. Connessioni DMX - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 26
5.3. Terminatore DMX - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 27
5.4. Cavi DMX 3-Poli/5-Poli- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 27
6 - Funzionamento dei Menu 27
6.1. Impostazione dell’indirizzo DMX.- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 28
6.2. Assegnazioni e valori dei canali DMX - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 28
6.3. Regolazione Manuale del Mix Bianco Puro/Caldo - - - - - - - - - - - - - - - - - - - - - - - - - - 29
6.4. Effetto Strobo- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 29
6.5. Controllo della velocità della ventola- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 30
6.6. Curve dimmer. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 30
6.7. Modalità Master / Slave - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 31
7 - Risoluzione dei Problemi 31
8 - Speciche Tecniche 32
9 - Dichiarazione di Conformità 33
10 - Garanzia e Assistenza 34
11 - Avviso UE e SEE (Norvegia, Islanda, Liechtenstein) 34

2020
Manuale Utente SCENIC 100W WW-CW
Ita
1 - PriMa Diiniziare
Grazie per aver acquistato il faro SCENIC 100W WW-CW. Prima di iniziare, assicura-
tevi di leggere attentamente questo manuale! Esso utente è stato creato per fornire
sia una panoramica dei controlli, sia informazioni su come usarli.
1.1. Cosa è Incluso
La confezione include:
y1x faro CENTOLIGHT SCENIC 100W WW-CW
y1X Cavo DMX da 2m (3-pin XLR-Maschio a 3-pin XLR-Femmina)
y1x Ribalta a 4 pale richiudibili
yQuesto Manuale d’uso
ATTENZIONE: La confezione non è un giocattolo! Tenere fuori dalla portata dei
bambini! Conservare in un luogo sicuro il materiale di imballaggio originale.
1.2. Istruzioni per il Disimballaggio
Tirare fuori dall’imballo il prodotto con attenzione e controllare il cartone per assi-
curarsi che tutte le parti siano nella confezione e siano in buone condizioni.
Se la confezione o il contenuto (il prodotto e gli accessori inclusi) risultano danneg-
giati dalla spedizione o mostrano segni di maltrattamento, avvisare immediata-
mente il vettore o il rivenditore. Inoltre, conservare la scatola e il contenuto per una
eventuale ispezione.
Se l’apparecchiatura dovesse essere restituita al produttore, è importante che
venga riportata o spedita nell’imballo originale del produttore. Si prega di non
intraprendere alcuna azione senza prima contattare il proprio rivenditore o aver
contattato il nostro servizio di assistenza post-vendita (visitare www.centolight.com
per i dettagli).
1.3. Accessori
CENTOLIGHT fornisce un’ampia gamma di accessori di qualità che è possibile
utilizzare con le apparecchiature della serie SCNIC, come materiali di consumo, cavi,
splitter, controller DMX e un’ampia gamma di altri dispositivi.
Tutti i prodotti nel nostro catalogo sono stati testati a lungo con questo dispositivo,
quindi ti consigliamo di utilizzare accessori e ricambi originali CENTOLIGHT.
Chiedete al vostro rivenditore CENTOLIGHT o visitate il nostro sito web www.centoli-
ght.com per eventuali accessori di cui potreste aver bisogno per garantire le migliori
prestazioni al vostro prodotto.
