Central Pneumatic 96314 Parts list manual

SPOT WELD DRILL
Model 96314
ASSEMBLY AND OPERATION INSTRUCTIONS
Due to continuing improvements, actual product may differ slightly from the product described herein.
®
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our website at: http://www.harborfreight.com
TO PREVENT SERIOUS INJURY, READ AND UNDERSTAND
ALL WARNINGS AND INSTRUCTIONS BEFORE USE.
Copyright©2007 by Harbor Freight Tools®. All rights reserved. No portion of this
manual or any artwork contained herein may be reproduced in any shape or form
without the express written consent of Harbor Freight Tools.
For technical questions or replacement parts, please call 1-800-444-3353.

Page 2SKU 96314 For technical questions, please call 1-800-444-3353.
SPECIFICATIONS
Features 3” Hook
Adjustable Depth Stop
Overall Dimensions 12-1/8” L X 1-3/4” W X 5-1/16” H
Handle Dimensions 5-5/32” L X 1-3/4” OD
Grip Handle Dimensions 8” L X 11/16” W X 1-1/4” H X 5/64” Thick (Spring Loaded)
Activation Method Paddle Switch/Throttle Lever
Air Inlet 1/4” - 18 NPT
Maximum Operating Pressure 90 PSI
Air Consumption 10 SCFM
Maximum Speed 1400 RPM
Minimum Hose Requirement 3/8” ID Hose
Drill Bit Included 1 - High Speed Steel (HSS)/1-5/8” L X 8mm Diameter
Net Weight 4 lb.
Save This Manual
You will need this manual for the safety warnings and precautions, assembly, oper-
ating, inspection, maintenance and cleaning procedures, parts list and assembly diagram.
Keep your invoice with this manual. Write the invoice number on the inside of the front
cover. Write the product’s serial number in the back of the manual near the assembly
diagram, or write month and year of purchase if product has no serial number. Keep this
manual and invoice in a safe and dry place for future reference.
GENERAL SAFETY RULES
WARNING!
READ AND UNDERSTAND ALL INSTRUCTIONS
Failure to follow all instructions listed below may result in
serious injury.
SAVE THESE INSTRUCTIONS
WORK AREA
Keep your work area clean and well lit. Cluttered benches and dark areas invite
accidents.
Do not operate this Spot Weld Drill in explosive atmospheres, such as in the pres-
ence of flammable liquids, gases, or metallic dust. This Drill may create sparks
which may ignite fumes.
1.
2.

Page 3SKU 96314 For technical questions, please call 1-800-444-3353.
Keep bystanders, children, and visitors away while operating. Distractions can cause
you to lose control. Protect others in the work area from debris such as metal frag-
ments, and sparks. Provide barriers or shields as needed.
PERSONAL SAFETY
Stay alert. Watch what you are doing, and use common sense when operating. Do
not use this Spot Weld Tool while tired or under the influence of drugs, alcohol, or
medication. A moment of inattention while operating may result in damage to your
project and/or serious personal injury.
Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep your
hair, clothing, and gloves away from moving parts. Loose clothes, jewelry, or long
hair can be caught in moving parts.
Avoid accidental starting. Be sure the Throttle Lever (5) is in off position (full up)
before attaching air supply. Carrying power tools with your hand on the Throttle
Lever (5), or attaching an air supply with the Throttle Lever (5) depressed invites
accidents.
Do not overreach. Keep proper footing and balance at all times. Proper footing and
balance enables better control of the Spot Weld Drill in unexpected situations.
Use safety equipment. Always wear eye protection. Dust mask, nonskid safety
shoes, hard hat, or hearing protection must be used for appropriate conditions.
Always wear ANSI-approved safety goggles and a dust mask/respirator under full
face shield when using or performing maintenance on this Spot Weld Drill.
TOOL USE AND CARE
Use clamps (not included) or other practical ways to secure and support the work-
piece to a stable platform. Holding the work by hand or against your body is unstable
and may lead to loss of control.
Do not force the action of the Spot Weld Drill and always use the correct tool for your
application. The correct tool will do the job better and safer at the rate for which it
is designed. Do not force any tool and do not use any tool for a purpose for which
it is not intended.
Do not use the power Spot Weld Drill if the Throttle Lever (5) is in full up position and
the Drill does not off, or if it will not turn on, or off. Any tool that cannot be controlled
with its Power Switch is dangerous and must be replaced.
Disconnect the Spot Weld Drill from its air supply source before making any adjust-
ments, changing accessories, or storing. Such preventive safety measures reduce
the risk of starting the tool accidentally.
3.
1.
2.
3.
4.
5.
1.
2.
3.
4.

Page 4SKU 96314 For technical questions, please call 1-800-444-3353.
Store the idle Spot Weld Drill out of reach of children and other untrained persons.
Tools are dangerous in the hands of untrained users. Never allow children to come
in contact with this product.
Maintain the Spot Weld Drill with care. Keep bits sharp and clean. Properly main-
tained tools are less likely to bind and are easier to control. Do not use a damaged
tool. Tag damaged tools “Do not use” until repaired.
Check for misalignment or binding of moving parts, breakage of parts, and any other
condition that may affect the Drill’s operation. If damaged, have the tool serviced
before using. Many accidents are caused by poorly maintained tools.
Use only accessories that are recommended by the manufacturer for your model.
Accessories that may be suitable for one tool may become hazardous when used
on another tool.
SERVICE
Service on this Spot Weld Drill must be performed only by qualified repair person-
nel. Service or maintenance performed by unqualified personnel could result in a
risk of injury.
When servicing, use only identical replacement parts. Follow instructions in the
“Inspection, Maintenance, and Cleaning” section of this manual. Use of unauthor-
ized parts or failure to follow maintenance instructions may create a risk of damage
to the Spot Weld Drill, and/or personal injury.
SPECIFIC SAFETY RULES
Inspect the Drill Bit before use. Never use if the bit is damaged or dull.
Secure the Drill Bit before each use.
Only use a Drill Bit intended for use with this Spot Weld Drill.
Use both hands to securely hold this Spot Weld Drill during use.
Do not exceed the maximum air pressure of 90 PSI.
Compressed air only. Do not use oxygen or any other bottled or flammable gas as
a power source.
Do not modify Drill.
Disconnect the air supply when this Spot Weld Drill is not being used.
Maintain labels and nameplates on the tool. These carry important information. If
unreadable or missing, contact Harbor Freight Tools for a replacement.
5.
6.
7.
8.
1.
2.
1.
2.
3.
4.
5.
6.
7.
8.
9.

Page 5SKU 96314 For technical questions, please call 1-800-444-3353.
Maintain a safe working environment. Make sure there is adequate surrounding
workspace.
Avoid unintentional starting. Make sure you are prepared to begin work before con-
necting the air supply and/or turning on the tool.
Never lay the tool down until it has come to a complete stop. Moving parts can grab
the surface and pull the tool out of your control.
Never leave the Spot Weld Drill unattended when it is plugged into an air supply.
Detach it from its air supply before leaving.
Keep hand clear of throttle lever while connecting air supply.
Some dust created by power sanding, sawing, grinding, drilling, and other construc-
tion activities, contains chemicals known [to the State of California] to cause cancer,
birth defects or other reproductive harm. Some examples of these chemicals are:
Lead from lead-based paints
Crystalline silica from bricks and cement or other masonry products
Arsenic and chromium from chemically treated lumber
Your risk from these exposures varies, depending on how often you do this type of
work. To reduce your exposure to these chemicals: work in a well ventilated area,
and work with approved safety equipment, such as those dust masks that are spe-
cially designed to filter out microscopic particles.
(California Health & Safety Code § 25249.5, et seq.)
The brass components of this product contain lead, a chemical known to the State
of California to cause birth defects (or other reproductive harm).
(California Health & Safety code § 25249.5, et seq.)
10.
11.
12.
13.
14.
15.

Page 6SKU 96314 For technical questions, please call 1-800-444-3353.
UNPACKING
When unpacking, check to make sure that the item is intact and undamaged. If any
parts are missing or broken, please call Harbor Freight Tools at the number shown on the
cover of this manual as soon as possible.
ASSEMBLY INSTRUCTIONS
Note: For additional information regarding the parts listed in the following pages, refer to

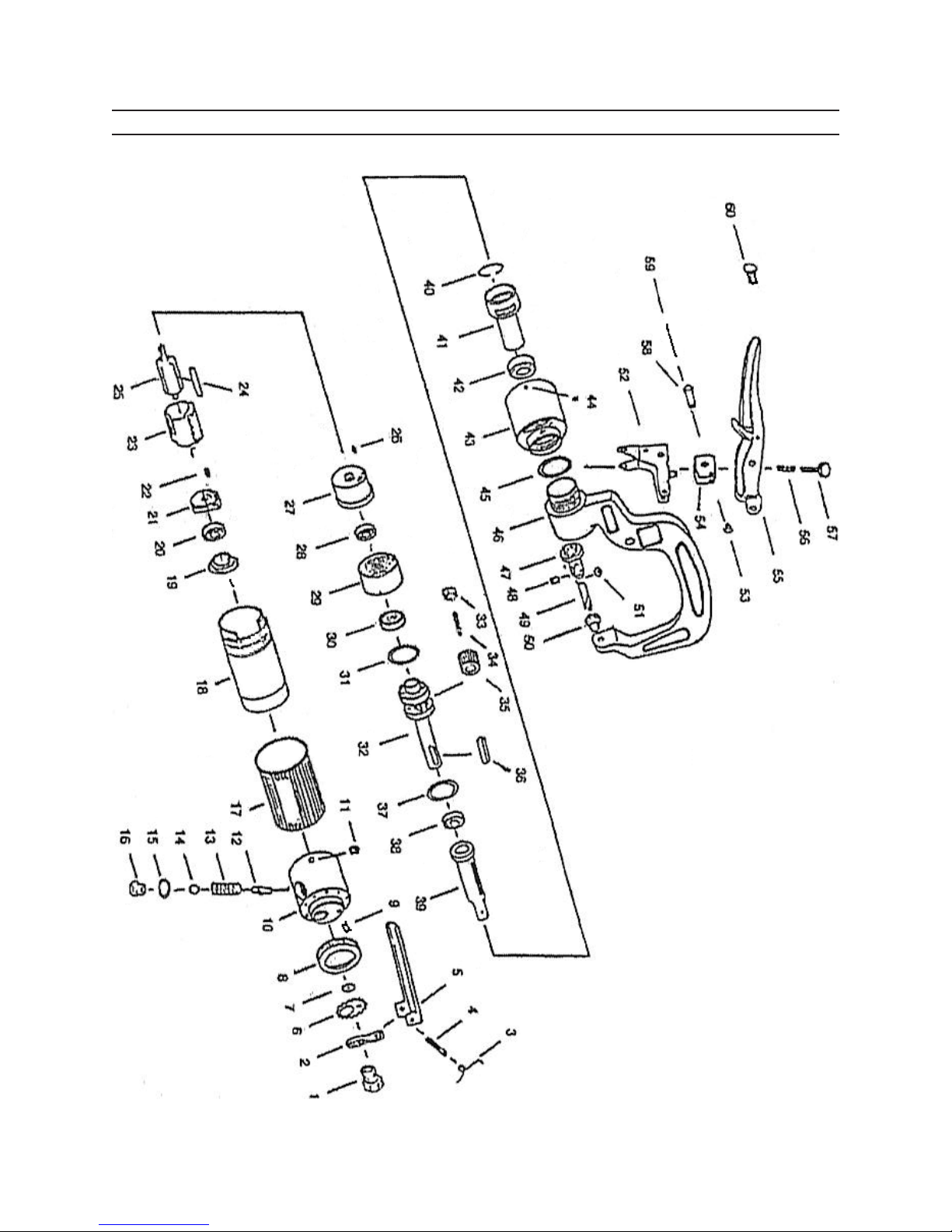

the Assembly Diagram on page 12 of this manual.
WARNING! Make sure the Throttle Lever (5) of this Spot Weld Drill is in its “OFF”
(full up) position and that the tool is detached from its air supply before making any
adjustments or performing any maintenance.
AIR SUPPLY ASSEMBLY SET UP
Figure 1 - Recommended Air Line Components
Tool Air
Compressor
NOTE: For best service you should incorporate an oiler, regulator and in-line filter (none
of which are included) as shown in Figure 1. Hoses, couplers, oilers, regulators,
and filters are all available at Harbor Freight Tools.
NOTE: If you are not using an automatic oiler system as shown in Figure 1, add a few
drops of pneumatic tool oil (not included) to the airline connection. Add a few drops
after each hour of continual operation.
Prepare a 1/4” air connector (not included) by wrapping the threads with plumbers
tape before connecting to the Air Inlet Bushing (1) on the bottom of the Spot Weld
Drill. Thread the Air Hose from your compressor to the Spot Weld Drill at the Air
Inlet Bushing (1).
Set the air pressure on your compressor to 90 PSI. Do not exceed 90 PSI.
Frequently check the air connections to make sure they remain secure.
NOTE: Be sure to follow all manufacturers warnings, notes, and operation instruc-
tions found in the owner’s manual of the compressor you will be using to
supply air to this Spot Weld Drill.
1.
2.
3.

Page 7SKU 96314 For technical questions, please call 1-800-444-3353.
INSTALLING A DRILL BIT
Insert the Drill Bit (49 or 49a) into the Spindle (47).
Secure using the Set Screw (48) against the flat side of the Drill Bit (49 or 49a). Be
sure to check the Set Screw (48) before each use.
OPERATION INSTRUCTIONS
CAUTION! Be sure to wear heavy-duty work gloves when handling sheet metal. Be aware
of sharp, ragged edges.
57
1
55
5
49 or 49a
46
Figure 2
Keep your hands away from the Throttle Lever (5) while you attach the air supply
at the Air Inlet Bushing (1). Test by squeezing the Grip Handle (55) engaging the
Throttle Lever (5) until the Drill motor starts. Make sure you can start and completely
stop the Drill using the Throttle Lever (5). See Figure 2.
CAUTION! Be sure both pieces of metal to be drilled are secured in place before
attempting to remove the weld.
Set the Adjusting Screw (57) for the depth of the weld. The Drill Bit (49) can be
set to drill through only one piece, or through several pieces of metal. Turning the
Adjusting screw (57) clockwise reduces the depth of the hole drilled, counterclock-
wise increases that depth. Adjust the depth so that the drill bit does not contact
the Anvil (50).
Center the Spot Weld Drill over the weld you wish to drill out. Squeeze the Grip
Handle (55) engaging the Throttle Lever (5) enough to touch the weld with the tip
of the Drill Bit (49). If you are certain the Drill Bit (49) is correctly aligned, squeeze
the Grip Handle (55) and Throttle Lever (5) all the way and drill out the weld.
1.
2.
1.
2.
3.
4.

Page 8SKU 96314 For technical questions, please call 1-800-444-3353.
Release the Grip Handle (55) and Throttle Lever (5) allowing the Spot Weld Drill to
come to a complete halt.
If there are other welds to drill, repeat steps 3 through 5. If there is no more drilling
required, detach the air supply from the Air Inlet Bushing (1).
5.
6.

Page 9SKU 96314 For technical questions, please call 1-800-444-3353.
INSPECTION, MAINTENANCE, AND CLEANING
WARNING! Make sure the Throttle Lever (5) of the Spot Weld Drill is in its “OFF”
(full up) position and that the tool is detached from its air supply before performing
any inspection, maintenance, or cleaning procedures.
BEFORE EACH USE, inspect the general condition of the Spot Weld Drill. Check
for loose screws, misalignment or binding of moving parts, cracked or broken parts,
and any other condition that may affect its safe operation. If abnormal noise or
vibration occurs, have the problem corrected before further use. Do not use dam-
aged equipment.
MAINTENANCE CHART
Maintenance Type Before
Use
After
Use
Inspect tool for damage
(see paragraph above) X
Wipe off with clean, moist
cloth X
TROUBLESHOOTING
Problem Possible Causes Probable Solutions
Spot Weld Drill will not
start
Closed compressor air valve
Not enough air pressure from
compressor due to leaks at air line
connections, or cracks in air hoses.
Air flow regulator on compressor is
set too low
1.
2.
3.
Open air valve.
Check all hose connections and
check air lines for leaks. (Soapy
water is a good tool. Watch for
bubbles) Replace any leaking
hoses. DO NOT FIX WITH TAPE
OR WRAPS OF ANY KIND
Check gauge on regulator, make
sure it is set for 90 PSI.
1.
2.
3.
Drill Bit (49) does not
cut all the way through
the weld
Adjustment Screw (57) is turned in too
far
Turn Adjustment Screw out
(counterclockwise) allowing the Drill
Bit (49) to drill farther into the metal.

Page 10SKU 96314 For technical questions, please call 1-800-444-3353.
LIMITED 1 YEAR WARRANTY
Harbor Freight Tools Co. makes every effort to assure that its products meet high
quality and durability standards, and warrants to the original purchaser that this product is
free from defects in materials and workmanship for the period of one year from the date of
purchase (90 days if used by a professional contractor or if used as rental equipment).This
warranty does not apply to damage due directly or indirectly, to misuse, abuse, negligence
or accidents, repairs or alterations outside our facilities, normal wear and tear, or to lack
of maintenance. We shall in no event be liable for death, injuries to persons or property, or
for incidental, contingent, special or consequential damages arising from the use of our
product. Some states do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitation of exclusion may not apply to you. THIS WARRANTY IS
EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUD-
ING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with
transportation charges prepaid. Proof of purchase date and an explanation of the com-
plaint must accompany the merchandise. If our inspection verifies the defect, we will either
repair or replace the product at our election or we may elect to refund the purchase price
if we cannot readily and quickly provide you with a replacement. We will return repaired
products at our expense, but if we determine there is no defect, or that the defect resulted
from causes not within the scope of our warranty, then you must bear the cost of returning
the product.
This warranty gives you specific legal rights and you may also have other rights
which vary from state to state.
3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • [phone]
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEM-
BLY DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER
OR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER
THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR
SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER
AND/OR DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS
SHOULD BE UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE
BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS
TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS
OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.

Page 11SKU 96314 For technical questions, please call 1-800-444-3353.
PARTS LIST
Part Description Q’ty
1 Air Inlet Bushing 1
2 Hinge 1
3 Spring 1
4 Spring Pin 1
5 Throttle Lever 1
6 Washer 1
7 Gasket 1
8 Air Pressure Fix Nut 1
9 Spring Pin 1
10 Valve Body 1
11 Set Screw 1
12 Valve Stem 1
13 Valve Spring 1
14 O-Ring 1
15 O-Ring 1
16 Valve Screw 1
17 Cylinder Body Wrap 1
18 Motor Body 1
19 End Plate Cap 1
20 Ball Bearing 1
21 Bearing End Plate 1
22 Spring Pin 1
23 Cylinder 1
24 Rotor Blade 4
25 Rotor 1
26 Spring Pin 1
27 Front End Plate 1
28 Ball Bearing 1
29 Internal Gear 1
30 Ball Bearing 1
31 Washer 1
Part Description Q’ty
32 Spindle 1
33 Needle Roller Bearings 10
34 Spring Pin 2
35 Idler Gear 2
36 Spindle Holder Key 2
37 Washer 1
38 Ball Bearing 1
39 Spindle Shaft 1
40 Stop Ring 1
41 Bushing 1
42 Ball Bearing 1
43 Clamp Nut 1
44 Set Screw 2
45 Washer 1
46 C-Arm 1
47 Spindle 2
48 Set Screw 1
49 Drill Bit 8mm 1
49a Drill Bit 6mm (optional, sold separately) 1
50 Anvil 1
51 Washer 1
52 C-Arm Base 1
53 Stud 1
54 Trigger Hinge 1
55 Grip Handle 1
56 Spring 1
57 Depth Adjusting Screw 1
58 Screw 1
59 Spring 1
60 Adjusting Screw 1
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only, and are not available
individually as replacement parts.

Page 12SKU 96314 For technical questions, please call 1-800-444-3353.
ASSEMBLY DIAGRAM
