Certified International 054-5847-8 User manual

model number 054-5847-8
CORDED DRILL
IMPORTANT:
Please read this manual carefully before running this corded drill
and save it for reference
INSTRUCTION
MANUAL

product. It contains important information for your safety as well as operating
and maintenance advice.
Keep this instruction manual for future use. Should this product be passed on
to a third party, this instruction manual must be included.
Read and understand this instruction manual thoroughly before using the
TECHNICAL SPECIFICATIONS 3
SAFETY GUIDELINES 4–7
DESCRIPTION 8
OPERATING INSTRUCTIONS 9–13
MAINTENANCE 14–15
TROUBLESHOOTING 16
PARTS LIST 17–18
WARRANTY 19–20
2
model number 054-5847-8
TABLE OF CONTENTS
TABLE OF CONTENTS
SAVE THESE INSTRUCTIONS
This manual contains important safety and operating instructions. Read all the instructions and
follow them with the use of this product.

WARNING!
symbols and their explanations require your full understanding. The safety warnings do
not by themselves eliminate any danger, nor are they substitutes for proper accident
prevention measures.
WARNING!
This Safety Alert Symbol indicates caution, warning, or danger. Failure to obey a safety
warning can result in serious injury to yourself or others. To reduce the risk of injury, fire, or
To operate this tool, carefully read this Instruction Manual and all labels affixed
This tool should only be serviced by a qualified service technician.
Save these instructions.
General power tool safety warnings
Read all safety warnings and instructions. Failure to follow the warnings and instructions
Save all warnings and instructions for future reference.
battery-operated (cordless) power tool.
RATED POWER 4A
RATING VOLTAGE 120V, 60 Hz ~
NO LOAD SPEED 3000 RPM
KEYLESS CHUCK 3/8" (10 mm)
MAXIMUM DRILLING CAPACITY
IN WOOD
IN METAL UP TO 3/8'' (10 mm) DRILL BITS
TOOL WEIGHT 3 lb 3 oz (1.46 kg)
SafetysymbolsinthisInstructionManualareusedto flag possible dangers. The safety
3
4
TECHNICAL SPECIFICATIONS
SAFETY GUIDELINES
may result in electric shock, fire and/or serious injury.
WARNING!
electric shock, always follow the safety precautions.
The term “power tool” in the warnings refers to your mains-operated (corded)
Know your tool
Important
before using. Keep this manual available for future reference.
Read all instructions thoroughly.
to the corded drill
power tool or
model number 054-5847-8
UP TO 1'' (25 mm) DRILL BITS

• Remove any adjusting key or wrench before turning the power tool on. A wrench or a key
left attached to a rotating part of the power tool may result in personal injury.
• Do not over reach. Keep proper footing and balance at all times. This enables better control of
the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
• If devices are provided for the connection of dust extraction and collection facilities, ensure
that these are connected and properly used. Use of these devices can reduce dust-related
Power tool use and care
Do not force the power tool. Use the correct power tool for your application.
The correct
power tool will do the job better and more safely at the rate for which it was designed.
• Do not use the power tool if the switch does not turn on and off. Any power tool that
cannot be controlled with the switch is dangerous and must be repaired.
• Disconnect the plug from the power source before making any adjustments,
changing accessories, Such preventive safety measures or storing power tools.
reduce the risk of starting the power tool accidentally.
• Store idle power tools out of the reach of children and do not allow persons unfamiliar
with the power tool or these instructions to operate the power tool. Power tools are
dangerous in the hands of untrained users.
• Maintain power tools. Check for misalignment or binding of moving parts, breakage of
parts and any other condition that may affect the power tool’s operation. If damaged,
have the power tool repaired before use. Many accidents are caused by poorly maintained
power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
• Use the power tool, accessories, tool bits, etc. in accordance with these instructions,
taking into account the working conditions and the work to be performed. Use of the power
tool for operations different from those intended could result in a hazardous situation.
Have your power tool serviced by a qualified repair person using only identical
replacement parts. This will ensure that the safety of the power tool is maintained.
Work area safety
Keep the work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools create sparks, which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power tool. Distractions can cause
Electrical safety
Power tool plugs must match the outlet. Never modify the plug in any way. Do not use
any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching
outlets will reduce the risk of electric shock.
• Avoid body contact with earthed or grounded surfaces such as pipes,
radiators, ranges
and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase
the risk of electric shock.
• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power
tool. Keep the cord away from heat, oil, sharp edges or moving parts. Damaged or
entangled cords increase the risk of electric shock.
• When operating a power tool outdoors, use an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces the risk of electric shock.
• If operating a power tool in a damp location is unavoidable, use a ground fault circuit
interrupter (GFCI) protected supply. Use of a GFCI reduces the risk of electric shock.
• Stay alert, watch what you are doing and use common sense when operating a power tool.
Do not use the tool while tired or under the influence of drugs,
alcohol, or medication.
A moment of inattention while operating power tools may result in serious personal injury.
• Use personal protective equipment. Always wear eye protection. Protective equipment such
as a dust mask, non-skid safety shoes, hard hat, or hearing protection should be used for
appropriate conditions, and will injuries.reduce the risk of personal
• Prevent unintentional starting. Ensure the switch is in the off position before connecting
to power source , Carrying power tools picking up or carrying the tool.
with your finger on the switch or energising power tools that have the switch on invites accidents.
5
6
SAFETY GUIDELINES
SAFETY GUIDELINES
•
•
you to lose control.
Personal safety
Service
•
•
model number 054-5847-8
hazards.

Know your tool
No. Description No. Description
1 Chuck Jaws
5
Lock-on Button
2 Chuck S leeve T rigger
3 Collar
4
Before attempting to use this tool, become familiar with all of its operating features and
safety requirements. For optimum performance and safety, read the following operating
instructions carefully before using.
Do not allow familiarity with the drill to cause a lack of alertness. A fraction of a second of
carelessness is enough to cause severe injury.
Safety guidelines for corded drill
Use the auxiliary handles if supplied with the tool. Loss of control can cause personal injury.
• Hold the power tool by the insulated gripping surfaces when performing an operation
where the cutting tool may contact hidden wiring or its own cord. Contact with a “live” wire
may make exposed metal parts of the power tool “live” and could give the operator an electric shock.
• The label on your tool may include the following symbols. The symbols and their
definitions are as follows:
V Volts 
A Amperes
Hz Hertz
W Watts
min Minutes
Alternating Current
Direct current
n 
0 No-load speed Rational speed, at no load.
Class II Construction Double-insulated construction.
/min Per Minute
Grounding terminal
BPM Beats per minute
Read The Operator’s Manual To reduce the risk of injury user must read and understand,.
• Use clamps or another practical way to support the workpiece and secure it to a stable
platform. Holding the workpiece by hand or against your body is unstable and may lead to loss of control.
• Inspect the tool cords periodically and, if damaged, have them repaired by a qualified
repair person. Constantly stay aware of the cord location. Following this rule will reduce the risk of
Corded drill and instruction manual.
Remove the drill from the package and examine it carefully. Do not discard the carton or
any packaging material until all parts have been examined.
7
8
WARNING!
SAFETY GUIDELINES
DESCRIPTION
WARNING!
•
electric shock or fire.
Contents:
SymbolName Designation/Explanation
Type or a characteristic of current.
Revolutions, strokes, surface speed, orbits minute.
operator’smanualbeforeusingthisproduct
Switch
3
1
2
4
5
6
6
Type of current.
Time.
Power.
Frequency (cycles per second).
Current.
Voltage.
model number 054-5847-8
Direction of Rotation Selector

Direction-of-rotation selector
(fig 2)
The direction of bit rotation is reversible and is
controlled by a selector located above the trigger
switch. With the drill held toward you:
1. Position the direction-of-rotation selector to
the right of the tool for forward rotation.
2. Position the direction-of-rotation selector to
the left of the tool for reverse rotation.
WARNING!
To prevent gear damage, always allow the drill to come to a complete stop before changing
the direction of rotation.
Installing bits (fig 3)
1. Unplug the drill from the power source.
2. Hold the collar and turn the sleeve
counterclockwise to open the chuck jaws.
3. Open the chuck jaws until the opening is
slightly larger than the bit you intend to use,
and raise the front of the drill slightly to keep
the bit from falling out of the chuck jaws.
4. Insert the drill bit into the chuck.
5. Hold the collar firmly and turn the sleeve clockwise to tighten the chuck.
Insert the drill bit straight into the chuck jaws. Inserting the drill bit into the chuck jaws
at an angle and then tighten the chuck and using the drill could cause the drill bit to be
thrown from the drill, resulting in possible serious personal injury or damage to the chuck.
Never hold the collar by one hand and press the trigger to release/tighten the chuck as this
could cause serious personal injury.
Never connect the drill to the power source when you are assembling parts, making
adjustments, installing or removing bits, cleaning, or when it is not in use,as this could cause
Trigger switch (fig 1)
1. Connect the power cord of your drill to a
standard household power outlet.
2. To turn the drill ON, press the trigger switch.
3. To turn the drill OFF, release the trigger switch.
Lock-on button fig 1)(
This drill is equipped with a lock-on button, which is convenient for continuous drilling
for extended periods of time.
1. To drill continuously, press and hold the trigger switch and then press the lock-on
Release the trigger switch.
2. To unlock the lock-on button and stop continuous drilling, press the trigger switch
and the lock-on button will release automatically.
fig 1
trigger switch
Lock-on button
fig 2
Forward
Direction-of-
rotation
fig 3
Clockwise
(tighten)
Sleeve
Collar
9
10
OPERATING INSTRUCTIONS
OPERATING INSTRUCTIONS
serious personal injury. Disconnectingthe drill will prevent accidental starting.
WARNING!
WARNING!
WARNING!
button.
Reverse
selector
model number 054-5847-8

For maximum performance, use high-speed steel or brad-point bits for wood drilling.
1. When drilling holes all the way through the workpiece, place a block of wood behind
For maximum performance, use high-speed steel bits for metal or steel drilling.
1. When drilling metals, use light oil on the drill bit to keep it from overheating.
The oil will prolong the life of the bit and increase the drilling action.
2. Maintain a speed and pressure that allows cutting without overheating the bit.
Applying too much pressure will:
• Overheat the drill
• Wear the bearings
• Bend or burn the bits
•
Use protective gloves when removing
the bit from the tool, or allow the bit
to cool down first. The bit may be hot
after prolonged use.
1. Unplug the drill from the power source.
2. Hold the collar and turn the sleeve
counterclockwise to open the chuck jaws.
3. Remove the drill bit.
Never hold the collar by one hand and press the trigger to release/tighten the chuck as this
Drilling
1. Secure the material to be drilled in a vise or with clamps to keep it from
2. Install the correct bit.
3. Verify that the direction-of-rotation selector is at the correct setting (forward).
4. Hold the drill firmly and place the bit at the point to be drilled.
5. Press the trigger switch to start the drill.
6. Move the drill bit into the workpiece, applying only enough pressure to keep
the bit cutting. Do not force the drill or apply side pressure to elongate a
7. When drilling hard, smooth surfaces, use a center punch to mark the desired
location of the hole. This will prevent the drill bit from slipping off-center
8. When drilling metals, use light oil on the drill bit to keep it from overheating.
The oil will prolong the life of the bit and increase the drilling action.
9. If the bit jams in the workpiece or if the drill stalls, stop the tool immediately.
Reverse the direction of rotation and gently squeeze the trigger switch to
remove the bit from the workpiece. Investigate and correct the cause
11
12
OPERATING INSTRUCTIONS
OPERATING INSTRUCTIONS
Removing Bits
Produce off-center or irregularly-shaped holes
could cause serious personal injury.
WARNING!
WARNING!
turning as the drill bit rotates.
hole. Allow the tool to do the work.
as the hole is started.
ofjammingbeforeyouresumework.
Drilling into wood
Drilling into metal
the workpiece to prevent ragged or splintered edges on the back side of the hole.
Collar
Counter-
(loosen)
clockwise
fig 4
Sleeve
(fig 4)
model number 054-5847-8

Inspect the drill, the trigger switch, the cord and the accessories for damage.
2. Check for damaged, missing, or worn parts.
3. Check for loose screws, misalignment or binding of moving parts, or any other
condition that may affect the operation.
4. If abnormal vibration or noise occurs, turn the tool off immediately and have
the problem corrected before further use. Unplug the tool from power source
before cleaning or performing any maintenance. Using compressed air may be
the most effective cleaning method. Always wear safety goggles when
come into contact with plastic parts. These substances contain chemicals that can
damage, weaken, or destroy plastic.
When servicing, use only identical replacement parts. The use of any other parts may
create a hazard or cause damage to the product.
Use only accessories that are recommended for this drill by the manufacturer. Accessories
that may be suitable for one tool may become hazardous when used with another tool.
If the supply cord of this power tool is damaged, it must be replaced by a specially
Maintain tools with care. Keep cutting tools sharp and clean. Properly maintained tools with
sharp cutting edges are less likely to bind, and are easier to control.
Screw driving
1. Install the correct driver bit.
2. Insert the driver bit into the screw head, applying only enough pressure to
engage the bit in the screw head.
3. Apply minimal pressure to the trigger initially. Increase the speed only when
full control can be maintained.
4. Keep sufficient pressure on the drill to prevent the bit turning out of the
screw head. The screw head can easily become damaged, making it difficult
5. To stop the drill, release the trigger switch and allow the tool to come to a
It is advisable to drill a pilot hole first, slightly longer than the screw to be
driven and just smaller than the shank diameter of the screw. The pilot hole
tightening the screw less difficult. When screws are positioned close to an edge
of the material, a pilot hole will also help to prevent splitting of the wood.
Use a countersinking bit (available separately) to accommodate the screw head,
so that it does not protrude from the surface.
If the screw becomes difficult to drive home, remove the screw and try a slightly
larger or longer pilot hole, but remember that there must be enough remaining
material for the screw to grip! If restarting a screw in a hole, make the first few
very hard woods) try using a lubricant such as soap; liquid soap is usually best.
13
14
OPERATING INSTRUCTIONS
MAINTENANCE
TO ensure safety and reliability, all repairs should be performed by a
qualified service technician.
Donotallowbrake fluids,gasoline, petroleum-based products, penetrating oil, etc. to
WARNING!
WARNING!
WARNING!
WARNING!
WARNING!
WARNING!
Try to use modern screws for easy driving and improved grip.
to drive it home or remove it.
complete stop.
will act as a guide for the screw and will also make
turns by hand. If the screw is still difficult to drive (as when using
Beforeeachuse
1.
cleaningtoolsusingcompressedair.
model number 054-5847-8
prepared cord available through a qualified service technician.

PROBLEM POSSIBLE CAUSES SOLUTIONS
The motor does not start. The tool is not connected to a power
source.
Connect the tool to a power source.
The bit cannot be installed. 1. The sleeve is not released.
2. The bit does not fit the chuck jaw.
1. Release the sleeve.
2. Use the appropriate bit.
The motor is overheating. Ensure cooling vents are free of dust
and obstacles.
Clean and clear vents. Do not cover
with hand during operation.
Unplug the drill from the power source.
2. Open the chuck jaws by turning the
sleeve in a counterclockwise direction.
3. Use a star head screwdriver (not included)
to remove the chuck screw by turning it i
in a clockwise direction.
4. Insert a 5/16" or larger hex key (not
included) into the chuck and securely
tighten the chuck jaws around the hex key.
5. Tap the hex key sharply with a mallet (not included) in a counterclockwise
direction. This will loosen the chuck for easy removal.
NOTICE: The chuck screw has left-handed threads. Attach a new chuck to the
spindle and tighten the chuck screw.
Mallet
Chuck jaws
Hex wrench
15
16
MAINTENANCE
TROUBLESHOOTING
1.
Removingthechuck(fig 5)
1
ITEM
2
3
fig 5
model number 054-5847-8

No. Description
1 13
2 14
3 15
4 16
5 17
6 18
7 19
8 20
9 21
10 22
11 23
12 24

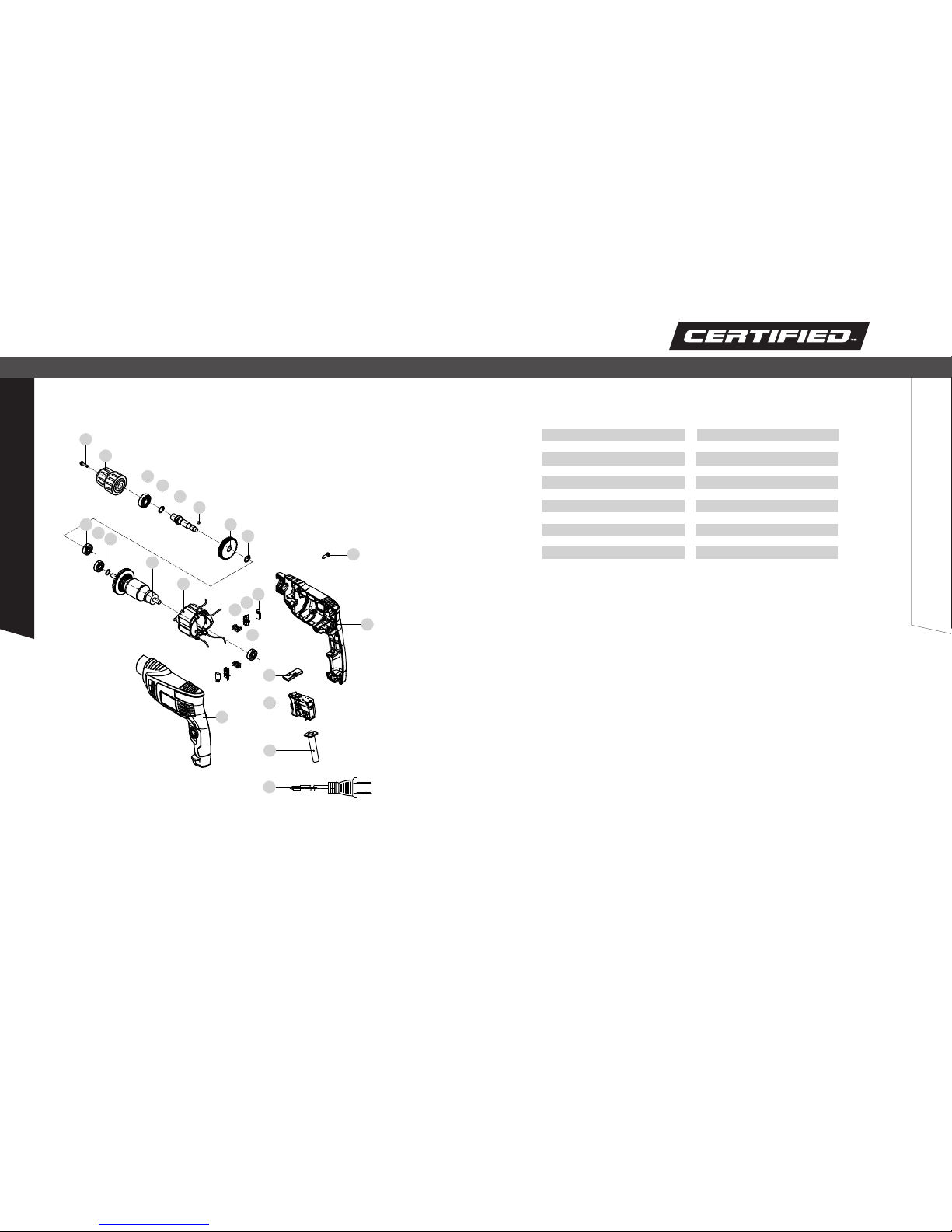

Exploded view
17
18
PARTS LIST
PARTS LIST
1
2
3
4
5
6
7
8
910 11
12
13
1415 16
17
18
19
20
21
22
23
24
SPIN SCREW
DRILL CHUCK
BALL BEARING
CIRCLIP
OUTPUT SHAFT
STEEL BALL
BIG GEAR
CIRCLIP
BALL BEARING
BALL BEARING
WASHER
ROTOT
No. Description
STATOR
BRUSH HOLDER
COPPER BRUSH HOLDER
CARBON BRUSH
BALL BEARING
LEFT HOUSING
REVERSE BUTTON
SWITCH
CABLE SHEATH
CABLE
SCREW
RIGHT HOUSING
model number 054-5847-8

This CERTIFIED product is guaranteed from the date of original for a period of 1 year
retail purchase
against defects in:
a) a bill of sale verifying the purchase and purchase date must be provided;
b) this warranty will not apply to any product or part thereof which is worn or
broken or which has become inoperative due to abuse, misuse, accidental
or which is being used for industrial, professional, commercial or rental
c) this warranty will not apply to normal wear and tear or to expendable parts
or accessories that may be supplied with the product That are expected
to become inoperative or unusable after a reasonable period of use;
d) this warranty will not apply to routine maintenance and consumable items
such as, but not limited to, fuel, lubricants, vacuum bags, blades, belts,
e) this warranty will not apply where damage is caused by repairs made or
attempted by others (i.e. persons not authorized by the manufacturer);
f) this warranty will not apply to any product that was sold to the original purchaser
as a reconditioned or refurbished product (unless otherwise specified in writing);
g) this warranty will not apply to any product or part thereof if any part from another
manufacturer is installed therein or any repairs or alterations have been made or
attempted by unauthorized persons;
h) this warranty will not apply to normal deterioration of the exterior finish, such as,
but not limited to, scratches, dents, paint chips, or to any corrosion or discolouring
by heat, abrasive and chemical cleaners; and
i) this warranty will not apply to component parts sold by and identified as the
product of another company, which shall be covered under the product
Additional limitations
This warranty applies only to the original purchaser and may not be transferred.
Neither the retailer nor the manufacturer shall be liable for any other expense,
loss or damage, including, without limitation, any indirect, incidental, consequential
or exemplary damages arising in connection with the sale, use or inability to
This warranty gives you specific legal rights, and you may have other rights, which may
vary from province to province. The provisions contained in this warranty are not
intended to limit, modify, take away from, disclaim or exclude any statutory warranties
set forth in any applicable provincial or federal legislation.
19
20
WARRANTY
WARRANTY
These warranties are subject to the following conditions and
limitations:
damage, neglect or lack of proper installation, operation or maintenance
(as outlined in the applicable owner’s manual or operating instructions)
purposes;
sandpaper, bits, fluids, tune-ups or adjustments;
manufacturer’s warranty, if any.
Notice to consumer
use or inability to use this product.
MADE IN CHINA
IMPORTED BY
TRILEAF DISTRIBUTION TRIFEUIL TORONTO, CANADA M4S 2B8
model number 054-5847-8
TM
Subject to the conditions and limitations described below, this product, if
returned to us with proof of purchase within the stated warranty period and
if covered under this warranty, will be repaired or replaced (with the same model,
or one of equal value or specification), at our option. We will bear the cost of any
repair or replacement and any costs of labour relating thereto.
