Coinco CoinPro 3 Operation manual

Coinco 9302-GX SERIES
ELECTRONIC CHANGER
Operation and Service Manual

Page 2
Table of Contents
Section 1: General Information
Introduction ............................................................................................................ 3
For Your Records .................................................................................................. 3
Features ................................................................................................................. 3
After Unpacking .................................................................................................... 3
Specifications ......................................................................................................... 4
Section 2: Installation
Installing the Changer ............................................................................................
Option Switch Setting ............................................................................................
Section 3: Operation
Coin Recognition .................................................................................................... 6
Coin Separation ...................................................................................................... 6
Rejected Coin ........................................................................................................ 6
Accepted Coin ....................................................................................................... 7
Credit & Accumulation .......................................................................................... 8
Vend ...................................................................................................................... 8
Coin Payout ........................................................................................................... 8
Change Storage ..................................................................................................... 9
Correct Change Operation..................................................................................... 9
Escrow Return ....................................................................................................... 9
Interface with Vendor/Controller .......................................................................... 9
Section 4: Maintenance
Routine Maintenance ........................................................................................... 11
Removing/Replacing Individual Module Assemblies ........................................... 11
Cleaning ............................................................................................................... 11
Disassembling Payout Base................................................................................. 12
Clearing Coin Jams .............................................................................................. 12
Section 5: Bench Check Proced re
Bench Check Procedure...................................................................................... 13
Tester Error Codes .............................................................................................. 16
Section 6: Tro bleshooting
Introduction .......................................................................................................... 17
Troubleshooting Guide ......................................................................................... 17
Wiring Diagram ................................................................................................... 20
Section 7: Exploded Views
Modular View ...................................................................................................... 21
Changer Housing ................................................................................................. 22
9302-GX Payout Assembly ................................................................................. 23
Logic Board Cover Assembly ............................................................................. 24
Inventory Tube Assembly .................................................................................... 24
Acceptor Front View ........................................................................................... 2
Acceptor Back View ........................................................................................... 26

Page 3
INTRODUCTION
This manual contains information on installing,
operating and maintaining Coincos CoinPro 3,
9302-GX coin changer. This manual is intended for
owners, route operators and shop-level technicians
as a primary source of information. Taking time to
read this manual and becoming familiar with this
information will help you obtain the best performance
from your Coinco CoinPro 3, 9302-GX coin changer.
FOR YOUR RECORDS
A label indicating the coin changer model number
and serial number is affixed to the side of the coin
changer. Refer to the model and serial number
whenever you call upon your Coinco Service Center
for information or service. The first four digits of the
serial number contain the manufacturing date code
which indicates the beginning of the warranty period.
EXAMPLE: Serial No. 269907053. First and
second digits indicate week of manufacture.
T ird and fourt digits indicate year of
manufacture.
FEATURES
· Accepts U.S. nickels, dimes, quarters and dollar
coins.
· Pays out nickels, dimes and quarters from self-
loading, high capacity change tubes.
· Change capacity of $40. .
· Modular design for easy service.
· Select high or low quarter tube level by simply
flipping a switch.
· Heavy-duty D.C. payout solenoids provide fast,
accurate payout.
· State-of-the-art electronic logic system is
designed for reliability and performance.
· Lightweight, rugged plastic construction provides
dependable, maintenance-free service.
· Provides the fastest and most accurate coin
acceptance of any electronic unit available
today.
AFTER UNPACKING
After unpacking the unit, inspect it for any possible
shipping damage. If the unit is damaged, notify the
shipping company immediately. Only the consignee
(the person or company receiving the unit) can file a
claim against the carrier for shipping damage. We
recommend that you retain the original carton and
packing materials to reuse if you need to transport or
ship your changer in the future.
If the coin changer is being stored or used as a
spare, always keep it in its shipping carton when not
in use. This will keep it clean and offer the best
protection for the unit.
Section 1: General Information

Page 4
SPECIFICATIONS
Power Requirements
· 34VDC
· 3.6 Amp max. at 26VDC for 100 ms every 00
ms during payout
· 7 0 m Amp max. for 1 second for each coin
accepted
· 200 m Amp. max standby
Operating Temperature
0 to 1 0 Degrees Fahrenheit
-18 to 6 Degrees Celsius
Storage Temperature
-22 to 160 Degrees Fahrenheit
-30 to 72 Degrees Celsius
Relative Humidity
20% to 98% Noncondensing
Operating Attitude
Vertical +3 degrees
Physical Dimensions
Height: 14.81 inches high
(base to top of coin return lever
Width: .28 inches in width
(acceptor latch to acceptor latch
Depth: 2.86 inches (gate closed)
Physical Weight in Shipping Carton
4 pounds
Section 1: General Information
5¢ 10¢ 25¢
tube tube tube
LO 25¢ LO 25¢
Option Option
Switch Switch
Set To Set To
OFF OFF
Position Position
Low Sensor 7 9 7 7
Level
Full Sensor 78 113 77 22
Level
and Load 86 125 95 22
Level
Coin Tu e Capacity
Figure 1

Page
INSTALLING THE CHANGER
1. Remove power from vendor.
2. Remove the acceptor from the changer by
releasing acceptor latches and pulling the top of
the acceptor forward, away from changer.
Unplug ribbon cable from changer. Free lower
acceptor studs from changer housing. With the
acceptor removed, set key holes in back of
changer housing over mounting screw in the
vendor. Tighten snugly.
3. Set desired changer options (See Option Switch
Setting).
4. Replace the acceptor by inserting bottom
acceptor studs into changer housing guides. Plug
the acceptor ribbon cable into the changer. Press
top of acceptor into changer housing until top
acceptor studs lock into changer's acceptor
latches.
. Plug changer into 6-pin vendor socket.
6. Load coin tubes making sure all coins lie flat.
7. Apply power to vendor.
8. Test changer with a variety of coins to ensure
proper operation.
NOTE: SAVE THE COIN CHANGER CARTON.
Always store coin c anger in its s ipping carton
w en not in use. T is will keep t e unit clean and
protected.
OPTION SWITCH SETTING
See Figure 2.0
1. Hinge acceptor down by releasing acceptor
latches and pulling the top of the acceptor
forward, away from changer.
2. Located in the upper portion of the changer,
behind the acceptor, is a single switch module
containing three rocker switches. When the top
of the rocker switch is pushed in it is the ON
position. The switches correspond as follows:
Section 2: Installation
1=USA/CAN Not Used
2=LO 2 ¢ ON: Quarters are directed to cash
box once change tube has
approximately 28 quarters
OFF: Quarters are put into change
tube until it is full.
3=$ACPT ON: Dollar coin will be accepted
OFF: Dollar coin will be rejected
3. Set option switches to desired setting.
4. Return acceptor to operating position making
sure acceptor latches secure acceptor.
. Test with a variety of coins to ensure proper
operation.
Figure 2

Page 6
COIN RECOGNITION

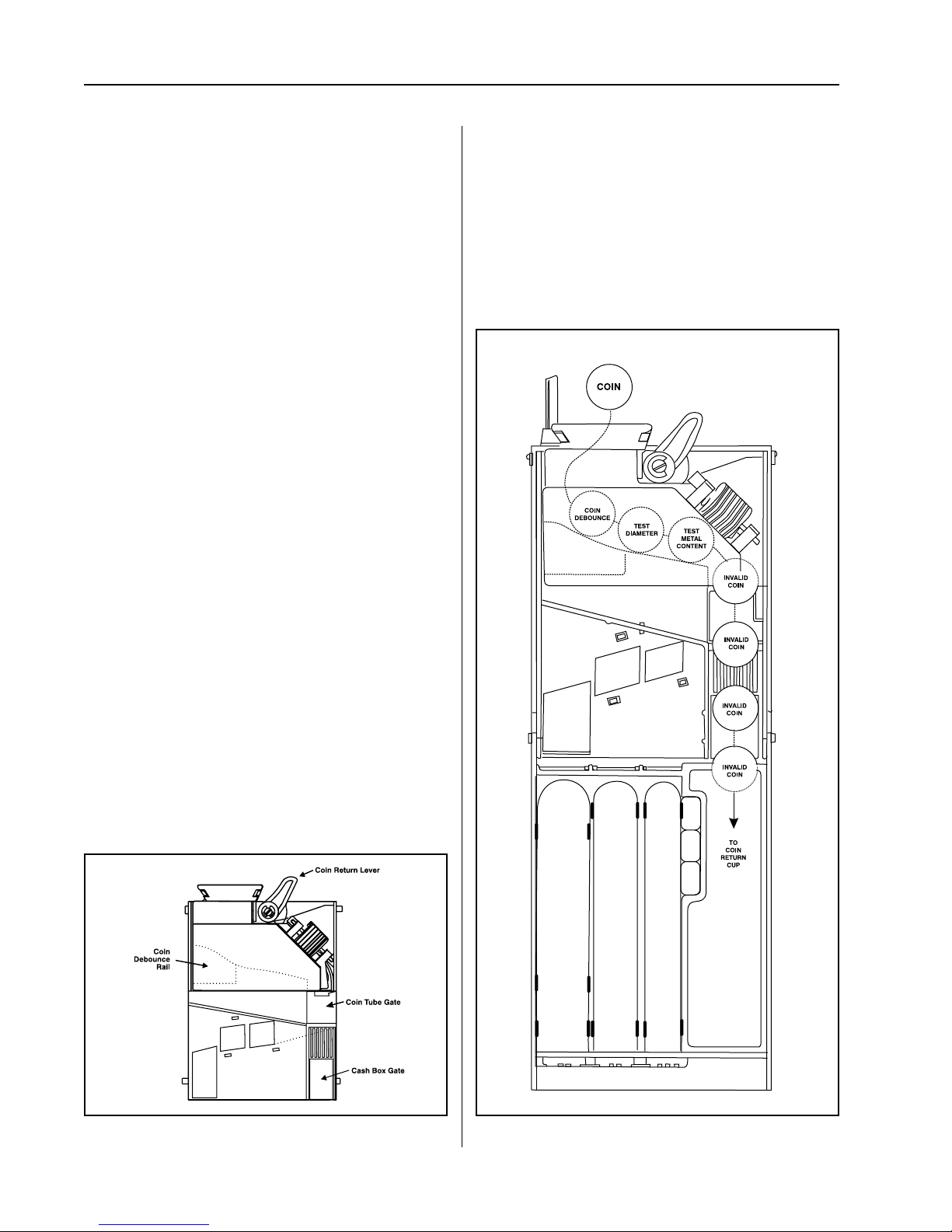

See Figure 3
As a coin enters the changer through the acceptor
funnel, its impact is absorbed by a white ceramic rail
which debounces the coin and allows it to continue
down the coin rail at a smooth and steady speed. As
a coin rolls down the rail, it passes between two sets
of LED sensors which measure the speed and size
of the coin. The coin also passes between two sets
of coils which measure the metallic content of the
coin. These measurements are used to determine if
the coin is valid and the value (denomination) of the
coin.
COIN SEPARATION
See Figure 3
After the coin's validity has been determined the coin
rolls off the end of the coin rail and enters the
separator section of the acceptor. The UPPER
(coin tube) gate and the LOWER (cash box) gate
are opened and closed by their respective solenoids.
These solenoids are energized and de-energized by
an electrical signal from the acceptor logic board
based on the following criteria:
 the validity of the coin.
 the denomination of the coin.
 the status (full or empty) of the appropriate coin
tube.
The positions of these two gates cause the coin to be
routed to one of three places: the appropriate
changer coin tube, the vendor cash box, or if the coin
is rejected, the vendor coin return cup.
REJECTED COIN
See Figure 4
If a coin is rejected for any reason, both the UPPER
(coin tube) and the LOWER (cash box) gate will
remain closed. All rejected coins will drop into the
vendor return cup via the coin changer coin return
chute.
Section 3: Operation
Figure 3 Figure 4

Page 7
ACCEPTED COIN
See Figures 5 and 6
An accepted coin will be routed to either the vendor
cash box or to one of the changer coin tubes. The
(FULL) sensors in each coin tube determine which
route the coin will take. If the coin tube
corresponding to the validated coin is full (full sensor
covered by coins in change tube), the cash box gate
will open, allowing the coin to drop into the vendor
Section 3: Operation
cash box via the changer cash box chute. If the
appropriate coin tube is not full (full sensor not
covered by coins), the coin tube gate will open
directing the coin down a ramp. Along the wall of
the ramp are windows for entry into the coin tube.
As the coin reaches a window of the appropriate
size, it falls into the coin tube. All dollar coins are
always directed to the cash box via the cash box
chute.
Figure 5 Figure 6

Page 8
CREDIT AND ACCUMULATION
See Figure 7
There are two sensors, one in the separation section
of the acceptor and one in the cash box path of the
acceptor. As coins pass either one of these sensors,
the changer sends credit information to the vendor
electronic controller where the coin credit is
accumulated.
VEND
Vend is a function of the vendor electronic
controller. The vendor controller accumulates all
credit information received from the coin changer.
As credit is accumulated in the vendor controller,
vend selections can be made when their respective
vend price settings are equalled.
COIN PAYOUT
Coins are paid out from the coin changer when a
change payback is required or when either of the
coin changer inventory switches are manually
operated. Coins are dispensed by D.C. solenoid-
operated slides located at the bottom of each of the
three coin tubes. The payout solenoids are controlled
by signals generated by the vendor controller or the
three inventory switches.
When a solenoid energizes, the upward motion of its
plunger compresses a spring and draws the solenoid
lever, which in turn pushes a payout slide forward.
This loads the coin for payout. When the solenoid
de-energizes, the spring force returns the plunger to
its de-energized state, which returns the solenoid
lever and payout slide, dispensing a coin. Coin
payout rate is determined by the vendor electronic
controller board.
Inventory Switches
Located on the front of the coin changer is a nickel,
dime and quarter inventory switch. These switches
are used to manually remove coins from the changer
coin tubes. They are disable while the vendor is in a
vend cycle.
Section 3: Operation
Figure 7
Figure 8

Page 9
Section 3: Operation
CHANGE STORAGE
See Figure 8
The full tube sensors in each coin tube continually
report the (full/not full) status to the coin changer
logic board. The information is then used to
determine the placement of the next accepted coin.
This information controls the action of the acceptor
coin tube and cash box gates.
EXAMPLE: If t e quarter tube is full (full
sensor blocked by coins) t e acceptor coin tube
gate will remain closed and t e cas box gate will
open eac time a quarter is accepted, routing all
quarters to t e vendor cas box via t e c anger
coin c ute.
After one or more quarters are paid out as change,
leaving the full sensor exposed (not full), the
acceptor coin tube gate will open each time a quarter
is accepted, routing quarters to the changer coin tube
until it is full again. NOTE: If the changer (LO-
$.2 ) option switch is set to the ON position,
accepted quarters will be routed to the cash box
when the (middle $.2 tube sensor) is blocked by
coins.
The low tube sensors in each coin tube continually
report the (blocked/not blocked) coin level status to
the vendor controller. This information is used to
determine if change is available for payout.
CORRECT CHANGE OPERATION
The coin changer continually reports the status of the
low tube sensors to the vendor's controller. The
logic control for correct change is initiated by the
vendor controller.
ESCROW RETURN
Escrow return is a function of the vendor
electronic controller. Coins are always accepted
regardless of the coin tube levels.
The value of each coin is accumulated in the
vendor controller. If a coin return is requested, a
signal is sent to the appropriate payout solenoid(s) to
pay back coins of the same denomination. If a dollar
coin has been accepted, change will be returned in
the least number of coins possible if an escrow
return is requested.
INTERFACE BETWEEN THE
9302-GX COIN CHANGER AND
VENDOR / CONTROLLER
See Figures 9 and 10

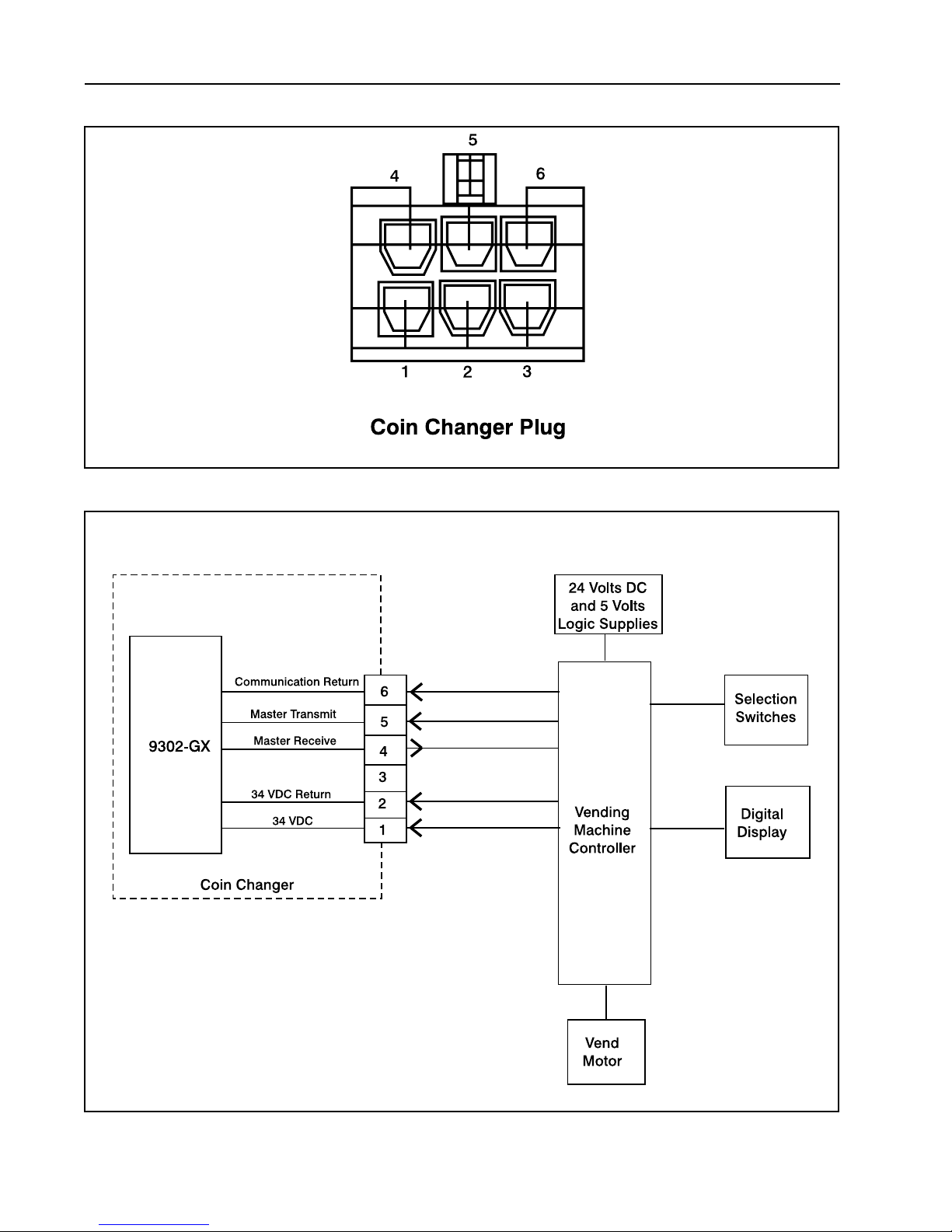

The 9302-GX changers interface connector is
shown in Figure 9. Figure 10 shows the interface
between the 9302-GX, vendor and electronic
controller.

Page 10
Section 3: Operation
Figure 9
Figure 10
9302-GX Controller/Vendor Interface

Page 11
ROUTINE MAINTENANCE
Routine maintenance will improve performance and
extend the working life of the 9300 series changer
and reduce the need for more involved repairs.
Frequency of routine maintenance will depend on
environment and number of transactions.
The coin changer should be kept in its original
shipping carton when not in use. This will keep the
changer clean and provide the best protection for the
unit.
REMOVING/REPLACING
INDIVIDUAL MODULE
ASSEMBLIES
Modular assembly replacement provides the basis of
all 9300 series changer repair. Instructions for
removing and replacing modules are provided below.
These modules should be removed in the following
sequence:
Acceptor
To remove the acceptor, raise the two acceptor
latches and pull the top of acceptor forward and
away from the changer housing. Unplug acceptor
ribbon cable from main logic board. Raise acceptor
and pull outward until the acceptor clears the housing
slots.
Coin Tu e and Sensor Assem ly
Remove the logic board cover by inserting a straight
tip screwdriver in the slot above the tube assembly.
Twist the screwdriver to release the ccover.
Unplug tube sensor ribbon cable from logic board.
Spread the lower part of the housing slightly and
pullout on tube assembly. To separate the coin tube
assembly from the tube sensor board assembly, place
the assembly face down. While freeing the four
locking tabs, pull up on tube sensor board. Be
careful not to damage sensors on logic board.
Main Logic Board Assem ly
Unplug payout solenoids, and main harness assembly
from logic board. Lift logic board out of housing.
Section 4: Maintenance
Payout Assem ly
With payout solenoids disconnected from main logic
board, remove the four screws - two from each side-
at the bottom of the housing. Separate payout
assembly from changer housing by releasing cash
box chute locking tab on back of changer housing
and pulling downward on payout assembly.
CLEANING
Your 9302-GX changer is made of a high-quality
industrial grade plastic which should only be cleaned
with a warm water and mild detergent solution.
CAUTION:
 Never submerge c anger in water.
 Do not use petroleum solvents, steel wool,
scouring pads, or a metal brus for
cleaning.
 Do not spray any part of c anger wit
any type of lubricant.
Since all coins share a common coin ramp, heavy
usage or a dirty environment can result in dirt build
up. To clean the coin ramp, lift the acceptor gate
upward and diagonally to the right. Hold gate firmly
to prevent it from snapping back. Wipe the exposed
coin ramp and inner surface with a damp cloth. For
excessively dirty units, use a damp cloth with a mild
detergent. NOTE: Do not submerge in water.
For detailed cleaning of the acceptor, remove the
front cover by pulling out and down of the front
cover. Now remove the back cover by pushing in on
two locking tabs on the side of the acceptor. To
remove the coin sorting rail, snap the coin sense coils
from the sorting rail and the cash box exit, being
careful not to break coil wires. Free coil wires from
the clip on the sorting rail. Now from the front of the
acceptor, in area exposed by removing the front
cover, locate the three locking tabs which secure the
sorting rail. Using a small straight tip screwdriver,
free the three locking tabs and remove sorting rail.
See Figure 11.

Page 12
DISASSEMBLING PAYOUT BASE
FOR CLEANING
Remove the four Phillips head screws from the
bottom plate. Remove bottom plate and individual
slides. Clean parts with mild detergent and hot water
as desired. DO NOT SUBMERGE
SOLENOIDS IN WATER.
Replace slides making sure part numbers face up
into changer. With the slides correctly seated on
plunger tabs, reinstall the bottom plate, securing with
bottom screws. Reinstall payout module into
changer, securing with side screws.
CLEARING COIN JAMS
Should a coin jam occur in the cash box chute area,
use the following steps to help dislodge coins:
1. Remove changer from vendor.
2. Keeping changer in an upright position, insert a
narrow screwdriver into cash box chute or reject
chute from bottom of changer to relieve jam.
Access holes are also provided at the rear of the
changer housing to help relieve coin jam.
CAUTION: Excessive screwdriver pressure or
twisting can cause permanent damage to t e coin
c anger.
Section 4: Maintenance
Figure 11

Page 13
BENCH CHECK PROCEDURE FOR MODEL 9302-GX
Using Coinco Tester #407341
Section 5: Bench Check rocedure
NOTE: T is tester is a static sensitive device and must be used in a grounded work station.
PROCEDURE RESULT FUNCTION VERIFIED
Set changer Coin Control
Option switches as follows:
#1: (OFF) Not Used.
#2: (OFF) H $.25 change tube.
#3: (OFF) No $ coin accept
Plug changer into tester. The digital display and tube sensors Power Up - Reset
Set tester power switch ON. upper and lower LED's sequence, then
the display will read rSt
Set the changer Enable/Disable All coins are rejected. Digital display Coin reject
switch to the Disable (down) reads r.05, r.10, r.25 for respective (blocker function)
position and insert (1) nickel, coins when rejected
(1) dime and (1) quarter
Set the changer Enable/Disable Coins are accepted, and Coin accept
switch to the Enable (up) directed to the respective changer (accepted function)
position and insert (1) nickel, coin tube, digital display will read:
(1) dime and (1) quarter t.05 when nickel is deposited
t.10 when dimes is deposited
t.25 when quarter is deposited
Actuate Changer Reset Switch Digital display will read rSt Reset
NOTE: If reset switch is held in, the
changer's communication software
revision will be displayed.(Sr2)
hen the reset switch is released,
display will read rSt
Randomly insert (9) nickels, Coins are accepted and directed Coin accept
(11) dimes, and (9) quarters to changer coin tube, digital display Low change tube
will read t.05, t.10, t.25 for sensors
respective coin when the 9th, 11th &
9th coin respectively is inserted, the low
tube sensor LED will light. Example: When
the 9th nickel is accepted, the digital
display will read t.05 and the lower
tube sensor LED will illuminate.

Page 14
PROCEDURE RESULT FUNCTION VERIFIED
Turn tester power OFF. Remove Upon power up, the High Tube Sensor
acceptor from changer. Block digital display and tube sensors
the coin change high tube sensors upper and lower LED's sequence.
by completely filling tubes with Coins are accepted and directed to
coins or by inserting a rolled up cash box, digital display will read
tube of paper into the three coin b.05, b.10, b.25 respectively and
tubes. Replace acceptor, turn tube sensors upper and lower
tester power switch on and LED's will illuminate
insert (1) nickel, (1) dime and (1) quarter
nsert (1) $ coin $ coin is rejected No $ accept switch
nsert a Canadian nickel, dime Coin is rejected U.S. coins only or
quarter coin switch
Set changer coin Digital display will read rSt
control option switches as follows:
#1: (ON) Not Used.
#2: (ON) Lo $.25 Change tube
#3: (ON) $ coin accept
Actuate changer reset switch
nsert (1) $ coin Coin is accepted and directed to
cash box, the digital display will
read b1.00
Block the middle $.25 change tube Quarter is accepted and directed to Middle $.25 tube sensor
tube sensor without blocking the the cash box. The digital display
high tube sensor by partially filling will read b.25 and the upper and
$.25 change tube with coins lower tube sensor LED's will
(approx. $5.00) or by inserting a illuminate
rolled up tube of paper far enough
into $.25 change tube past the high
sensor but far enough into tube to
block the middle sensor. nsert (1)
quarter.
Section 5: Bench Check rocedure
BENCH CHECK PROCEDURE

Page 1
PROCEDURE RESULT FUNCTION VERIFIED
Actuate changer coin return lever Digital display will read ESC Escrow return
Manually operate each of the Each dispensing solenoid will Manual dispense
changer's " nventory" energize, dispensing a coin, ($.05, $.10, $.25)
switches until all coins are dispensed. digital display will read P.05,
P.10, P.25 respectively. NOTE: If lower tube sensors are
covered, the lower tube sensor LED
will illuminate, if both upper and
lower tube sensors are blocked, both
upper and lower tube sensors
LED's will illuminate.
Actuate the 5-10-25 inventory The digital display will read Pay out
control switches n, d, P respectively and number
of coins payed out
.E. n 03 for 3 nickels, p 03 for
3 quarters and d 03 for 3 dimes.
Section 5: Bench Check rocedure
BENCH CHECK PROCEDURE
If all of these procedures can be successfully completed, the changer is operating properly.
Set Coin Control Option Switches as desired. Set price(s) in vendor.

Page 16
TESTER ERROR CODES
The following is a list of error codes the changer
tester will display via the digital display:
CCO - Changer Communication Error
This error occurs when the communication lines
between the changer and tester are not present
(changer not plugged in), broken or excessive noise
exists on the line.
NoCr - No Credit
This error will occur if a coin is accepted, but not
detected leaving the acceptor.
tU E - Tu e Sensor
This error exists when the changer's upper tube
sensor is blocked, while the lower tube sensor is not.
NOTE: T is error appears only during activity
pertaining to t e defective tube. I.E. during
inventory or payout.
2Ar - Dou le Arrival
This error occurs if a second coin is detected within
1/2 second of the first coin accepted, or within 2
seconds if first coin was detected as a slug.
Section 5: Bench Check rocedure
ACPT - Acceptor Unplugged
This error occurs when the changer does not
communicate with the acceptor.
RoCh - ROM Check Sum
This error occurs when the changer's rom is
defective.
ROUT - Routing Error
This error occurs if a coin passes by the wrong outlet
sensor.
CoJA - Coin Jam Error
This error occurs when a coin is detected in the
validation coil for too long a time.
SLUG - Non-Valid Coin Type
This message occurs when the changer does not
recognize the coin.

Page 17
INTRODUCTION
The Troubleshooting Guide on the following pages is
intended to help locate problems within the coin
changer. If a changer cannot be repaired by
following the guide, return the changer to the nearest
Coinco Service Center for repair. If it is necessary
to return the changer to Coinco, please accompany
the changer with a brief description of the
malfunction to help expedite the repair and return of
the changer.
The vendor electronic controller board is in constant
communication with the 9302-GX coin changer. The
electronic controller board not only supplies operating
voltage to the coin changer but is largely responsible
for the operation and function of the coin changer.
(Refer to Section 3, Figure 10)
Logic troubleshooting minimizes time spent in
removing and replacing modules that are not
defective. Some failures are caused by minor
problems such as loose or faulty connections. Please
check the following before replacing any parts:
 Connectors are inserted correctly.
 Connector pins are not bent or broken.
 All wires are properly secured.
 Inventory tubes are filled to their correct levels.
NOTE: T e following Troubles ooting Guide is
based on t e fact t at t e tester or vendor, wit
w ic t e defective c anger is being tested,
functions properly w en used wit a known good
c anger.
This guide is not intended to cover all failures, but to
cover the most common failures.
Section 6: Troubleshooting
TROUBLE POSSIBLE CAUSE PROCEDURE REMEDY
No coin acceptance No power Make sure changer is plugged Plug changer
into vendor into vendor
Acceptor Check power/blocker LED Replace acceptor
behind acceptor. If LED is
ON, replace acceptor with good
acceptor and test.
If changer funtions properly . . .
If still no coin Replace changer
acceptance . . . main power harness
If still no coin Replace changer
acceptance . . . main power harness
If power/blocker LED is off, check Plug acceptor cable
to see that acceptor cable and and/or changer
changer power harness are power harness into
properly connected to changer changer main logic
main logic board board
If still no coin Replace changer
acceptance . . . main logic board
If still no coin Replace changer
acceptance main power harness
9302-GX TROUBLESHOOTING GUIDE

Page 18
Section 6: Troubleshooting
TROUBLE POSSIBLE CAUSE PROCEDURE REMEDY
No coin acceptance Coin return lever Make sure changer is mounted Reposition changer
or rejects percentage correctly and coin return lever and/or vendor
of good coins is in proper position coin return lever.
Acceptor is dirty or Check to see that acceptor Clean acceptor and
foreign matter in coin path is clean and free remove any foreign
coin accept path of foreign matter matter.
If still rejects good coins . . . Replace acceptor
If still rejects good coins . . . Replace changer
main logic board
Accepts coins but Acceptor Replace acceptor with good Replace defective
gives no/or erratic acceptor and test. acceptor
credit If changer functions properly . . .
If still no/erratic credit Replace changer
main logic board
If still no/erratic credit . . . Replace changer
main power harness
Accepted coins Tube sensor board Check the sensor board for Replace tube
always go to or acceptor loose or broken components. sensor board
cash box Make sure tube sensor board
is properly secured to the tube
assembly. Check cable from
sensor board for damage or
improper connection
If coin still goes to cash box, Replace acceptor
replace acceptor with good
acceptor and test.
If changer functions properly . . .
If coin still goes to Replace changer
cash box . . . main logic board
Accepted coins Coin tube gate in Remove acceptor Replace acceptor
always go to coin open position back cover, check
tubes solenoid for free operation . . .
Tube sensor board Replace tube sensor Replace tube
board with good tube sensor board
sensor board and test.
If changer functions properly . . .
If coins still go to coin tubes . . . Replace changer
main logic board
9302-GX TROUBLESHOOTING GUIDE

Page 19
Section 6: Troubleshooting
TROUBLE POSSIBLE CAUSE PROCEDURE REMEDY
Accepted quarters go Quarter coin tube Check to see that quarter coin Fill quater coin
to quarter coin tube when has less than 22 tube has a minimum of 22 tube with 22
Lo-$.25 switch is ON quarters quarters quaters to cover
Lo-$.25 sensor
Tube sensor board Replace tube sensor board Replace tube
with good tube sensor board sensor board
and test
If changer functions properly . . .
If coins still go to quarter tube . . . Replace changer
main logic board
Credits coins but Coin return lever Make sure changer is mounted Reposition changer
does not escrow correctly and acceptor gate and/or vendor coin
opens when vendor coin return return lever
lever is operated
Acceptor Replace acceptor with good Replace defective
acceptor and test acceptor
If changer functions properly . . .
If still no escrow . . . Replace changer
main logic board
No payout Payout solenoid Make sure solenoid wires are Plug solenoid wires
properly connected to changer into logic board
main logic board
If still no payout, replace solenoid Replace defective
with good solenoid and test payout solenoid
If changer operates properly . ..
If still no payout . . . Rplace changer
main logic board
If still no payout . . . Replace changer
main power harness
9302-GX TROUBLESHOOTING GUIDE

Page 20
Section 6: Troubleshooting
9302-GX Wiring Diagram
