3-Series DigitalMedia Presentation System 300:
DMPS3-300-C-AEC/DMPS3-300-C/DMPS3-200-C
Introduction
The DMPS3-300-C-AEC, DMPS3-300-C, and DMPS3-200-C systems from Crestron® are
complete, high-definition presentation control, and signal routing solutions for boardrooms,
classrooms, and videoconference rooms.
For simplicity within this guide, the term “DMPS3-300/200-C” is used except where noted.
For more information on the DMPS3-300/200-C, refer to DMPS3-300-C-AEC/DMPS3-300-C/
DMPS3-200-C 3-Series®DigitalMediaTM Presentation System 300-AEC/300/200 DO Guide
(Doc. 7715A).
Configuration
Configuring the System ID
All DM switches in an interconnected DM system must have a unique System ID. Please see the
DM IP Considerations Guide for reference. The System ID can be configured via the front panel
or the System Info tool in Crestron Toolbox®.
Configuring EDID or HDCP
In the Crestron Toolbox Address Book, select the DMPS3-300/200-C. Then use the DMPS Tool
to configure EDID, or HDCP, or to troubleshoot AV on the DMPS3-300/200-C. Refer to the help
file for additional information.

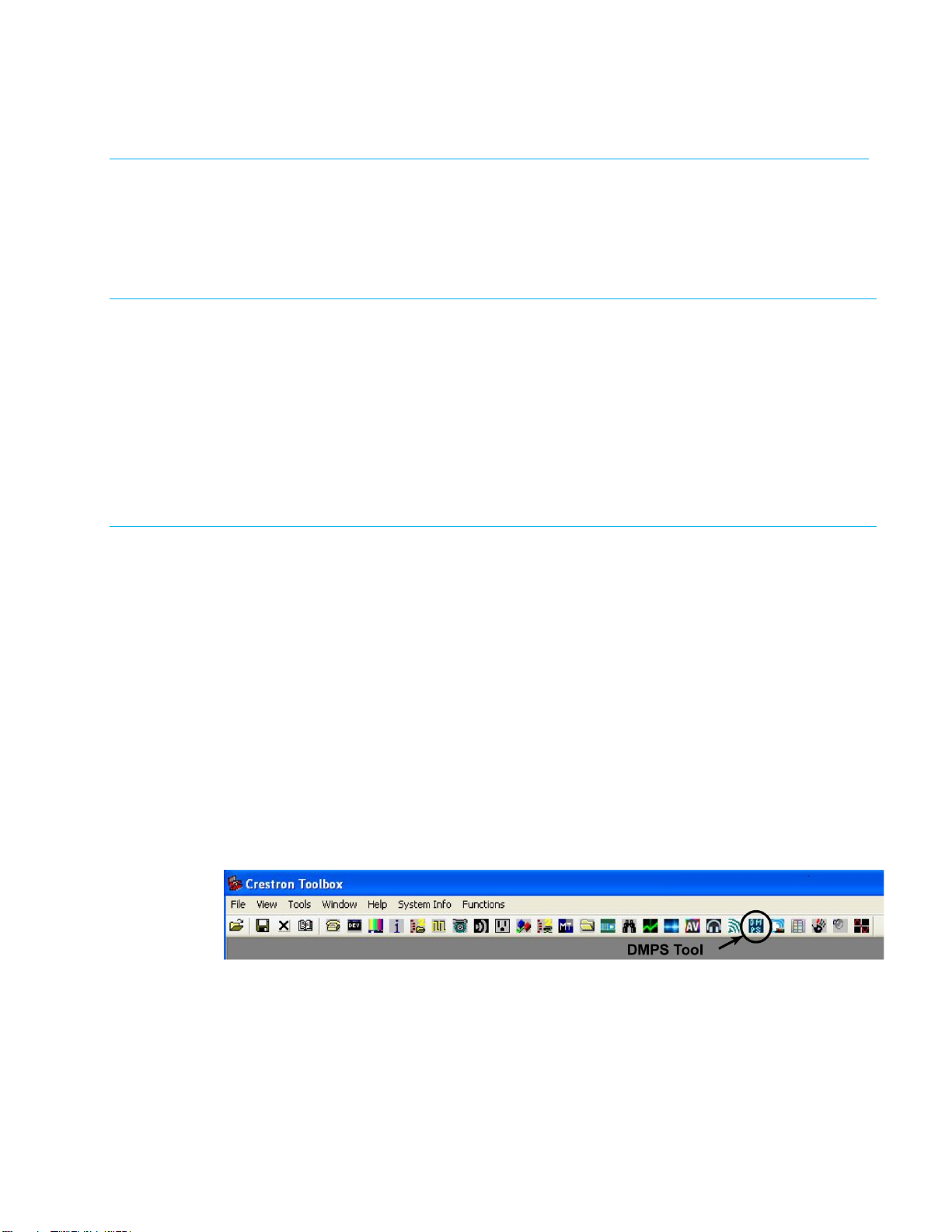

DMPS Tool

2
•
DMPS3-300-C-AEC/300-C/200-C: 3-Series DigitalMedia Presentation System 300 Supplemental Guide – DOC. 7591B
Configuring the DMPS3-300/200-C
The DMPS3-300/200-C can be used for audio and video switching without any
programming required. This is ideal for those who need a basic audio-video switching
system. Prior to operation, the DMPS3-300/200-C must be configured for use.
The DMPS3-300/200-C is configured using the built-in Setup Menu.
NOTE:
When the system is being configured, system operation is suspended.
Access the
Setup Menu:
1. Press the
POWER
button to turn on the system.
2. Press the
MENU
button. Instructions for entering the numeric password are displayed
followed by a blinking cursor that prompts entering of the password.
Enter Password
NOTE:
The default password is 12345. It can be changed within the Control Setup
menu. Refer to “Change the Front Panel Password” for more information
.
a. Turn the
VOLUME
control until the correct digit (0 through 9) appears.
b. Press the button to move the cursor to the next digit, and select the next
digit
in the password with the
VOLUME
control. Press the button to move
to a
previous digit.
c. Press
ENTER
once the entire password is displayed. If an incorrect password
is entered, the display shows
Invalid Password
and returns to the
Enter
Password
screen.
Exit the
Setup Menu:
1. While in the
Setup Menu
, press the
MENU
button to exit the menu.
Exit Menu Prompt
2. Press the button under
Yes
to exit the menu, or press the button under
No
to return
to the menu.
Refer to “Setup Menu Structure” on the following page.

Supplemental Guide – DOC. 7591B DMPS3-300-C-AEC/300-C/200-C: 3-Series DigitalMedia Presentation System 300
•
3
Setup Menu
Structure
The following diagram shows the
Setup Menu
structure of the DMPS3-300/200-C.
DMPS3-300/200-C Setup Menu Structure
The
Setup Menu
is composed of two sections:
1.
Network Setup
contains controls for setting the IP address of the DMPS3-300/200-C,
the IP address of the subnet mask used by the DMPS3-300/200-C, the IP address of
the default router used by the DMPS3-300-C, and the DHCP mode. The
Network
Setup
section can also display the hostname and MAC address of the as well as the
domain name used by the DMPS3-300/200-C. The
Network Setup
section also
contains the controls to set up the Private Network mode.
2.
Control Setup
contains controls for adjusting the LCD backlight, setting the front panel
password, displaying system information, displaying system messages, setting the time
and date, and restoring default settings.
Network Setup
The network settings of the DMPS3-200/300-C can be configured from the front panel using
the
Network Setup
menu.
NOTE:
Changes to the network settings may require a reboot to take effect. The system
automatically reboots when necessary
.

4
•
DMPS3-300-C-AEC/300-C/200-C: 3-Series DigitalMedia Presentation System 300 Supplemental Guide – DOC. 7591B
Access the
Network Setup
Menu:
1. Access the
Setup Menu
as described on page 2. Press the or buttons until
Network Setup
is displayed on the LCD.
2. Press
ENTER
to display the
Network Setup
menu.
3. To exit the
Network Setup
menu, press
MENU.
Set the IP Address
The DMPS3-300/200-C uses TCP/IP for communications between network devices, a PC, and
RoomView® Help Desk software. The IP address can be manually set or
obtained from a DHCP
server. For information on using DHCP to obtain an IP
address, refer to “Set the DHCP Status.”
Manually set an IP address:
1. Access the
Network Setup
menu as described above.
2. Press the or buttons until
IP Address
is displayed on the LCD, and press
ENTER
to display the
IP Address
menu. The current IP address is shown.

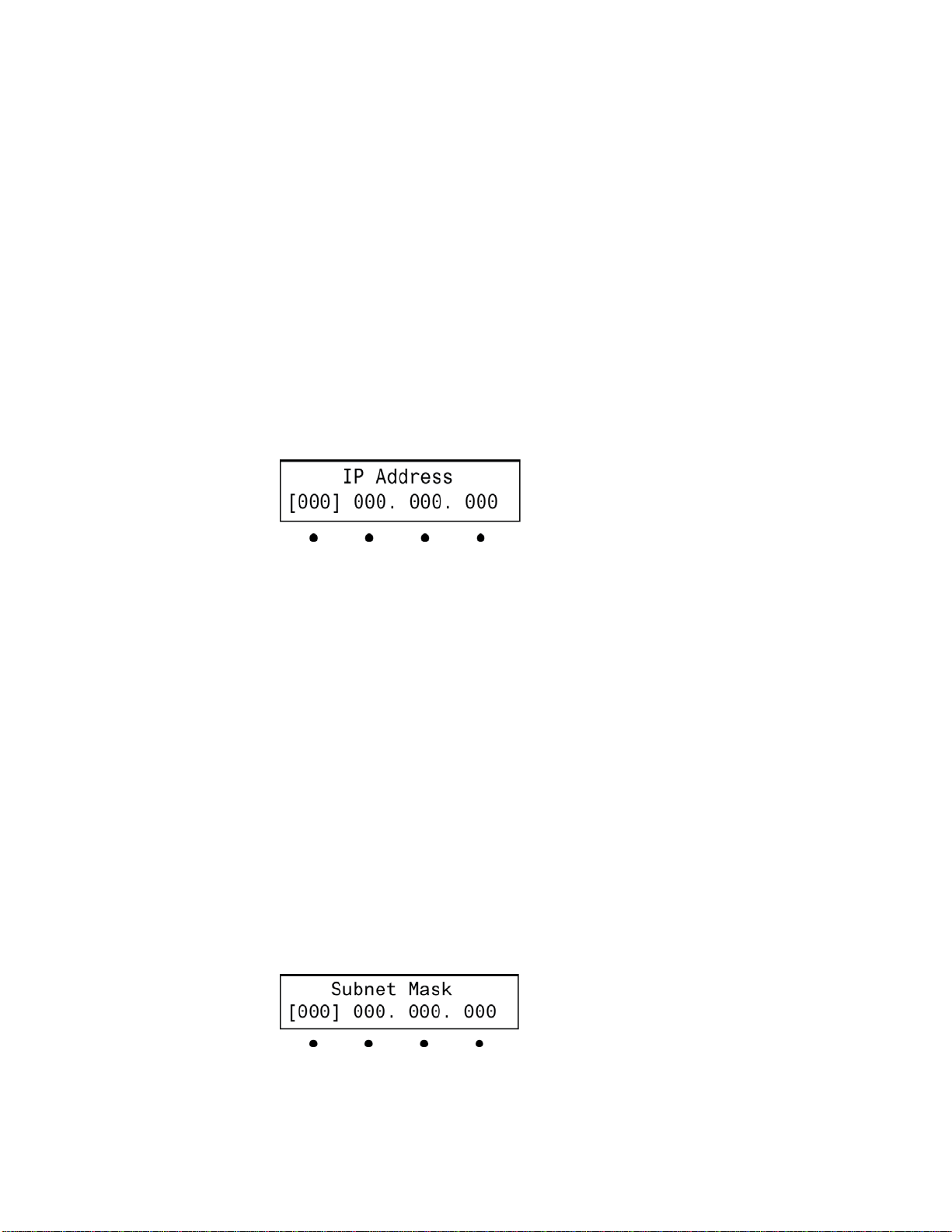

IP Address Menu
3. Turn the VOLUME control clockwise or counterclockwise to select a number in the left-
most section of the IP address. Numbers can also be selected by pressing the or 
buttons.
4. Press
ENTER
to move the cursor to the next section of the address. To change a
different section, press the button under the section to be changed.
5. Repeat the previous two steps until the entire IP address is set.
6. To save the new address and return to the
Network Setup
menu, move the cursor to the
right-most section and press
ENTER
. To cancel the operation and return to the
Network
Setup
menu, press
MENU
.
Set the Subnet Mask
The DMPS3-200/300-C can be set up to use an IP subnet mask for TCP/IP
c ommunications. Set
the address of the IP subnet mask:
1. Access the
Network Setup
menu as described above.
2. Press the or buttons until
Subnet Mask
is displayed on the LCD, and press
ENTER
to display the
Subnet Mask
menu. The current subnet mask IP address is
shown.
Subnet Mask Menu
3. Turn the
VOLUME
control clockwise or counterclockwise to select a number in the
left-most section of the subnet mask IP address. Numbers can also be
selected by

Supplemental Guide – DOC. 7591B DMPS3-300-C-AEC/300-C/200-C: 3-Series DigitalMedia Presentation System 300
•
5
pressing the

or

buttons.
4. Press
ENTER
to move the cursor to the next section of the address. To change a
different section, press the button under the section to be changed.
5. Repeat the previous two steps until the entire subnet mask IP address is set.
6. To save the new address and return to the
Network Setup
menu, move the cursor to the
right-most section and press
ENTER
. To cancel the operation and return to the
Network
Setup
menu, press
MENU.
7.
Set the Default Router
The DMPS3-200/300-C can be set up to use a default router for TCP/IP
communications. Set the
IP address of the default router:
1. Access the
Network Setup
menu as described on page 3.
2. Press the

or

buttons until
Def. Router
is displayed on the LCD, and press
ENTER
to display the
Def. Router
menu. The current IP address of the default router
is shown.

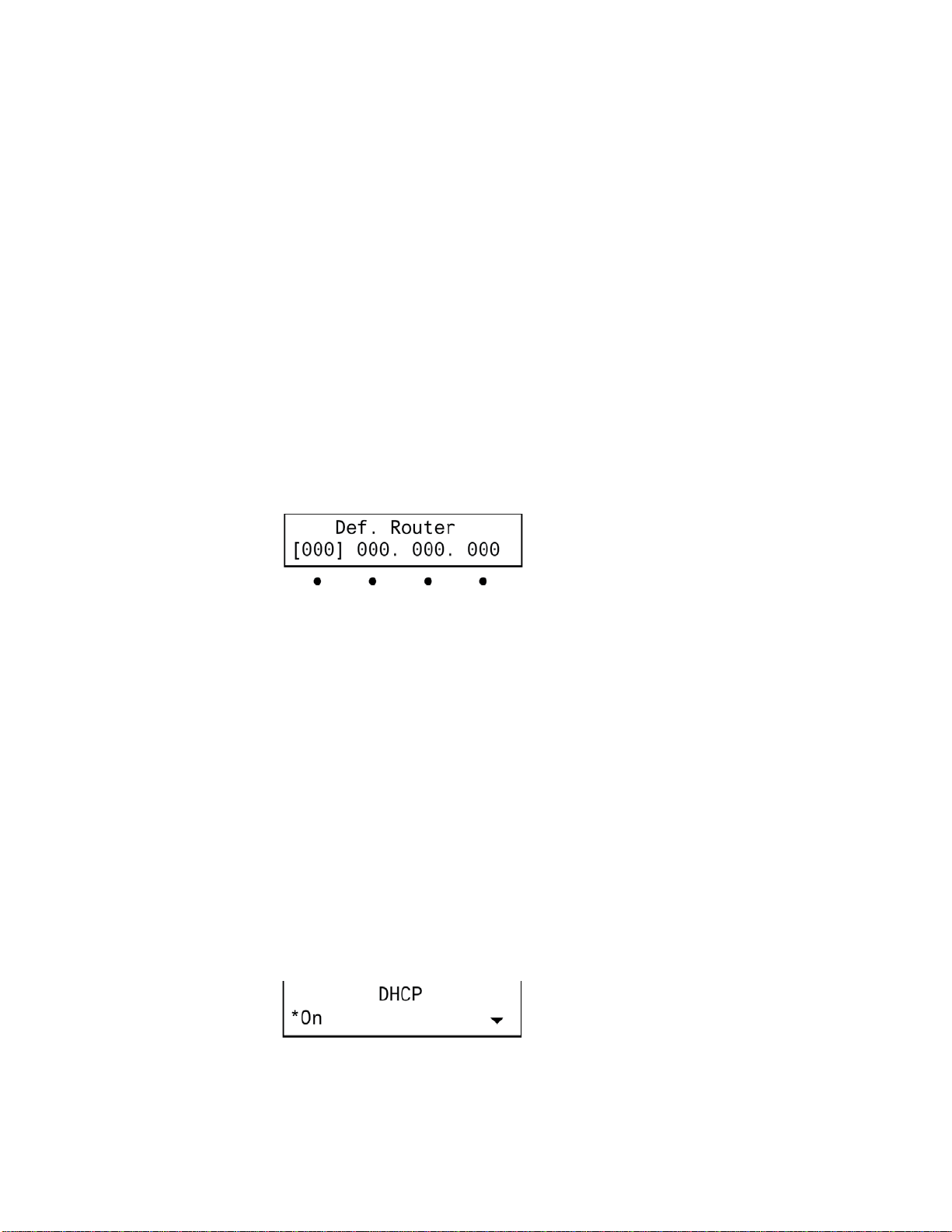

Def. Router Menu
3. Turn the
VOLUME
control clockwise or counterclockwise to select a number in the left-
most section of the default router IP address. Numbers can also be selected by pressing
the

or

buttons.
4. Press
ENTER
to move the cursor to the next section of the address. To change a
different section, press the button under the section to be changed.
5. Repeat the previous two steps until the entire default router IP address is set.
6. To save the new address and return to the
Network Setup
menu, move the cursor to
the right-most section and press
ENTER
. To cancel the operation and return to the
Network Setup
menu, press
MENU
.
Set the DHCP Status
The IP address can be obtained from a DHCP server or manually set. For
information on manually
setting the IP address, refer to “Set the IP Address.”
1. Access the
Network Setup
menu as described on page 3.
2. Press the

or

buttons until
DHCP
is displayed on the LCD, and press
ENTER
to
display the
DHCP
menu.
DHCP Menu
3. Press and buttons to toggle between
On
and
Off
. The current setting is indicated
with an asterisk (*).

6
•
DMPS3-300-C-AEC/300-C/200-C: 3-Series DigitalMedia Presentation System 300 Supplemental Guide – DOC. 7591B
To save the setting and return to the
Network Setup
menu, press
ENTER
. To cancel the
operation and return to the
Network Setup
menu, press
MENU
.
View and Set the Hostname
The DMPS3-300/200-C can be recognized by its hostname in a networked environment. Set the
hostname:
1. Access the
Network Setup
menu as described on page 3.
2. Press the or buttons until
HostName
is displayed on the LCD, and press
ENTER
to display the current hostname.
Typical Hostname Screen
3. Press
ENTER
to change the current name. A cursor is placed at the last character in the
name.
HostName Change Screen
4. Turn the
VOLUME
control clockwise or counterclockwise (or press the  or  buttons)
to select a new letter (uppercase or lowercase) or number. Move the cursor by pressing
the buttons under the <or > symbols. The hostname can be up to 64 characters in
length. To delete a character, position the cursor under the character to be deleted and
press the button under
Del
. To insert a space, position the cursor where the space is to
be inserted and press the button under
Ins
.
5. To save the new name and return to the
Network Setup
menu, press
ENTER
. To cancel
the operation and return to the hostname display, press
MENU
.
View and Set the Domain Name
Some networks may require a domain name to resolve the hostname. Set the domain name:
1. Access the
Network Setup
menu as described on page 3.
2. Press the or buttons until
Domain Name
is displayed on the LCD, and press
ENTER
to display the
Domain Name
screen. The current domain name (if entered) is
displayed. If no domain name is entered,
(none entered)
is displayed.
Domain Name Screen
3. Press
ENTER
to change the domain name. A cursor is placed after the last character in
the
Domain Name Change
screen.
