Cub Cadet Commercial Z-Wing 48 Setup guide

Hydrostatic Zero-Turn
Commercial Riding Mower
Professional Turf Equipment
ILLUSTRATED PARTS LIST
Z-Wing 48

2
TABLE OF CONTENTS
Frame Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
48" Fold Fabricated Cutter Deck. . . . . . . . . . . . . . . . . 4 and 5
48" Spindle Assembly. . . . . . . . . . . . . . . . . . . . . . . . . 6 and 7
Drive Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 and 9
Brake Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 and 11
Control Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . 12 and 13
23HP Kohler Engine Assembly. . . . . . . . . . . . . . . . 14 and 15

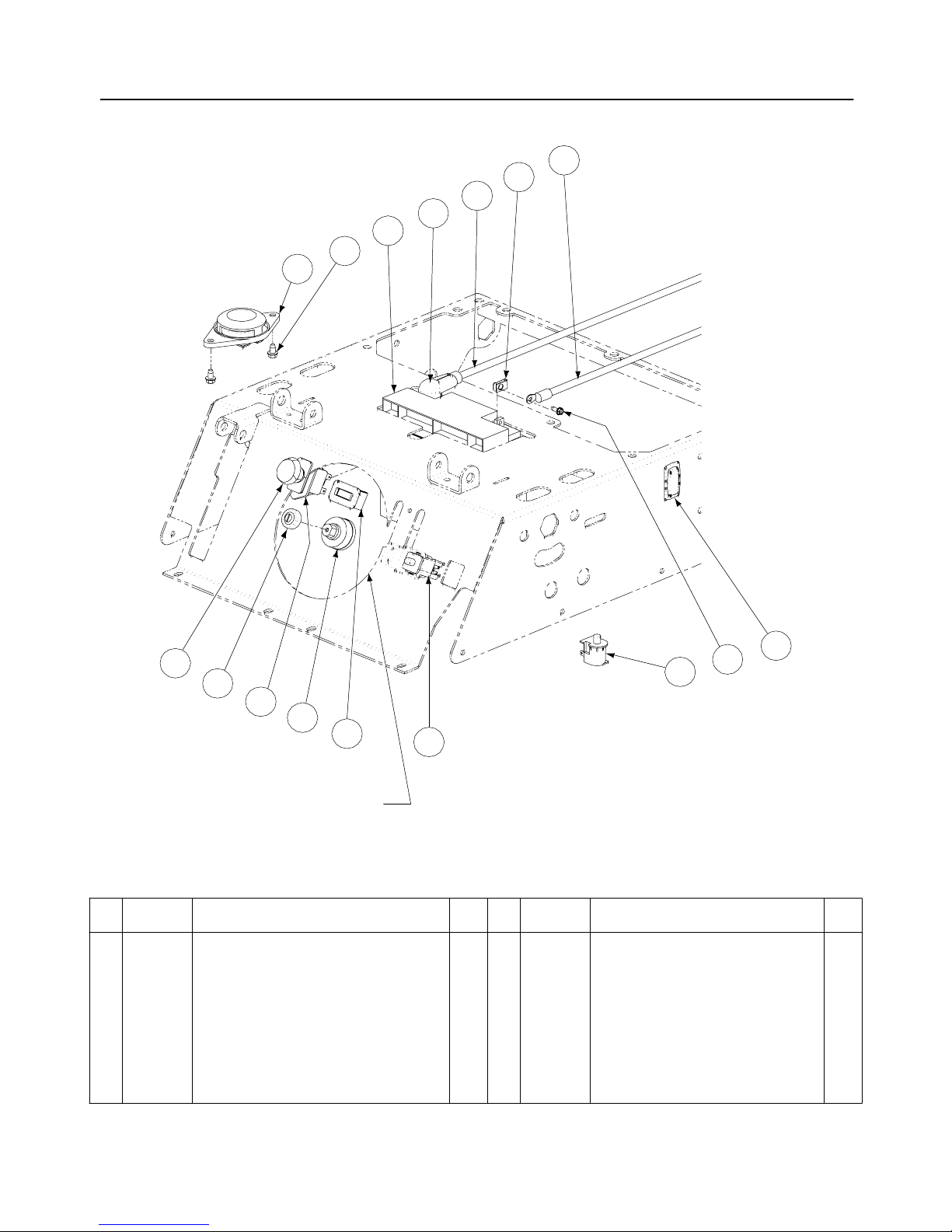

23HP Electrical Assembly Kohler . . . . . . . . . . . . . . . . . . . . 16

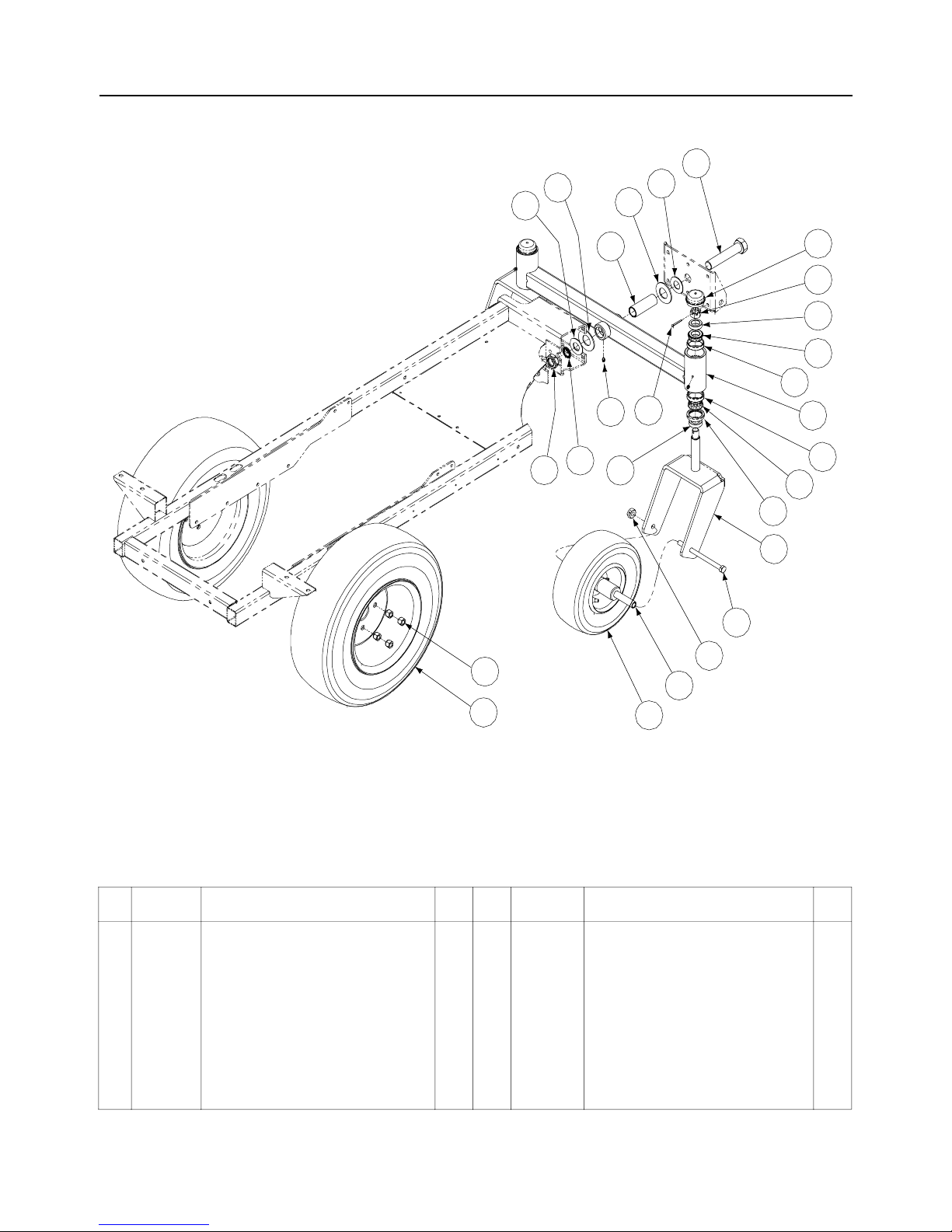

48" Wheel Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Lift Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 and 19

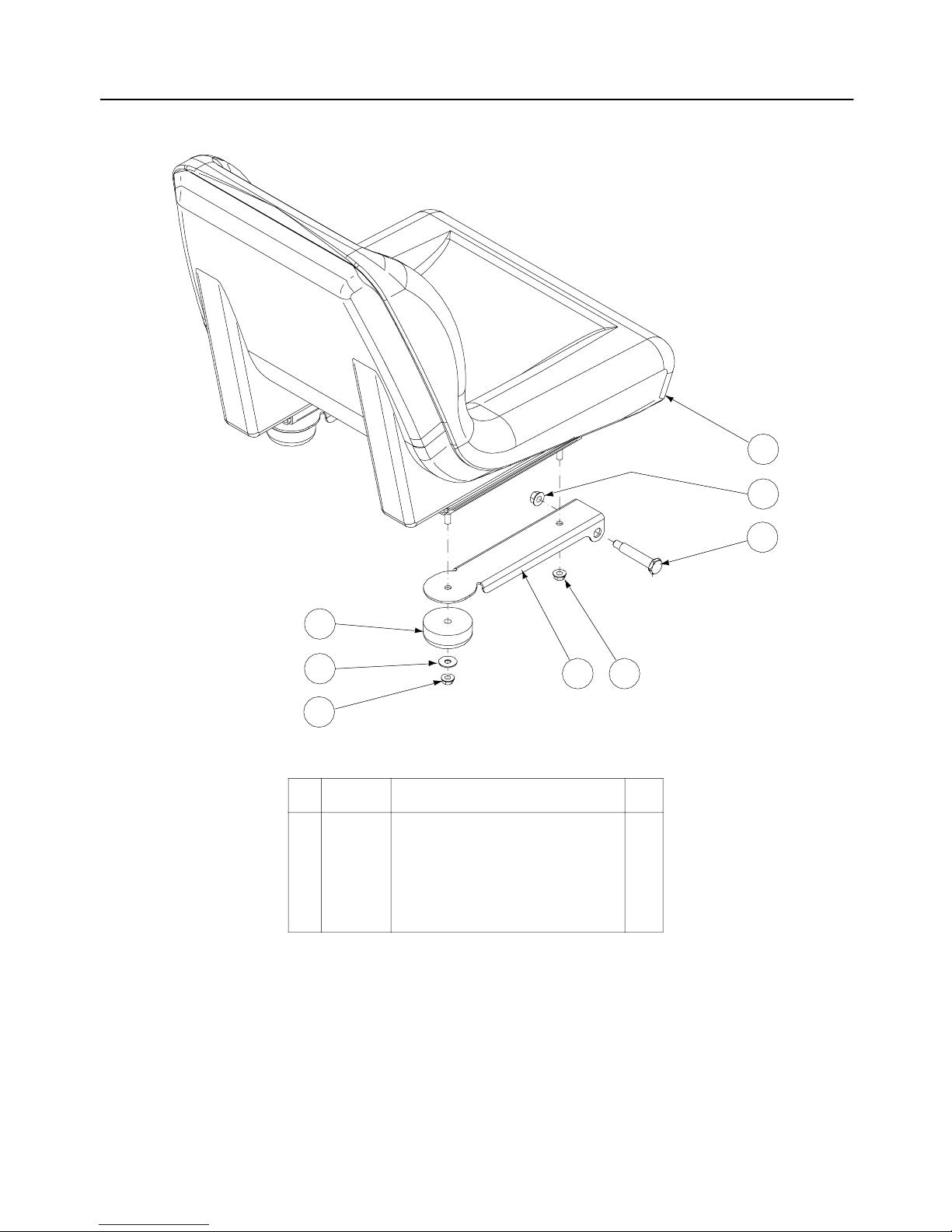

Seat Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
MODEL LISTED IN THIS MANUAL
23HP Tank,
53AI5BBY750

3
Frame Assembly- Figure 1 and Parts List
Ref.
No. Part No. Description Qty.
1 00022560 Flange Lock Hex Nut, 3/8-16 8
2 01000372 Carriage Bolt, 3/8-16 x .75 Lg 8
3 01000635 Hex Flange Lock Nut, 5/16-18 2
4 01008225 Push Retainer, 3/8 8
5 01008620 Self Tapping Screw 5/16-18 x .750 2
6 01008722 Self Tapping Screw 3/8-16 x .875 8
7 02000214 Frame Assembly 1
8 02000374 Foot Rest Bracket 1
9 02000670 Abrasive Pad 1
10 02000825 Front Axle Bracket Assembly 1
67
3
9
5
1
2
4
10
1
8
GD: 02000202-12/22/04

4

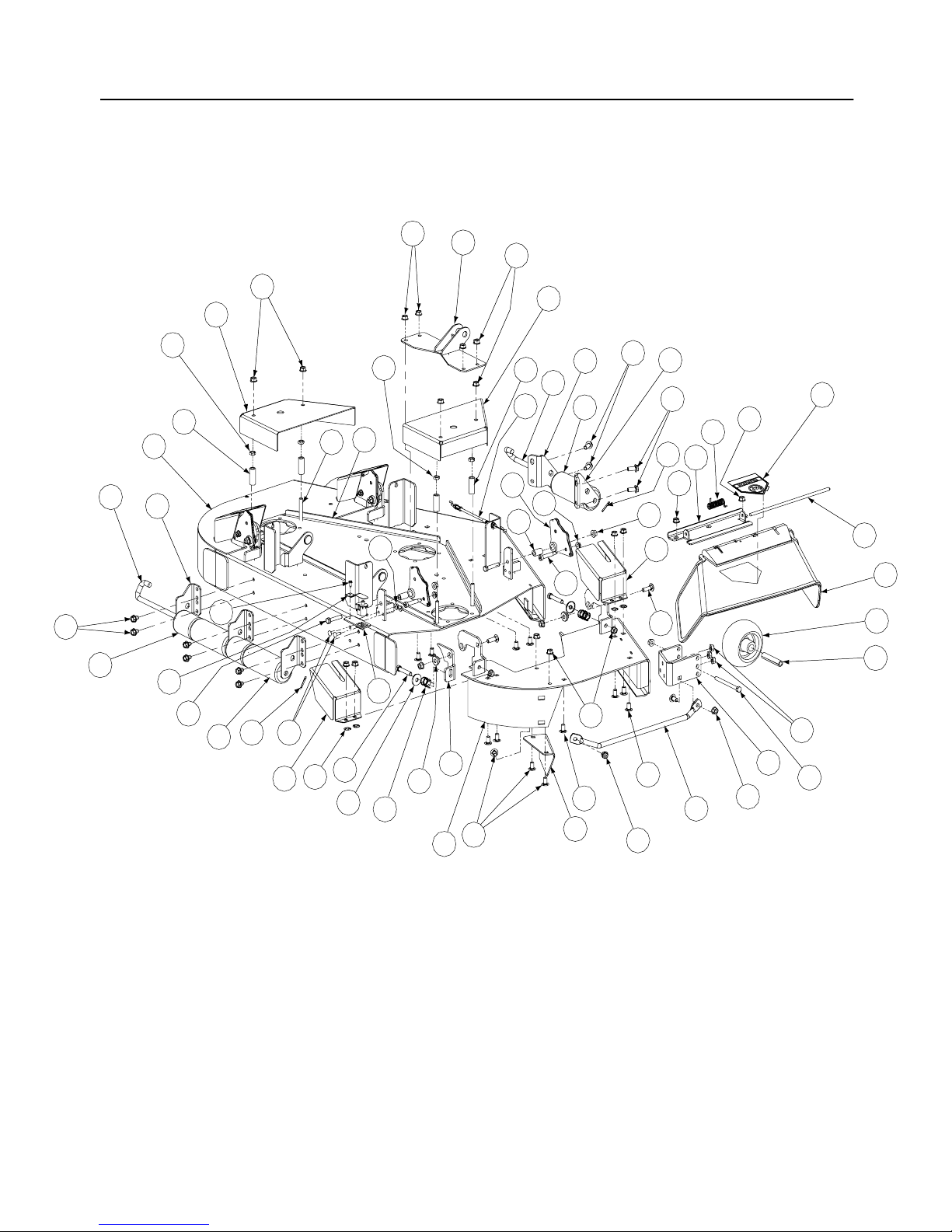

48" Fold Fabricated Cutter Deck - Figure 2
7
38
7
47
34
5
7
5
5
27
3
5
10
6
30
21
16
49
17
5
20
31
5
5
2
35
29
35
9
36
51
45
12
28
8
48
18
5
42
546
18
5
43
52
52
22 41
39
24
25
23
14
15
32
11
92 4
49
44
1
13 26
50
40
19
33
GD: 02000299-02/01/05

5
48" Fold Fabricated Cutter Deck - Parts List for Figure 2
Ref.
No. Part No. Description Qty.
1 00002528 Hex Cap Screw 3/8-16 x 2.00 4
2 00003107 Cotter Pin, .125 Dia. x 1.0 2
3 00011925 Hex Cap Screw, 3/8-16, 3.75 2
4 00017584 Carriage Bolt, 1/4-20 x .750 4
5 00022560 Hex Nut Flange Lock, 3/8-16 42
6 01000343 Complete Wheel, 5.00 Dia 2
7 01000372 Carriage Bolt, 3/8-16 x .75 Lg 24
8 01000375 Roller Pin, 1/2 Dia x 7.31 Lg 1
9 01000385 Front Roller 3
10 01000398 Wheel Spacer 2
11 01000512 Hex Cap Screw, 3/8-16 x 1.750 4
12 01000635 Hex Flange Lock Nut, 5/16-18 4
13 01000872 Flat Washer, .411 x 1.25 x .100 4
14 01001169 Roller 2
15 01001864 Screw, TT, 10-24, .5 2
16 01002010 Carriage Screw, 3/8-16 x 1.25 4
17 01002166 Decal, Danger Hands and Feet 1
18 01003245 Spacer, .39 x .625 x 2.75 4
19 01002766 Nut, 1/4-20, Hex Flange Lock 4
20 01003253 Torsion Spring, 0.4 ID x 2.16 LG 1
21 01003254 Chute Deflector Rod 1
22 01008049 Carriage Bolt, 3/8-16, 4.0 4
23 01004304 Hex Index Washer Screw, 3/8-16, .05 6
24 01005364 Fabricted Deck Roller Mount Bracket 3
25 01004751 Roller Rod 1
26 01004971 Lift Handle Spring 4
27 01005260 Front Anti-Scalp Wheel Mount Bracket 2
28 01005256 Left Hand Front Roller Mount Bracket 1
29 01005258 Right Hand Front Roller Mount Bracket 1
30 01006693 Deflector Chute 1
31 01008226 Chute Deflector Bracket 1
32 01008042 Spring Retainer 2
33 01008225 Push Retainer, 3/8 8
34 01008644 Fabricated Deck Finger Guard 1
35 01009243 Self Tapping Screw, 3/8-16 x 0.875 4
36 01009459 Shoulder Bolt 3/8 x 1.50 4
37 01009957 Fab Fold Deck Weldment 1
38 01009967 Fab Fold Wing Weldment, RH 1
39 01009976 Fab Fold Wing Weldment, LH 1
40 01010123 Pull Fold Hinge Lock 4
41 01010131 Deck Stiffener 1
42 01010137 Belt Cover, RH 1
43 01010139 Belt Cover, LH 1
44 02000148 Handle Control Bracket 2
45 02000152 Lift Cable Bracket Weldment 4
46 02000267 Front Lift Bracket Weldment 1
47 02000381 Chute Baffle 1
48 02000389 Lift Cable 4
49 02000625 Lift Wing Shield 4
50 02000637 Spacer, 1.00 x .38 x .63 4
51 02000692 Pivot Spacer 4
52 01002511 Nut, 3/8-16, Jam 4

6
48" Fold Fabricated Deck Spindle Assembly - Figure 3
4
29
28
34 7
8
15
17
6
38
2
13
1
14
7
37
10
26
8
30
23
25
14
31
27
7
16 16
7
22
26
14
38
6
18
8
32
16
3
9
11
224 7
16
5
16
21 20
19
7
12
28
36
Thick Side of Hub
Faces Upward on
All Spindle Pulleys
33
35
39
23
23
38
GD: 02000298-01/19/05

7
48" Fabricated Deck Spindle Assembly - Parts List for Figure 3
Ref.
No. Part No. Description Qty.
1 00005763 Hex Nut, 7/16-14 1
2 00006131 Hex Nut 3/8-16 2
3 00011438 Hex Cap Screw, 3/8-16 x 1-1/2 1
4 00011444 Hex Cap Screw, 3/8-16 x 1-1/4 6
5 00011925 Hex Cap Screw, 3/8-16, 3.75 1
6 00013116 Hex Cap Screw, 5/16-18 x 1-1/4 12
7 00022560 Hex Nut, 3/8-16, Lock Flange 11
8 00060078 Grease Fitting, 1/4-28 x 3/16 3
9 01000199 Spring Extension, 1.0 OD x 5.125 1
10 01000302 Shoulder Screw, 7/16-14 1
11 01000364 Hex Carriage Screw, 3/8-16, 1.75 1
12 01000380 Hex Flange Nut, 3/4-16 3
13 01000389 Lock Washer, 7/16 1
14 01000392 Flat Washer, .781 ID, 2.00 OD, .105 3
15 01000393 Flat Washer, .469 ID, .875 OD, .105 1
16 01000723 Flat Washer, .406 ID, 1.0 OD, .105 6
17 01002010 Carriage Screw, 3/8-16 x 1.25 1
18 01003245 Spacer, .39 ID x .625 OD x 2.75 1
19 01003269 Flat Washer, 7/16 ID x 1.75 OD x .25 1
20 01005737 Idler Arm Assembly, Deck Spindle 1
01000308 Bearing 2
21 01004081 Flat Pulley with Flanges 1
22 01004101 Idler Pulley, 4.06 OD w/Deep Flange 1
23 01004187 Flat Washer, .760 ID x 1.50 OD x .25 3
24 01000369 Hex Cap Screw, 3/8-16 x 1-1/4 1
25 01005202 V-Pulley, 4.75 OD 1
26 01005213 Hex Cap Screw, 3/4-16, 7.00 2
27 01008542 Hex Cap Screw, 3/4-16, 7.50 1
28 01010127 Blade, Short Fold 6
29 01010132 Blade Center Connector 3
30 02000154 V-Belt, A-Section 1
31 02000277 V-Belt, B-Section 1
32 02000818 Idler Arm Weldment 1
01000308 Bearing 2
33 02000792 Spindle Assembly 3
34 02000796 Blade Upper Mount Plate 3
35 02000798 Blade Spacer 3
36 02000799 Spacer, .385 ID x .625 OD x .25 6
37 732-3067 Idler Torsion Spring 1
38 02000859 V-Pulley, 4.60 OD 3
39 01000635 Hex Nut, 5/16-18, Lock Flange 12

8
Drive Assembly - Figure 4
5
8
13
12
37
28
30
11
19
To Left
Pump
22
18
To Right
Pump
26
38
5
27
1
7
21
34
To Right
Pump
7
32
34
21
To Left
Pump
33
21
7
20
29
25
6
726
2
17
15
36
16
9
10
14
5
31
24
31
3
23
31
2
35
4
Pilot &Drain Systems
Drive System
Bypass Pump Valve Detail
(Typical Both Pumps)
40 39 41
42
24
GD: 02000204-01/20/05

9
Drive Assembly - Parts List for Figure 4
Ref.
No. Part No. Description Qty.
1 00012133 Hex Cap Screw, 1/4-20 x 1/2 2
2 00012288 Fitting 1/2 x 3/4 - O Ring 4
3 00012426 Fitting 1/2 x 3/4 - O Ring to Flare 4
4 00012428 Lock Nut, Nylon Insert, 1/2-13 8
5 00022560 Flange Lock Hex Nut, 3/8-16 12
6 02000821 Cap, Hydro Oil Tank 1
7 01000215 Hose Clamp 9
8 01000872 Flat Washer, .411 x 1.25 x .100 4
9 01000942 Bell Washer, .396 x 1.14 x .095 2
10 01002010 Carriage Screw, 3/8-16 x 1.25 4
11 01002602 Elbow Fitting, 3/8 x 3/8 1
12 01002750 Carriage Bolt, 3/8-16 x 3.5 Lg 4
13 01003789 Bar Weight 2
14 01006799 Hydro Pulley Pump 2
15 01006948 Motor Plate 2
16 01007309 Hex Nut, 3/8-24 2
17 01008036 Socket Head Capscrew, 1/2-13; 2-3/4 8
18 02000194 Hose Assembly Inlet Pump 1
19 02000195 Hose Assembly Inlet Connector 1
20 02000197 Drain Hose, 3/8 1
21 02000198 Fitting, 90 Degree O-Ring 4
22 02000199 Tee Fitting, O-Ring 1
23 02000228 Hydro Pump. RH 1
24 02000229 Hydro Pump, LH 1
25 02000263 Hydro Tank Weldment 1
26 02000271 Engine Mount Weldment 1
27 02000276 Filter Head 1/2 1
28 02000294 Elbow Fitting, Tube Steel 1
29 02000295 Elbow Fitting, w/o Tube Steel 1
30 02000296 Grommet Fitting, .54 ID x .78 OD 2
31 02000297 Pressure Hose Assembly 4
32 02000382 Tee Fitting 1
33 02000383 Hose, 3/8 1
34 02000384 Hose, 3/8 2
35 02000391 Hyd. Motor, White Right Hand 1
36 02000392 Hyd. Motor, White Left Hand 1
37 02000773 Deck Plate 2
38 01000372 Carriage Bolt, 3/8-16 x 0.75 4
39 02000693 Bypass Pump Adaptor Assembly 1
40 00012152 LockNut, 1/4-20, Nylon Insert 2
41 00019962 Socket Head Capscrew, 1/4-20 x 2-1/2 2
42 02000863 Roll Pin, .25 x .875 2

10

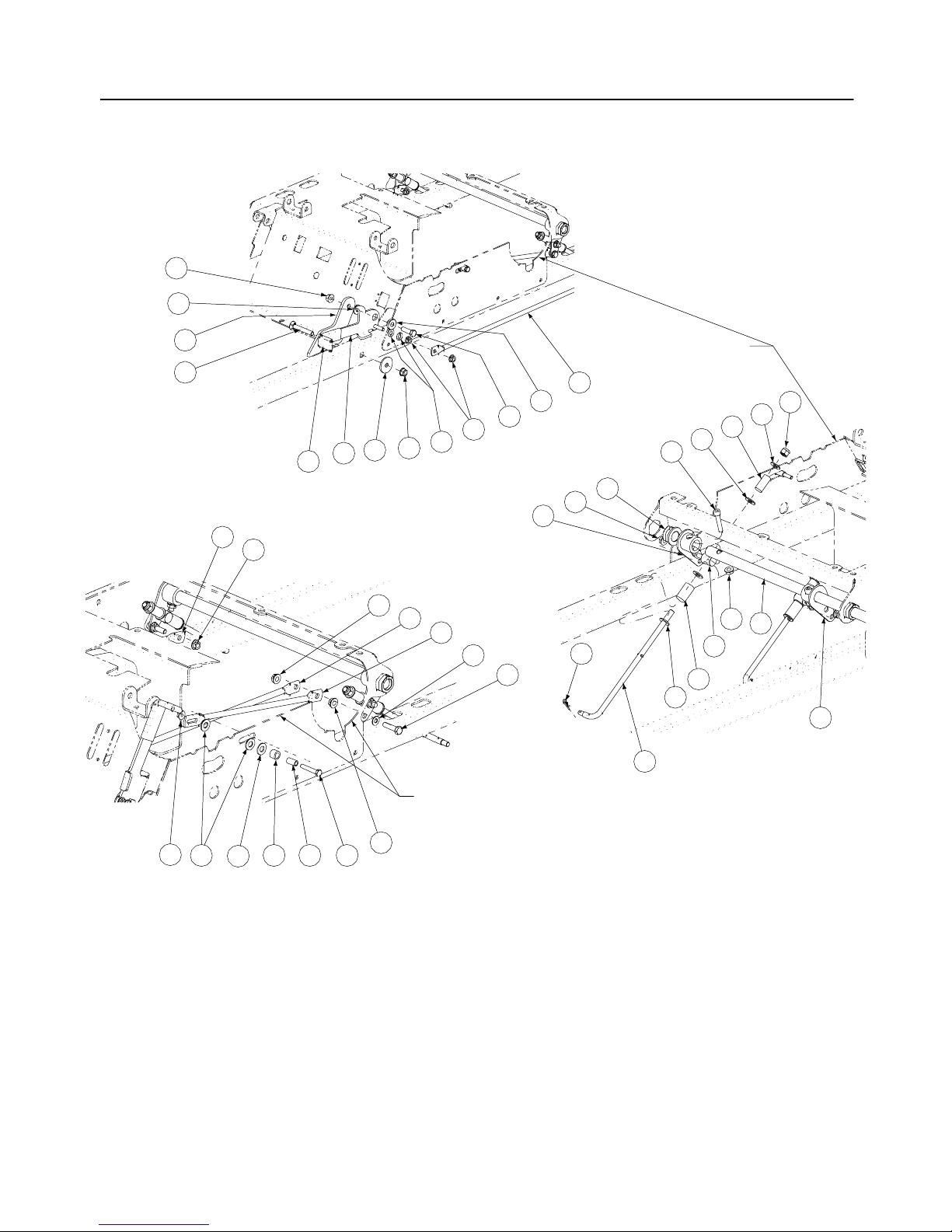

Brake Assembly - Figure 5
12
27
7
7
18
31
9
11 28
29
13 1425 30 3
9
29
26
9
8
6
26
9
Control Housing Shown
Cut Away for Clarity
in All Views
14
24
4
15
17
9
22
23
9
21
32
4
16
4
19
5
Control Housing Shown
Cut Away for Clarity
in All Views
10
2
20
GD: 02000208-01/24/05

11
Brake Assembly - Parts List for Figure 5
Ref.
No. Part No. Description Qty.
1 00005530 Flat Washer, 3/8 Nylon 4
2 00009812 Flat Washer, 5/16 2
3 00011446 Cap Screw, 1/4-20 x 1.50, Grade 5 2
4 00012158 Washer 10
5 00012173 Nylock Insert Lock Nut, 3/8-16 2
6 00013116 Hex Cap Screw, 5/16-18 x 1-1/4 2
7 00022560 Hex Nut, Flange Lock, 3/8-16 2
8 01000600 Flat Washer, 1.4 x .630 x .0515 2
9 01000635 Nut, Lock, HexFlange, 5/16-18 10
10 01000391 Flat Washer, .385 ID x .870 OD x .092 1
11 01001714 Control Sleeve, Drive Black 1
12 01001928 Carriage Bolt, 3/8-16, 2.50 1
13 01002766 Nut, 1/4-20, Hex Flange Lock 2
14 01002771 Cotter Pin, .072 x 1.12 Lg 2
15 01003574 Neutral Brake Spring 2
16 01008600 Socket Head Capscrew, 5/16-18 x 1.50 2
17 01009219 Pivot Brake Joint 2
18 01009253 Washer, 5/16-18 1
19 01009333 Spacer, .625 OD x .390 ID x 1.2 2
20 738-0372B Spacer, 1.0 x .38 x .38 1
21 02000283 Input Brake Arm Assembly 1
22 02000285 Output Brake Arm Assembly 1
23 02000286 Pivot Brake Shaft 1
24 02000287 Steering Brake Rod 2
25 02000622 Spacer, .380 x .563 x .405 Lg. 2
26 02000623 Steering Lock Rod 2
27 02000628 Brake Handle Mounting Plate 1
28 02000633 Brake Handle Assembly 1
29 02000634 Brake Link Rod 1
30 02000697 Spacer, .259 x .375 x .707 Lg. 2
31 01000369 Hex Cap Screw, 2/8 -16 x 1.25 1
32 741-0598 Hex Flange Bearing, .752 ID 2

12

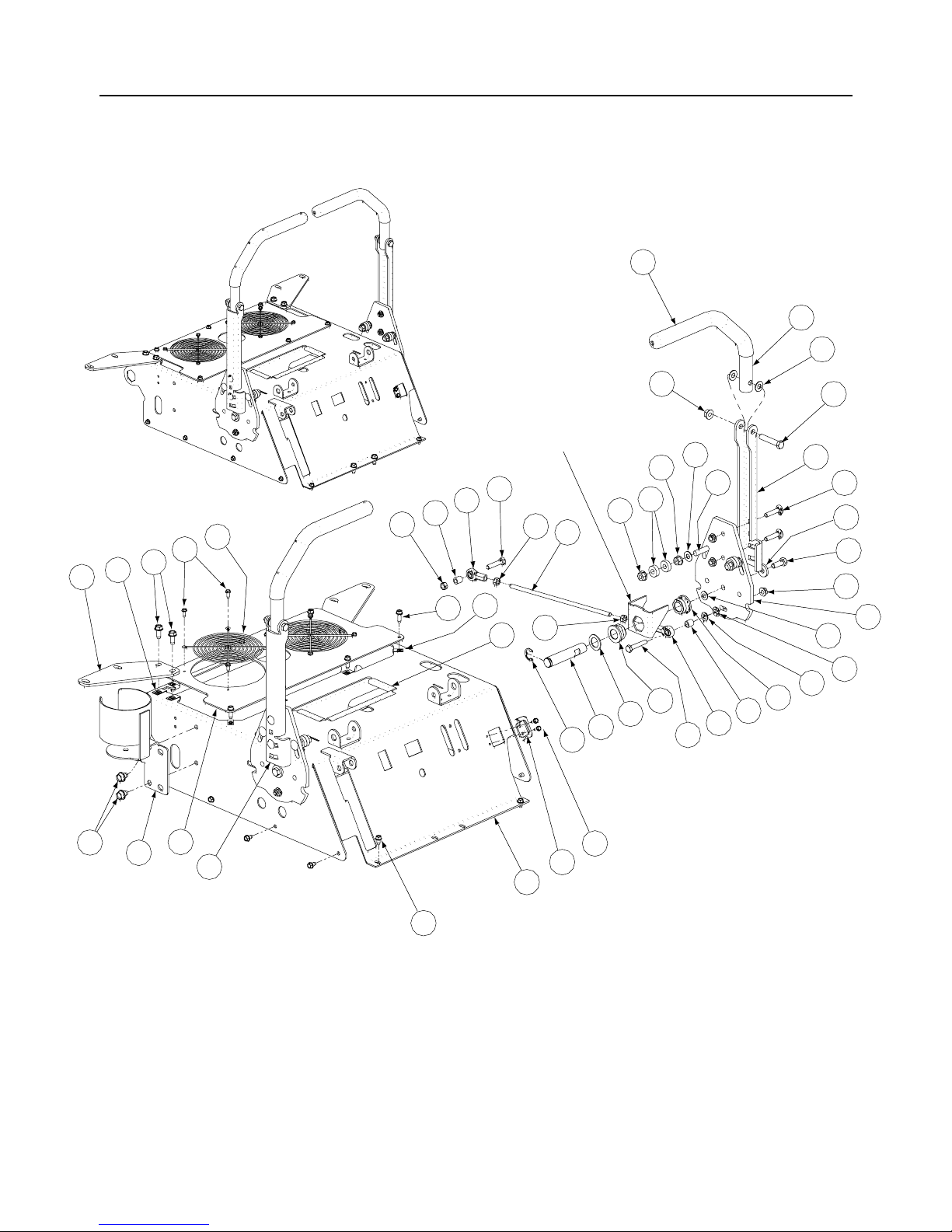

Control Assembly- Figure 6
13
29
34
17
19
30
41
42
2
21
16
42
3
4
33 18 28
17
36
39
37
25
22
14
916
23 8
35
26
6
24
32
5
1
38
40
7
20
15
31
This Item Part of
02000236 - Shown
Exploded for Clarity
10
10 12
44
11
43
27
5
45
GD: 02000205-01/12/05

13
Control Assembly - Parts List for Figure 6
Ref.
No. Part No. Description Qty.
1 00002528 Hex Cap Screw, 3/8-16 x 2 2
2 00006129 HHCS, 5/16-18, 1-3/4 2
3 00009812 Flat Washer, 5/16 2
4 00011075 Flat washer, 5/16 Zinc 2
5 00012158 Washer 8
6 00012167 Hex Nut, 5/16-24 2
7 00012171 Hex Cap Screw, 3/8-16 x 1.00 2
8 00012382 Hex Cap Screw, 5/16-18 x 1-1/2 2
9 00022547 Nut, 5/16-18, Center Lock 2
10 00022560 Flange Lock Hex Nut, 3/8-16 6
11 00014270 Carriage Bolt 3/8-16 x 2.00 4
12 00071691 Spacer, Control Rod 8
13 01000628 Screw, TT, 1/4-20, 0.5, Hex Index Washer 10
14 01000629 Screw, TT, 1/4-20, 0.75, Hex Index Washer 7
15 01000635 Nut, Lock, HexFlange, 5/16-18 6
16 01000799 Spacer, .265 x .500 x .562 4
17 01001864 Screw, TT, 10-24, .5 10
18 01003563 U-Nut, 5/16-18 4
19 01003994 E Clip, 3/4 Dia. 2
20 01007238 Flat Washer, .385 ID x 1.00 OD x .145 2
21 01008410 Rod End, 5/16, Right Hand 2
22 01008539 U-Nut, 1/4-20 7
23 01008551 Rod End, 5/16, Left Hand 2
24 01008552 Lap Bar Grip 2
25 01008572 Battery Edge Trim 3
26 01008576 Hex Nut, 5/16-24, Left Hand 2
27 01004304 Self Tapping Screw, 5/16-18 x 1/2 2
28 01008764 Hex Washer Screw 5/16-18 x .750 4
29 02000237 Control Housing Assembly 1
30 02000238 Steering Input Shaft 2
31 02000241 Steering Pivot Plate 2
32 02000327 Pivot Handle Control Tube 2
33 02000330 Tank Front Mounting Plate 2
34 02000124 Brake Switch Mounting Bracket 1
35 02000359 Steering Link Rod 2
36 02000372 Fan Cover 2
37 02000647 Hydro Service PLate 1
38 02000662 Lapbar Pivot Bracket, LH 1
39 02000664 Lapbar Pivot Bracket, RH 1
40 710-0262 Carriage Bolt, 5/16-18 x 1.50 4
41 736-0287 Flat Washer, .793 ID x 1.24 OD x .060 2
42 741-0598 Hex Flange Bearing, .752 ID 4
43 02000340 Cup Holder Assembly 1
44 00006131 Hex Nut, 3/8-16 4
45 02000300 Push Retainer, 5/16 2

14
23HP Kohler Engine Assembly - Figure 7
37
38
39
28
31
34
22
32
21
30
33
26
2
35
26
23 14
4
11
13
25
7
29
12
5
17
8
9
3
1
24
36
Mounted to
Engine Bracket
Here
26
16
Idler Explosion
1/4" Fuel Line
Hose 27" Long 20 28
See Idler
Explosion
19
18
10
1/4" Fuel Line
Hose 12" Long
Fuel Filter Supplied
with Engine
1/4" Fuel Line
Hose 27" Long
1/4" Fuel Line
Hose 12" Long
GD: 02000203-11/30 /04
Description Part Number
Air Filter
Pre Filter
Fuel Filter
Oil Filter
Spark Plug

15
23HP Kohler Engine Assembly - Parts List for Figure 7
Ref
No Part No. Description Qty.
1 00005763 Hex Nut, 7/16-14 1
2 00006129 HHCS, 5/16-18, 1-3/4 4
3 00010980 Hex Head Cap Screw, 3/8-16 x 1.50 1
4 00012157 Lock Washer, 3/8 8
5 00012226 Grease Fitting, 90° 1
6 -- Hose, 1/4" Fuel Line in inches 78
7 00012235 Clamp, Union 8
8 00022560 Nut, Hex 3/8-16 Flange Lock 1
9 00030782 Idler Pulley w/ Adaptor 1
10 00031081 Clamp, 1/2 Tubing 1
11 00083192 Idler Washer 8
12 01000069 Fuel Cap, 3.5 2
13 01000281 Grommet, Fuel Tank 2
14 01000368 Hex, Cap Screw, 3/8-16, .88 2
15 02000427 23HP Kohler Engine 1
16 01000393 Flat Washer, .469 ID, .875 OD, .105 1
17 01000505 Shoulder Bolt 1
18 01000600 Flat Washer, 1.4 x .630 x .0515 1
19 01000628 Screw, TT, 1/4-20, 0.5, Hex Index Washer 1
20 01000635 Nut, Lock, HexFlange, 5/16-18 1
21 01000737 Trans Drive Pulley 4
22 01000811 Screw, 8-32 x 0.375 1
23 01000813 Hex Head Cap Screw, 7/16-20 x 3.00 2
24 01002874 Extension Spring, .865 OD x 4.68 lg 1
25 01003116 Fuel Pickup Fitting 1
26 01003269 Flat Washer, 7/16 ID x 1.75 OD x .25 2
27 01003283 Oil Drain Hose 2
28 01003473 Tee Fitting, Fuel 1
29 01004350 Fuel Tank 1
30 01005010 V Belt, A Section x 47.3 2
31 01006566 23HP Kohler Exhaust 1
32 01007533 Key, 1/4 x 1/4 x 2.75 1
33 01008544 Clutch Electric, Ogura JD08 1
34 01008623 Straight Exhaust Pipe 1
35 01008640 Clutch Retainer Assembly 1
36 01009911 Idler Arm Assembly 1
37 02000387 Throttle Control Cable 1
38 02000388 Choke Control Cable 1
Note: Engine Oil 10W40 by the Gallon

16
23HP Electrical Assembly Kohler - Figure 8 & Parts List
Ref.
No. Part No. Description Qty.
Ref.
No. Part No. Description Qty.
1 00012470 Cable Tie, 3/16 x .05 x 7.4 4 11 01008028 Snap Mounting Switch, NO 2
2 00013258 Boot, 1" OD Rubber Battery-PST, Red 1 12 01009905 PTO Switch Bracket 1
3 00032097 Nut, W/Cap, 5/8-32 Ignition 1 13 01009931 U-Nut, #10-16 2
4 01000628 Screw, TT, 1/4-20, 0.5, Hex Index Washer 2 14 02000024 Switch, Safety N.O./N.C. 1
5 01001811 HourMeter Harness, (not shown) 1 15 02000279 Battery, Small 12CE18 1
6 01001864 Screw, TT, 10-24, .5 2 16 02000386 Harness Assembly, (not shown) 1
7 01002111 Switch, Electric, PTO 1 17 02000390 Actuator Harness Assembly, (not shown) 1
8 01003277 Normally Closed Seat Switch 1 18 02000683 Cable, Battery, Black, 28" 1
9 01003581 Switch, Ignition, 6 Pin 1 19 02000684 Cable, Battery, Red, 28" 1
10 01005389 Meter, Hour 1
8
4
15
19
13
18
11
17
6
14
7
3
9
10
Console Shown
Cut Away for Clarity
2
12
GD: 02000207-12/20/04

17
48" Wheel Assembly - Figure 9 and Parts List
Ref.
No. Part No. Description Qty.
Ref.
No. Part No. Description Qty.
1 00012187 Lug Nut, 1/2-20 8 12 01004128 Wheel Spacer 2
2 00023287 Nut, 1/2-20, Center Lock 2 13 01006294 Bell Washer, 1.25 ID 2
3 00060078 Grease Fitting 3 14 01006309 Hex Cap Screw, 1-14 x 5.0 1
4 01000678 Nut, Jam, 1.0-14, Insert Lock 1 15 01006347 Grease Cap, 1.986 OD 2
5 01002611 HHCS, 1/2-20, 7.00 2 16 01006559 Wheel Assembly, 11 x 4-5.00 2
6 01002620 Cup Bearing 4 17 01009997 Retainer Extension, Self Locking 1
7 01002621 Bearing Cone 4 18 02000250 Straight Front Axle 1
8 01002622 Seal 2 19 02000274 Wheel, 21 x 7-10 2
9 01002624 Ring Seal 4 20 02000588 Flat Washer, 1.00 ID 2
10 01002626 Slotted Nut, 3/4-16 2 21 02000589 Spacer, 1.005 ID x 1.25 OD x 3.6 1
11 01002627 Cotter Pin, 5/32, 1.25 2 22 02000784 Yoke, Caster Wheel 2
19
1
16
12
2
5
22
417
3
9
8
7
6
18
6
7
9
10
15
20
13
21
13
20
14
11
GD: 02000210-12/20/04

18
Lift Assembly - Figure 10
19
31
17
535 5
21
30
28
13
32
42
3
42
38
18
31
43
25
Front & Rear Lift Arm
Explosion
4
7
37
7
14
3
33
27
16
23
10
36
24
11
15
34
3
36
12
34
26
3
Rock Shaft & Index
Explosion
41
Wing Actuator Explosion
42 20
3
25
6
45
42
20
39
8
1
44
29 40
9
22
9
2
8
GD: 02000206-01/14/05

19
Lift Assembly
- Parts List for Figure 10
Ref.
No. Part No. Description Qty.
1 00012382 Hex Cap Screw, 5/16-18 x 1-1/2 1
2 02000877 Cable Bracket 1
3 00022560 Flange Lock, Hex Nut, 3/8-16 11
4 00030276 Carriage Bolt 3/8-16 x 1.50 2
5 00060018 Cotter Pin, 3/16 x 1-1 2
6 00071691 Spacer, Control Rod 6
7 00072586 Washer 2
8 01000635 Nut, Lock, HexFlange, 5/16-18 10
9 00013733 Shoulder Bolt, 3/8 x 3/8 6
10 01001928 Carriage Bolt 3/8-16 x 2.50 1
11 01003537 Cotter Pin, .148 x 3.00 1
12 01004118 Shoulder Screw, .50 OD x 0.27 1
13 01007526 Jam Nut, 5/8-18 1
14 01007561 Lift Handle Grip 1
15 01008049 Carriage Bolt, 3/8-16 x 4.00 1
16 01008477 Lift Hub Assembly 2
17 02000833 Upper Link Lift Assembly, Left Hand 1
18 01008183 Lower Lift Bracket, Left Hand 1
19 01008186 Link Lift PLate, Right Hand 1
20 01008203 Clevis Pin, .500 Dia. x 1.75 Lg. 2
21 01008530 Hex Cap Screw, 5/8-18 x 2.00 1
22 00020508 Carriage Bolt, 5/16-18 x .75 4
23 01008620 Self Tapping Screw, 5/16-18 x 3/4 4
24 01008652 Clevis Pin, .438 Dia. x 2.625 Lg. 1
25 01008658 Jam Nut, 1/2-20 2
26 01009253 Washer, 5/16-18 3
27 01009635 Extension Spring, .98 OD x 5.00 2
28 01010140 Washer, 5/8 1
29 01003563 U-Nut, 5/16-18 1
30 02000254 Lift Front Arm Assembly 1
31 02000273 Rear Lift Arm 2
32 02000293 Rod End, 5/8, RH 1
33 02000336 Lift Shaft Assembly 1
34 02000337 Spacer, .375 x .5 x 1.176 Lg. 2
35 02000350 Front Lift Rod 1
36 02000352 Lift Index Plate 2
37 02000472 Lift Handle Assembly 1
38 02000485 CLevis Pin, 5/8 Dia. 1
39 02000849 Actuator Mounting Bracket 1
40 02000852 Cable Mounting Bracket Assembly 1
41 02000660 Actuator 1
42 02000673 Hair Pin 5
43 02000393 Shoulder Screw, 3/8-16, .56 x .27 4
44 00012166 Hex Nut, 5/16-18 1
45 00012158 Flat Washer, 3/8 4

20
Seat Assembly- Figure 11 and Parts List
Ref.
No. Part No. Description Qty.
1 00022560 Flange Lock Hex Nut, 3/8-16 2
2 01000635 Hex Flange Lock Nut, 5/16-18 4
3 01000960 Belle Washer, .325 x .930 x .045 2
4 01002634 Shoulder Screw, .50x2.345, 3/8-16 2
5 01002753 Grommet, 2.5 OD x 1.0 Long 2
6 01008583 Seat Mounting Bracket 2
7 02000244 Seat 1
2
3
5
6 2
4
1
7
GD: 02000211-11/17/04
