Cubicam Eagle Eye User manual

~ 1 ~
\
User Manual

~ 2 ~
—————————— Catalog ——————————
Main Feature .................................................................................................................................... 4
Install and Use.................................................................................................................................. 5
Camera body buttons.................................................................................................................. 5
Remote controller ....................................................................................................................... 6
Install Battery ............................................................................................................................ 7
Close back cover......................................................................................................................... 7
Install Memory Card.................................................................................................................... 8
Install waterproof housing ........................................................................................................... 9
Install the Mounts..................................................................................................................... 10
Video record and Capture .......................................................................................................... 11

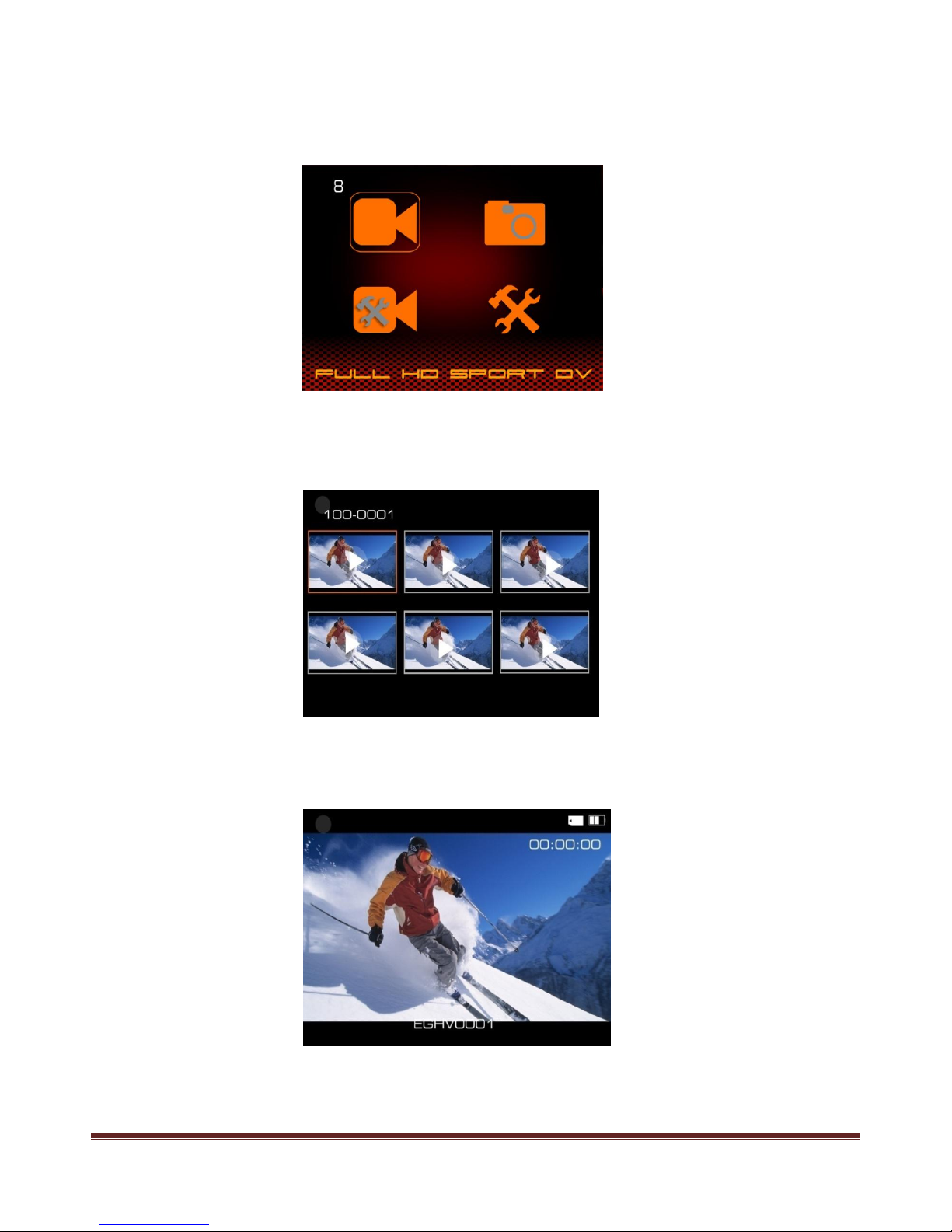

Video Playback ......................................................................................................................... 12

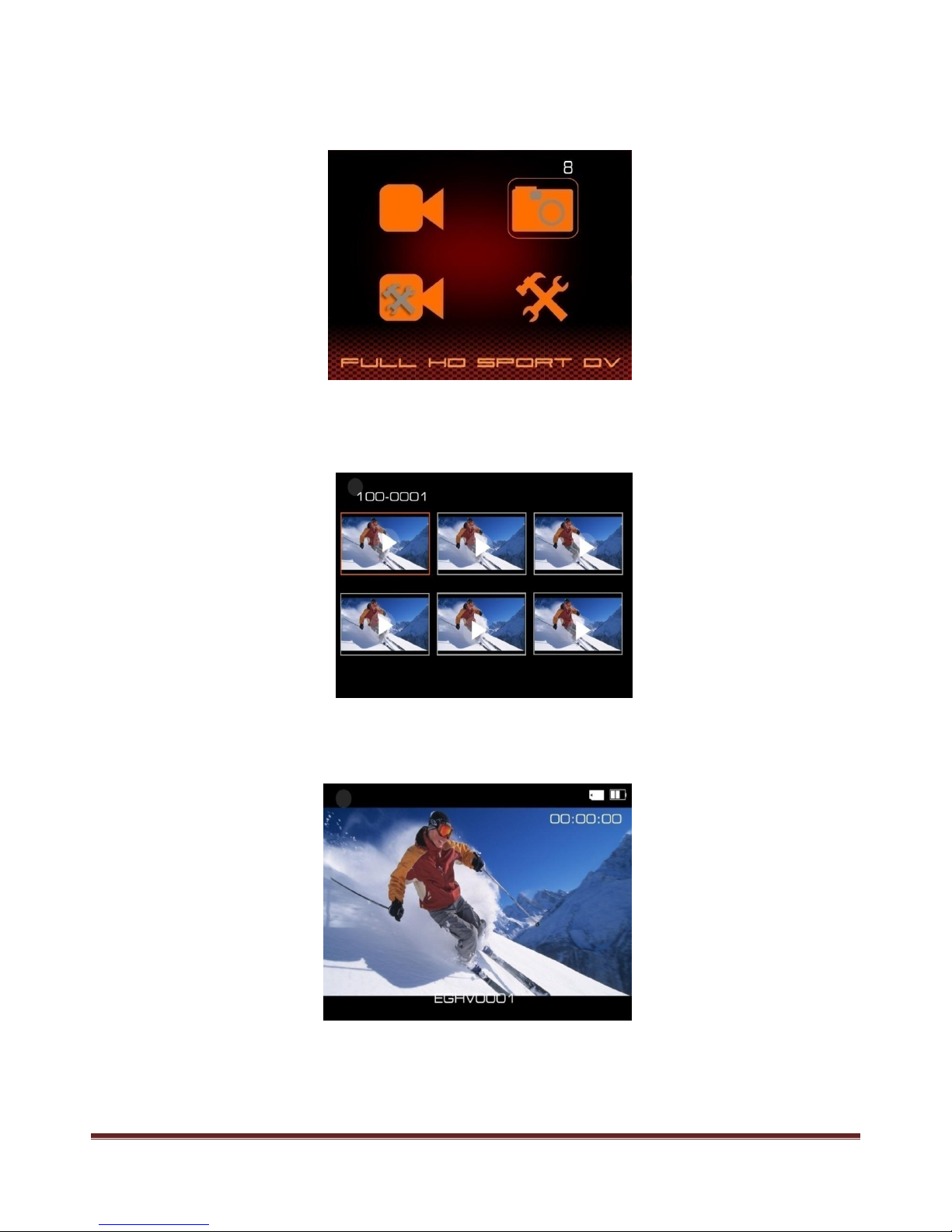

Browse Pictures........................................................................................................................ 13
Delete files............................................................................................................................... 14

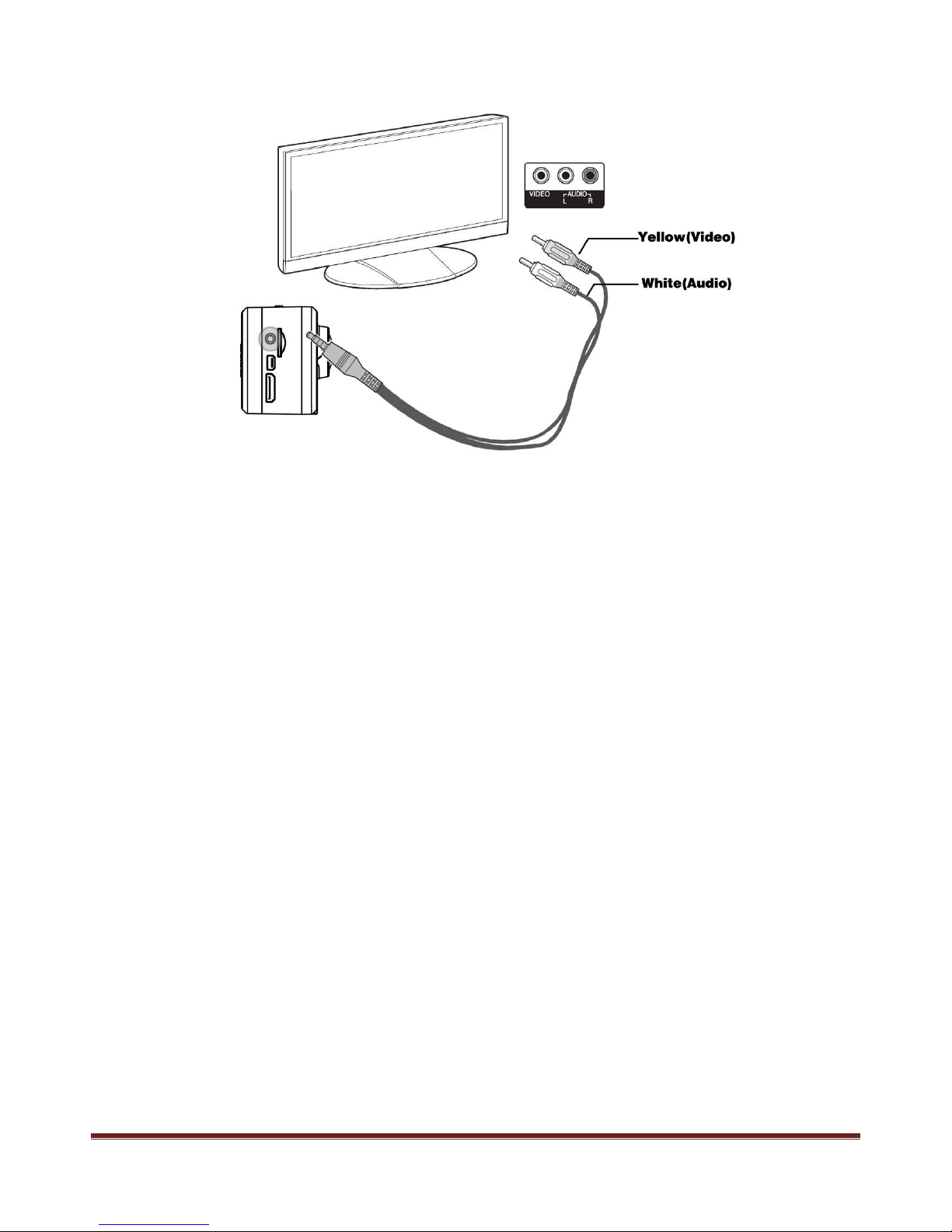

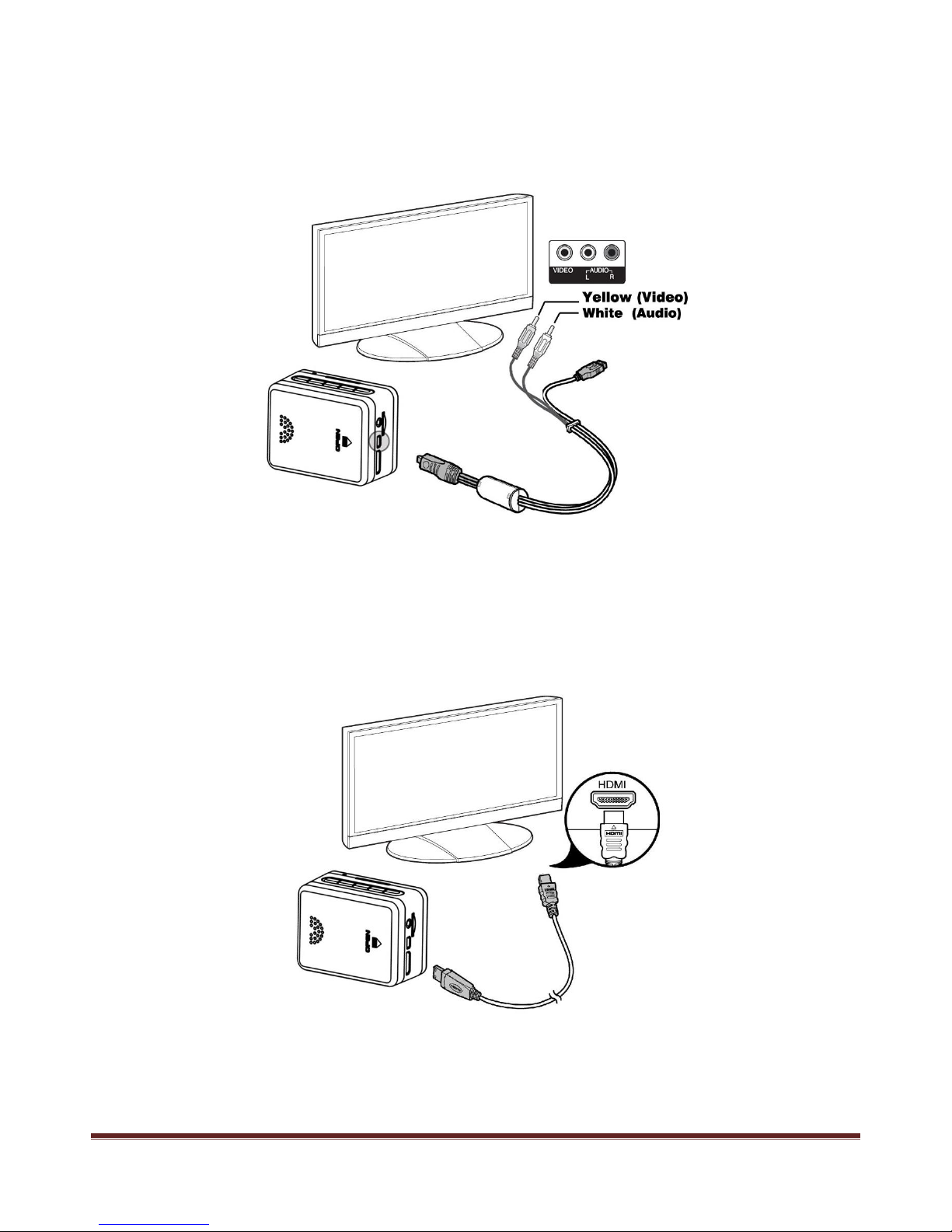

Connect to Television................................................................................................................ 15
Connect with Computer ............................................................................................................. 17
Battery Power Charge...................................................................................................................... 18
Charge by computer ................................................................................................................. 18
Full charge time and Using time ................................................................................................. 19
Battery Icon instruction ............................................................................................................. 19
System Menu.................................................................................................................................. 20
Booting picture & screen instuction............................................................................................. 20
Icon on Screen ......................................................................................................................... 20
Main Menu............................................................................................................................... 21
Record Setting ................................................................................................................................ 22
Record Mode............................................................................................................................ 22
Loop Record............................................................................................................................. 26
Video Resolution....................................................................................................................... 27
Record Content ........................................................................................................................ 28
Time Stamp ............................................................................................................................. 29

~ 3 ~
Photo Size................................................................................................................................ 30
Continuous Shot ....................................................................................................................... 31
Self-Timer................................................................................................................................ 31
System Setting................................................................................................................................ 32
Language Setting...................................................................................................................... 32
Date & Time Setting.................................................................................................................. 33
Image Flip ............................................................................................................................... 35
Light Frequency........................................................................................................................ 36
Auto Power OFF ....................................................................................................................... 37
Auto Screen OFF....................................................................................................................... 38
Volume.................................................................................................................................... 39
Format .................................................................................................................................... 40
Reset....................................................................................................................................... 42
Firmware Update ...................................................................................................................... 43
Version .................................................................................................................................... 45
Specifications.................................................................................................................................. 46
在使用前详细阅读说明书，以避免错误操作，本说明书本非全面或最近，有任何疑问请联系我们

~ 4 ~
Main Feature
480 x 240，1.5” TFT LCD Screen
5.0MP FULL HD CMOS sensor
170° Super wide angle FOV( field of view) under 720P, 127 ° under 1080P 720P
H.264 Compression into MP4 video format
20 Meters ( 60 Feet) Waterproof
RF wireless remote controller (Start record and Power OFF )
Support Timing record, Motion detect record, Auto record and Loop record
Support Timing Capture ( Self-timer) , Continuous capture
Zoom focus available under 720P video record and Picture capture mode
Video resolution option in setting:
16：9Full HD 1920 x 1080P 30FPS
4：3Full HD 1440 x 1080P 30FPS
16：9 HD 1280 x 720P 60FPS
16：9 HD 1280 x 720P 30FPS
4：3 WVGA 848 x 480 60FPS
Picture resolution option in setting:
4000 x 3000 12MP
3200 x 2400 8MP
2592 x 1944 5MP
Video & Picture playback
Support 1GB~32GB High speed TF (Micro-SD) memory card
High speed USB2.0 interface for Power charge and Data transfer
HDMI、USB and RCA output optional

~ 5 ~
Install and Use

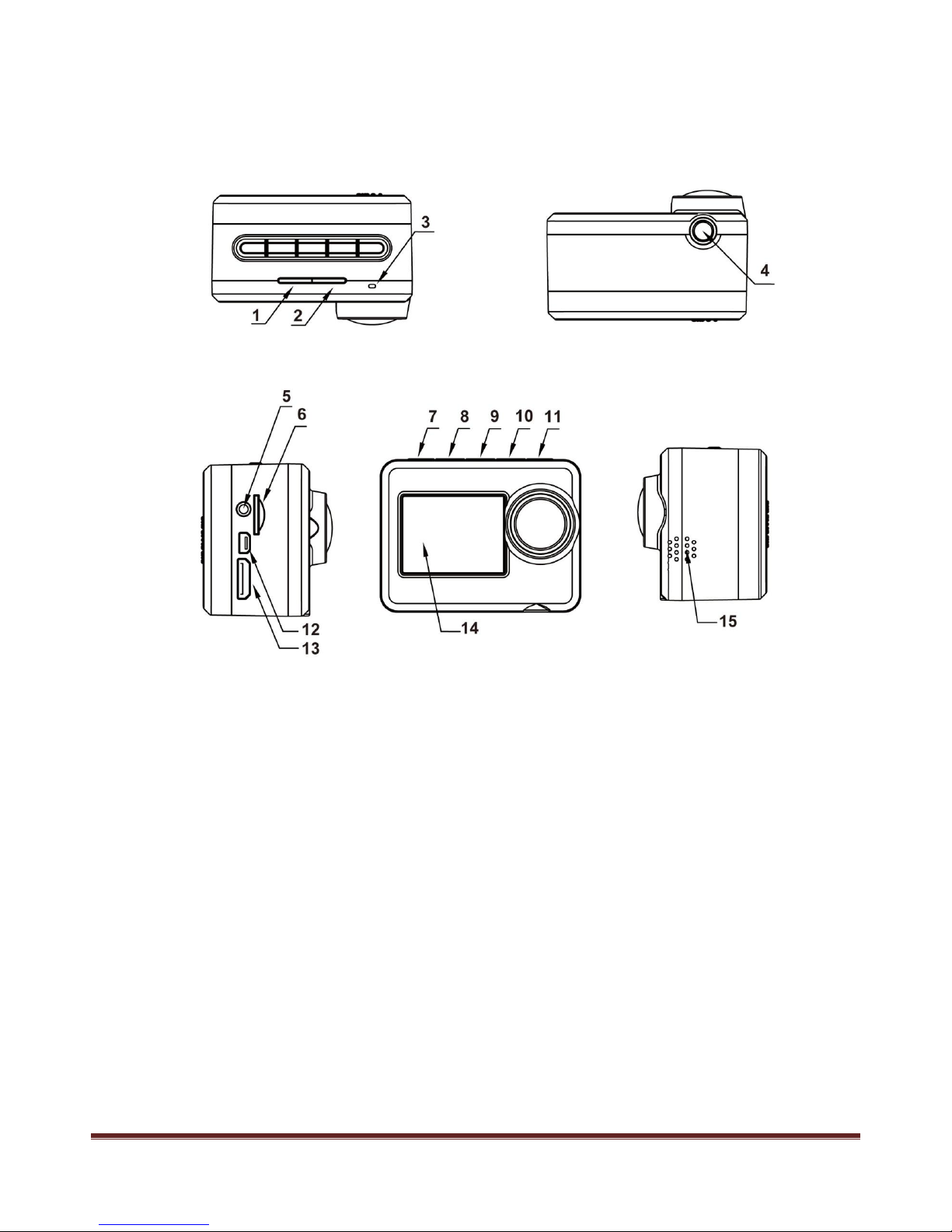

Camera body buttons
1.Video Record Indicator (red)
2.Power Indicator (red) & Power charge Indicator
(green)
3.MIC
4.Tripod screw hole
5.Audio output
6.TF card slot
7.REC&Confirm button
8.UP & Zoom+
9.Menu button
10.Down & Zoom- / Remote Pair
11.Power ON & Picture Capture
12.USB Port
13.HDMI Port
14. TFT LCD
15. Speaker

~ 6 ~
Remote controller
Start video record
Remote to start video record only under Camera Powered ON, not valid if camera is OFF.
Stop video record
Remote to power OFF directly or stop video record and then power OFF.
Remote Pair with Camera
Hold the “<” button under power OFF state ( don’t loose it ), then press POWER button to turn ON the
camera, then immediately press the button on the remote controller, after the camera turned ON,
then loose the “<” button.
Note:
-Screen will keep dark during the pair process
-Camera will power ON automatically if paired successfully
-Camera will power OFF automatically if pairing failed
This operation only necessary when you bought new remote controller, pairing process has been did before
leave factory.

~ 7 ~
Install Battery
Please install the battery according to the graphic:
Open the battery cover
Install the battery ( Note: label side face up)
Close back cover

~ 8 ~
Install Memory Card
1.Install the TF card according to graphic
2.Camera without built-in memory, support 1GB~32GB TF card external memory expand
3. After installed the SD card, rest available memory could be checked on the screen
Screen won't display the SD card
icon if without valid SD card
installed correctly
Screen will display the SD card
icon if valid SD card installed
correctly
Attention:
Please use the original SD card for good using experience. Bad or phony SD card would happen the
problem like "can not read" or "file damaged". Please format the SD card in this camera before use it the
first time.

~ 9 ~
Install waterproof housing
As arrowhead showed in graphic below, pull "A" locker, "B" locker will slack off at same time
automatically
Put the camera into the waterproof housing as graphic below:
Close the cover
Close the locker "B" first, and then press the "A" locker to locked-in.

~ 10 ~
Install the Mounts
+=
Please choose the suitable mount to finish the installation according to different use.
Waterproof Housing buttons instruction:
Note：
Waterproof housing max depth is 20 Meters ( 60 Feet)
A pot of fog or water globule would glue to the inside cover, it is allowed and won't effect the camera
working.
