CSLUX-300I

Multi-Format to HDMI Scaler

(with SDI Loop-through Output)

Operation Manual

DISCLAIMERS

The information in this manual has been carefully checked and

is believed to be accurate. Cypress Technology assumes no

responsibility for any infringements of patents or other rights of third

parties which may result from its use.

Cypress Technology assumes no responsibility for any inaccuracies

that may be contained in this document. Cypress also makes no

commitment to update or to keep current the information contained

in this document.

Cypress Technology reserves the right to make improvements to this

document and/or product at any time and without notice.

No part of this document may be reproduced, transmitted,

transcribed, stored in a retrieval system, or any of its part translated

into any language or computer le, in any form or by any means—

electronic, mechanical, magnetic, optical, chemical, manual, or

otherwise—without express written permission and consent from

Cypress Technology.

Version 1.1 August 2011

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or

operate this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

• Always follow basic safety precautions to reduce the risk of re,

electrical shock and injury to persons.

• To prevent re or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any

openings or empty slots in the unit, as you may damage parts

inside the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU

if it is damaged.

• Do not allow anything to rest on the power cabling or allow any

weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or

openings in the unit housing that provide ventilation and allow for

sufcient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO. DATE (DD/MM/YY) SUMMARY OF CHANGE

VR0 13/11/12 Preliminary Release

VR1 18/12/12 Add D-sub to RCA adaptor

VR2 09/01/13 Add Support Timing Chart

VS3 24/06/13 Updated Format and Diagrams

VS4 29/07/13 RS-232 Command

VS5 23/01/17 Corrected diagrams and

supported SDI standards

CONTENTS

1. Introduction............................................ 1

2. Applications........................................... 1

3. Package Contents ................................ 1

4. System Requirements............................ 1

5. Features.................................................. 2

6. Operation Controls and Functions....... 3

6.1 Front Panel ........................................3

6.2 Rear Panel.........................................4

6.3 Remote Control................................5

6.4 OSD Menu.........................................6

6.5 RS-232 Pin Assignment .....................9

6.6 RS-232 Commands...........................9

7. Connection Diagram .......................... 13

8. Specications ...................................... 14

8.1 Technical Specications ...............14

8.2 Supported Input Resolutions .........15

8.3 Supported Output Resolutions......16

9. Acronyms ............................................. 17

1. INTRODUCTION

This unit is an advanced HDMI, VGA, SDI, Composite Video, S-Video,

and Component Video switcher/scaler. This device can scale and

switch input sources and display them to its HDMI and PC (VGA)/

HD (Component Video) outputs simultaneously, with their associated

audio signals, at a wide range of output resolutions up to 1080p or

WUXGA (RB). It also has the added benet of an SDI Loop-through

output for monitoring or extending the SDI input signal. Control is via

the IR remote, RS-232, or via front-panel buttons and includes an on-

screen menu (OSD) providing settings and system information.

2. APPLICATIONS

• Digital and analog signal convergence

• Convert analog video/audio signals for use with digital displays

• Integrate multiple sources and signal types to a single display in a

meeting room or conference hall environment

3. PACKAGE CONTENTS

• 1×Multi-Format to HDMI Scaler

• 1×Remote Control (CR-117)

• 1×5V/3A DC Power Adaptor

• 1×15-pin D-sub to 3 RCA Adaptor Cable

• 1×Operation Manual

4. SYSTEM REQUIREMENTS

Source equipment such as Blu-ray/DVD players or SDI camera, VGA or

HDMI display and amplier/active speakers with connection cables.

5. FEATURES

• Supports HDMI, SDI, Composite Video, S-Video, and VGA/

Component Video inputs

• Supports HDMI and PC/HD (with adaptor) outputs

• Supports SDI loop-through output

• Supports analog stereo and optical digital inputs

• Supports optical digital output, analog stereo output, or embedding

to HDMI output

• Supports conversion of multiple video formats and audio input to

HDMI or PC/HD and analog stereo outputs

• Supports EDID and HDCP

• Supports 3D de-interlacing, noise reduction and 3D comb lter

• Supports frame rate conversion

• Supports RS-232, remote handset, and front panel control

• Supports SDI Standards of SMPTE 259M-C, SMPTE 292M, and SMPTE

424M/425M-A

• Supports SDI bit rates at 270Mbps, 2.970Gbps & 2.970/1.001Gbps,

and 1.485Gbps & 1.485/1.001Gbps

• Supports SDI signal input and output distances of up to 300m for SD

signals, 200m for HD signals and 100m for 3G signals

Note: The unit was tested with Belden 1694A SDI cable, results may

vary with cables of a different specication.

6. OPERATION CONTROLS AND FUNCTIONS

6.1 Front Panel

CSLUX-300I DIGITAL VIDEO SCALER

XGA

720P

ENTER

POWER INPUT CV SV COMP PC HDMI 1 HDMI 2 SDI

1 2 3 4 5 6

1POWER Button & LED: Press this button to switch the device ON

or to put the device into STANDBY mode. When the device is

connected to an active power supply, the LED will illuminate and

the device will switch ON automatically.

2IR Receiver Window: Receives only the IR signal from the supplied

remote control.

3INPUT Button & LEDs: Press to repeatedly select the required input.

An LED will illuminate to indicate the currently selected source.

4MENU Button: Press this button to enter into the on-screen menu

(OSD).

5Minus/Plus (-/+) Buttons: Use these buttons to navigate down and

up in the on-screen menu.

6ENTER Button: Press this button to conrm the selection.

Note: Pressing '−' (MINUS) and ENTER simultaneously will

immediately switch the output resolution of the device to 720p60.

Pressing '+' (PLUS) and ENTER simultaneously will immediately switch

the output resolution of the device to XGA.

6.2 Rear Panel

OUTPUT INPUT

DC 5V

OPTICAL

L/R

Cr/Pr Cb/Pb YSV

RLCV

HDMI 1 HDMI 2

SDI

SERVICE 1

SDI

LOOP OUTPUT

SERVICE 2

RS232

L/R

OPTICAL

PC/HD

HDMI

1 2 3 7

4 5 6

1HDMI OUTPUT: Connect to an HDMI display or amplier for video

and/or audio output.

PC/HD OUTPUT: Connect to a monitor/display for video output. For

HD (Component) output, use the supplied D-sub 15-pin to 3 RCA

adaptor cable for HD resolutions from 480p~1080p.

L/R OUTPUT: Connect to an amplier or active speakers for audio

output in stereo format.

OPTICAL OUTPUT: Connect to an amplier or active speakers for

audio output in digital format.

2SDI LOOP OUTPUT: Connect to an SDI display for monitoring of the

SDI input signal or an SDI extender for extending the SDI signal to

further areas.

3SDI INPUT: Connect to an SDI camera or other SDI source for both

video and audio signal conversion.

HDMI INPUT 1/2: Connect to an HDMI source such as Blu-ray/DVD

player for both video and audio signal conversion.

PC INPUT: Connect to a PC/Laptop source for video signal input

with a 15-pin D-sub cable.

L/R INPUT: Connect to source's L/R output with 3.5mm Mini-jack for

audio signal conversion.

OPTICAL INPUT: Connect to a source's optical output for audio

signal conversion.

YCbCr/YPbPr & L/R INPUTS: Connect to source equipment such as

a DVD player for both video and audio signal conversion.

CV & L/R INPUTS: Connect to a composite video source such as

video/DVD player for both video and audio signal conversion.

SV & L/R INPUTS: Connect to an S-Video source such as a video/

DVD player for both video and audio signal conversion.

4SERVICE 1: Reserved for manufacturer use only.

5RS-232: Connect to a PC/Laptop to use RS-232 commands to

control the device.

6SERVICE 2: Reserved for manufacturer use only.

7DC 5V: Plug the 5 V DC power supply into the unit and connect the

adaptor to an AC outlet.

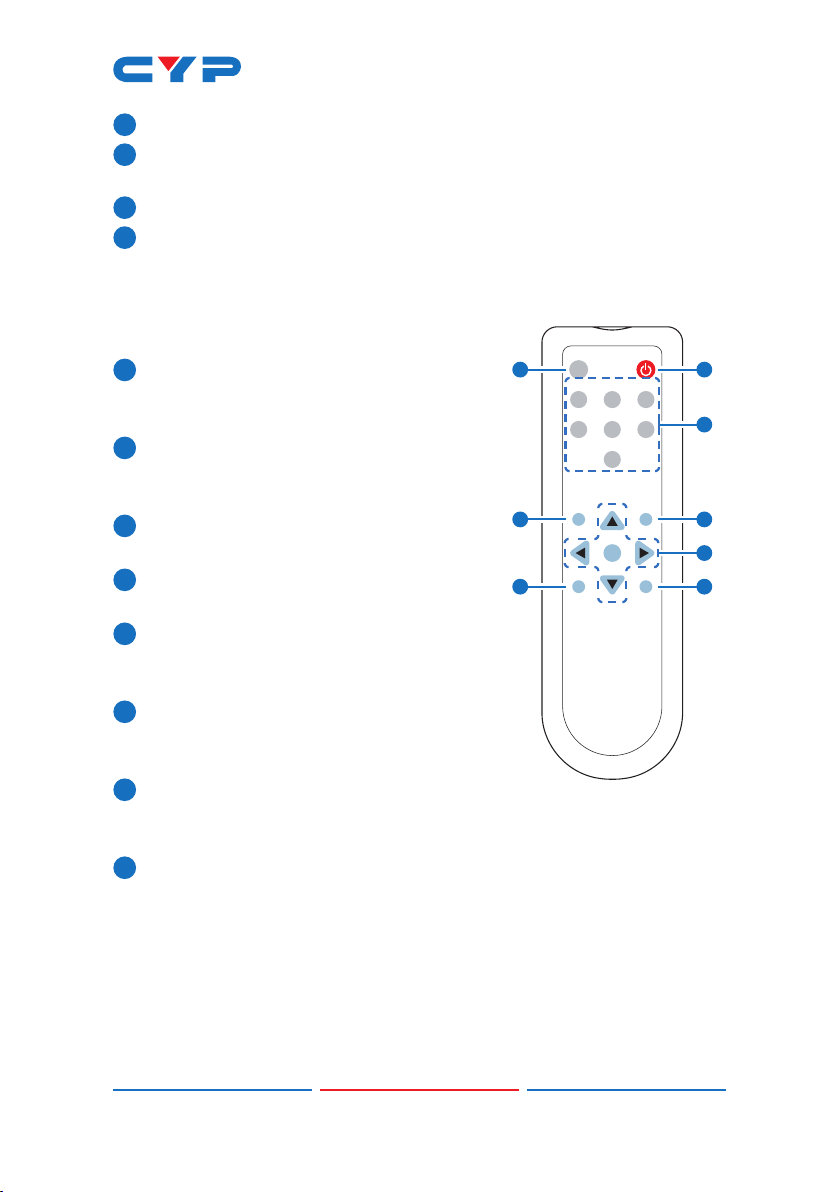

6.3 Remote Control

1POWER: Press this button to switch the

device ON or to put the device into

STANDBY mode.

2INPUT: Press to repeatedly select the

required input. An LED will illuminate to

indicate the currently selected source.

3CV/SV/COMP/PC/HDMI 1/HDMI 2/SDI:

Press to directly select the required input.

4MENU: Press this button to enter the on-

screen menu.

5EXIT: Press this button to exit the menu

or the current selection in the on-screen

menu.

6 OK & ▲/▼/◄/►: Press OK to conrm the

selection or use the directional buttons

to navigate the on-screen menus.

7AUTO ADJUST: Press the button to

optimize the positioning of the picture (picture centering) on the

screen.

8RESET: Press this button to return the device to the factory default

settings.

CR-117

POWERINPUT

SVCV COMP

PC HDMI 1 HDMI 2

SDI

EXIT MENU

RESET AUTO

ADJUST

6.4 OSD Menu

MAIN MENU 1ST LEVEL 2ND LEVEL

DISPLAY OUTPUT 640×480@60

800×600@60

1024×768@60

1280×768@60

1360×768@60

1280×720@60

1280×800@60

1280×1024@60

1440×900@60

1400×1050@60

1680×1050@60

1600×1200@60

1920×1080@60

1920×1200@60

720×480P@60

1280×720P@60

1920×1080I@60

1920×1080P@60

720×576P@50

1280×720P@50

1920×1080I@50

1920×1080P@50

SIZE OVER SCAN

FULL

BEST FIT

PAN SCAN

LETTER BOX

MAIN MENU 1ST LEVEL 2ND LEVEL

DISPLAY (cont.) SIZE UNDER 2

UNDER 1

MODE INFO OFF

INFO

PC AUTO SETUP

H_POSITION

V_POSITION

PHASE

CLOCK

WXGA/XGA

RESET

COLOR COLOR R

R OFFSET

G OFFSET

B OFFSET

CONTRAST 0~60

BRIGHTNESS 0~60

HUE 0~60

SATURATION 0~60

SHARPNESS 0~30

NR OFF

LOW

MIDDLE

HIGH

MAIN MENU 1ST LEVEL 2ND LEVEL

AUDIO VOLUME 0~100

DELAY OFF

40 ms

110 ms

150 ms

SOUND ON

MUTE

SDI AUDIO CH1 - CH2

CH3 - CH4

CH5 - CH6

CH7 - CH8

AUDIO SELECT ANALOG

S/PDIF

SETUP FACTORY RESET

KEY LOCK OFF

POWER SAVE OFF

INFORMATION INPUT

OUTPUT

REVISION

Note: Default settings are marked in Bold.

(1) SIZE: This function is only supported on VIDEO input.

(2) PC: This function is only supported on PC input.

(3) AUDIO SELECT: This function is suported on CV, SV, YPbPr, and VGA

inputs.

6.5 RS-232 Pin Assignment

SCALER

►

◄

REMOTE CONTROL

PIN Assignment PIN Assignment

1 NC 1 NC

2Tx 2Rx

3Rx 3Tx

4 NC 4 NC

5 GND 5 GND

6 NC 6 NC

7 NC 7 NC

8 NC 8 NC

9 NC 9 NC

Baud Rate: 9600bps

Data Bits: 8

Parity: None

Flow Control: None

Stop Bits: 1

6.6 RS-232 Commands

COMMAND DESCRIPTION

S SOURCE 0~6 0=SDI

1=HDMI1

2=HDMI2

3=YPbPr

4=VIDEO

5=S-VIDEO

6=PC

R SOURCE Reports the numerical equivalent for

SOURCE setting (as above)

COMMAND DESCRIPTION

S OUTPUT 1~25 1=640×480

2=800×600

3=1024×768

4=1280×768

5=1360×768

6=1280×720

7=1280×800

8=1280×1024

9=1440×900

10=1400×1050

11=1680×1050

12=1600×1200

13=1920×1080

16=1920×1200

17=480p

18=720p@60

19=1080p@60

20=1080i@60

22=576p

23=720p@50

24=1080p@50

25=1080i@50

R OUTPUT Reports the numerical equivalent for

OUTPUT setting (as above)

S SIZE 0~6 0=OVERSCAN

1=FULL

2=BEST FIT

3=PAN SCAN

4=LETTER BOX

5=UNDER 2

6=UNDER 1

R SIZE Reports the numerical equivalent for SIZE

setting (as above)

S CONTRAST 0~60 Setups the numerical equivalent for

CONTRAST setting (as left)

R CONTRAST Reports the numerical equivalent for

CONTRAST setting

S BRIGHTNESS 0~60 Setups the numerical equivalent for

BRIGHTNESS setting (as left)

R BRIGHTNESS Reports the numerical equivalent for

BRIGHTNESS setting

S HUE 0~60 Setups the numerical equivalent for HUE

setting (as left)

COMMAND DESCRIPTION

R HUE Reports the numerical equivalent for HUE

setting

S SATURATION 0~60 Setups the numerical equivalent for

SATURATION setting (as left)

R SATURATION Reports the numerical equivalent for

SATURATION setting

S SHARPNESS 0~30 Setups the numerical equivalent for

SHARPNESS setting (as left)

R SHARPNESS Reports the numerical equivalent for

SHARPNESS setting

S NR 0~3 0=OFF

1=LOW

2=MIDDLE

3=HIGH

R NR Reports the numerical equivalent for the

NOISE REDUCTION setting (as above)

S AUDIO DELAY 0~3 0=OFF

1=40ms

2=110ms

3=150ms

R AUDIO DELAY Reports the numeric equivalent for AUDIO

DELAY setting (as above)

S AUDIO MUTE 0/1 0=ON 1=MUTE

R AUDIO MUTE Reports the numeric equivalent for AUDIO

MUTE setting (as above)

S SDI AUDIO 0~3 0=CH1CH2

1=CH3CH4

2=CH5CH6

3=CH7CH8

R SDI AUDIO Reports the numeric equivalent for SDI

AUDIO setting (as above)

S AUDIO SELECT 0/1 0=ANALOG 1=SPDIF

R AUDIO SELECT Reports the numeric equivalent for AUDIO

SELECT setting (as above)

S KEY LOCK 0/1 0=ENABLE 1=DISABLE

COMMAND DESCRIPTION

R KEY LOCK Reports the numeric equivalent for KEY

LOCK setting (as above)

FW Checks the FIRMWARE version

S RESET 1 Setups the numerical equivalent for RESET

setting (as left)

S POWER 0/1 0=OFF 1=ON

R POWER Reports the numeric equivalent for POWER

setting (as above)

Note: RS-232 commands will be not executed unless followed with a

carriage return and LF. Commands are case-insensitive.

• Audio Delay is only supported on Analog Stereo output.

• When the HDMI input is encoded with HDCP, no image will be

output from the PC/HD output.

• Only LPCM 2 channel digital audio is supported, please ensure that

the source audio is set to LPCM 2 channel audio in order to avoid

unnecessary audio noise.

7. CONNECTION DIAGRAM

OUTPUT INPUT

DC 5V

OPTICAL

L/R

Cr/Pr Cb/Pb YSV

RLCV

HDMI 1 HDMI2

SDI

SERVICE 1

SDI

LOOP OUTPUT

SERVICE 2

RS232

L/R

OPTICAL

PC/HD

HDMI

Satellite ReceiverGame Console

Camera

SDI

Input

HDMI

Input

Set-top Box

RS-232 Control

System

Blu-ray/DVD Player

VGA & Analog

Audio Inputs

HDMI & Digital

Audio Inputs

CV & Analog

Audio Inputs

YPbPr, SV & Analog

Audio Inputs

SDI

Bypass

Output

HDMI

Output

Analog

Audio

Output

Digital

Audio

Output

VGA

Output

Power

Supply

YPbPr

Output

SDI MonitorMonitor with

3.5mm Audio Input

HDTVAV Receiver

RS-232

8. SPECIFICATIONS

8.1 Technical Specications

Video Bandwidth 340 MHz/10.2 Gbps

Input Ports 1×SDI, 2×HDMI, 1×VGA, 1×Component

Video, 1×Composite Video, 1×S-Video,

1×TOSLINK (S/PDIF), 6×RCA (Analog

Stereo), 1×3.5mm (Analog Stereo)

Output Ports 1× SDI (Loop-through), 1×HDMI, 1×VGA,

1×TOSLINK (S/PDIF), 1×3.5mm (Analog

Stereo)

Control Port 1×RS-232

Service Ports 1×3.5mm, 1×USB

Power Supply 5V/3A DC (US/EU standards, CE/FCC/UL

certied)

Dimensions 320mm (W)×182mm (D)×44mm (H)

Weight 1,600g

Chassis Material Metal

Color Black

Operating Temperature 0˚C - 40˚C/32˚F - 104˚F

Storage Temperature −20˚C - 60˚C/−4˚F - 140˚F

Relative Humidity 20 - 90% RH (No-condensing)

Power Consumption 10.5W

8.2 Supported Input Resolutions

Resolution (Hz) CV/SV COMP PC HDMI

NTSC/PAL 

480i/576i  

480p/576p  

720p@50/60  

1080i@50/60  

1080p@50/60  

VGA@60/72/75  

SVGA@56/60/72/75  

XGA@60/70/75  

SXGA@60/75  

UXGA@60  

1280×800@60  

1680×1050@60 (RB)  

1920×1080@60  

Other manuals for CSLUX-300I

Table of contents

CYP CSLUX-300I User manual
