D-Link DSL-2750U User manual

DSL-2750U
User Manual

Contents
SAFETY PRECAUTION...................................................................................................... 1
INTRODUCTION................................................................................................................. 1
SYSTEM REQUIREMENTS................................................................................................ 2
Features...................................................................................................................... 3
INSTALLATION.................................................................................................................. 4
Before You Begin........................................................................................................ 4
Installation Notes......................................................................................................... 4
Information you will need from your ADSL service provider........................................ 6
Information you will need about your DSL-2750U Router......................................... 7
Information you will need about your LAN or computer............................................... 8
Hardware Description and Installation......................................................................... 9
LED Indicators.................................................................................................... 9
Best Location for Wireless Operation.................................................................11

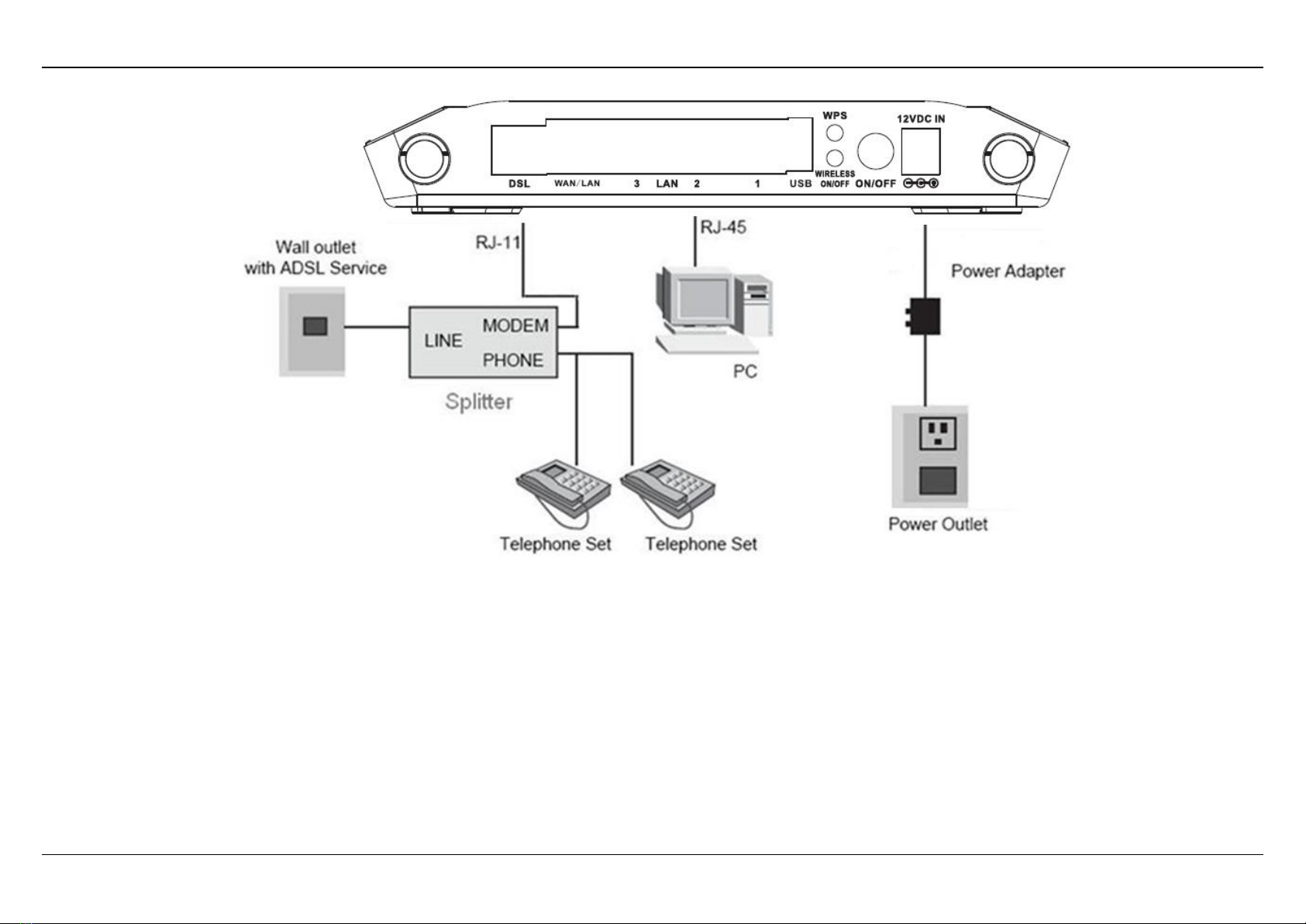

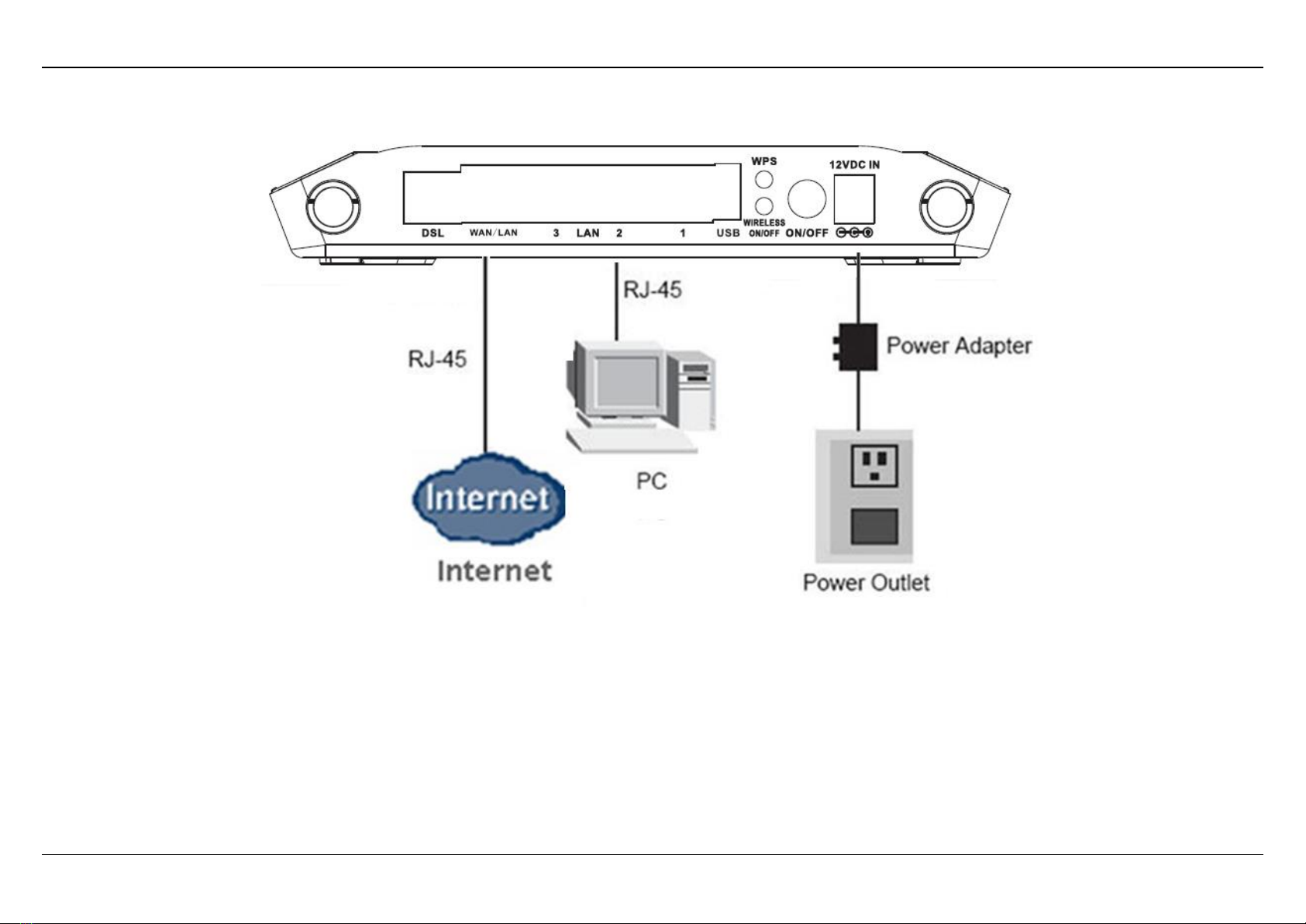

Connecting the Router.......................................................................................11
TCP/IP Configuration On A PC...................................................................................14
WEB CONFIGURATION....................................................................................................15
Logging in the Router.................................................................................................15
Setup..........................................................................................................................16
Wizard................................................................................................................16
Wireless.............................................................................................................26
Local Network....................................................................................................29
LAN IPv6............................................................................................................31
Time and Date...................................................................................................31
Logout................................................................................................................32
Advanced...................................................................................................................33
Advanced Wireless............................................................................................33
Port Forwarding.................................................................................................37
DMZ...................................................................................................................38
SAMBA..............................................................................................................38
3G Configuration................................................................................................39
Parental Control.................................................................................................41
Filtering Options.................................................................................................43
QoS Configuration.............................................................................................46
Firewall Setting..................................................................................................48
DNS...................................................................................................................49
Dynamic DNS....................................................................................................49
Network Tools....................................................................................................50
Routing ..............................................................................................................54
Schedules..........................................................................................................56
ALG ...................................................................................................................56
NAT....................................................................................................................57
FTPD Setting.....................................................................................................57
FTPD Account....................................................................................................57
DLNA.................................................................................................................58
IP Tunnel............................................................................................................58
Logout................................................................................................................60
MANAGEMENT.........................................................................................................61
Global IPv6 .......................................................................................................61
System Management........................................................................................ 61
Firmware Update...............................................................................................62
Access Controls................................................................................................62
Diagnosis..........................................................................................................64
Log Configuration.............................................................................................. 65
Logout...............................................................................................................65
Status ........................................................................................................................ 65
Help...........................................................................................................................65
TROUBLESHOOTING ...................................................................................................... 66
NETWORKING BASICS ................................................................................................... 68
Check Your IP Address.............................................................................................68
Statically Assigning an IP Address............................................................................69
TECHNICAL SPECIFICATIONS....................................................................................... 70

Section 1 –Product Overview
D-Link DSL-2750U User Manual
1
Safety Precaution
Follow the following instructions to prevent the device from risks and damage
Use the power adapter in the package.
An overburden power outlet or damaged lines and plugs may cause electric shock or fire accident. Check the power cords regularly. If you
find any damage, replace it at once.
Proper space left for heat dissipation is necessary to avoid overheating. The holes on the device are designed for heat dissipation to ensure
running normally. Do not cover these heat dissipation holes.
Do not put this device close to a heat source or high temperature place. Avoid the device direct exposing sunshine.
Do not put this device close to over damp place. Do not spill any fluid on this device.
Do not connect this device to PC or electronic product, unless our customer engineer or your broadband provider instructs you to do this,
because any wrong connection may cause power or fire risk.
Do not place this device on an unstable surface or support.
Introduction
The DSL-2750U supports multiple line modes. With four 10/100 base-T Ethernet interfaces at the user end, the DSL-2750U provides both DSL uplink
access with a downstream rate of 24 Mbps and an upstream rate of 1 Mbps and Ethernet uplink access. It also supports 3G connection to the Internet
or Intranet for high-end users like net bars and office users. It complies with specifications of IEEE 802.11, 802.11b/g/n, WEP, WPA, and WPA2
security. The WLAN of the device supports 2T2R.

Section 1 –Product Overview
D-Link DSL-2750U User Manual
2
System Requirements
Network Requirement
Available uplink access (DSL uplink or Ethernet uplink)
Clients to be connected
Devices installed a wireless network adapter or 10 base T/100BaseT Ethernet adapter.
Web-based Configuration
Utility Requirement
Computer with the following:
Windows®, Macintosh, or Linux-based operating system
An installed Ethernet adapter
Browser Requirements:
Microsoft Internet Explorer® v7, Mozilla® Firefox v9.0, Google® Chrome 16.0, or Safari® v4 or higher
version.
Windows®Users: Make sure you have the latest version of Java installed. Visit www.java.com to
download the latest version.

Section 1 –Product Overview
D-Link DSL-2750U User Manual
3
1 Features
The device supports the following features:
Various line modes
Two uplink access: DSL and Ethernet uplink access
External PPPoE dial-up access
Internal PPPoE/PPPoA dial-up access
1483Bridged/1483Routed with dynamic IP or static IP
Multiple PVCs (the number of PVCs support is eight)
DHCP server/relay
Static route
Network Address Translation(NAT)
DMZ
Virtual Server
Universal plug and play (UPnP)
TR069
Dynamic Domain Name Server(DDNS)
DLNA
Network Time Protocol(NTP)
Firmware upgrading through Web, TFTP, or FTP
Resetting to the factory defaults through Reset button or Web
Diagnostic test
Web interface
Telnet CLI
IP/MAC/URL Filter
Application layer service
QoS
Port binding
Auto upgrade
Cloud security
Digital Living Network Alliance (DLNA)
Wireless network
3G network

Section 2 –Installation
D-Link DSL-2750U User Manual
4
Installation
This section will guide you through the installation process. Placement of the Router is very important. Do not place the Router in an enclosed area
such as a closet, cabinet or in the attic or garage.
Before You Begin
Please read and make sure you understand all the prerequisites for proper installation of your new Router. Have all the necessary information and
equipment on hand before beginning the installation.
Installation Notes
In order to establish a connection to the Internet it will be necessary to provide information to the Router that will be stored in its memory. For some
users, only their account information (Username and Password) is required. For others, various parameters that control and define the Internet
connection will be required. You can print out the two pages below and use the tables to list this information. This way you have a hard copy of all
the information needed to setup the Router. If it is necessary to reconfigure the device, all the necessary information can be easily accessed. Be
sure to keep this information safe and private.
Low Pass Filters
Since ADSL and telephone services share the same copper wiring to carry their respective signals, a filtering mechanism may be necessary to avoid
mutual interference. A low pass filter device can be installed for each telephone that shares the line with the ADSL line. These filters are easy to
install passive devices that connect to the ADSL device and/or telephone using a standard telephone cable. Ask your service provider for more
information about the use of low pass filters with your installation.
Operating Systems
The DSL-2750U uses an HTML-based web interface for setup and management. The web configuration manager may be accessed using any
operating system capable of running web browser software, including Windows 98 SE, Windows ME, Windows 2000, Windows XP, Windows Vista,
Windows 7, Windows 8, Windows10.

Section 2 –Installation
D-Link DSL-2750U User Manual
5
Web Browser
Any common web browser can be used to configure the Router using the web configuration management software. The program is designed to work
best with more recently released browsers such as Opera, Microsoft Internet Explorer® version 6.0, Netscape Navigator® version 6.2.3, or later
versions. The web browser must have JavaScript enabled. JavaScript is enabled by default on many browsers. Make sure JavaScript has not been
disabled by other software (such as virus protection or web user security packages) that may be running on your computer.
Ethernet Port (NIC Adapter)
Any computer that uses the Router must be able to connect to it through the Ethernet port on the Router. This connection is an Ethernet connection
And, therefore requires that your computer be equipped with an Ethernet port as well. Most notebook computers are now sold with an Ethernet port
already installed. Likewise, most fully assembled desktop computers come with an Ethernet NIC adapter as standard. If your computer does not have
an Ethernet port, you must install an Ethernet NIC adapter before you can use the Router. If you need to install an adapter, follow the installation
instructions that come with the Ethernet NIC adapter.
Additional Software
It may be necessary to install software on your computer that enables the computer to access the Internet. Additional software must be installed if
you are using the device as a simple bridge. For a bridged connection, the information needed to make and maintain the Internet connection is
stored on another computer or gateway device, not in the Router itself.
If your ADSL service is delivered through a PPPoE or PPPoA connection, the information needed to establish and maintain the Internet connection
can be stored in the Router. In this case, it is not necessary to install software on your computer. It may however be necessary to change some
settings in the device, including account information used to identify and verify the connection.
All connections to the Internet require a unique global IP address. For bridged connections, the global IP settings must reside in a TCP/IP enabled
device on the LAN side of the bridge, such as a PC, a server, a gateway device, such as a router, or similar firewall hardware. The IP address can be
assigned in a number of ways. Your network service provider will give you instructions about any additional connection software or NIC configuration
that may be required.

Section 2 –Installation
D-Link DSL-2750U User Manual
6
Information you will need from your ADSL service provider
Username
This is the Username used to log on to your ADSL service provider’s network. Your ADSL service provider uses this to identify your account.
Password
This is the Password used, in conjunction with the Username above, to log on to your ADSL service provider’s network. This is used to verify the
identity of your account.
WAN Setting / Connection Type
These settings describe the method your ADSL service provider uses to transport data between the Internet and your computer. Most users will use
the default settings. You may need to specify one of the following WAN Setting and Connection Type configurations (Connection Type settings listed
in parenthesis):
PPPoE/PPPoA (PPPoE LLC, PPPoA LLC or PPPoA VC-Mux)
Bridge Mode (1483 Bridged IP LLC or 1483 Bridged IP VC Mux)
IPoA/MER (Static IPAddress) (Bridged IP LLC, 1483 Bridged IP VC Mux, 1483 Routed IP LLC, 1483 Routed IP VC-Mux or IPoA)
MER (Dynamic IPAddress) (1483 Bridged IP LLC or 1483 Bridged IP VC-Mux)
Modulation Type
ADSL uses various standardized modulation techniques to transmit data over the allotted signal frequencies. Some users may need to change the
type of modulation used for their service. The default DSL modulation (ADSL2+ Multi-Mode) used for the Router automatically detects all types of
ADSL, ADSL2 and ADSL2+ modulation.
Security Protocol
This is the method your ADSL service provider will use to verify your Username and Password when you log on to their network. Your Router
supports the PAP and CHAP protocols.
VPI
Most users will not be required to change this setting. The Virtual Path Identifier (VPI) is used in conjunction with the Virtual Channel Identifier (VCI)
to identify the data path between your ADSL service provider’s network and your computer. If you are setting up the Router for multiple virtual
connections, you will need to configure the VPI and VCI as instructed by your ADSL service provider for the additional connections. This setting can
be changed in the WAN Settings window of the web management interface.
VCI
Most users will not be required to change this setting. The Virtual Channel Identifier (VCI) is used in conjunction with the VPI to identify the data path
between your ADSL service provider’s network and your computer. If you are setting up the Router for multiple virtual connections, you will need to
configure the VPI and VCI as instructed by your ADSL service provider for the additional connections. This setting can be changed in the WAN
Setup window of the web management interface.

Section 2 –Installation
D-Link DSL-2750U User Manual
7
Information you will need about your
DSL-2750U Router
Username
This is the Username needed to access the Router’s management interface. When you attempt to connect to the device through a web browser you
will be prompted to enter this Username. The default Username for the Router is “admin.”
Password
This is the Password you will be prompted to enter when you access the Router’s management interface. The default Password is “admin.” The
user may change this.
LAN IP addresses for the DSL-2750U
This is the IP address you will enter into the Address field of your web browser to access the Router’s configuration graphical user interface (GUI)
using a web browser. The default IP address is 192.168.1.1. This may be changed to suit any IP address scheme the user desires. This address will
be the base IP address used for DHCP service on the LAN when DHCP is enabled.
LAN Subnet Mask for the DSL-2750U
This is the subnet mask used by the DSL-2750U and will be used throughout your LAN. The default subnet mask is 255.255.255.0.

Section 2 –Installation
D-Link DSL-2750U User Manual
8
Information you will need about your LAN or computer
Ethernet NIC
If your computer has an Ethernet NIC, you can connect the DSL-2750U to the Ethernet port using an Ethernet cable.
DHCP Client status
Your DSL-2750U ADSL Router is configured, by default, to be a DHCP server. This means that it can assign an IP address, subnet mask and a
default gateway address to computers on your LAN. The default range of IP addresses the DSL-2750U will assign are from 192.168.1.2 to
192.168.1.254. Your computer (or computers) needs to be configured to obtain an IP address automatically (that is, they need to be configured as
DHCP clients.)
It is recommended that you backup or record this information here, or in some other secure place, in case you have to re-configure your ADSL
connection in the future.
Once you have the above information, you are ready to setup and configure your DSL-2750U ADSL Router.

Section 2 –Installation
D-Link DSL-2750U User Manual
9
Hardware Description and Installation
LED Indicators
Note:
The figures in this document are for reference only.
Figure 1 Front panel
The following table describes the LEDs of the device.
LED
Color
Status
Description
Power
Green
On
The initialization of the system is complete.
Red
On
The device is initiating.
Blinking
The firmware is upgrading.
LAN
Green
Off
The Ethernet interface is not properly connected.
Blinking
The Ethernet interface is properly connected and data is being transmitted.
On
The Ethernet interface is properly connected, but no data is being transmitted.
2.4GHz
Green
Blinking
The WLAN function is enabled and data is being transmitted on the WLAN.
On
The WLAN function is enabled, but no data is being transmitted on the WLAN.
Off
The WLAN function is disabled.
WPS
Green
Blinking
WPS is successfully triggered.
Solid on for 5
seconds and
then turns off
Connection is successfully established between the router and the client through WPS.
USB
Green
On
The 3G or USB flash disk has been connected.
Blinking
Data is being transmitted.
Off
USB connection is not established.

Section 2 –Installation
D-Link DSL-2750U User Manual
10
LED
Color
Status
Description
DSL
Green
Off
No signal is being detected.
Blinking
The device is handshaking with the physical layer of the office end.
On
A connection is set up with the physical layer of the office end.
Internet
Green
Off
The device is under the Bridge mode or powered off.
On
A connection is set up and no traffic is detected.
Blinking
Data is being transmitted over Internet.
Red
On
The device is attempted to become IP connected, but failed.
Figure 2 Rear panel
The following table describes the interfaces of the device.
Interface/Button
Description
DSL
RJ-11 interface for connecting the host to the telephone jack on the wall or the MODEM interface of the
splitter through a telephone line.
WAN/LAN
This Ethernet RJ-45 interface has two functions.
Worked as a WAN interface that connects to the WAN for Ethernet uplink
Worked as a LAN interface that connects to the Ethernet interfaces of
computers or Ethernet devices.
LAN3/2/1
For a PC or other Ethernet-abled device to join the LAN of 2750E by being connected to this interface with
RJ-45 cable.
USB
USB port, for connecting the 3G network card or other USB storage devices.
WPS
Press and hold the button for 5 seconds starts WPS negotiation.
WIRELESS ON/OFF
Press and hold the button for 5 seconds starts WLAN.
ON/OFF
Power switch, which is used to power on or power off the router.
12V DC IN (power)
Interface for connecting the power adapter.

Section 2 –Installation
D-Link DSL-2750U User Manual
11
Reset (On the bottom side)
Press and hold the button for 1 second to restore the factory defaults.
Best Location for Wireless Operation
Many environmental factors may affect the effective wireless function of the DSL Router. If this is the first time that you set up a wireless network
device, read the following information:
The access point can be placed on a shelf or desktop, ideally you should be able to see the LED indicators in the front, as you may need to view them
for troubleshooting.
Designed to go up to 100 meters indoors and up to 300 meters outdoors, wireless LAN lets you access your network from anywhere you want.
However, the numbers of walls, ceilings, or other objects that the wireless signals must pass through limit signal range. Typical ranges vary
depending on types of materials and background RF noise in your home or business.
Connecting the Router
DSL Uplink Connection
The following figure displays the application diagram for the connection of the device, PC, splitter and telephone sets, when no telephone set is
placed before the splitter.

Section 2 –Installation
D-Link DSL-2750U User Manual
12
.
Figure 3 DSL uplink connection
Step 1 Connect the DSL port of the router and the Modem port of the splitter through a telephone cable; connect the phone to the phone port of
the splitter through a telephone cable; and connect the Line port of the splitter to the uplink telephone jack on the wall.
The spliter has three ports:
LINE: Connect to a wall phone jack (RJ-11 jack)
MODEM: Connect to the Line interface of the router
PHONE: Connect to a telephone set
Step 2 Connect the LAN port of the router to the network interface card (NIC) of the PC through an Ethernet cable (MDI/MDIX).
Step 3 Plug the power adapter to the wall outlet and then connect the other end of it to the Power (12V DC IN) port of the route.

Section 2 –Installation
D-Link DSL-2750U User Manual
13
Ethernet Uplink Connection
The following figure displays the Ethernet uplink connection.
Figure 4 Ethernet uplink connection
Step 1 Connect the LAN interface of the wireless router to your PC with RJ45 Ethernet cable.
Step 2 Connect the LAN/WAN interface of the wireless router to the uplink network device with RJ45 Ethernet cable.
Step 3 Connect the power adapter to the 12V DC IN interface of the wireless router.

Section 2 –Installation
D-Link DSL-2750U User Manual
14
TCP/IP Configuration On A PC
Each network interface on the PC should either be configured with a statically defined IP address and DNS address, or be instructed to automatically
obtain an IP address using the network DHCP server. DSL router provides a DHCP server on its LAN and it is recommended to configure your LAN
to automatically obtain its IP address and DNS server IP address.
The configuration principle is identical but should be carried out differently on each operating system.
The right figure displays the TCP/IP Properties dialog box on Windows 7.
TCP/IP configuration steps for Windows XP are as follows:
Step 1 Choose Start > Control Panel > Network and Internet > Network and
Sharing Center.
Step 2 Choose Change Adapter Settings > Local Area Connection.
Right-click Local Area Connection, and choose Properties.
Step 3 On the General tab, select Internet Protocol Version 4 (TCP/IPv4) and
click Properties. The Internet Protocol (TCP/IP) Properties window
appears.
Step 4 Select the Obtain an IP address automatically button.
Step 5 Select the Obtain DNS server address automatically button.
Click OK to save the settings.

Section 3 –Web Configuration
D-Link DSL-2750U User Manual
15
Web Configuration
This chapter describes how to use Web-based management of the DSL router, which allows you to configure and control all of DSL router features
and system parameters in a user-friendly GUI.
Logging in the Router
The following description is a detail “How-To” user guide and is prepared for first time users.
Step 1 Open the Internet Explorer (IE) browser, and then go to
http://192.168.1.1.
Step 2 The Login page is shown as the figure appears on the right. Select
admin from the drop-down list of username and enter the password. And
then click Login.
The default password is admin.
Select Remember my login info. on this computer, you only need to enter the
password once for the first time logging.

Section 3 –Web Configuration
D-Link DSL-2750U User Manual
16
Setup
Wizard
Wizard enables fast and accurate configuration of Internet connection and other important parameters. The following sections describe
these various configuration parameters.
When subscribing to a broadband service, you should be aware of the method, by which you are connected to the Internet. The connection
type of your physical WAN device can be Ethernet, DSL, or both. Technical information about the properties of your Internet connection is
provided by your Internet service provider (ISP). For example, your ISP should inform you whether you are connected to the Internet using
a static or dynamic IP address, or the protocol, such as PPPoA or PPPoE, that you use to communicate over the Internet.
Choose SETUP > Wizard. The page is shown as the figure appears on the right.

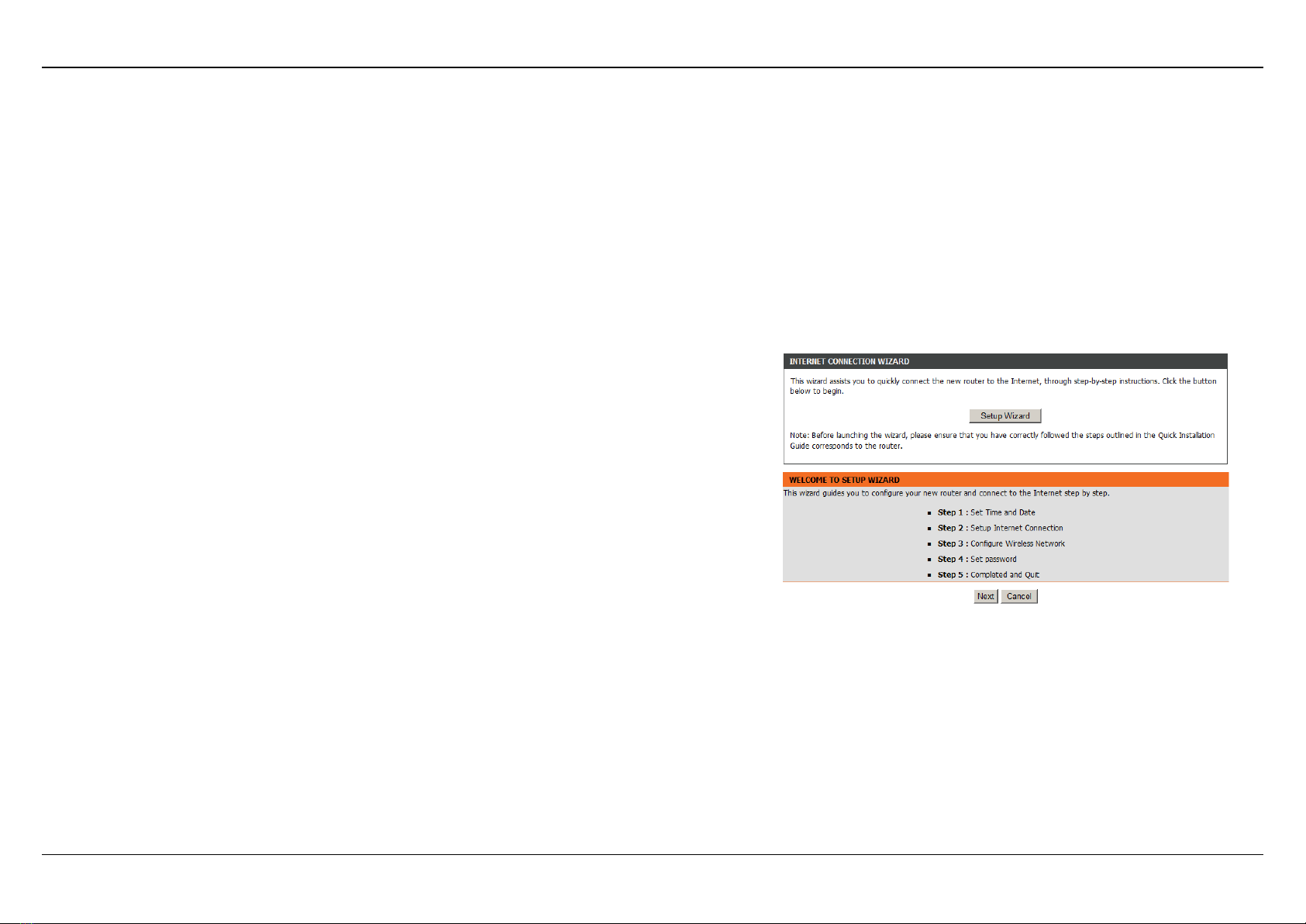

Step 1 Click Setup Wizard. The page is shown as the figure appears on the
right. There are 5 steps to configure the device. Click Next to continue.

Section 3 –Web Configuration
D-Link DSL-2750U User Manual
17
Step 2 Set the time and date, and then click Next.
Step 3 Configure the Internet connection.
There are 2 types of wan access type that are Ethernet and dsl. Choose the
DSL-2750U’s uplink access type.
There are 5 types of connection mode: PPPoE, PPPoA, Dynamic IP, Static IP, and
Bridge. -PPPoE/PPPoA
If the protocol is set to PPPoE or PPPoA, the page shown as the right figure
appears.
1) Choose country and ISP from drop-down list respectively.
2) Select PPPoE in Protocol.
3) Enter the VPI and VCI provided by your ISP.
4) Enter the Username and Password provided by your ISP.
5) Re-enter the password for confirmation.
Click Next to go to the next page.

Section 3 –Web Configuration
D-Link DSL-2750U User Manual
18

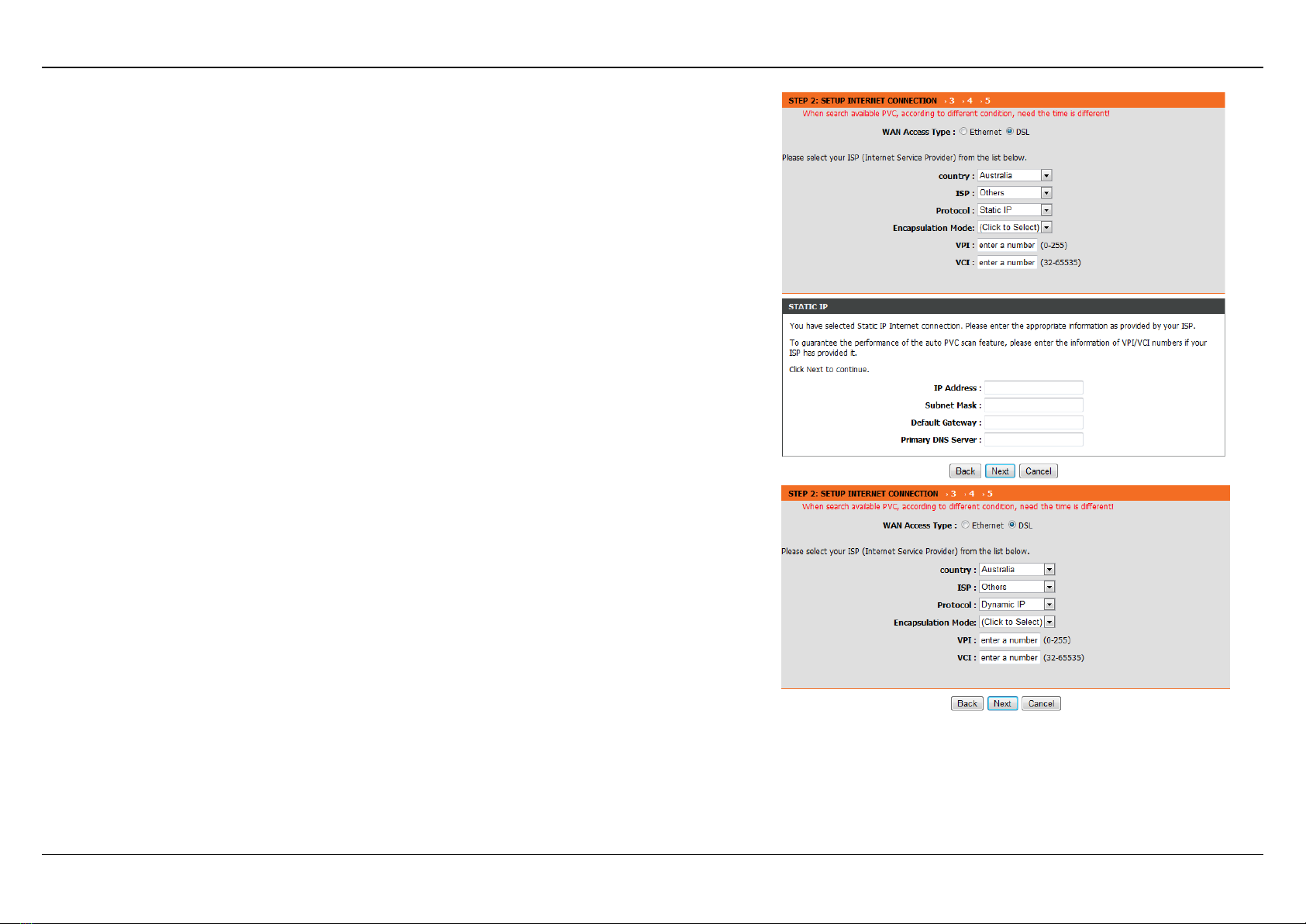

-Static IP
If the protocol is set to Static IP, the page shown as the right figure appears.
You can set the parameters in this page as follow:
1) Set the protocol to Static IP.
2) Choose the Encapsulation Mode provided by your ISP.
3) Enter the VPI and VCI provided by your ISP.
4) Enter the WAN IP Address, Subnet Mask, Default Gateway, and Primary
DNS Server provided by your ISP.
-Dynamic IP/Bridge
If the protocol is set to Dynamic IP/Bridge, the page shown as the right figure
appears.
In this page, select encapsulation mode, enter VPI, and VCI provided by your ISP.
After setting, click Next.
Other manuals for DSL-2750U
24
Table of contents
