D-Link DVA-2800 User manual
Version 1.00 | 09/11/2017
User Manual
DVA-2800
VDSL2 Wireless AC1600 4-Port Gigabit Modem Router
with VoIP
iD-Link DVA-2800 User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any
person or organization of such revisions or changes.
Manual Revisions
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries.
All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Apple®, Apple logo®, Safari®, iPhone®, iPad®, iPod touch® and Macintosh® are trademarks of Apple Inc., registered in the U.S. and other countries.
App StoreSM is a service mark of Apple Inc.
Chrome™ browser, Google Play™ and Android™ are trademarks of Google Inc.
Internet Explorer®, Windows® and the Windows logo are trademarks of the Microsoft group of companies.
Copyright © 2017 by D-Link Corporation, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Corporation, Inc.
Preface
Revision Date Description
Version 1.00 September 11, 2017 Initial release
iiD-Link DVA-2800 User Manual
Table of Contents
Preface................................................................................. i
Product Overview..............................................................1
Package Contents......................................................................... 1
System Requirements.................................................................2
Introduction ................................................................................... 3
Features............................................................................................4
Hardware Overview.....................................................................5
Back Panel ...............................................................................5
Side Panel ................................................................................6
LEDs........................................................................................... 7
Installation......................................................................... 8
Before you Begin...........................................................................8
Wireless Installation Considerations......................................9
Manual Setup...............................................................................10
Getting Started................................................................13
Setup Wizard ................................................................................14
Conguration...................................................................19
Home ..............................................................................................19
Internet...................................................................................20
IPv4 .....................................................................................21
IPv6 .....................................................................................22
DSL......................................................................................23
DVA-2800...............................................................................24
Connected Clients..............................................................25
USB Device............................................................................26
Settings ..........................................................................................27
Wizard.....................................................................................27
Internet...................................................................................27
ADSL...................................................................................28
VDSL ...................................................................................30
Residential Gateway .....................................................31
USB......................................................................................32
IPv4 Settings....................................................................33
Static IP ........................................................................33
Dynamic IP (DHCP)..................................................34
PPPoE/PPPoA.............................................................35
Bridged ........................................................................37
IPv6 Settings....................................................................38
Auto Detection .........................................................38
Static IPv6 ...................................................................39
Auto Conguration (SLAAC/DHCPv6)..............40
DSL Prole ........................................................................41
Failover WAN....................................................................42
Wireless ..................................................................................43
Multiple SSID...................................................................45
Network..................................................................................46
VoIP..........................................................................................49
VoIP Advanced.....................................................................52
ALG...........................................................................................54
DS-Lite ....................................................................................55
Table of Contents
iiiD-Link DVA-2800 User Manual
Table of Contents
Storage Service....................................................................56
Create User.......................................................................58
Features..........................................................................................59
Firewall ...................................................................................59
IPv4/IPv6 Rules ...............................................................59
Advanced...............................................................................60
Virtual Server...................................................................61
Website Filter........................................................................63
Static Route...........................................................................64
IPv4 .....................................................................................64
IPv6 .....................................................................................65
Dynamic DNS .......................................................................66
Port Triggering.....................................................................67
Management................................................................................68
Time & Schedule .................................................................68
Time....................................................................................68
Parental Control / Schedule .......................................69
System Log............................................................................70
System Log.......................................................................70
System Log View ............................................................71
Admin .....................................................................................72
System ...............................................................................74
Upgrade .................................................................................75
Statistics.................................................................................76
Connect a Wireless Client to your Router ......................77
WPS Button...................................................................................77
Windows® 10................................................................................78
Windows® 8...................................................................................80
WPA/WPA2 ............................................................................80
Windows® 7...................................................................................82
WPA/WPA2 ............................................................................82
Windows Vista®............................................................................85
WPA/WPA2 ............................................................................86
Troubleshooting..............................................................88
Wireless Basics.................................................................92
What is Wireless?.........................................................................93
Wireless Modes............................................................................96
Networking Basics...........................................................97
Check your IP address...............................................................97
Statically Assign an IP address...............................................98
Wireless Security ............................................................99
What is WPA? ...................................................................99
Technical Specications................................................100
Regulatory Statements .................................................101
1D-Link DVA-2800 User Manual
Section 1 - Product Overview
Product Overview

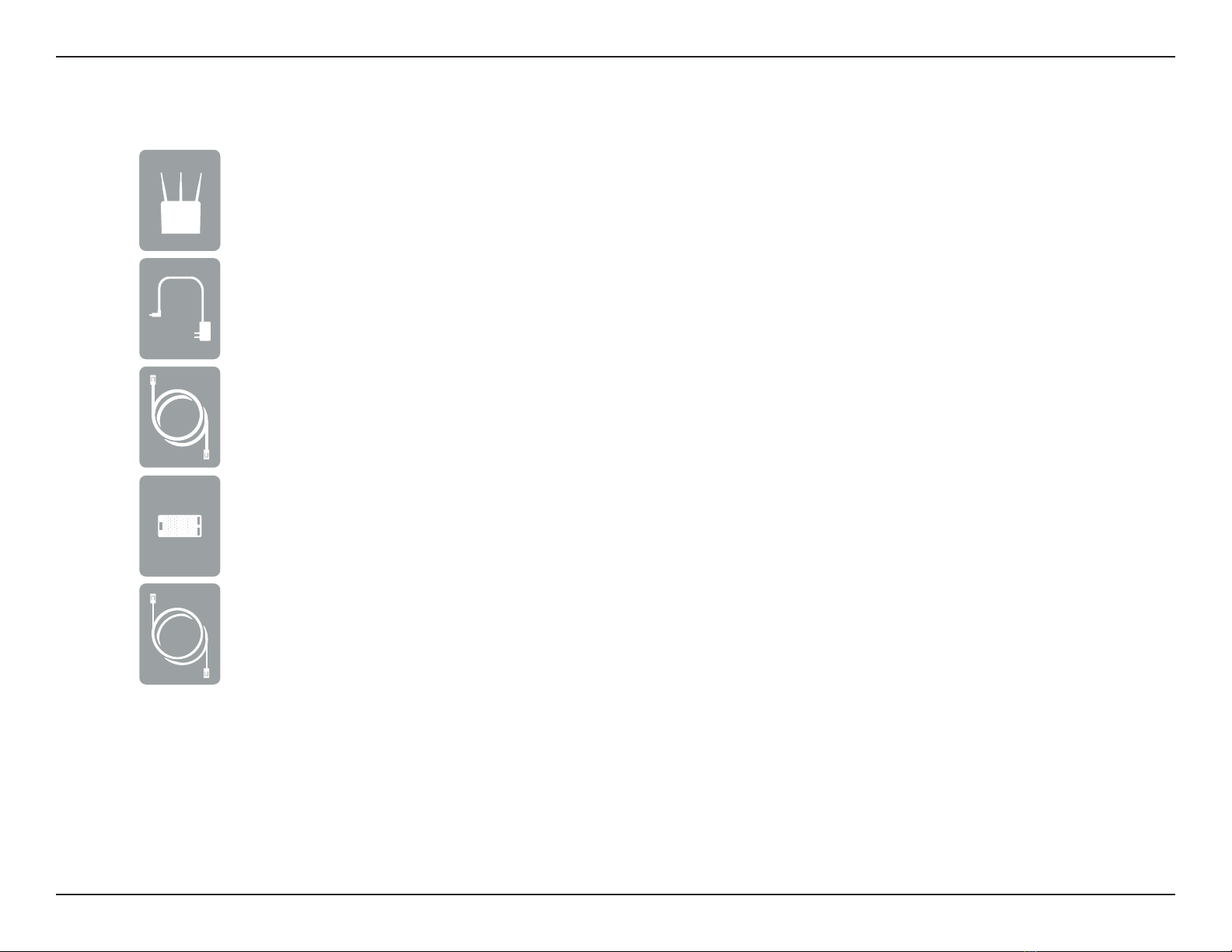

Package Contents
Note: Using a power supply other than the one included with the DVA-2800 may cause damage and void the warranty for this product.
If any of the above items are missing, please contact your reseller.
DVA-2800 VDSL2 Wireless AC1600 4-Port Gigabit Modem Router with VoIP
Power Adapter
Ethernet Cable
DSL Microsplitter
Phone Cable
2D-Link DVA-2800 User Manual
Section 1 - Product Overview
Network Requirements
• An active account with an Internet Service Provider using one of the
following connection types:
• A VDSL/ADSL connection to a telephone line using the DSL port
• A broadband device connected using the WAN port
• A mobile broadband 3G/4G/LTE connection using a compatible USB
modem. A list of compatible USB dongles is available at www.dlink.com.
• 802.11ac/n/g/b/a wireless or Ethernet port
Web-based Conguration
Utility Requirements
Computer with the following:
• Windows®, Macintosh, or Linux-based operating system
• An installed wired or wireless Ethernet adapter
Browser Requirements:
• Internet Explorer 10 or higher
• EDGE Browser 20 or higher
• Firefox 11 or higher
• Safari 5 or higher
• Chrome 17 or higher
Windows®Users: Make sure you have the latest version of Java installed. Visit
www.java.com to download the latest version.
System Requirements
3D-Link DVA-2800 User Manual
Section 1 - Product Overview
Introduction
The D-Link DVA-2800 VDSL2 Wireless AC1600 4-Port Gigabit Modem Router with VoIP shares your DSL Internet connection over blazing-fast
Wireless AC of up to 1600 Mbps (Up to 1300 Mbps 5 GHz Wireless AC and up to 300 Mbps 2.4 GHz Wireless N)1, and uses advanced AC beamforming
technology to maximize the speed and range of your wireless signal to signicantly outperform 802.11n and other older, non-beamforming capable
802.11ac devices. It also comes equipped with a Gigabit WAN port, two USB ports, and four Gigabit ports to provide speeds up to 10 times faster
than standard 10/100 ports. Multiple WAN ports provide uninterrupted Internet service thanks to failover protection, allowing you to use the DSL
port to connect to your VDSL/ADSL service, the WAN port to connect to Ethernet based networks, or a supported mobile broadband USB dongle
to connect to the Internet using your mobile provider.
The DVA-2800 supports the latest wireless security features to help prevent unauthorized access, be it from over a wireless network or the Internet.
Support forWPA™ and WPA2™ standards ensure that you will be able to use the best possible encryption regardless of your client devices. In addition,
this router is equipped with a dual-active rewall (SPI and NAT) to help prevent potential attacks over the Internet.
The DVA-2800 provides Voice over IP technology with advanced communication features and is compatible with industry-wide phone services so
you can make and receive calls reliably. Use the FXS phone port on the DVA-2800 to connect an ordinary phone set for your VoIP phone calls, and
use the router functions to connect all of your family members or personnel to the Internet for a fast and secure online experience throughout
your home or oce.
The DVA-2800's Storage Service technology lets you take advantage of le sharing. Simply plug in a USB storage drive into a USB port on the back
or side of your DVA-2800 and you can access les, stream videos, view photos, or listen to music on your laptop or mobile devices.
The DVA-2800 VDSL2 Wireless AC1600 4-Port Gigabit Modem Router with VoIP provides incredible speeds, smart antenna technology, fast ports,
cloud features, and terric security features. It also features an innovative design and easy installation options.
1 Maximum wireless signal rate derived from IEEE Standard 802.11a, 802.11g, 802.11n and 802.11ac specications. Actual data throughput will vary. Network conditions and
environmental factors, including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental
conditions will adversely aect wireless signal range.
4D-Link DVA-2800 User Manual
Section 1 - Product Overview
Features
•Superior Wireless Networking - The DVA-2800 provides Gigabit wireless speeds of up to a combined 1600 Mbps (1300 Mbps
802.11ac 5 GHz, plus 300 Mbps 802.11n 2.4 GHz)1. This capability rivals wired connections, allowing users to participate in real-time
activities online, such as HD video communication, online gaming, and use mobile devices from anywhere in your home while still
oering full 802.11n/g/b backward compatibility.
• Extreme Wired LAN and WAN Networking - With four 10/100/1000 Gigabit Ethernet LAN ports, the DVA-2800 has an enormous
amount of bandwidth to take full advantage of the highest speed broadband connections available.
• Superior Internet Connectivity - With a 10/100/1000 Gigabit Ethernet WAN port, DSL modem supporting up to 100 Mbps
downloads, and USB ports that support mobile 3G/4G broadband dongles, the DVA-2800 has several options available to connect
you the Internet.
• Voice over IP (VoIP) Support - Equipped with two standard FXP VoIP ports to connect phones to the Internet.
• IPv6 Support - The DVA-2800 supports IPv6 connectivity.
• Advanced Firewall Features - The web-based user interface displays a number of advanced network management features. Easily
apply content ltering based on MAC address, URL, and/or domain name. Schedule these lters to be active on certain days or for
a duration of hours or minutes.
• Multiple/Concurrent VPN Sessions - The DVA-2800 can pass through VPN sessions. It supports multiple and concurrent IPSec and
PPTP sessions, so users behind the DVA-2800 can securely access corporate networks.
• User-friendly Setup Wizard - Through its easy-to-use web-based user interface, the DVA-2800 lets you quickly congure and
secure your router to your specic settings in minutes.
1 Maximum wireless signal rate derived from IEEE Standard 802.11a, 802.11g, 802.11n and 802.11ac specications. Actual data throughput will vary. Network conditions and
environmental factors, including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental
conditions will adversely aect wireless signal range.
5D-Link DVA-2800 User Manual
Section 1 - Product Overview
Hardware Overview
Back Panel
1
2
3
4 5 6 87 9 10
1 WPS Button Press to start the WPS process and automatically create a secure connection to a WPS client.
2Wi-Fi Button Press to enable or disable Wi-Fi.
3 Reset Button To reset the device to factory defaults, use a paper clip to press and hold the reset button for 3 seconds.
4 DSL Port Connects to a DSL-enabled telephone line and with the supplied microsplitter.
5Gigabit WAN Port Connects to Ethernet WAN devices.
6 Gigabit LAN Ports (1-4) Connects to Ethernet devices such as computers, switches, storage (NAS) devices and game consoles.
7 USB 2.0 Port Connects to USB ash drives to share content or USB mobile dongles for Internet connectivity.
8 2 FXP (VoIP) Ports Connect telephones or fax devices for VoIP server.
9 Power Connector Connector for the supplied power adapter.
10 Power Button Press the power button to power the DVA-2800 on and o.
6D-Link DVA-2800 User Manual
Section 1 - Product Overview
1 USB 2.0 Port Connects to USB ash drives to share content or USB mobile dongles for Internet connectivity.
Side Panel
1
7D-Link DVA-2800 User Manual
Section 1 - Product Overview
Hardware Overview
LEDs
1Power
Solid Green A solid green light indicates the device is powered on and working properly.
Solid Red A solid red light indicates that the device is booting or an error has occurred.
Blinking Green A blinking green light indicates that backup mode is active.
Blinking Red A blinking red light indicates that the device is resetting to the factory defaults or
that the rmware is being updated.
2Internet Solid Green A solid green light indicates an Internet connection.
Solid Red A solid red light indicates no Internet connection is available.
3WPS Solid Green A solid green light indicates the WPS process is active.
4Wireless 2.4 Solid Green A solid green light indicates that the 2.4 GHz wireless network is enabled.
5Wireless 5G Solid Green A solid green light indicates that the 5 GHz wireless network is enabled.
6VoIP Solid Green A solid green light indicates that a VoIP phone connection is congured.
7USB Solid Green A solid green light indicates that a USB device is detected on a USB port.
8LAN Ports 1-4 Solid Green A solid green light indicates a device is connected to the respective LAN port.
Blinking Green A blinking green light indicates LAN port activity.
9WAN Solid Green A solid green light indicates an Ethernet WAN port connection.
Blinking Green A blinking green light indicates Ethernet WAN port activity.
10 DSL Solid Green A solid green light indicates a proper connection to a DSL enabled telephone line.
Blinking Green A blinking green light indicates the DSL port is negotiating a connection.
1 2 3 54 6 7 8 9 10
8D-Link DVA-2800 User Manual
Section 2 - Installation
Before you Begin
Installation
This section will walk you through the installation process. Placement of the router is very important for proper operation and best performance.
Note: This installation section is written for users who are setting up their home Internet service with the DVA-2800 VDSL2 Wireless AC1600 4-Port
Gigabit Modem Router with VoIP for the rst time. If you are replacing an existing DSL modem and/or router, you may need to modify these steps.
• Placement of the router is very important. Do not place the router in an enclosed area such as a closet, cabinet, attic, or garage.
• Congure the router with the computer that was last connected directly to your Internet connection. Verify that it is connected to the
Internet before connecting additional devices.
• If your ISP provided you with a modem/router combo, you will need to set it to“bridge”mode so the router can work properly. Please
contact your Internet Service Provider (ISP) or refer to the user manual for your modem/router device.
• If connecting to a DSL modem, make sure to have your DSL service information provided by your Internet Service Provider handy.
This information is likely to include your DSL account's username and password. Your ISP may also supply you with additional WAN
conguration settings which might be necessary to establish a connection.
• If you are connecting a considerable amount of networking equipment, it may be a good idea to take the time to label each cable or
take a picture of your existing setup before making any changes.
• If you have DSL and are connecting via PPPoE, make sure you disable or uninstall any PPPoE software such as WinPoET, BroadJump,
or EnterNet 300 from your computer or you will not be able to connect to the Internet.
9D-Link DVA-2800 User Manual
Section 2 - Installation
Wireless Installation Considerations
The D-Link wireless router lets you access your network using a wireless connection from virtually anywhere within the operating range of your
wireless network. Keep in mind that the number, thickness, and location of walls, ceilings, or other objects that the wireless signals must pass
through may limit the range. Typical ranges vary depending on the types of materials and background RF (radio frequency) noise in your home or
business. The key to maximizing wireless range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link router and other network devices to a minimum - each wall or ceiling
can reduce your adapter’s range from 1 to 30 meters (3 to 90 feet). Position your devices so that the number of walls or ceilings is
minimized.
2. Be aware of the direct line between network devices. A wall that is 0.5 meters (1.5 feet) thick, at a 45-degree angle appears to be
almost 1 meter (3 feet) thick. At a 2-degree angle, it looks over 14 meters (42 feet) thick! Position devices so that the signal will
travel straight through a wall or ceiling (instead of at an angle) for better reception.
3. Building materials make a dierence. A solid metal door or aluminum studs may have a negative eect on range. Try to position
access points, wireless routers, and computers so that the signal passes through drywall or open doorways. Materials and objects
such as glass, steel, metal, walls with insulation, water (sh tanks), mirrors, le cabinets, brick, and concrete will degrade your
wireless signal.
4. Keep your product away at least 1 to 2 meters (3 to 6 feet) from electrical devices or appliances that generate RF noise.
5. If you are using 2.4 GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home security systems), your
wireless connection may degrade dramatically or drop completely. Make sure your 2.4 GHz phone base is as far away from your
wireless devices as possible. The base transmits a signal even if the phone is not in use.
10D-Link DVA-2800 User Manual
Section 2 - Installation
Manual Setup
Microsplitter
Telephone Outlet
PHONE
DVA-2800
Phone Cable
Microsplitter

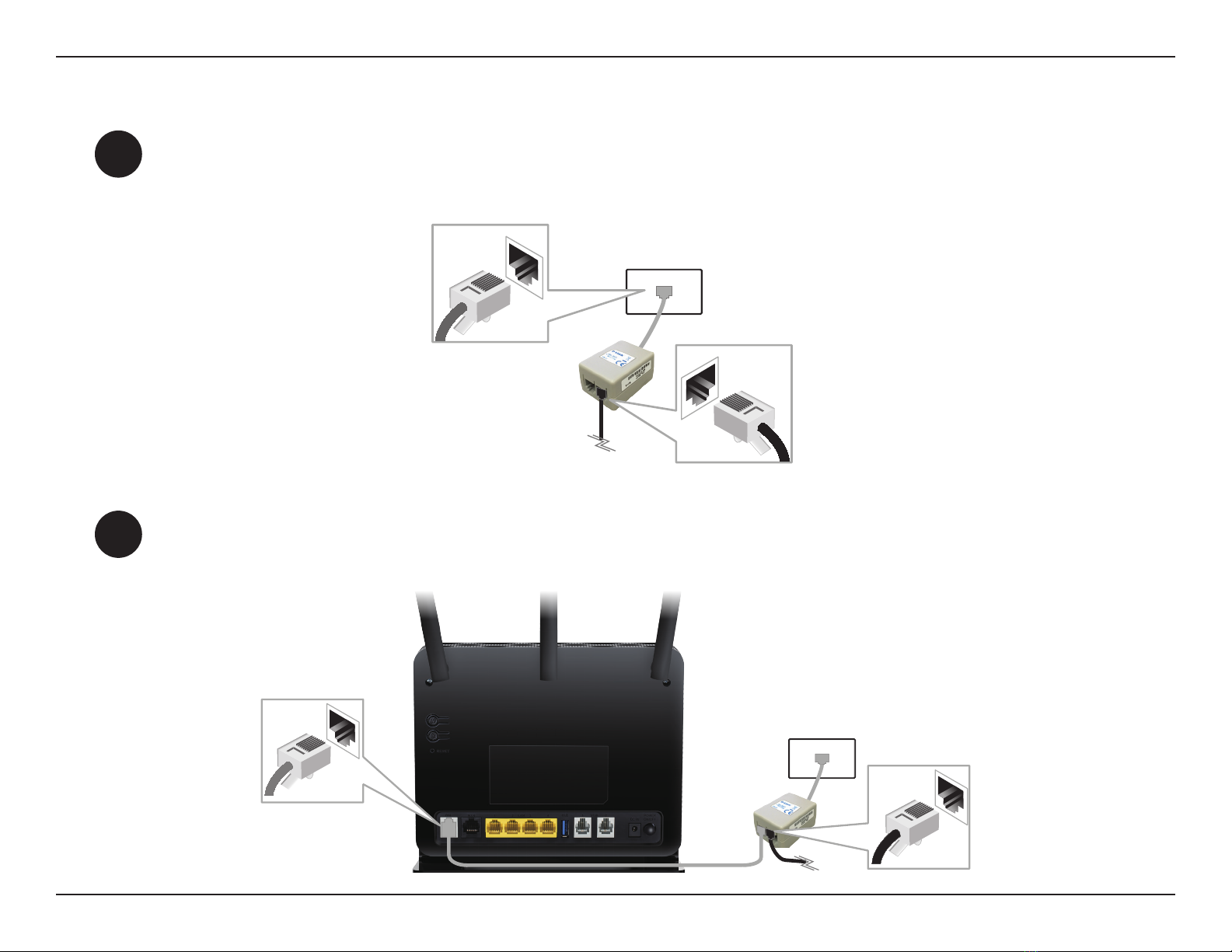

1Connect the supplied microsplitter to the telephone outlet. If you are using a telephone handset on the same
outlet, connect it to the PHONE port on the microsplitter.
Connect the phone cable from the DSL port on the microsplitter to the DSL port of the DVA-2800.
2Caution: To reduce the risk of re, use only No. 26 AWG or larger telecommunication line cord.
11D-Link DVA-2800 User Manual
Section 2 - Installation
4Press the power button and verify that the power LED is lit. Allow one minute for the DVA-2800 to boot
up. After it has powered up, verify that the Power and DSL LEDs are both lit.
3
DVA-2800
Power Adapter
Plug the power adapter into your modem router and connect to an available power outlet or surge protector.
Caution: Use only the included power adapter with this product.
1Power
2Internet
3WPS
4Wireless 2.4
5Wireless 5G
6USB 1
7WAN
8LAN Ports 1-4
9DSL
12D-Link DVA-2800 User Manual
Section 2 - Installation
Computer

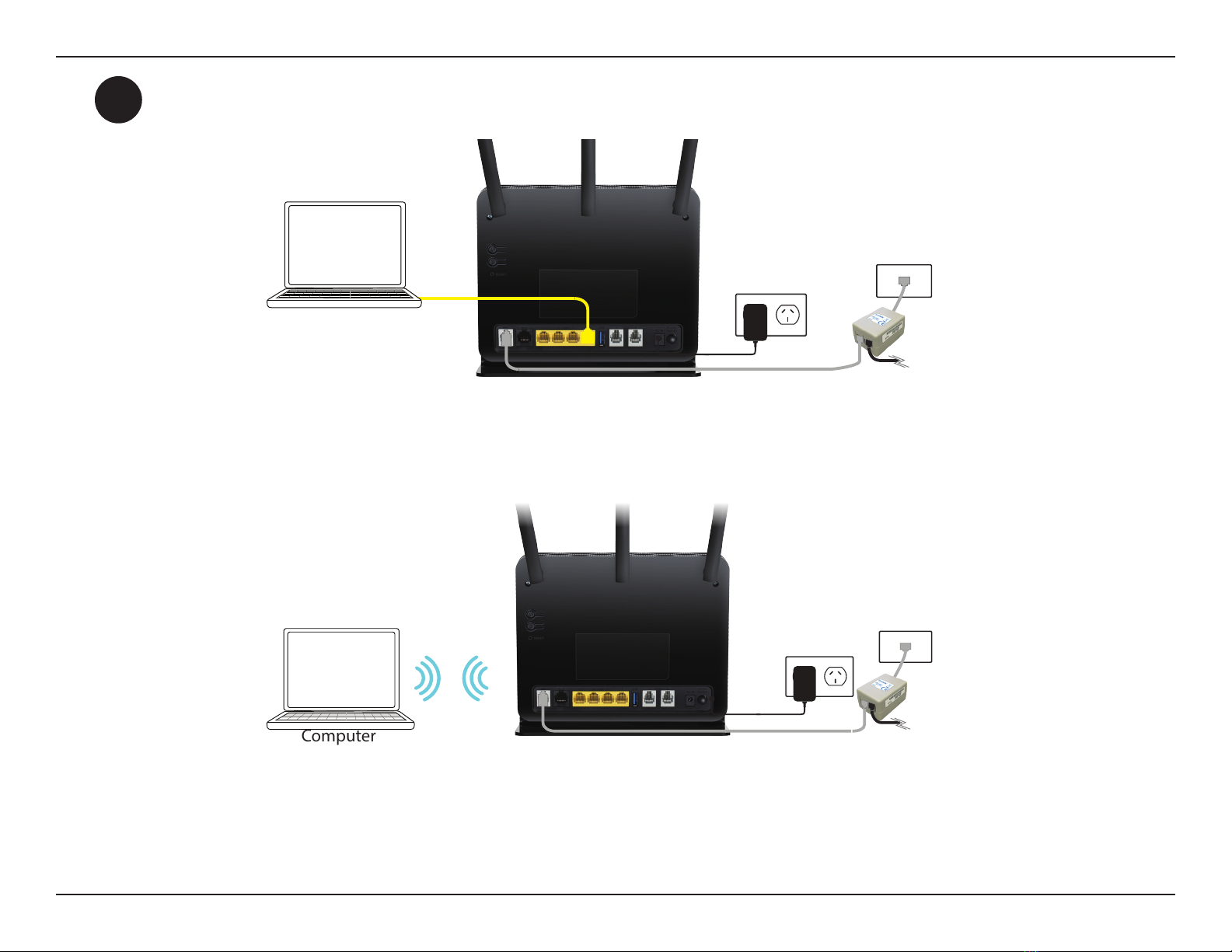

5If you wish to use a wired connection, connect the Ethernet cable from a LAN port of the DVA-2800 to the
Ethernet port on your computer.
If you wish to use a wireless connection, connect to either one of the wireless networks listed on the product
label attached to the bottom of the DVA-2800 from your computer’s wireless utility. Enter the default Wi-Fi
password which is also printed on the product label.
Computer
Ethernet Cable
13D-Link DVA-2800 User Manual
Section 3 - Getting Started
There are two ways you can congure your router to connect to the Internet and connect to your devices:
• D-Link Setup Wizard - This wizard allows you to quickly set up your router. Refer to Setup Wizard on page 14.
• Manual Setup - Log into the router and manually congure your router. Refer to Conguration on page 19.
Getting Started
14D-Link DVA-2800 User Manual
Section 3 - Getting Started
Setup Wizard
If this is your first time installing the router, open your web browser and enter
http://192.168.1.1 in the address bar.
Admin Password:
Log In
The setup wizard should automatically appear.
The router’s home page will open displaying the current connection status. Click the Click
to Repair button to run the Setup Wizard.
Note: The system will automatically log out after a period of inactivity.
Internet
DVA-2800 HW:T1 FW:AU_2.01
Settings Features ManagementHome
Internet DVA-2800
Connected Clients: 1
USB Device
Internet Disconnected
Click on any item in the diagram for more information.
IPv4 / IPv6
Cable Status: Connected MAC Address: FF:FF:FF:FF:FF:FF
Connection Type: Dynamic IP (DHCP) IP Address: 172.17.5.120
Network Status: Connected Subnet Mask: 255.255.255.0
Connection Uptime: 1 Day 3 Hour 50 Min 58 Sec Default Gateway: 172.17.5.1
Release IP Address
Primary DNS Server: 172.17.5.5
Secondary DNS Server: 172.17.5.6
Go to settings
Click to repair
Step 1: Install your device
Step 2: Congure your Network and Wi-Fi Settings
Step 3: Set your router password
Welcome
Internet Wi-Fi ClientDVA-2800
This wizard will guide you through a step-by-step process to congure your new D-Link
device.
Next
English
⌵
If prompted with a log in screen, click Log In to proceed. No password is enabled by default.
If you are having trouble logging in or experiencing trouble with the conguration utility, try
clearing your browser cache or try using your web browsers 'private browser' or incognito
mode.
15D-Link DVA-2800 User Manual
Section 3 - Getting Started

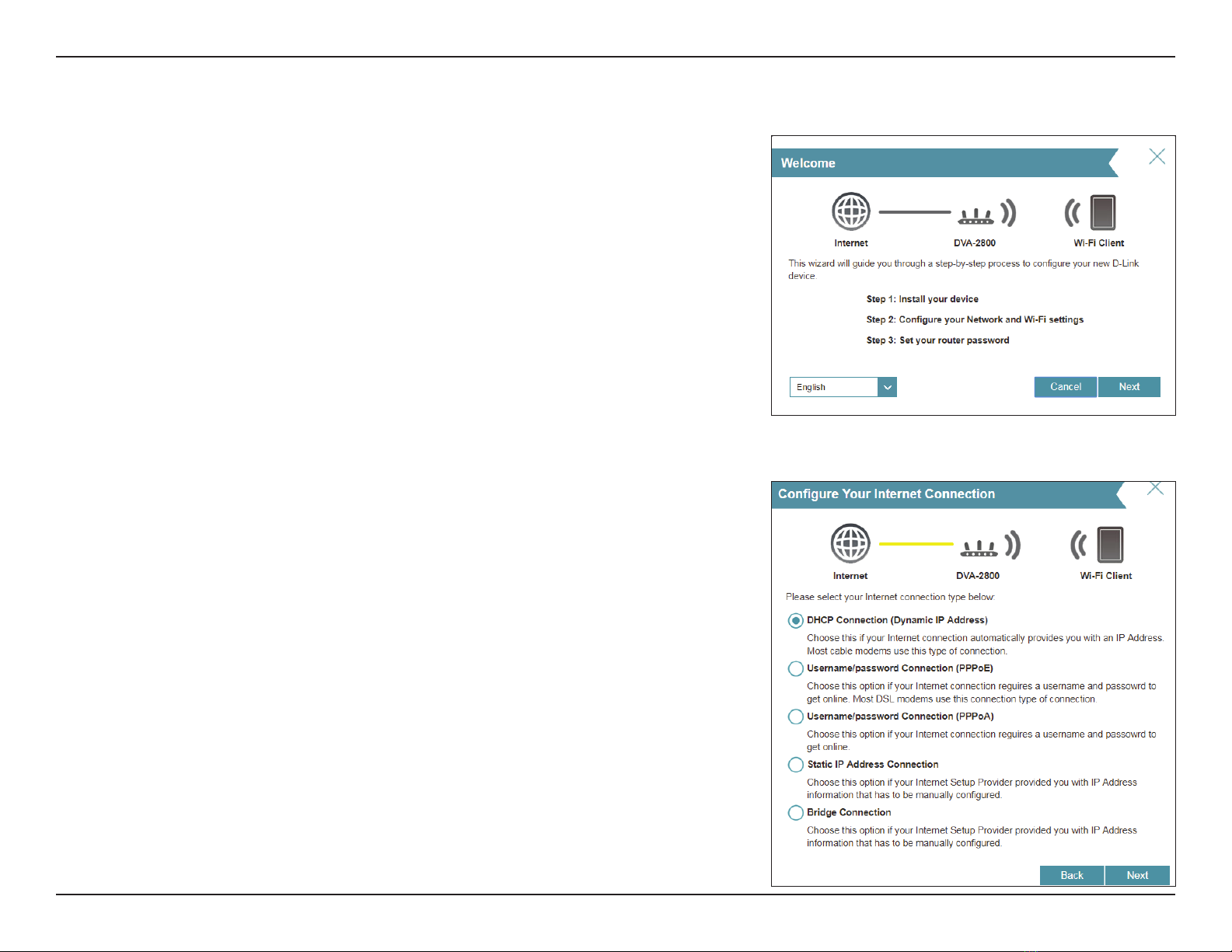

The wizard is designed to guide you through a step-by-step process to congure your new
D-Link router and connect to the Internet.
Click Next to continue.
Please wait while your router detects your Internet connection type. If the router detects
your Internet connection, you may need to enter your ISP information such as username
and password.
Setup Wizard (continued)
If the router has successfully detected your internet connection type, skip to the next page.
If your connection type could not be detected, select your internet connection type. Choose
DHCP Connection (Dynamic IP Address), Username/password Connection (PPPoE),
Username/password Connection (PPPoA), Static IP Address Connection, or Bridge
Connection. This information should be provided by your ISP.
16D-Link DVA-2800 User Manual
Section 3 - Getting Started
Setup Wizard (continued)
Congure your Internet connection using the drop-down menus. Select either ADSL or VDSL
from WAN Access Type. Use the Country and ISP drop-down menus to quickly congure
the VPI, and VCI settings. To manually congure these settings, select Not Listed.
Select your ISP's Encapsulation type and MTU, and click Next to continue.
If the router detected that a username and password is required, enter your ISP's PPPoE
username and password and click Next to continue.
Note: Make sure to remove your PPPoE software from your computer. The software is no longer
needed and will not work through a router.
PPPoE
Internet Wi-Fi ClientDVA-2800
To setup this Internet connection, you will need to have a User Name from your Internet
Service Provider. If you do not have this information, please contact your ISP.
NextBack
Username:
Password:
Other manuals for DVA-2800
5
Table of contents
Other D-Link Gigabit Router manuals
