Dixon D26KH54 Owner's manual

REPAIR PARTS MANUAL
MODEL NO. D26KH54 (96041018400)
GARDEN TRACTOR
532 43 69-44

2
HOW TO USE THIS MANUAL
This manual is designed to provide the customer with a means to identify the parts on his/her tractor
when ordering repair parts. The illustrations may or may not represent the actual assemblies; therefore,
it is not recommended to use this manual as a guide to assemble or disassemble the tractor. Some
hardware and parts are drawn larger in order to more readily identify them.
Each tractor has its own model number.
The model number for your tractor can be found on the fender under the seat.
When ordering parts, always give the following information:
• Product - “Tractor”
• MODEL NUMBER - “D26KH54 (96041018400)”
• Part Number
• Part Description
TABLE OF CONTENTS
SCHEMATIC ................................................................................................................ 3
ELECTRICAL............................................................................................................4-5
CHASSIS ..................................................................................................................6-7
DRIVE........................................................................................................................8-9
ENGINE.................................................................................................................10-11
STEERING ................................................................................................................. 12
SEAT .......................................................................................................................... 13
MOWER DECK .....................................................................................................14-15
MOWER LIFT............................................................................................................. 16
DECALS..................................................................................................................... 17
WARRANTY..............................................................................................BACK PAGE

3
M
FUSE
STARTER
SOLENOID
BATTERY
ELECTRIC CLUTCH
CLUTCH/BRAKE
(PEDAL UP)
REVERSE SWITCH
(NOT IN REVERSE)
SEAT SWITCH
(NOT OCCUPIED)
SHORTING CONNECTOR
CHASSIS
HARNESS
IGNITION
UNIT
HOUR
METER
REGULATOR
CHASSIS HARNESS
CONNECTOR
(MATING SIDE)
DASH HARNESS
CONNECTOR
(MATING SIDE)
LIGHT
SWITCH
HEADLIGHTS
STATOR
FUEL
LINE
FUEL SHUT-OFF
SOLENOID
(IF EQUIPPED)
JUNCTION
CONNECTOR
PTO SWITCH
(DISENGAGED)
SM
B
GL
2
3
1
6
A2
A1
M
6
3
52
41
6
5
4
3
2
1
SPARK
PLUGS GAP
(2 PLUGS ON
TWIN CYL. ENGINES)
28 VOLTS AC @ 3600 RPM (REGULATOR DISCONNECTED)
CHARGING SYSTEM OUTPUT
9-15 AMP DC @ 3600 RPM
(OPTIONAL)
NON-REMOVABLE
CONNECTIONS
REMOVABLE
CONNECTIONS
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED
CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY
SHOULD BE RE-INSTALLED TO
PROPERLY SECURE YOUR
WIRING.
SCH15
IGNITION SWITCH
CIRCUITPOSITION
OFF B+A1
RUN/OVERRIDE
B+S+A1
START
M+G+A1
B+A1
RUN
“MAKE”
L+A2
POWER OUTLET
(OPTIONAL)
12V
A
AMMETER
(OPTIONAL)
BLACK
BLACK /WHITE
ORANGE
RED
BROWN
BLUE
BLUE
BLACK
BLACK
GREEN
BLACK
RED
GREEN
YELLOW
BLACK
BLACK
GREEN
RED
RED
RED
WHITE
WHITE
WHITE
GRAY
GRAY
YELLOW
BLACK
B
A
G
H
D
FC
E
PTO SWITCH
B
A
H
D
C
E
BLUE BLACK
85 86
30 87
87A
87
87A 8586
30
RELAY
BLUE
BLUE BLACK
BLACK
M
DECK LIFT MOTOR
M
5
4
RED
YELLOW
YELLOW
BLACK
RED
FUSE
BLACK
BLUE
BLUE
RED
YELLOW
2
5
1
3
4
6
ELECTRIC LIFT
SWITCH
4
5
6
1
2
3
ELECTRIC LIFT
SWITCH CONNECTOR

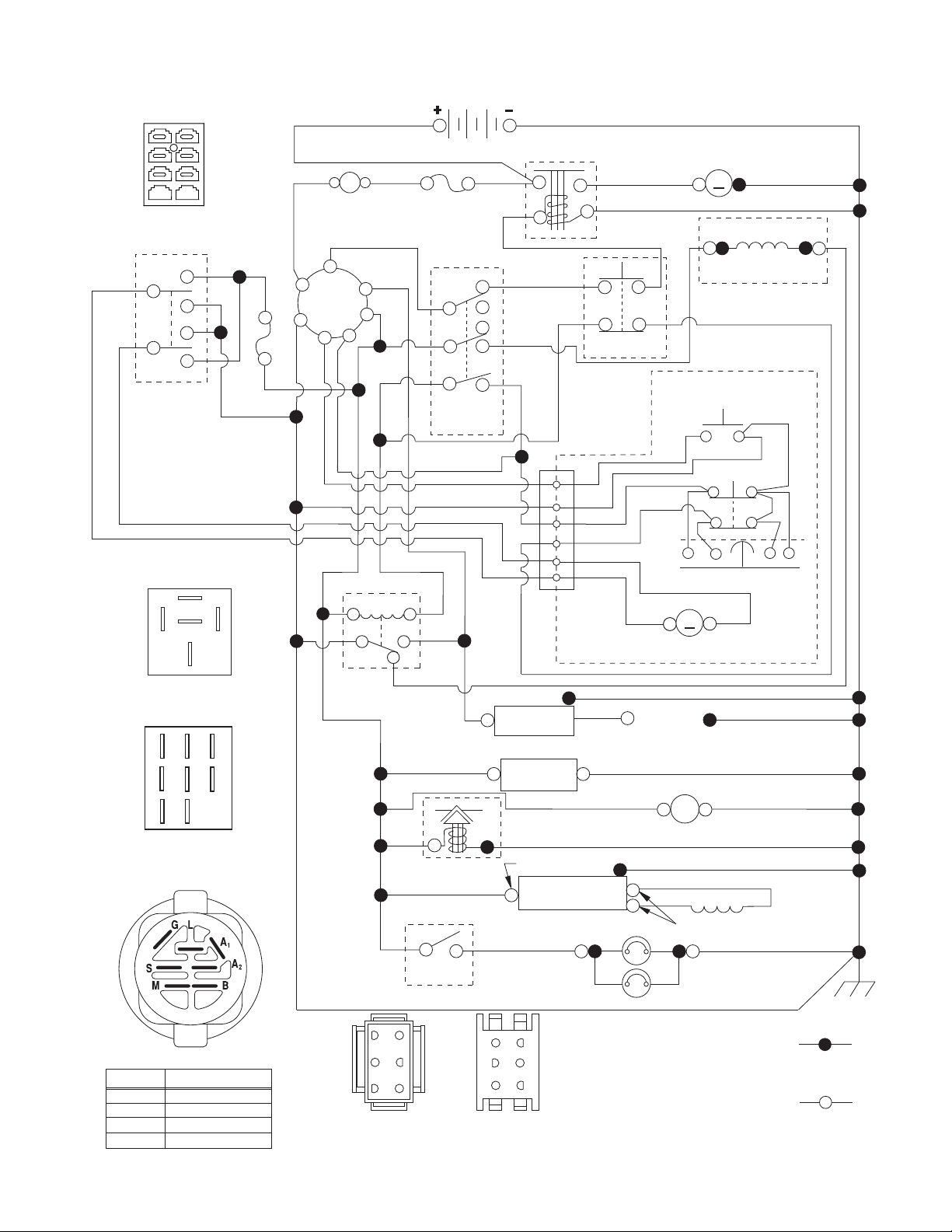

TRACTOR - - MODEL NO. D26KH54 (96041018400), PRODUCT NO. 960 41 01-84
SCHEMATIC

4
8
1
99
100
91
227
90
28
55
26
43
41
24
27
25
30 33
22
79 21
40
71
75
16
42
T23S
29
102
105
26
81
34
45
0
60
AMPS
60
46

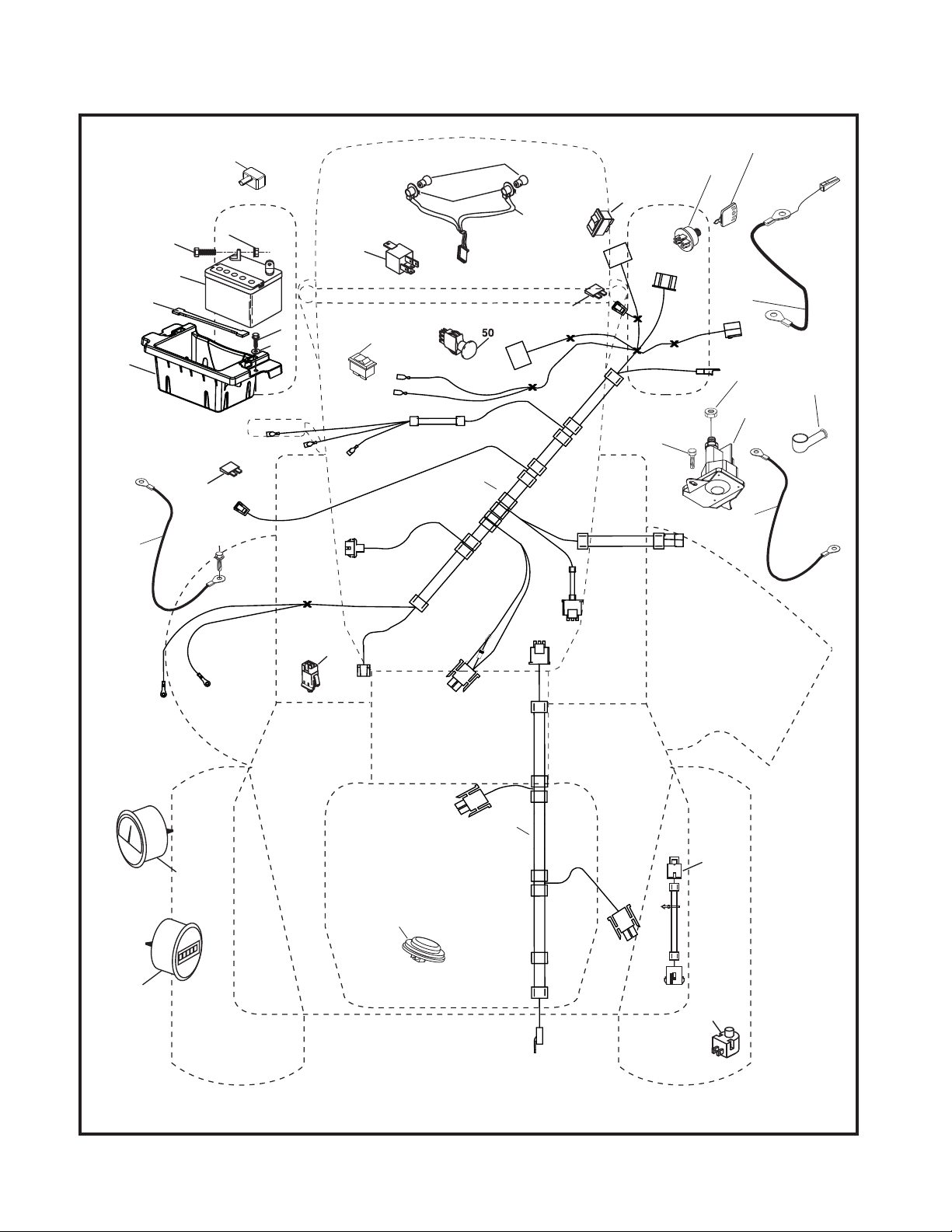

TRACTOR - - MODEL NO. D26KH54 (96041018400), PRODUCT NO. 960 41 01-84
ELECTRICAL

5
KEY PART
NO. NO. DESCRIPTION
1 532 16 34-65 Battery
2 874 76 04-12 Bolt Hex Head 1/4-20 x 3/4
8 532 18 64-91 Box Battery
16 532 17 61-38 Switch Interlock Push-In
21 532 17 56-88 Harness Socket Light w/4152J
22 532 00 41-52 Bulb Light
24 532 40 02-53 Cable Battery
25 532 41 28-95 Cable Start Red
26 532 17 51-58 Fuse
27 873 51 04-00 Nut Keps Hex 1/4-20 unc
28 532 14 54-91 Cable, Ground
29 532 40 15-45 Switch, Seat
30 532 19 33-50 Switch, Ignition
33 532 41 19-33 Key/Chain
34 532 11 07-12 Switch Light/Reset
40 532 41 95-84 Harness Ign. Dash
41 817 72 04-08 Screw Thd Cut 1/4-20 x 1/2
42 532 13 15-63 Cover, Terminal
43 532 19 25-07 Solenoid
45 532 43 46-34 Ammeter Studmount
46 532 43 46-35 Gauge Hourmeter
50 532 17 46-51 Switch, PTO
55 817 06 05-12 Screw 5/16-18 x 3/4
71 532 41 95-83 Harness Ignition
75 532 41 72-37 Switch Rocker Decklift
79 532 17 52-42 Bulbholder Asm. Incandescent
81 532 40 96-15 Relay Harness
90 532 40 07-24 Cover Terminal Battery
91 532 19 02-70 Strap Battery Mount Front
99 817 67 04-12 Screw Hexwsh Thdrol 1/4-20 x 3/4
100 819 09 14-16 Washer 9/32 x 7/8 x 16 Ga.
102 532 40 44-54 Harness Pigtail ROS
105 532 40 75-68 Switch Reverse TT Pedal Control
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
TRACTOR - - MODEL NO. D26KH54 (96041018400), PRODUCT NO. 960 41 01-84
ELECTRICAL

6
14
148
182
176
176
175 177
122
150
130
18
178
5
176
176
195
206
205
61
130
15
25
68
68
68
68
183
183
236
236
34
235
235
189
189
152
68
139
278
chassis-tex_stealth pl_8_r1
37
181
181
194
36
196198
199
222
161
58
189
189
162
162
228
228
194
180
189
189
300
165

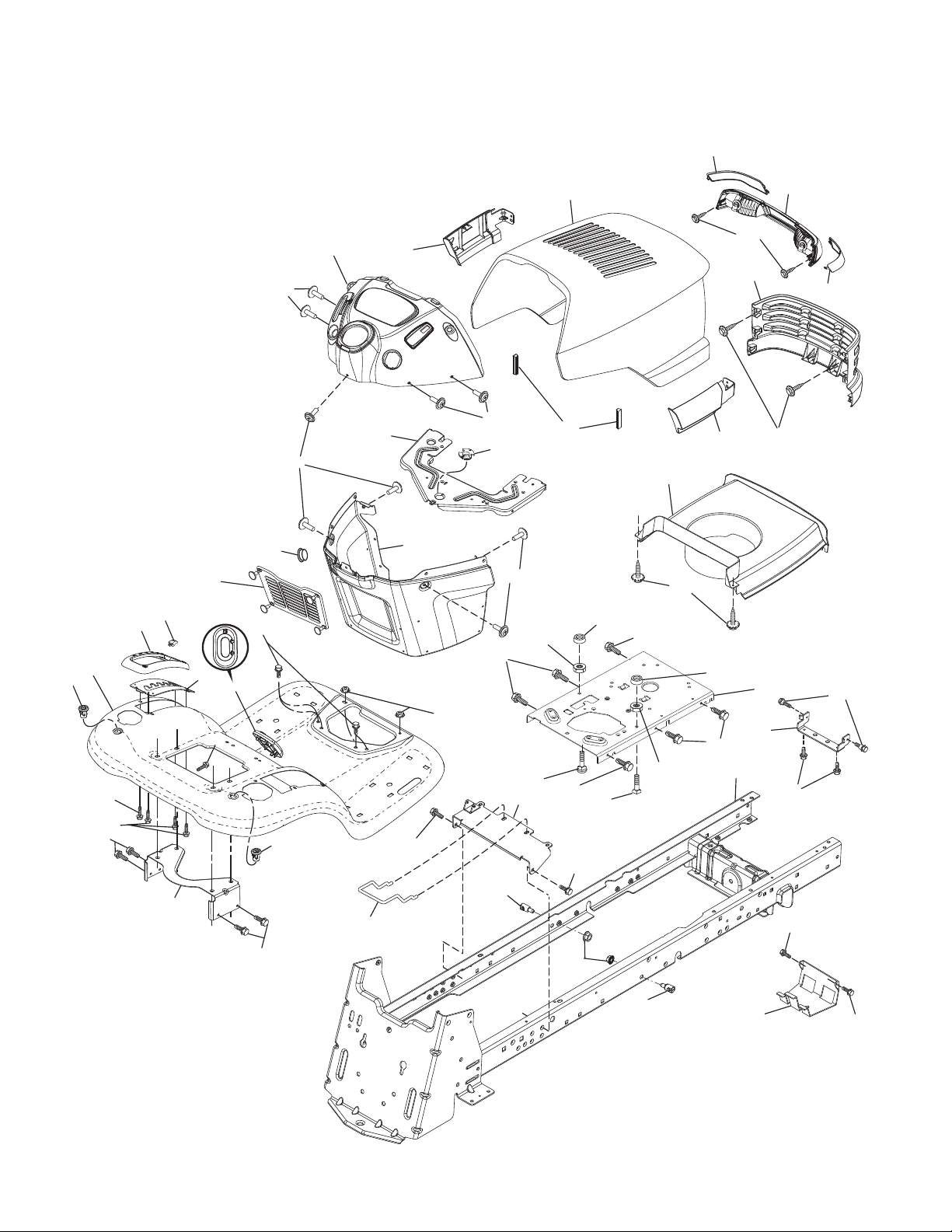

TRACTOR - - MODEL NO. D26KH54 (96041018400), PRODUCT NO. 960 41 01-84
CHASSIS

7
KEY PART
NO. NO. DESCRIPTION
5 532 43 63-68 Dash
14 532 42 63-64 Hood
15 532 16 18-41 Lens LH
18 532 18 71-14 Grille
25 532 16 18-42 Lens RH
34 532 19 61-25 Plate Engine
36 817 06 05-12 Screw 5/16-18 x 3/4
37 532 43 63-69 Fender
58 532 19 43-14 Bracket Fender
61 532 43 46-04 Lightbox Asm.
68 817 49 05-08 Screw Thdrol 5/16-18 x 1/2
122 532 19 25-12 Screw Wshd Hex 10-32 x 5/8
130 532 41 63-58 Screw #10 x 0.750 BOS Thread
139 532 17 18-73 Bolt Shoulder 5/16-18
148 532 16 46-55 Bumper Extrusion
150 532 19 03-09 Duct Heat Hood
152 532 19 95-35 Shield Browning/Debris
161 532 41 18-79 Console Fuel Window
162 532 14 24-32 Screw Hex Wsh Hi-Lo 1/4 x 1/2
165 532 19 43-30 Bracket Support Tank
175 532 19 32-36 Crossmember
176 532 40 07-76 Screw #10-24 x 5/8 Rnd Qudrx
177 532 19 52-27 Bushing Steering
178 532 19 56-51 Cargo Asm. Net
180 532 19 54-77 Chassis
181 532 40 47-96 Bushing Mtg. Fender Crgo.
182 532 19 25-51 Dash Lower
183 874 52 05-20 Bolt 5/16-18 x 1-1/4
189 817 00 05-12 Screw 5/16-18 x 3/4
194 873 90 05-00 Nut Lock Hex Flange 5/16-18
195 532 40 41-37 Plug Hole Dash Lower
196 532 43 50-15 Console Asm. Deck Lift
198 532 41 18-81 Indicator Deck Lift
199 532 41 93-51 Plate Deck Lift
205 532 18 71-11 Skirt Hood Stealth RH
206 532 18 71-12 Skirt Hood Stealth LH
222 532 13 77-29 Screw Thd Roll 1/4-20 x 5/8
228 532 19 51-61 Stud Fastener
235 532 40 61-29 Spacer Fender
236 873 93 05-00 Nut Center Lock 5/16-18 unc
278 532 19 63-94 Bracket Hood/Muff
300 532 42 17-74 Bracket Lift Electric
- - 532 43 23-70 Kit, Guard Assembly Brush
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
TRACTOR - - MODEL NO. D26KH54 (96041018400), PRODUCT NO. 960 41 01-84
CHASSIS

8
56
64
188
17
161
35
184
167
160
42
221
29
159
159
15
74
224
Drive-tex_K66_pedal_2_r3
69
116
73
69
99
2
3
33
183
116
73
2
7
9
33
183
169
69
3
208
210
163
214
125
215
153
153
166
211
211
222
197 196
80
226
225
125
196
125
125
125
79
186
189
49
187
50
51
52
51
190
185
51
52
170
171
213
221
160
206
26
207
209
92 125
116
216
143
TRACTOR - - MODEL NO. D26KH54 (96041018400), PRODUCT NO. 960 41 01-84
DRIVE

9
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1 - - - - - - - Transaxle, TuffTorq K66Y
2 532 00 70-70 Key
3 532 00 75-63 Washer Thrust Axle Hardened
7 532 19 98-37 Hub Asm. Wheel
9 532 14 00-80 Bolt Hub Wheel
15 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga.
17 532 40 10-72 Spring, Brake
26 532 19 96-79 Spring Return Cruise
29 532 40 72-45 Rod, Brake
33 812 00 00-53 Ring E
35 532 19 72-75 Rod, Brake, Park
42 532 12 48-72 Cover, Foot Pedal
49 872 11 06-14 Bolt
50 532 19 43-27 Pulley Idler Flat
51 873 90 06-00 Lock Nut 3/8-16
52 532 19 43-26 Idler V-Groove 910" Offset
56 532 12 59-07 V-Belt, Drive
64 532 19 78-65 Shaft Asm. Pedal Brake Control
69 532 12 38-00 Washer 1 1/32 x 1 5/8 x 16 Ga.
73 874 49 05-44 Bolt Hex Flghd 5/16-18 Gr. 5
74 532 14 24-32 Screw Hx Wsh Hi-Lo 1/4 x 1/2 unc
80 532 40 71-82 Strap Torque
92 874 76 05-20 Bolt Fin Hex 5/16-18 unc x 1.25
99 532 41 57-44 Rod Bypass
116 873 90 05-00 Nut Lock Hex Flange 5/16-18
125 817 00 05-12 Screw 5/16-18 x 3/4
143 817 49 05-08 Screw Thdrol 5/16-18 x 1/2
153 532 12 47-88 Retainer Spring
159 876 02 04-12 Pin Cotter 1/8 x 3/4
160 532 16 94-84 Retainer Clip
161 532 10 57-09 Spring, Return, Clutch
163 532 40 72-46 Rod Pedal Control
166 532 42 91-64 Nut Push .625
167 532 40 52-57 Latch Brake Parking
170 532 19 43-22 Keeper Belt Centerspan
171 872 11 06-16 Bolt
183 532 19 73-57 Spacer Axle
184 532 41 17-16 Handle Parking Brake
185 872 11 06-22 Bolt
186 532 19 43-21 Spacer Retainer
187 819 13 32-10 Washer
188 532 19 43-23 Link Clutch Ground Drive
189 532 19 43-17 Bellcrank Ground Drive
190 532 19 43-18 Keeper Bellcrank Ground Drive
196 817 00 06-16 Screw 3/8-16 x 1
197 532 19 97-69 Bracket Clutch Anti-Rotation
206 532 19 78-67 Bracket Mount Latch Cruise
207 532 19 78-68 Latch Control Cruise
208 532 19 78-69 Bolt Sector Control Cruise
209 532 19 94-66 Rod Conrtrol Cruise
210 532 19 78-60 Rocker Asm. Pedal Control
211 532 12 01-83 Bearing Nylon
213 532 41 23-24 Knob Control Cruise
214 532 42 12-63 Pad Pedal Forward
215 532 40 17-23 Pad Pedal Reverse
216 532 19 61-31 Bracket Pulley Idler
221 532 40 31-87 Retainer Spring Clip Handle
222 879 21 20-10 Washer 21/32 x 1-1/4 x 10 Ga.
224 532 41 22-98 Console Toolbox
225 532 40 73-11 Keeper Belt Trans.
226 532 40 71-09 Bracket Mount Torque
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
TRACTOR - - MODEL NO. D26KH54 (96041018400), PRODUCT NO. 960 41 01-84
DRIVE

10
1
92
12
11
41
42
85
9
29
SPARK ARRESTER KIT
92
45
90
37
28
37
22
62
70
71
86
69
87
2
engine-tex_Kawa-2cyl_6
18
15
91
21
20
116
14
TRACTOR - - MODEL NO. D26KH54 (96041018400), PRODUCT NO. 960 41 01-84
ENGINE

11
KEY PART
NO. NO. DESCRIPTION
1 - - - - - - - Engine Kawa Model No.
FR730V-AS04
2 532 14 97-23 Muffler
9 532 19 43-20 Keeper Asm. Belt Engine
11 532 17 93-35 Clutch Electric
12 532 19 43-43 Pulley Engine
14 532 14 84-56 Tube Drain Oil Easy
15 532 19 34-99 Tank Fuel 4.0
18 532 43 02-18 Cap Asm
20 532 42 43-41 Control Throttle
21 532 41 63-58 Screw #10 x 0.750 BOS Thread
22 532 19 15-96 Control Choke
28 532 14 21-58 Fuel Line
29 532 13 71-80 Spark Arrester Kit
37 532 12 34-87 Clamp Hose
41 532 12 61-97 Washer 1-1/2 OD x 15/32 ID x .250
42 810 04 07-00 Washer Lock 7/16
45 873 51 04-00 Nut Keps Hex 1/4-20 unc
62 532 43 40-17 Shield Heat Muffler
69 - - - - - - - Gasket (Order from Engine Mfgr.)
70 532 42 47-65 Tube Exhaust LH
71 532 42 47-66 Tube Exhaust RH
85 532 17 99-53 Bolt Hex 7/16-20 x 3.75 Gr. 5
86 532 18 43-62 Nut Hex Flange Toplock
87 532 19 82-39 Bolt 5/16-18 unc x 1 w/Sems
90 817 00 06-16 Screw 3/8-16 x 1
91 532 18 74-95 Bushing
92 817 12 06-16 Screw 3/8-16 x 1
116 532 42 46-59 Knob Soft Touch
TRACTOR - - MODEL NO. D26KH54 (96041018400), PRODUCT NO. 960 41 01-84
ENGINE
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
For engine service and replacement parts, call the toll free
number for your engine manufacturer listed below:
Kawasaki 1-949-460-5688

12
6
5
13
13
53 8
9
9
8
8
7
7
62
4
35
19
63
57
60
59
58
70
68
69
67
67
66
15
15
14
14
61
2
6
steering-tex_LEGND2_6_r1
16
28
13 22
64
21
51
26
1
45
63
20
KEY PART
NO. NO. DESCRIPTION
1 532 42 41-46 Wheel, Steering
2 532 19 59-68 Axle Asm., Front
4 532 40 30-89 Spindle Asm., LH
5 532 40 30-90 Spindle Asm., RH
6 532 12 49-31 Bearing, Race Thrust Harden
7 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.
8 812 00 00-29 Ring, Clip #T5304-75
9 532 12 12-32 Cap, Spindle
13 532 12 17-49 Washer 25/32 x 1-1/4 x 16 Ga.
14 810 04 06-00 Washer, Lock Hvy Hlcl Spr 3/8
15 873 54 06-00 Nut, Crown Lock 3/8-24 unf
16 532 19 47-46 Shaft Steering
19 532 19 47-29 Plate Steering
20 532 41 14-25 Boot, Steering
21 532 18 67-37 Adapter, Wheel Steering
22 532 42 05-37 Steering Supt. Lower
26 532 42 46-91 Insert, Wheel Steering
28 817 00 06-12 Screw 3/8-16 x 3/4
35 532 19 47-32 Gear, Sector Plate NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
45 819 11 38-12 Washer 11/32 10 x 2 3/8 00 x 12 Ga.
51 873 94 08-00 Nut Hex Jam Toplock 1/2-20 unf
53 532 18 89-67 Washer Hardened .793 x 1.637 x .060
57 532 19 72-46 Bracket Upstop
58 532 19 47-47 Bolt Shoulder Sector Pivot CFM
59 532 19 47-48 Washer Thrust Sector Steering
60 873 97 10-00 Nut Flange Lock 5/8-11
61 532 19 47-40 Draglink, LH
62 532 19 47-41 Draglink, RH
63 817 00 05-12 Screw 5/16-18 x 3/4
64 532 19 98-49 Retainer Clip Spring Steering
66 871 02 07-48 Bolt Hex Fghd 7/16-14 x 3 Serr
67 532 19 47-37 Bushing PM Front Axle
68 873 90 07-00 Nut Lock Flange 7/16-14 Gr. 5
69 532 19 91-62 Washer 1.5 x .505 x .118
70 532 19 61-97 Bracket Deck Susp. Front
KEY PART
NO. NO. DESCRIPTION
TRACTOR - - MODEL NO. D26KH54 (96041018400), PRODUCT NO. 960 41 01-84
STEERING ASSEMBLY

13
1 532 43 14-50 Seat
2 532 18 01-66 Bracket Pivot Fender
3 532 14 06-75 Strap, Asm Fender
6 873 80 06-00 Nut, Lock w/Ins. 3/8-16 unc
7 532 12 41-81 Spring, Seat Cprsn
8 532 17 18-77 Bolt 5/16-18 unc x 3/4 w/Sems
10 532 19 69-77 Pan, Seat
21 532 17 18-52 Bolt, Shoulder 5/16-18
37 873 80 05-00 Nut, Lock 5/16-18 unc
40 532 19 76-61 Handle Slide Seat
41 532 19 82-00 Spring Latch Seat
43 874 76 06-12 Bolt Fin Hex 3/8-16 unc x 3/4
44 819 13 38-12 Washer 13/32 x 2-3/8 x 12 Ga.
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
2
6
1
40
10
37
37
21
21
3
41
7
8
7
8
8
8
seat-tex_6.5SL_2
44
43
TRACTOR - - MODEL NO. D26KH54 (96041018400), PRODUCT NO. 960 41 01-84

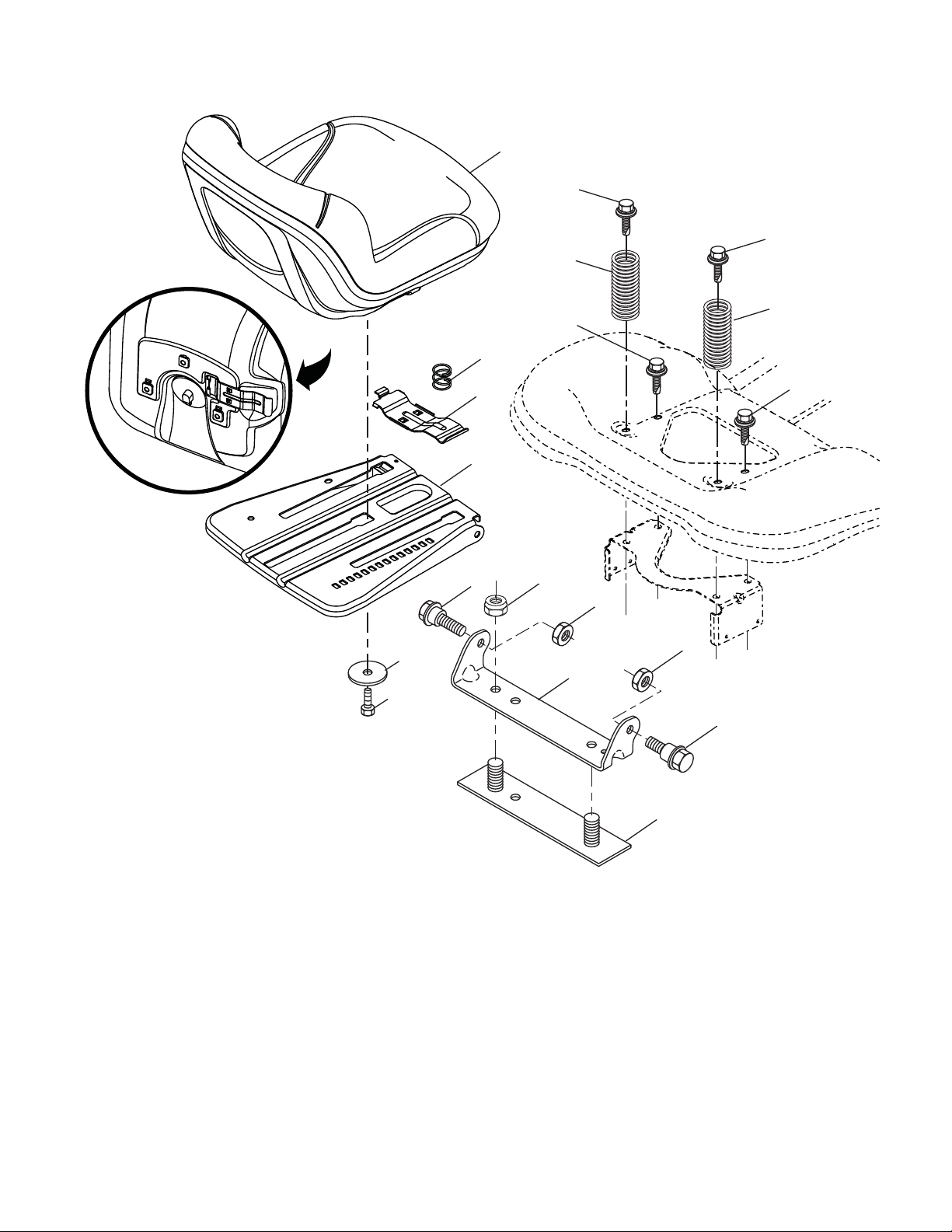

SEAT ASSEMBLY

14
mower_deck 54-tex_18_r2
47
7
49
46
32
33
31
30
133
52
52
43
196
97
33
192
49
34
39
185
46
46
6
21
122
114
98
31
32
25 26
24
27
58
60
59
18
21
18
18
21
21
21
21
194
113
49
187
190
188
190
187
50
120
117
116
21
18
18
18
189
21
18
13
14
15
11
8
29
12 16
19
241
242
TRACTOR - - MODEL NO. D26KH54 (96041018400), PRODUCT NO. 960 41 01-84
MOWER DECK

15
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1 532 43 63-76 Deck Weldment Mower
6 532 19 60-66 Cover Mandrel LH
7 532 19 71-81 Cover Mandrel RH
8 532 19 30-03 Bolt/Washer Asm. 7/16-20 unf
11 532 18 72-56 Blade Bagging
12 532 40 03-37 Rod Anti-Sway
13 532 18 72-91 Shaft Asm. w/Lower Bearing
14 532 18 72-81 Housing, Mandrel
15 532 11 04-85 Bearing, Ball, Mandrel
16 819 13 13-12 Washer 13/32 x 13/16 x 12 Ga.
18 872 14 05-05 Bolt Rdhd Sqnk 5/16-18 x
19 532 19 42-08 Pin Cotter 5/16 Bow Tie Lock
21 873 68 05-00 Nut, Crownlock 5/16-18
24 532 10 53-04 Cap Sleeve
25 532 17 81-02 Spring, Torsion
26 532 11 04-52 Nut, Push
27 532 18 89-38 Deflector Shield
29 532 13 14-91 Rod, Hinge
30 532 17 39-84 Screw, Thdroll Washer Head
31 532 18 76-90 Spacer Mandrel
32 532 15 35-35 Pulley, Mandrel
33 532 40 02-34 Nut, Flg. Top Lock
34 873 68 06-00 Nut Crownlock 3/8-16 unc
39 532 19 73-80 Pulley, Idler 4.50 RAW
43 532 19 60-65 Arm, Idler
46 532 13 77-29 Screw, Thdroll. 1/4-20 x 5/8
47 532 19 61-03 V-Belt, Mower
49 873 90 06-00 Nut, Lock Flg. 3/8-16 unc
50 872 11 06-16 Bolt RDHD SQNK 3/8-16 unc x 2
52 532 19 73-79 Pulley Idler 4.50 Hub Special
58 532 18 73-42 Baffle Right
59 532 18 73-44 Baffle Left
60 532 18 76-07 Baffle Center
97 532 17 85-15 Washer Hardened
98 532 19 61-05 Spring Drive
113 872 11 05-08 Bolt Rdhd Sqnk 5/16-18 x 3/4
114 532 18 75-56 Rod Tension Relief
116 532 19 34-06 Bolt, Shoulder
117 532 17 48-73 Gauge Wheel
120 819 13 20-12 Washer 13/32 x 1-1/4 x 12 Ga.
122 532 18 75-57 Bushing Tension Relief
185 873 90 07-00 Nut Lock Flange 7/16-14 Gr. 5
187 532 19 51-61 Stud Fastener w/"D" Anti-Rotation
188 873 90 05-00 Nut Lock Hex Flange 5/16-18
189 532 19 51-85 Arm Susp. Mower Rear
190 532 19 65-39 Bolt Shoulder
192 532 19 84-68 Keeper Belt Idler
194 874 49 07-36 Bolt Hex Washer Head
196 872 14 06-20 Bolt Rdhd Sqnk 3/8-16 x 2-1/2 Gr. 5
241 532 15 29-27 Screw TT #10-32.5 .3/8 Flange
242 532 41 55-98 Port Washout
- - 532 18 72-92 Mandrel Assembly (Includes hous-
ing, shaft assembly, and bearing
only - pulley/nut/washer and blade
bolt/washers not included)
- - 532 43 51-31 Replacement Mower, Complete
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
TRACTOR - - MODEL NO. D26KH54 (96041018400), PRODUCT NO. 960 41 01-84
MOWER DECK

16
104
106
3
787
91
91
97
97
2
98
89
90
87
105
106
103
108
107
110 115
102
lift-tex_elec_2
89
87
89
87
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
2 532 42 20-27 Shaft Asm., Lift
3 532 41 94-96 Rod Indicator Lift Electric
7 532 43 63-71 Cap Indicator Lift Electric
87 532 19 42-09 Pin Cotter 7/16 Bow Tie Lock
89 819 19 19-12 Washer Clear Zinc
90 532 19 42-08 Pin Cotter 5/16 Bow Tie Lock
91 532 40 34-07 Link Asm. Lift Rear
97 817 00 06-12 Screw 3/8-16 x .75
98 532 19 52-64 Link Lift Susp. Front Mower
102 532 41 92-78 Clevis Motor Electric
103 532 42 01-90 Spacer Tubular
104 532 42 17-69 Actuator Decklift
105 532 12 68-75 Rivet Drilled 1/4 Dia.
106 532 12 47-88 Retainer Spring
107 873 72 04-00 Nut
108 819 09 10-16 Washer 9/32 x 5/8 x 16 Ga.
110 532 41 92-79 Spacer Clevis
115 532 42 17-34 Pin Clevis .375 x 2.125
TRACTOR - - MODEL NO. D26KH54 (96041018400), PRODUCT NO. 960 41 01-84
MOWER LIFT

17
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
6
2
1
3
11
4
10
5
9
8
7
wheel_art_1-vgt
WHEELS AND TIRES
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
4
1 532 05 91-92 Cap, Valve, Tire
2 532 06 51-39 Stem, Valve
3 532 18 18-39 Rim Assembly, Front
4 532 00 81-34 Tube, Front (Service Item Only)
5 532 16 10-24 Tire, Front
6 532 12 49-57 Fitting, Grease (Front Wheel Only)
7 532 12 49-59 Bearing, Flange (Front Wheel Only)
8 532 17 50-39 Cap, Axle
9 532 18 25-26 Tire, Rear
10 532 00 71-54 Tube, Rear (Service Item Only)
11 532 14 45-10 Rim Assembly, Rear
- - 532 14 43-34 Sealant, Tire (10 oz. Tube)
1 532 19 68-41 Decal, Warning Engine Symbols
2 521 97 17-01 Decal, Logo
4 532 43 67-08 Decal, Replacement
5 532 43 45-78 Decal, Strg Whl
6 532 43 45-82 Decal, Side Panel
7 532 40 03-89 Decal, Warning Symbols
9 532 14 50-05 Decal, Battery Dnge/Poi
8 532 15 97-36 Decal, Chassis Hot Muffler
11 532 19 87-85 Decal, Mower Sch.
13 532 15 97-37 Decal, Brake/Clutch Symbol
14 532 14 08-37 Decal, Saddle Brake Parking
15 532 17 83-02 Decal, Operator Cruise Control
16 532 12 44-33 Decal, DBA
17 532 16 88-69 Decal, Tick Mark
18 532 19 63-57 Decal, Warning Cutfinger
19 532 18 21-66 Decal, Cutfinger CE
- - 532 16 25-98 Decal, Drawbar Load Limit
- - 532 16 69-60 Decal, Bypass
- - 532 41 22-79 Pad, Footrest, RH
- - 532 41 19-03 Pad, Footrest, LH
- - 532 43 69-42 Manual, Operators (Eng/Span)
- - 532 43 69-44 Manual, Parts
2
7
88
2
2
5
9
6
6
11
19 18
16
17
15
14
13
TRACTOR - - MODEL NO. D26KH54 (96041018400), PRODUCT NO. 960 41 01-84
DECALS

18
SERVICE NOTES

19
15 DEGREES MAX.
FOLD ALONG DOTTED LINE
THIS IS A 15 DEGREE SLOPE
ONLY RIDE UP AND DOWN HILL, NOT ACROSS HILL
SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION
WARNING: To avoid serious injury, operate your tractor up and down the face of slopes, never across the face. Do not mow slopes greater than 15 degrees. Make turns gradually to prevent tipping or loss of control. Exercise extreme caution when changing direction on slopes.
1. Fold this page along dotted line indicated above. 2. Hold page before you so that its left edge is vertically parallel to a tree trunk or other upright structure. 3. Sight across the fold in the direction of hill slope you want to measure. 4. Compare the angle of the fold with the slope of the hill.

LIMITED WARRANTY
The Manufacturer warrants to the original consumer purchaser that this product as manufactured is free from defects in materi-
als and workmanship. For a period of two (2) years from date of purchase by the original consumer purchaser, we will repair or
replace, at our option, without charge for parts or labor incurred in replacing parts, any part which we find to be defective due
to materials or workmanship. This Warranty is subject to the following limitations and exclusions.
1. This warranty does not apply to the engine, transaxle/transmission components, battery (except as noted below) or com-
ponents parts thereof. Please refer to the applicable manufacturer's warranty on these items.
2. Transportation charges for the movement of any power equipment unit or attachment are the responsibility of the purchas-
er. Transportation charges for any parts submitted for replacement under this warranty must be paid by the purchaser un-
less such return is requested by the manufacturer.
3. Battery Warranty: On products equipped with a Battery, we will replace, without charge to you, any battery which we find
to be defective in manufacture, during the first ninety (90) days of ownership. After ninety (90) days, we will exchange the
Battery, charging you 1/12 of the price of a new Battery for each full month from the date of the original sale. Battery must
be maintained in accordance with the instructions furnished.
4. The Warranty period for any products used for rental or commercial purposes is limited to 90 days from the date of original
purchase.
5. This Warranty applies only to products which have been properly assembled, adjusted, operated, and maintained in ac-
cordance with the instructions furnished. This Warranty does not apply to any product which has been subjected to altera-
tion, misuse, abuse, improper assembly or installation, delivery damage, or to normal wear of the product.
6. Exclusions: Excluded from this Warranty are belts, blades, blade adapters, normal wear, normal adjustments, standard
hardware and normal maintenance.
7. In the event you have a claim under this Warranty, you must return the product to an authorized service dealer.
Should you have any unanswered questions concerning this Warranty, please contact:
giving the model number, serial number and date of purchase of your product and the name and address of the authorized
dealer from whom it was purchased.
THIS WARRANTY DOES NOT APPLY TO INCIDENTAL OR CONSEQUENTIAL DAMAGES AND ANY IMPLIED WARRAN-
TIES ARE LIMITED TO THE SAME TIME PERIODS STATED HEREIN FOR OUR EXPRESSED WARRANTIES. Some areas
do not allow the limitation of consequential damages or limitations of how long an implied Warranty may last, so the above limi-
tations or exclusions may not apply to you. This Warranty gives you specific legal rights, and you may have other rights which
vary from locale to locale.
This is a limited Warranty within the meaning of that term as defined in the Magnuson-Moss Act of 1975.
In Canada contact:
HOP
5855 Terry Fox Way
Mississauga, Ontario
L5V 3E4
HOP
Outdoor Products Customer Service Dept.
9335 Harris Corners Parkway
Charlotte, NC 28269 USA
06.08.10 CL Printed in the U.S.A.
