Dixon ZTR 4000 series User manual

2000 Operator's Manual
4000
SERIES

The Dixon®ZTR®Mower is both easy and fun to operate. However,
any power mower must be operated properly to be safe.
It is not a toy or a recreational vehicle.
Before you start to use the mower: read the operator's manual carefully,
and become completely familiar with the controls.
The information in this operator's manual applies to all
Dixon®ZTR®4000 Series Model Mowers.
Your Dixon dealer will gladly answer any questions.
DIXONINDUSTRIES,INC.
A BLOUNT International Inc. Co.
PO BOX 1569
COFFEYVILLE KS 67337 0945
316 251 2000
IMPORTANT: READ CAREFULLY
See your dealer for warranty service, parts and repairs.

Page 3
INDEX
SAFETY ............................................................Pages 2 - 7
WARRANTY POLICY......................................Page 8
SPECIFICATIONS ...........................................Page 9
SEAT ADJUSTMENT ......................................Page 10
CONTROLS .....................................................Pages 11 - 14
OPERATION INSTRUCTIONS .....................Pages 15 - 20
CARE AND MAINTENANCE.........................Pages 21 - 29
STANDARD PARTS LIST................................Page 30
TROUBLESHOOTING...................................Pages 31 - 33
4000 Series
Part No. 1856-0599

Page 4
RIDING LAWNMOWERS, IF IMPROPERLY OPERATED,
CAN CAUSE SERIOUS INJURY OR DEATH
The most common causes of injury to the operator or bystander...
...read and understand this manual to prevent injuries.
SAFETY
BLADECONTACT
RUN-OVER BACK-OVER
TIP-OVER

Page 5

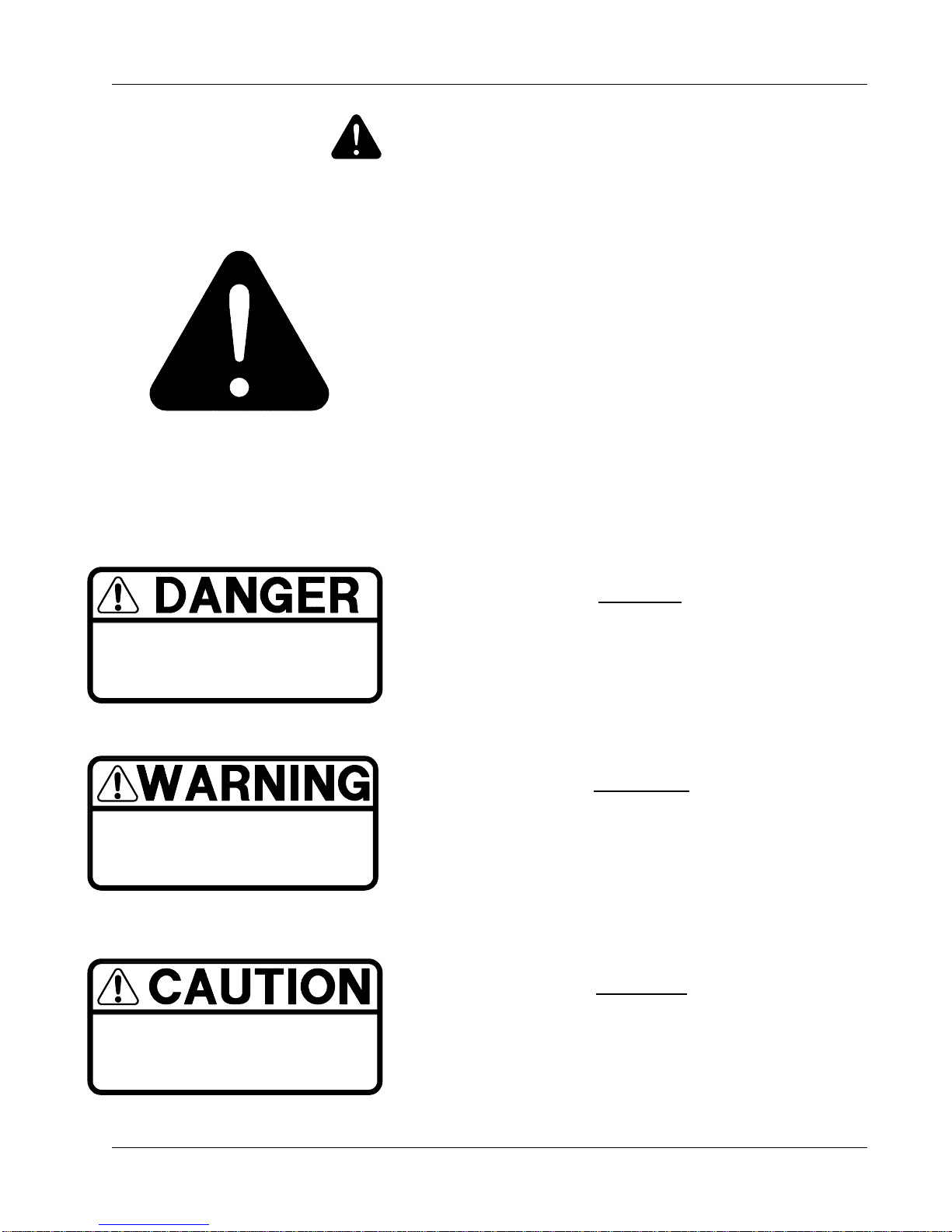

SAFETY SYMBOLS
Caution
indicates a potentially hazardous situation
which, if not avoided, may result in minor
or moderate injury. It may also be used to
alert against unsafe practices.
SAFETY
Safety Alert Symbol
When you see this symbol,
BE ALERT to the potential for injury.
Follow recommended safety precautions and safe
operatingpractices.
Danger
indicates an imminently hazardous situation
which, if not avoided, will result in death or
serious injury.
Warning
indicates a potentially hazardous situation
which, if not avoided, could result in death
or serious injury.

Page 6
SAFETY
Thiscuttingmoweriscapableofamputatinghands&feet,andthrowingobjects.
Failuretoobservethefollowingsafetyinstructionscouldresultin
seriousinjuryordeath.
WARNING:The engine exhaust from this product contains chemicals known to the
State of California to cause cancer, birth defects or other reproductive harm.
GENERAL OPERATION:
• Read, understand, and follow all instructions in the manual and on the mower before starting.
• Only allow responsible adults, who are familiar with the instructions, to operate the mower.
• Clear the area of objects such as rocks, toys, wire, etc., which could be picked up and thrown by the blade.
• Be sure the area is clear of other people before mowing. Stop mower if anyone enters the area.
• Never carry passengers.
• Do not mow in reverse unless absolutely necessary. Always look down and behind before and while backing.
• Be aware of the mower discharge direction and do not point it at anyone. Do not operate the mower without either
the entire grass catcher or the deflector in place.
• Slow down before turning.
• Never leave a running mower unattended. Always turn off blades, set parking brake, stop engine, and remove key
before dismounting.
• Turn off blades when not mowing.
• Stop engine before removing grass catcher or unclogging chute.
• Mow only in daylight or good artificial light.
• Do not operate the mower while under the influence of alcohol or drugs.
• Watch for traffic when operating near or crossing roadways.
• Use extra care when loading or unloading the mower into a trailer or truck.
Do not ride the mower when loading & unloading.
• Always wear safety goggles or safty glasses with side shields when operating mower.
• Data indicates that operators, age 60 years and above, are involved in a large percentage of riding mower-related
injuries. These operators should evaluate their ability to operate the riding mower safely enough to protect
themselves and others from serious injury.
• Follow the manufacturer's recommendation for wheel weights or counterweights.

Page 7
SLOPE OPERATION:
Slopes are a major factor related to loss-of-control and tip-over accidents,
which can result in severe injury or death.
All slopes require extra caution.
If you cannot back up the slope or if you feel uneasy on it, do not mow it.
SAFETY
DO
Mow across the slope with your Dixon ZTR - never up or down.
Remove obstacles such as rocks, tree limbs, etc.
Watch for holes, ruts or bumps. Uneven terrain could overturn the mower. Tall grass can hide
obstacles.
Useslow speed. Tiresmay losetraction onslopes eventhough thebrakes arefunctioning properly.
Useextracarewithgrasscatchersorotherattachments. Thesecanchangethestabilityofthemower.
Keep all movement on the slopes slow and gradual. Do not make sudden changes in speed or
direction.
Avoidstartingorstoppingonaslope. Iftireslosetraction,disengagethebladesandproceedslowly
down the slope.
If front wheels lift off the ground, pull the levers back to stabilize the mower.
DO NOT
Do not turn on slopes unless necessary, and then, turn slowly and gradually downhill, if possible.
Do not mow near drop-offs, ditches, or embankments. The mower could suddenly turn over if a
wheel is over the edge of a cliff or ditch, or if an edge caves in.
Do not mow on wet grass. Reduced traction could cause sliding.
Do not try to stabilize the mower by putting your foot on the ground.
Do not use grass catcher on steep slopes.

Page 8
Tragic accidents can occur if the operator is not alert to the
presence of children.
Children are attracted to lawn mowers and the mowing activity.
NEVER assume children will stay where they were last seen.
Be alert to avoid accidents.
• Keep children out of the mowing area and under the watchful care of another
responsible adult.
• Be alert and turn mower off if a child enters the area.
• Before and during backing, look behind and DOWN for small children.
• Never carry children. They may fall off and be seriously injured or interfere with
safe mower operation.
• Never allow children to operate the mower.
• Use extra care when approaching blind corners, shrubs, trees, or other objects that
may obscure vision.
SAFETY
CHILDREN:

Page 9
SERVICE: SAFETY
• Useextracareinhandlinggasolineandotherfuels. Theyareflammableandvaporsareexplosive.
Use only an approved container.
Never remove gas cap or add fuel with the engine running. Allow engine to cool before refueling. Do not
smoke.
Never refuel the mower indoors.
Never store the mower or fuel container inside a building where there is an open flame.
Never fill containers inside a vehicle or on a truck or trailer bed with a plastic liner. Always place containers
on the ground away from your vehicle before filling.
When practical, remove gas-powered equipment from the truck or trailer and refuel it on the ground. If this
is not possible, then refuel such equipment on a trailer with a portable container, rather than from a gasoline
dispenser nozzle.
If a gasoline dispenser nozzle must be used, keep the nozzle in contact with the rim of the fuel tank or
container opening at all times until fueling is complete. Do not use a nozzle lock-open device.
• Never run a mower inside a closed area. The exhaust fumes are toxic.
• Keep nuts and bolts tight, especially blade attachment bolts, and keep equipment in good condition.
• Never tamper with safety devices. Check their proper operation regularly.
• Keep mower free of grass, leaves, or other debris buildup. Clean up oil or fuel spillage. Allow mower to cool
before storing.
• Stop and inspect the equipment if you strike an object. Repair, if necessary, before restarting.
• Never make adjustments or repairs with the engine running.
• Grass catcher components are subject to wear, damage, and deterioration, which could expose moving parts or
allow objects to be thrown. Frequently check components and replace with original equipment parts, when
necessary.
• Mower blades are sharp and can cut. Wrap the blade(s) or wear gloves, and use extra caution when servicing
them.
• Batteries contain sulfuric acid. To prevent burns avoid contact with skin, eyes and clothing. To prevent a fire or
explosion keep sparks and open flames away from battery.
Before disconnecting the negative (-) ground cable, make sure all switches are OFF.
• Check to assure that the drive chains are properly adjusted. A loose chain may come off causing loss of control

Page 10
WARRANTY: The Dixon Protection Plus Warranty term is for a period of two (2 ) years from date of
purchase. DIXON ZTR MOWERS ARE WARRANTED AGAINST DEFECTS IN MATERIALS AND
WORKMANSHIP AND PROVIDES FOR REPLACEMENT OR REPAIR OF PARTS INCLUDING LABOR
COSTS. THIS WARRANTY IS SUBJECT TO THE FOLLOWING CONDITIONS AND LIMITATIONS:
1. Warranty applies only to original retail purchaser of new and unused mowers and accessories.
2. All Dixon warranty must be accomplished by authorized Dixon dealers and in accordance with Dixon
warranty policy and allowances. All warranty claims must be approved by Dixon Industries, Inc.
3. Mowers or accessories used for commercial applications are warranted for 30 days from date of
purchase. Commercial application is any use other than, or in addition to, mowing at owner's primary
place of residence.
4. Battery warranty: Limited to 90 days from date of purchase.
5. Accessories Warranty (Grass Catchers, Snow Blades, Covers, etc.): Limited to 90 days from date of
purchase.
6. Warranty does not apply to damage in transit or incidents of misuse, negligence, accidents, or
alteration. The use of parts or components other than those supplied by Dixon Industries, Inc.
VOIDS ALL WARRANTY.
7. The following items are not covered by this warranty policy:
(a) Pick up and delivery charges for transportation of mower to and from an Authorized Dixon
Dealer's place of business.
(b) Transaxle adjustments.
(c) Belts / chains / sprockets / cutting blades.
(d) Engines -- All engines used on Dixon ZTR mowers are warranted by each individual engine
manufacturer.
(e) Any costs or expense of providing substitute equipment while repair work is being performed on
a warranted mower.
8. There is no other express warranty. Implied warranties, including those of merchantability and fitness
for a particular purpose, are limited to the same duration of the express warranty, and to the extent
permitted by law any and all implied warranties are excluded. Liabilities for consequential damages
under any and all warranties are excluded.
DIXONPROTECTIONPLUSTWOYEARLIMITEDWARRANTYPOLICY
Thiswarrantypolicyappliestoall(30"),(36"),(42")mowerspurchasedonorafterMarch1,1990.
WARRANTY VALIDATION: At the time of sale, selling dealer must review each portion of this warranty document,
complete the information section below, secure customer's signature and send copy to Dixon Industries, Inc.
DATEOFPURCHASE________________________Model_______________S/N______________________
DM-
(Dealership)
(Address)
(Dealer'sSignature)
(Owner'sName)
(Address)
(Owner'sSignature)

Page 11
SPECIFICATIONS
Models ZTR 4423
CHASSIS: Twin 12 gauge side frames and 7 gauge transmission and engine base plate.
BODY: All body parts are made of high density polyethylene. Dent and corrosion
resistant. Front body contains access panel for battery service.
MOWER DECK: 13 GA stamped steel construction.
(3) blades combine for a 42" cut width.
Cut height approximately 1" to 4" via 7 position lift handle.
BLADE DRIVE: Electric clutch.
TRANSMISSION: Each rear wheel is independently driven by chain and sprockets through a
mechanical friction drive.
ENGINE: 15.5HP Vanguard Briggs & Stratton, 4-Cycle, Single Cylinder, Overhead
Valve, Air-Cooled, Gasoline, Vertical Shaft With Cast Iron Cylinder Sleeve,
Pressure Lubricated with oil filter.
STARTING SYSTEM: Electric by key switch operation with safety interlock blade drive.
TIRES: Front 11 X 4.00 X 5 ribbed tread.
Rear 18 X 9.50 X 8 Turf Trac RS
RECOMMENDED
TIRE PRESSURE: Front 16-21 lbs.
Rear 8-14 lbs.
CAPACITIES: Fuel 2.7 gallons total.
Engine 1.50 quarts oil.
DIMENSIONS: Width 47" outside rear wheel measurement.
Height 42" to top edge of seat.
Length 72" hitch tab to front bumper.
Weight 520 lbs.
NOTE: Additional information provided in service instructions under the individual
component.
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

Page 12
1. Place parking brake in ON position. (Pull brake lever up)
2. Raise and push seat assembly forward.
3. Loosen five nuts, P/N 3205, and slide seat forward or backward to desired position.
Retighten nuts, P/N 3205.
DO NOT operate mower without seat adjustments properly tightened.
4 Raise and push seat assembly and upper body rearward to closed position.
SEAT ADJUSTMENT
INSTRUCTIONS

Page 13

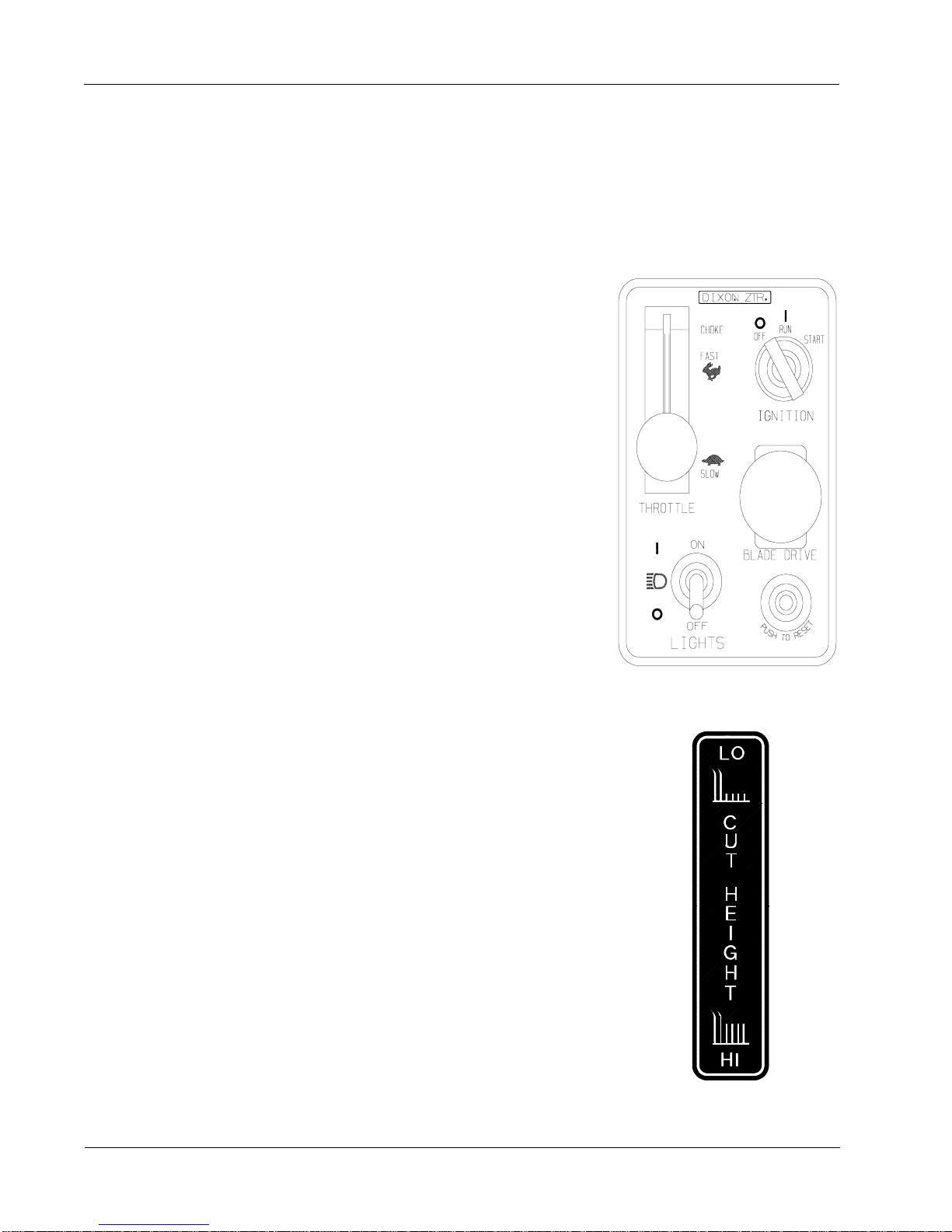

CONTROLS

Page 14

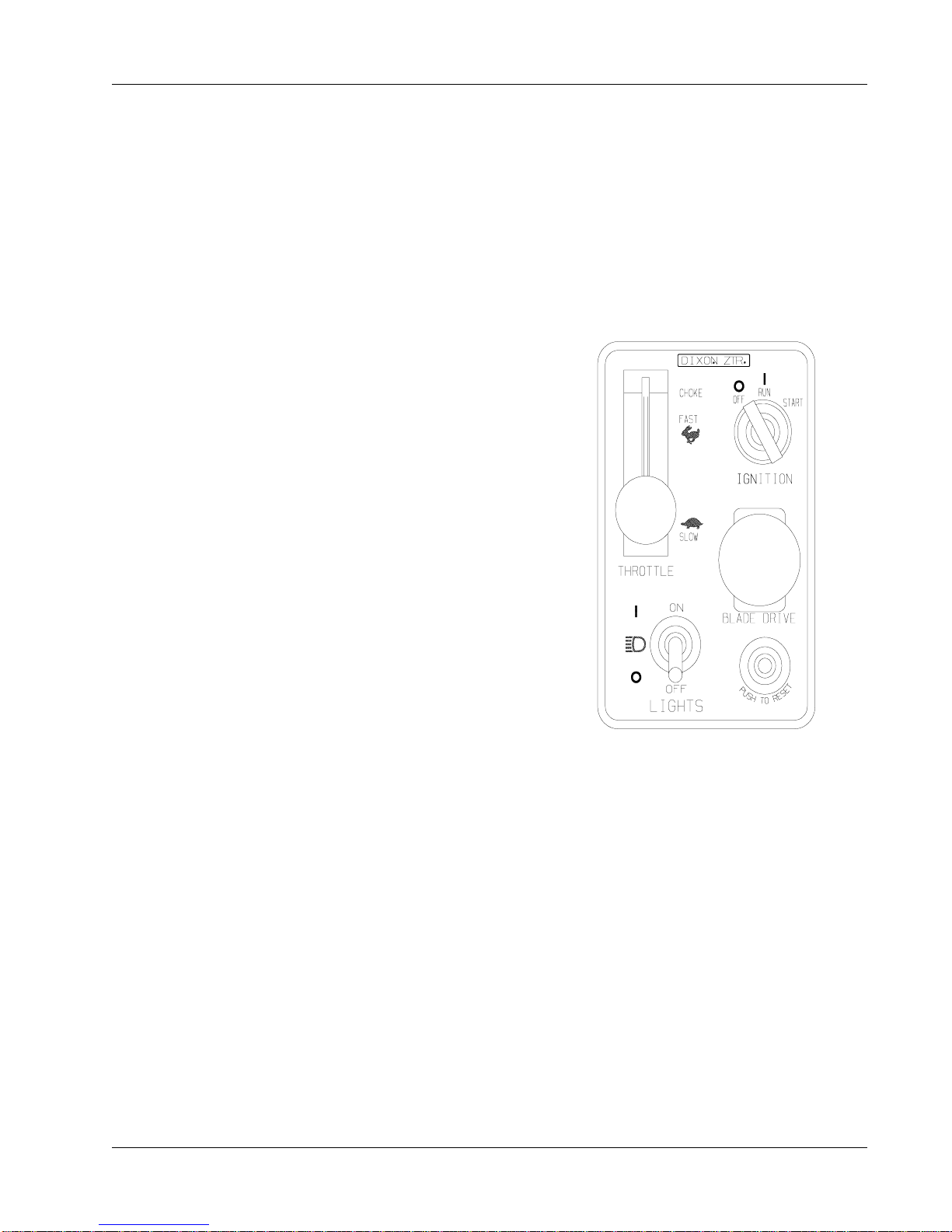

CONTROLS
PARKING BRAKE:
The parking brake is designed to hold the mower from moving and
is not intended for use in stopping the mower while it is in motion.
TRANSMISSION DRIVE SYSTEM:
Allows the mower to turn on its own axis
"Zero Turning Radius"
Each lever controls one side of the mower.
NOTE: The pressure required to operate the mower is very light.
TO SET PARKING BRAKE:
The hand operated parking brake is located on the right fender.
To engage brake, pull lever up(to the rear).
To release brake, move lever forward (down).
NOTE: Always set parking brake before dismounting.
Release parking brake before moving mower.
CAUTION Engage parking brake before restarting
starting engine.
The Dixon ZTR has a unique transaxle that requires only two drive levers to control
braking, turning, speed, and direction.
On initial operation, set throttle speed on slow. Operate with mower blade "OFF".
To avoid "over-controlling" the mower, use a light touch on the drive levers.
Slight movements using fingertip control is all that is necessary.

Page 15
CONTROLS
TO GO FORWARD:
From neutral position, gently push both drive levers forward.
To increase speed, move levers farther forward.
TO GO BACKWARD:
From neutral position, gently pull both drive levers toward you.
TURNING: Turningiscontrolledbymoving onedriveleverslightlyforward orrearwardoftheother.
To turn left, move left lever rearward of the right lever.
To turn "square corners" move lever of desired direction to neutral.
To turn on mower's own axis (zero turning radius) stop and move one lever to reverse
position and the other to forward position.
BRAKING: Tobrakemower,movebothleversindirectionoppositeoftravel,releaseleverstoneutral,
set parking brake.
THROTTLE CONTROL LEVER:
Located on control panel to operators right.
Throttle control for engine speed.
Choke for engine starting.
ThrottleControlshouldbesettotheMAXIMUMorwideopensettingtoinsureadequate
cooling of the engine and to maintain mower deck blade speed while mowing.
Neutral Slow Forward Fast Forward 90° Right Turn Slow Reverse
(Left turn opposite)

Page 16
CONTROLS
MOWER DECK CUT HEIGHT LIFT LEVER:
Located to the left of operator.
Controls the cutting height.
Seven positions of adjustment.
Move lever in and forward to lower.
Move lever in and back to raise.
NOTE: Always use high for transport.
CIRCUIT BREAKER:
Protection of the electrical system is by
(1) 15 amp circuit breaker.
If circuit breaker trips, push button to reset.
If this condition repeats, consult dealer for
inspection and repair.
BLADE DRIVE:
Located on control panel, on operator's right.
To engage the mower blades, pull up on the
switch.
To disengage blades, push down.

Page 17
OPERATION INSTRUCTIONS
Safe and successful operation will depend upon the operator having the correct knowledge of
all controls used on the mower and making good judgements about the terrain to be mowed.
NEVER allow anyone to operate the mower without complete knowledge of all controls and
their functions.
During initial operation, "learning to drive", set throttle at slow speed.
Sound judgement by the operator will prevent accidents.
Drink/Cup Holder located on the left rear fender is for transport or carrying only!
Mower usage requires that both hands be free to control individual levers.
DO NOT ATTEMPT operation of mower with any type
of container or other object in either hand.
Towing
Towing a trailer or other attachment that is too heavy could damage the drive or cause the
mower to become unstable. Limit loads to 250 pounds or less on this mower.
BEFORE OPERATING MOWER:
1. Read engine manufacturer's operating and maintenance instructions.
2. Discuss proper maintenance with your dealer.
3. Read and observe all safety instructions on your mower and in the
manual.
4. Check engine oil.
5. Be sure gas cap is in place.
6. Be sure parking brake is on.
7. Be sure mower blade drive is off.
8. Know how to stop engine. (Turn key to off position)

Page 18
OPERATION INSTRUCTIONS
PARKING BRAKE SWITCH TEST:a) Place Parking Brake in OFF position
b) Turn ignition switch to START
Engine should not turn over or attempt to start.
BLADE DRIVE SWITCH TEST: a) Place Parking Brake in ON position
b) Engage blade drive switch
c) Turn ignition switch to START
Engine should not turn over or attempt to start.
SEAT SWITCH TEST: a) In a SAFE AREA away from bystanders,
start the engine
b) Engage blade drive switch
c) Raise slightly off seat
ENGINE SHOULD STOP
TESTING OF SAFETY INTERLOCK SYSTEMS:
If Any Safety Check FAILS: Do Not Operate The Mower until
the system has been checked and repaired
by an Authorized Dixon ZTR Dealer

Page 19
OPERATION INSTRUCTIONS
STARTING INSTRUCTIONS:
1. Parking brake must be on, and blade drive
disengaged.
2. Move throttle control to "Choke" position if
engine is cold, full throttle if warm.
3. Insert ignition key and turn to "Start"
position. When engine starts, release ignition
key. Key will return to "Run" position.
4. Move throttle from "Choke" to desired speed
position.
5. Release parking brake.
6. Operate the mower per the "Control"
instructions on page 13.
NOTE: While mowing, "blade(s) engaged", throttle
control must be set to the MAXIMUM or
wide open setting to insure adequate
cooling of the engine and to maintain
mower deck blade speed.

Page 20
OPERATION INSTRUCTIONS
MOWING WITH A MULCHING ATTACHMENT:
Mulching or recycling the grass clippings requires a totally different mowing approach than would be
normal when side discharging or bagging the grass. There may be instances or conditions where it is not
possible to hide all of the recycled or mulched clippings.
In order to achieve the best results, please read and follow the mulching tips listed below:
1. Set the engine speed control to the wide open or full setting.
2. Place the mower deck cut height selector in either the top or second notch. Never cut more
than 3/4" to 1" off the grass at any one time. Attempting to cut more grass will result in the
deck plugging and cause the engine to stall.
3. It may be necessary to cut the lawn twice to achieve acceptable mulching performance especially
on first cuttings or if the lawn is heavily fertilized.
4. Do Not Attempt To Cut Grass When It Is Wet. Mulching performance will be very poor under
wet grass conditions.
5. Maintain Sharp Blades Throughout The Cutting Season. This is very important. Optimal
mulching performance cannot be obtained with dull or nicked up blades.
6. Keep The Underside Of The Mower Deck Clean. Remove all grass and dirt buildup from the
underside of the pan, the baffles and deflectors after each use.
7. Alternate mower direction. This will evenly disperse the mulched grass clippings over the lawn
for even fertilization.
If the mulching quality of the mower does not seem to be satisfactory, try one or more of the
following tips:
1. Raise the height-of-cut setting on your mower.
2. It may be necessary to cut your grass more frequently.
3. Operate the mower at a slower ground speed.
4. Overlap cutting swaths instead of cutting a full swath with each pass.
5. Mow across the marginal areas a second time.
6. CUT HIGH - MOW OFTEN!
