dji RONIN-SC User manual

Ronin‐SCQuickStartGuide
2019.04
Ronin‐SCOverview

1. TiltMotor
2. TiltAxisLock
3. CameraControl/AccessoriesPort(USB‐C)
4. RollMotor
5. RollAxisLock
6. PanMotor
7. PanAxisLock
8. ProfileLEDIndicators
9. Joystick
10. CameraControlButton
11. MButton

12. Grip(includes1/4”,3/8”MountingHolesonthebottom）
13. BatteryLevelIndicators
14. Tripod
15. BatteryLevelButton
16. 8‐pinPort
17. M4MountingHole
18. SafetyLock
19. CameraMountingBase
20. PowerPort(USB‐C)
21. Trigger
22. PowerButton

GettingStarted
A.DownloadtheDJIRONINTMAppandwatchthetutorials.
Searchfor“Ronin”intheAppStoreorGooglePlayandfollowtheinstructionstoinstalltheapp.
WatchthetutorialsontheofficialDJIwebsites.https://www.dji.com/ronin‐sc

B.Chargethebattery.
ChargethegripusingtheprovidedpowercableandUSBadapter(notincluded)throughthe
powerport.Pressandholdthepowerbuttontoturnon/offRonin‐SC.Pressthebatterylevel
buttontocheckthebatterylevel.

ItisrecommendedtouseaUSBadapterof5V/2A.


MountingtheGrip

Thethreeaxesofthegimbalarelockedbydefault.Togglethelocktotheunlocked
positionsandadjustthegimbaltothepositonasshown,andthenlockthegimbalagain.
TheRonin‐SC’sportsarenotwaterproof.Ensuretoprotectthemfromdustandwater
duringusetoavoiddamage.
AttachingtheTripod


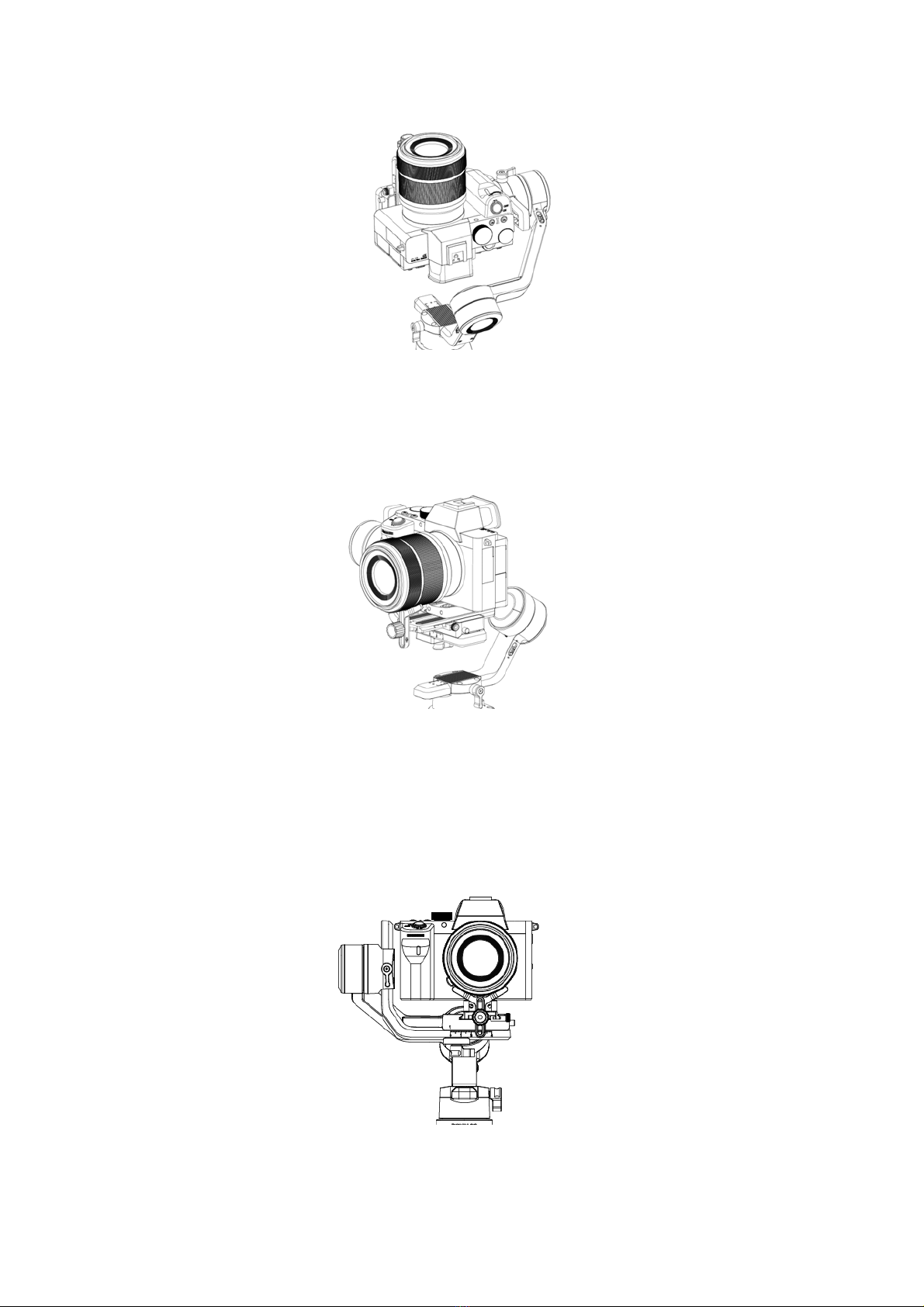

MountingtheCamera
Beforemountingthecamera,makesureitispreparedaheadoftime.Removethelenscapand
makesurethecamera'sbatteryandmemorycardarealreadyinserted.
1. Attachtheriserplate(ifneeded)tothebottomofthecamerausingaflatheadscrewdriveror
coin.
2. Attachthecameradovetailplateandlenssupport.Thearrowandcameralensdirection
shouldbeconsistent.Forthebestresultsduringsetup,usethelenssupportwhenever
possible.
3. Loosentheknobonthebottomofthecameramountingbaseandthenslidethecamerainto
it.Tightentheknobwhenthecameraisinthemiddleofthebase.


ActivatingRonin‐SC
TheRonin‐SCneedtobeactivatedthroughtheRoninappbeforethefirsttimeuse.
1. Pressandholdthepowerbuttontopoweronthegimbal.
2. EnableBluetoothonyourmobiledeviceandlaunchtheRoninapp.SelectRonin‐SCandinput
thedefaultBluetoothpassword12345678onceit’sdetected.
3. Makesureyouareconnectedtotheinternetandfollowtheon‐screeninstructionsto
activateRonin‐SC.
4. Afteractivation,doubletapthepowerbuttontoengagethemotorsbeforeproceeding.

Balancing
Balancingisrequiredbeforeshooting.ThereisBalancingtutorialsinRoninapp,youcanwatch
thetutorialsafteractivationandfollowtheinstructionstodothebalancing.Balancingisalsocan
bedonewithouttheRoninapp.
1. BalancingtheVerticalTilt
a. Unlockthetiltaxis.
b. Rotatethetiltaxissothatthecameralensispointingup.Checkifthecameraistopor

bottomheavy.
c. Loosentheknobonthetiltmotorandadjustthecamerabalanceuntilthecamerastays
stillwithouttiltingupordown.
d. Tightentheknob.


2. BalancingDepthfortheTiltAxis
a. Rotatethetiltaxissothatthecameralensispointingforward.Checkifthecameraistop
orbottomheavy.
b. Loosentheknobunderthecameramountingbaseandthenadjustthecamerabalance
untilthecamerastaysstillwhenrotatingthetiltaxis45°upwardsordownwards.
c. Tightentheknob.Theslideronthedovetailplateisusedtorecordthebalancepositon,
tightenthesliderwhenitclosedtothemountingbase.


3. BalancingtheRollAxis
a. Lockthetiltaxisandthenunlocktherollaxis.Checkthedirectioninwhichtherollmotor
swings.
b. Loosentheknobonthecameramountingbase,andthenadjustthebasepositonuntil
thecamerastaysstill.
c. Tightentheknob.Ifthecameramovesforwardbyaccident,movethecamerabackward
untilthesliderisclosedtothemountingbase.




4. BalancingthePanAxis
a. Unlockthethreeaxes.Grabthegrip,tiltRonin‐SCsideways,andcheckformovement
alongthepanaxis.
b. Loosentheknobonthepanmotor.Adjustthecamerabalanceuntilthecamerastaysstill
whenrotatingthepanaxis45°whileliftingthegrip.
c. Tightentheknob.


Operation
Afterinstallation,activationandbalancing,Ronin‐SCcanbeusedinstantlyafterAutoTune.There
aretwowaystoperformAutoTune.
1. LaunchtheRoninapp,gototheMotorpage,andselectAutoTune.
2. PressandholdRonin‐SC’sMbuttonandtriggersimultaneouslyforfoursecondstostartAuto
Tune.


ButtonFeatures
MButton:pressoncetoselectuserprofiles,pressandholdtoenterSportmode.

Joystick:pushthejoystickupordowntocontrolthemovementofthetiltaxis,andpushitleftor
righttocontrolthemovementofthepanaxis.GototheJoystickpageoftheRoninapptoadjust
theparametersforthepan,tiltand,rollaxes.

CameraControlButton:afterconnectingthecameracontrolportandcamera,presshalfwayto
autofocus,asyouwouldfortheshutterbuttononcameras.Pressoncetostart/stoprecording.
Pressandholdtotakeaphoto.PleaserefertoRonin‐SCproductpage
(http://www.dji.com/ronin‐sc)formostupdatedCameraCompatibilityList.

Trigger:pressandholdthetriggertoenterLockmode.Presstwicetorecenterthegimbal.Press
threetimestoturnthegimbal180°sothatthecamerafacesyou.
Specification
WeightGimbal:Approx.830g
Grip:Approx.258g
Tripod:Approx.160g
DimensionsGimbalfolded:220×200×75mm
Gimbalextended:370×165×150mm
InputPowerModel:RB2‐2450mAh‐7.2V
Type：18650LiPo2S
Capacity：2450mAh
Energy：17.64Wh
OperatingCurrentStaticCurrent：0.2A
OperatingTemperature‐4°to113°F(‐20°to45°C)













