Preface

Thank you for purchasing the DOD series products, this S1+ product can capture the moving

photos efficiently. It has a high definition lens with one million pixels, which is uniquely

lens of 180 ° overturn. The product is designed for safety recording of car driving process and

can also be used as a DV for video recording/taking photos. It is exquisite in appearance and

has won many patents and certifications, in a word, S1+ will make your life more wonderful.

This manual will teach you how to use the product and give you more detailed information,

including the use, operation and installation precautions and technical specifications, etc.

Before the use, please read it carefully and keep it properly.

We

hope that the product can

meet your demand and serve you permanently.

4

General

This product is a high-definition driving recorder to cater to the market demand. It has leading

functions such as high-definition video recording/photos taking, hi-speed USB data

transmission, USB charging and car charging.

Widely

Widely Used,

Used,

Used, Convenient

Convenient

Convenient for

for

for Video

Video

Video Recording

Recording

Recording at

at

at any

any

any time

time

time any

any

any where

where

5

Product

Product Features

Features

�lens rotation design with multi-functions, easy for high-definition video recording/photo

taking at anywhere, capture high-resolution photo at will.

�Lens: 10 0 ° wide-angle lens

�Exposure Compensation: EV(-2.0/+2 adjustable)

�Screen: 2.5 inch high-definition TFT LCD

�4X digital zoom

�Infrared rays

�In-bu ilt microphone/loudspeaker

�High-capacity rechargeable lithium battery

�Support high-capacity SD (SDHC) memory card

�Cycle video recording

�Motion detection

�Seamless connection

�Outage auto-save

�Recording time can be set

�Video recording is realizable while charging

�Auto power on to make records when starting car

�Manual emergency lock (SOS)

�G-SENSOR gravity file protection

6

Capacity

Capacity Display

Display

The

The number

number

number of

of

of videos

videos

videos or

or

or photos

photos

photos vary

vary

vary with

with

with different

different

different setting

setting

setting of

of

of host

host

host machine,

machine,

machine, brand

brand

brand of

of

memory

memory card,

card,

card, file

file

file size

size

size etc.

etc.

1G 2G 4G 8G

1440*1080(FPS 15 ) 17min 34min 69min 139min

1280*720(FPS 3 0) 16min 32min 65min 130min

848*480(FPS60) 18min 36min 73min 146min

10M 287photos 574photos 1148photos 2296photos

8M 354photos 708photos 1416photos 2832photos

5M 572photos 1144photos 2288photos 4576photos

3M 1003photos 2006photos 4012photos 8024photos

7

Product

Product Structure

Structure

8

Use

Use and

and

and Installation

Installation

�

�Install

Install

Install and

and

and Take

Take

Take out

out

out Battery

Battery

1. Slide battery cover downward to open it.

2. Put battery into battery case based on plus-minus marks on it until it is installed in position.

3. Battery power symbols are shown as below:

4. Push open the battery cover and take it out.

�

�Install

Install

Install and

and

and Take

Take

Take out

out

out Memory

Memory

Memory Card

Card

1. Insert memory card into the slot as instructed until it is fixed in the slot.

2. When taking memory card out, press it down gently and take it out after the card pops up.

Attentions:

1.

1. Insert

Insert

Insert in

in

in the

the

the SD

SD

SD memory

memory

memory card

card

card before

before

before use.

use.

2.

2. Before

Before

Before use,

use,

use, check

check

check if

if

if the

the

the write-protect

write-protect

write-protect switch

switch

switch on

on

on the

the

the card

card

card is

is

is on

on

on or

or

or off.

off.

3.

3. Please

Please

Please pay

pay

pay attention

attention

attention to

to

to the

the

the direction

direction

direction of

of

of card,

card,

card, if

if

if it

it

it is

is

is inserted

inserted

inserted reversely,

reversely,

reversely, the

the

the machine

machine

machine and

and

card

card might

might

might be

be

be damaged.

damaged.

4.

4. If

If

If the

the

the memory

memory

memory card

card

card is

is

is incompatible

incompatible

incompatible with

with

with the

the

the machine,

machine,

machine, please

please

please insert

insert

insert it

it

it again

again

again or

or

or retry

retry

with

with another

another

another card.

card.

9

Operating

Operating Instruction

Instruction

�

Set

Set Menu

Menu

Menu Mode

Mode

1. In photo taking/video/replay mode, press “ MENU ” to set relevant menus, please refer to the

“ Set Menu ” for details.

2. In “ Set Menu ” in any mode, press OK to get into the next menu, press Up and Down to

select relevant settings, and then press OK to confirm and then press MENU to exit.

�

�Turn

Turn

Turn on/off

on/off

on/off and

and

and Auto-off

Auto-off

Auto-off Settings

Settings

Settings of

of

of Camera

Camera

1. Press on Power button for about 1s to turn on the camera, when it is on, press on the Power

button for 3s and then release it to turn it off.

2.

To

save battery power, you can set auto-off time in the menu. When no operation happens

within the setting time, it will shut down automatically.

3. Turn the power on, press MENU button twice to switch to Setup Menu, and then press

Down to select “ Auto-off ” and then press OK to get into the next menu. The auto-off time can

be set as “ OFF, 2Min, 5Min and 10Min ” .

�

�Set

Set

Set Date

Date

Date and

and

and Time

Time

Turn the power on, press MENU button twice and switch to the Setup Menu, then press Down

to select “ Date/Time ” and then press OK to enter into

Year,

Month, Day, Hour, Minute and

Second, then press Up, Down, Left and Right to select the item to be set and then press OK.

When the item turns red, press Up or Down to make adjustment, after that, press OK to exit,

and then press Down to move to “ √” and then press OK.

10

�

�Video

Video

Video Mode

Mode

1. Turn the power on, the camera is then started. The Camera mode appears on the screen,

then the symbol “ ” appears at the top right corner, and the screen shows video information

and time displays at the bottom right corner. If the “ ” twinkles on the screen, it means it has

already got into the auto-recording mode.

2. Press “ REC ” button to start video recording and press it again to stop.

While video recording, red “ ” and timer will appear at the bottom of screen, and they will

disappear once it stops.

3. Infrared rays

When you take videos with your hand, you can press “ Right ” arrow key to open or close

infrared rays. If open infrared rays in nonluminous condition, you can see photos through

screen that cannot be seen due to darkness.

�

�Photo


Photo Mode

Mode

Turn the power on, the camera is then started. Press “ MODE ” button in video mode, then the

symbol “ ” will appear at the top left corner, which means it has already got into photo

mode.

1. Aim the lens at the subjects and press Up or Down button to realize digital zoom, at this

time, hold on the camera tightly and do not shake it.

2. Press “ REC ” button, the camera give a crack sound, and then the photo is taken.

Shooting

Shooting Method

Method

Select “ MENU ” button in photo mode, then press “ Down ” to select “ Shooting Method ” , and

then press OK to select the “ Continuous Shooting, Single Shot, 2s, 5s and 10s ” for self-timer.

Notes

Notes ：

1.

1. Press

Press

Press “

“

“ MODE

MODE

MODE ”

”

” in

in

in Video

Video

Video or

or

or Photo


Photo mode

mode

mode can

can

can switch

switch

switch to

to

to the

the

the other

other

other mode.

mode.

2.

2. Press

Press

Press “

“

“ MODE

MODE

MODE ”

”

” Video

Video

Video or

or

or Photo


Photo mode

mode

mode can

can

can enter

enter

enter replay

replay

replay mode.

mode.

11

�

�Replay

Replay

Replay Mode

Mode

1. Press “ MODE ” Photo or Video mode can replay photos or videos, and then select the

photo or video with Left or Right button. When browsing the photos, press REC button to

play or stop, and press “ Preview ” button to pause.

2. Delete

When replaying photos or videos, press “ MENU ” button to select the current file mode, and

then press OK to delete the current video or photo. Select all files and press OK to confirm,

and then press OK again to delete all files.

�

�Set

Set

Set Motion

Motion

Motion Detection

Detection

When the Motion Detection Function is open, the relative displacement in photos will be

detected automatically, if the object moves out of the default displacement, the record is

started automatically. Each time, the record lasts for 15s, after that, the machine will continue

detecting.

When the power is on, press “ MENU ” button to select detected item, and then press Up or

Down to select ON/OFF, and then press OK to save or exit.

�

�Set

Set

Set G-SENSOR

G-SENSOR

G-SENSOR Function

Function

After starting of gravity sensing function, in case of vehicle collision or impact during video

recording, it will lock and save current video automatically and set to avoid the previous video

and following video files of loop recording cycle from being covered by the loop recording

lock of the machine in order to guarantee safety of important video.

In the “ ON ” status, press MENU key to enter the option of gravity sensing strength. Press up

or down key to select sensitivity . Press OK key to save the option and exit.

12

�

�Set

Set

Set SOS

SOS

SOS Emergency

Emergency

Emergency Lock

Lock

Lock File

File

When the SOS emergency lock file is started, you can save any photo segment at will during

the recording without being covered.

In the video mode, long press OK button, then “ ” appears and the current video is saved,

but the video will disappear automatically when next video starts.

�

�Charging-Recording

Charging-Recording

Charging-Recording Mode

Mode

when the power is off, connect the car charger power to the machine. Once the car is started, it

will turn on automatically and starts recording, meanwhile, the battery will be charged.

Attention: when the car stops, it will use battery power until auto power-off.

Files

Files Saving

Saving

Saving and

and

and Videos

Videos

Videos Play

Play

Play ing

ing

�

�USB

USB

USB Backup

Backup

Backup Mode

Mode

When the power is on, connect the machine to computer with USB cable, if disc drive and IP

camera appear on the screen, then it is in USB mode. Open “ My Computer ” on the desktop

and find the s ave d files in “ DCIM\******** ” .

�

�Connect

Connect

Connect to

to

to TV

TV

TV and

and

and Play

Play

Play Videos

Videos

1. Connect camera to TV with TV connecting line to browse or play Videos/Photos.

Note:

Note: without

without

without the

the

the need

need

need to

to

to install

install

install driver,

driver,

driver, the

the

the portable

portable

portable disk

disk

disk can

can

can only

only

only be

be

be used

used

used when

when

when the

the

camera

camera is

is

is on.

on.

13

Button

Button Function

Function

Video/Photo

Video/Photo Mode

Mode

Mode ·

·

Power On/Off

Shutter Record/Stop Recording/Photo Taking

Arrow Key (Up) Select Up to zoom in

Arrow Key (Down) Select Down to zoom out

Arrow Key (Left) Adjust EV value

Arrow Key (Right) Open/Close infrared rays

OK Confirm

Menu Menu （SOS button ）

Mode Mode selection/browse photos and videos

Replay

Replay Mode

Mode

Mode ·

·

Power Off

Arrow Key (Left) Last/fast backward

Arrow Key (Right) Next/fast forward

Menu Menu selection

OK Confirm/replay: start/pause

Mode Back to video/photo/pause play

14

Menu

Menu Setup

Setup

Mode

Mode Menu

Menu

Menu Menu

Menu

Menu Setup

Setup

Setup Note

Note

Video

Recordi

ng

Resolution 1080I/720P/QVGA

Cycle recording OFF/2 min/5 min

Motion detection ON/OFF

Audio ON/OFF

G-sensor OFF/High/ Medium/Low

Audio ON/OFF

Date record ON/OFF

Camera

Shooting method Continuous shooting/single shot/2s/5s/10s

Resolution 10M/8M/7MHD/5M/3M/2MHD

Image quality Best/good/ordinary

Sharpness Strong/ordinary/soft

White balance Auto/sunlight/cloudy/bulb/daylight lamp

Special effect Color/black & white/nostalgic

Exposure

compensation

+2.0 、+5/3 、+4/3 、+1.0 、+2/3 、+1/3+0.0 、-1/3

、

-2.3 、-1.0 、-4/3 、-5/3 、-2.0

ISO Auto/100/200/400

Face detection Off/Face detection

Anti-shake ON/OFF

Quick view Off/2s/5s

Date record Off/Date/Date, time

Replay

Delete Current file/all files

Formatting Built-in RAM/Memory card

Setting

Frequency 50HZ/60HZ

Screen protection Off/2 min/5min/10 min/

Tone √ / ×

Auto-off OFF/2 min/5 min/10 min

TV output NTSC/PAL

Default √ / ×

Language

Multinational language

Version S12012*****

Date/time

Year,

month, day/hour, minute, second

15

Specifications

Sensor 1 Mage pixels CMOS

Lens 3.5mm

Focal range 10cm -Infinity

LCD screen 2.5" TFT LCD

Video output TV synthetic symbol: NTSC/PAL

Photo format

Photo format: JPEG

Maximum output: 10M(3648 x 2736)

Video format H.264

Video signal

1440*1080(15/s)

1280*720 （30/s ）

848*480 （60/s ）

Zoom 4x digital zoom

Video medium

SD card （maximum 32G ）

Audio Built-in microphone/loudspeaker(Mono)

Shutter Electronic shutter

Shutter speed 1/2-1/1000s

White balance Auto/sunlight/cloudy/CFL/Tungsten lamp

LED On/Off

Connector USB2.0/HDMI/TV

Battery External lithium battery, 3.7V 800mAh

USB USB2.0 hi-speed transmission

Size Length 111 × Width 5 9 × Thickness 2 9 mm

Work temperature/humidity

-10 ℃-60 ℃/10%-80%

16

Package

Package Accessories

Accessories

Warm

Warm Tips:

Tips:

Tips: to

to

to avoid

avoid

avoid any

any

any loss,

loss,

loss, please

please

please check

check

check the

the

the accessories

accessories

accessories when

when

when purchasing

purchasing

purchasing this

this

this product.

product.

1. Vehicle Power Cable ×

×

× 1

1

2. Bracket ×

×

× 1

1

3.

AV

Video Cable ×

×

× 1

1

4. USB Cable ×

×

× 1

1

5. Lithium battery ×

×

× 1

1

6. User Manual ×

×

× 1

1

Easy

Easy Troubleshooting

Troubleshooting

�

�No

No

No function

function

function of

of

of photographing

photographing

photographing or

or

or video

video

video recording?

recording?

Please change the resolution of photographing or video recording or replace a memory card

with sufficient space, and check whether the memory card is locked or not.

�

�Photo


Photo or

or

or video

video

video not

not

not clear?

clear?

Please use it after wipe clean the lens, or check whether the far-near focus setting correct or not.

Operation

Operation Tips

Tips

The

The camera

camera

camera is

is

is similar

similar

similar to

to

to the

the

the computer,

computer,

computer, in

in

in case

case

case of

of

of any

any

any malfunction,

malfunction,

malfunction, please

please

please follow

follow

follow the

the

following

following steps:

steps:

1.

1. Take

Take

Take out

out

out battery,

battery,

battery, re-load

re-load

re-load it

it

it and

and

and then

then

then restart

restart

restart camera.

camera.

2.

2. If

If

If camera

camera

camera goes

goes

goes wrong,

wrong,

wrong, please

please

please press

press

press RESET

RESET

RESET button

button

button to

to

to restart

restart

restart it.

it.

3.

3. Please

Please

Please use

use

use RESET

RESET

RESET button

button

button with

with

with caution,

caution,

caution, otherwise,

otherwise,

otherwise, data

data

data might

might

might disappear.

disappear.

17

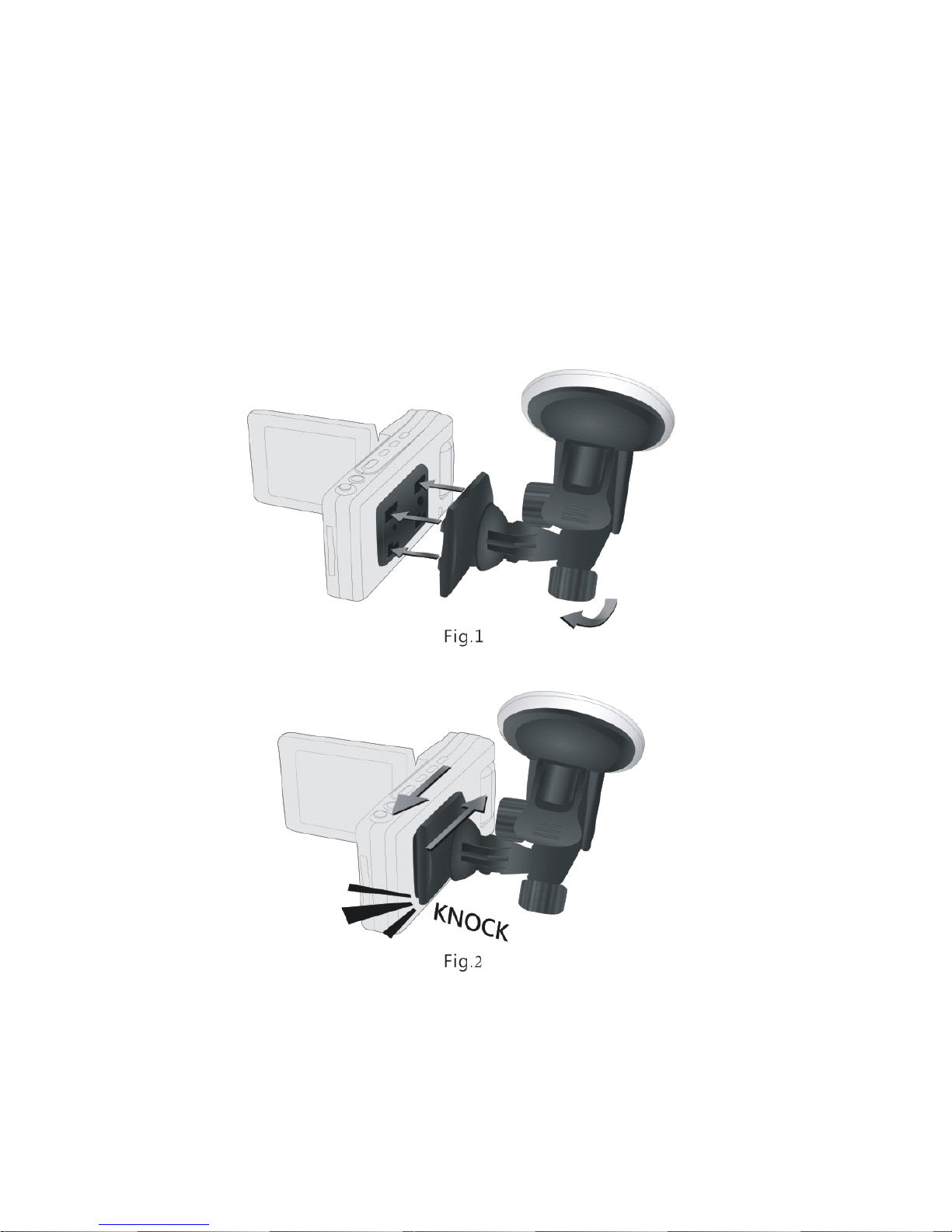

Installation

Installation Instruction

Instruction

Instruction for

for

for Bracket

Bracket

Installation

Installation Steps:

Steps:

After

After assembling

assembling

assembling the

the

the bracket

bracket

bracket to

to

to the

the

the machine,

machine,

machine, knock

knock

knock the

the

the host

host

host machine

machine

machine to

to

to engage

engage

engage it

it

it with

with

the

the bracket.

bracket.

18

前言

感謝您購買 DOD 系列產品，本產品 S1+ 可高速捕捉移動畫面，擁有高畫質 100 萬像素攝

影鏡頭，有獨特的鏡頭 180 ° 翻轉功能。本產品適合使用在汽車行車過程安全記錄，也

可做 DV 錄影 / 拍攝相片本產品外觀精緻並榮獲各項專利及認證， S1+ 令你的生活更添精

彩。

本用戶手冊將詳細說明如何使用，同時提供給你的詳細資訊，包括使用、操作、安裝注

意事項及技術規格等，使用前請仔細閱讀並妥善保管本手冊，我們希望本產品能夠滿足

您的需要並長期為您服務！

DOD S1+ User manual

Popular Camcorder manuals by other brands
