Edwards Genesis G4LFWN-HVM Assembly instructions

© 2014 UTC Fire & Security Americas Corporation, Inc. 1 / 6 P/N 3102149-EN • REV 02 • ISS 25MAR14
Genesis Low Frequency (520 Hz) Horn-Strobe
Installation Sheet
Description
The Genesis Low Frequency (520 Hz) Horn-Strobe can be
used for applications where a low frequency alarm notification
appliance with strobe light output is required. The device is
designed for wall mounting and indoor use only. See Table 1
for a list of model numbers.
When this device is used as a low frequency sounder in
sleeping quarters, the strobe's candela switch (Figure 1) must
be set to 110 cd.
The horn-strobe includes field-configurable jumper options for
selecting:
•Temporal or steady horn output
•Low dB or high dB output
•Temporal or continuous pattern strobe
The horn-strobe also includes a field-configurable switch for
setting the strobe candela level. This setting is locked in place
and is visible after final installation.
Table 1: Models
Descripti
on Number
Low
frequency (520 Hz) horn, white housing,
no FIRE marking,
standard output clear strobe
light
G4LFWN-HVM
Low
frequency (520 Hz) horn, white housing,
with FIRE marking
, standard output clear
strobe light
G4LFWF-HVM
Low
frequency (520 Hz) horn, red housing, no
FIRE marking,
standard output clear strobe
light
G4LFRN-HVM
Low
frequency (520 Hz) horn, red housing,
with FIRE marking, standard output clear
strobe light
G4LFRF-HVM
Surface wall mount
box, white housing G4B
Surface wall mount
box, red housing G4RB
This strobe features an enhanced synchronization circuit to
comply with the latest requirements of UL 1971. Synchronized
operation requires a separately installed synchronization
device. See the control panel or power supply compatibility list
for compatible synchronization devices.
Installation
Install and wire this device in accordance with applicable
national and local codes, ordinances, and regulations.
The horn-strobe should be mounted so that the entire lens is
not less than 80 in. (2.03 m) and not greater than 96 in.
(2.44 m) above the finished floor. The entire lens should also
be 24 in. (61 cm) or more from the finished ceiling.
WARNING: Electrocution hazard. To avoid personal injury or
death from electrocution, remove all sources of power and
allow stored energy to discharge before installing or removing
equipment.
Note: Electrical supervision requires that you break the wire
run at each terminal. Do not loop wires around the terminals.

2 / 6 P/N 3102149-EN • REV 02 • ISS 25MAR14
To install the horn-strobe:
1. Remove the cover by using a screwdriver to depress and
slightly twist both tabs on top of the unit.
2. Set the horn signal, sound output level, and strobe signal
to the desired settings. See Figure 1.
To change the horn output level from high dB to low dB,
cut jumper JP3.
To change the horn signal from temporal to steady, cut
jumper JP2.
To change the strobe pattern from continuous to temporal
(private mode), cut jumper JP1.
3. Set the candela output.
Slide the candela switch to the desired candela output by
aligning it with the indicator notch below the switch. See
Figure 1.
4. Mount the horn-strobe as follows.
Note: Route the signal circuit field wiring through the
cutout in the center of the horn-strobe.
Flush mount: Mount the horn-strobe and flush mount
spacer onto a compatible electrical box (Figure 2), making
sure not to overtighten the mounting screws. See
“Specifications” for compatible electrical boxes.
Surface mount: Mount the G4B or G4RB surface mount
box on the wall (Figure 3), and then secure the appliance
to the box using the fasteners provided with the box.
5. Connect the signal circuit field wiring to the horn-strobe
terminals (Figure 4). Observe polarity for the unit to
function properly.
6. Replace the cover by aligning it at the bottom, and then
snapping it in at the top.
7. Test the unit for proper operation.
Maintenance
Caution: To maintain the required agency listings, do not
change factory-applied finishes.
This unit is not serviceable or repairable. Should the unit fail to
operate, contact the supplier for a replacement.
Perform a visual inspection and an operational test twice a
year or as directed by the local authority having jurisdiction.

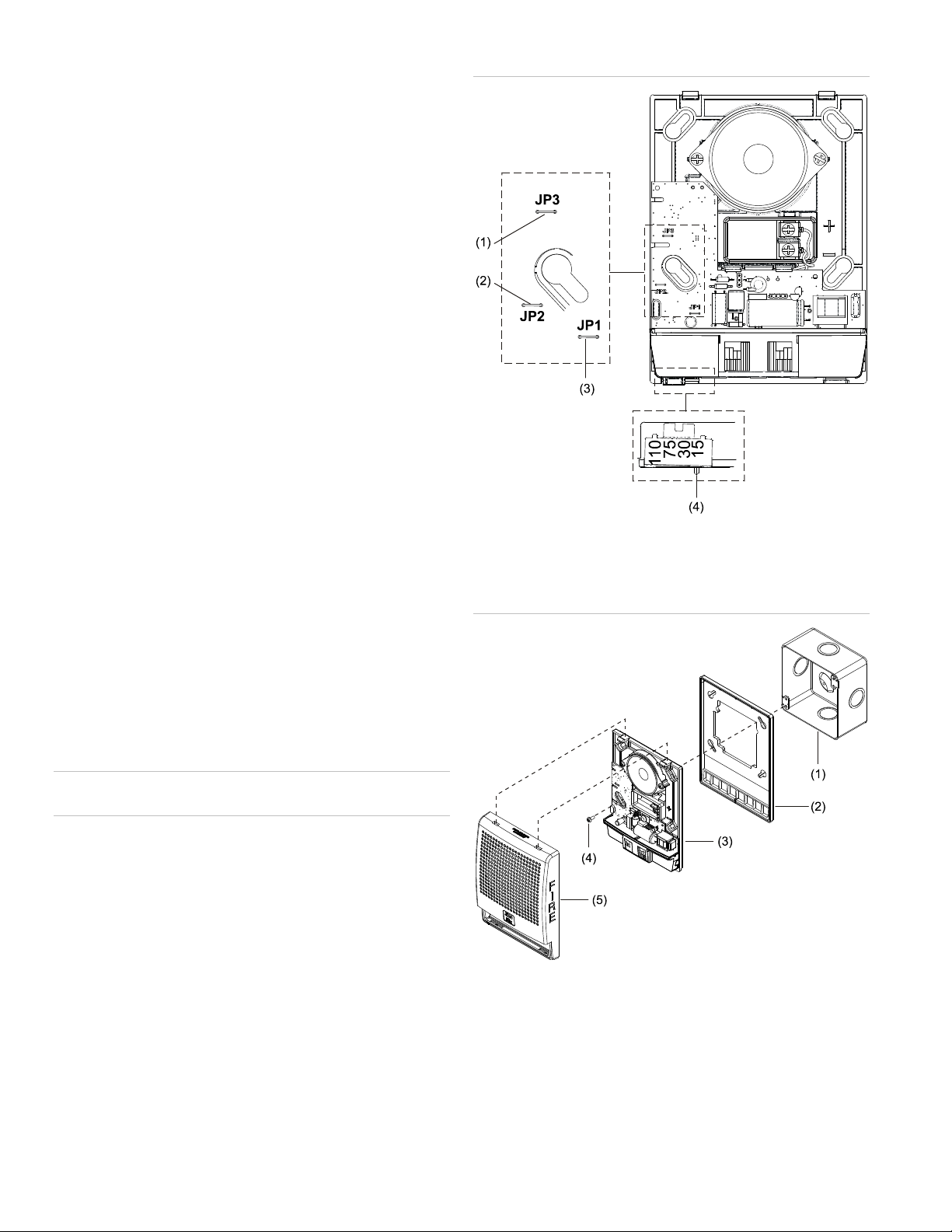

Figure 1: Horn-strobe settings
(1) Jumper JP3
(2)
Jumper JP2
(3) Jumper JP1
(4)
Candela switch indicator
notch
Figure 2: Flush mount
(1) Compatible electrical box
(2)
Flush mount spacer
(3)Horn-strobe
(4) 8-32 x 1 in. screw, provided
(2X)
(5) Cover

P/N 3102149-EN • REV 02 • ISS 25MAR14 3 / 6
Figure 3: Surface mount
(1) Surface mount box (G4B or
G4RB)
(2)Horn-strobe
(3) Screw (4X provided with
G4B or G4RB box)
(4) Cover
Figure 4: Wiring diagram
(1) From NAC output
(2)
To next device or EOL
Note: Polarity is shown in the active condition.
Specifications
Operating v
oltage 24 VDC or 24 VFWR [1]
Operating horn
-strobe
current
See Table 6
Sound level
output See Table 2 and Table 3
Audible directional
characteristics
See Table 4 and Table 5
Light output
Selectable at 15, 30, 75, and 110 cd (see
Figure 5, Figure 6, and Figure 7)[2]
Synchronization
Maximum allowed resistance between any
two devices is 20 Ω. Refer to specifications
for the synchronization control module, this
strobe, and the control panel to determine
allowed wire resistance.
Default settings
1 flash per second (fps)
Wire size
12 to 18 AWG (1.0 to 4.0 mm²)
Compatible electr
ical
boxes
Standard 4 in. square box 1-1/2 in. (38 mm),
2-1/8 in. (54 mm) deep, or G4B/G4RB
surface mount box
Operating environment
Temperature
Relative humidity
32 to 120°F (0 to 49°C)
0 to 93% noncondensing
[1] This device was tested to the Regulated 24 DC/FWR operating
voltage limits of 16 V and 33 V. Do not apply 80% and 110% of these
values for system operation.
[2] When this device is used as a low frequency sounder in sleeping
quarters, the strobe's candela switch (Figure 1) must be set to 110 cd.
Table 2: UL sound level output (dBA) [1]
Signal and voltage
Low High
Temporal
16 VDC 72.4 76.0
24 VDC 72.3 75.7
33 VDC 73.3 75.4
Continuous
16 VDC 75.7 79.8
24 VDC 76.1 78.6
33 VDC 75.4 78.8
[1] UL 464: Sound level output at 10 ft. (3.05 m) measured in a
reverberant room.
Table 3: Nominal sound level output (dBA, temporal tone) [1]
Voltage
Low High
16 VDC
84.0 85.5
24 VDC
83.9 85.4
33 VDC
83.7 85.5
16 VFWR
83.7 86.1
24 VFWR
83.9 85.9
33 VFWR
84.0 85.9
[1] Measured in an anechoic chamber at 10 ft. (3.05 m).

4 / 6 P/N 3102149-EN • REV 02 • ISS 25MAR14
Table 4: Audible directional characteristics (horizontal pattern)
Angle (°) [1]
Output (dB) [2]
0
85
+90
82
-
90 82
[1] Angles are measured from a perpendicular axis; positive angles to
the right.
[2] Peak output at 16 VDC, set for steady tone.
Table 5: Audible directional characteristics (vertical pattern)
Angle (°) [1]
Output (dB) [2]
0
85
+90
82
-
90 82
[1] Angles are measured from a perpendicular axis; positive angles are
up.
[2] Peak output at 16 VDC, set for steady tone.
Table 6: Nominal operating horn-strobe current in RMS (mA)
Voltage
Strobe output (cd)
15 30 75 110
Temporal
16 VDC
219 266 381 437
16 VFWR
308 362 510 579
24
VDC 151 176 243 278
24 VFWR
228 258 349 395
33
VDC 112 132 177 199
33 VFWR
186 208 267 291
Continuous
16 VDC
221 258 371 433
16 VFWR
305 358 514 576
24
VDC 147 171 239 274
24
VFWR 211 247 335 377
33
VDC 110 129 175 196
33 VFWR
178 199 257 287
VDC = Volts direct current, regulated and filtered
VFWR = Volts full wave rectified
Figure 5: UL 1971 minimum light output (% of rating vs. angle)
(1)Angle
(2)
Minimum UL required candela light output
____ % of rated candela vertical specification
- - - - % of rated candela horizontal specification
Figure 6: Typical horizontal light output profile, 110 cd setting
(1) Intensity (cd)
(2) UL minimum requirement (cd)

P/N 3102149-EN • REV 02 • ISS 25MAR14 5/ 6
Figure 7: Typical vertical light output profile, 110 cd setting
(1) Intensity (cd)
(2) UL minimum requirement (cd)
Regulatory information
Manufacturer
Edwards, A Division of UTC Fire & Security
Americas Corporation, Inc.
8985 Town Center Parkway, Bradenton, FL
34202, USA
Year of
manufacture
The first two digits of the date code (located on
the product identification label) are the year of
manufacture.
UL rating
Regulated 24 DC and 24 FWR
North American
standards
Meets UL requirements for standards UL 464,
UL 1638, and UL 1971
Contact information
For contact information, see www.edwardsutcfs.com.

6 / 6 P/N 3102149-EN • REV 02 • ISS 25MAR14
