EHongLight Amazing B eye Par User manual

1 / 15
Amazing B eye Par
ZOOM and Rotation
19pcs 15W 4-in-1
User Manual
KEEP THIS MANUAL FOR FUTURE NEEDS

2 / 15
1. Unpacking
Thank you for choosing our B eye par. For your own safety, please read this manual
before installing the device. This manual covers the important information on
installation and applications. Please install and operate the fixture with following
instructions. Meanwhile, please keep this manual well for future needs.
This fixture is made of a new type of high temperature strength of engineering plastics
and cast aluminum casing with nice outlook. The fixture is designed and manufactured
strictly following CE standards, complying with international standard DMX 512
protocol. It’s available independently controlled and linkable with each other for
operation. And it is applicable for large-scale live performances, theater, studio,
nightclubs and discos.
4-IN-1 LEDs (RGBW) which features high brightness and stability. Please carefully
unpack it when you receive the fixture and check whether it is damaged during the
transportation. And please check whether the following items are included inside the
box:
LED Par--------One Signal Cable--------One
Power Cable--------One Safety Cable--------one
User Manual--------One

3 / 15
2. Safety Instructions
This device has left the factory in perfect condition. In order to maintain this condition
and to ensure a safe operation, it is absolutely necessary for the user to follow the
safety instructions and warning notes written in this user manual.
If the device has been exposed to temperature changes due to environmental
changes, do not switch it on immediately. The arising condensation could damage the
device. Leave the device switched off until it has reached room temperature.
This device falls under protection-class I. Therefore it is essential that the device be
earthed.
The electric connection must carry out by qualified person.
The device shall only be used with rate voltage and frequency.
Make sure that the available voltage is not higher than stated at the end of this
manual.
Make sure the power cord is never crimped or damaged by sharp edges. If this would
be the case, replacement of the cable must be done by an authorized dealer.
Always disconnect from the mains, when the device is not in use or before cleaning it.
Only handle the power cord by the plug. Never pull out the plug by tugging the power
cord.
During initial start-up some smoke or smell may arise. This is a normal process and
does not necessarily mean that the device is defective, it should decrease gradually.
Please don't project the beam onto combustible substances.
Fixtures cannot be installed on combustible substances, keep more than 50cm
distance with wall for smooth air flow, so there should be no shelter for fans and
ventilation for heat radiation.
If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively
replaced by the manufacturer or his service agent or a similar qualified person in order
to avoid a hazard.

4 / 15
3. Operation Instructions
-The LED par is for wash effect for on-site decoration purpose.
-Don’t turn on the fixture if it’s been through severe temperature difference like after
transportation because it might damage the light due to the environment changes. So
make sure to operate the fixture until it is in normal temperature.
-This light should be keep away from strong shaking during any transportation or
movement.
-Don’t pull up the light by only the head, or it might cause damages to the mechanical
parts.
-Don’t expose the fixture in overheat, moisture or environment with too much dust
when installing it. And don’t lay any power cables on the floor. Or it might cause
electronic shock to the people.
-Make sure the installation place is in good safety condition before installing the fixture.
-Make sure to put the safety chain and check whether the screws are screwed properly
when installing the fixture.
-Make sure the lens are in good condition. It’s recommended to replace the units if
there are any damages or severe scratch.
-Make sure the fixture is operated by qualified personnel who knows the fixture before
using.
-Keep the original packages if any second shipment is needed.
-Don’t try to change the fixtures without any instruction by the manufacturer or the
appointed repairing agencies.
-It is not in warranty range if there are any malfunctions from not following the user
manual to operate or any illegal operation, like shock short circuit, electronic shock,
lamp broke, etc.
4. Mounting and Installation
Cautions: For added protection mount the fixtures in areas outside walking paths,
seating areas, or in areas were the fixture might be reached by unauthorized
personnel.
Before mounting the fixture to any surface, make sure that the installation area can
hold a minimum point load of 10 times the device’s weight.
Fixture installation must always be secured with a secondary safety attachment, such
as an appropriate safety cable.

5 / 15
Never stand directly below the device when mounting, removing, or servicing the
fixture from a periodic safety inspection of all installation material and the fixture. If you
lack these qualifications, do not attempt the installation yourself. Improper installation
can result in bodily injury.
Be sure to complete all rigging and installation procedures before connecting the main
power cord to the appropriate wall outlet.
Clamp Mounting: The B eye par provides a unique mounting bracket assembly that
integrates the bottom of the base, and the safety cable rigging point in one unit (see
the illustration below). When mounting this fixture to truss be sure to secure an
appropriately rated clamp to the included omega bracket using a M10 screw fitted
through the center hole of the “omega bracket”. As an added safety measure be sure
to attached at least one properly rated safety cable to the fixture using on of the safety
cable rigging point integrated in the base assembly
Regardless of the rigging option you choose for your B eye par, always be sure to
secure your fixture with a safety cable. The fixture provides a built-in rigging point for a
safety cable on the hanging bracket as illustrated above. Be sure to only use the
designated rigging point for the safety cable and never secure a safety cable to a
carrying handle.

6 / 15
5. DMX-512 control connections
Connect the provided XLR cable to the female 3-pin XLR output of your controller and
the other side to the male 3-pin XLR input of the moving head. You can chain multiple
Moving heads be connected together through serial linking. The cable needed should be
two core, screened cable with XLR input and output connectors. Please refer to the
diagram below.
DMX-512 connection with DMX terminator
For installations where the DMX cable has to run a long distance or is in an electrically
noisy environment, such as in a discotheque, it is recommended to use a DMX
terminator. This helps in preventing corruption of the digital control signal by electrical
noise. The DMX terminator is simply an XLR plug with a 120 Ω resistor connected
between pins 2 and 3,which is then plugged into the output XLR socket of the last fixture
in the chain. Please see illustrations below.
1
2
3
PIN 3
PIN 2
120 Ω

7 / 15
6. DMX Channels
18CH
CH Function DMX Value Details
1 Dimmer 0-255 0-100% Dimmer from dark to bright
2 strobe
0-3 Light up
4-203 Strobe with the same step from slow to fast
204-255 Random strobe
3 Red 0-255 0-100% Green dimmer
4 Green 0-255 0-100% Green fine control
5 Blue 0-255 0-100% Blue dimmer
6 White 0-255 0-100% Blue fine control
7 ZOOM 0-255 Zoom
8 Zoom
Rotation
0-127 0 to 60 degree
128-191 Unlimited clockwise rotation from fast to slow
192-255 Unlimited anticlockwise rotation from fast to slow
9 Linear CTO 0-255 Color temperature linear control
10 Macro color 0-255 Marco color effect
11 Static effect 0-255 Static effect show
12 Shape 0-255 Shape effect
13 Shape Speed
0-255 Shape speed control
14 Shape R 0-255 Shape in Red color
15 Shape G 0-255 Shape in Green color
16 Shape B 0-255 Shape in Blue color
17 Shape W 0-255 Shape in White color
18 Reset 0-250 No function
251-255 Reset with 5 seconds

8 / 15
22 channels mode
CH Function
DMX
Value
Details
1 Red 0-255 Red dimmer
2 Red Fine 0-255 Red fine control
3 Green 0-255 Green dimmer
4 Green Fine 0-255 Green fine control
5 Blue 0-255 Blue dimmer
6 Blue Fine 0-255 Blue fine control
7 White 0-255 White dimmer
8 White Fine 0-255 White fine control
9 CTO 0-255 Color temperature linear control
10 Macro colour 0-255 Marco color control
11 strobe
0-3 Light up
4-203 Strobe with the same step from slow to fast
204-255
Random strobe
12 Dimmer 0-255 0-100 linear dimmer from dark to bright
13 Reset 0-250 No function
251-255
Reset with 5 seconds
14 Zoom 0-255 ZOOM
15 LENS Rotation
0-127 LENS rotates from 0 to 60 degree
128-191
LENS Unlimited clockwise rotation from fast to slow
192-255
LENS Unlimited anticlockwise rotation from fast to slow
16 Shape Selection 0-255 Selecting shape
17 Shape Speed 0-255 Shape speed control
18 Shape Fade 0-255 Shape fade
19 Shape R 0-255 Shape in Red color
20 Shape G 0-255 Shape in Green color
21 Shape B 0-255 Shape in Blue color
22 Shape W 0-255 Shape in White color

9 / 15
94 CH
CH Function DMX Value
Details
1 Dimmer 0-255 0-100 linear dimmer from dark to bright
2
Strobe
0-3 Light up
4-203 Strobe with the same step from slow to fast
204-255 Random strobe
3 Red 0-255 1-100% Red linear dimmer from dark to bright
4 Green 0-255 1-100% Green linear dimmer from dark to bright
5 Blue 0-255 1-100% Blue linear dimmer from dark to bright
6 White 0-255 1-100% White linear dimmer from dark to bright
7 ZOOM 0-255 Zoom
8 LENS rotation
0-127 0 to 60 degree
128-191 Unlimited clockwise rotation from fast to slow
192-255 Unlimited anticlockwise rotation from fast to slow
9 Linear CTO 0-255 Linear color temperature control
10 Marco colour 0-255 Marco color change
11 Static effect 0-255 Each 5 DMX value is a kind of static effect
12 Shape effect 0-255 Each 5 DMX value is a kind of dynamic effect
13 Shape speed 0-255 Speed from slow to fast, pls operate against 15 CH
14 Background R 0-255 1-100% Background Red dimmer from dark to bright
15 Background G 0-255 1-100% Background Blue dimmer from dark to bright
16 Background B 0-255 1-100% Background Green dimmer from dark to bright
17 Background W 0-255 1-100% Background Blue dimmer from dark to bright
18 Reset 0-250 No function
251-255 Reset with 5 seconds
19 Red dimmer 1 0-255 LED 1 red 0-100% dimmer
20 Green dimmer 1 0-255 LED 1 green 0-100% dimmer
21 Blue dimmer 1 0-255 LED 1 blue 0-100% dimmer
22 White dimmer 1 0-255 LED 1 white 0-100% dimmer
23 Red dimmer 1 0-255 LED 2 red 0-100% dimmer
24 Green dimmer 1 0-255 LED 2 green 0-100% dimmer
25 Blue dimmer 1 0-255 LED 2 blue 0-100% dimmer
26 White dimmer 1 0-255 LED 2 white 0-100% dimmer
……
……… ……… ………
……
……… ……… ………
91 Red dimmer 19 0-255 LED 19 red dimmer
92 Green dimmer 19
0-255 LED 19 green dimmer
93 Blue dimmer 19 0-255 LED 19 blue dimmer
94 White dimmer 19 0-255 LED 19 white dimmer

10 / 15
7. Display instruction

11 / 15
8. Board connection:

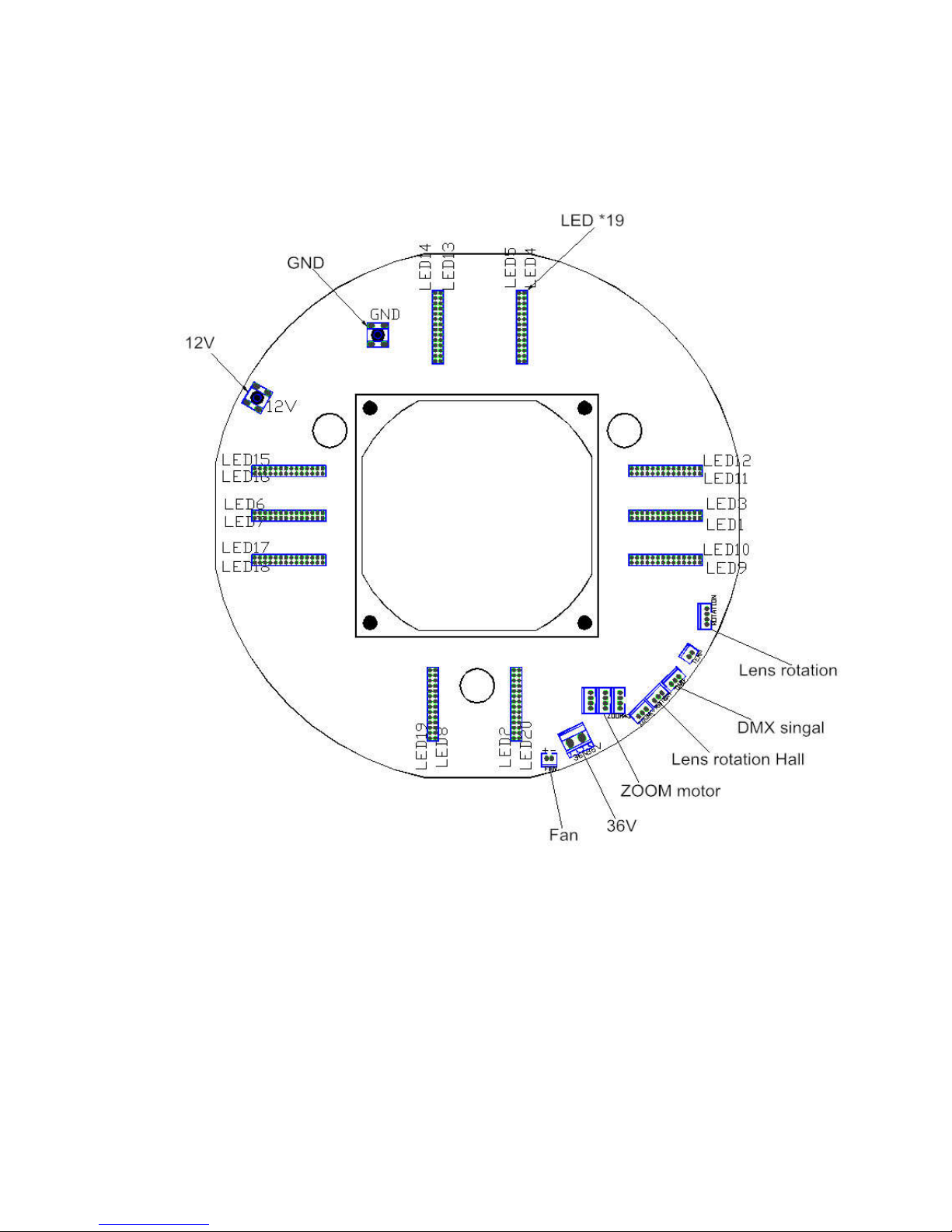

LED driver board

12 / 15

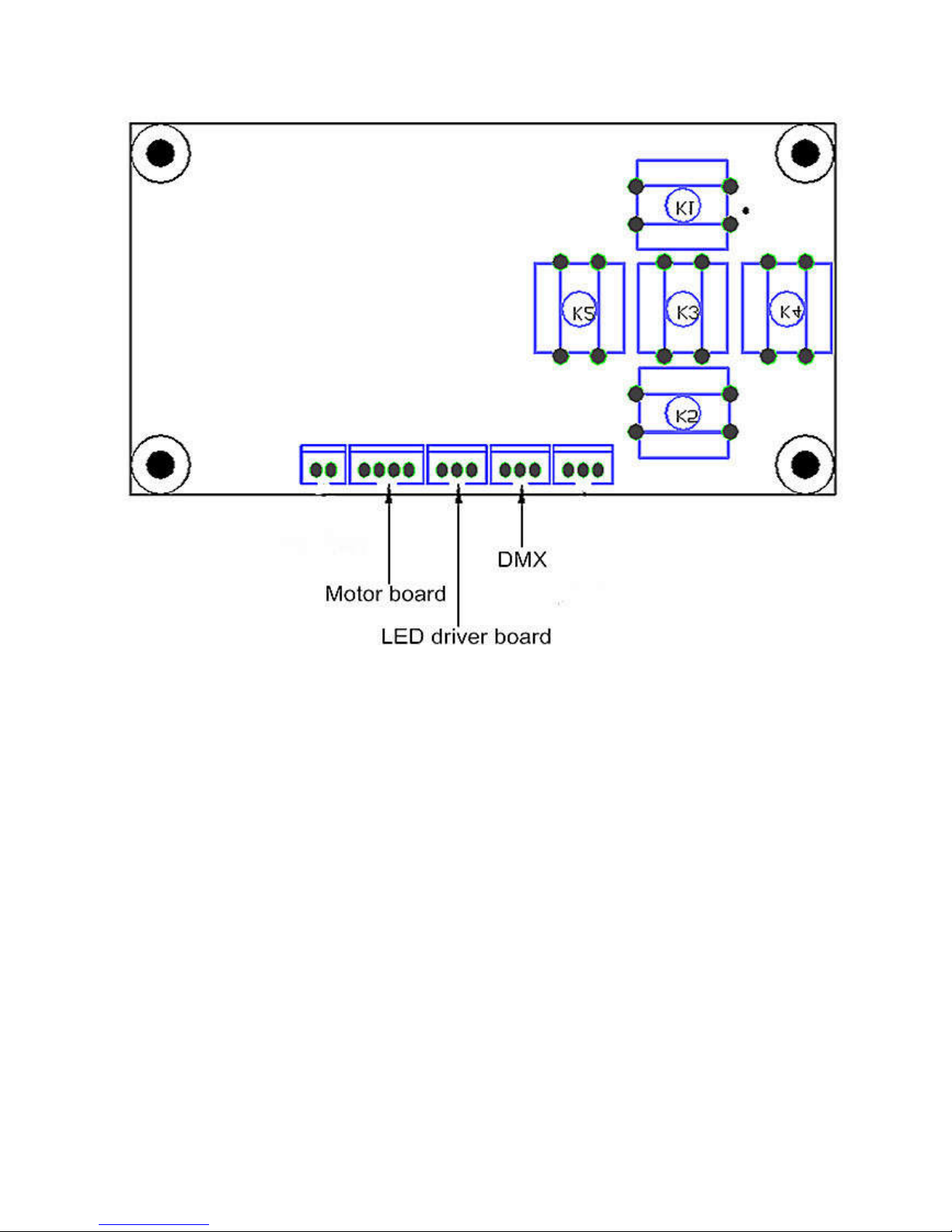

Screen board:

13 / 15
9. Key Features
Voltage: AC100V～240V 50-60HZ
Power: 350W
LED Source: 19x15W high power RGBW 4 in 1 LEDs
Zoom: 4-60° Strobe: 0-20Hz
Control Mode: DMX512,Sound-actived,Master/slave
DMX Channels: 18CH/22CH/94CH
Dimmer: 0-100% linear dimmer
Display: LCD 3 colors display
IP: IP20
Carton package Size: 37*37*43CM (1pcs/ctn)
N.W:7.65 kg
G.W: 9 kg
Special Points.
1. Each LED can be controlled individually. With unique honeycomb designed lens
2. The front lens can rotate without limitation in forward and reverse direction to
create amazing effects
3. Display screen can be turned upside down with 180°
4. Can be used as beam, wash or effect light use (Kaleido effects)
to fit your
different demands.

14 / 15

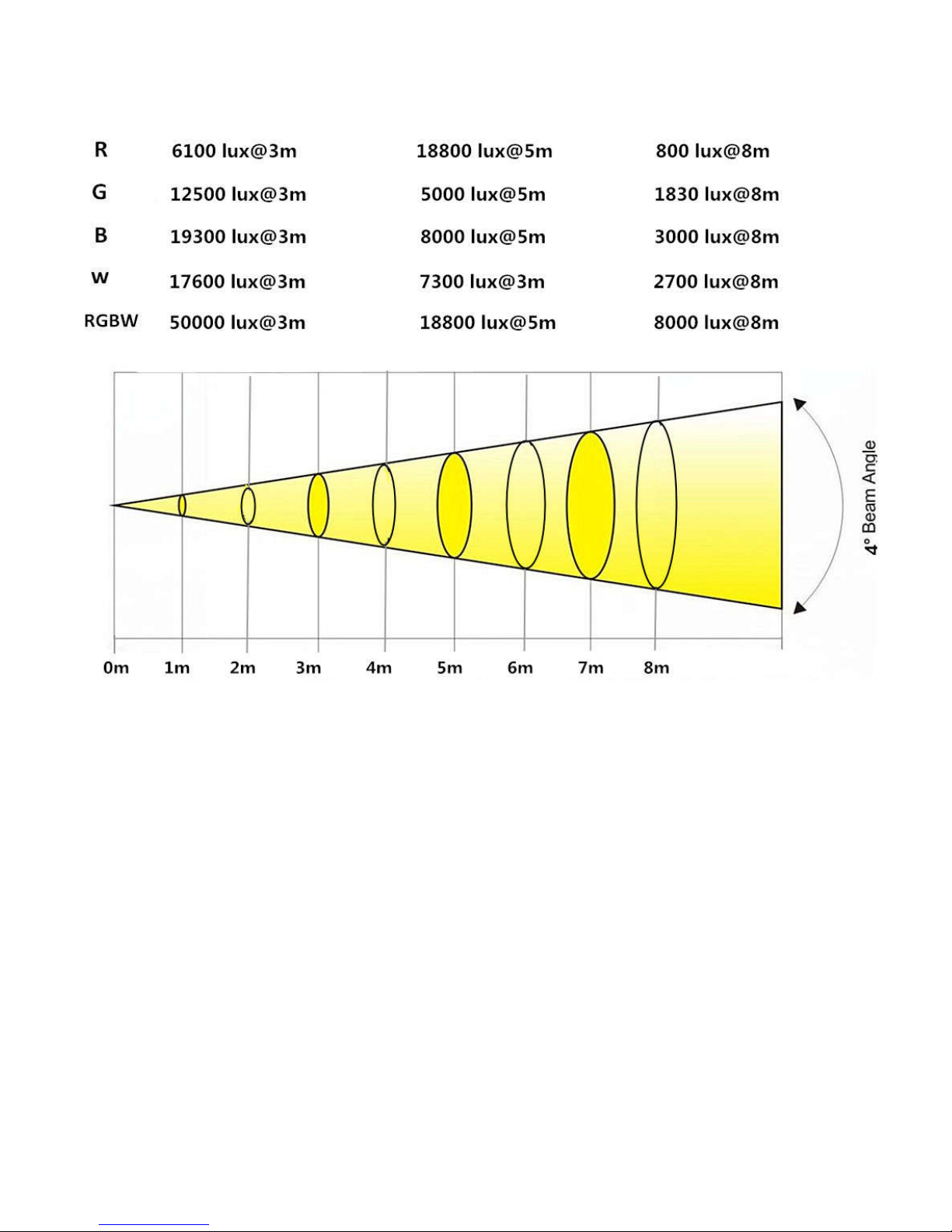

10. Photometric Data:

15 / 15
11. Maintenance and Cleaning
The following points have to be considered during the inspection:
1. All screws for installing the devices or parts of the device have to be tightly connected
and must not be corroded.
2. There must not be any deformations on the housing, color lenses, fixations and
installation spots (ceiling, suspension, trussing).
3. Mechanically moved parts must not show any traces of wearing and must not rotate
with unbalances.
4. The electric power supply cables must not show any damage, material fatigue or
sediments.
Further instructions depending on the installation spot and usage have to be adhered by
a skilled installer and any safety problems have to be removed.
In order to make the lights in good condition and extend the life time, we suggest a
regular cleaning to the lights.
1) Clean the inside and outside lens each week to avoid the weakness of the lights due
to accumulation of dust.
2) Clean the fan each week.
3) A detailed electric check by approved electrical engineer each three month, make
sure that the circuit contacts are in good condition, prevent the poor contact of circuit
from overheating.
We recommend a frequent cleaning of the device. Please use a moist, lint- free cloth.
Never use alcohol or solvents. There is no serviceable parts inside the device. Please
refer to the instructions under “Installation instructions”. Should you need any spare
parts, please order genuine parts from your local dealer
EHongLight
© All rights reserved.
www.EHongLight.com
