CLASSICBAR-661
Thank you for purchasing the CLASSICBAR-661. Every suit has been thoroughly tested and
shipped in perfect condition. Carefully check the shipping carton for damage that may have
occurred during shipping. If the carton appears to be damaged, carefully inspect your unit for
any damage and be sure all accessories necessary to operate the unit has arrived intactly. In the
case damage has been found or parts are missing, please contact Acson Comercial or your local
supplier for further instructions. Do not return this unit without any warning.
USER’S MANUAL

2
Contents
FOR YOUR OWN SAFETY, PLEASE READ
THIS USER MANUAL CAREFULLY BEFORE
POWERING OR INSTALLING. SAVE IT FOR
FUTURE REFERENCE
1. Introduction ....................................................................................................... 3
2. Safety Notes ...................................................................................................... 3
3. Product Drawing................................................................................................ 4
4. Main Functions .................................................................................................. 4
5. DMX Control Functions..................................................................................... 5
6. Display Operation Instruction ......................................................................... 6
7. Operating Control Instruction ......................................................................... 11

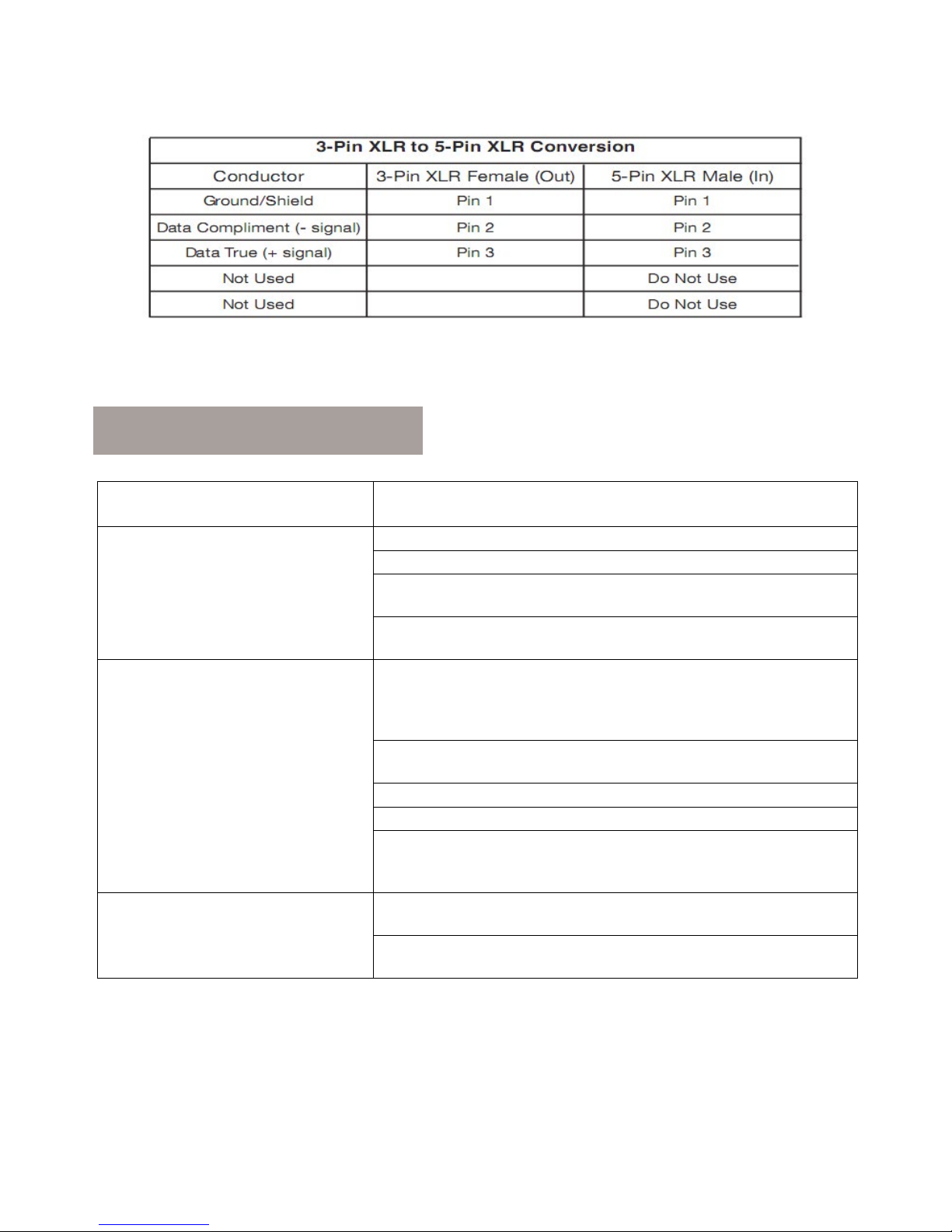

8. XLR cable connecting ...................................................................................... 11
9.Trouble Shooting................................................................................................ 12

3
1. Introduction
2. Safety Notes
Product Information
The CLASSICBAR-661 uses high power RGBAWUV 6-in-1 12W LEDs, and 32-bit ARM dimming techno-
logy, with 0-16666 levels of PWM modulation. The refreshing rate can achieve 600HZ, achieving smooth
dimming and icker free. Each kind of LED can be independently dimmer. It uses power switch, performs
low weight and consumption, stable capability and long life. The built-in program includes dimmer, strobe,
water, gradual change, fading and so on. International standard DMX 512 signal is requested.
Safety instructions
• Make sure the power supply voltage are
consistent with this lights
• Ensure the use of voltage is in the range of the
request technical parameter.
• Before the installation , please check the light’s
fasteners and mechanical structure have been
received in good condition and appear no
damage.
• This light is designed for indoor use, working
temperature is lower than 50 degree.
• The xtures maybe mounted in any position
provided there is adequate room for ventilation.
Make sure there are no inammable and
explosive items(ornaments) in 0.5 meters away.
• Yellow / green cabling earthling safety; no icker
when the xture is working on.
Packing List
CLASSICBAR-661 1PC
DMX Signal cable 1PC,
Waterproof Power Cable 1PC
Warranty Card
Caution!
Enquire with skilled people before any repair;
• Always make sure to disconnect from the power source before setting
up, serving and moving;.
• Avoid direct eye exposure to the xture when it is on;
Please recycle the shipping carton whenever possible.
!

4
• High quality led: low consumption, high bright-
ness, stable capability and long life
• Each color of led with 32-bit, 16666 grades
dimming. Over 400hz dimming frequency, take
pictures without icker
• RGBAWUV color mixing
• Dim 0%-100%, strobe, gradual change, jumping
change and etc
• DMX512 controller, 4 button set DMX id address
with led display
• Auto run /sound activated/master slave/intercon-
nected multi-machine control
• Using switching power supply to protect the led
to work well
• Wireless dmx control
• Electric capacity display
• Lithium battery power supply, stable capability
and easy to carry
• Built-in temperature detector to test led cooling
state
• Protecting rate: ip65
• Lens degree: 25º, 45º optional
• 7/8/11 Channels for option
4. Main Functions

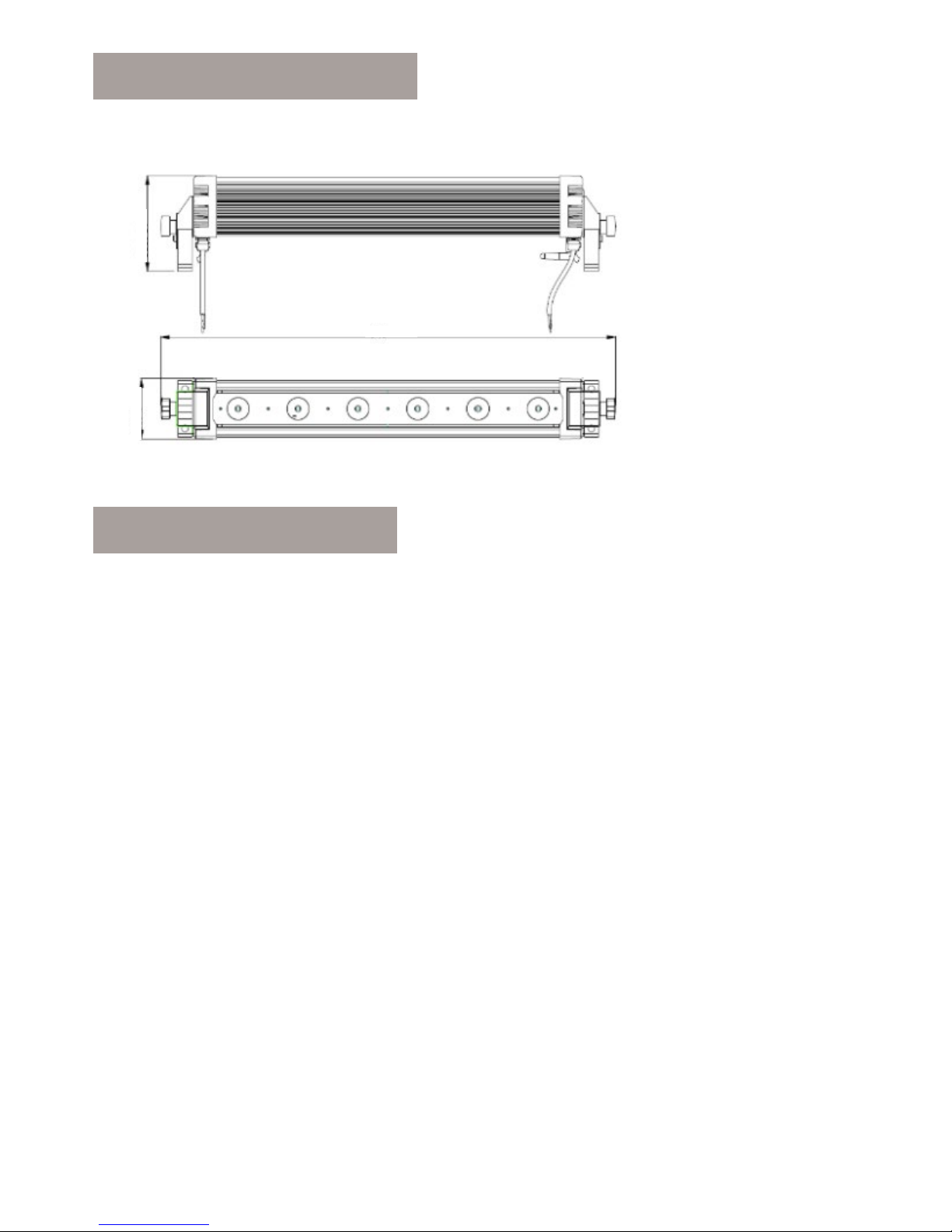

3. Product Drawing
Size: 580 x 168 x 95mm // Net Weight: 4,56Kg
580mm
95mm 168mm

5
5. DMX Control Functions
4CH 5CH 6CH 7CH 9CH 12CH VALUE FUNCTION
-CH1 -CH1 CH1 CH1 0-255 Dimming all
CH1 -CH1 CH2 CH2 CH2 0-255 Red
CH2 -CH2 CH3 CH3 CH3 0-255 Green
CH3 -CH3 CH4 CH4 CH4 0-255 Blue
-CH2 CH4 CH5 CH5 CH5 0-255 Amber
CH4 CH3 CH5 CH6 CH6 CH6 0-255 White
CH4 CH6 CH7 CH7 CH7 0-255 UV
CH8 CH8 0-5 No strobe
CH9 (CH9 prior to CH11)
6-20 Random burst strobe (slow to fast)
21-60 Normal strobe (slow to fast)
61-100 Electronic Sinewave (slow to fast)
101-140 Random Strobe (slow to fast)
141-180 Opening pulse *slow to fast)
181-220 Closing pulse(slow to fast)
221-255 Electronic Squarewave (slow to fast)
0-10 No effect
11-15 CT01
16-20 CT02
21-25 CT03
26-30 CT04
31-35 CT05
36-40 CT06
41-45 CT07
46-50 CT08
51-55 CT09
56-60 CT10
61-65 AUTO 1 (R,G,B,A,W,UV,RG,RB,GB,AW,WU-
V,AUV)
66-70 AUTO 2 (R ,R ,G ,G ,B ,B ,A ,A ,W ,W
,UV ,UV )
71-75 AUTO 3 (R G ,R G ,R B ,R B ,B G
,B G )
76-80 AUTO 4 (R G B W ,R G B W )
81-85 AUTO 5 (Rainbow effect: B,BG ,BG,B G,G,-
GR ,GR,G R,R,RB ,RB,R B)
86-90 CHASE 1
91-95 CHASE 2
96-100 CHASE 3
101-110 Reserved
111-200 R:111-115,G:116-120,B:121-125,A:126-
130,W:131-135,UV:136-140,YELLOW:141-
145,PINK:146-150,CYAN:151-155,O-
RANGE:156-160,VIOLET:161-165,GOL-
DEN:166-170,2700K:171-175,3200K:176-
180,4000K:181-185,5500K:186-
190,6500K:191-195,RGBW:196-200
201-255 Reserved

6
4CH 5CH 6CH 7CH 9CH 12CH VALUE FUNCTION
CH10 0-255 0-255(S),(speed of AUTO,fast to slow, when
AUTO1-AUTO5 effective)
CH5
CH11 (RGB color mixing instead of RGB
channels)
0-10 No effect
11 Blue (Blue=full, Red+Green=0) (step)
12-50 Red=0, Green->up,Blue =full (proportional)
51 Light Blue (Red=0, Green=full, Blue =full) (step)
52-90 Red=0, Green=full, Blue->down (proportional)
91 Green (Red=0, Green=full, Blue =0) (step)
92-130 Red->up, Green=full, Blue=0 (proportional)
131 Yellow (Red=full, Green=full, Blue=0) (step)
132-170 Red=full, Green->down, Blue=0 (proportional)
171 Red (Red=full, Green=0, Blue=0 (step)
172-210 Red=full, Green=0, Blue->up (proportional)
211 Magenta (Red=full, Green=0, Blue=full) (step)
212-250 Red -> down, Green=0, Blue=full (proportional)
251-255 Blue (Red=0, Green=0, Blue=full)(step)
CH9 CH12 0-10 Use the dimmer mode which menu had set up
11-20 Linear curve
21-30 Square law curve
31-40 Inverse square law curve
41-50 S-curve
51-60 Linear curve and smooth
61-70 Square law curve and smooth
71-80 Inverse square law curve and smooth
81-90 S-curve and smooth
91-255 Use the dimmer mode which menu had set up
6. Display Operation Instruction
• MENU: access the menu or return to a
previous menu option
• ENTER: select the current menu option
• UP: menu selection or parameter
increments
• DOWN: menu selection or parameters
decrease

7
Tab Level 1 Level 2 Level 3 Level 4
ADDR(Address) 001-512
STAT(Static control) R 0-255*
G 0-255*
B 0-255*
A 0-255*
W 0-255*
UV 0-255*
SHUT 0-255*
PRSC (Preset color) NONE,R,G,B,A,W,U-
V,YELLOW,PINK,C-
YAN,ORANGE,VIOLE-
T,GOLDEN,2700K,32
00K,4000K,5500K,650
0K,RGBW *
SET(Set) CAL (Calibration) R(Red) 0-255
G(Green) 0-255
B(Blue) 0-255
A 0-255
W 0-255
UV 0-255
USE YES/NO
CHMD (Channel mode) 12CH
9CH
7CH
6CH
5CH
4CH
DIM (Dimming mode) LIN(linear)/SQR(s-
quare law)/ISQR(in-
verse square law)/
SCUR(S-curve)/LIN.
(linear smooth)/SQR.
(square law smooth)/
ISQR.(inverse square
law smooth)/SCUR.
(S-curve smooth)
DISY(Display set) ON(Permanent on)
2MIN (2 minutes off)
LOCK(Key 2 minutes
lock)
YES/NO
BAT(battery output) HIGH (high)
MID
LOW
SIGN(DMX signal
selection)
2.4G (wireless)/ CA-
BL(Cable)
WIRE(Wireless set) REST (reset) YES/NO
KEY
CTST(Custom color
set)
CT01 R (Red) 0-255
Menu Tree

8
Tab Level 1 Level 2 Level 3 Level 4
G(Green) 0-255
B(Blue) 0-255
A 0-255
W 0-255
UV 0-255
CT10
AUTO(Auto) AT01 0-255*
AT02 0-255*
AT03 0-255*
AT04 0-255*
AT05 0-255*
CHS1 RUN..*
CHS2 RUN..*
CHS3 RUN..*
PROG (Program) CHS1 (Chase 1) SC01(Scene 1) R(Red) 0-255
G(Green) 0-255
B(Blue) 0-255
A 0-255
W 0-255
UV 0-255
SHUT 0-255
AUTO NONE,AT01-AT05
ATSP 0-255(S)

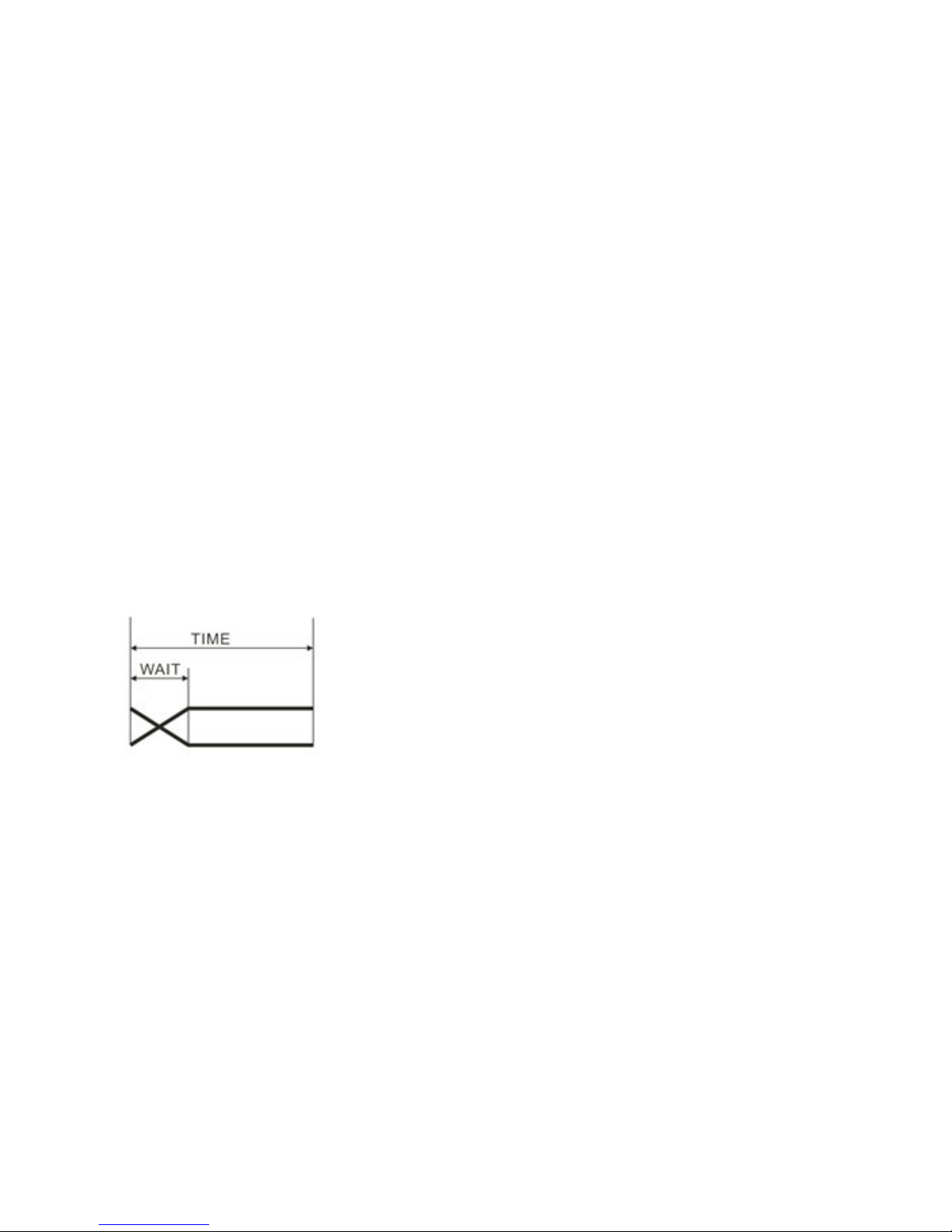

TIME 0-255(S)
WAIT 0-25.5(S)
USE YES/NO
SC20 (Scene 20)
CHS3(Chase 3)
INFO (Information) SOFT(Software
version)
Vx.x
POW(Power reduction) 100%/80%/50%
BAT 0-10
LOAD (Load) ST L (Setting load) YES/NO
PR L (Program load) YES/NO
SEND (Send) YES/NO
Instructions:
When enter to the “*” position displayed on the LED, the light will automatically set as master and send
data to external. Other xtures can receive this data and will synchronously running without manually set
as slave. When power cycle it will jump to the “*” position and running again. And in these position it will not
return back to the default display after two minutes.
1. DMX ADDRESS SETTING
1. Press the [ENTER] button in [ADDR] menu, then enter to the DMX address setting.
2. Press the [UP/DOWN button to select [1-512] numerical value.
3. Press the [ENTER] button to escape and save.

9
2. STATIC SETTING
1. Press the [ENTER] button in [STAT] menu, then enter to the static setting.
2. Press the [UP/DOWN] button to select [RED], [GREEN], [BLUE],[WHITE]...[PRSC].
3. Press the [UP/DOWN] button to set up the [0-255] numerical value.
4. Press the [ENTER] button to escape and save.
3. COLOR CAST CALIBRATION SETTING
1. Press the [ENTER] button in [CAL] menu, then enter to the color cast calibration setting.
2. Press the [UP/DOWN] button to select [RED], [GREEN], [BLUE]...[UV]
3. Press the [UP/DOWN] button to set up the [0-255] numerical value.
4. On the [USE] interface, pressing [YES] button means valid, [NO] means invalid.
5. Press the [ENTER] button to escape and save.
Illustrations: When pressing the [YES] button which means valid on the [USE] interface, the actual output
value of RED [GREEN] BLUE...UV is output in accordance with the percentage which the color cast
calibration value divides 255.
4 .CHANNEL MODE SETTING
1. Press the [ENTER] button in [CHMD] menu, then enter to the channel mode setting.
2. Press the [UP/DOWN] button to select [12CH], [9CH], [7CH], [6CH], [5CH], [4CH]
3. Press the [ENTER] button to escape and save.
5. DIMMING MODE SETTING
1. Press the [ENTER] button in [DIM] menu, then enter to the dimming mode setting.
2. Press the [UP/DOWN] button to select [LIN], [SQR], [ISQR], [SCUR], [LIN.], [SQR.], [ISQR.]and
[SCUR].
3. Press the [ENTER] button to escape and save.
Illustrations: When setting [IN.], [SQR.], [ISQR.] and [SCUR.] in [DIM] menu, there will be added a little
delay dimming effect for smooth..
Linear Curve Square Law Curve Inverse Square Law Curve S-Curve
6.6 DISPLAY SETTING
1. Press the ENTER button in DISY menu, then enter to the display setting.
2. Press the UP/DOWN button to select ON, 2 MINITES OFF
3. Press the ENTER button to escape and save.
6.7 AUTO LOCK KEY SETTING
1. Press the ENTER button in LOCK menu, then enter auto lock key setting.
2. Press the UP/DOWN button to select YES , NO
3. Press the ENTER button to escape and save.
Instructions: When set to [YES], it will lock automatically after two minutes to prevent accidental triggering
ood ushing. When in the order press MENU->UP->DOWN->ENTER three times to unlock, and the time
between two keys be press down must within 2 seconds.
6.8 Battery output setting
1. Press the ENTER button in BAT menu, then enter to the Battery output setting.
2. Press the UP/DOWN button to select HIGH , MIDDLE , LOW
3. Press the ENTER button to escape and save.
6.9 DMX signal selection setting
1. Press the ENTER button in SIGN menu, then enter to the DMX signal selection setting.

10
2. Press the UP/DOWN button to select 2.4G , CABLE
3. Press the ENTER button to exit and save.
6.10 Wireless set
1. Press the ENTER button in WIRE menu, then enter to the wireless set.
2. RESET Reset.
3. KEY Similar to built-out button
6.11 CUSTOM COLOR SETTING
1. Press the ENTERbutton in CTST menu, then enter to the custom color setting.
2. Press the UP/DOWN select CT01… CT10
3. Press the UP/DOWN button to select 1-255 numerical value.
4. Press the ENTER button to exit and save.
6.12 AUTO RUN, SELF-PROGRAM RUN
1. Press the ENTER button in AUTO menu, then enter to the auto run,self-program run.
2. Press the UP/DOWN button to select AT01 … AT05, CHASE01…SOUND2
3. Press the ENTER button to start running.
6.13 EDIT SELF-PROGRAM
1. Press the ENTER button in PROG menu, then enter to the edit self-program.
2. Press the UP/DOWN button to select CHASE01 … CHASE03
3. Press the ENTER button for conrmation and enter to the next menu.
4. Press the UP/DOWN button to select SCENE01…SCENE20
5. Press the ENTER button for conrmation and enter to the next menu.
6. Then press the UP/DOWN button to select RED…SHUT, TIME, WAIT, USE
7. Press the UP/DOWN button to set up the parameter which are needed.
8. Press the ENTER button to exit and save.
Illustrations: When USE is set to be NO or the parameter of TIME is 0, it will not run this scene. When
WAIT is set to be FADE time, the running process isas the following chart showing.
6.14 CHECK THE LIGHTING INFORMATION
1. Press the ENTER button in INFO menu, then enter to the checking the lighting information.
2. SOFT button is for software version information.
3. POW button is for the current information of power reduction. It is 100% output in normal conditions, but
80% or 50% output in over temperature protection situation.
4. BAT It’s balance of battery,from 0 to 10.
6.15 LIGHTING SETTING PARAMETER RESET
1. Press the ENTER button in ST L menu, then enter to the lighting setting parameter reset.
2. Press the UP/DOWN button to select YES .
3. Press the ENTER button to escape and save.
4. Illustrations “ADDR” “CTST” and “PROG” are not reset, the others reset to the underlined value of the
word.
6.16 [PROG] SELF-PROGRAMMING PARAMETER RESET
1. Press the ENTER button in PR L menu, then enter to the PROG self-programming parameter reset.
2. Press the UP/DOWN button to select YES .
3. Press the ENTER button to escape and save.

11
6.17 LIGHTING PARAMETER DOWNLOADING EACH OTHER VIA DMX CABLE
1. Press the ENTER button in SEND menu, then enter to sending parameter to other lightings.
2. Press the UP/DOWN button to select YES.
3. Press the ENTER button to conrm sending.
Illustrations
• Please disconnect the connection of projector and DMX console before sending the parameter.
• The information of ADDR, CAL can’t be sent, can’t be downloaded each other.
• There will be an automatic reset of the other projectors after receiving parameter correctly.
7. Operating Control Instruction
8. XLR cable connecting
Master/Slave
When the xtures work in master mode it will send out the signal for the slave synchronous with it. To avoid
the host signal and DMX512 signals interfere with each other, should cut off the DMX512 signals. The sig-
nal lines are longer than 60 meters (20 lamps), should increase a signal amplier.
XLR cable
The standard connection way of the XLR is: one end connects to the male plug, and the other connects to
the female. As below: pin 1: ground, pin 2: negative signal, pin 3: positive signal
Note: In order to avoid failures and interference signal transmission we connect a resistance120Ω (1/4W)
at the end of the DMX connecting as below:

The Conversion between 3 pin and 5 pin XLR
If the output cable of DMX512 controller is the 5PIN, please use 1pc 5PIN to 3PIN cable
9.Trouble Shooting
PROBLEM REASON AND ACTION
The lighting can’t be started
normally
Check the power connection is correct or not.
Please detect the voltage.
Power supply is damaged or incorrect connected. Call a quali-
ed personnel to x it.
Connection of control board is not correct. Call a qualied
personnel to x it.
Out of console’s control Please check the DMX connector and the power connection is
connected correctly or not. It means having signal if it shows
twinkling of the decimal point which in the lower right corner of
the screen when exiting the screen saver.
Please check the DMX address setting of lighting is correct or
not.
Check [CHMD] setting is correct or not.
Check [SIGN] setting is correct or not.
Please check whether the DMX line is near to the high voltage
wire or not. In that case, it will damage or interfere the DMX
electric circuit.
The beam appears dim, the
brightness declines obviously
Check whether the [CAL] is started or not and the set value is
too small.
Check whether the [POW] is in over temperature protection
situation or not, if yes, please take measures for ventilation.

Note: All information is subject to change without prior notice.
IMPORTANT INFORMATION!
In order to optimize the recovery and recycling of the materials that old appliances contain
and reduce the impact on human health and the environment, please make sure that this
product is recycled at the end of its life.
Importer:
ACSON COMERCIAL
C/Pallars, 405
08019 Barcelona
www.acson.com
[email protected]
