Electrolux Professional DC6-14HP User manual

User manual
Drying cabinet
DC6–14HP
Original instructions
427001216/EN
2022.05.11

Contents
Contents
1 Safety Precautions ..............................................................................................................................5
1.1 General safety information..........................................................................................................5
1.2 Symbols....................................................................................................................................5
2 Warranty terms and exclusions.............................................................................................................6
3 Appliance layout..................................................................................................................................7
3.1 Components..............................................................................................................................7
3.2 Drying principle..........................................................................................................................7
3.3 Air flow......................................................................................................................................9
4 First start ..........................................................................................................................................10
5 Operation ......................................................................................................................................... 11
5.1 Advice and tips for using the drying cabinet with dehumidifier ...................................................... 11
5.2 Operation................................................................................................................................ 11
5.3 Program description................................................................................................................. 11
5.4 Loads .....................................................................................................................................12
6 Maintenance .....................................................................................................................................13
6.1 Lint filter ..................................................................................................................................13
7 Servicing ..........................................................................................................................................14
8 Troubleshooting ................................................................................................................................15
8.1 Common questions ..................................................................................................................15
8.2 Error codes .............................................................................................................................15
9 Disposal information..........................................................................................................................16
9.1 Disposal of appliance at end of life ............................................................................................16
9.2 Disposal of packing..................................................................................................................16
The manufacturer reserves the right to make changes to design and component specifications.

User manual 5
1 Safety Precautions
This appliance can be used in public areas.
Remove all objects from pockets such as lighters and matches.
WARNING. This appliance is intended only for drying textiles washed in water.
DO NOT MODIFY THIS APPLIANCE.
Servicing shall be carried out only by authorized personnel.
Only authorized spare parts shall be used.
When performing service or replacing parts, the power must be disconnected.
The sound pressure level is found in Technical Data.
Additional requirements for the following countries: AT, BE, BG, HR, CY, CZ, DK, EE, FI,
FR, DE, GR, HU, IS, IE, IT, LV, LT, LU, MT, NL, NO, PL, PT, RO, SK, SI, ES, SE, CH, TR,
UK:
• This appliance can be used in public areas.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory
or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction con-
cerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be made by children without supervision.
Additional requirements for other countries:
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental ca-
pabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do
not play with the appliance.
1.1 General safety information
Do not hose down the machine with water.
In order to prevent damage to the electronics (and other parts) that may occur as the result of condensation, the ma-
chine should be placed in room temperature for 24 hours before being used for the first time.

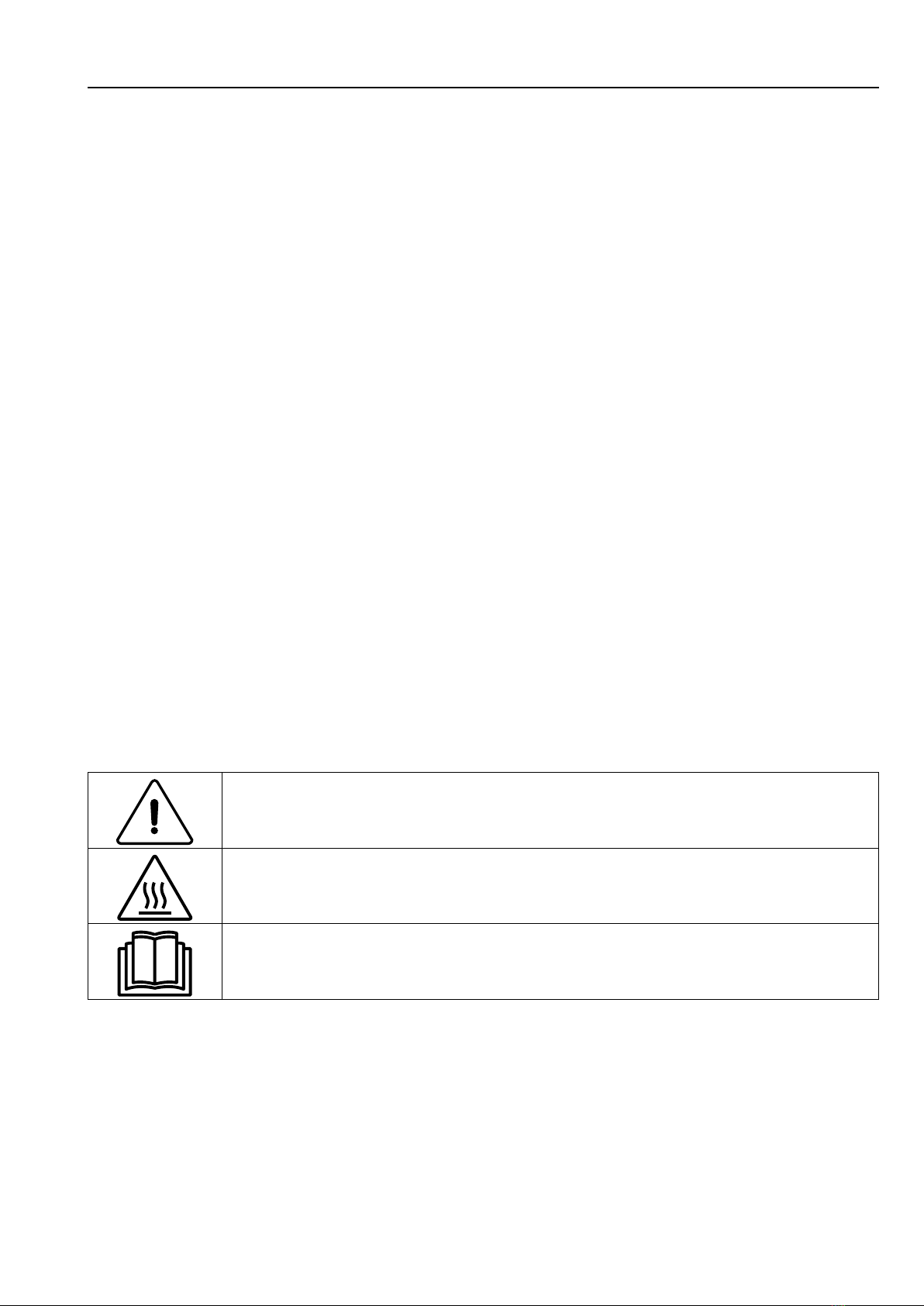

1.2 Symbols
Caution
Caution, hot surface
Read the instructions before using the machine.

6User manual
2 Warranty terms and exclusions
If the purchase of this product includes warranty coverage, warranty is provided in line with local regulations and sub-
ject to the product being installed and used for the purposes as designed, and as described within the appropriate
equipment documentation.
Warranty will be applicable where the customer has used only genuine spare parts and has performed maintenance
in accordance with Electrolux Professional user and maintenance documentation made available in paper or elec-
tronic format.
Electrolux Professional strongly recommends using Electrolux Professional approved cleaning, rinse and descaling
agents to obtain optimal results and maintain product efficiency over time.
The Electrolux Professional warranty does not cover:
• service trips cost to deliver and pick up the product;
• installation;
• training on how to use/operate;
• replacement (and/or supply) of wear and tear parts unless resulting from defects in materials or workmanship re-
ported within one (1) week from the failure;
• correction of external wiring;
• correction of unauthorized repairs as well as any damages, failures and inefficiencies caused by and/or resulting
from;
– insufficient and/or abnormal capacity of the electrical systems (current/voltage/frequency, including spikes and/
or outages);
– inadequate or interrupted water supply, steam, air, gas (including impurities and/or other that does not comply
with the technical requirements for each appliance);
– plumbing parts, components or consumable cleaning products that are not approved by the manufacturer;
– customer’s negligence, misuse, abuse and/or non-compliance with the use and care instructions detailed within
the appropriate equipment documentation;
– improper or poor: installation, repair, maintenance (including tampering, modifications and repairs carried out
by third parties not authorized third parties) and modification of safety systems;
– Use of non-original components (e.g.: consumables, wear and tear, or spare parts);
– environment conditions provoking thermal (e.g. overheating/freezing) or chemical (e.g. corrosion/oxidation)
stress;
– foreign objects placed in- or connected to- the product;
– accidents or force majeure;
– transportation and handling, including scratches, dents, chips, and/or other damage to the finish of the product,
unless such damage results from defects in materials or workmanship and is reported within one (1) week of deliv-
ery unless otherwise agreed;
• product with original serial numbers that have been removed, altered or cannot be readily determined;
• replacement of light bulbs, filters or any consumable parts;
• any accessories and software not approved or specified by Electrolux Professional.
Warranty does not include scheduled maintenance activities (including the parts required for it) or the supply of
cleaning agents unless specifically covered within any local agreement, subject to local terms and conditions.
Check on Electrolux Professional website the list of authorized customer care.

User manual 7
3 Appliance layout
3.1 Components
1
2
4
3
fig.W01330
The figure shows the cabinet in the left version
1 Wall bracket
2 Heat pump component
3 Glove hangers
4 Expandable hanger. The lower hanger section contains curtain coils that can be used to fasten items.
3.2 Drying principle
Drying cabinet DC6-14HP works according to the principle of heat pump with dehumidifier unit instead of convention-
al hot air unit. This dries the garments at a lower heat and with significantly lower energy consumption.
The cabinet is a completely closed system. No exhaust air connection is required. The moisture is condensed during
the process, and the water formed is directed to the drain via a hose.
In addition, the fan is so powerful that it makes the garments sway, making the drying process even more efficient.

8User manual
Conventional drying cabinet
Energy consumption approx. 0.7 kWh/kg of laundry
1 3 4
2
c
c
c
fig.W01331
1 Air from room
2 Heating battery
3 Hot air
4 Hot, humid air that is led away
Drying cabinet with heat pump
Energy consumption approx. 0.35 kWh/kg of laundry
2 5
64
3
1
c
c
c
fig.W01332
1 Hot, humid air
2 Cooling battery
3 Condensation / water drops. Diverted to floor drain
4 Cooled air
5 Heating battery
6 Heated, dry air that is directed back into the drying cabinet. The air is at a lower temperature than in a conventional drying cabinet

User manual 9
3.3 Air flow
1
2
3
fig.W01333
1 Inlet for hot, dry air
2 Outlet for humid air. A lint filter is located in front of the air intake.
3 Circulating hot air

10 User manual
4 First start
Read the safety precautions on page 5 before using the cabinet.
Read this User Manual before beginning to use the drying cabinet.
• Make sure that the cabinet is secured to the wall. See the Installation Manual.
• Make sure that no packaging material is left out.
• Use a mild dish soap with hot water to wipe the inside and outside of the drying cabinet. Wipe thoroughly.
•If the heat pump unit has been on its side or tilted sharply, it must stand upright for 24 hours before the
cabinet is started.

User manual 11
5 Operation
5.1 Advice and tips for using the drying cabinet with dehumidifier
• Always run the laundry through the spin cycle
• Do not hang the garments too close together as it will prolong the drying time
• The doors must always be closed during the drying process
• The temperature in a dehumidifying cabinet is lower
• It is not heat that dries the laundry
5.2 Operation
Expand the hanger unit and hang the laundry evenly over the hangers.
Close the hanger unit and close the doors.

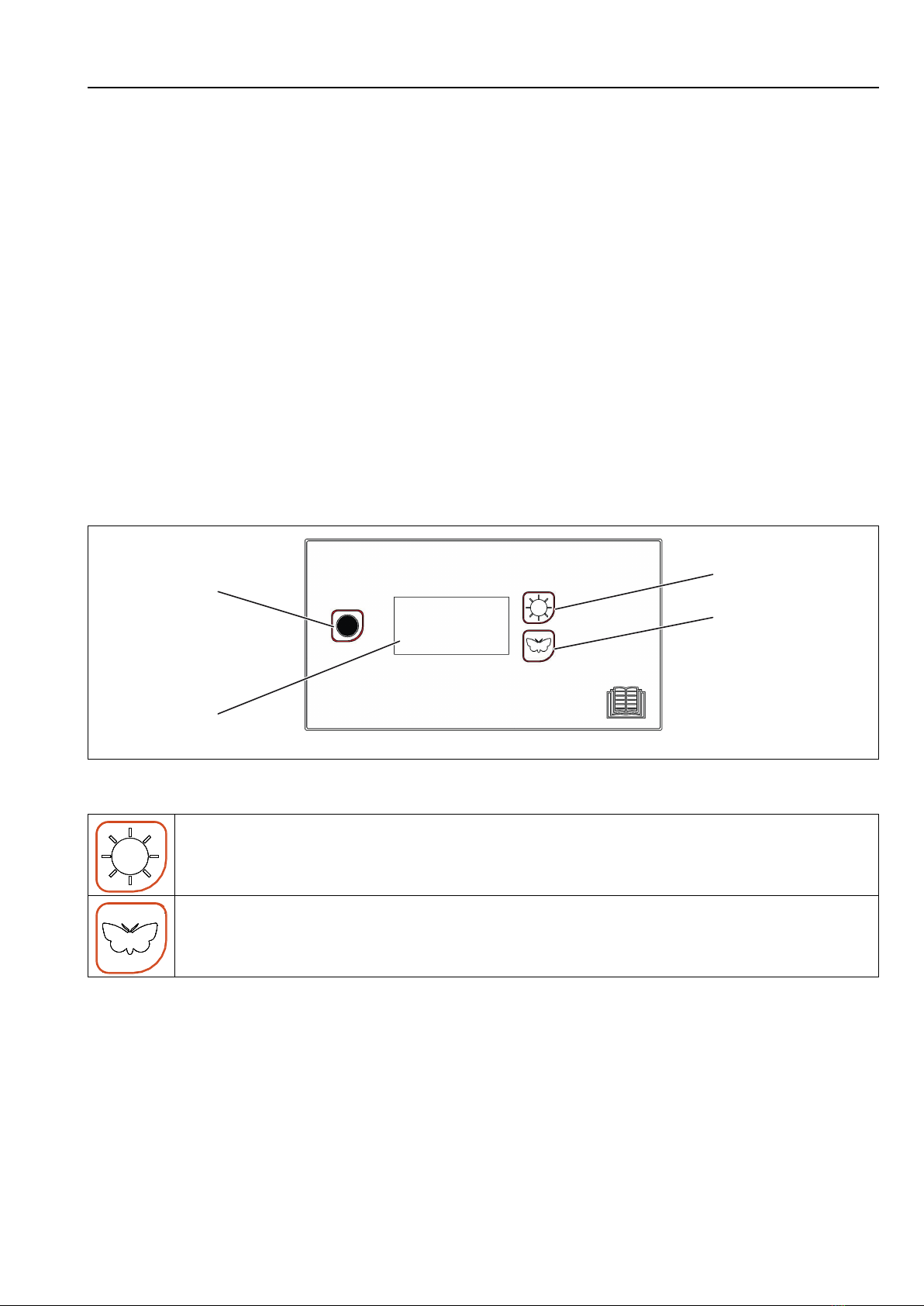

Select a drying program (A). Drying will start when the program button is pressed. The symbol (bar) on the left side
of the display (B) indicates that the drying process is in progress.
The drying cabinet will stop automatically when the laundry is dry.
When the textiles are dry, the drying process switches to a cool-down period that ends automatically after 3 minutes.
During the cool-down period, the text "COOL" is shown on the display.
The display shows the text "END" (flashing).
To cancel the drying cycle, press and hold the Stop button (C) for at least 3 seconds. If the Stop button is released
before 3 seconds have elapsed, the drying process will not stop.
C
B
A
A
fig.W01297

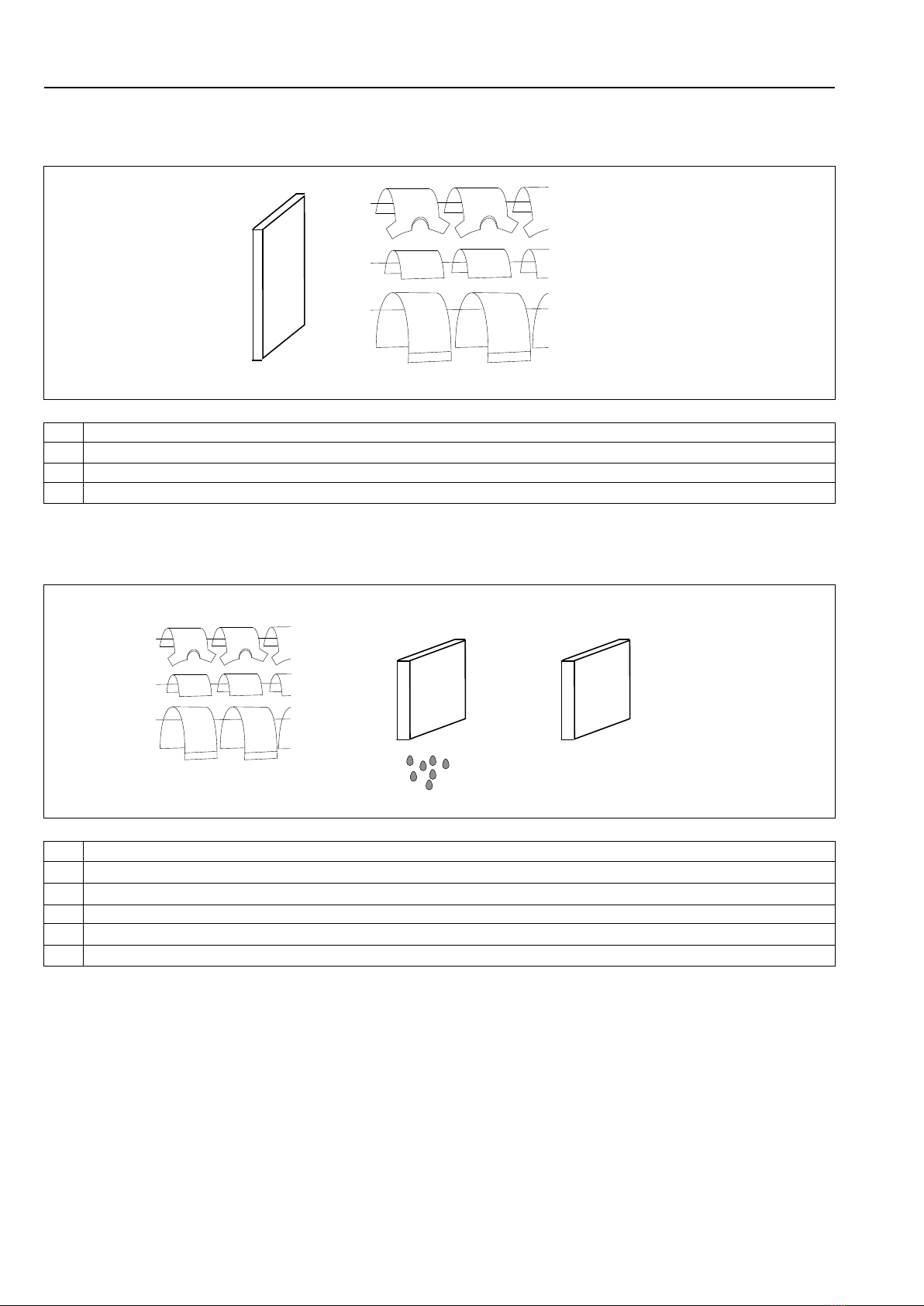

5.3 Program description
Extra drying
Normal drying

12 User manual
5.4 Loads
For optimum energy efficient drying, operate with a full load and do not open either door until the appliance has stop-
ped. If the door is opened during drying, the drying time will increase.
The drying cabinet has an expandable hanger unit. The lower section contains curtain coils that can be used to fas-
ten items. Hanging the laundry according to the following instructions will result in the most efficient drying result.
• Hang the items in the drying cabinet according to how much room they require and not according to their weight.
• Do not lie the garments flat over the upper part of the hanger unit.
• Hang gloves, caps, scarves and the like on the hanger bars on the inside of the cabinet.
• Do not overload the drying cabinet. The laundry will become creased and dry unevenly. Leave some space be-
tween the items if possible. To avoid the transferring of colors, make sure materials are not touching each other.
• Avoid drying thick items at the same time as lighter items as they hold more moisture and have completely differ-
ent drying times. If so, remove the lighter items when they are dry to reduce the drying time for the thick items that
are left.
• Do not hang knitted items. These will stretch unnecessarily as they are heavy when wet. Follow the instructions
on the care label of the garment as far as possible.
Do not dry any garment or the like that has been treated with gasoline or another volatile and flammable agent.
This could cause an explosive gas mixture to form.

User manual 13
6 Maintenance
It is the responsibility of the owner of the appliance/the laundry manager to make sure that maintenance is performed
regularly.
Note!
Lack of maintenance may deteriorate the performance of the appliance and may cause damage to
components.
The cabinet’s walls can be cleaned using a damp cloth and a mild soap solution.
6.1 Lint filter
Clean the lint filter (1) with the supplied brush.
1
fig.X02456A
The lint filter must be replaced when necessary. If the lint filter is exposed to an abnormal amount of lint and dust, it
must be changed more often.
Failure to follow these instructions may result in unnecessary wear on the heat pump, which can lead to shortened
service life.
If not these instructions are followed the warranty will no longer apply.
The lint filter can be purchased from your nearest Electrolux Professional dealer or service partner.

14 User manual
7 Servicing
Before contacting the service department, you should find out the name, article number and serial number of the
drying cabinet.
This information can be found on the identification plate located on the outside of the cabinet.
fig.W01334
Art. no.
Mfg no.

User manual 15
8 Troubleshooting
8.1 Common questions
Problem What you can do
The drying cabinet does not work 1. Check the mains connection and that the cabinet is receiving power.
2. Check that no fuse has been tripped.
3. Did you press the program selection button?
Drying takes a long time 1. Clean the fine filter (must be done after each drying session).
2. Check that the right program was selected for the type of garments in question.
3. Check to ensure the garments are not extremely wet (poorly centrifuged).
4. Check that there is not too much laundry in the cabinet.
The laundry does not get dry 1. Check that the right program was selected for the type of garments in question.
2. Check that there is not too much laundry in the cabinet.
3. The software that controls the drying process requires adjustment. Contact a service
technician.
8.2 Error codes
No. Name Description / Action
ERR 03 Moisture sensor error Contact Service
ERR 04 Max time for drying process exceeded Contact Service
ERR 12 Communication timeout Contact Service
The Stop button must be held depressed for 5 seconds to reset an error code.

16 User manual
9 Disposal information
9.1 Disposal of appliance at end of life
Before disposing of the machine, make sure to carefully check its physical condition, and in particular any parts of
the structure that can give or break during scrapping.
The machine’s parts must be disposed of in a differentiated way, according to their different characteristics (e.g. met-
als, oils, greases, plastic, rubber, etc.).
Different regulations are in force in the various countries, therefore comply with the provisions of the laws and com-
petent bodies in the country where scrapping takes place.
In general, the appliance must be taken to a specialised collection/scrapping centre.
Dismantle the appliance, grouping the components according to their chemical characteristics, remembering that the
compressor contains lubricant oil and refrigerant fluid which can be recycled, and that the refrigerator and heat pump
components are special waste assimilable with urban waste.
The symbol on the product indicates that this product should not be treated as domestic waste, but must be correctly disposed
of in order to prevent any negative consequences for the environment and human health. For further information on the recy-
cling of this product, contact the local dealer or agent, the Customer Care service or the local body responsible for waste
disposal.
Note!
When scrapping the machine, any marking, this manual and other documents concerning the appliance
must be destroyed.
9.2 Disposal of packing
The packing must be disposed of in compliance with the current regulations in the country where the appliance is
used. All the packing materials are environmentally friendly.
They can be safely kept, recycled or burned in an appropriate waste incineration plant. Recyclable plastic parts are
marked as following examples.
PE
Polyethylene:
• Outer wrapping
• Instructions bag
PP
Polypropylene:
• Straps
PS
Polystyrene foam:
• Corner protectors

Electrolux Professional AB
341 80 Ljungby, Sweden
www.electroluxprofessional.com
