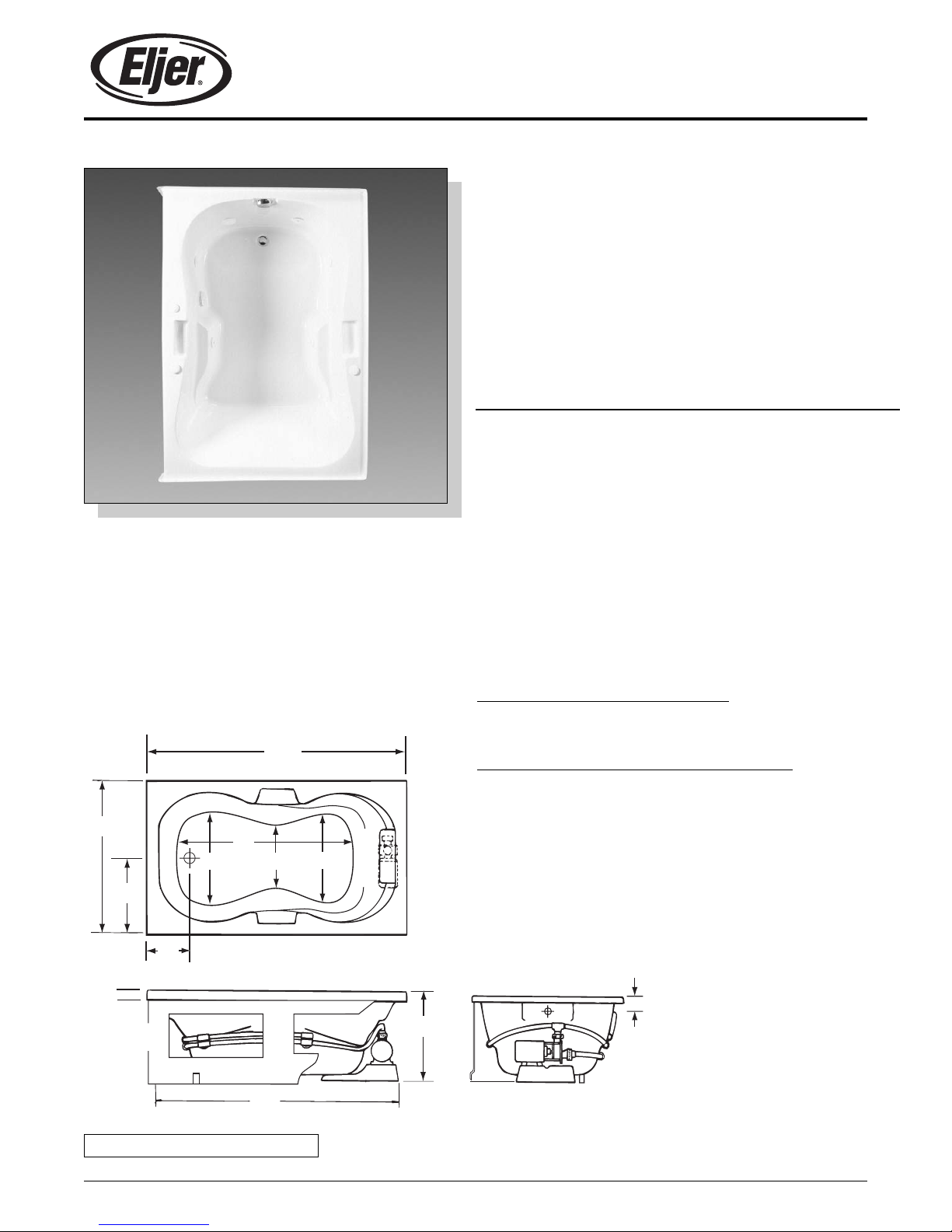

Eljer Mesquite Whirlpool/Tub 015-0225 User manual

Eljer, Inc. 5/06
Whirlpools/Tubs
Mesquite Whirlpool/Tub
HIGH GLOSS ACRYLIC
59 1/2" (1511 mm) Length, 41 3/4" (1060 mm) Width,
21 1/2" (546 mm) Height
Six Jetted Multi-Directional Whirlpool System
Rectangular Unit with Integral Apron
2HP Pump Motor
Pre-Leveled Base for Ease of Installation
Integral Tiling Flange
Safety Suction Fitting
Trim and Jets Removable and Top Rack Dishwasher Safe
Optional Inline Heater Available
Available in White, Platinum, Onyx, Natural, and Biscuit
Operating Water Capacity 42 Gallons
Weight - Empty 170 lbs., with Water 520 lbs., Cubes 41.78
015-0225 Six Jet Whirlpool Bath Complete with
Color-Matched Whirlpool Trim, 2 HP
Motor, Less Bath Waste
Right Hand Drain, Left Hand Pump
015-0229 Six Jet Whirlpool Bath Complete with
Color-Matched Whirlpool Trim, 2 HP
Motor, Less Bath Waste
Left Hand Drain, Right Hand Pump
Whirlpool Trim Includes:
Color-Matched Whirlpool Jets
Color-Matched Air Controls (2)
Whirlpool-Mounted On/Off Air Switch
Color-Matched Suction Return Cover
Optional Metallic Whirlpool Trim Kits:
494-3000 Polished Chrome
494-3005 Polished Brass
Optional In-Line Heater: (Factory Installed Only)
494-1550 Factory Installed In-Line Heater,
Maintains Bathing Water Temperature
Note: Extended Lead Time Applies to Whirlpools Ordered
with In-Line Heater
Soaker Tub Models:
015-0230 Non-Jetted Acrylic Bath, Less Bath Waste
Right Hand Drain - Empty Weight: 140 lbs.
015-0231 Non-Jetted Acrylic Bath, Less Bath Waste
Left Hand Drain - Empty Weight: 140 lbs.
Mesquite Whirlpool (015-0225). Bath waste not included.
Soaker Tub model also available.
NOTE: Eljer assumes no responsibility or liability for local or state
regulations which deviate from national standards. It shall
be the responsibility of the installer to comply with local
codes and standards prior to installation of any Eljer product.
Electrical Requirements:
115V, 20AMP, GFCI Protected Circuit
FAUCETS ARE NOT INCLUDED. ALL FIXTURE DIMENSIONS ARE NOMINAL AND
MAY VARY WITHIN THE RANGE OF TOLERANCES ESTABLISHED BY ASME/ANSI
STANDARDS, Z124.1. ALL MEASUREMENTS SHOWN ARE SUBJECT TO CHANGE
OR CANCELLATION.
BUILDER SERIES
Water Capacity to Overflow: 89 gal.
59-1/2”
(1511)
43”
(1092)
21-1/2”
(546)
27”
(686)
20-7/8”
(530)
7-3/4”
(197)
41-3/4”
(1060)
23”
(584)
56”
(1422)
1-1/2” (38) Up-flange
Three Sides
5-1/2”
(140)
21-1/2”
(546)
