Elviomex ALFA series User manual

1 / 20
Operating and installation instructions of ALFA dishwashers by ELVIOMEX Ltd.
CONTENTS
1. Installation instructions
1.1 Introduction
1.2 Advantages
1.2.1 Legal provisions / Requirements
1.3 Installation
1.3.1 Installation suggestions
1.4 Water supply connection
1.4.1 Drainage connection
1.5 Electrical Network connection
1.5.1 Protective duct connection and voltage compensation
2. Operating instructions
2.1 Technical data
2.2 Instructions for the dishwasher’s regular operation
2.3 Preparation of dishes for washing
2.4 Filling of basket
2.5 Manual filling of detergent
2.6 Rinse-aid doser
2.7 Starting the washing program - Filling the boiler
2.8 Safety arrangements
2.8.1 Other significant indications / Safety indications
2.8.2 Daily works
2.9 Maintenance / Care / Repair
2.9.1 Unloading dishwasher (dispenser)
2.9.2 Regular maintenance and cleaning works
2.10 Customer service
2.11 Spare parts, Accessories and Components
2.12 Troubleshooting
2.13 Repairs / works made on this appliance.

2 / 20
1. Installation instructions
1.1 Introduction
This appliance complies with the needs of gastronomy and professional cuisine.
Before you start this appliance, please read carefully the operating instructions.
You will find all significant safety indications, as well as other necessary data, which are needed for
the regular start-up - and operation itself - of the appliance.
The person undertaking, on behalf of the user, the installation, start-up, maintenance and repair of
dishwasher, should be familiar with the operating instructions or trained by our customer service
department.
This is the only way to ensure the correct operation of the appliance and to avoid extra repair
expenses.
Keep this manual in a safe place, so that you can always refer to it.
1.2 Advantages
This dishwasher has the following advantages :
•It is made of Stainless Steel 18/8 304
•The appliance is manufactured for continuous operation.
•Easy and simple cleaning
•No jamming during the door opening and closing : simple use
•Perfect dish and glass washing
•Less environment pollution
•Service friendly, because all Spare Parts, Accessories and Components are available in advance
•Economical in water consumption

3 / 20
1.2.1 Legal provisions / Requirements
•The dishwasher complies with the requirements of Directive 73/23/EEC «on Low Voltage(LVD) »
according to EN 60335-2-58 and the Directive 89/336/EEC «on Electromagnetic Compliance
(EMC)» according to EN 55014.
•Control and certification was taken place at the certified laboratory of TUV Product Service -
Germany, for the above two directives. Each dishwasher may have the worldwide known quality
and safety mark of TUV GS.
1.3 Installation
This dishwasher is delivered with water inlet and outlet hoses.
According to its construction, all connections of the machine must be performed by an authorized and
locally recognized installer, keeping the existing specifications.
Before the appliance’s installation, it should be checked if the current type and network voltage
comply with the data on the appliance’s label.
Following the installation, the competent representative of ELVIOMEX Ltd. (or the authorized local
dealer of ELVIOMEX Ltd. who sold the appliance) is obliged to check the appliance’s operation and
inform the user or the competent specialized personnel on the operating instructions, as well as deliver
them to him/her. Also, he/she should show to the user how to use the daily and periodic maintenance
works.
The manufacturer is not responsible for any possible damages or risks due to a faulty connection of the
appliance.
1.3.1 Installation suggestions
•Open the package. Check the appliance for any damages during transportation. In case of doubts,
call for a specialist to see it (from the authorized local dealer of ELVIOMEX Ltd. who sold the
appliance), before you put it into operation.

4 / 20
•Place the dishwasher at the installation area, close to the necessary water and power supply (the
ground should be adequately stable).
•The appliance should be placed horizontally. Possible inclinations should be corrected by the use
of a cross-level.
•Following the successful installation, the dishwasher should be cleaned thoroughly with a
conventional cleaning aid before it is put into operation.
1.4 Water supply connection
ATTENTION : Connection with the water supply should be made according to the existing safety
specifications.
The dishwasher is suitable for connection with cold water supply.
•The water supply hose should have a flap valve (non return valve) according to DIN 1988.
•The water supply hose/pipe should be rinsed before the appliance’s connection.
•The water supply hose/pipe should have a minimum internal diameter of 16 mm and the connection
with the hose should be 3/4 inch.
•All hose collars should be adjusted at a fixed position before the appliance is put into operation.
•Minimum flow pressure is 2 bars and maximum flow pressure is 5 bars.
1.4.1 Drainage connection
The outflow is accomplished through gravity force (natural flow) in this model. The outlet hose should
be connected either directly to the main drainage - where a pipette for odors is anticipated, or water
runs directly to a drainage well in the ground, which has a pipette for odors.
Outlet hose should not be placed higher than a level (as given to the attached Technical Specification's
Data Table, paragr. 2.1) from the lower side of the dishwasher’s dispenser.

5 / 20
1.5 Electrical Network connection
The dishwasher operates under specific voltage (as given to the attached Technical Specification's
Data Table, paragr. 2.1) depending on the appliance’s power reception (Note : refer to an electrician
for the connection).
Electrical connection should be made only by authorized personnel of the company ELVIOMEX Ltd.
Specifications should be met according to the corresponding parts of DIN, VDE, D100, the EVU
connection terms, the relevant ZH 1/37, chapter 7.2 - as well as the existing specifications for accident
prevention.
Respectively, the appliance must be connected to a direct power supply electrical installation through
an HO7 RN-F cable with load relief of the appliance.
1.5.1 Protective duct connection and voltage compensation
Electrical safety of this appliance is ensured only if the protective duct has been connected and
checked properly. The corresponding specifications should be met at this point (see paragraph 1.5).
In addition, the appliance should include a voltage compensation system. For this reason, the back side
of the appliance has a screw with the indication «voltage compensation».
Following the electrical connection, the action of the protective duct, the voltage compensation and
the insulation value should be checked according to the existing provisions of DIN VDE.

6 / 20
2. Operating instructions
2.1 Technical data
Please see attache Technical Specifications Data Table.

7 / 20
2.2 Instructions for the dishwasher’s regular operation
The appliance is exclusively used to clean dishes, cups, glasses, silver, etc. following their use during
lunches/dinners.
You should pay special attention that the items placed to be washed are suitable for dishwashing.
Silver should be cleaned from food residues, if not washed right after lunch / dinner (coloring and
spots from several food).
Do not wash material which were used with acids, mineral oil, grease, gasoline or colors, in this
appliance.
2.3 Preparation of dishes for washing
Avoid food residues to be dried. In order to avoid filter blockage as well as the cleaning water to
become dirty quickly, you should remove large food residues, olive pips, lemon peels, tooth picks,
etc., before you place the dishes in the basket.
We recommend that leave in water for a while or rinse glasses which have food residues.
2.4 Filling of basket
Place glasses, cups, large plates, etc. with the opening facing down and not piled one on top of
the other, in the anticipated baskets.
Glasses should not touch each other (damage in glass, stains due to contact).
Place silver in the anticipated basket, made of synthetic material, with the handle facing down.
Silver may be placed freely on the leveled plastic basket.
In any case, you should avoid overloading the basket.
Water supply hoses should remain free (not blocked or stretched).

8 / 20
2.5 Manual filling of detergent
The detergent to be used should be suitable for dishwashers. After the recommended operating
temperature is accomplished, you may put the detergent directly into the dispenser.
Use exclusively detergent with little foam effect.
We recommend that you use detergent and rinse-aid from the same manufacturer.
The correct detergent dosage depends on the water hardness and the amount of dirt on the dishes :
apply the data of the detergent’s manufacturer.
Less detergent quantity affects negatively the washing result : More detergent quantity does not
present better results, but rather more consumption and environment pollution.
In order to accomplish the corresponding cleaning degree, you should ensure that the detergent is kept
in a dry place.
Do not use granular detergent - dishes will not be cleaned.
2.6 Rinse-aid doser
This model has an automatic rinse-aid doser with a corresponding storage compartment.
In order to fill the storage compartment, you should open the corresponding arrangement and fill it up
with rinse-aid - you should avoid overflowing.
The doser is adjusted from the manufacturer’s premises at its maximum value and may be adjusted
accordingly - depending on water hardness, how dirty the dishes are, and the detergent used -
following the successful installation of the dishwasher.
Turning the adjustment screw clockwise, the flow is reduced (-), turning it counterclockwise, the flow
is increased (+). We recommend that you let ELVIOMEX Ltd. to adjust it (or the specialized
personnel of the authorized local dealer of ELVIOMEX Ltd. who sold the appliance).
The storage compartment should be placed on the upper part of the dishwasher.
Before you perform these works, you should turn off the switch of the appliance or turn off the
corresponding switches so that no current flows, or turn off the power supply switch.
INDICATION : The doser should not operate while dry, since it will loose its suction properties. It is
necessary that you have filled the storage compartment before the appliance’s
installation, so that the doser operates correctly during the first wash.
Do not use caustic products. If you do not follow this indication, you will not
be covered by the guarantee.

9 / 20

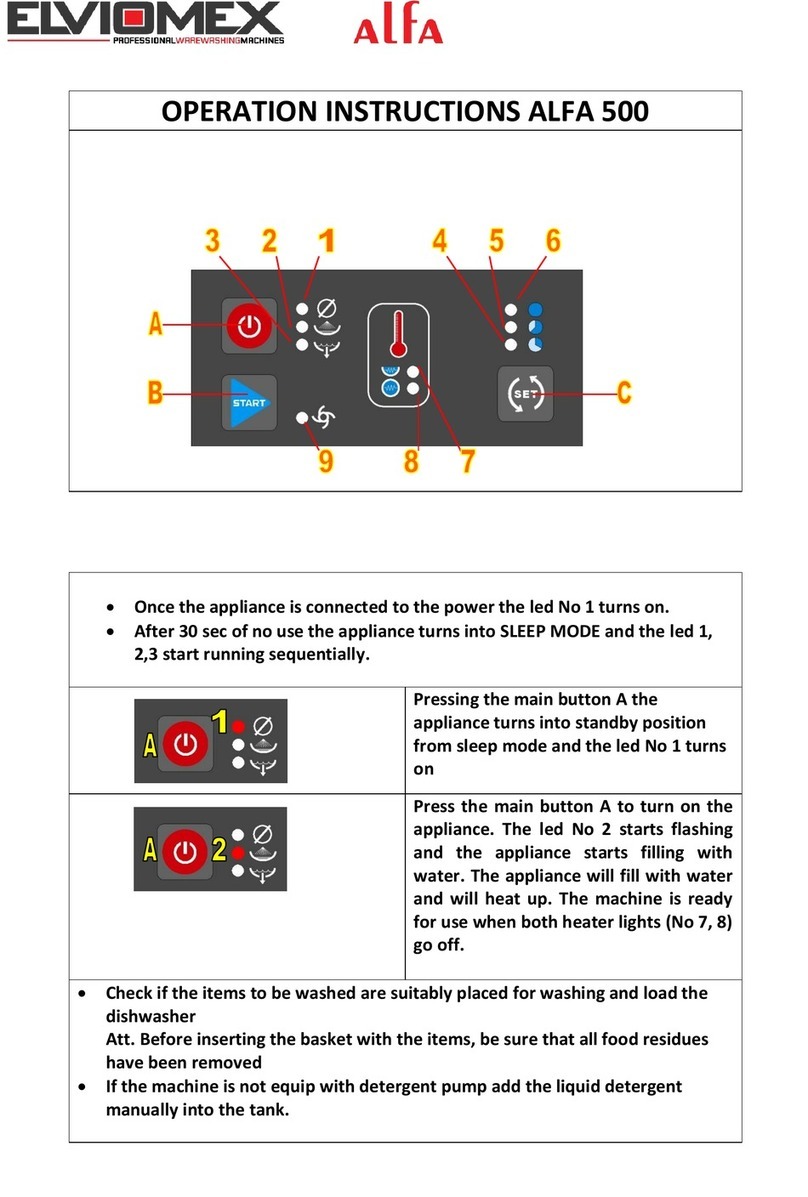

2.7 Starting the washing program - Filling the boiler
•Check that the suction filter has been placed in the correct position.
•Check that the overflow hose is inserted correctly in its inlet.
•Make the connection with water supply and drainage according to the instructions.
•Push ON-OFF switch (No.1), as shown on the following table (models of dishwashers /
corresponding figures).
MODEL OF DISHWASHER FIGURE
BAR LINE 35 1
ALFA BAR 2
ALFAMATIC 300 3
ALFA 700, ALFA 700S, VERGINA 840, KNOSSOS
122, ALFAMATIC 1000
4
OLYMPUS 1100 5
TURBO 1500 6
•The dishwasher is automatically filled with water up to the set water level.
•The indicator lights up (see following table with models of dishwashers / corresponding figures),
showing us that the boiler’s heating has started.
MODEL OF DISHWASHER LED No. FIGURE
BAR LINE 35, ALFAMATIC 300, OLYMPUS
1100
2 1, 3, 5
ALFA 700, ALFA 700S, VERGINA 840,
KNOSSOS 122, ALFAMATIC 1000
3 4
TURBO 1500 6 6
•Note 1 :ALFABAR has no boiler. In this model, No. 2 indicator lights up (Fig.2), showing us that
the heating of water has started in the dishwasher.
•Note 2 : TURBO 1500 provides additional visual indication of temperature, No. 7 (Fig. 6).

10 / 20
•When the water of the boiler is heated, the corresponding LED lights off and a new LED lights on
(see following table with models of dishwashers / corresponding figures), showing us that the water
in the dispenser in being heated.
MODEL OF DISHWASHER LED No. FIGURE
ALFAMATIC 300, OLYMPUS 1100 3 1, 3, 5
ALFA 700, ALFA 700S, VERGINA 840,
KNOSSOS 122, ALFAMATIC 1000
4 4
TURBO 1500 5 6
•Note 1 :ALFA 700, ALFA 700S, VERGINA 840, KNOSSOS 122, ALFAMATIC 1000 provide
additional visual indication of temperature, No. 2 (Fig. 4).
•Note 2 : TURBO 1500 provides additional visual indication of temperature, No. 8 (Fig. 6).
•Note 3 :BAR LINE 35's LED No. 2 provides also visual indication during the tank heating (Fig.
1).
•When this LED lights off, then the dishwasher is ready to wash.
•We open the door, insert the basket with the items (dishes, glasses, etc.) and close the door. Before
we insert the basket with the items, we take care that any food residues have been removed from
them.
•We pour detergent manually in the dispenser. Check the level of the rinse-aid storage compartment.
•In order the start the washing program, we push the START button (see following table with
models of dishwashers / corresponding figures),
MODEL OF DISHWASHER BUTTON No. FIGURE
BAR LINE 35 5 1
ALFA 700, ALFA 700S, VERGINA 840,
KNOSSOS 122, ALFAMATIC 1000
5 4
TURBO 1500 2 6
ALFAMATIC 300, OLYMPUS 1100 ? 3, 5
•Note 1 :For Bar LINE 35, the button should be pushed for 2 secs, until the washing program
begins and the LED No. 4 lights on.
•Note 2 :For ALFA BAR, ALFAMATIC 300, OLYMPUS 1100, in order to start the program, we
must turn the programmer (time switch) slightly to the left.

11 / 20
•The washing program, lasting 2 min., starts automatically, while at the same time the LED of the
program’s start, lights on (see following table with models of dishwashers / corresponding figures),
washing and rinsing the items we inserted.
MODEL OF DISHWASHER LED No. FIGURE
BAR LINE 35 4 1
ALFA 700, ALFA 700S, VERGINA 840,
KNOSSOS 122, ALFAMATIC 1000
6 4
TURBO 1500 2 6
OLYMPUS 1100 5
•Note 1 :For Bar LINE 35, the button should be pushed for 2 secs, until the washing program
begins and the LED No. 4 lights on.
•Note 2 :For ALFA BAR, ALFAMATIC 300, OLYMPUS 1100, in order to start the program, we
must turn the programmer (time switch) slightly to the left.
•Note 3 :ALFA BAR, ALFAMATIC 300 have no visual indication for the starting of washing
program.
•When the washing program is finished, the program LED lights off. Open the door and remove the
basket with the clean items.
•Let them dry.
If, following the wash, there are stains from dirt or water spots, the cause may be one of the following
:
•Wrong quantity of detergent in respect of water.
•Rinsing water with high capacity of mineral elements.
•Inadequate quantity of rinse-aid during rinsing.
•Wrong arrangement of items in the basket.
•Low water pressure during rinsing.
•Low water temperature during washing.
•Filters are clogged or mis-positioned.

12 / 20
2.8 Safety arrangements
There is a safety adjustment at the door, which interrupts the appliance’s operation during washing, if
the door opens by mistake.
There is thermal protection integrated in the pump motor winding with automatic startup which
interrupts power supply to the pump, in case of overcharge.
There is a thermal safety fuse, which interrupts power supply in case of boiler or dispenser
overheating.
2.8.1 Other significant indications / Safety indications
No technical modifications are allowed in this appliance. The manufacturer is not responsible for any
possible damages resulting due to modifications. The same applies in case that the appliance is used
for any other purpose except the one anticipated, in case of fault or improper use.
The water inside the dishwasher is not potable.
Use, maintenance and repair of dishwasher should be performed only by persons familiar with these
works and informed for any possible risks.
2.8.2 Daily works
•Turn the operation switch of the appliance S1, off.
•Turn the main switch / fuses off.
•Turn water supply faucet off.
•Empty the washing dispenser removing the overflow hose.

13 / 20
2.9 Maintenance / Care / Repair
The perfect operation and safe use may be ensured only through the correct use of the appliance, as
well as the compliance with the operation instructions, the corresponding specifications and the care
and cleaning indications.
This applies both for the compliance of the provisions of law on appliance safety (GSG) and the
existing specifications of ZH 1 and VBG on accident prevention.
INDICATION : Before cleaning or maintenance works, the appliance should not be connected
with voltage through the installed main switch / fuse. The appliance should
never be sprayed with water or high pressure cleaning aid, because any
insertion of water in the electrical elements, may affect the regular operation
of the appliance as well as the protection against electrical shock (insulating
protection).
We recommend that you prepare a relevant maintenance agreement for all maintenance and repair
works with ELVIOMEX Ltd. (or a service team/workshop of an authorized local dealer of
ELVIOMEX Ltd. who sold the appliance).
All works / repairs performed in this appliance must be reported on the last page of the operating
instructions, along with the signature / company name.
Substantially, no safety arrangement should be put out of operation. If the disassembly of individual
safety arrangements is required, e.g. for maintenance or repair works, the reassembly of the relevant
safety arrangements should be performed immediately after the completion of works.
2.9.1 Unloading dishwasher (dispenser)
•Empty the washing dispenser removing the overflow hose.
•Remove the filter and clean it carefully with water.
•Rinse the washing compartment to remove any dirt residues.
Then, reassemble the parts in reverse order. The appliance should never operate without a filter.

14 / 20
During non operation, the door should remain half-open or completely open (in order to avoid odors).
2.9.2 Regular maintenance and cleaning works
Regularly, you should remove the rotating arms and sprinkler, cleaning them carefully with water and
repositioning the parts in reverse order. This work should be performed with great care.
PAY ATTENTION TO THE CORRECT POSITION OF FILTERS AND SPRINKLER !
Do not clean the sprinkler’s injectors with tools or sharp objects.
You may clean the appliance with warm water and conventional cleaning aids. Rub with water and
then let it dry. The stainless steel parts should be treated with special means for steel and you should
never clean them with steel wire, brush, etc. Also, you should never let them touch the surface, since
even the lightest contacts on the surfaces may cause rust formation.
You should use brushes made of polymer plastic or natural brushes or thin wire.
You should take care to move towards the smoothing direction, so that you will not scratch the
surface. Finally, rinse with clean water and dry thoroughly.
We remind you that corrosion (rust formation) on stainless steel surfaces is not created by itself, but
rather due to the use of improper cleaning aid (e.g. whitening or particularly caustic cleaning aid based
on chlorine).
Following a particular period of use, calcium sediments are formed in the internal walls of the
dispenser (due to mineral particles in the water), which may affect the correct operation of the
appliance. For this reason, regular removing of salt formations is required.
We recommend to let this work (removing of salt formations) to be performed by specialized
personnel of ELVIOMEX Ltd. (or by an authorized local dealer of ELVIOMEX Ltd. who sold the
appliance).

15 / 20
2.10 Customer service
If you face any problems during the use of your appliance, we kindly ask you to refer to ELVIOMEX
Ltd. (or the authorized local dealer of ELVIOMEX Ltd. who sold the appliance).
2.11 Spare parts, Accessories and Components
All spare parts and components can be found in the authorized local dealer of ELVIOMEX Ltd., who
sold this appliance, or directly to the company ELVIOMEX Ltd.
In case of claims or complaints, you should definitely report the model and serial number of the
appliance / machine. These can be found on the label of the appliance model.

16 / 20
2.12 Troubleshooting
PROBLEM CAUSE SOLUTION
The dishwasher does not operate
properly
Connection interruption Check the connection.
You have not turned the switch
S1 of the appliance on.
Turn the switch S1 on.
Main switch / or fuse has not
been activated / or it is faulty
Check the main switch /or fuse.
The switch S1 of the appliance
is faulty
Refer to the authorized local
dealer of ELVIOMEX Ltd.
The water inlet valve is faulty who sold the appliance or
directly to the company
ELVIOMEX Ltd.
The door is not closed. Close the door.
You have not turned the water
supply on.
Turn the supply on.
The appliance operates, but the
switch LED does not light on
The LED is faulty. Change the LED.
Boiler heating does not operate Switch S1 or main switch or
fuse has not been activated.
Check the switch S1 of the
appliance and the main switch or
fuse.
The safety thermostat of the
boiler is faulty
Refer to the authorized local
dealer of ELVIOMEX Ltd.
The 93°Cthermal fuse of the
boiler is faulty.
who sold the appliance or
directly to the company
ELVIOMEX Ltd.

17 / 20
PROBLEM CAUSE SOLUTION
Boiler heating does not operate Pressure stator is faulty Refer to the authorized local
dealer of ELVIOMEX Ltd.
‘Boiler heating’ relay is faulty who sold the appliance or
Boiler fuse is burned out. directly to the company
ELVIOMEX Ltd.
Boiler heating operates, but LED
does not turn on.
Faulty LED Change LED.
Dispenser heating does not
operate.
Switch S1 of the appliance or
main switch or fuse has not been
activated
Activate the corresponding
switch or fuse.
Boiler heating is open. Wait.
The 85°Cthermal fuse is faulty.
The dispenser’s fuse is burned
out.
The thermostat switch of 60°C
heating is faulty
Refer to the authorized local
dealer of ELVIOMEX Ltd. who
sold the appliance or
‘Compartment heating’ relay is
faulty.
directly to the company
ELVIOMEX Ltd.
Dispenser’s heating operates,
but LED does not turn on.
Faulty LED. Change LED.
Pump motor does not operate. Main switch or fuse is not
activated.
The door is not closed.
Activate main switch or fuse.
Close the door.

18 / 20
PROBLEM CAUSE SOLUTION
Pump motor does not operate. Main relay is faulty. Refer to the authorized local
dealer of ELVIOMEX Ltd.
Pump motor is faulty who sold the appliance or
Program selection switch is
faulty.
directly to the company
ELVIOMEX Ltd.
Motor operates, but pump does
not rotate.
An object has jammed the pump
fin.
Refer to the authorized local
dealer .... (as above).
Salts or detergent have been
petrified following non
operation of the appliance.
Rotate the screw on the back
side of the motor, until it rotates
freely.
Items do not dry (dishes, glasses,
etc.)
Compartment has no drying aid. Insert drying aid to the
compartment.
Drying valve is faulty Refer to the authorized local
dealer of ELVIOMEX Ltd.
Program switch is faulty. who sold the appliance or
Rinsing arms do not rotate. directly to the company
Basket does not rotate. ELVIOMEX Ltd.
If the damage is not caused due to any of the above reasons, you kindly ask you to refer to the
authorized local dealer of ELVIOMEX Ltd. who sold this appliance, or directly to the company
ELVIOMEX Ltd.
NOTE :THE COMPANY RESERVES THE RIGHT TO CHANGE OR MODIFY ITS
APPLIANCES WITHOUT PRIOR NOTIFICATION.

19 / 20
2.13 Repairs / works made on this appliance.
MODEL ........................................................ S.N. ..............................................
DATE COMPANY - TECHNICIAN PROBLEM TECHNICIAN’S
SIGNATURE

20 / 20
