Assembly Instructions for your new Equiptec Giraffe G20
www.equiptec.co April 2021
Giraffe Assembly Instructions G20 - SB 2.0 1
You may also like to watch a video and/or
CAD animation of this sequence at
www.equiptec.co/Giraffe
Alternatively contact Equiptec directly
for advice.
w. www.equiptec.co
e. [email protected]
p. [phone]

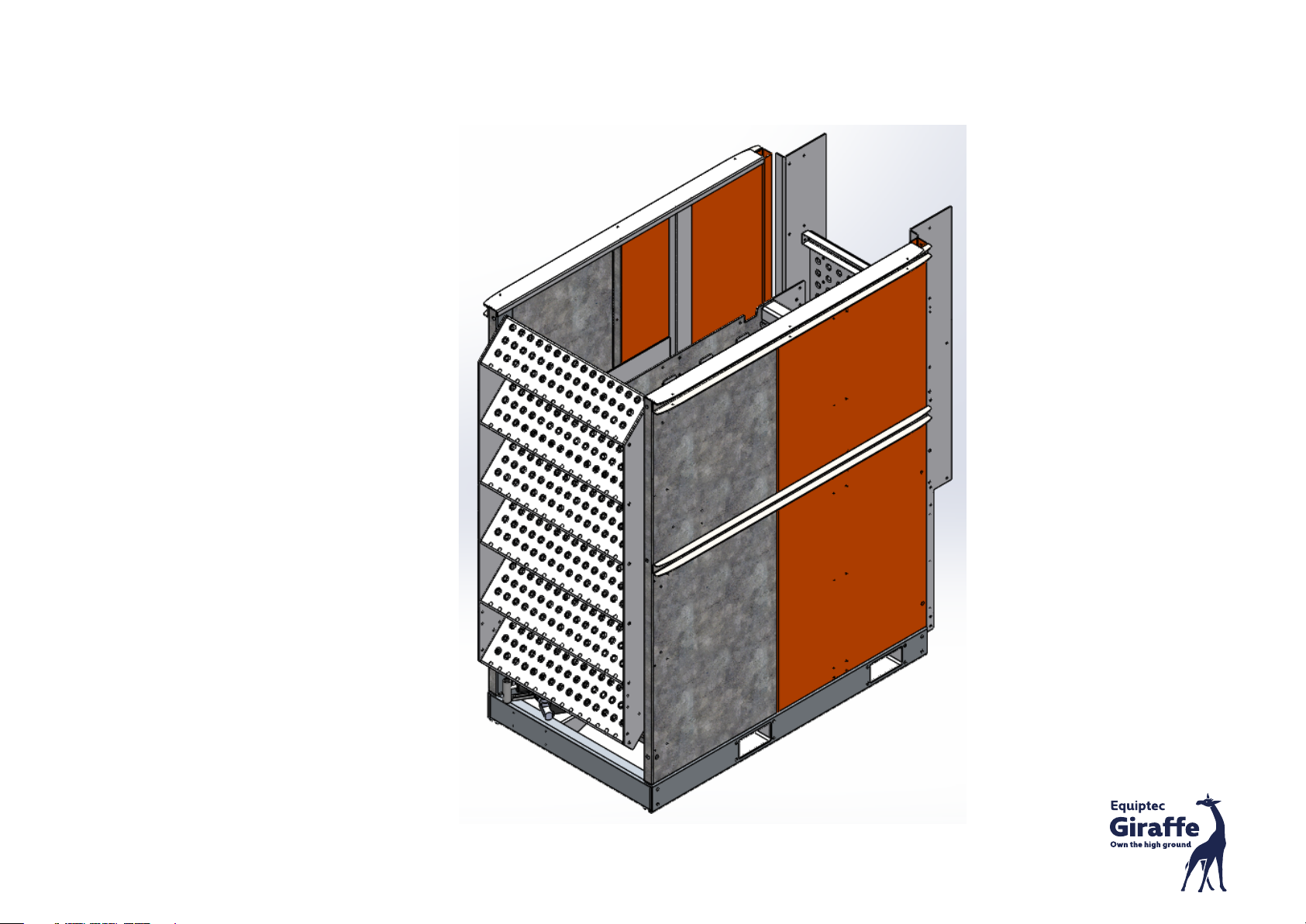

Giraffe G20 as shipped with it packaging removed

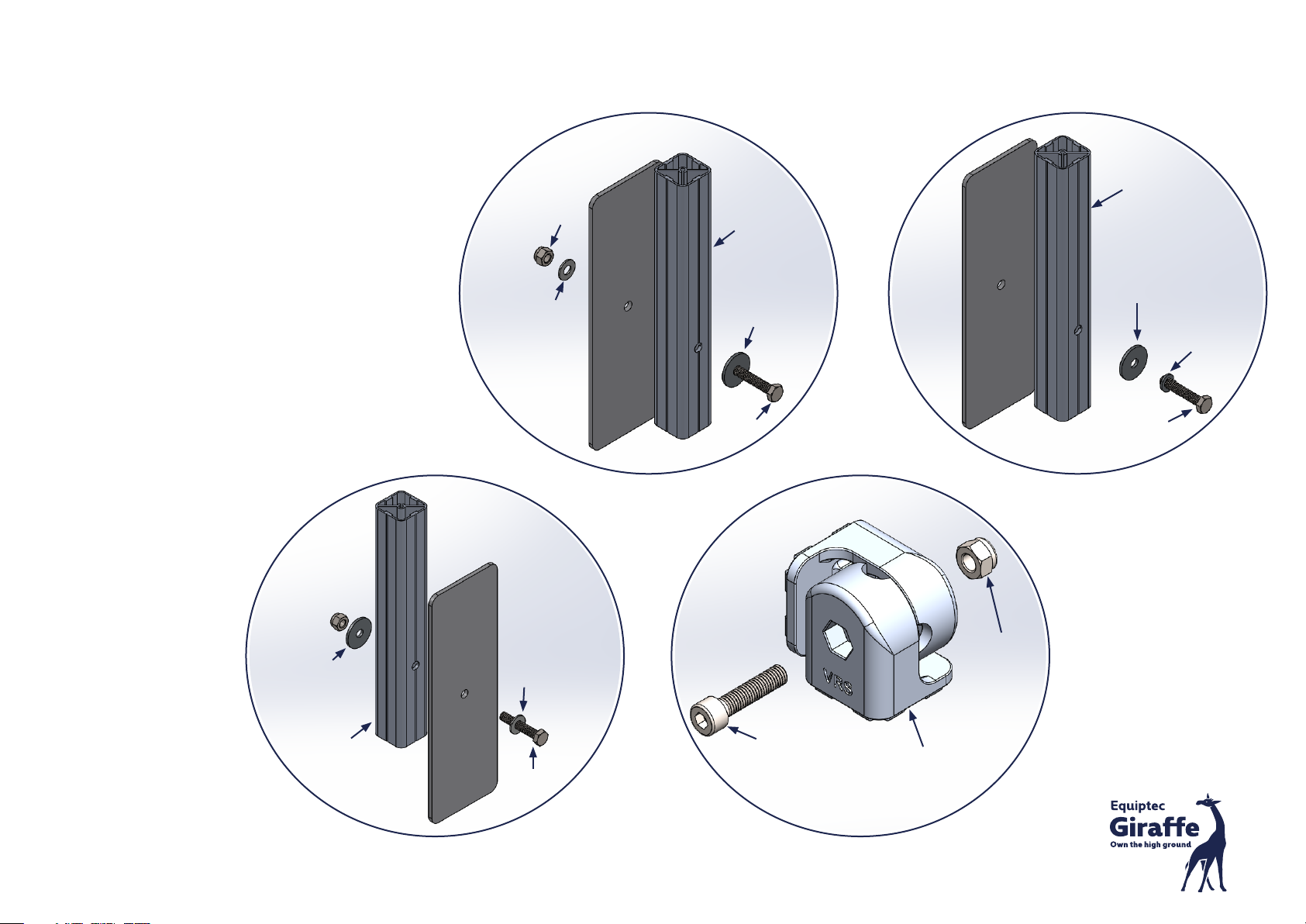

General Fixing Details
Note: Heavy duty washers used
everywhere a bolt pulls up
against handrail extrusion
Maximum torque figures
provided to avoid crushing
hollow members
A B
C D
Nyloc Nut
Flat Washer
Bolt
Flat Washer
Handrail
Extrusion
Heavy Duty
Washer
Handrail
Extrusion
Heavy Duty
Washer
Bolt
Spring
Washer
Pivot
Joiner
M8 Cap
Screw
M8 Nyloc
Nut
Heavy Duty
Washer
Handrail
Extrusion
Bolt
www.equiptec.co April 2021
Giraffe Assembly Instructions G20 - SB 2.0 2

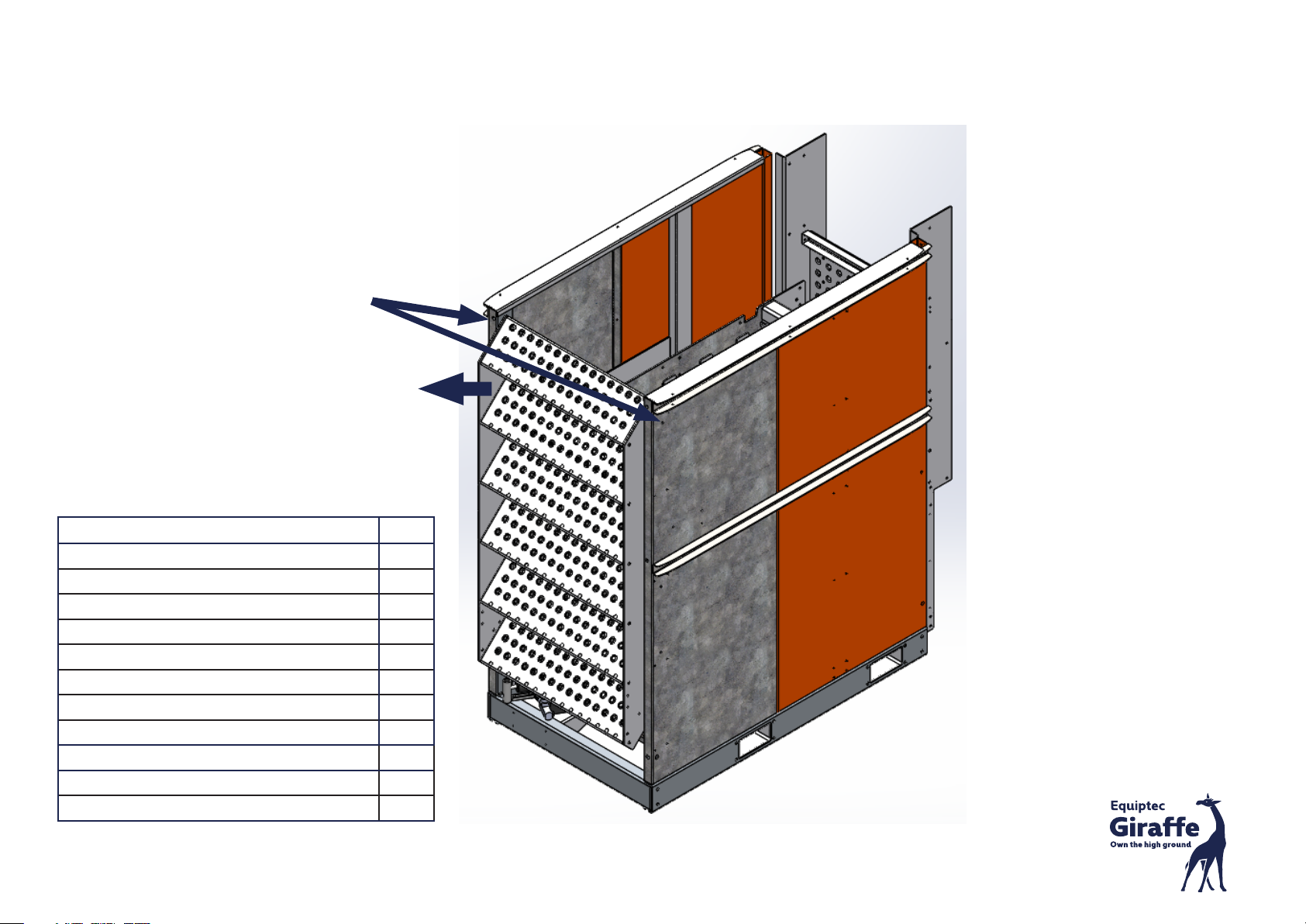

Step 1 - Unpack and Identify Parts
1. Remove stair assembly (two person
lift)
Remove bolts on both sides, one
person holds the Stair while bolts
are removed
2. Take out all parts (check off parts as
per list below)
Description Qty
G20 Castor Wheel Assembly LH 2
G20 Castor Wheel Assembly RH 2
G20 Floating Tread 5
Stair Handrail Assembly 2
Stair Midrail Assembly 2
Platform Handrail Assembly 2
Platform LH Handrail Assembly 1
Platform RH Handrail Assembly 1
Upper Platform Stair Handrail Assembly 2
Left Corner Post + Gate Assembly 1
Right Corner Post + Gates Assembly 1
3
www.equiptec.co April 2021
Giraffe Assembly Instructions G20 - SB 2.0 3

Step 1 - Unpack and Identify Parts

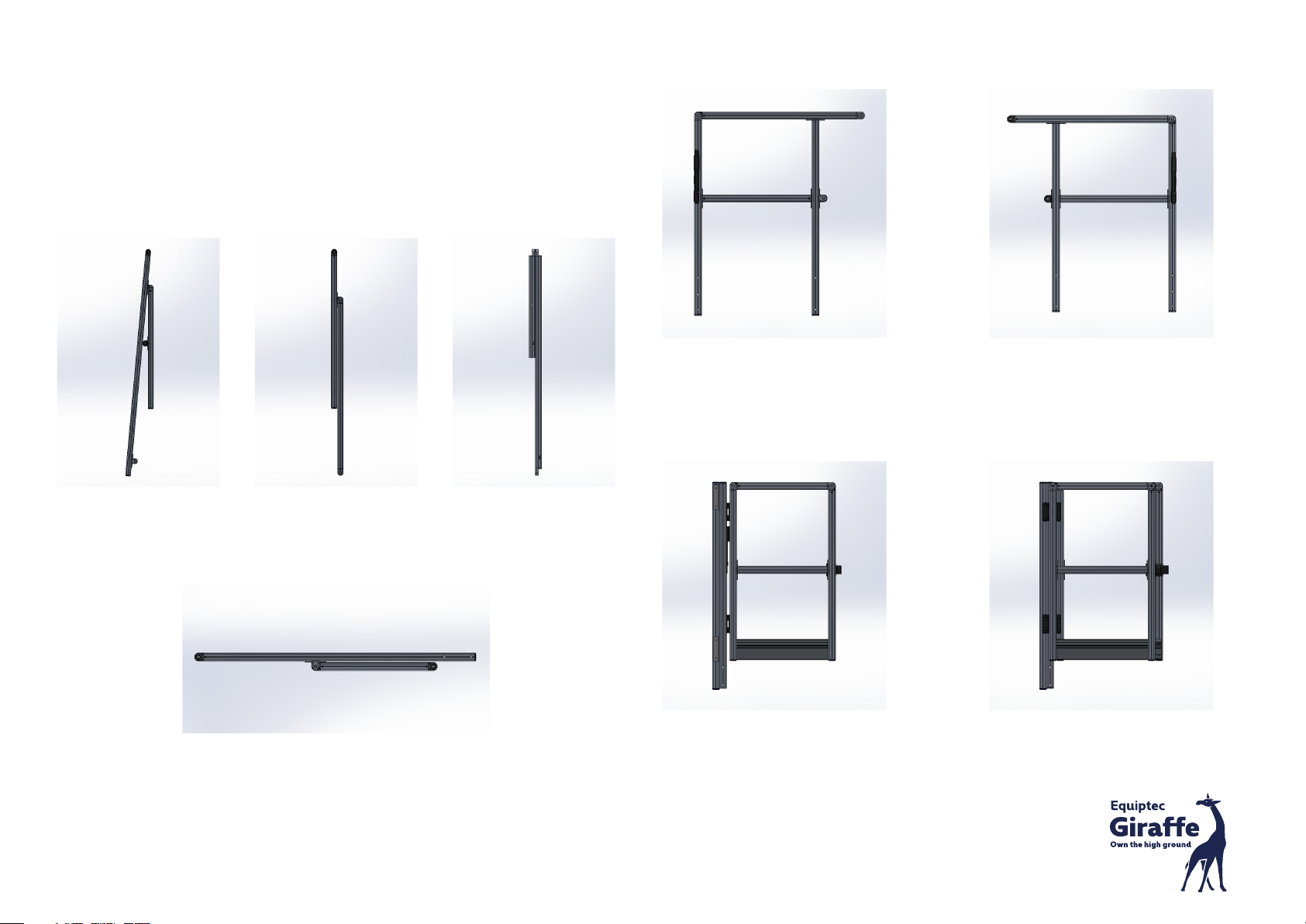

3. Identify Handrail Assembly
Left Corner Post + Gate
Assembly
Right Corner Post + Gates
Assembly
Platform LH Handrail
Assembly
Platform RH Handrail
Assembly
Stair Midrail
Assembly
Platform Handrail
Assembly
Stair Handrail
Assembly
Upper Platform Stair
Handrail Assembly
www.equiptec.co April 2021
Giraffe Assembly Instructions G20 - SB 2.0 4

Step 1 - Unpack and Identify Parts

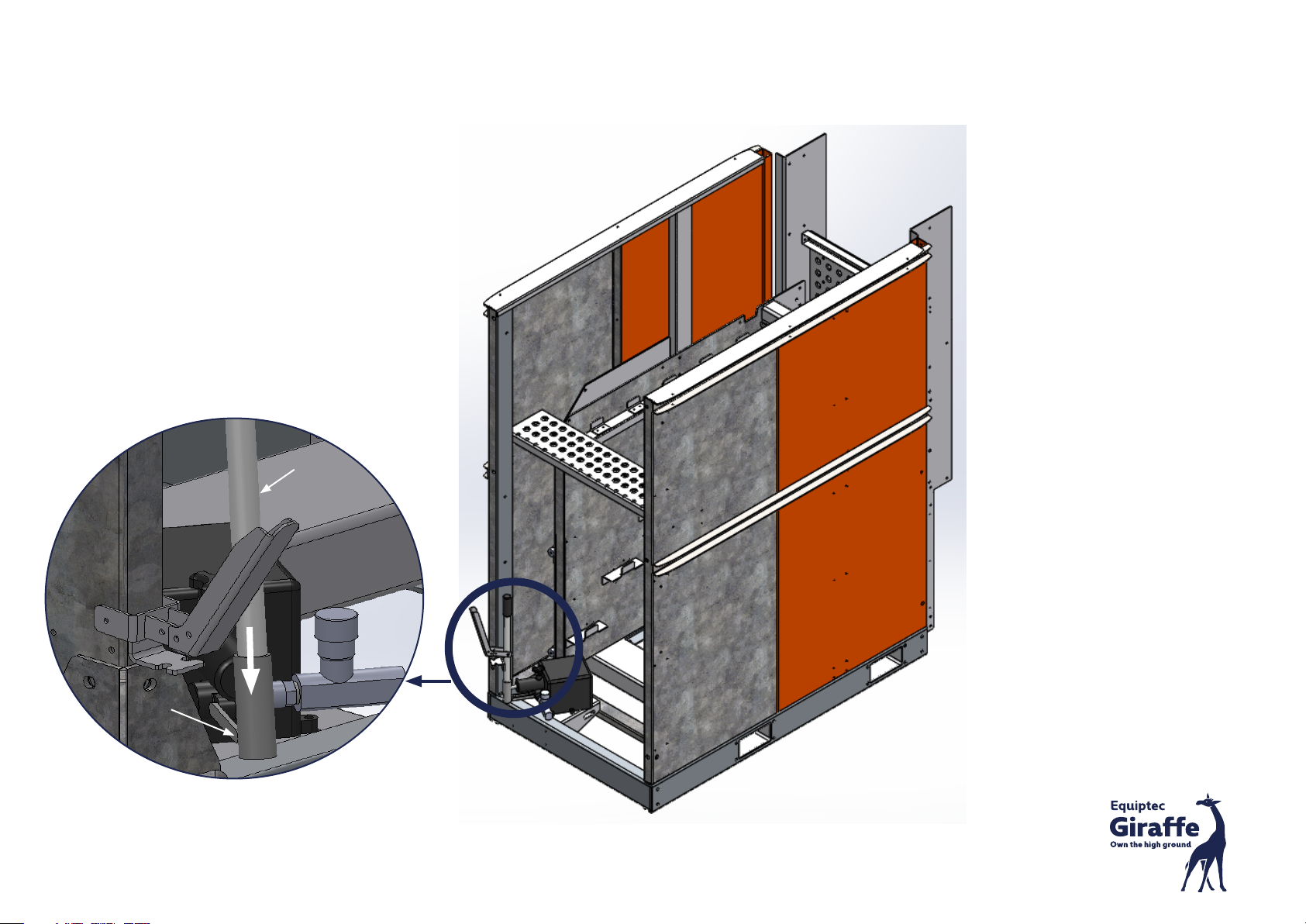

4. Install pump handle - slide into place
(as per detail A) and tighten grub screw
into indent at base of handle
Detail A
Pump
Handle
Grub Screw
to be
tightened
www.equiptec.co April 2021
Giraffe Assembly Instructions G20 - SB 2.0 5

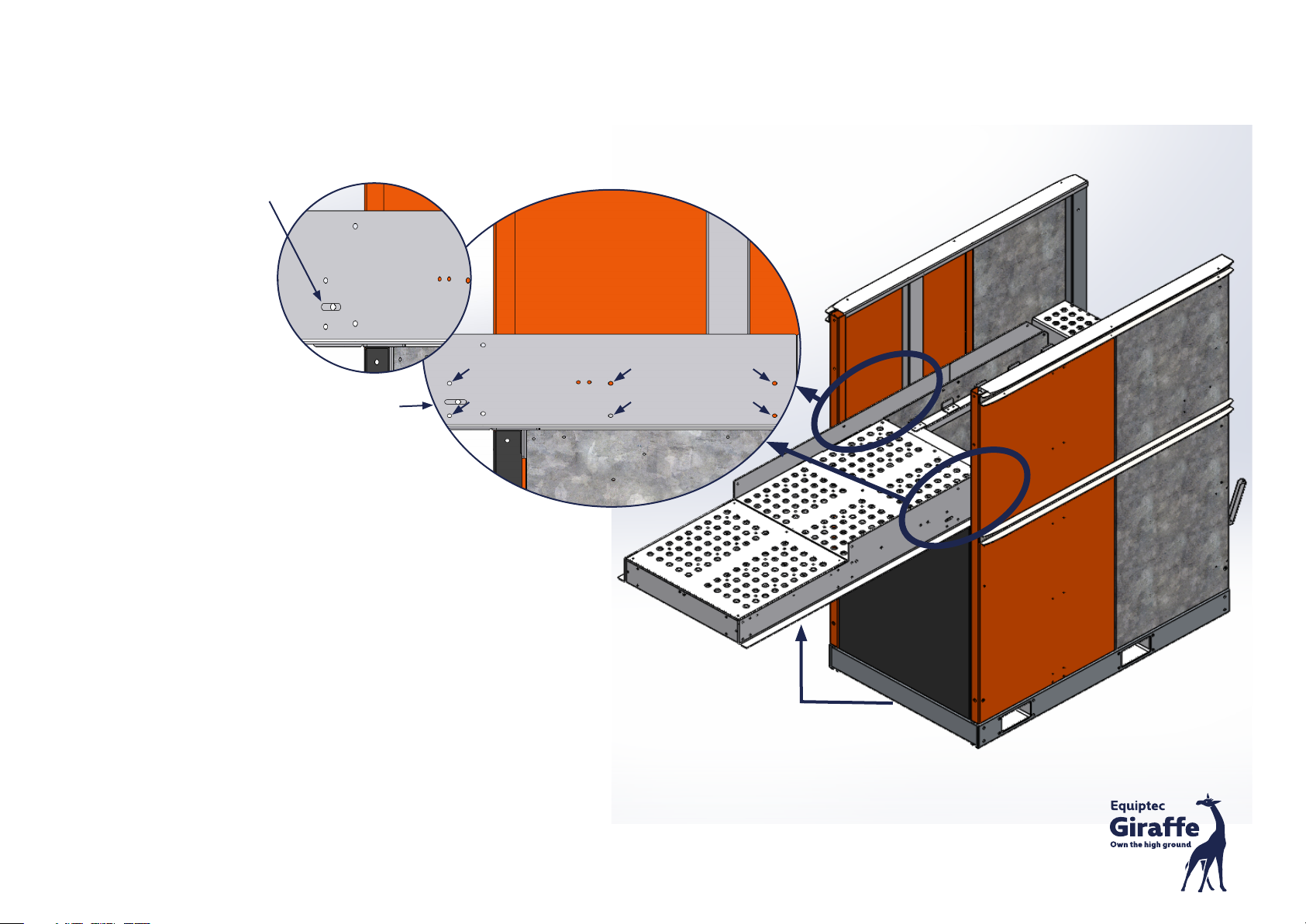

Step 2 - Deck Installation
1. Loosen M12 Bolts on both sides and
rotate deck into position
2. Hold Deck in position and insert bolts
in to holes shown.
Ensure bolt heads are on the inside
(facing the deck)
Fastening List
12 x M10 x 30mm Bolt
12 x M10 Nyloc Nut
24 x M10 Flat Washer
Rotate Deck up into position
www.equiptec.co April 2021
Giraffe Assembly Instructions G20 - SB 2.0 6

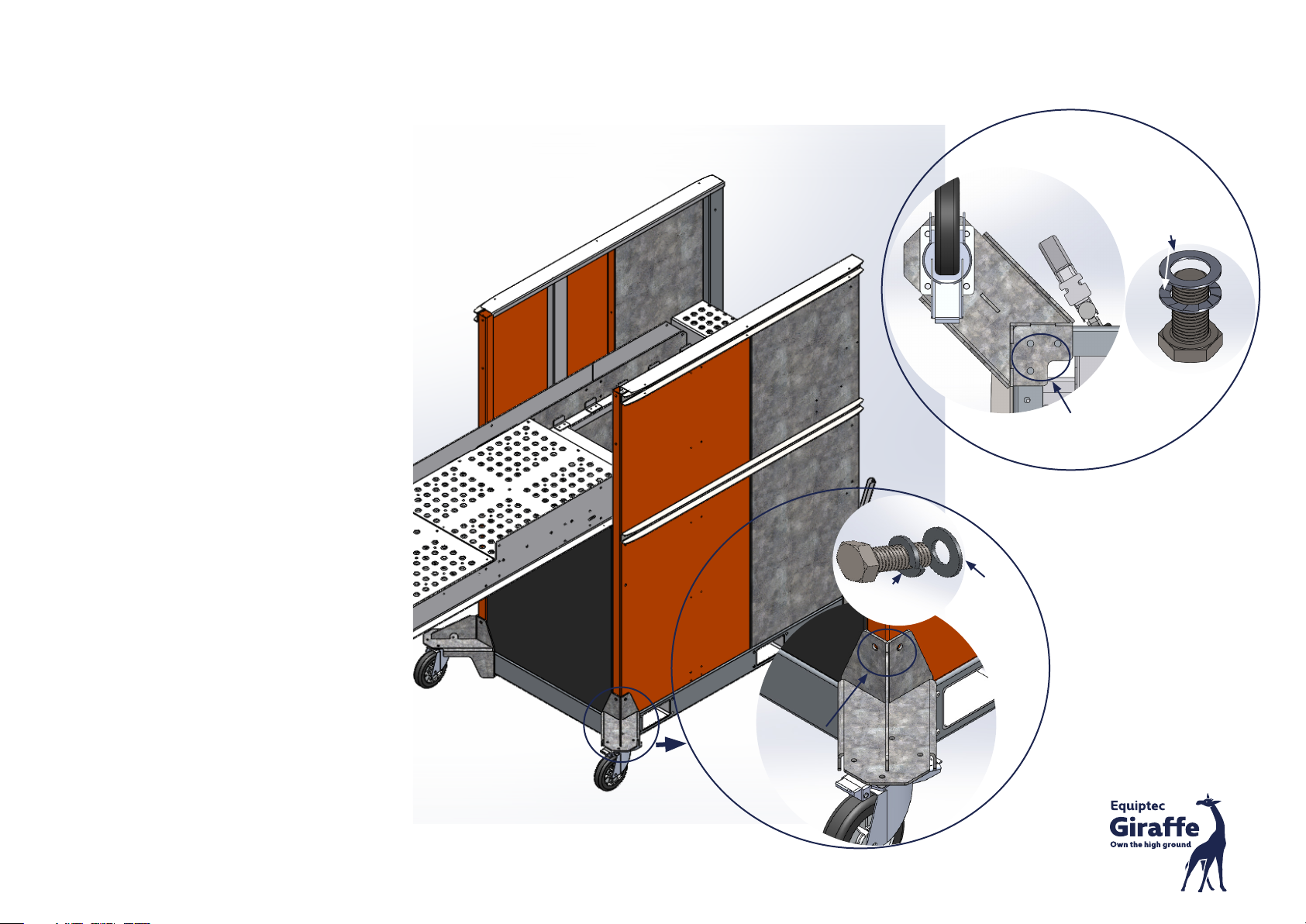

Step 3 - Castor Wheel Assembly
1. Lift the G20 with forklift to access
underbody bolt positions (ensure
safe support of the G20)
2. Fit 4 x castor assemblies as shown,
2 left hand and 2 right hand, 1 with
directional lock
Note: Lock all castor brakes during
assembly
3. Tighten to a maximum of 50Nm
(37 ft/lbs) torque
Fastening List
20 x M12 x 40mm Bolt
12 x M12 Nordlock Washer
8 x M12 Flat Washer
8 x M12 Spring Washer
M12 x 40mm Bolt +
Nordlock Washer x 3
Nordlock
Washer
M12 x 40mm
Bolt + Flat
Washer + Spring
Washer x 2
M12 Flat
Washer
M12 Spring
Washer
Underbody Bolts (viewed from beneth)
Top Bolts
www.equiptec.co April 2021
Giraffe Assembly Instructions G20 - SB 2.0 7

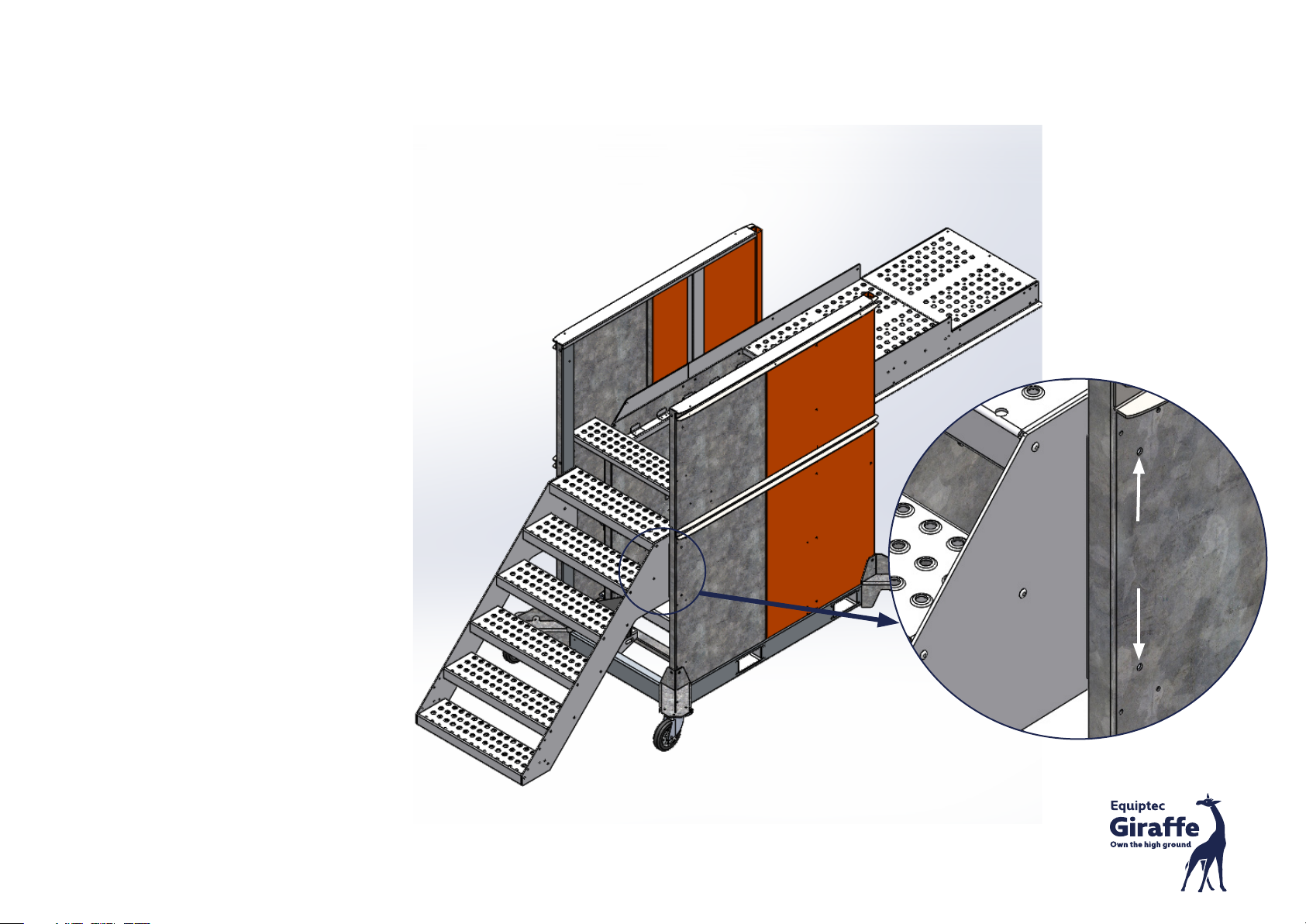

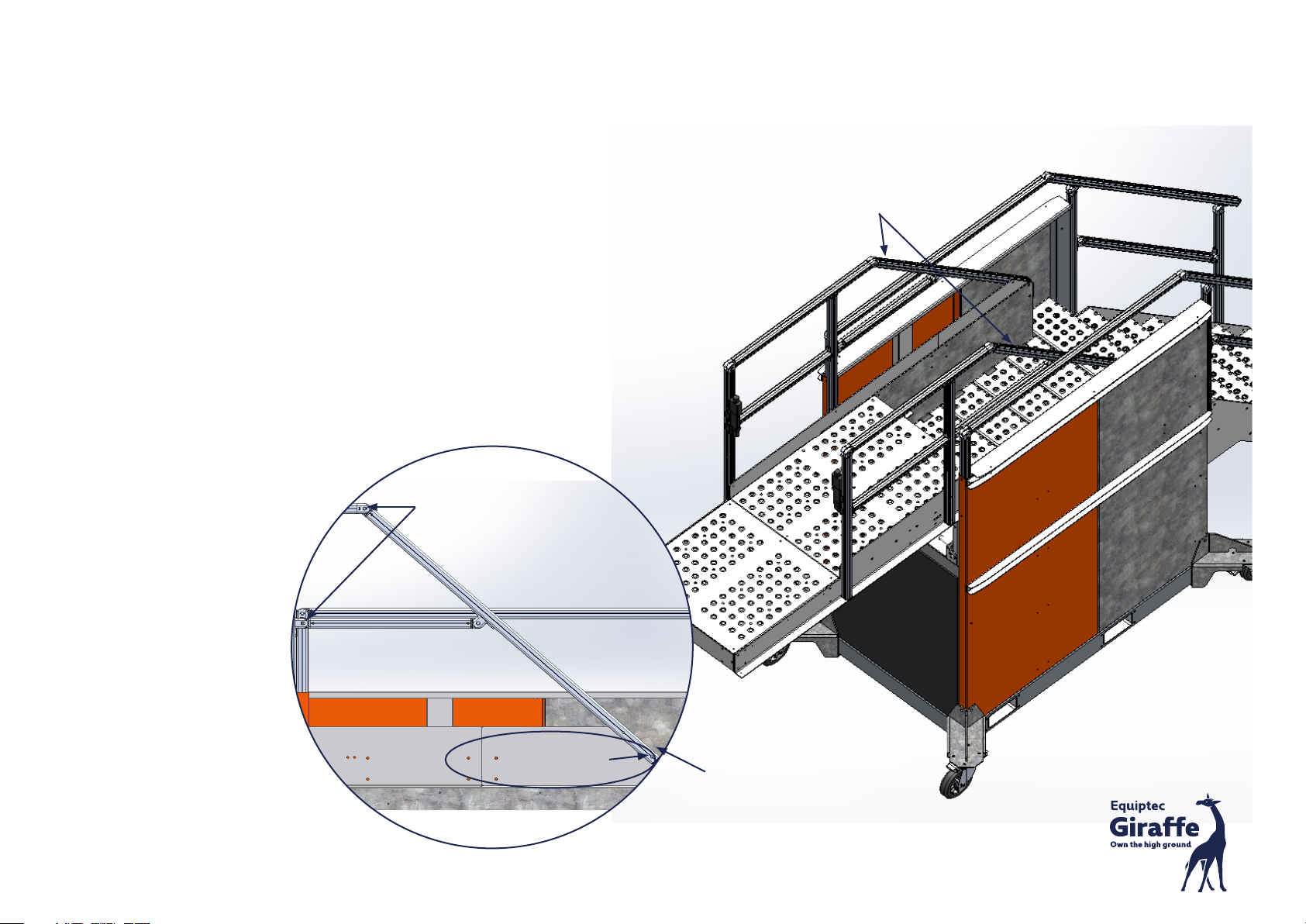

Step 4 - Fitting Fixed Stair
1. Lift Stair into position (two people
required for this)
2. Insert Bolts where indicated
3. Tighten to a maximum of 50Nm
(7.5 ft/lbs) torque
Fastening List
4 x M10 x 80mm Bolt
4 x M10 Nyloc Nut
8 x M10 Flat Washer
M10 x 80mm Bolt
DO NOT OVERTIGHTEN
10Nm (7.5 ft/lbs) maximum
www.equiptec.co April 2021
Giraffe Assembly Instructions G20 - SB 2.0 8

Step 5 - Fitting Floating Treads
1. Install the five Floating Treads as
shown
2. Ensure orientation is correct
Floating
Treads
www.equiptec.co April 2021
Giraffe Assembly Instructions G20 - SB 2.0 9

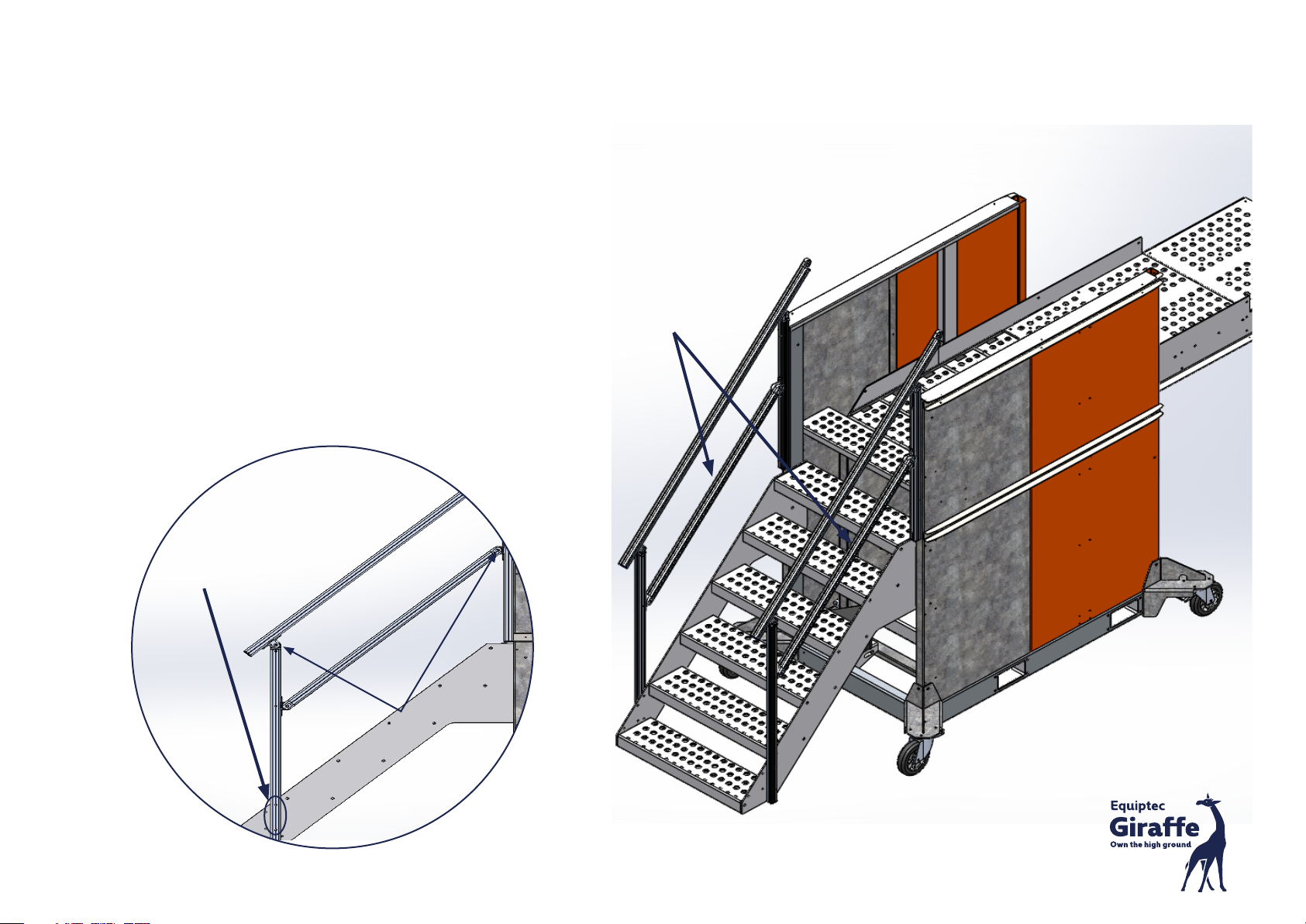

Step 6 - Fitting Stair Handrails
1. Install the two Stair Handrail
assemblies as shown
Fastening List
4 x M10 x 65mm Bolt
4 x M10 Spring Washer
4 x M10 Heavy Duty Washer
M10 x 65mm Bolt
DO NOT OVERTIGHTEN
Max tighting torque
10Nm (7.5 ft/lbs)
See general fixing detail B
on page 2
Leave this cap
screw loose
Stair Handrail
assembly x 2
www.equiptec.co April 2021
Giraffe Assembly Instructions G20 - SB 2.0 10

Step 7 - Fitting Stair Midrails
1. Install the two Stair Midrail
assemblies as shown
Fastening List
4 x M8 x 35mm Cap Screw
4 x M8 Nyloc Nuts
4 x M10 x 65mm Bolt
4 x M10 Nyloc Nut
4 x M10 Flat Washer
4 x M10 Heavy Duty Washer
Stair Midrail
assembly x 2
M10 x 65mm Bolt
DO NOT OVERTIGHTEN
Max tighting torque
10Nm (7.5 ft/lbs)
See general fixing detail A
on page 2
Leave these cap
screws loose
See general fixing
detail D on page 2
www.equiptec.co April 2021
Giraffe Assembly Instructions G20 - SB 2.0 11

Step 8 - Fitting Platform Handrail
1. Install the two Platform Handrail
assemblies as shown
2. Once in position tighten all M8 Cap
Screws in all fitted assemblies
Fastening List
2 x M8 x 35mm Cap Screw
2 x M8 Nyloc Nuts
4 x M10 x 65mm Bolt
4 x M10 Nyloc Nut
4 x M10 Flat Washer
4 x M10 Heavy Duty Washer
Platform Handrail
assembly x 2
M10 x 60mm Bolt with
Heavy Washer on inside
DO NOT OVERTIGHTEN
Max tighting torque
10Nm (7.5 ft/lbs)
See general fixing detail C
on page 2
See general fixing detail D
on page 2
www.equiptec.co April 2021
Giraffe Assembly Instructions G20 - SB 2.0 12

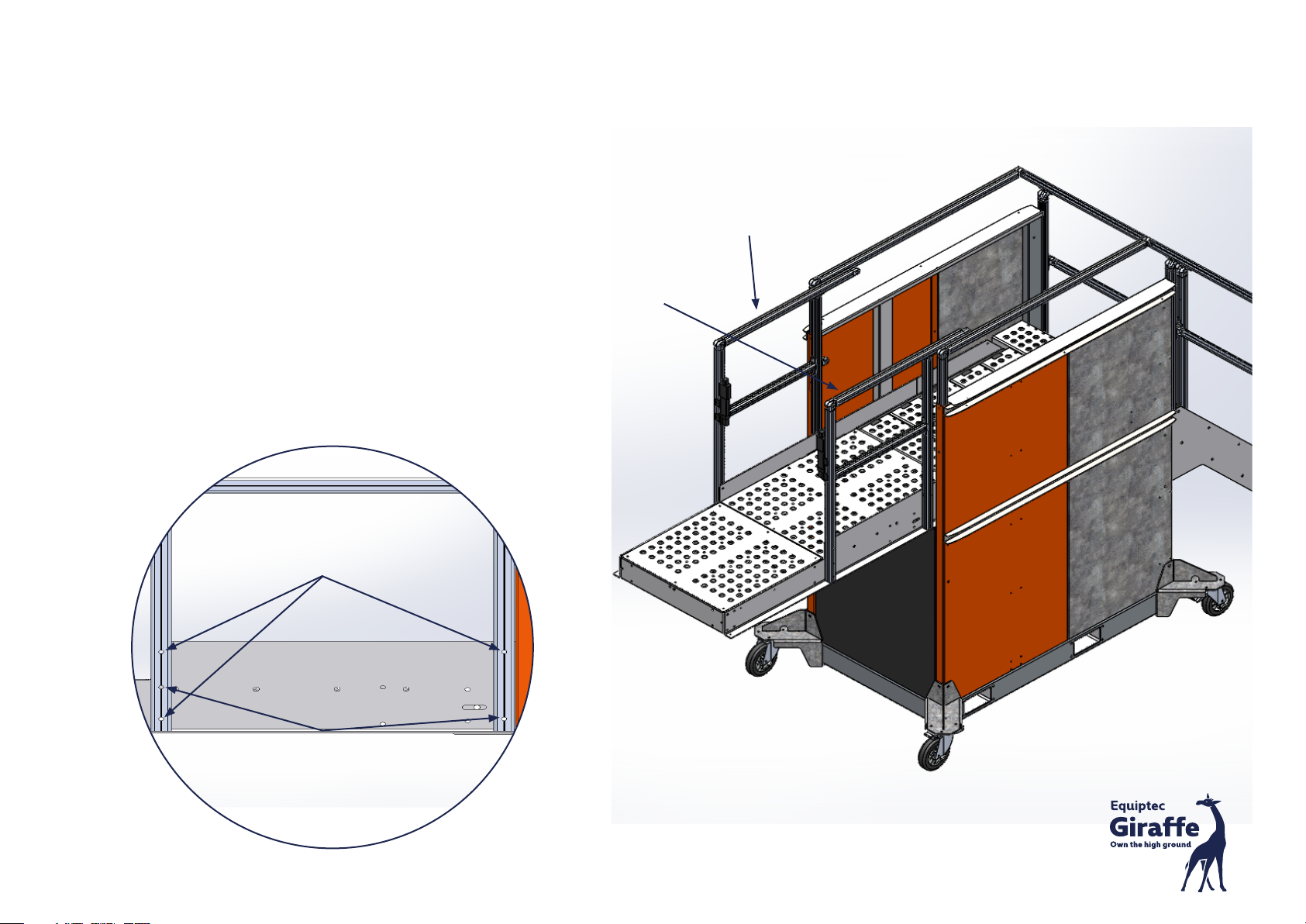

Step 9 - Fitting LH + RH Platform Handrails
1. Install the LH + RH Platform Handrail
assemblies as shown
Gate Locks are on the inside
Fastening List
6 x M10 x 65mm Bolt
4 x M10 x 70mm Bolt
10 x M10 Nyloc Nut
10 x M10 Flat Washer
10 x M10 Heavy Duty Washer
RH Platform
Handrail assembly
LH Platform
Handrail assembly
M10 x 65mm Bolt
DO NOT OVERTIGHTEN
Max tighting torque 10Nm (7.5 ft/lbs)
M10 x 70mm Bolt
DO NOT OVERTIGHTEN
Max tighting torque 10Nm (7.5 ft/lbs)
See general fixing detail A
on page 2
www.equiptec.co April 2021
Giraffe Assembly Instructions G20 - SB 2.0 13

Step 10 - Fitting Upper Platform Stair Handrails
1. Ensure the G20 is lifted up two steps
before fitting these handrails
2. Install the Upper Platform Stair
Handrail assemblies as shown
Fastening List
4 x M8 x 35mm Cap Screw
4 x M8 Nyloc Nut
2 x M10 x 75mm Bolt
2 x M10 Nyloc Nut
2 x M10 Flat Washer
2 x M10 Heavy Duty Washer
Upper Platform
Stair Handrail
assembly x 2
Ensure bolt heads are
on inside (facing treads)
DO NOT OVERTIGHTEN
Max tighting torque
10Nm (7.5 ft/lbs)
See general fixing detail A
on page 2
M10 x 75mm Bolt
M8 x 35mm Cap Screw
See general fixing detail D
on page 2
www.equiptec.co April 2021
Giraffe Assembly Instructions G20 - SB 2.0 14

Step 11 - Fitting Left Corner Post and Gate
1. Lower the G20 back to the lowest
position
2. Fit left corner post and gate assembly
as shown
3. Align gate and lock/latch before
tightening bolts
Fastening List
3 x M10 x 70mm Bolt
3 x M10 Nyloc Nut
3 x M10 Flat Washer
3 x M10 Heavy Duty Washer
M10 x 70mm Bolt
DO NOT OVERTIGHTEN
Max tighting torque
10Nm (7.5 ft/lbs)
See general fixing detail A
on page 2
Left corner
post and gate
assembly
www.equiptec.co April 2021
Giraffe Assembly Instructions G20 - SB 2.0 15

Step 12 - Fitting Right Corner Post and Gates
1. Fit right corner post and gates
assembly as shown
2. Align gate and lock/latch before
tightening bolts
Fastening List
3 x M10 x 70mm Bolt
3 x M10 Nyloc Nut
3 x M10 Flat Washer
3 x M10 Heavy Duty Washer
M10 x 70mm Bolt
DO NOT OVERTIGHTEN
Max tighting torque
10Nm (7.5 ft/lbs)
See general fixing detail A
on page 2
Right corner
post and gates
assembly
www.equiptec.co April 2021
Giraffe Assembly Instructions G20 - SB 2.0 16

Your New Equiptec Giraffe G20 is now ready for use
Contact Equiptec to activate your G20
warranty now!
Ensure all users read, understand and
follow all safety notices and directions in
the Owner’s Manual
www.equiptec.co April 2021
Giraffe Assembly Instructions G20 - SB 2.0 17

Manufacturer
Contact details
The Giraffe G20 is manufactured in
New Zealand by Equiptec. Please contact
us and one of our team will be very happy
to assist in your enquiry.
Ph: [phone]
E: [email protected]
W: www.equiptec.co
Physical address:
144 Taradale Road
Onekawa
Napier 4110
New Zealand
Postal address:
PO Box 3351
HBMC
Napier 4142
New Zealand
