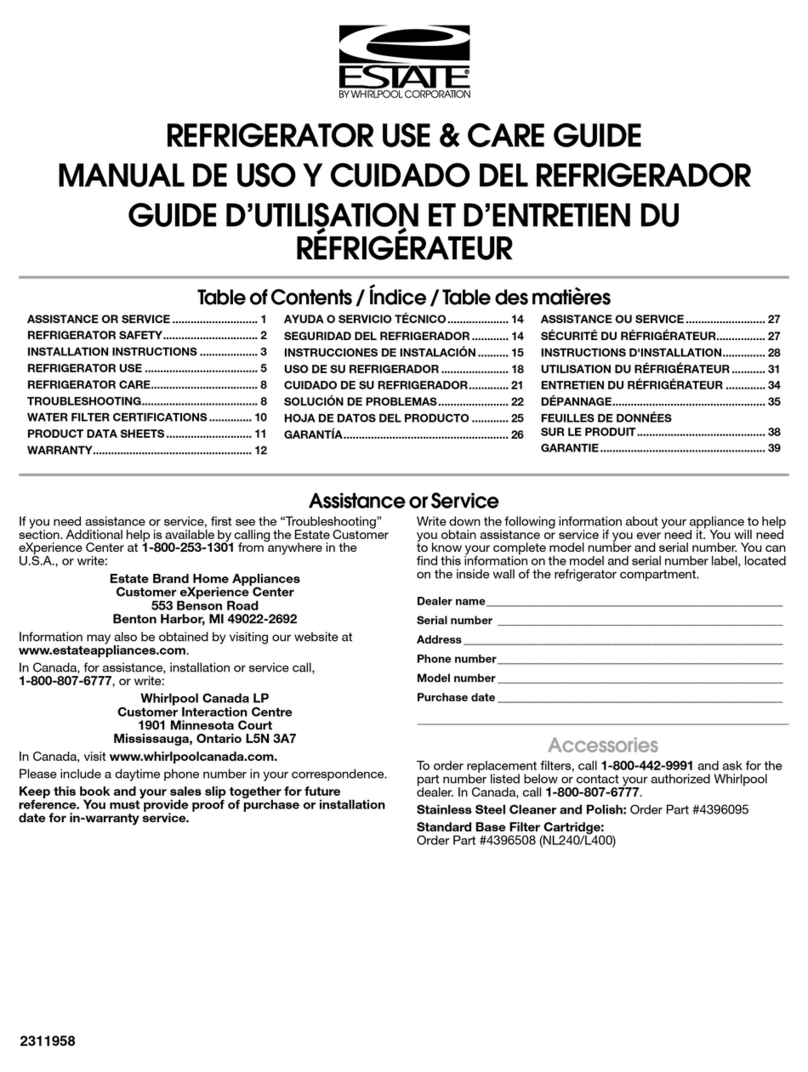

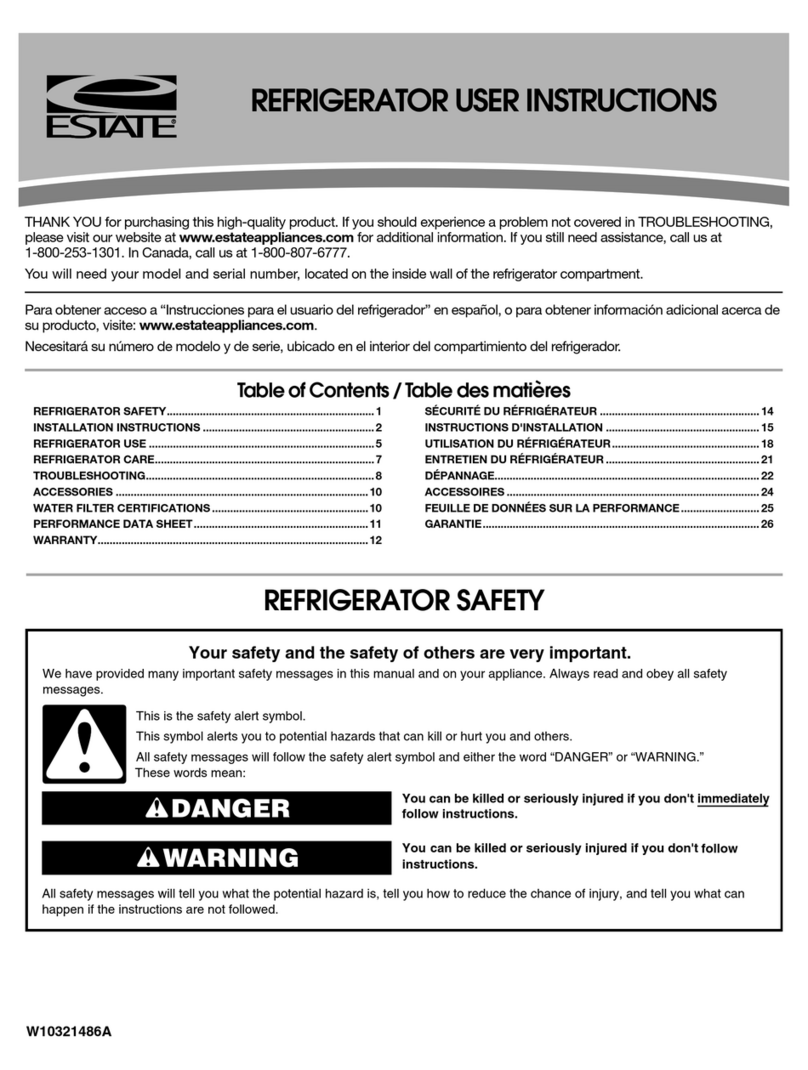

Estate TS25CGXTD User instructions

Side by Side Refrigerator
PRODUCT MODEL NUMBERS OVERALL DIMENSIONS
TS22CFXT
TS25CFXT TS25CGXT
Electrical: A 115 Volt, 60 Hz., AC only 15 or 20
amp fused, grounded electrical supply is required.
It is recommended that a separate circuit serving
only your refrigerator be provided. Use an outlet
that cannot be turned off by a switch. Do not use
an extension cord.
Water: A cold water line with water pressure
between 30 and 120 psi (207 - 827 kPa) is
required for the water dispenser and ice maker.
Reverse osmosis water supply: The pressure of
the water supply coming out of a reverse osmosis
system going to the water inlet valve of the
refrigerator needs to be between 30 and 120 psi
(207 - 827 kPa).
If a reverse osmosis water filtration system is
connected to your cold water supply, the water
pressure to the reverse osmosis system needs to
be a minimum of 40 to 60 psi (276 - 414 kPa).
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
Ref. 2311958
12-13-06
1
E
overall
D
top of
cabinet
C
B
not incl.
handle
A
Depth Cab.Width Door Width Cab. Height Overall Height
Model size "A" "B" "C" "D" "E"
25 cu.ft. 31 3/8" 35 3/4" 33 1/8" 68 7/8" 69 3/4"
25 cu.ft. 31 3/8" 35 1/2" 35 7/8" 68 7/8" 69 3/4"
Handle and door style
will vary with model.
Dimensions “D” and “E”
include rollers extended 3/4".
LOCATION REQUIREMENTS
1
/ 2 " (1.25 cm)
2" (5.08 cm)
To ensure proper ventilation for your refrigerator, allow for 1⁄2”(1.25 cm) space on
each side and at the top. When installing your refrigerator next to a fixed wall, leave
2”(5.08 cm) minimum on each side (depending on your model) to allow for the
door to swing open. If your refrigerator has a water dispenser and ice maker, allow
extra space at the back for the water line connections.
NOTE: Do not install the refrigerator near an oven, radiator, or other heat source, nor
in a location where the temperature will fall below 55°F (13°C).
®
