INSTALLATION
Safety Information
Recommendations before loading & plugging in the Wine cooler
Grounding Instructions
Installing your wine cooler
Levelling Your Wine Cooler
OPERATING YOUR WINE COOLER
efrosting/hygrometry/condensation/ventilation
Temperature setting
Wine Cooler Control panel
Cooling Indicator light
Interior Light
Installing Stainless Steel Handle

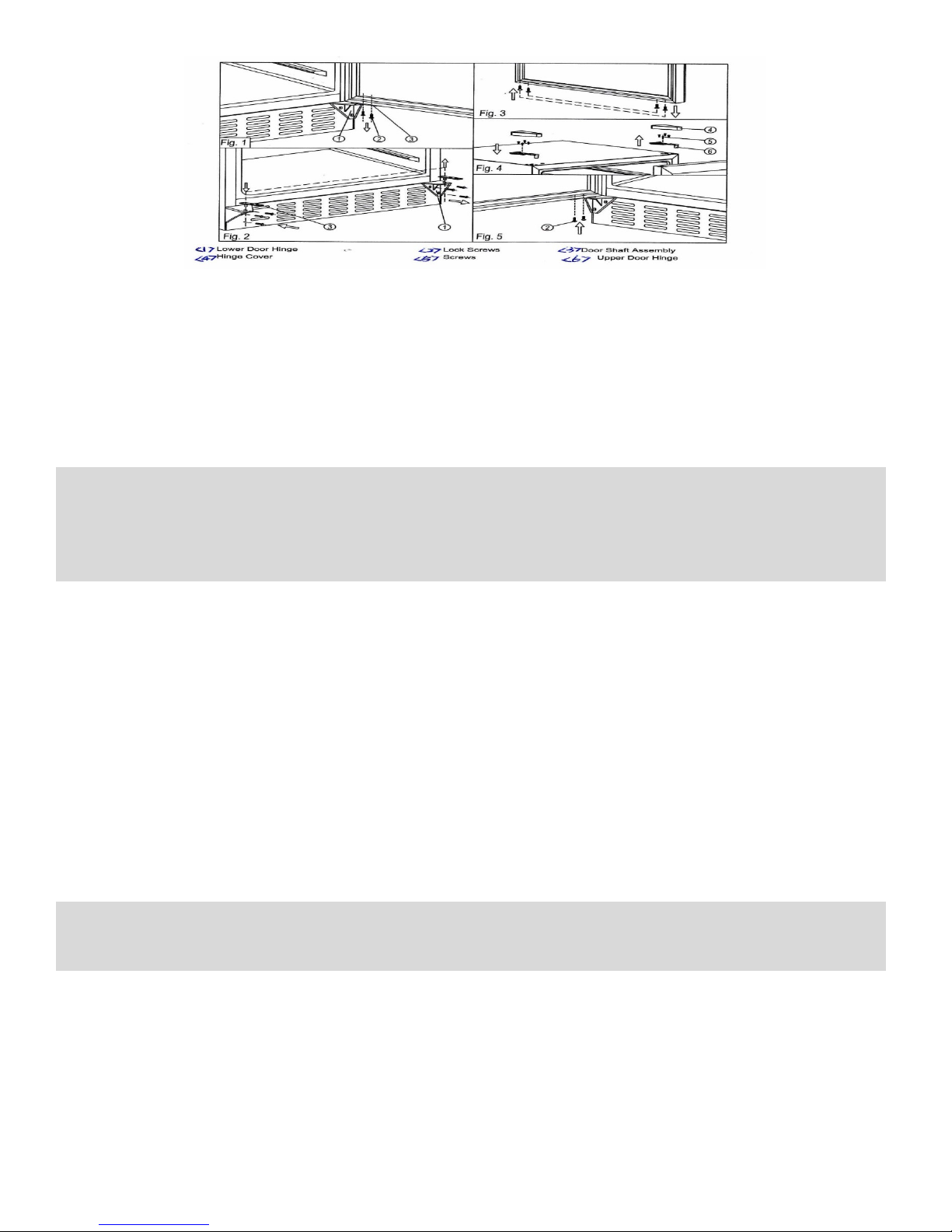

Reversing the oor Swing of Wine Cooler
Power Failures and Operation Anomalies
CARE AND MAINTENANCE
Clean the condenser
Care when going on Vacation
Moving your Wine Cooler
Energy saving tips
Recommended Cleaning Product
TROUBLESHOOTING GUIDE
TECHNICAL SPECIFICATIONS
E150WSCS 1 Wine Coolers
E430WSCS 1 Wine Coolers
WIRING DIAGRAM
E150WSCS 1 Wine Coolers
E430WSCS 1 Wine Coolers

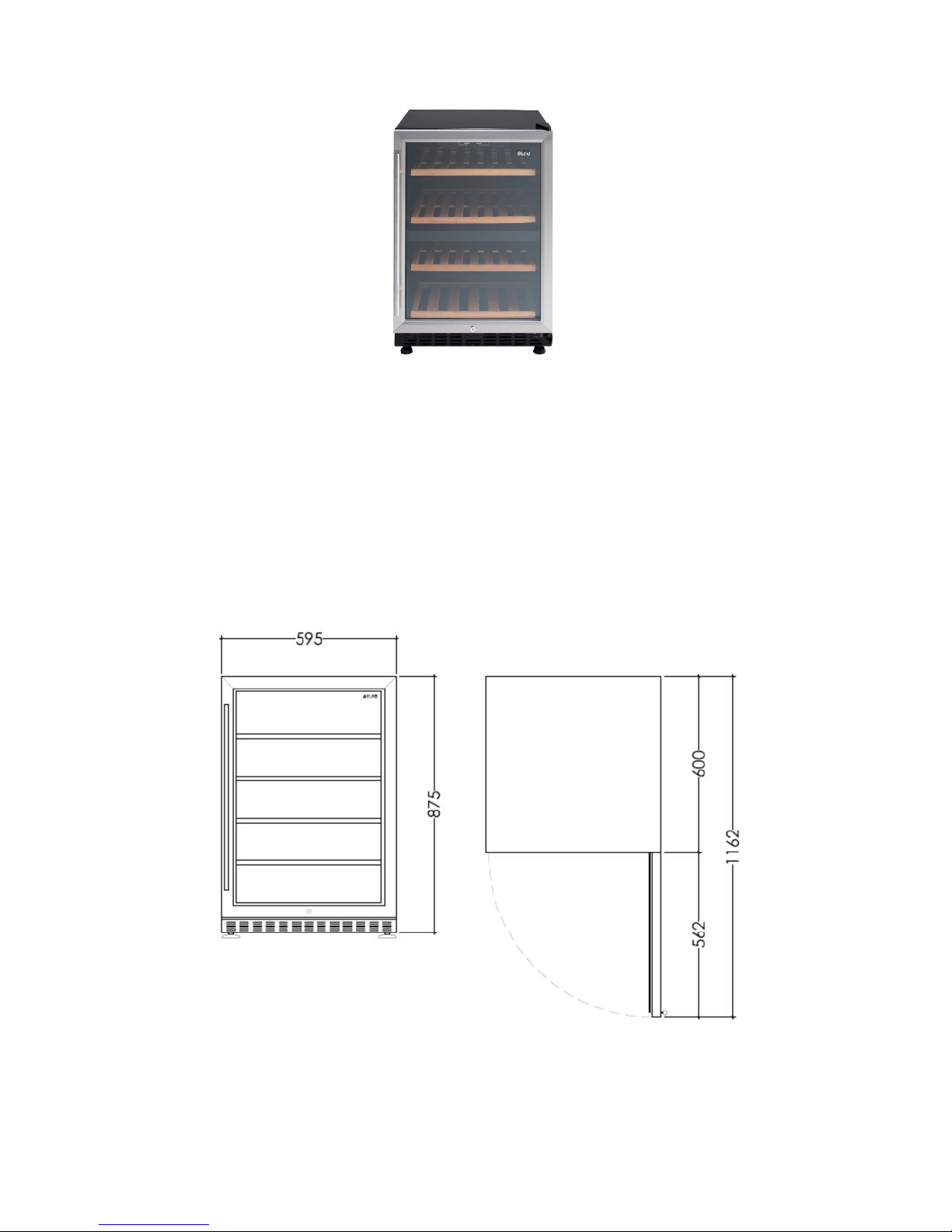

DIMENSION DRAWINGS
E150WSCS 1 Wine Coolers
E430WSCS 1 Wine Coolers
SPARE PARTS
Explosive view drawing E150WSCS 1 Wine Coolers
Explosive view drawing E430WSCS 1 Wine Coolers

INSTALLATION
Safety Informat on
Warn ng
All electr cal work must be carr ed out by su tably qual f ed persons
Euro Appliances offers no guarantee for our wine cooler if it is being used for any purpose other than that for
which it was specially designed. Euro Appliances cannot be held responsible for any error in this manual. Euro
Appliances is not responsible or liable for any spoilage or damage to wines or any other contents incidental or
consequential to possible defects of the wine cooler. Warranty applies to the wine cooler only and not to the
contents of the wine cooler.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure they do not play with the appliance.
Allow 24 hours before switching on the wine cooler. uring this time, we recommend that you leave the door
open to clear any residual odours.
Warn ng
Th s W nes Coolers should only be use for the storage of w ne. It must not be used to store food.
Euro Appliances offers no guarantee for our wine coolers if it is being used for any purpose other than that for
which it was specially designed. Euro Appliances is not responsible or liable for any spoilage or damage to
bottles or any other contents incidental or consequential to possible defects of the wine cooler. Warranty
applies to the wine cooler only and not to the contents of the wine cooler.
The appliance is intended to be used in household and similar applications such as:
Staff kitchen areas in shops, offices and other working environments;
Farm houses and by clients in hotels, motels and other residential type environments;
Bed and breakfast type environments;
Catering and similar non-retail applications.
Recommendat ons before load ng & plugg ng n the W ne cooler
Be unencumbered and well ventilated;
Be well away from any heat source and direct sunlight or rain;
Not be too damp (laundry, pantry, bathroom, garage and basement, etc.);
Have a flat, level and dry floor;
Have a standard and reliable electricity supply (10A General purpose outlet properly earthed). It is not
recommended to use a multi-socket or extension lead;
Have a surge protector fitted to the electrical outlet.

Away from microwave. Certain microwave ovens do not have wave interference shield. When placed
within 1 meter of the Wine cooler, they may affect the operation of the Wine cooler. Always ensure the
outdoor display fridge is kept at the correct settings for the required operation of the appliance.
o not store explosive substances, such as aerosol cans with flammable propellant, in this merchandiser.
The wine cooler should be placed where the ambient temperature is between 5 ºC to 43 ºC. If the ambient
temperature is above or below this range, the performance of the unit may be affected. Placing your unit in
extreme cold or hot conditions may cause interior temperatures to fluctuate; the idea range of temperature
may not be reached. (See Climate Class at the end of this manual).
Warn ng
Keep vent lat on open ngs, n the appl ance enclosure or n the bu lt- n structure, clear of obstruct on.
Do not use mechan cal dev ces or other means to accelerate the defrost ng process, other than those
recommended by the manufacturer.
Do not damage the refr gerant c rcu t.
Th s product should not be d sposed by the customers, please contact your local author t es and ask for the
correct method of d sposal. Incorrect d sposal may expose the user to njury from sharp objects, flammable
gases or cause env ronmental damage.
Ground ng Instruct ons
The Wine cooler must be grounded in case of an electrical short circuit. Grounding reduces the risk of electrical
shock. The Wine cooler is equipped with a power cord having a grounding wire and plug. The Wine cooler plug
must be plugged into properly installed and grounded electrical outlet. In locations where there is frequent
lightning, it is advisable to use surge protectors.
Improper use of the grounding plug can result in the risk of electric shock. Consult a qualified electrician or
service person if the grounding instructions are not completely understood.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
Install ng your w ne cooler
Unpack and remove all of the protection and adhesive strips from the packaging around and inside the wine
cooler. Important: Before connecting the unit to a power source, please let it stand upright for approximately
24 hours. This will reduce the possibility of a malfunction in the cooling system from handling during
transportation.

The wine cooler must be positioned that the plug is accessible. Release the power cord and move your wine
cooler to its finally location. The wine cooler should be installed in a suitable place where the compressor will
not be subject to physical contact.
Important
For freestand ng nstallat on, the w ne cooler requ res 30mm gap on both s des as well as the rear. Th s allows
the proper a r c rculat on to cool the compressor and condenser. For bu lt- n nstallat on, the W ne cooler
requ res 10mm space on each s de and at the top as well as 10mm space at the rear. The a r vent at the front
must never be covered or blocked n any way.

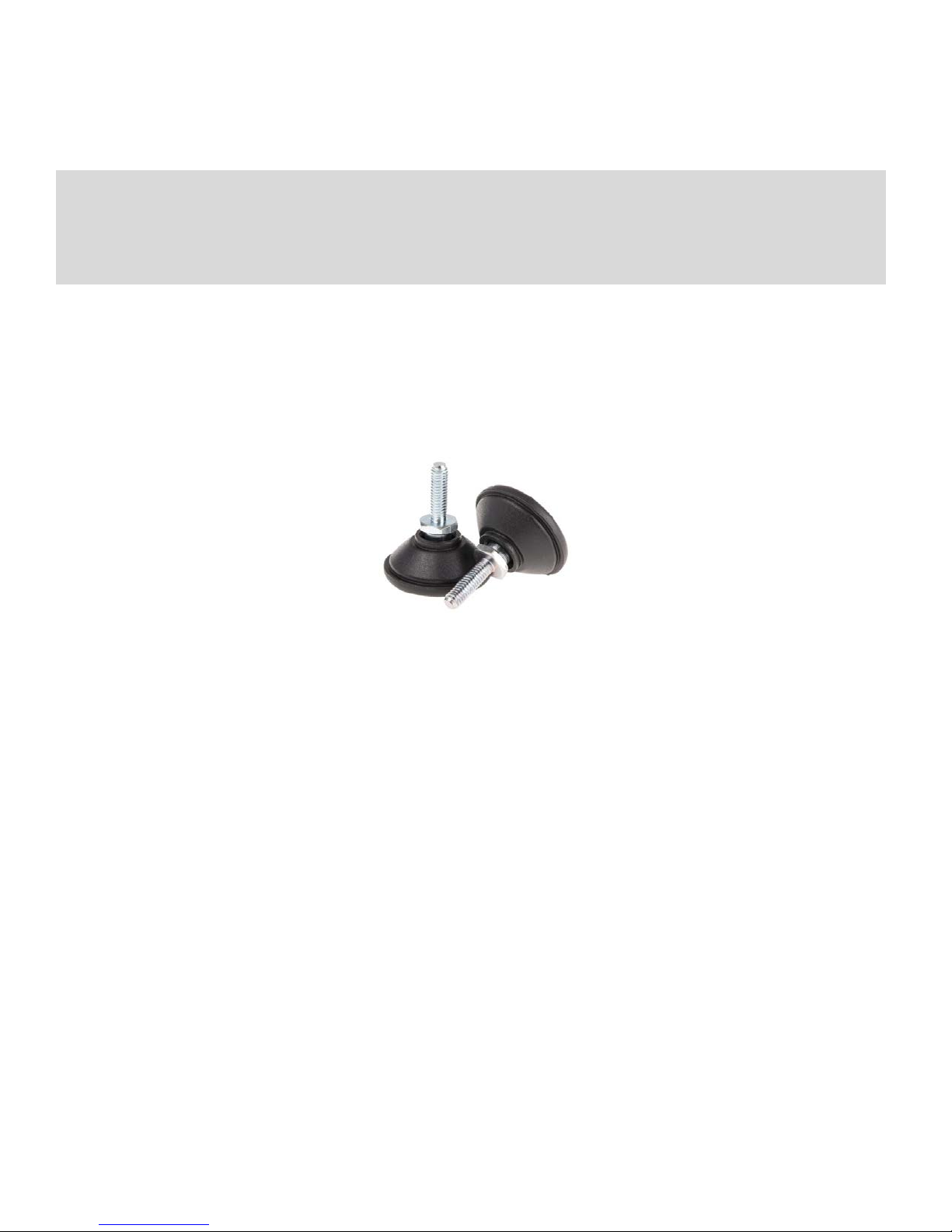

Levell ng your w ne cooler
Wine cooler must be levelled before loading your wines. Your wine cooler is equipped with 4 adjustable feet to
facilitate easy levelling. Euro Appliances recommends that you tighten the back feet to the maximum and
adjust the front feet to create a level.

OPERATING YOUR WINE COOLER
1. Turning on your wine cooler. Plug in and switch on the wine cooler by pressing on the power button for a
few seconds. When you use the wine cooler for the first time (or restart the wine cooler after having it
power off for a long time), there will be a few degrees variance between the temperature you have
selected and the one indicated on the LE readout. This is normal and it is due to the length of the
activation time. Once the wine cooler is running for a few hours everything will stabilize.
Important
If the un t s unplugged, power s lost or turned off, wa t 3 or 5 m nutes before restart ng the un t. The w ne
cooler m ght not start f you attempt to restart before th s t me delay.
2. Operating noises. To reach the desired temperature settings, Euro wine coolers, like all wine coolers
operating with compressors and fans, may produce the following types of noises. These noises are normal
and occur as follows:
Gurgling sound, caused by the refrigerant flowing through the appliance’s coils;
Cracking/popping sounds, resulting from the contraction and expansion of the refrigerant gas to
produce cold;
Fan operating sound, to circulate the air within the wine cooler.

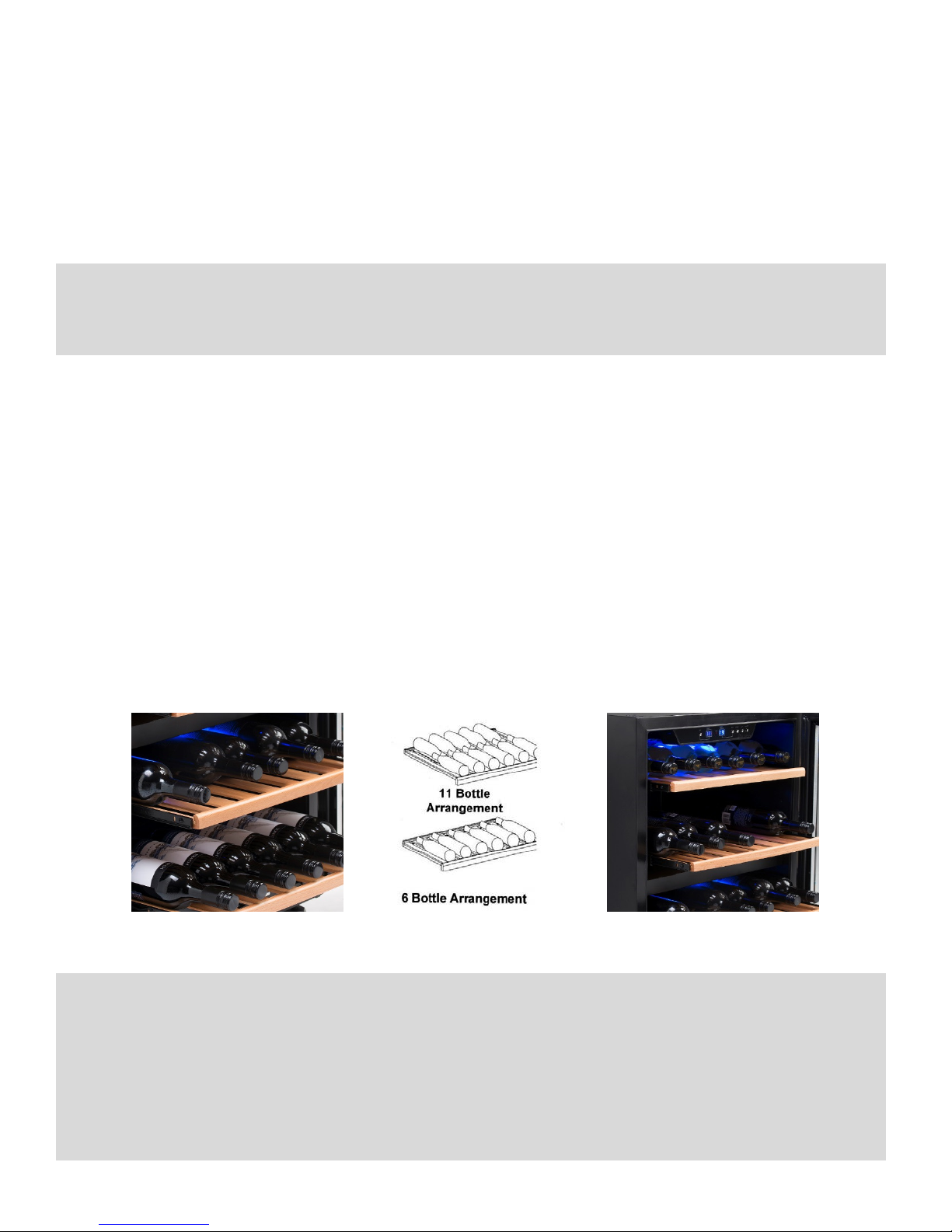

3. Loading your wine cooler. You might load your wine bottles in single or double rows while taking note of
the followings: If you do not have enough bottles to fill your wine cooler, it is better to distribute the load
throughout the wine cooler as 6 bottle arrangement so as to avoid” all on top” or “all below” type loads.
Important
Do remove or relocate wooden shelves n the model E150WSCS to accommodate large type of bottles
or ncrease the capac ty of the cab net by stack ng the bottles up when necessary.
Keep small gaps between the wall and the bottles to allow a r c rculat on.
Do not over load your w ne cooler to fac l tate a r c rculat on.
Do not stack more than 1.5 rows of standard 750ML bottles per shelves to fac l tate a r c rculat on

Avo d obstruct ng the nternal fan (located ns de on the back panel of the w ne cooler)
Do not try to sl de the shelves outwards beyond the f xed pos t on to prevent the bottles from fall ng.
Do not pull out more than one loaded shelf at a t me as th s may cause the w ne cooler to t lt forward.
Do not cover the wooden shelves w th alloy fo l or other mater als, as t w ll obstruct a r c rculat on
Do not move your w ne cooler wh le t s loaded w th w nes. The m ght d stort the ma n cab net.
Defrost ng/Hygrometry/Condensat on/Vent lat on
Your wine cooler is designed with auto defrost system. uring its running, wine cooler has one time defrosting
process every 8 hours and it will last about 30 minutes.
The defrost water from the wine cooler storage compartment drains automatically and part of it goes into a
drainage container, which is located at the back of the wine cooler next to the compressor.
The heat is transferred from the compressor and evaporates any condensation that has collected in the pan.
Part of the remaining water is collected within the wine cooler for humidity purposes.
All Euro wine coolers are equipped with a double glazed glass door to minimize condensation on the glass door.
The unit is not totally sealed, fresh air admission is permitted through the drainpipe.
Air is circulated through the wine cooler by means of a fan /fans and the hollow shelves.
Important
The water collected by condensat on, s therefore recycled. Under extremely dry env ronmental
cond t ons, you may have to add some water nto the water conta ner prov ded w th your w ne cooler.
Dur ng the refr gerat ng cycle, heat s g ven off and d sperses through the external surfaces of the w ne
cooler. Avo d touch ng the surfaces dur ng those cycles.
Temperature Sett ng
epending on the loading and settings chosen, it takes 24hours for the wine cooler to see the temperature
stabilizing.
uring this time LE seems to move erratically in particular dual-zone wine coolers. It is normal process. This
process occurs whenever the setting is modified and/or whenever a large amount of bottles are added to the
wine cooler.

Important
The LCD d splays by default the actual nternal a r temperature. It’s mportant to understand that there s a
d fference between the a r temperature ns de the w ne cooler and the actual temperature of the w ne” You
w ll need to wa t approx mately 12 hours before not c ng the effects of temperature adjustment due to the
cr t cal mass w th n a full w ne cooler. Once the thermostat s set t s strongly adv sed not to toy w th t or adjust
frequently. The thermostat w ll ma nta n the temperature ns de the w ne cooler w th n a +/-2.5 ºC range, the
actual temperature of the w ne w ll only fluctuate 0.5 ºC to 1 º C.
1. Factory preset Temperature Chart:
The upper compartment: 5 ºC
The lower compartment: 12 ºC

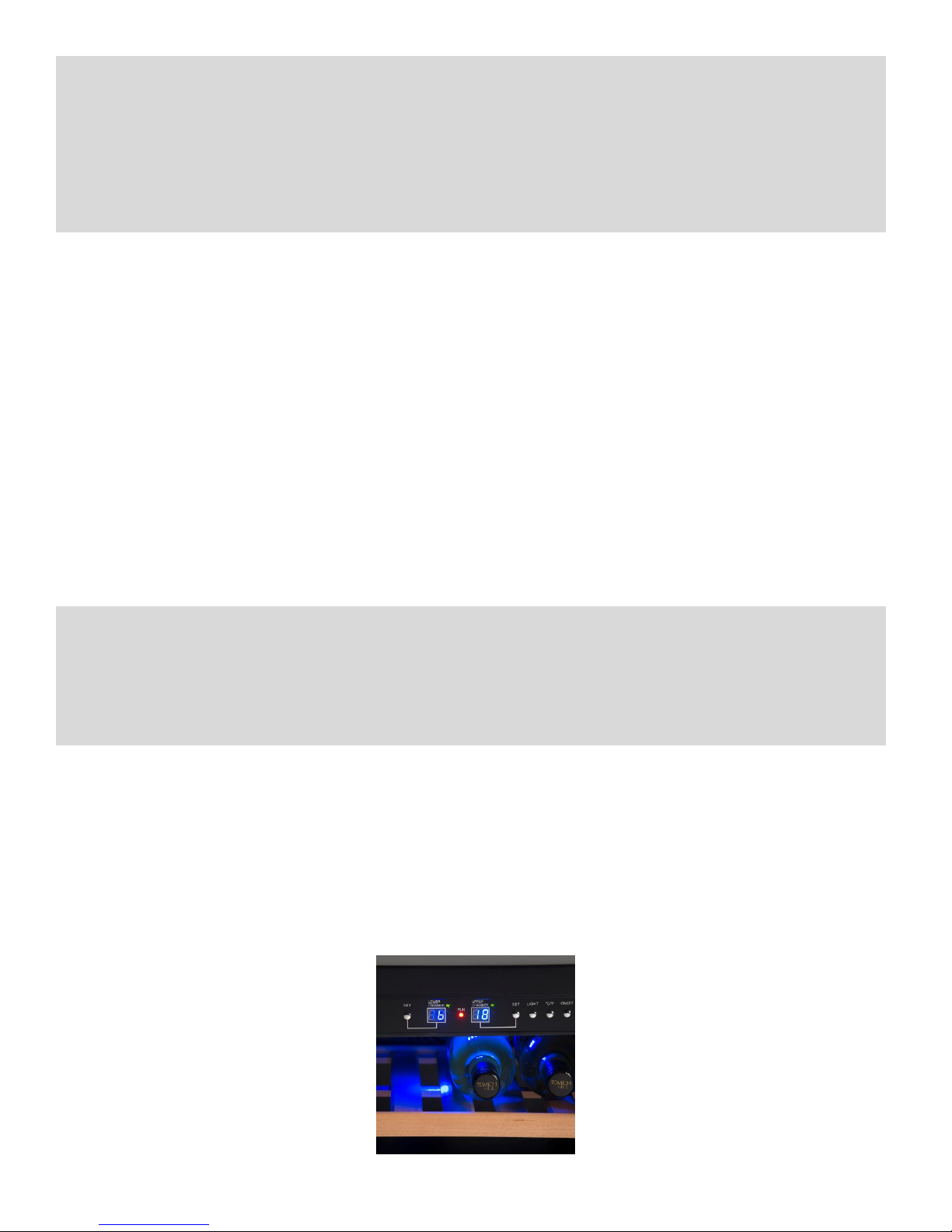

2. Control panel of wine cooler:
◎ isplay Windows
RUN light ： Indicator light of compressor working. While the compressor operating, the red light is on. While
it stops operating, the red light is off.
UPPER CHAMBER ： isplay of the actual temperature of the upper chamber. The range is 0℃~37℃ or
32℉~99℉.
LOWER CHAMBER ： isplay of the actual temperature of the lower chamber; the range is 0℃~37℃ or
32℉~99℉.
℃/℉ light ： When the ℃ light is on, it indicates Celsius temperature; when the ℉ light is on, it indicates
Fahrenheit temperature.

◎ Button Operation
SET Button of the upper chamber ： Temperature setting button; Once you press the button, the
temperature increase 1℃ or 1℉. Setting range is between 5℃~12℃ or 41℉~54℉.
SET Button of the lower chamber ： Temperature setting button; Once you press the button, the
temperature increase 1℃ or 1℉. Setting range is between 12℃~22℃ or 54℉~72℉.
LIGHT Button
： Cabinet light control button; Note: Once the light is turned on, it will automatically off after
10 minutes all out of protecting the wines inside.
℃/℉ Button ： Celsius and Fahrenheit conversion button;
ON/OFF button ： Power on and off button; Press the button, it starts; press it again, it stops.

Important
Th s ser es of w ne coolers has ts delay protect on funct on. The compressor w ll start to work about 3 to 5
m nutes after t s power connected or powered off. Please use the w ne cooler under the N type of cl mate.
The temperature ns de the cab net w ll fluctuate and nfluence the refr gerat ng effect f the surround ng
temperature s too h gh or too cold.
W ne Serv ng Temperature Chart
All wines mature at the same temperature, which is a constant temperature set between 12ºC to 14ºC. The
below chart is an indicative temperature chart to indicate the best temperature for drinking purposes.
Types of W nes Temperature
Champagne , Sparkling, Spumante 6 ºC
ry White Semillon, Sauvignon Blanc
8 ºC
ry White Chardonnay, ry White
Gewurztraminer, Riesling, Champagne Vintage,,
Pinot Grigio, Sweet White Sauternes, Montbazillac,
Ice Wine, Late Harvest
10 ºC
Beaujolais
13 ºC
Sweet White Vintage Sauternes, White Vintage
Chardonnay
14ºC
Red Pinot Noir, Red Grenache, Syrah
16 ºC
Red Vintage Pinot Noir, Shiraz, Cabernet, Merlot,
Sauvignon Cabernet.
18 ºC
Euro wine cooler has been designed to guarantee optimum conditions for storing and/or serving your wines.
Fine wines require long and gentle developments and need specific conditions in which to reach their full
potential. Not all wines will improve over the years. Some should be consumed at an early stage (2 to 3 years)
while others have tremendous ageing capability (50 and over). All wines have a peak in maturity. o check
with your wine merchant to get the relevant information.

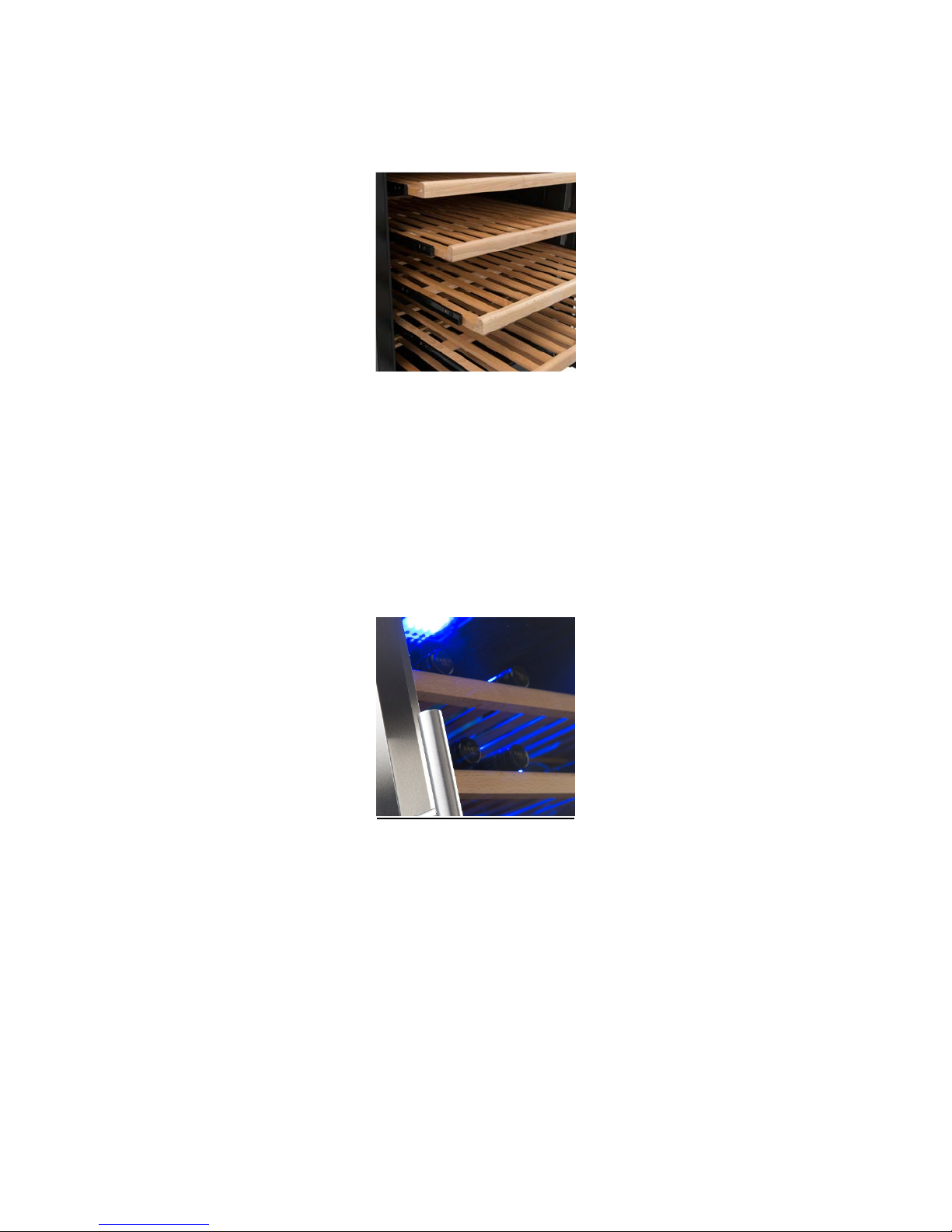

Sl d ng Shelves
Important
To prevent damag ng the door gasket, make sure to have the door opened all the way when pull ng the
shelves.

For easy access to the bottles, you must pull the shelves approximately 1/3 of its depth out of the rail
compartment. The wooden shelves are designed with stopper to hook against each sides of the shelf track to
prevent bottles from falling.
hen removing a shelf from the rail compartment in E150WSCS, make sure to remove all items first, then move
the shelf to the stop position and lift over to take the shelf out.
Inter or L ght
You can turn on/off the interior light by pressing the “Globe” button.
The light will be turned off automatically if it remains ON for 10 minutes. You have to press the “Globe” button
again and the light will turn back on. For the best storage condition, please keep the light off except while
viewing.
Install ng Sta nless Steel Handle
This wine cooler includes a stainless steel handle that is required to operate this unit. To install the handle please
follow the below instruction:
1. Pull away the door gasket in the area where the handle is to be installed – you can see two designated
holes for handle installation. The gasket is easily displaced by hand, no tools are necessary.
2. Install the handle tightly as shown below with the two screws. Lock washers and flat washers provided.
( O NOT over tighten as this will cause damage to the handle assembly and stainless steel surface of
glass door).
3. Replace the door gasket to its original position.

Revers ng the Door Sw ng of W ne Cooler
This appliance has the capability of the door opening from either the left or right side. The unit is delivered to
you with the door opening from the left side. Should you desire to reverse the opening direction, please follow
the instructions below:
Important
All parts removed must be saved to allow the door sw ng to be reversed.
1. isconnect the power and take out all the wines. Carefully lay or lean the wine cooler on its back. Use
cushioning to protect the floor and the wine cooler.
2. Open the glass door and remove the two lock screws (2) holding the door shaft assembly (3) to the glass
door. Before careful to hold the glass door firmly after removing the screws. (Fig.1).
3. Lift up the removed glass door and place it on a padded surface to prevent scratching it.
4. Remove the two screws from the door bottom at right side and install them to the door bottom at left
side. (Fig.3)
5. Use the new bottom hinge provided in the plastic bag inside the wine cooler and installs it at the
designated position on the left side, and installs the door shaft (3) assembly accordingly. (Fig. 2)
6. Remove the upper hinge cover (4) and remove the four screws (5) that are used to fix the upper hinge
(6) to the cabinet top. Then remove the upper hinge and install it at the designed position on the left side
(Fig. 4)
7. Set the glass door into the designated position and install the lock screws (2) to connect the door shaft
assembly with the glass door and tighten them before the door is leveled. (Fig.5)
8. Remove the handle from the left side of the door and install it on the right side.

Power Fa lures and Operat on Anomal es
In the event of a power interruption, all previous temperature settings are automatically erased and it will revert
to a preset temperature setting. Most power failures are corrected within a short period of time. An hour or
two’s loss of power will not affect your wine cooler’s temperatures. To avoid sudden change of temperature
while the power is off, you should avoid opening the door. For longer period of power failure, do take steps to
protect your wine.
Important
Irrespect ve of the cause, f you not ce e ther abnormal temperature or hum d ty levels ns de your w ne
cooler, be reassured that only long and frequent exposure to these abnormal cond t ons can cause a
detr mental effect on your w nes.
Ensure that there is power to the electrical supply plug by connecting another electrical appliance to it. Check
Fuse, if any. Make sure that the door is closed properly.
If your wine cooler appears to be malfunctioning, unplug it and contact EURO after sales service on 1800 440
335.
Any intervention on the cold circuit should be performed by a refrigeration technician who should carry out an
inspection of the circuit sealing system. Similarly, any intervention on the electrical circuit should be performed
by a qualified electrician.
Important
Any Intervent on performed by a non-techn c an w ll lead to the warranty be ng cons dered as null and
vo d.

CARE AND MAINTENANCE
Clean the condenser
The condenser must be kept clean and free of dust at all times. It is recommended that the cleaning routine be
conducted at intervals appropriate to the speed of accretion of dust on the condenser. Failure to keep the
condenser clean will damage the refrigeration system and invalidate the warranty.
Important
The condenser s a del cate component and s eas ly damaged.
Never use a st ff brush or sharp objects to clean t. Never use water.
Care when go ng on Vacat on
1. Short Vacations
Leave the Wine Cooler operating during vacations of less than 3 weeks.
2. Long Vacations
If the appliance will not be used for several months, remove all Wines and unplug the power cord. Clean
and dry the interior thoroughly. To prevent odour and mould growth, leave the door open slightly;
blocking it open if necessary or have the door removed. o not leave access to children.
Mov ng your W ne Cooler
1. Remove all the bottles.
2. Securely tape down all loose items inside your appliance.
3. Tape the doors shut.
4. When fixed or moved, the Wine cooler cannot be set horizontally or reclined to more than 45º or
positioned upside down.
5. Never move the Wine cooler while it is plugged in and operating.
Energy sav ng t ps
The Wine Cooler should be located in the coolest location, away from heat producing appliance or heating
ducts, and out of the direct sunlight.
Overloading the Wine cooler forces the compressor to run longer.

Recommended Clean ng Product
Switch off and disconnect from the power supply before cleaning
Clean the interior of the appliance using the recommended products in accordance with local hygiene
laws and regulations.
o not use abrasive cleaning agents, which may scratch and harm the delicate interior finishes of your
appliance.
Always wipe dry after cleaning.
AKTIVO All Purpose
AKTIVO All Purpose Cleaner is our eco-friendly, natural, citrus fresh
scented and strong cleaner for your homes. esigned to be gentle and
non-toxic on surfaces, good for the environment but tough on stains and
big cleaning jobs around the house.
Simply spray and wipe all surfaces with a clean cloth.
AKTIVO Glass + W ndow Cleaner
AKTIVO Glass + Window Cleaner cleans all the glass surfaces without
streaking. It dries quickly, keeping your glass shiny, gleaming and clear
and it works without the use of choking ammonia fumes, leaving
behind a mild citrus scent.
Spray a fine mist of our cleaner over the surface to be cleaned.
Immediately wipe over with a lint free cloth or clean dry paper towel.
AKTIVO Sta nless Steel Pol sh
AKTIVO Stainless Steel Polish is a light oil polish for stainless steel and
architectural metals. It will remove finger marks instantly and retain a
light film on the surface that resists further marking. Repels dirt and dust
for long lasting shine.
Apply to a dry, lint free cloth and wipe lightly in the direction of the grain
of the surface. For heavily soiled surfaces pre-clean with AKTIVO All
Purpose Cleaner before applying. o not apply onto plastic parts and
moulding.

TROUBLESHOOTING GUIDE
PROBLEM POSSIBLE CAUSE
Wine Cooler does not operate. Not plugged in.
The appliance is turned off.
The circuit breaker tripped or a blown fuse.
Wine Cooler is not cold enough. Check the temperature control setting.
External environment may require a higher setting.
The door is opened too often.
The door is not closed completely.
The door gasket does not seal properly.
Turn on and off frequently. The room temperature is hotter than normal.
A large amount of contents has been added to the Wine
Cooler.
The door is opened too often.
The door is not closed completely.
The temperature control is not set correctly.
The door gasket does not seal properly.
The light does not work. Not plugged in.
The circuit breaker tripped or a blown fuse.
The bulb has burned out.
The light button is “OFF”.
Vibrations. Check to assure that the Wine Cooler is on level.
The Wine Cooler seems to make too much
noise.
The ratting noise may come from the flow of the refrigerator,
which is normal.
As each cycle ends, you may hear gurgling sounds caused by
the flow of refrigerator in your Wine Cooler.
Contraction and expansion of the inside walls may cause
popping and crackling noises.
The Wine Cooler is not on level.
The door will not close properly. The Wine Cooler is not on level.
The door was reversed and not properly installed.
The gasket is dirty.
The shelves are out of position.

POWER FAILURES AND OPERATION ANOMALIES
In the event of a power interruption, all previous temperature settings are automatically erased and it will revert
to a preset temperature setting. Most power failures are corrected within a short period of time. An hour or two’s
loss of power will not affect your wine cooler’s temperatures. To avoid sudden change of temperature while the
power is off, you should avoid opening the door. For longer period of power failure, do take steps to protect your
wine.
Note: Irrespective of the cause, if you notice either abnormal temperature or humidity levels inside your wine
cooler, be reassured that only long and frequent exposure to these abnormal conditions can cause a detrimental
effect on your wines.
Ensure that there is power to the electrical supply plug by connecting another electrical appliance to it.
Check Fuse, if any. Make sure that the door is closed properly.
If your wine cooler appears to be malfunctioning, unplug it and contact EURO after sales service on 1800 440
335.
Important
Any ntervent on on the cold c rcu t should be performed by a refr gerat on techn c an who should carry out
an nspect on of the c rcu t seal ng system. S m larly, any ntervent on on the electr cal c rcu t should be
performed by a qual f ed electr c an.
Any Intervent on performed by a non-techn c an w ll lead to the warranty be ng cons dered as null and
vo d.

TECHNICAL SPECIFICATION
Features - E150WSCS 1 W ne Coolers
Glass front door with s/steel trim + handle
ouble glazed door UV filtered
Computerized temperature control
ual temperature zones
5-12 C (Upper area)
12-22 C (Lower area)
Intuitive optimum humidity control unit
Separate internal blue LE light
Compressor quiet cooling control
R600a refrigerant gas
44 - 46 wine bottle capacity (750ml)
4 telescopic rail + wooden shelves
No frost
Key lock
Electr cal requ rements
This wine cooler is supplied with 10amp plug & cord.
Volume l te rage capac ty
154 liters
We ght
62kg gross / 51kg net
Type Dual Temperature Zone
D mens on (W*D*H) 595*600*875mm
We ght 51KG
Refr gerant R600a/30g
Cool ng System Compressor Cooling
Amb ent Temp 60-90 ºF
Rated Voltage 220 -240V
Rated Frequency 50HZ
Input Power 80W

E150WSCS
Product D mens ons
595mm width x 600mm depth x 875mm height ( oor handle extra 45mm depth)
E150WSCS

Features - E430WSCS 1 W ne Coolers
Glass front door with s/steel trim + handle
ouble glazed door UV filtered
Computerized temperature control
ual temperature zones
5-12 C (Upper area)
12-22 C (Lower area)
Separate internal blue LE light
Intuitive optimum humidity control unit
Compressor quiet cooling control
157-165 wine bottle capacity (750ml)
R600a refrigerant gas
12 telescopic rail + wooden shelves
No frost
Key lock
Electr cal requ rements
This wine cooler is supplied with 10amp plug & cord.
Volume l te rage capac ty
154 liters
We ght
115kg gross / 105kg net
E430WSCS 1 W ne Coolers
Type Dual Temperature Zone
D mens on (W*D*H) 595*680*1795mm
We ght 105KG
Refr gerant R600a/52g
Cool ng System Compressor Cooling
Amb ent Temp 60-90 ºF
Rated Voltage 220-240V
Rated Frequency 50HZ
Input Power 150W

E430WSCS1
Product D mens ons
595mm width x 680mm depth x 1795mm height ( oor handle extra 45mm depth)
E430WSCS1
