Falcon Rotagang F210 TurfPro User manual

CPW Printers w/t 20007751
OPERATORS MANUAL / OPERATEURSHANDLEIDING
Specialised Mowers /
Gespesialiseerde Grassnyers
Rotagang®
F210 TurfPro Finishing Mower
CPW Printers w/t 20013758






















































Sales: [phone]Verkope: [phone]

CONTENTS INHOUD
FOREWORD 1 VOORWOORD
COMPANY PROFILE 2 MAATSKAPPYPROFIEL
WARRANTY AND DISCLAIMER 3 WAARBORG EN VRYWARING
PRODUCT RANGE 5 PRODUKREEKS
INSTALLATION 6 INSTALLERING
OPERATION 11 WERKING
MAINTENANCE 16 INSTANDHOUDING
TROUBLESHOOTING 21 FOUTOPSPORING
PARTS LISTS 22 PARTELYSTE
Auth rised Dealer / Gemagtigde handelaar:
Date f Sale / Verk psdatum:
Implement:
M del N . / M del Nr.:
Serial N . / Reeks Nr.:
Part number M8415 Onderdeeln mmer
Versi n
1 Weergawe
Date f publicati n 2017/08/02 Datum van publisering

FOREWORD VOORWOORD
We at Falcon commend and congratulate you on the
purchase of your Falcon implement, which we consider to
be the best of its type available.
Ons by Falcon wens jou geluk met die aankoop van jou
Falcon-implement, wat ons as die beste beskikbare
werktuig in sy soort beskou.
However, we would like to remind you that your success
and satisfaction with the product will be greatly improved
by you familiarising yourself with the contents of this
manual. t contains important information relevant to the
responsible operation, maintenance and most
importantly, safe use of the product.
Ons herinner u egter graag daaraan dat u sukses en
tevredenheid met die produk grootliks verbeter sal word
as u met die inhoud van hierdie handleiding vertroud
raak. Dit bevat belangrike inligting met betrekking tot die
verantwoordelike gebruik, instandhouding en, die heel
belangrikste, veilige gebruik van die produk.
Note that failure to observe or comply with the provisions
of this manual may result in unsafe operating conditions
as well as damage to products and property which shall
not be covered under warranty.
Let asseblief op dat versuim om die bepalings van hierdie
handleiding na te kom tot onveilige bedryfstoestande
asook skade aan produkte en eiendom kan lei wat nie
onder die waarborg gedek sal wees nie.
Should this manual become misplaced, damaged or
destroyed, further copies are available from your Falcon
dealer. Alternatively, this document is available for
download from our website: www.falconequipment.co.za
ndien hierdie handleiding dalk verloor, beskadig of
vernietig sou word, is daar verdere kopieë by u Falcon-
handelaar beskikbaar. Hierdie dokument kan ook van ons
webwerf, www.falconequipment.co.za, afgelaai word.
Symbols used in this document Simbole wat in hierdie dokument gebruik word
W
Safety-critical notices Failure to comply with these notices may result in serious
damage to equipment, personal injury or death.
Veiligheidskritieke kennisgewings
Versuim om aan hierdie kennisgewings gehoor te gee kan
ernstige skade aan toerusting, persoonlike beserings of
dood tot gevolg hê.
/
Procedures and checks
To be carried out by suitably competent persons in the
course of installation, operation and maintenance of the
equipment.
Prosedures en kontroles
Moet deur toepaslik bekwame persone uitgevoer word by
die installering, bedryf en instandhouding van die
toerusting.
-
eneral information
nformation provided for references purposes, including
any external references intended to be read in
conjunction with this manual.
Algemene inligting
nligting vir verwysingsdoeleindes, insluitend enige
eksterne verwysings wat bedoel is om saam met hierdie
handleiding gelees te word.
1

COMPANY PROFILE MAATSKAPPYPROFIEL
Falcon Agricultural Equipment (Pty) Ltd is an owner-
managed business and the largest manufacturer of rotary
cutters in Africa. he company opened its doors in 1985, at
its current premises in Howick, Kwazulu-Natal, South
Africa. his is the ideal location as it is an agricultural area
with a leading agricultural college nearby. Falcon is a
recognised BBBEE contributor and our skilled labour force
is a dedicated team of whom we are proud.
Falcon Agricultural Equipment (Edms.) Bpk. is ’n eienaar-
bestuurde besigheid en die grootste vervaardiger van
wentelsnyers in Afrika. Die maatskappy het sy deure in 1985
by sy huidige perseel in Howick, KwaZulu-Natal, Suid-Afrika,
geopen. Die ligging is ideaal: in ’n boerderygebied met ’n
vooraanstaande landboukollege naby. Falcon is 'n erkende
BBBEE-bydraer en ons geskoolde arbeidsmag is ’n toegewyde
span op wie ons trots is.
Our primary market is the agricultural sector, with niche
efforts into the industrial and turf implement market. We
distribute our products through more than 350 authorised
dealers countrywide, as well as across our borders into
other African countries.
Ons hoofmark is die landbousektor, met nisverkope in die
nywerheids- en grasbaanimplement-markte. Ons versprei
ons produkte deur meer as 350 gemagtigde handelaars
landwyd, asook buite ons grense in ander Afrika-lande.
We manufacture the Falcon and Locust ranges of
implements and our on-going programme of innovation
and improvement ensures that we consistently launch
implements to satisfy our customers’ ever-changing needs.
Ons vervaardig die Falcon- en Locust-implementreekse, en
ons voortgesette program van vernuwing en verbetering
verseker dat ons konstant implemente bekendstel wat ons
kliënte se immer veranderende behoeftes bevredig.
he Falcon range includes slashers, Haymakers
®
, material
handling implements, mulchers, mowers, spreaders,
rotavators and flail cutters. Each is designed to be simple,
safe and serviceable, while offering excellent value for
money. hey are built to last and are capable of coping
with the tough South African conditions.
Die Falcon-reeks sluit wentelsnyers, Hooimakers
®
,
materiaalhanteringsimplemente, mulchers, grassnyers,
strooiers, kapploeë en vleëlsnyers in. Almal is ontwerp om
eenvoudig, veilig en diensbaar te wees terwyl hulle
uitstekende waarde vir geld bied. Hulle is gebou om te hou
en ons strawwe Suid-Afrikaanse toestande die hoof te bied.
In many parts of South Africa "Falcon" is the generic term
for grass-cutting implements, making us the undisputed
leader in our field. Delivery on a marketing promise is the
foundation of any successful marketing drive and farmers
buying the Falcon brand buy more than just a product -
they buy the heritage and expertise of a company that has
been around for a long time!
In baie dele van Suid-Afrika is “Falcon” die generiese term vir
grassny-implemente, wat ons die onbetwiste leier op ons
gebied maak. Die nakom van ’n bemarkingsbelofte is die
grondslag van enige geslaagde bemarkingsveldtog, en boere
wat die Falcon-handelsmerk koop, koop meer as net ’n
produk – hulle koop die erfenis en deskundigheid van ’n
maatskappy wat al lank in die land is!
he Locust range of economy implements is particularly
suited to smallholders, more price-sensitive buyers and
emerging farmers. hese implements, which include
slashers and roller mowers, work well with older or lower-
powered tractors.
Die Locust-reeks ekonomiese implemente is veral geskik vir
kleinhoeweboere, meer prysgevoelige kopers en ontluikende
boere. Hierdie implemente, wat wentelsnyers en rollersnyers
insluit, werk goed saam met ouer of minder kragtige
trekkers.
We also import a range of implements that complement
the locally manufactured ones. hese include the Amazone
spreaders, sprayers, mowers and soil tillage implements
(from Germany), the Votex shredders and mowers,
including reach mowers (from the Netherlands), and the
heavy-duty Woods Batwing rotary cutters (from USA).
Ons voer ook ’n reeks implemente in wat die plaaslik-
vervaardigdes komplementeer. Dit sluit in die Amazone-
strooiers, -spuite, -grassnyers en -grondbewerkings-
implemente (uit Duitsland), die Votex-stokkiekappers en
-grassnyers, insluitend reiksnyers (uit Nederland), en die
swaardiens Woods Batwing-wentelsnyers (uit die VSA).
Falcon Agricultural Equipment (Pty) Ltd is committed to
supporting our local communities in many different ways.
Our main focus is the well-being of children and we
provide a safe and suitable school environment for them,
as well as school-related necessities.
Falcon Agricultural Equipment (Edms.) Bpk. is verbonde tot
die ondersteuning van ons plaaslike gemeenskappe op baie
verskillende maniere. Ons hooffokus is die welsyn van
kinders, en ons verskaf vir hulle 'n veilige en geskikte
skoolomgewing, sowel as skoolverwante benodigdhede.
Our team prides itself on its professional approach to
business. We have built long-standing relationships with
our dealers and their customers based on honesty, trust,
respect and integrity. Excellent customer service is an
important part of the Falcon promise.
Ons span is trots op sy professionele benadering tot
besigheid. Ons het langdurige verhoudings met ons
handelaars en hul klante opgebou wat op eerlikheid,
vertroue, respek en integriteit gebaseer is. Voortreflike
klantediens is ’n belangrike deel van die Falcon-belofte.
2

WARRANTY AND DISCLAIMER WAARBORG EN VRYWARING
Falcon products are manufactured in accordance with
established quality standards and are accompanied by a
limited warranty against defective materials and
workmanship. In terms of this warranty, Falcon or an
authorised Dealer may conduct reasonable repairs or
replacement of products or parts of products, as required.
Falcon-produkte word vervaardig ooreenkomstig met
gevestigde gehalte-standaarde en word deur ’n beperkte
waarborg teen defektiewe materiale en vakmanskap
gedek. ragtens hierdie waarborg mag Falcon of ’n
gemagtigde Handelaar redelike herstelwerk of vervanging
van produkte of produkonderdele uitvoer, soos vereis.
General conditions of limited arranty Algemene voor aardes van beperkte aarborg
Any claim with respect to warranty shall satisfy the
following minimum conditions.
Enige eis ten opsigte van die waarborg moet aan die
volgende minimumvoorwaardes voldoen:
• The implement has not been subjected to misuse,
abuse, damage or acts of negligence.
• The Owner is in possession of, and can demonstrate
an understanding and application of the provisions of
this manual.
• The implement has been used exclusively for its
intended purpose and in a configuration in which it
was designed to operate.
• Installation, setup, operation and maintenance of the
implement have been carried out in accordance with
this manual.
• Maintenance of the implement has been carried out
as prescribed in this manual, using original and
approved parts.
• The implement has not been subjected to structural,
mechanical or any other unauthorised modification or
repair.
• A warranty claim has been reported to an authorised
Dealer within the prescribed warranty period for the
product concerned.
• Die implement is nie aan verkeerde gebruik, misbruik,
beskadiging of verwaarlosing onderwerp nie.
• Die Eienaar is in besit van hierdie handleiding en kan
’n begrip en toepassing van die bepalings daarvan
demonstreer.
• Die implement is uitsluitlik vir die bedoelde doel
gebruik en in ’n konfigurasie waarin dit ontwerp is om
bedryf te word.
• Installering, opstelling, bedryf en instandhouding van
die implement het in ooreenstemming met hierdie
handleiding plaasgevind.
• Instandhouding van die implement is uitgevoer soos
in hierdie handleiding voorgeskryf, met gebruik van
oorspronklike en goedgekeurde onderdele.
• Die implement is nie aan enige strukturele, meganiese
of enige ander ongemagtigde wysiging of herstelwerk
onderwerp nie.
• ennis van ’n waarborg-eis is binne die voorgeskrewe
waarborgtydperk vir die betrokke produk aan ’n
gemagtigde Handelaar gegee.
Exclusions Uitsluitings
The following items are excluded from warranty cover,
including any costs relating to these.
Die volgende items word van waarborgdekking uitgesluit,
insluitend enige onkoste daaraan verbonde.
• Parts reckoned as consumable or wearing parts.
• Products or parts of products exhibiting acceptable
wear and tear.
• Temporary replacement, loan or hire of substitute
parts or equipment.
• Transport and handling of affected products.
• Consequential damage or loss on the part of any
person, organization or otherwise affected party.
• Onderdele as verbruikbare of slytonderdele geag.
• Produkte of produkonderdele wat aanvaarbare
slytasie vertoon.
• Tydelike vervanging, leen of huur van vervangings-
onderdele of -toerusting.
• Vervoer en hantering van geaffekteerde produkte.
• Gevolglike skade of verlies aan of deur enige persoon,
organisasie of andersins geaffekteerde party.
Validity Geldigheid
This warranty supersedes all previous conditions of
warranty, whether expressed or implied, including any
previous obligation or liability on the part of Falcon in
respect of non-conforming or defective product.
Hierdie waarborg vervang alle vorige waarborgvoor-
waardes, hetsy eksplisiet of geïmpliseer, insluitend enige
vorige verpligting of aanspreeklikheid van Falcon ten
opsigte van nie-ooreenstemmende of defekte produkte.
Disclaimer Vry aring
Falcon maintains a programme of continuous product
improvement and consequently reserves the right to
change designs, specifications, descriptions and materials
Falcon handhaaf ’n program van voortdurende produk-
verbetering en gevolg behou ons die reg om ontwerpe,
spesifikasies, beskrywings, materiale en enige ander
3

of construction and any other product attribute without
prior notice. This includes no obligation to reflect such
changes in documentation or literature or to provide any
such changes to products previously sold or held in stock.
produkeienskap sonder voorafkennisgewing te wysig,
insluitend geen verpligting om sulke veranderinge in
dokumentasie of literatuur te weerspieël of aan te bring
aan produkte wat voorheen verkoop of aangehou is nie.
Warranty Periods
Brands Product groups Components Origin Versions Period
Falcon
Slashers
Haymakers®
Rollermowers
Blowermowers
Gearboxes
Imported All 2y
Falcon
F50 3y
F60 2y
F80 3y
PTO shafts Imported All 2y
OEM parts Falcon All 2y
Slashers, Dual-spindle
Slashers, Flexwing
Grassmulchers
Fieldmulchers
SD Mulchers
Rotagang®
Finishing Mowers
Gearboxes
Imported All 1y
Falcon
F50 2y
F60 1y
F80 2y
PTO shafts Imported All 1y
OEM parts Falcon All 1y
Flail cutters
Gearboxes Imported All 1y
PTO shafts Imported All 1y
OEM parts Falcon All 1y
Rotavators Gearboxes Falcon All 1y
OEM parts Falcon All 1y
Rotorspreaders OEM parts Falcon All 1y
PTO shafts Imported All 1y
Limespreaders OEM parts Falcon All 1y
Bale forks + beams OEM parts Falcon All 1y
Uniloaders OEM parts Falcon All 1y
Locust Slashers Gearboxes Generic All 1y
Rollermowers OEM parts Falcon All 1y
Amazone
Spreaders
Sprayers
Disk/Combo harrows All Amazone-DE All 1y
Power harrows
Turf equipment
Votex Shredders All Votex-NL All 1y
Woods Batwing rotary cutters All Woods-USA All 1y
4

PRODUCT RANGE PRODUKREEKS
The Falcon family of precision turf implements enables
users to achieve extremely high quality finishes on a
variety of surfaces under turf.
These specialised mowers cut and disperse material in a
controlled and safe manner. These attributes make this
family of implements a popular choice on sports fields, golf
courses and other amenities.
The range consists of two models, namely the F21
TurfPro Finishing Mower and the Rotagang®, with working
widths of 2,1 and 1,72 m respectively.
Die Falcon-familie van presisie-grasbaanimplemente stel
gebruikers in staat om uiters hoëgehalte-afwerkings op ‘n
verskeidenheid grasoppervlakke te behaal.
Hierdie gespesialiseerde grassnyers sny en versprei
materiaal op ‘n beheerde en veilige wyse. Hierdie
eienskappe maak hierdie implementfamilie ‘n gewilde
keuse vir sportvelde, gholfbane en ander geriewe.
Die reeks bestaan uit twee modelle: die F21 TurfPro
Finishing Mower en die Rotagang®, met werkswydtes van
2,1 en 1,72 m onderskeidelik.

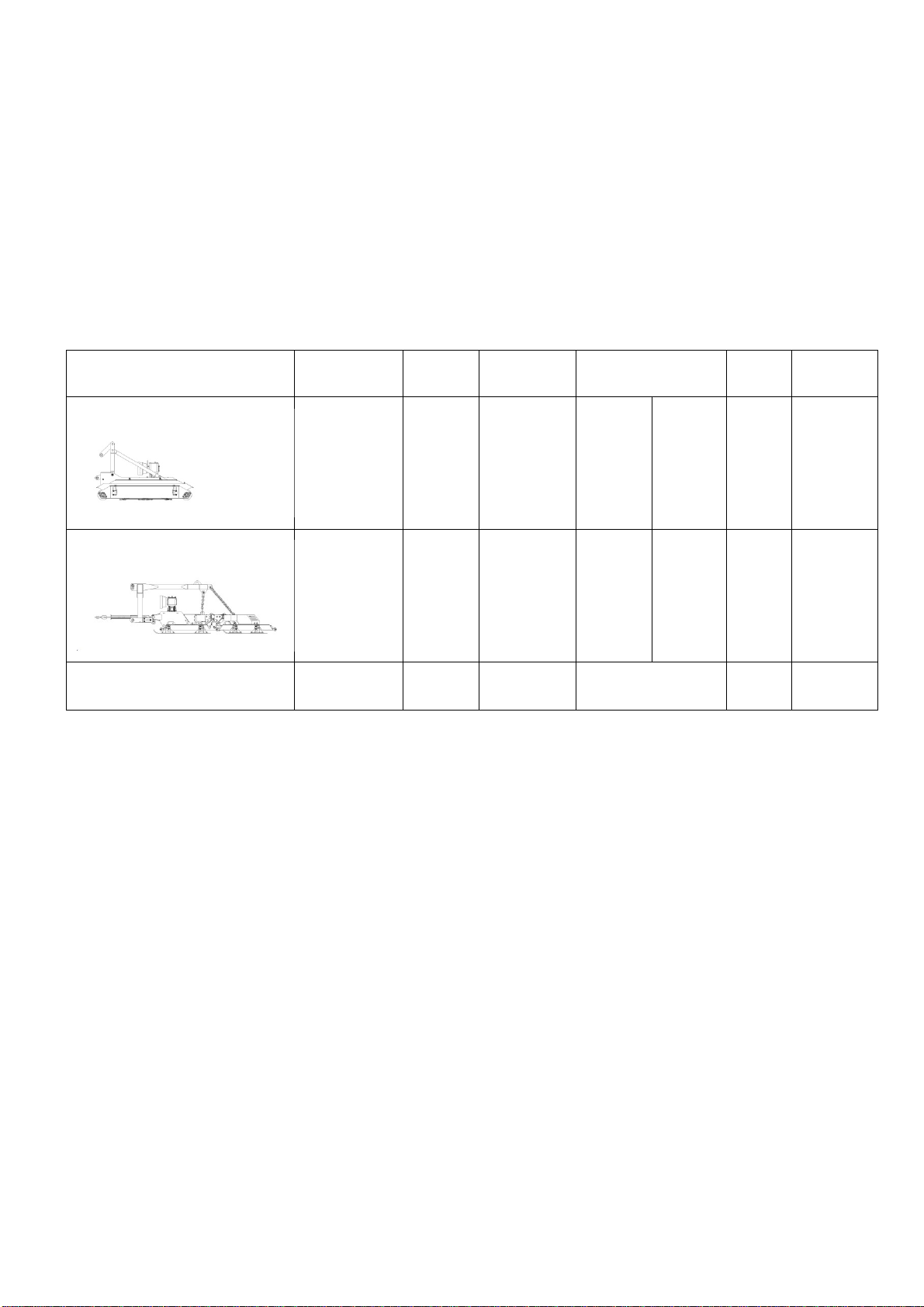

Profile
Model
(Part No.)
Blades/
Spindles
(qty)
Working
width
(mm)
W x L
(mm)
Mass
(kg)
Power,
max.
(kW)
F21 TurfPro
Finishing Mower
(A 1 )
12 (x3) 2 1 2 245 1 56 47 35–5
Rotagang®
(A 54) 12 (x3) 1 76 3 265 2 2 421 25–4
Profiel
Model
(Onderdeelnr.)
Lemme/
Spille
(aantal)
Werkswydte
(mm)
B x L
(mm)
Massa
(kg)
Krag,
maks.
(kW)
5

INSTALLATION INSTALLERING
Attaching the implement to the tractor Koppel van die implement aan die trekker
WDo not enter the area between the tractor and the
implement unless the tractor engine is shut off,
handbrake applied and the key removed from the
ignition.
WUse only hitch pins and linchpins of the correct
specification, such as those provided with the
implement.
WMoenie tussen die trekker en die implement inbeweeg
tensy die trekkerenjin afgeskakel is, die handrem
opgetrek uit die aansitter verwyder is nie.
WGebruik slegs haak- en lunspenne met die korrekte
spesifikasies, soos di wat saam met die implement
verskaf is.
>F21 TurfPro Finishing Mower >F21 TurfPro Finishing Mower
The implement is equipped with a standard 3-
point hitch for
attachment to the tractor, including a flexible link for top
link attachment.
Die implement is toegerus met ’n standaard 3-punt-haak
om dit aan die trekker te koppel, insluitend ’n
floteringskakel vir bo-skakel-koppeling.
/

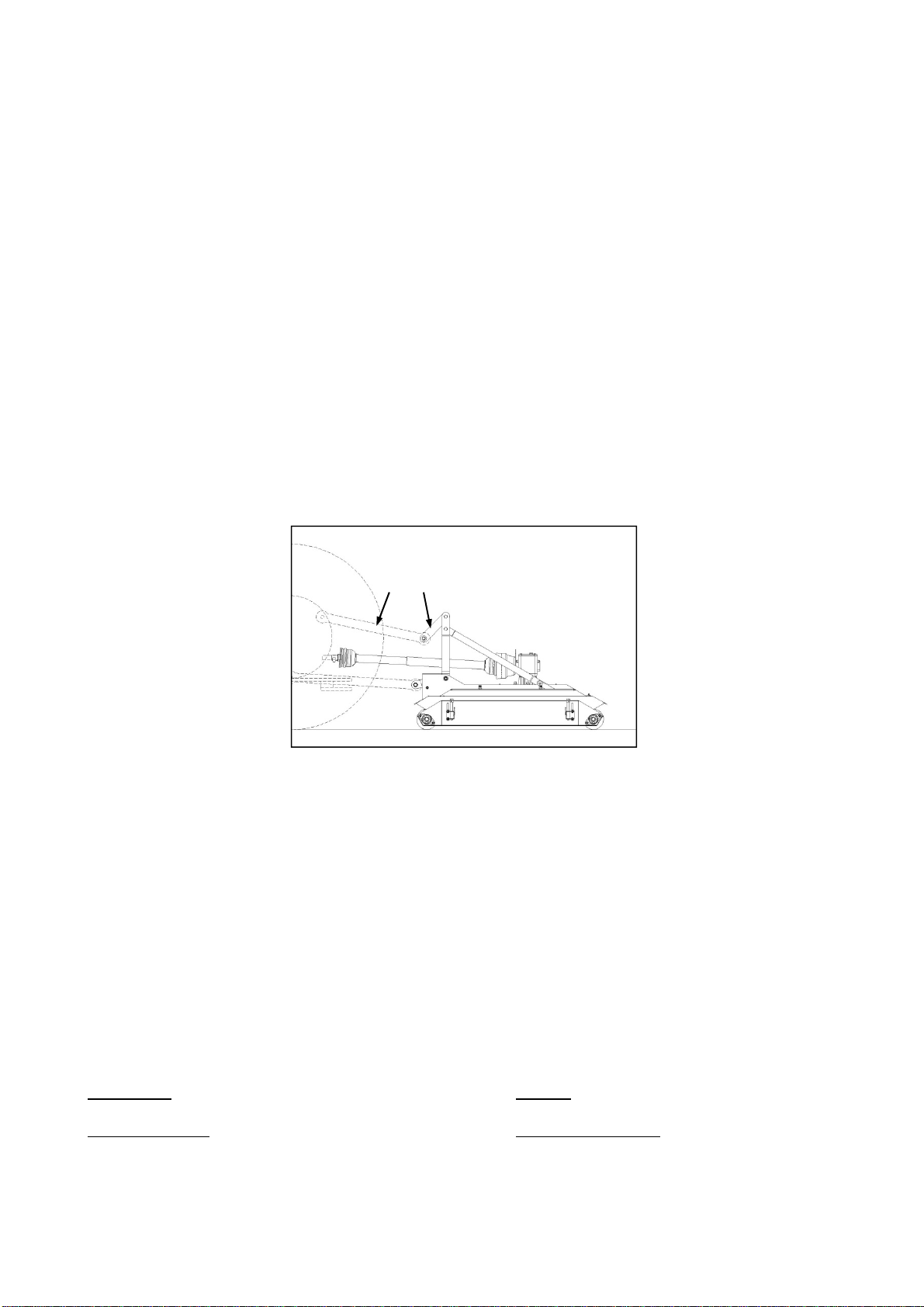

With the implement in the working position, the tractor
3-point hitch top link length should be adjusted (Fig. 1-
A) to allow the flexible link (Fig. 1-B) to assume
an angle
of approx. 45 degrees.
/Met die implement in die werksposisie, verstel die
lengte van die trekker se 3-punt-boskakel (Fig. 1-A)
sodat die flotering skakel (Fig. 1-B) in omtrent ’n 45
grade-posisie is.
Fig. 1
/After attachment to the tractor, lift the implement to
an acceptable transport height and ensure that there is
no contact between the implement and any part of the
tractor.
/Adjust the tractor 3-point hitch stabiliser arms to
prevent excessive lateral movement of the implement.
/Set the tractor hitch lift arms to a floating position to
enable independent movement of the arms during
cutting.
/Nadat dit aan die trekker gehaak is, lig die implement
tot ’n aanvaarbare vervoerhoogte op en verseker dat
daar geen kontak tussen die implement en enige deel
van die trekker is nie.
/Verstel die trekker se 3-punt-haak-stabiliseerderarms
om oormatige sywaartse beweging van die implement
te verhoed.
/Stel die trekkerhaak se laerskakelarms in die flotering
posisie om onafhanklike beweging van die arms tydens
sny moontlik te maak.
>Rotagang® >Rotagang®
The implement is provided with two means of attachment
to the tractor, each used in specific circumstances.
1. Carrier frame: Used ONLY for lifting and transporting
the implement between work sites.
2. Telescopic drawbar: For towing the implement while
cutting.
Die implement kan op twee maniere aan die trekker gehaak
word, elk in bepaalde omstandighede.
1. Draraam: SLEGS vir wanneer die implement opgelig en
tussen werksterreine vervoer moet word.
2. Teleskopiese trekstang: Om die implement tydens sny
te sleep.
The carrier frame is equipped with a standard 3-point hitch
for attachment to the trekker, but during the cutting
Die draraam is toegerus met ‘n standaard 3-punt-haak vir
aanhaak aan die trekker, maar tydens die snyproses MOET
A
B
6

process the carrier frame MUST be detached from the
implement en raised to a sufficient height to clear the
implement during operation.
die draraam losgemaak word van die implement en hoog
genoeg opgelig word om die implement tydens bedryf vrylik
te laat beweeg.
/Remove die front attachment pins (Fig. 2-A) en die
lifting chain attachment clips (Fig. 2-B).
/Lift die carrier frame to an acceptable safe working
height (Fig. 3-A), and store die lifting chains by looping
them back to their attachment points (Fig. 3-B).
/Verwyder die voorste aanhaakpenne (Fig. 2-A) en die
opligketting-aanhegknippe (Fig. 2-B).
/Lig die draraam tot ‘n aanvaarbare veilige werkshoogte
(Fig. 3-A), en stoor die
opligkettings deur hulle aan hulle
hegpunte te haak (Fig. 3-B).
-Failure to detach die carrier frame from the implement
during cutting will result in damage and other failures
not covered under warranty.
-Versuim om die draraam tydens gebruik van die
implement los te maak sal tot skade en ander
onklaarraking lei wat nie deur die waarborg gedek
word nie.
Fig. 2 Fig. 3
The implement is equipped with a telescopic drawbar (Fig.
4-A) which extends while towing the implement. It also has
the capability to retract when positioning the tractor in
relation to the implement (e.g. when attaching / detaching
the carrier frame).
Die implement beskik oor ‘n teleskopiese trekstang (Fig. 4-
A) wat langer word terwyl die implement gesleep word en
korter wanneer die trekker in verskillende verhoudings tot
die implement geposisioneer word (bv. wanneer die
draraam aangeheg of losgemaak word).
-This implement must NOT be operated in reverse. Any
attempt to use the tractor to reverse the implement
while it is on the ground will result in damage and
other failures not covered under warranty.
-Moet NIE die implement m.b.v. die trekker agteruit
probeer stoot terwyl die implement op die grond is
nie
– dit sal tot skade en ander onklaarraking lei wat nie
deur die waarborg gedek word nie.
The telescopic drawbar is also fitted with various check-
chains which require adjustment prior to use of the
implement.
Die teleskopiese trekstang is ook toegerus met verskeie
keerkettings wat voor gebruik van die implement verstel
moet word.
Fig. 4
A
B
A
B
A
B
C
7

/Set the length of the drawbar extension check-chain
(Fig. 4-B) to control the maximum extension of the
drawbar when towing.
/Set the lengths of the drawbar lateral check-chains
(Fig. 4-C) to prevent excessive articulation of the
drawbar, and to prevent the likelihood of contact
between the drawbar and tractor tyres while
cornering.
/Stel die lengte van die trekstangverlengingkeerketting
(Fig. 4-B) om die maksimum verlenging van die
trekstang tydens gebruik te beheer.
/Stel die lengtes van die trekstang se laterale
keerkettings (Fig. 4-C) om uitermate artikulasie van die
trekstang te verhoed asook moontlike kontak tussen
die trekstang en die trekkerbande wanneer gedraai
word.
Installing the PTO drive shaft Installering van die kragaftakkeras
WEnsure proper engagement between the PTO drive
shaft couplings and the input and output shafts on the
implement and tractor.
WEnsure sufficient overlap of the PTO drive
shaft tubes at
the working position.
WDo not exceed the specified PTO drive shaft speed.
WDo not operate the implement without PTO drive shaft
guards in place and in good condition. Anti-rotation
chains must be attached.
WReplace damaged or missing PTO guard parts with
original spare parts only.
WDo not approach the rotating PTO drive shaft, and
avoid loose-fitting clothing to prevent entanglement.
WVerseker behoorlike inskakeling tussen die krag-
aftakkeras se koppelstukke en die inset- en
leweringsasse aan die implement en trekker.
WVerseker voldoende oorvleueling van die
kragaftakkeras se buise in die werksposisie.
WMoenie die gespesifiseerde kragaftakkeras-spoed
oorskry nie.
WMoenie die implement bedryf sonder dat
kragaftakkeras-
skerms in posisie en in ’n goeie toestand
is nie. Antirotasie-kettings moet aangeheg wees.
WVervang beskadigde of afwesige kragaftakkeras-skerm-
onderdele slegs met oorspronklike onderdele.
WMoenie naby die draaiende kragaftakkeras kom nie en
verhoed lospassende klere om verstrengeling te vermy.
Due to the many variations in tractor and implement hitch
configurations, it is likely that the supplied PTO drive shaft
will have to be cut to suit the operating distance between
the tractor and the implement.
Vanweë die talle variasies in trekker- en implementhaak-
konfigurasies sal die kragaftakkeras wat verskaf is, waar-
skynlik verkort moet word om by die werksafstand tussen
die trekker en die implement te pas.
/Before cutting the PTO drive shaft to the appropriate
operating length, refer to the manufacturer’s
instructions supplied with the PTO drive shaft.
/Following installation of the PTO drive shaft, lift the
implement to an acceptable transporting height and
ensure that there is no contact between the PTO
driveshaft and the implement (Fig. 5-A).
/Ensure that universal joint operating angles (Fig. 5-B)
are not exceeded and that over-compression or over-
extension of the PTO drive shaft is avoided.
/Voordat die kragaftakkeras tot die gepaste werkslengte
gesny word, verwys na die vervaardigersinstruksies wat
saam met die kragaftakkeras voorsien is.
/Nadat die kragaftakkeras geïnstalleer is, lig die
implement tot op die gepaste vervoerhoogte en
verseker dat daar geen kontak tussen die
kragaftakkeras en die implement is nie (Fig. 5-A).
/Verseker dat kruiskoppelingwerkshoeke (Fig. 5-B) nie
oorskry word nie en maak seker dat die kragaftakkeras
nie te veel saamgepers of oorverleng is nie.
Fig. 5 (F210 TurfPro)
-All PTO drive shafts supplied on Falcon implements are
accompanied by a product handbook (IM-03-2008)
-Alle kragaftakkeraste wat voorsien word saam met
Falcon produkte word verskaf met ‘n handleidingsboek
A
B
8

describing all aspects of installation, operation,
maintenance and safety with respect to the PTO drive
shaft. The document constitutes part of this manual
and will be found attached to the PTO drive shaft
supplied with each new Falcon implement.
(IM-03-2008) wat alle aspekte van installasie,
operasionele verbruik, onderhoud en
veiligheidsmaatreëls i.v.m. die kragaftakkeras
verduidelik. Die dokument vorm deel van die
handleiding en sal aangeheg word aan elke
kragaftakkeras wat op elke nuwe implement deur
Falcon voorsien word.
Settings and adjustment Instelling en verstelling
WDo not perform maintenance or any other work on the
implement unless the tractor engine is shut off,
handbrake applied and the key removed from the
ignition.
WDo not perform maintenance or any other work on the
implement while it is suspended only on the tractor 3-
point hitch, or without suitable additional support for
the implement.
WMoenie enige instandhouding- of ander werk aan die
implement doen tensy die trekkerenjin afgeskakel, die
handrem opgetrek en die sleutel uit die aansitter
verwyder is nie.
WMoenie enige instandhouding- of ander werk aan die
implement uitvoer terwyl dit nog aan die trekker se 3-
punthaak hang, en sonder addisionele steun vir die
implement nie.
Fig. 6 Fig. 7
>All models >Alle modelle
The working height of the implement is set by adjusting the
position of the side panels or skids in relation to the
implement deck.
Die werkshoogte van die implement word gestel deur die
posisie van die sypaneel of glystukke in verhouding tot die
implementdek te verstel.
/To set the working height of the implement, loosen the
adjuster locknuts (Fig. 6-B/7-B) and adjust the lead
screw provided (Fig. 6-A/7-A). Ensure the implement is
level by establishing similar settings at all adjustment
points.
/Om die implement se werkshoogte te stel, maak die
sluitmoere los (Fig. 6-B/7-B) en verstel die leiskroef wat
voorsien is (Fig. 6-A/7-A). Kry die implement waterpas
deur middel van dieselfde instelling by al die
verstelpunte.
Lubrication and oil levels Smering en olievlakke
>All models >Alle modelle
Confirm that all gearbox oil levels are correct and all bearing
housings properly greased prior to use of the implement.
Bevestig dat alle ratkasolievlakke korrek is en alle koeëllaer-
omhulsels behoorlik geghries is voor gebruik.
/The gearbox is equipped with an oil filling port. Remove
the filler plug (Fig. 8-A) and add oil through the filling
port so that the oil level coincides with the bottom
edge of the hole.
/Spindle bearing housings are provided with grease
nipples (Fig. 9-A). Fill with grease until grease just
appears to exit the vent hole (Fig. 9-B).
/Die ratkas het ‘n olievulgat. Verwyder die vulprop (Fig.
8-A) en gooi olie by totdat die olievlak gelyk is met die
onderste rand van die gat.
/Spilkoeëllaeromhulsels het ghriesnippels (Fig. 9-A). Vul
met ghries totdat die ghries net-net uit die luggat begin
kom (Fig. 9-B).
A
B
B
A
9

Fig. 8 (Rotagang®) Fig. 9 (Rotagang®)
Ensure that the PTO shaft is properly lubricated before
using the implement.
Verseker dat die kragaftakkeras behoorlik geghries is voor
die implement gebruik word.
/Apply grease to the universal joints (Fig. 10-A) and
telescopic tubes (Fig. 10-B) of the PTO drive shaft.
/Refer to the PTO drive shaft manufacturer’s handbook
supplied with the implement.
/Ghries die kruiskoppelings (Fig. 10-A) en teleskopiese
buise (Fig. 10-B) van die kragaftakkeras.
/Verwys vir verdere inligting na die vervaardigers-
handleiding wat saam met die implement voorsien is.
Fig. 10 (F210 TurfPro)
-For lubrication requirements, refer to MAINTENANCE,
Table 2, Lubrication Requirements.
-Vir smeringvereistes, verwys na INSTANDHOUDING,
Tabel 2, Smeringvereistes.
A
A
B
A
B
A
10

OPERATION WERKING
General Algemeen
It is the responsibility of the Owner to ensure that the
operation of an agricultural tractor and any attached
equipment is carried out in accordance with all applicable
laws, regulations and practices relating to safe and
responsible operation.
Dit is die verantwoordelikheid van die eienaar om te verseker
dat die bedryf van ‘n landboutrekker en enige gekoppelde
toerusting uitgevoer word in ooreenstemming met alle
toepaslike wette, regulasies en praktyke wat met veilige en
verantwoordelike bediening te doen het.
-
Applicable regulations should include but not be limited
to the outh African Occupational Health and afety
Act No. 83 of 1993 and the outh African National Road
Traffic Act No. 93 of 1996.
-Refer also to operational information relevant to the
tractor concerned, including handbooks, operators
manuals, safety and warning notices and decals.
-Toepaslike regulasies sluit in, maar is nie beperk tot, die
uid-Afrikaanse Wet op Beroepsgesondheid en Veiligheid
nr. 85 van 1993 en die uid-Afrikaanse Wet op Nasionale
Padverkeer nr. 93 van 1996 nie.
-Verwys ook na tersaaklike bedryfsinligting oor die
betrokke trekker, insluitend handboeke, operateurs-
handleidings, veiligheid en waarskuwingskennisgewings
en -plakkers.
Preparation for use Voorbereiding vir gebruik
WOnly suitably trained persons should operate the
implement and no person should operate the
implement without first studying and establishing a
complete understanding of the content of this manual.
Wlegs toepaslik opgeleide persone moet die implement
bedryf, en geen persoon moet dit bedryf sonder om eers
die inhoud van hierdie handleiding te bestudeer en ’n
volledige begrip daarvan te verkry nie.
The implement should be thoroughly inspected and
prepared before each use and with reference to procedures
described elsewhere in this manual.
Die implement moet telkens eers deeglik geïnspekteer en
voorberei word voor dit gebruik word en met verwysing na
prosedures wat in ander dele van hierdie handleiding beskryf
word.
1. Attaching the implement to the tractor.
2. Installing the PTO driveshaft.
3. ettings and adjustment.
4. Lubrication and oil levels.
5. Routine maintenance (before and after each use).
1. Koppeling van die implement aan die trekker.
2. Installering van die kragaftakkeras.
3. Instellings en verstellings.
4. mering en olievlakke.
5. Roetine-instandhouding (voor en na elke gebruik).
Inspect the work area. Inspekteer die werksgebied.
/Remove any movable obstructions from the work area,
especially any object which may become a projectile.
/Note the presence of holes, stumps, rocks, or any other
obstruction that might destabilise the tractor or cause
damage to the implement. Remove these obstacles
where possible, otherwise note and avoid these areas
during cutting.
/Verwyder enige los obstruksies van die werksgebied,
veral enige voorwerp wat dalk ‘n projektiel mag word.
/Let op enige dongas, gate, stompe, klippe, of enige ander
obstruksie wat die trekker mag destabiliseer of die
implement kan beskadig. Verwyder hierdie hindernisse
waar moontlik, of anders moet hierdie gebiede
gedurende sny vermy word.
Operating t e implement Bedryf van die implement
WNever approach, or allow anyone else to approach, the
implement unless the implement has been lowered to
the ground, the tractor engine shut off and the
handbrake applied, and the implement’s cutting gear
has come to a complete stop.
WActively discourage spectators and cease operation of
the implement if any person approaches or enters the
work area.
WOperate the implement only at the specified PTO shaft
speed.
WMoet nooit die implement benader, of toelaat dat
enigiemand anders dit doen, tensy die implement op die
grond laat sak is, die trekkerenjin afgeskakel is, die
handrem opgetrek en die implement se snymeganisme
heeltemal tot stilstand gekom het nie.
WToeskouers moet aktief ontmoedig word. nywerk moet
onmiddellik gestaak word as enige persoon die
werksgebied benader of dit betree.
WVerseker dat die implement slegs teen die
gespesifiseerde kragaftakkerasinsetspoed bedryf word.
11

WDo not approach the rotating PTO shaft, and avoid
loose-fitting clothing, to prevent entanglement.
WMoenie die draaiende kragaftakkeras nader nie en
verhoed verstrengeling deur lospassende klere te vermy.
-Failure to operate the implement at the specified PTO
shaft speed can result in unsafe operating conditions as
well as structural and mechanical failure not covered
under warranty.
-Versuim om die implement teen die gespesifiseerde
kragaftakkerasinsetspoed te bedryf kan onveilige
bedryfstoestande skep, en ook strukturele en meganiese
onklaarraking veroorsaak wat nie deur die waarborg
gedek word nie.
With precision turf cutting, proper implement set-up in
relation to the characteristics of the material being cut will
always produce more consistent results and extend the
service life of the implement.
Met die presisiesny van grasbane sal die behoorlike opstelling
van implemente in verhouding tot die eienskappe van die
betrokke materiaal altyd meer konsekwente resultate lewer
en die dienslewe van die implement verleng.
-Due to the large variation in material properties and
operating conditions, the actual capability of the
implement in the intended application should be
established by test, and in consultation with an
authorised Falcon Dealer.
-
All recommended quantities, dimensions and capacities
are intended as a guide only.
-Vanweë die groot variasie in materiaaleienskappe en
bedryfstoestande moet die werklike vermoë van die
implement vir die voorgenome werk deur proefneming
vasgestel word, en in oorleg met ’n gemagtigde Falcon-
handelaar.
-Alle aanbevole hoeveelhede, afmetings en kapasiteite
dien bloot as riglyne.
>T e Rule of “T irds” >Die Reël van “Derdes”
In general, it is recommended no more than one third of the
maximum material height be removed with each pass of the
cutting process.
In die algemeen word aanbeveel dat hoogstens een derde
van die maksimum materiaalhoogte met elke gang van die
snyproses verwyder word.
Fig. 1
To determine implement cut height settings. Om implementsnyhoogtes te bepaal.
/To achieve target height (Fig. 1-T).
/Measure the approximate material height (Fig. 1-M).
/Maximum amount of material to be removed on each
pass = 1/3 M.
/Corresponding implement height setting (Fig. 1-H).
/Om die teikenhoogte te bewerkstellig (Fig. 1-T).
/Meet die geskatte materiaalhoogte (Fig. 1-M).
/Maksimum hoeveelheid materiaal wat met elke gang
verwyder moet word = 1/3 M.
/Ooreenkomstige implementhoogtestelling (Fig. 1-H).
Consequently, to eliminate the need for multiple cutting
passes (at various height settings), more frequent cutting
should be conducted - ideally on each occasion that the
material has grown by 50% over its specified height.
Gevolglik, om veelvoudige snygange onnodig te maak (op
verskeie hoogtestellings), moet daar meer dikwels gesny
word – ideaal gesproke telkens wanneer die materiaal meer
as 50% bo die gespesifiseerde hoogte gegroei het.
1
/
3
M
M
T
H
12

-Considering the above relationships, the following
maximum material height limitations should be
adhered to:
1. F210 TurfPro = 90 mm.
2. Rotagang® = 75 mm.
-Initial heights in excess of these should be processed by
some other means prior to use of these implements.
-Met bogenoemde verhoudings in ag genome, moet by
die volgende maksimum materiaalhoogtebeperkings
gehou word:
1. F210 TurfPro = 90 mm.
2. Rotagang® = 75 mm.
-Beginhoogtes hoër as hierdie moet deur ander middele
verwerk word voor gebruik van hierdie implemente.
>F210 TurfPro Finis ing Mower >F210 TurfPro Finis ing Mower

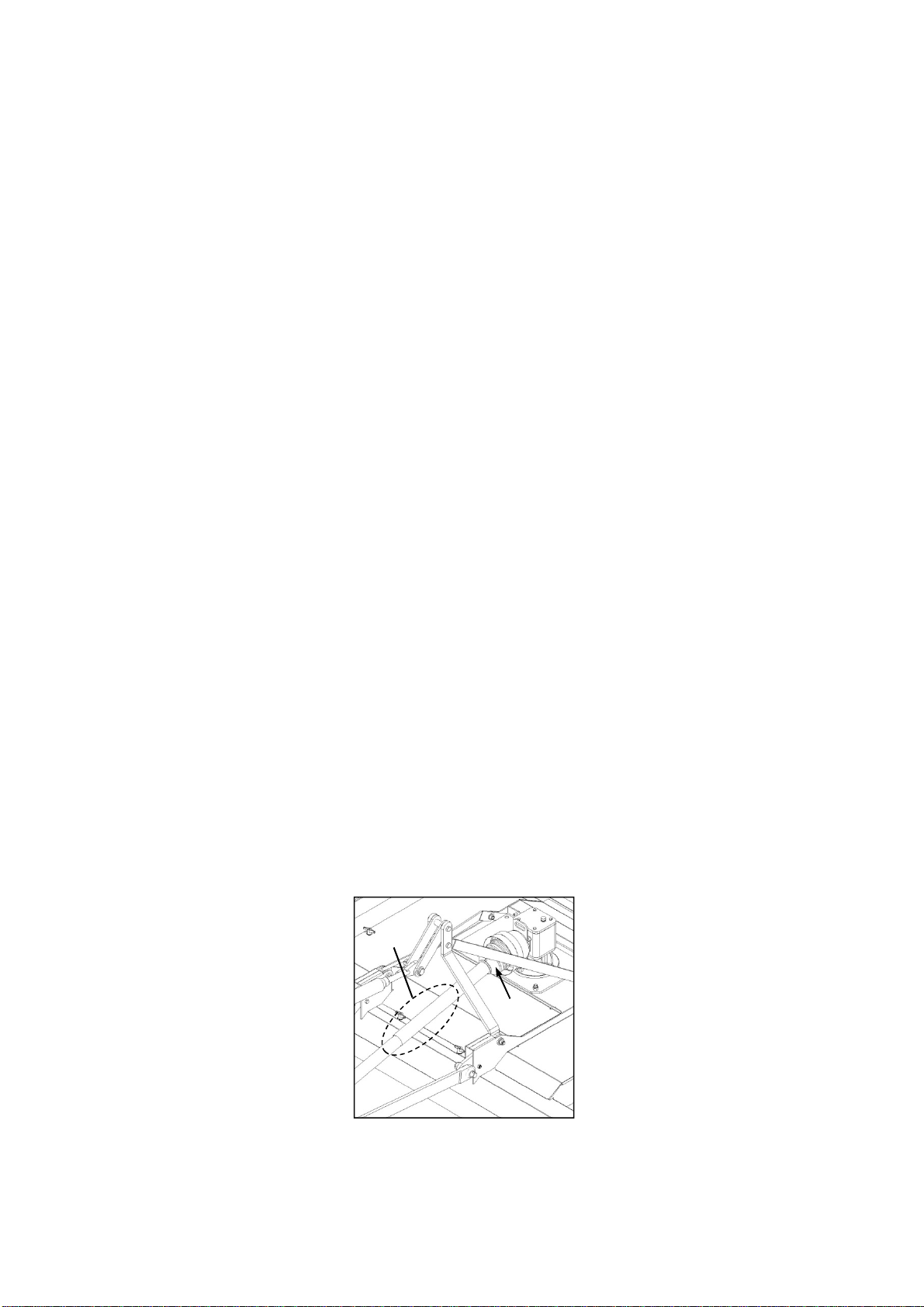

The implement is equipped with a scroll system (Fig. 2-A)
for controlled dispersion of cut material and for increased
mulching effectiveness during cutting.
Die implement beskik oor ‘n krulstelsel (Fig. 2-A) vir beheerde
verspreiding van gesnyde materiaal en vir groter mulch-
effektiwiteit gedurende sny.
Fig.2
-To ensure efficient discharge and mulching, and to
prevent excessive fuel consumption, the scroll system
should be regularly checked for clogging and damage.
-Om doeltreffende afvoer en mulch te verseker, en om
oormatige brandstofverbruik te verhoed, moet die
krulstelsel gereeld vir verstopping en skade nagegaan
word.
T e cutting process Die snyproses
The following procedure is recommended for starting the
cutting process and, in general, should be followed on each
occasion that the PTO input is engaged.
Die volgende prosedure word aanbeveel om die snyproses te
begin en moet in die algemeen gevolg word elke keer
wanneer die kragaftakker gebruik word.
-These implements should NOT be started while in a
stationary position on a high-quality turf
surface, as this
may result in undesirable markings being left behind.
-In general, these implements should only be started
once some degree of tractor forward movement has
been established.
-Hierdie implemente moet NIE in stilstaande posisie op ‘n
hoëgehalte-grasbaanoppervlak aan die gang gesit word
nie, omdat ongewenste merke agtergelaat kan word.
-In die algemeen moet hierdie implemente aan die gang
gesit word eers wanneer die trekker vorentoe begin
beweeg het.
>F210 TurfPro Finis ing Mower >F210 TurfPro Finis ing Mower
/tart the tractor with the implement suspended on the
tractor 3-point hitch and in an area clear of large
volumes of material.
/Lower the implement so that skids are just clear of the
ground and engage the tractor PTO at idling speed.
/Gradually increase the tractor throttle position to
achieve the specified PTO operating speed, place the
tractor in a low gear and begin to approach the
material to be cut.
/Lower the implement to the operating position once
acceptable forward speed has been established.
/kakel die trekkerenjin aan met die implement wat aan
die 3-punt-haak hang en in ’n gebied wat vry is van groot
volumes materiaal.
/Laat die implement sak sodat die glystukke net bokant
die grond is en aktiveer die kragaftakker teen luierspoed.
/Versnel geleidelik met die handversneller totdat die
voorgeskrewe kragaftakkerbedryfspoed bereik word,
skakel die trekker in ’n lae rat en begin na die materiaal
beweeg wat gesny moet word.
/Laat sak die implement na die werksposisie eers nadat
die trekker teen ‘n aanvaarbare spoed begin beweeg het.
A
13

>Rotagang® >Rotagang®
/tart the tractor with the implement attached to the
tractor towing hitch and in an area clear of large
volumes of material.
/Place the tractor in a low gear and begin to approach
the area to be cut.
/Engage the tractor PTO at this low speed and then
gradually increase the tractor throttle position to
achieve the specified PTO operating speed and
corresponding forward speed.
/kakel die trekker aan met die implement aangehaak en
in ‘n gebied wat vry is van groot volumes materiaal.
/it die trekker in ‘n lae rat en begin in die rigting van die
gebied ry waar gesny gaan word.
/Aktiveer die trekker se kragaftakker teen hierdie lae
spoed en versnel dan geleidelik met die handversneller
totdat die gespesifiseerde kragaftakkerbedryfspoed en
ooreenstemmende vorentoe spoed bereik word.
-Unless otherwise indicated, the specified implement
PTO input speed shall be 540 r/min.
-On tractors with an “economy” PTO drive option
(indicated as 540E on the tractor tachometer) refer to
the tractor operators manual in selecting the relevant
PTO gearbox ratio on the tractor to maintain the
specified implement PTO input speed.
-Tensy anders aangedui, is die gespesifiseerde implement
se kragaftakkerinsetspoed 540 r/min.
-By trekkers met ‘n “ekonomie”-kragaftakker-dryfopsie
(aangedui as 540E op die trekker se toereteller) verwys
na die trekkerbestuurder se handleiding vir die kies van
die tersaaklike kragaftakkerratkasverhouding om die
gespesifiseerde implement se kragaftakkerinsetspoed te
handhaaf.
Controlling the cutting process. Beheer van die snyproses.
/Tractor forward speed should be controlled by gear
selection and NOT engine speed.
/Tractor engine speed must be pre-set to continually
provide the specified PTO input speed, while forward
speed should be controlled by appropriate gear
selection.
/In general, the optimal gear selection can be identified
by selecting the highest forward speed which does not
result in stalling or the ejection of large unprocessed
pieces of material.
/Forward speed, material volumes and material density
should be controlled in order to prevent unnecessary
reduction of the equipment lifespan, as well as other
damage and failures not covered under warranty.
/In the case of the Rotagang®, care must be taken to
limit forward speed while cornering. This will limit the
likelihood of the “slingshot” effect causing the
implement to drift towards nearby obstacles.
/Die trekker se vorentoe spoed moet deur ratseleksie en
NIE enjinspoed beheer word.
/Trekkerenjinspoed moet vooraf gestel word om die
vereiste kragaftakkerinsetspoed konstant te hou, terwyl
vorentoe spoed deur gepaste ratseleksie beheer moet
word.
/Oor die algemeen kan die optimale rat geïdentifiseer
word deur die hoogste vorentoe spoed te selekteer wat
nie die enjin laat vrek of maak dat groot stukke
onverwerkte materiaal uitgewerp word nie.
/Vorentoe spoed, materiaalvolumes en materiaaldigtheid
moet beheer word om onnodige verkorting van die
toerusting se lewensduur te verhoed, asook ander skade
en brekasies wat nie deur die waarborg gedek word nie.
/Met die Rotagang® moet sorg gedra word om vorentoe
spoed te beperk wanneer die trekker draai. Dit sal die
waarskynlikheid beperk van die “slingervel”-effek wat die
implement dalk nabygeleë hindernisse kan laat tref.
Transportation and storage Vervoer en berging
>F210 TurfPro Finis ing Mower >F210 TurfPro Finis ing Mower
The implement may be transported on the tractor 3-point
hitch between work sites.
Die implement kan tussen werksterreine aan die trekker se 3-
punt-haak vervoer te word.
/Ensure that the implement is lifted to a suitable height
to clear any obstacles.
/Adjust stabilisers on the tractor hitch to prevent
excessive lateral sway and possible contact with the
tractor tyres.
/Maintain a speed low enough to prevent excessive
bouncing and resultant damage to mounting points and
other load-bearing components.
/Verseker dat die implement hoog genoeg gelig is om
tydens vervoer bo-oor enige hindernisse te kan beweeg.
/Verstel stabiliseerders aan die trekkerhaak om oormatige
laterale beweging en moontlike kontak met die trekker
se bande te verhoed.
/Handhaaf ’n spoed wat laag genoeg is om oormatige
bonsing en gevolglike skade aan monteerpunte en ander
ladingdraende komponente te verhoed.
14

>Rotagang® >Rotagang®
The implement may be transported on the tractor 3-point
hitch between work sites with the use of the implement
carrier frame, supplied for this purpose.
Die implement kan tussen werksterreine aan die trekker se 3-
punt-haak vervoer word met behulp van die implement-
draraam wat vir hierdie doel voorsien word
-Any attempt to use the implement drawbar to traverse
rough terrain will result in damage and other failures
not covered under warranty.
-Enige poging om die implement se trekstang te gebruik
om oor ruwe terrein te ry sal skade en ander brekasies
veroorsaak wat nie deur die waarborg gedek word nie.
15

MAINTENANCE INSTANDHOUDING
Routine maintenance Roetine-instandhouding
WDo not perform maintenance or any other work on the
implement unless the tractor engine is shut off,
handbrake applied and the key removed from the
ignition.
WDo not perform maintenance or any other work on the
implement while it is suspended only on the tractor 3-
point hitch, or without suitable additional support for
the implement.
WUse only original and approved Falcon replacement
parts and lubricants. Refer to the parts information
provided in this manual.
Woenie instandhouding- of enige ander werk aan die
implement doen tensy die trekkerenjin afgeskakel, die
handrem opgetrek en die sleutel uit die aansitterpunt
verwyder is nie.
Woenie instandhouding- of enige ander werk aan die
implement doen terwyl dit net aan die trekker se 3-
punt-haak hang, of sonder geskikte ekstra stutte vir die
implement nie.
WGebruik slegs oorspronklike en goedgekeurde Falcon-
vervangingsonderdele en smeermiddels. Verwys na die
onderdele-inligting in hierdie handleiding.
aintenance should be carried out before and after each
use and in accordance with the schedules provided in this
chapter.
Instandhouding moet telkens voor en na gebruik gedoen
word, en in ooreenstemming met die skedules wat in
hierdie hoofstuk vervat is.
-Bolted connections should be checked for tightness
with reference to Bolt Torque Specifications (Table 1).
-Verseker dat koppelboute in ooreenstemming met die
boutwringkragspesifikasiekaart vas is (Tabel 1).
> Befo e each use > Voo elke geb uik
To be carried out at least daily in periods of continuous use.
Otherwise before each occasion that the implement is used
.
Extra care and attention should be given to implements
which may have been unused for prolonged periods (longer
than 1 month).
Word ten minste daagliks in tye van deurlopende gebruik
uitgevoer. Anders voor elke geleentheid waar die
implement gebruik word. Gee ekstra sorg en aandag aan
implemente wat vir lang tydperke (meer as ’n maand) nie
gebruik is nie.
/Check gearbox oil levels and replenish as necessary.
/Lubricate PTO shaft UV joints and telescopic tubes and
inspect for evidence of wear.
/Gaan ratkasolievlakke na en vul aan soos benodig.
/Ghries kragaftakkeras-kruiskoppelings en teleskopiese
buise en inspekteer vir tekens van slytasie.
-For lubrication requirements, refer to AINTENANCE,
Table 2, Lubrication.
-Vir smering vereistes, verwys na INSTANDHOUDING,
Tabel 2, Smering Vereistes.
/Check all fasteners for tightness. This includes special
attention to safety-critical fasteners such as blade bolts
and nuts (Fig. 1-A), cutting gear mounting bolts (Fig. 1-
B), gearbox mounting bolts (Fig. 2-A), hitch points (Fig.
3-A) and mast retaining bolts (Fig. 3-B).
/Verseker dat alle hegstukke vas is. Dit sluit in spesiale
aandag aan veiligheidskritieke hegstukke soos
lemboute en -moere (Fig. 1-A), snymeganisme
monteerboute (Fig. 1-B), ratkas monteerboute (Fig. 2-
A), haakpunte (Fig. 3-A) en masklemboute(Fig. 3-B).
Fig. 1 Fig. 2 (F210 TurfPro) Fig. 3 (F210 TurfPro)
A
B
A
A
B
B
16

/Check the drive belt tension as described in this
chapter.
/Inspect blades for indications of wear and replace as
necessary.
/Ensure that all guards, shields and other safety devices
are in place, properly secured and in good condition.
/Inspect all mounting pins, chains, shackles and other
load-bearing components for signs of wear. Check that
all secondary securing mechanisms such as linchpins,
split-pins and clips are in place.
/Run the implement up to operating speed and conduct
visual and audible checks for excessive vibration and
noise.
/Kontroleer die dryfbandspanning soos in hierdie
hoofstuk beskryf word.
/Inspekteer lemme vir tekens van slytasie en vervang
indien nodig.
/Verseker dat
alle skutplate en ander veiligheidstoestelle
in posisie is, behoorlik vas en in ’n goeie toestand is.
/Gaan alle monteerpenne, kettings, penskakels en ander
lasdraende komponente na vir tekens van slytasie.
Verseker dat alle sekondêre hegmeganismes soos
lunspenne, splitpenne en knippe in posisie is.
/Versnel die implement tot werkspoed en voer visuele
en gehoorinspeksies uit vir oormatige vibrasie en
geraas.
-Causes of excessive vibration and noise must be
identified and eliminated immediately to prevent
consequential structural or mechanical failure not
covered under warranty.
-Oorsake van oormatige vibrasie en geraas moet
geïdentifiseer en onmiddellik uitgeskakel word om
gevolglike strukturele of meganiese onklaarraking te
verhoed wat nie deur die waarborg gedek word nie.
> Afte each use > Na elke geb uik
To be carried out at least every 40 hours in periods of
continuous use, otherwise after each occasion that the
implement is used, or before long-
term storage (longer than
1 month).
Word ten minste
elke 40 uur in tye van deurlopende gebruik
uitgevoer. Anders na elke geleentheid wat die implement
gebruik is, of voor langtermynberging (langer as 1 maand).
/Clean all debris from the implement, particularly the
underside of the deck. Where pressurised cleaning is
undertaken, care must be taken in areas around seals,
breathers, lubrication points and PTO driveshaft
components.
/Thoroughly inspect the implement for any damages
incurred during use and note these for attention prior
to next use.
/Check v-belt drive system for signs of slippage and
wear. Usually indicated by black rubber residue within
the drive belt chamber, possibly accompanied by
burning odours.
/Ensure that all safety and warning decals are in place,
visible and in a legible condition.
/Before long-term storage (longer than 1 month), check
oil levels and thoroughly lubricate all specified
lubrication points.
/Store the implement in a clean, dry, weather-protected
area.
/
Verwyder alle vuiligheid van die implement, veral onder
die dek. Drukspuitskoonmaak moet versigtig gedoen
word, veral naby seëls, luggate, ghriespunte en
kragaftakkeras-komponente.
/Inspekteer die implement deeglik vir enige beskadiging
tydens gebruik. erk dit aan vir aandag en herstel voor
dit weer gebruik word.
/Kontroleer die v-band-dryfstelsel vir tekens van gly en
slytasie - gewoonlik swart rubberreste in die
dryfbandomhulsel, en moontlik selfs ‘n brandreuk.
/Verseker dat alle veiligheids- en waarskuwingsplakkers
in posisie, sigbaar en leesbaar is.
/Voor langtermynberging moet olievlakke in die
implement nagegaan en alle ghriespunte deeglik
gesmeer word.
/Stoor die implement in ‘n droë, skoon, weerbestande
plek.
D ive belt adjustment Ve stelling van d yfband
-Drive belt tension (Fig. 5-T) should be checked at the
mid-point of the longest belt path between pulley
centres. A deflection of ±20 mm should be evident
when single-finger pressure is applied to a single belt.
-Dryfbandspanning (Fig. 5-T) moet halfpad tussen die
katrolsentrums gekontroleer word. Speling van ±20
mm
behoort met eenvingerdruk op ‘n enkele band sigbaar
te wees.
>F210 Tu fP o Finishing Mowe >F210 Tu fP o Finishing Mowe
The implement is equipped with a double, overlapping,
symmetrical v-belt drive system.
Die implement is toegerus met ‘n dubbele, oorvleuelende,
simmetriese v-band-dryfstelsel.
Adjusting drive belt tension (using right-hand side as
example).
Verstelling van dryfbandspanning (met regterkant as
voorbeeld).
17

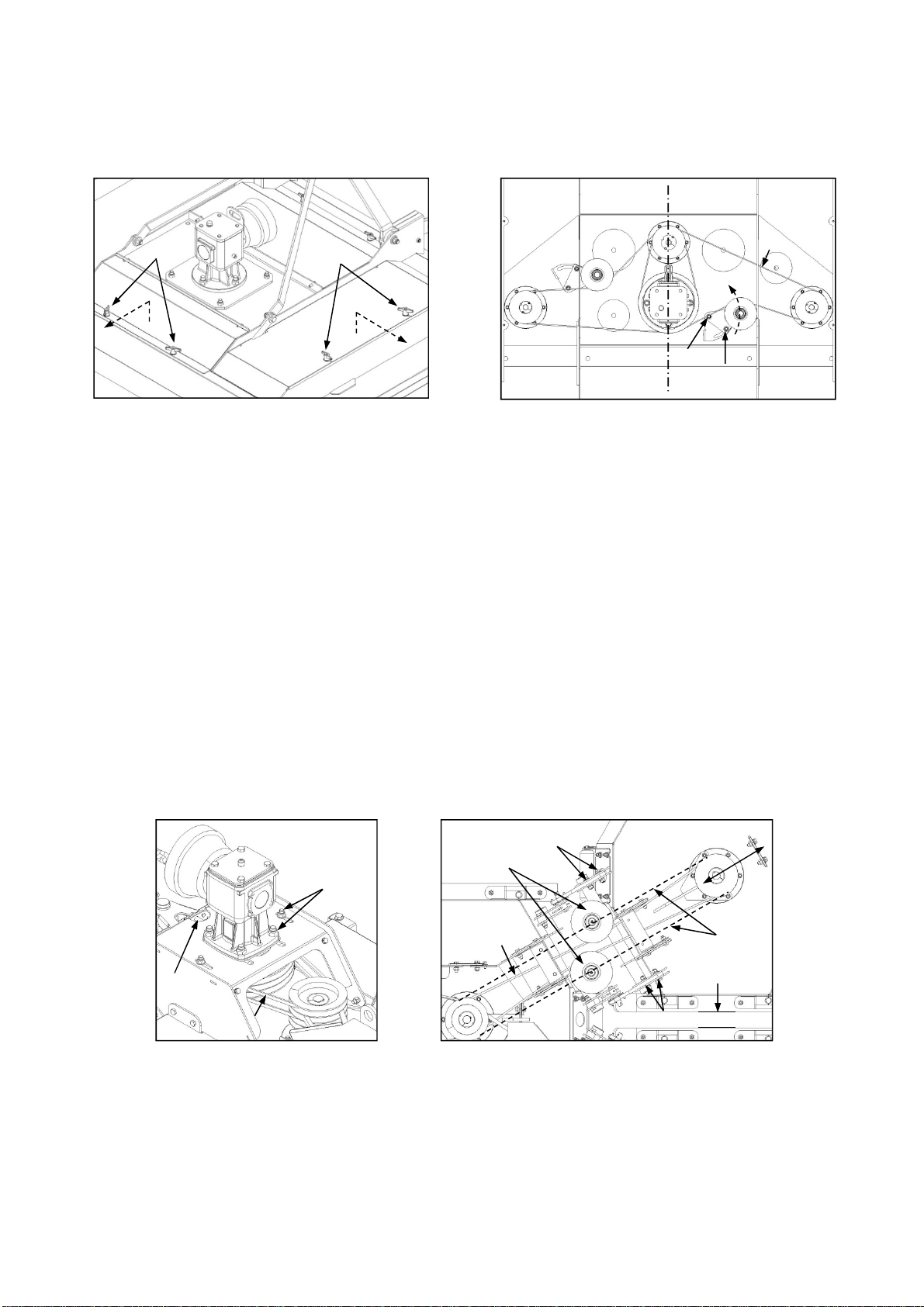

/Remove the plastic wingnuts (Fig. 4-A) on the right-
hand side and rear covers. Lift and slide out covers.
/Loosen the locking nut (Fig. 5-A) and pivot point nut
(Fig. 5-B) on the relevant belt tensioner.
/Verwyder die vleuelmoere (Fig. 4-A) aan die regter-
kantste en agterste dekplate. Lig en skuif plate uit.
/aak die sluitmoer (Fig. 5-A) en spilpuntmoer (Fig. 5-B)
aan die relevante bandspanner los.
Fig. 4 Fig. 5
/Press the belt tensioner pulley by hand ONLY, until the
appropriate belt tension is achieved.
/Retighten the locking nuts and pivot point nuts.
/Druk die bandspanner
katrol SLEGS met die hand, totdat
die gepaste bandspanning bereik word.
/Draai die sluitmoere en spilpuntmoere weer vas.
>Rotagang® >Rotagang®
The implement is equipped with both primary (front) and
secondary (rear) v-belt drive systems.
Die implement het sowel primêre (voor) en sekondêre
(agter) v-band-dryfstelsels.
Adjusting the primary drive belt tension. Verstelling van die primêredryfbandspanning.
/Remove the relevant drive belt cover.
/Loosen the primary belt adjuster locking nuts and
gearbox mounting bolts (Fig. 6-A).
/Adjust the front belt adjuster lead screw (Fig. 6-B) until
the appropriate belt tension is achieved.
/Retighten the primary belt adjuster locking nuts and
gearbox mounting bolts.
/Verwyder die relevante dryfbanddekplaat.
/Draai die primêre band se verstelsluitmoere en die
ratkasmonteerboute los (Fig. 6-A).
/Verstel die verstelleiskroef van die voorste band (Fig. 6-
B) totdat die gepaste bandspanning bereik word.
/Draai die primêre band se verstelsluitmoere en die
ratkasmonteerboute weer vas.
Fig. 6 Fig. 7
Adjusting the secondary drive belt tension. Verstelling van die spanning van die
sekondêredryfbandspanning.
/Place the implement on a solid, clean level surface -
such as a concrete floor.
/Remove the relevant drive belt covers.
/Plaas die implement op ‘n soliede, skoo, gelyk
oppervlak , soos ‘n sementvloer.
/Verwyder die relevante dryfbanddekplate.
A
A
T
A
B
T
A
B
A
A
B
T
D
C
E
18
