FINN & WINSTON FW811047 User manual

Please Note: Instructional images may vary
in style from the product you purchased.
EXPANDABLE
METAL GATE
FW811047_IM_R1 (Apr 2020)
EI BRAND MANAGEMENT INC.
2520 AVE MARIE-CURIE
SAINT-LAURENT
(QC) H4S 1N1
1-800-667-4111
[e-mail]
English

Failure to follow these warnings and the assembly instructions could result in serious injury or death.
If this gate is to be used with children:
1. Install according to manufacturer’s instructions.
2. This gate is suitable for openings up to 71 cm and 122 cm (28”- 48”).
3. Use only with the locking/latching mechanism securely engaged.
4. This product is intended for use with children from 6 – 24 months.
5. Never leave child unattended. This product will not necessarily prevent all accidents.
6. Never use with a child who is able to open or climb over the gate.
7. WARNING: Incorrect fitting or positioning of this safety barrier can be dangerous.
8. To prevent serious injury, never allow adults, children or pets to climb over or under the gate,
as it may damage this safety gate.
9. The surfaces that the safety gate is to be fixed to must be suitable for the purpose and must be
structurally sound. NOTE: Do not use this gate if it can’t be installed to walls, door frames or
posts – tightly and flatly.
10. DO NOT install this gate to hollow walls.
11. This safety gate must NOT be fitted across window openings and the like.
12. NOTE: Never use without Locking Hooks.
13. Securely install and operate the gate according to instructions to help prevent accidental injury.
14. Do not use the safety gate if any components are damaged or missing.
15. Install this gate away from heaters and other sources of heat.
16. This gate must NEVER be used as a pool or pond barrier.
17. Gate is not meant to replace proper adult supervision.
18. Always check that gate is locked after closing gate.
19. If the gate is used at the bottom of the stairs to prevent the child from climbing up the stairs,
it must be placed on the lowest stair.
20. If the gate is to be used at the top of the stairs to prevent the child from falling down the stairs,
it must not be placed on any stair below the level of the top stair. At the top of the landing,
position the gate 15 cm (6”) away from the top step.
21. Spacers are required when fitting gate to skirting board.
22. This product requires adult assembly.
23. For indoor use ONLY.
WARNING – The position of the safety barrier in relation to the stairs may have an adverse
effect on your child’s safety. KEEP INSTRUCTIONS FOR FUTURE USE. If you sell or give away
this product, make sure to give this instruction manual to the new owner. 2
WARNING
!
Need assistance?
Call our toll-free Consumer Relations help line at 1-800-667-4111
(Monday to Friday 8:30a.m. to 5:00p.m. - Eastern Time)
SOME ASSEMBLY REQUIRED
Gate Warnings

Failure to follow these warnings and the assembly instructions could result in serious injury or death.
If this gate is to be used with Pets:
•STOP using when pet can climb over or dislodge the gate.
•STRANGULATION HAZARD: Pets can force themselves into very small openings. Use this gate only
with pets whose heads and bodies WILL NOT fit into opening of the gate, between the gate and
the floor, or between the gate and the wall.
•Refrain from using a leash with your pet when using the product; pet could become entangled.
3
WARNING
!

Parts List
A (x8)
G (x1)
H (x1)
M (x1)
K L
N (x1)
I 1 (x1)
I 2 (x1)
J 1 (x1)
J 2 (x1)
O (x1) P (x1)
TOOLS REQUIRED
B (x8) C (x2) E (x1) F (x1)D (x2)
4

No. 1 “General Purpose” wall plug
Generally aerated blocks should
not be used to support heavy
loads, use a specialist fitting in
this case. For light loads, general
purpose wall plugs can be used.
No. 2 “Plasterboard”
wall plug
For use when attaching light loads
onto plasterboard partitions.
No. 5 “Hammer Fixing” wall plug
For use with walls stuck with
plasterboard. The hammer fixing
allows it to be fixed to the wall
rather than the plasterboard.
Always check the fixing is secure
to the retaining wall.
No. 6 “Shield Anchor ” wall plug -
heavy loads
For use with heavier loads such
as TV and HiFi speakers and
satellite dishes etc.
No. 3 “Cavity Fixing” wall plug
For use with plasterboard
partitions or hollow wooden
doors.
No. 4 “Cavity Fixing - Heavy
Duty” wall plug
For use when fitting or support-
ing heavy loads such as shelving,
wall cabinets and coat racks.
If plastic wall plugs (rawl plugs)
are supplied with your product,
e.g.:
- these are only suitable for use in
masonry walls.
If you are in any doubt about the
correct wall plugs for your wall,
seek professional advice.
Failure of the product due to using the
incorrect fixings is the responsibility
of the installer.
A Guide to Wall Mounting & Fixings
5
Make sure that the screws and wall plugs being used are
suitable for supporting your unit. Consult a qualified
tradesperson if you are unsure.
Hints:
1. General use: always use a larger screw and wall plug
if you are not sure.
2. Ensure you use the recommended drill bit to match the wall
plug and hole size.
3. Ensure you drill the hole horizontally; do not force the drill
or enlarge the hole.
4. Take extra care when drilling high walls, ceilings and ceramic
tiles. Ensure wall plugs are inserted beyond the thickness of
the ceramic tiles to avoid the tiles splitting or cracking.
5. Ensure wall plugs are well fitted and are a tight fit in the
drilled hole.
Important note:
Types of walls: You can use one of the following types of wall plug if your wall plugs are made
of brick, breeze block, concrete, stone or wood.
Care &
Maintenance
Safety: always check the fitting and
location to ensure your safety in and
around the home.
Fitting: from time to time check the
fitting to ensure the wall plugs or
screws do not become loose.
Important: when drilling into walls always check
that there are no hidden wires or pipes etc.
Wipe clean with damp cloth and mild soap. Do not use bleach. Dry with cloth.

6
Location
28” - 48”
71 cm - 122 cm

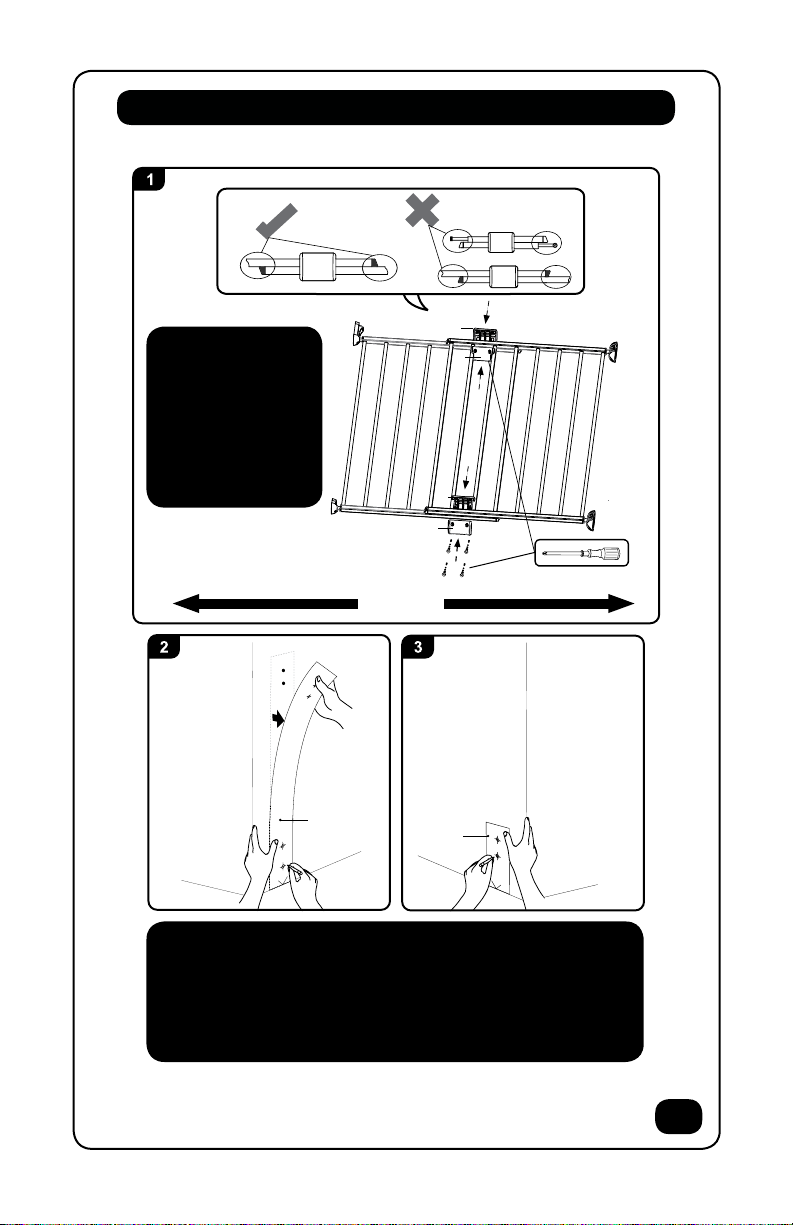

Installation
J 2
J 1
I 1
I 2
Before you begin,
measure the opening
to make sure your gate
is wide enough for the
entire opening. You could
adjust the dimension of
the gate with components
(I 1), (I 2), (J 1) and (J 2).
Cut the installation template following the dotted line.
Stick the longer one (G) in one side of wall and shorter one (H) to the directly
opposite wall.
The dotted line should be fully attached the floor and make sure the template
stand in vertical. Then mark the position of the holes.
7
G
H
28” - 48”
71 cm - 122cm

diameter broach
to drill holes on
the remarked
position.

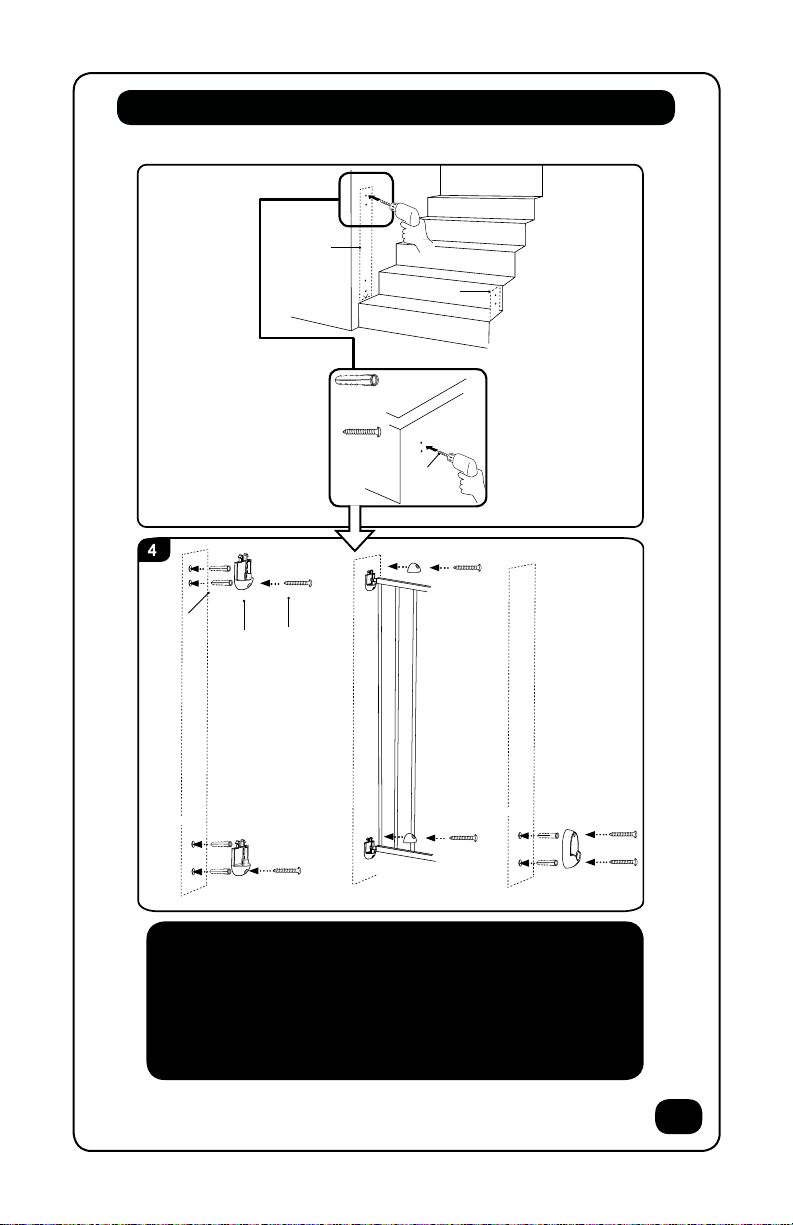

Installation (continued)
Drill 5 mm hole for the 6 marked positions, then put wall plugs (A), and
use screw (B) to fix component (C) and (F).
Adjust the gate width to fit the door width by bolts (K) and (L).
Caution: please refer to page 9 to make correct length adjustment.
Put on the gate on (C) and (F), then use screw (B) to fix component (D).
G
A (x8)
D
AB
F
C
B (x8)
1/5”
5mm
H
8

Installation (continued)
Locate the 2 holes position before (E) to be
mounted on the wall.
Drill 5 mm holes, put wall plug (A), then
use screw (B) to fix component (E).
9
E

Installation (continued)
Use the tools provided to adjust bolts (K) and (L) to make the gate width to fit
the door properly as below safety requirement:
Caution: To ensure that this distance between each side of the gate and the wall
is less than 60mm. Meanwhile, the distance between the fixed side of the gate
and wall must be more than 34mm.
34MM<L
L<60MM L<60MM
10

Operation
6
One-handed use, press down the button and lift the gate for two way opening.
Use the tools provided to adjust bolt (K) to get smooth lock and unlock
operation.
Caution: Check the lock function before each use!
11

Important Information:
Before you begin assembly, please read these directions. Make sure all pre-assembled parts are
tight. Store this instruction manual in a safe place, for future reference.
If a part is missing or if you have any questions, call us.
PLEASE DO NOT return product or parts to the store where they were purchased before calling us.
Please call us toll free at:
1-800-667-4111
Our service is fast, free and easier than returning the product.
Important: In order to help our customer service representatives better assist you, we require
that you complete the information below before calling:
Model Number:
Date:
Note: The label containing the Model Number and Manufacturer’s Date can be found behind
the lower gate mount.
Special Instructions
- This unit is guaranteed to meet all federal and provincial standards and will provide many years of
service provided you adhere to the guidelines provided for assembly, maintenance and operation.
- For parts or assistance, do not return to retailer where product was purchased.
Call or write at EI Brand Management Inc.
Limited Warranty
1 Year Limited Warranty
EI Brand Management Inc. will supply the original owner, without charge, any part discovered to be
missing at the time of purchase or found to be broken or defective during the 1 year warranty period.
The warranty begins on the date of purchase, as established by your purchase receipt. The model number,
date of manufacture, and the part description must be provided. The warranty does not apply to defects
caused by owner damage, product alteration, or unreasonable use. This warranty gives you specific legal
rights that may vary from province to province.
12

EI BRAND MANAGEMENT INC.
2520 AVE MARIE-CURIE
SAINT-LAURENT
(QC) H4S 1N1
1-800-667-4111
[e-mail]

EI BRAND MANAGEMENT INC.
2520 AVE MARIE-CURIE
SAINT-LAURENT
(QC) H4S 1N1
1-800-667-4111
[e-mail]

Renseignements importants :
Avant de commencer l’assemblage, lisez le présent livret d’instructions. Assurez-vous que les
pièces préassemblées sont solidement fixées. Rangez ce livret dans un endroit sécuritaire pour
vous y référer au besoin.
Pour toute question ou si une pièce est manquante, communiquez avec nous au numéro
ci-dessous. NE RETOURNEZ PAS le produit ou les pièces au magasin où ils ont été achetés
avant de nous téléphoner.
1-800-667-4111
Notre service est rapide et gratuit, et cette façon de procéder est plus facile que de retourner
le produit au magasin.
Important : Afin d’aider nos préposés à mieux vous répondre, veuillez noter les
renseignements ci-dessous avant de nous téléphoner :
Numéro de modèle :
Date:
Remarque : L’étiquette indiquant le numéro de modèle et la date de fabrication se
trouve à l’arrière de la monture inférieure.
Instructions spéciales
- Nous garantissons que ce produit satisfait à toutes les normes fédérales et provinciales et qu’il vous
servira pendant de nombreuses années, pourvu que vous respectiez les instructions d’assemblage,
d’entretien et d’utilisation
- Pour commander des pièces ou obtenir de l’aide, ne retournez pas le produit chez le détaillant où vous
l’avez acheté. Téléphonez ou écrivez plutôt à EI Brand Management Inc.
Garantie limitée
Garantie limitée d’un an
EI Brand Management Inc. fournira au propriétaire original, sans frais, toute pièce manquante au moment
de l’achat ou qui se brise ou devient défectueuse pendant la période de garantie d’un an.
La garantie entre en vigueur à la date d’achat, telle qu’établie par votre reçu de caisse. Vous devez fournir
le numéro de modèle, la date de fabrication et la description des pièces. La garantie ne s’applique pas
aux défauts résultant de dommages causés par le propriétaire, d’une modification du produit ou d’un
usage abusif. Cette garantie vous confère certains droits en vertu de la loi et ceux-ci peuvent varier d’une
province à une autre.
12

Fonctionnement
6
Utilisation d’une seule main : Appuyez sur le bouton et soulevez la barrière
pour la faire pivoter dans un sens ou dans l’autre.
Utilisez les outils fournis pour régler les boulons afin que la barrière s’ouvre
et se ferme sans difficulté.
Attention : Vérifiez le fonctionnement du verrou avant chaque utilisation!
11

Installation (suite)
À l’aide des outils fournis, réglez les boulons (K) et (L) de manière à bien
ajuster la barrière dans l’ouverture, conformément à la consigne de sécurité
ci-dessous.
Attention : Assurez-vous que l’espace entre le mur et la barrière est inférieur
à 60 mm de chaque côté. Toutefois, l’espace entre le mur et le côté fixe de la
barrière doit être supérieur à 34 mm.
34 MM<L
L<60 MM L<60 MM
10

Installation (suite)
Avant de fixer la pièce (E) au mur, marquez
l’emplacement des deux trous. Percez des
trous de 5 mm, insérez des pièces d’ancrage
(A), puis fixez la pièce (E) avec des vis (B).
E
9
