Flight Display Systems FD932DVD-BLU-2 Ver HDSDI User manual

Rev:
B
Revision Date:
08/23/2013
Page 1 of 27
MAN –FD932DVD-BLU-2 & FD932DVD-BLU-2 Ver HDSDI
Manufactured by MILIC, LLC with marketing support from Flight Display Systems.
This product does not have FAA PMA approval.
FD932DVD-BLU-2 & FD932DVD-BLU-2 Ver HDSDI
Installation and Operation Manual
Blu-ray/DVD/CD/MP3 Player
TECHNICAL SUPPORT
470-239-7421, or
www.FlightDisplay.com
All manuals and user guides at all-guides.com
all-guides.com

Rev:
B
Revision Date:
08/23/2013
Page 2 of 27
MAN –FD932DVD-BLU-2 & FD932DVD-BLU-2 Ver HDSDI
FD932DVD-BLU-2 & FD932DVD-BLU-2 Ver HDSDI
BLU-RAY/DVD/CD/MP3 PLAYER
© 2013 Flight Display Systems. All Rights Reserved.
Flight Display Systems
6435 Shiloh Road, Suite D
Alpharetta, GA 30005
678-867-6717 Phone
678-867-6742 Fax
[e-mail]
www.FlightDisplay.com
For the most current copy of all product manuals, please visit our website at
www.FlightDisplay.com
All manuals and user guides at all-guides.com

Rev:
B
Revision Date:
08/23/2013
Page 3 of 27
MAN –FD932DVD-BLU-2 & FD932DVD-BLU-2 Ver HDSDI
Table of Contents
General Information......................................................................................................................4
1. Features ..............................................................................................................................4
2. Front View..........................................................................................................................4
3. Discs Supported ................................................................................................................5
Specifications................................................................................................................................6
Installation Instructions .............................................................................................................6
1. Power ..................................................................................................................................7
2. Rear Panel output..............................................................................................................7
3. Assembly of Connector Spring Latch ............................................................................8
Video Wiring Suggestions .........................................................................................................9
1. Audio Wiring.....................................................................................................................9
2. Power and Ground Wiring............................................................................................10
HDMI ...........................................................................................................................................10

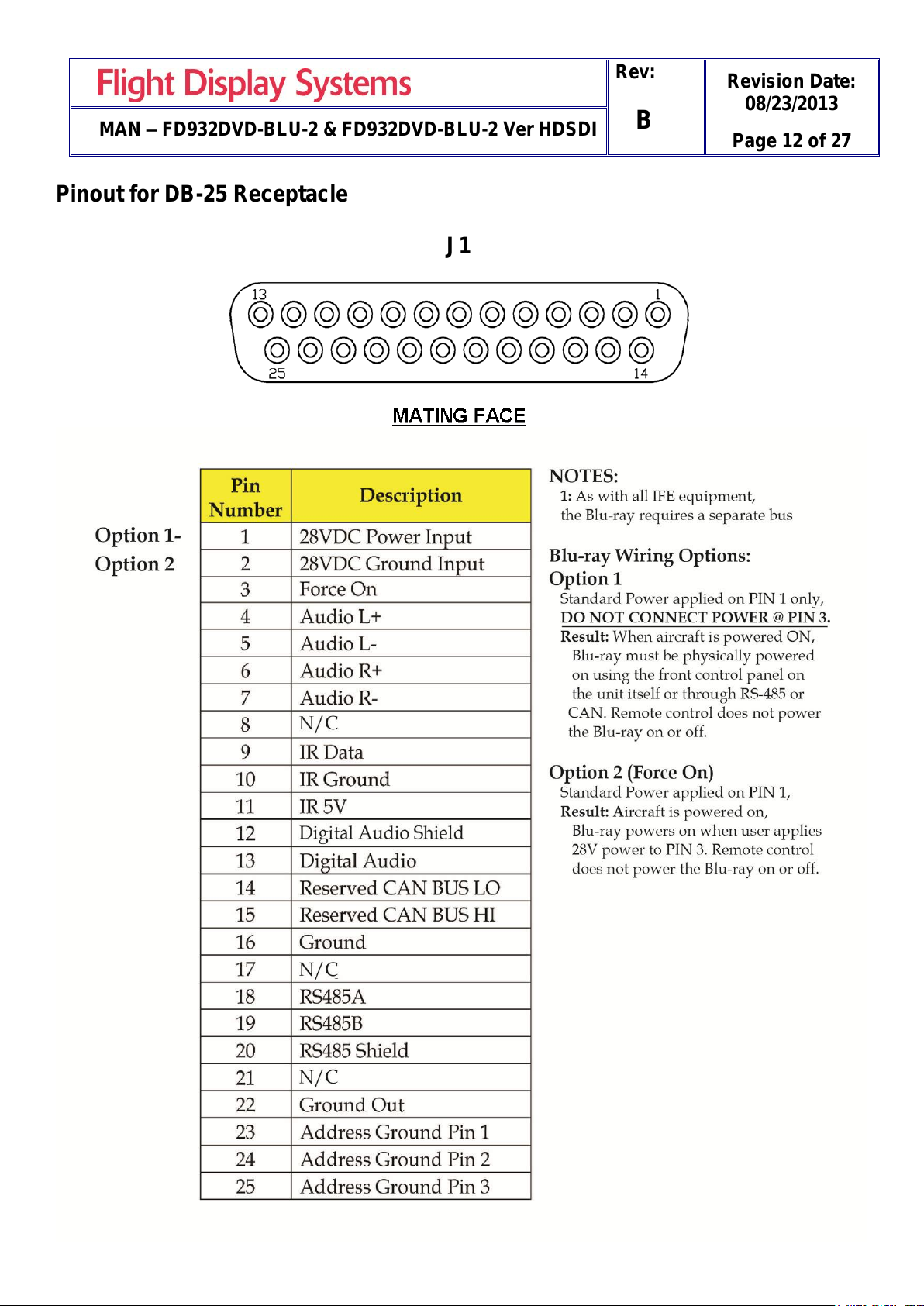

Pinout for DB-25 Receptacle ....................................................................................................12

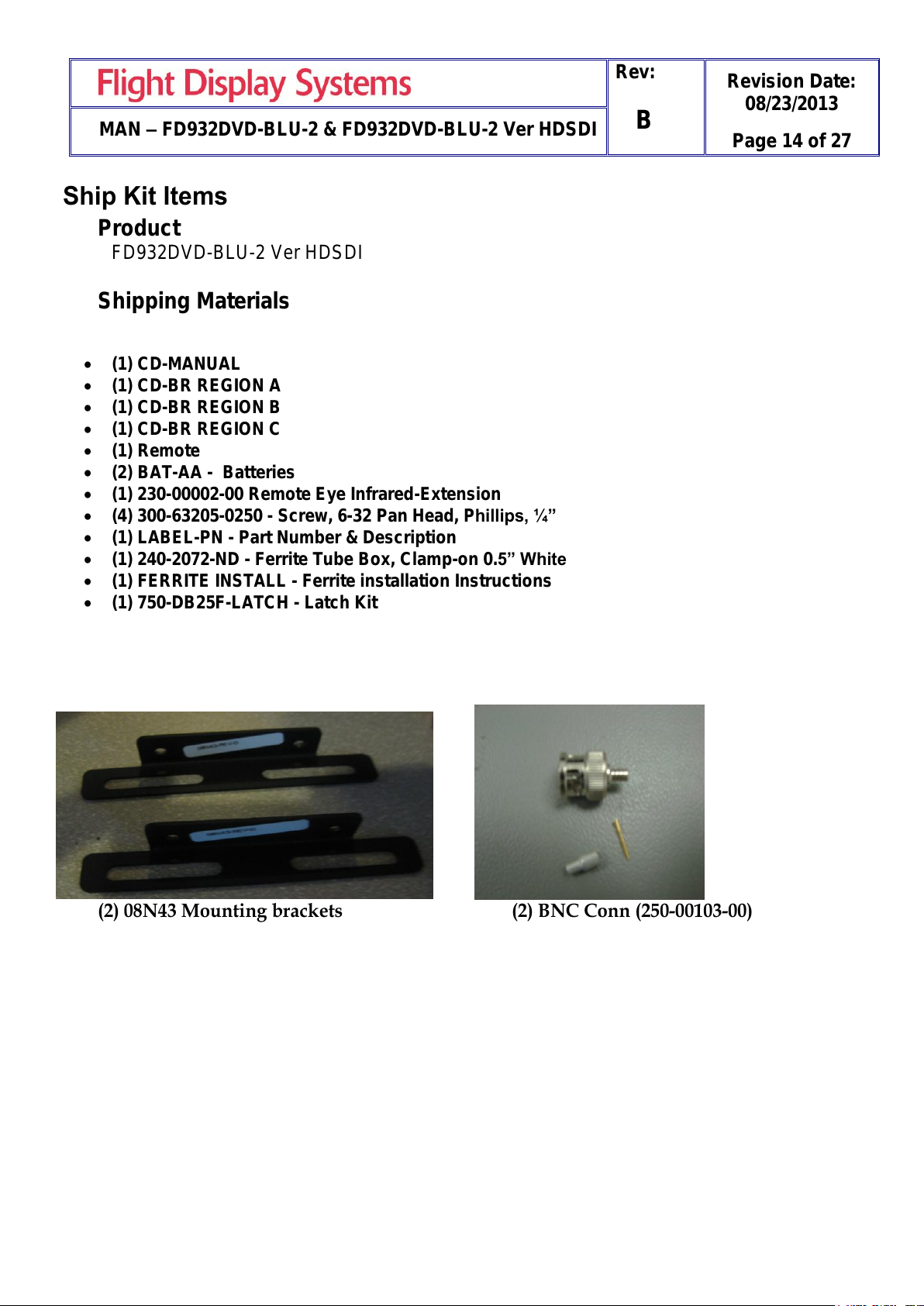

Ship Kit Items.............................................................................................................................13
RS485 Controls ...........................................................................................................................15
Remote Control...........................................................................................................................16
Infrared Control .........................................................................................................................18
Operating Instructions..............................................................................................................19
Operating with Remote ............................................................................................................20
Special Features..........................................................................................................................21
Region Codes ..............................................................................................................................22
Technical Drawing.....................................................................................................................23
Trouble Shooting .......................................................................................................................25
Technical Support/Airworthiness ..........................................................................................26
Warranty ......................................................................................................................................27
Log of Revisions.........................................................................................................................28
All manuals and user guides at all-guides.com

Rev:
B
Revision Date:
08/23/2013
Page 4 of 27
MAN –FD932DVD-BLU-2 & FD932DVD-BLU-2 Ver HDSDI
General Information
The FD932DVD-BLU-2/FD932DVD-BLU-2 Ver HDSDI player provides the flexibility to
watch movies in DVD or Blu-ray HD format up to 1080P/60Hz. This Blu-ray player features
a front slot which allows for mounting on various angles within the aircraft.
Features
Plays Blu-ray High-Definition discs (selectable output resolution: 1080p/60 Hz
signals available through HDMI output only)
Selectable 720p/1080i/1080p video up conversion for DVD (up converted video
available through HDMI output only)
Outputs for the FD932DVD-BLU-2 include (1) Composite Video and (1) HDMI
Outputs for the FD932DVD-BLU-2 Ver HDSDI include (1) Composite Video
and (1) HD-SDI
Analog and digital audio outputs
2-channel stereo audio outputs
Blu-ray playback through HDMI requires a HDCP compatible monitor
Front View
Caution
This Digital Video Disc player employs a laser system.
Use of controls, adjustments or the performance of procedures other than those specified
may result in hazardous exposure to radiation. To prevent direct exposure to laser beam,
do not try to open the enclosure.
DO NOT STARE INTO BEAM.
All manuals and user guides at all-guides.com

Rev:
B
Revision Date:
08/23/2013
Page 5 of 27
MAN –FD932DVD-BLU-2 & FD932DVD-BLU-2 Ver HDSDI
Ventilation
Slots and openings in the player are provided for ventilation, to ensure correct operation of
the product. These openings protect the unit from overheating and must not be blocked or
covered. It is recommended that the player have a minimum 1-inch of ventilation around
the unit and not be installed in a location that does not have circulating air.
The following types of discs are supported
Notes:
Writeable discs (DVD-RW, DVD-R) must be finalized, VR-mode only.
Playback may not work for some types of discs, or when specific operations, such as angle change
and aspect ratio adjustment, are being performed. Information about the discs is written in detail on
the box. Please refer to this if necessary.
Do not allow the disc to become dirty or scratched. Fingerprints, dirt, dust, scratches or deposits of
cigarette smoke on the recording surface will disrupt the proper operation and may prevent playback
of the disc.
MP3 files must be written to the disc with an .mp3 file extension in order to be recognized and played
back properly.
High bitrate or variable bitrate .mp3 and .wma files may not play back correctly.JPEG picture files
must be written to the disc with a .jpeg or .jpg file extension in order to be recognized and played back
properly.
Due to differing menu formats among Blu-ray and standard DVD-videos, the enter key may be required to
start some movies at the home screen, while the play key is required to start other movies at the home
screen. This can occur on both Blu-ray and standard DVD movies. If a movie does not start when
prompted, try using the enter button if play does not respond, or press the play button if enter does not
respond.
All manuals and user guides at all-guides.com

Rev:
B
Revision Date:
08/23/2013
Page 6 of 27
MAN –FD932DVD-BLU-2 & FD932DVD-BLU-2 Ver HDSDI
Specifications
Dimensions
7.00” (W) x 2.60” (H) x 8.57” (D)
Dimensions (with mounting
brackets)
8.25” (W) x 2.60” (H) x 8.57” (D)
Operating Temperature
0-50° C (32-122° F)
Output
HDMI with 1080p
(with locking Type A connector VER
1.4)
Composite Video NTSC/PAL (BNC
Connector)
Audio 2-channels Controls through
RS-485 & CAN
HD-SDI (FD932DVD-BLU-2 Ver
HDSDI)
Audio Output
(1) Analog, (1) SPDIF Digital
Power
28VDC, 750mA
Remote Control
IR, included& 12’ IR Extension Cable
Playback Media
CD-ROM/DVD-ROM/DVD-R
DVD-RW/Audio/CD/CD-R/CD-RW
Playback Formats
VC-1/MPEG2/JPEG/MP3
Weight
FD932DVD-BLU-2: 3 lbs
FD932DVD-BLU-2 Ver HDSDI: 3.3 lbs
DO-160 Testing
Section 21
Section 7 - Pending
Installation Instructions
All cabin entertainment equipment, such as the FD932DVD-BLU-2 & FD932DVD-BLU-2 Ver
HDSDI, should be installed on a non-essential bus and have a dedicated circuit breaker. The
units include two angle mounting brackets which can be installed at the top or bottom on each
side of the player. The FD932DVD-BLU-2 player also includes a strain relief bracket which is
used to secure the HDMI cable in place with a 3/16” cable tie. NOTE: Care should be taken to
ensure the units are not installed in an area with poor ventilation, or in an area with
excessive heat.
All manuals and user guides at all-guides.com
all-guides.com

Rev:
B
Revision Date:
08/23/2013
Page 7 of 27
MAN –FD932DVD-BLU-2 & FD932DVD-BLU-2 Ver HDSDI
Power
The FD932DVD-BLU-2 & FD932DVD-BLU-2 Ver HDSDI requires 28VDC rated at 750mA to
function.
Rear Panel Output/Mechanicals
1. VIDEO OUTPUT
HDMI Video output to HD monitor with HDMI connector (FD932DVD-BLU-2)
HD-SDI Video output to HD monitor or switch with BNC Connector (FD932DVD-BLU-2 Ver
HDSDI)
2. POWER/GROUND INPUT & AUDIO OUT, IR Extension, CAN BUS, RS-485
3. Composite/NTSC/PAL Video Output For Interface to Non HD Displays
All manuals and user guides at all-guides.com

Rev:
B
Revision Date:
08/23/2013
Page 8 of 27
MAN –FD932DVD-BLU-2 & FD932DVD-BLU-2 Ver HDSDI
Assembly of Connector Spring Latch
(WPI Interconnect Products P/N 17-529)
Unlocked
Locked
Spring Latch Assembly
Latch, Spring
#4-40
Screw
#4-40
Screw
Plate, Latch
Connector,
Either Pin
or Socket
Washer, Lock
#4-40
Nut, Hex
#4-40
Nut, Hex
Washer, Lock
Connector,
Either Pin
or Socket
Spring Latch
Mounting
Bracket
Spring Latch Assembly
All manuals and user guides at all-guides.com

Rev:
B
Revision Date:
08/23/2013
Page 9 of 27
MAN –FD932DVD-BLU-2 & FD932DVD-BLU-2 Ver HDSDI
Video Wiring Suggestions
Avoid routing video wiring parallel to:
AC wiring
Strobe wiring
DC motor supply cables
Inverter cabling
Or any other potential noise source.
Recommended cable for composite is PIC 75 Ohm Coax, P/N V75268 for HD-SDI output and
composite on FD932DVD-BLU-2 Ver HDSDI. This is a lightweight, flexible, and low signal loss
cable which meets FAA requirements of FAR 23.1359(d), FAR 25.853(a) and FAR
25.869(a)(4).
Similar aviation coaxial cable can be used from other vendors, as well.
Some aircraft are prone to AC noise - we recommend adding to the composite source a
75Ohmvideo isolation transformer such as Deerfield Laboratory, Inc. Part No. 162-1
(www.deerfieldlab.com, [phone]). In most cases this should be added to the video
output of the source.
Audio Wiring for Use with Single Ended Audio Inputs. (ie: FDACS)
For best performance, use four individual wires or two twisted pairs in a shielded cable.
The four audio wires would be connected to Left +, Left -, Right +, Right -.
All four wires will run from the Blu-ray player to the destination.
Left + and Right + connect to the Left and Right signal inputs respectively.
Left –and Right –will join together at the destination and connect to the receiving
equipment’s audio return pin. The shield will be connected to the fuselage at one place
only.
All manuals and user guides at all-guides.com

Rev:
B
Revision Date:
08/23/2013
Page 10 of 27
MAN –FD932DVD-BLU-2 & FD932DVD-BLU-2 Ver HDSDI
Audio Wiring for Use with Balanced Audio Inputs
For best performance, use two twisted pairs in a shielded cable or two individual
shielded twisted pairs.
One pair is connected to Left + and Left -. The other pair connects to Right + and Right -
All four wires will run from the Blu-ray player to the destination.
Left + and Left –connect to the receiving equipment’s Left channel input.
Right + and Right –connect to the receiving equipment’s Right channel input.
The shield will be connected to the fuselage at one place only.
NOTE: The FD932DVD-BLU-2/FD932DVD-BLU-2 Ver HDSDI has high impedance balanced
outputs instead of the more popular low impedance inputs. This is usually not a problem.
External audio level pads may be installed at the installer’s discretion.
Power and Ground Wiring
22 AWG or larger wire is recommended for Power and Ground applications.
HDMI
HDMI (High-Definition Multimedia Interface) defines the protocol and electrical
specifications for the signalling, pin-out, electrical, and mechanical requirements of cable
and connectors used for transmitting High-Definition content. The Type A HDMI connector
(shown below) has 19 pins with bandwidth to support all SDTV, EDTV, and HDTV modes.
The plug's outside dimensions are 13.9 mm wide by 4.45 mm high. There is no audio
output available on the HDMI cable.
ECS manufactures an HDMI cable that is terminated at the factory. It is ordered as part
number 600-19786-XXX, where XXX is the length in inches for the desired cable.
All manuals and user guides at all-guides.com

Rev:
B
Revision Date:
08/23/2013
Page 11 of 27
MAN –FD932DVD-BLU-2 & FD932DVD-BLU-2 Ver HDSDI
NOTE: On the following Pinout page, Pin 14, 15, 16 are reserved for CAN BUS
integration. The FD932DVD-BLU-2 & FD932DVD-BLU-2 Ver HDSDI is only
intended to easily integrate with the Flight Display Systems Select CMS. If more
information regarding the CAN BUS integration with this device is required
please contact Flight Display Systems Technical Support at 470-239-7421.
All manuals and user guides at all-guides.com
all-guides.com

Rev:
B
Revision Date:
08/23/2013
Page 12 of 27
MAN –FD932DVD-BLU-2 & FD932DVD-BLU-2 Ver HDSDI
Pinout for DB-25 Receptacle
J1
All manuals and user guides at all-guides.com

Rev:
B
Revision Date:
08/23/2013
Page 13 of 27
MAN –FD932DVD-BLU-2 & FD932DVD-BLU-2 Ver HDSDI
Ship Kit Items
Product
FD932DVD-BLU-2
Shipping Materials
(1) CD-MANUAL
(1) CD-BR REGION A
(1) CD-BR REGION B
(1) CD-BR REGION C
(1) Remote
(2) BAT-AA - Batteries
(1) 230-00002-00 Remote Eye Infrared-Extension
(4) 300-63205-0250- Screw, 6-32 Pan Head, Phillips, ¼”
(1) LABEL-PN –Part Number & Description
(1) 240-2072-ND –Ferrite Tube Box, Clamp-on 0.5” White
(1) FERRITE INSTALL- Ferrite installation Instructions
(1) 750-DB25F-LATCH- Latch Kit
(2) 800-00024-00 Cable Tie, Black
(2) 08N43 Mounting brackets (1) BNC Conn (250-00103-00)
All manuals and user guides at all-guides.com

Rev:
B
Revision Date:
08/23/2013
Page 14 of 27
MAN –FD932DVD-BLU-2 & FD932DVD-BLU-2 Ver HDSDI
Ship Kit Items
Product
FD932DVD-BLU-2 Ver HDSDI
Shipping Materials
(1) CD-MANUAL
(1) CD-BR REGION A
(1) CD-BR REGION B
(1) CD-BR REGION C
(1) Remote
(2) BAT-AA - Batteries
(1) 230-00002-00 Remote Eye Infrared-Extension
(4) 300-63205-0250 - Screw, 6-32 Pan Head, Phillips, ¼”
(1) LABEL-PN - Part Number & Description
(1) 240-2072-ND - Ferrite Tube Box, Clamp-on 0.5” White
(1) FERRITE INSTALL - Ferrite installation Instructions
(1) 750-DB25F-LATCH - Latch Kit
(2) 08N43 Mounting brackets (2) BNC Conn (250-00103-00)
All manuals and user guides at all-guides.com

Rev:
B
Revision Date:
08/23/2013
Page 15 of 27
MAN –FD932DVD-BLU-2 & FD932DVD-BLU-2 Ver HDSDI
RS485 Controls
Full control of the FD932DVD-BLU-2 & FD932DVD-BLU-2 Ver HDSDI can be achieved through a
standard RS485 port on the rear panel. All controls available on the front panel and all controls on
the Blu-ray remote control are supported. Please refer to the DB25 connector diagram in the
FD932DVD-BLU-2 & FD932DVD-BLU-2 Ver HDSDI manual for connection information.
RS485 Port Configuration: The RS-485 port is standard 9600 baud, no parity, 8 data bits, 1 stop bit,
and no flow control. It is standard two wires half duplex.
Command Format : <Prefix><Device ID><Address><Command><Termination>
Prefix: One Character. All RS-485 remote commands must start with the “!” character.
Device ID: Two Characters. “BR” identifies all commands directed to the Blu-ray player.
Address: One character in the range of0 - 7.See Address section below.
Termination: One Character; ASCII CR. Each command must end with Carriage Return<CR>.
PA Command: PA on will enable PA interrupt.
Command Notes: Each command number corresponds to a remote control pushbutton as shown in
the figure shown below. An optional ASCII Line Feed Char permitted after the Carriage Return
character.
Example:
!BR135<CR> will send a command to Blu-ray player number 1 to play.
!BR139<CR> will send a command to Blu-ray player number 1 to stop playback.
!BR039<CR> will send a command to all Blu-ray players to stop playback.
!BR0PAOFF<CR> will disable PA interrupt.
All manuals and user guides at all-guides.com

Rev:
B
Revision Date:
08/23/2013
Page 16 of 27
MAN –FD932DVD-BLU-2 & FD932DVD-BLU-2 Ver HDSDI
Remote Control
Actual Remote for button reference
Image for RS485 Control Reference
with command number layover for
available commands
Available Commands
All manuals and user guides at all-guides.com
all-guides.com

Rev:
B
Revision Date:
08/23/2013
Page 17 of 27
MAN –FD932DVD-BLU-2 & FD932DVD-BLU-2 Ver HDSDI
RS485 Commands Cont’d
PA Commands:
“PA ON” will enable PA interrupt.
“PA OFF” will disable PA interrupt.
NOTE: “PA ON” command must be received every 9 seconds or interrupt will time out.
Addresses:
Up to 7 Blu-ray players can easily exist on the same CAN bus. Each unit must have a unique
address assigned to it in the range 1 through 7 to permit the commands issued from the
remote controllers to be received by the correct units. Use the chart below for information on
setting the address of each Blu-ray player. If there is a dot in the pin column of the chart then
connect that pin to Pin 22. Up to three address pins may be connected to Pin 22 at the same
time.
Examples:
If there is a single Blu-ray player in a system, then it should be set to address 1. The player will
be referenced in all Flight Display Configuration Documents as Blu-ray Player #1 or “The Blu-
ray Player.”
If there are two Blu-ray players in a system, then one should be set to address 1 and the other
should be set to address 2. The player that is set to address 1 will be referenced in all Flight
Display Configuration Documents as Blu-ray Player #1. The other Blu-ray Player will be
referenced as Blu-ray Player #2.
If there are three Blu-ray Players, then the Blu-ray player referenced as Blu-ray #1 in the Flight
Display Configuration Documents should be set to address 1, the Blu-ray player referenced as
Blu-ray #2 should be set to address 2, and the Blu-ray player referenced as Blu-ray #3 should
be set to address 3.
This addressing system is used for all installations containing from one to seven players.
= connect to ground (Pin 22)
Address
Pin 23
Pin 24
Pin 25
1


2


3

4


5

6

7
All manuals and user guides at all-guides.com

Rev:
B
Revision Date:
08/23/2013
Page 18 of 27
MAN –FD932DVD-BLU-2 & FD932DVD-BLU-2 Ver HDSDI
Infrared Control
The FD932DVD-BLU-2 & FD932DVD-BLU-2 Ver HDSDI has the ability to use an infrared
external eye, which is supplied by Flight Display Systems. The following guidelines should be
met when using the external IR eye to insure correct and optimal operation.
IR Data, IR Ground, and IR 5V pins on DB25 connector listed above are intended
for use by supplied 12’ IR remote receiver only.
IR Data line can be used on open-collector style IR receivers. The line needs to be
in a Tri-state condition while not in use.
Contact Flight Display Systems before installing different IR control schemes
All manuals and user guides at all-guides.com

Rev:
B
Revision Date:
08/23/2013
Page 19 of 27
MAN –FD932DVD-BLU-2 & FD932DVD-BLU-2 Ver HDSDI
Operating Instructions Using Front panel and Remote Control
In addition to the basic operating controls using the front panel listed above, the remote
control can be used for added functionality. See additional functionality listed on the next
page.
Basic Playback
1. Press the PWR button on the front panel to turn
on your player.
2. Turn on the monitor, than select the input setting
on the monitor that matches the connection
method used to connect your player.
3. Press EJECT to open the disc tray.
4. Place a disc on the disc tray with the label facing
up, then press EJECT to close the disc tray. It
may take a few seconds for the disc to load.
5. If the disc does not start playing automatically,
press PLAY.
6. If a Blu-ray Disc or DVD menu opens, press
PLAY >or ENTER to begin playback.
7. To eject the disc, press EJECT .
NOTES:
The device will enter screen saver status (Black
screen) automatically after five minutes of the
following conditions:
1. Eject or No Disc;
2. “Pause” or “Stop” during MP3/CD/WMA/DVD/
JPEG/BD playback; Pressing any key on remote
control or face panel will deactivate the black
screen saver immediately.
Stop Playback
1. Press the STOP button to go to stop mode,
the monitor screen will show the start logo.
Some discs can recall to the location where it
was stopped, such as a Blu-ray disc.
2. Press PLAY >to resume playback from the
location where playback has been stopped or
from the beginning of the disc.
3. Press STOP twice to stop completely.
Note: Not all Blu-ray Discs support the resume
feature. The resume information is saved even when
the power is turned off.
Playback
1. Press PLAY >to resume normal playback.
Previous and Next
Pressing the PREV will take you back to the
previous chapter unless it is pressed within the
first five seconds of the current chapter. In that
case it will start at the beginning of the current
chapter. Each press of NEXT key during
playback will skip the current chapter and play
the next one.
Notes:
1. may appear on the monitor during
operation. A means that the operation is not
permitted by the unit or the disc.
All manuals and user guides at all-guides.com

Rev:
B
Revision Date:
08/23/2013
Page 20 of 27
MAN –FD932DVD-BLU-2 & FD932DVD-BLU-2 Ver HDSDI
Operating with the Remote
About 7m 30° 30°
Distance: Approximately 7m (23 feet) from
The front of the remote sensor.
Angle: Approximately 30° in each direction
of the remote sensor.
Dot not exposes the remote sensor
Of the unit to a strong light source
such as direct sunlight or other
Illumination. If you do so, you may
not be able to operate the unit via
the remote control.
Notes on the remote control
Point the remote control at the remote sensor of the unit.
Do not drop or give the remote control a shock.
Do not leave the remote control near an extremely hot or humid place.
Do not spill water or put anything wet on the remote control.
Do not open the remote control.
All manuals and user guides at all-guides.com
