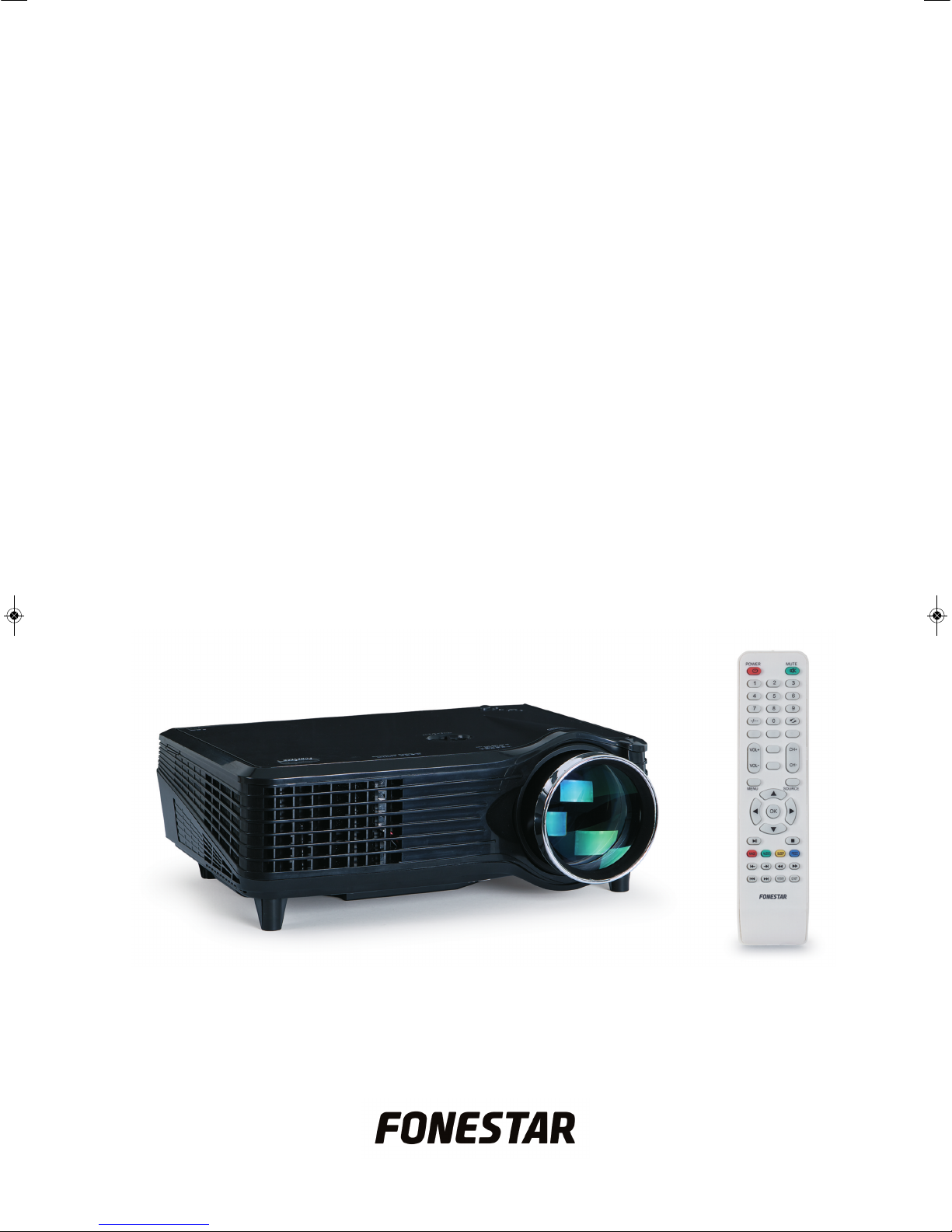

FONESTAR PR-1501 User manual

PR-1501
LED PROJECTOR
INSTRUCTION MANUAL
PR-1501_MANUAL_(EN)_20170607-2_Maquetación 1 7/6/17 13:36 Pá ina 1

EN
- 2-
We take this opportunity to thank you for buying this product.
We recommend you read the instruction manual before switching on the machine and follow the instructions
that are given. Keep the manual for future reference.
SECURITY AND THE ENVIRONMENT
ELECTRICAL SECURITY
Check that the current in the mains connection where the machine is to be installed corresponds to the
power supply of the machine.
To avoid damaging the equipment, electrical shocks, fire or physical injury when you connect or disconnect
the equipment from the power supply, pull the plug firmly out of the mains socket holding the plug, never the
cable.
Always do this with dry hands.
Keep the power supply cable far from sources of heat. Do not put heavy objects on top of it or change it.
Clean dust and dirt off the power supply cable regularly.
Do not open the machine; you could get an electric shock.
CAUTION
While installing the machine, make sure it is switched off and unplugged.
Do not open the machine. Touching the internal parts is dangerous and you could receive an electric shock.
The machine must not be splashed or dripped on. Never place recipients with liquid inside on the machine.
Do not place anything inside the machine.
LOCATION
Place the equipment on a horizontal surface with enough space around it to allow ventilation.
Avoid direct sunlight, heat sources and excessive dust.
Do not place the machine near magnetic fields or static electricity.
Do not use surfaces which vibrate or receive impact.
Do not pile machines on top of one another.
VENTILATION
Never block or cover the ventilation slits on the machine.
Do not expose it to direct sunlight or place it near sources of heat.
PERIODS OF INACTIVITY
When the machine is not going to be used for a long period of time, disconnect it from the mains.
If you are using an adapter, take into account that it will continue using electricity even if the machine is
switched off. If it is not going to be used for a long period of time, disconnect it from the mains.
THE ENVIRONMENT
To save energy, switch the machine off when you are not going to use it for a long time. The machine could
contain substances that are harmful to the environment or human health. To minimize the effect of these
substances the machine must be correctly managed and recycled when you decide to dispose of it.
When you dispose of it remember: it cannot be thrown into a conventional rubbish bin.
If it contains or uses batteries, these must be disposed of separately.
The machine (without batteries) must be disposed of correctly. Put it in a container specially intended for the
collection of electronic and electrical appliances, at the dump or hand it over to the dealer when you purchase
similar equipment, so that the dealer can dispose of it correctly (at no added cost).
PR-1501_MANUAL_(EN)_20170607-2_Maquetación 1 7/6/17 13:36 Pá ina 2

EN
- 3-
SIGNIFICANCE F THE SYMB LS N THE MACHINE*
The symbol formed by the expression “Class 1 laser product” written in a rectangle
indicates that visible or invisible laser radiation could be produced. Avoid direct exposure
to the laser.
The symbol formed by a ray of lightening inside a triangle shows that the machine has
connection terminals or a circuit with areas with a current which could cause an electric
shock, even in normal working conditions.
The symbol formed by an exclamation mark in a triangle shows that the instruction manual
must be referred to for information on how the machine works and its use.
The symbol formed by one square inside another square shows that the machine has
double electrical insulation.
The European Community symbol shows that the machine complies with the current
European Union legislation, as well as its transposition to local legislation.
The symbol of a rubbish bin crossed out and over a horizontal line shows that when the
product is disposed of it must be done properly, placing it in a special selective electronic
and electrical equipment container or through a dealer when purchasing a similar product,
at no additional cost. It also shows that the machine was put on the market after 13th
August 2005 (European Community Directive 2002/96/CE of Electrical and Electronic
recycling, and its Spanish equivalent R.D.208/2005).
In accordance with what is set out in the aforementioned decree, FONESTAR is registered
in the RAEE (Registro de Aparatos Eléctricos y Electrónicos) in a special section REI
(Registro de establecimientos Industriales), with the entry number 001851.
*It is possible that some of these symbols do not appear on the machine.
EXEMPTI N F LIABILITY
The characteristics of the equipment and the content of the manual can change without forewarning.
F NESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the
information supplied in this instruction manual, and specifically disclaims any implied liability for marketability
or fitness for any other use.
All rights reserved by F NESTAR, S.A.
PR-1501_MANUAL_(EN)_20170607-2_Maquetación 1 7/6/17 13:36 Pá ina 3

EN
- 4-
DESCRIPTI N
- LED projector, 1,500 lumens maximum, 400 lumens ANSI, with long-lasting LED lamp (50,000 hours). For
screens from 60" to 120". SVGA resolution (800 x 600) supports 1080p.
- It has trapezoidal correction allowing manual adjustment of the image position. It allows you to select a
projection type: desktop, ceiling, projection from the front or from the back.
C NTR LS AND FUNCTI NS
UPPER PANEL
1.- N/ FF: projector on/off button.
2.- IR: infrared receiver for the remote control.
3.- Tra-Corr: Trapezoidal correction adjustment. Allows the image to be adjusted manually in case it is
deformed due to the projector not being at the correct height.
4.- F CUS: to focus the projector manually.
REAR PANEL
1.- HDMI 1: audio/video input, HDMI connectors.
2.- Video input through components Y, Pb, Pr, 3 x RCA connectors.
3.- V in: composite video input, RCA connector.
4.- IR: infrared receiver for remote control.
5.- R-out/L-out: audio output, 2 x RCA connectors.
6.- RGB in: video input, VGA connector.
7.- USB 1/2: USB storage device connection ports.
8.- Power supply connector.
PR-1501_MANUAL_(EN)_20170607-2_Maquetación 1 7/6/17 13:36 Pá ina 4

REM TE C NTR L
1.- P WER: button for selecting between standby mode or on.
2.- 0-9: number buttons.
3.- -/--: buttons to select entering 1 or 2 digits.
4.- V L +/V L -: internal loudspeaker volume adjustment.
5.- MENU: displays main menu.
6.- Navigation buttons for different menu options.
7.- 12: start and pause file playback.
8.- IMAGE: allows image mode to be selected on the screen.
9.- AUDI : allows audio mode to be selected on the screen.
10.- [: previous selection.
11.- ]: next selection.
12.- 7: direct rewind to previous file.
13.- 8: direct forward to next file.
14.- MUTE: activates/deactivates audio output.
15.- *: function not available.
16.- CH +/CH -: channel selection.
17.- S URCE: allows selection among different input sources.
Press the SOURCE button once and then the navigation
buttons up (w) and down (s) to select the required source.
Press OK to confirm the selection.
18.- K: confirms the selected option in the menus.
19.- 3: stops playback.
20.- FREEZE: function not available.
21.- SLEEP: allows the sleep timer to be selected on the screen.
22.- 6: fast forward.
23.- 5: fast rewind.
24.- EXIT: to exit current menus and submenus.
25.- R TATE: to rotate photos or images.
EN
- 5-
PR-1501_MANUAL_(EN)_20170607-2_Maquetación 1 7/6/17 13:36 Pá ina 5

EN
- 6-

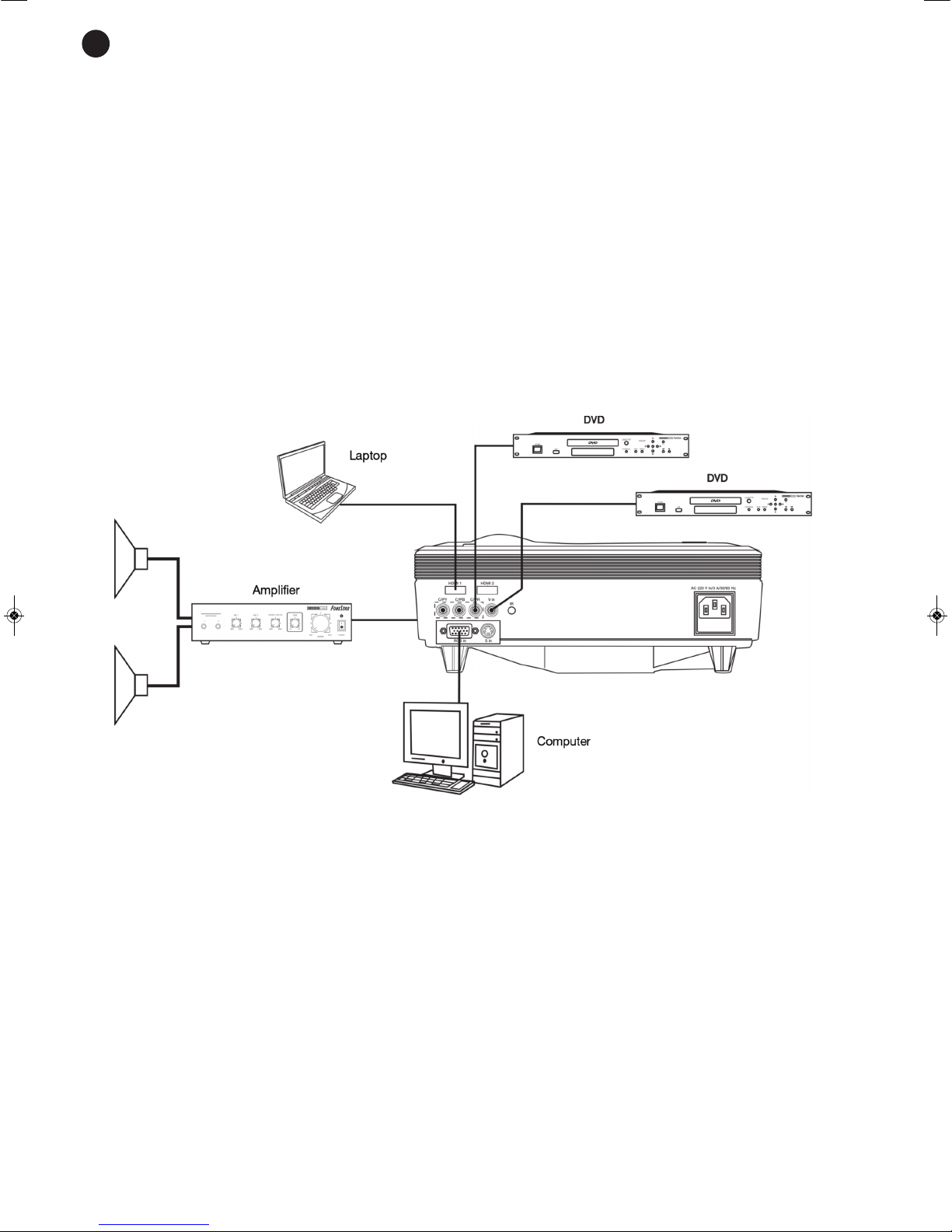

C NNECTI N
Before making any connection, switch off all the equipment and disconnect it from the mains.
We recommend you read the whole manual before connecting the equipment.
The general connection procedure is as follows:
-Firstly, connect the required audio/video sources to the corresponding inputs on the projector. You can
connect, for example, a computer with HDMI or VGA output, a DVD player with video output through
components or a video player with composite video RCA output.
If you wish, you can connect a USB storage device to the corresponding ports to be able to reproduce
videos, photos, music and text files.
- Connect the 2 x RCA projector audio output to an amplifier to amplify the audio through loudspeakers, if
you wish.
- Once the connections have been made according to your needs, connect the equipment to the mains and
switch it on.
- Press the ON/OFF button on the projector or the qbutton on the remote control to switch the projector
on.
Note: switch off the projector using the ON/OFF button. The fan will continue working to ensure the correct
cooling down of the device. Do not disconnect the projector from the power supply immediately.
PR-1501_MANUAL_(EN)_20170607-2_Maquetación 1 7/6/17 13:36 Pá ina 6

INSTRUCTI NS F R USE
INPUT SELECTI N
Press the SOURCE button on the remote control to access the list of inputs and select the input you would
like to view.
Select the required input using the navigation buttons up (w) and down (s) on the remote control and then
press the OK confirmation button.
If there is no input signal available, the projector will display the message NO SIGNAL.
.
- 7-
EN
PR-1501_MANUAL_(EN)_20170607-2_Maquetación 1 7/6/17 13:37 Pá ina 7

EN
- 8-
C NFIGURATI N MENUS
Press the MENU button on the remote control to access the 4 projector configuration menus. These 4 menus
are: IMAGE, AUDIO, TIME and OPTIONS. You can browse through them using the navigation buttons left (a)
and right (d) on the remote control.

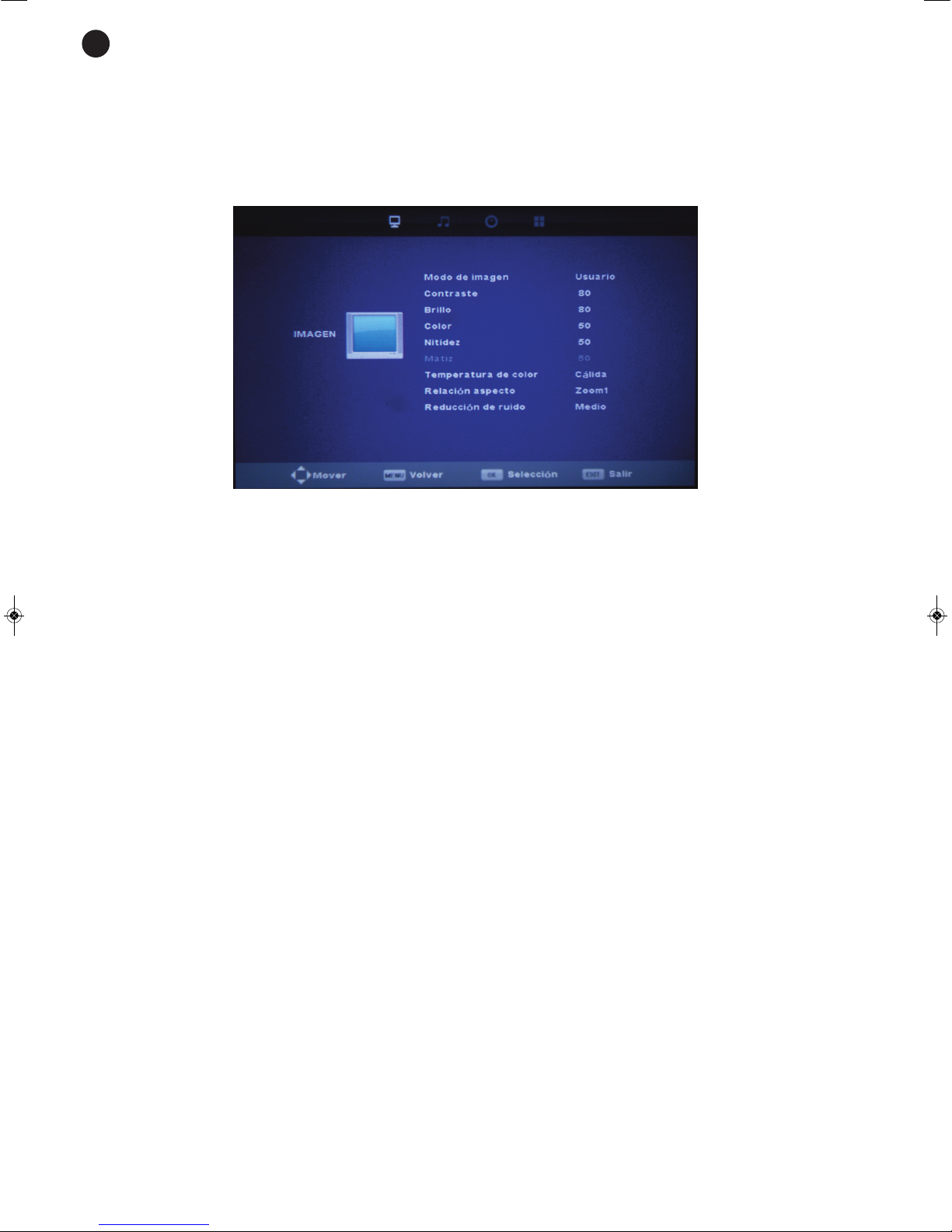

IMAGE MENU
Use the up (w) and down (s) navigation buttons on the remote control to place the cursor on the required
option in this IMAGE menu. Then press the OK button to access the corresponding submenu.
IMAGE M DE
Selecting the User option allows configuration of the following characteristics: contrast, brightness, colour,
and image sharpness and tint.
It also has predefined options that are not configurable by the user such as the dynamic, standard and mild
modes.
- User
- Contrast
- Brightness
- Colour
- Sharpness
- Tint (it is not possible to modify this value)
- Standard
- Mild
- Dynamic
C L UR TEMPERATURE
It allows you to change, in the User option, the tone level of the colours red, green and blue.
It also has predefined options that are not configurable by the user such as the cold, normal and warm
modes.
- User
- Red
- Green
- Blue
- Cold
- Normal
- Warm
PR-1501_MANUAL_(EN)_20170607-2_Maquetación 1 7/6/17 13:37 Pá ina 8

EN
- 9-
ASPECT RATI
Allows the projector’s aspect ratio to be configured in the following modes:
- Full
- Zoom 1
- Zoom 2
- 16:9 (x1)
- 16:9 (x2)
- 4:3
- Down 1-6
N ISE REDUCTI N
Allows the projector’s noise reduction to be configured in the following modes:
- Off
- Low
- Medium
- High
PR-1501_MANUAL_(EN)_20170607-2_Maquetación 1 7/6/17 13:37 Pá ina 9

EN
- 10 -
AUDI MENU
Use the navigation buttons up (w) and down (s) on the remote control to place the cursor on the required
option in this AUDIO menu. Then, press the OK button on the remote control to access the corresponding
submenu.
AUDI M DE
Selecting the Personal option allows the equalization level of the different frequencies of the sound projector
to be configured.
It also has predefined options that are not configurable by the user such as standard, music, movie and sport
modes, which are the most suitable audio equalizations for these applications.
- Personal
- 120 Hz
- 500 Hz
- 1.5 kHz
- 5 kHz
- 10 kHz
Select the required value between 0 and 100 using the navigation buttons left (a) and right (d).
- Standard
- Music
- Movie
- Sport
BALANCE
Allows the audio balance of the projector’s output to be configured when the audio is split into two channels.
Use the navigation buttons left (a) and right (d) to modify this value between -50 and +50.
AUT MATIC V LUME
Allows the activation(on) or deactivation (off) of the automatic volume of the projector to be configured.
SURR UND S UND
Allows the activation(on) or deactivation (off) of the surround sound of the projector to be configured.
PR-1501_MANUAL_(EN)_20170607-2_Maquetación 1 7/6/17 13:37 Pá ina 10

EN
- 11 -
TIME MENU
Use the navigation buttons up (w) and down (s) on the remote control and place the cursor on the required
option in this TIME menu. Then, press the OK button on the remote control to access the corresponding
submenu.
CL CK
Allows the projector’s time and the date to be configured:
- Day
- Month
- Year
- Time
- Minute
DISC NNECTI N TIMER (SWITCH- FF TIME)
Allows the hour and minute of automatic disconnection of the projector to be configured. It has several
repetition and selection options:
- Off
- Once
- Every day
- Monday - Friday
- Monday - Saturday
- Saturday - Sunday
- Sunday
C NNECTI N TIMER (SWITCH- N TIME)
Allows the hour and minute, input signal source and internal loudspeaker volume of the automatic connection
of the projector to be configured. It has several repetition and selection options:
- Off
- Once
- Every day
- Monday - Friday
- Monday - Saturday
- Saturday - Sunday
- Sunday
PR-1501_MANUAL_(EN)_20170607-2_Maquetación 1 7/6/17 13:37 Pá ina 11

EN
- 12 -
SLEEP TIMER
Allows a countdown timer to be configured to automatically disconnect the projector. It has several options:
- Off
- 10 minutes
- 20 minutes
- 30 minutes
- 60 minutes
- 90 minutes
- 120 minutes
- 180 minutes
- 240 minutes

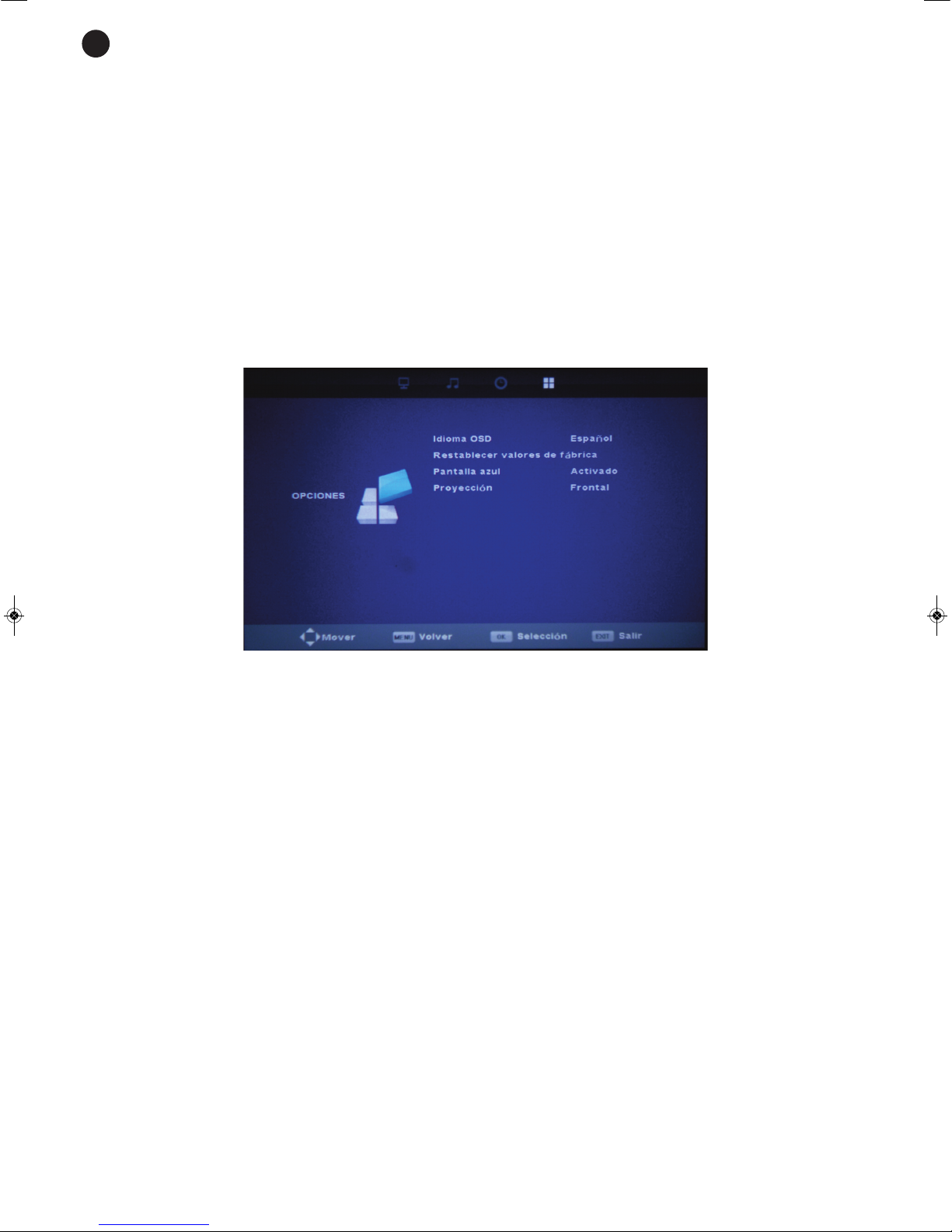

MENU PTI NS
Use the navigation buttons up (w) and down (s) on the remote control and place the cursor on the option
required in this OPTIONS menu. Then, press the OK button on the remote control to access the
corresponding submenu.
SD LANGUAGE
Allows the projector’s OSD menu language to be configured. Use the navigation buttons to select among the
available options.
REST RING FACT RY SETTINGS
Allows the projector to be restored to factory settings. If this option is selected, you must confirm your
selection by pressing the OK button again on the remote control.
BLUE SCREEN
Allows the projector’s blue background screen to be activated or deactivated.
PR JECTI N
Allows the direction the images are projected in by the projector to be configured in the following modes:
- Front
- Inverted
- Front ceiling
- Inverted ceiling
PR-1501_MANUAL_(EN)_20170607-2_Maquetación 1 7/6/17 13:37 Pá ina 12

EN
- 13 -
USB MENU
Press the SOURCE button on the remote control and select the device USB 1 or USB 2 as a signal input
source.
When the USB storage device has been connected, press the MENU button on the remote control to access
the USB menu. The USB menu is composed of 4 categories: PHOTO, MUSIC, MOVIE and TEXT. You can
navigate among them using the navigation buttons left (a) and right (d) on the remote control.
Press this button to alternate between the USB menu and the configuration menu.
PH T MENU

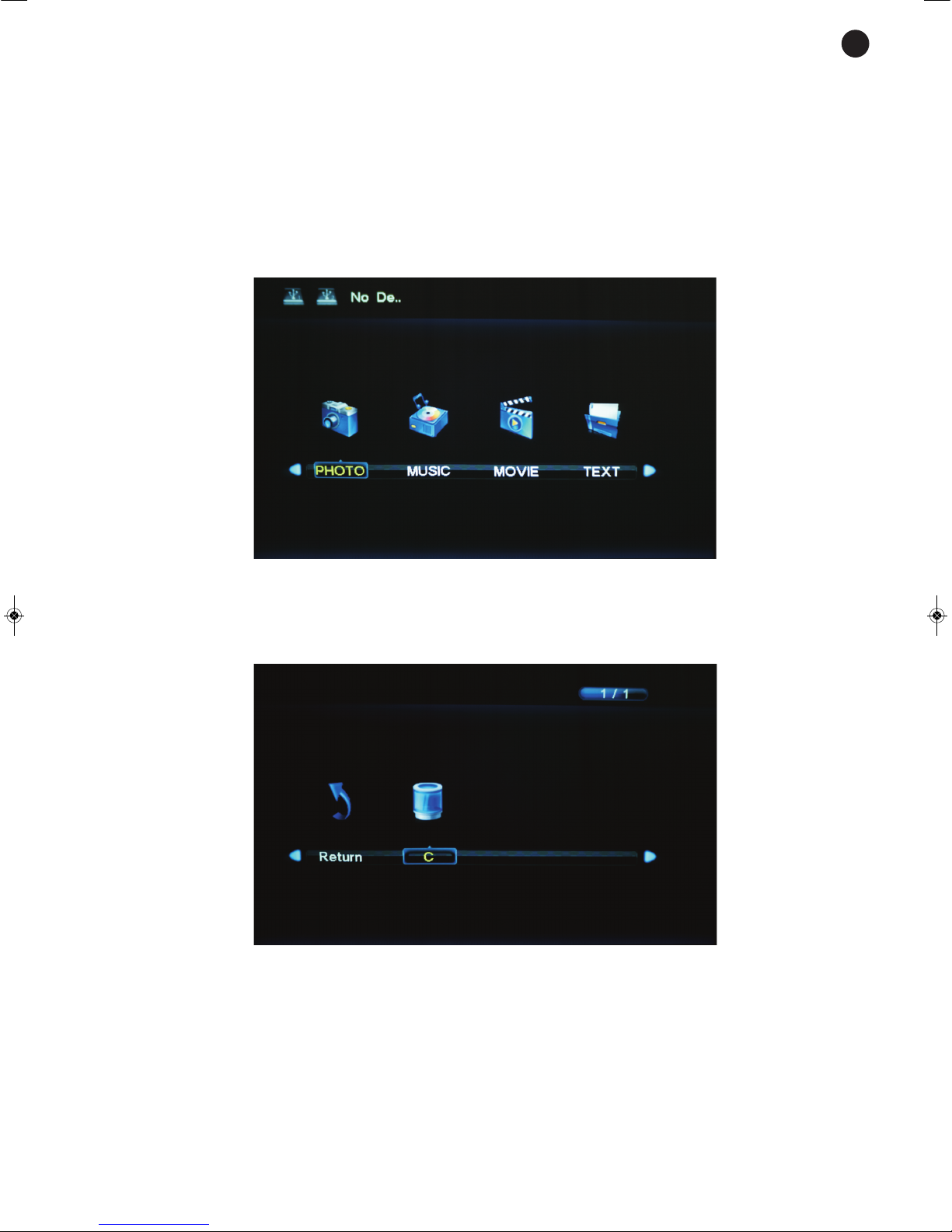

Press the OK button when the cursor is on the Photo option to access the menu. Then, the option to access
the connected USB storage device will appear.
PR-1501_MANUAL_(EN)_20170607-2_Maquetación 1 7/6/17 13:37 Pá ina 13

EN
- 14 -
Press the OK button again to access the files contained in the storage device to be able to view the images.
If you wish to view the image on the full screen and view a presentation of the images contained in the USB
storage device, press the play/pause button (12) on the remote control. In this viewing format, it is possible
to select different options by pressing the OK button on the remote control and using the navigation buttons
left (a) and right (d):
- Pause: pauses the presentation of images.
- Previous: displays the previous image.
- Next: displays the next image.
- Stop: stops the presentation of images.
- Repeat: selects the repetition mode.
- Music: plays a music file while viewing in random order.
- List: displays a list of images.
- Information: displays information about the photo being viewed at that moment.
- Turn right: turns the image 90º to the right.
- Turn left: turns the image 90º to the left.
- Zoom +,-: to zoom in on the current photo.
- Modify: with the zoom activated, allows you to move around over the selected image.
To return to the USB menu, place the cursor over the Return option and then press the OK button on the
remote control. Select the Return option again and press OK.
PR-1501_MANUAL_(EN)_20170607-2_Maquetación 1 7/6/17 13:37 Pá ina 14

EN
- 15 -
MUSIC MENU
Press the OK button when the cursor is on the Music option to access the menu. Then, the option to access
the connected USB storage device will appear.
Press the OK button again to access the files contained in the storage device to be able to listen to the audio
files.
PR-1501_MANUAL_(EN)_20170607-2_Maquetación 1 7/6/17 13:37 Pá ina 15

EN
- 16 -

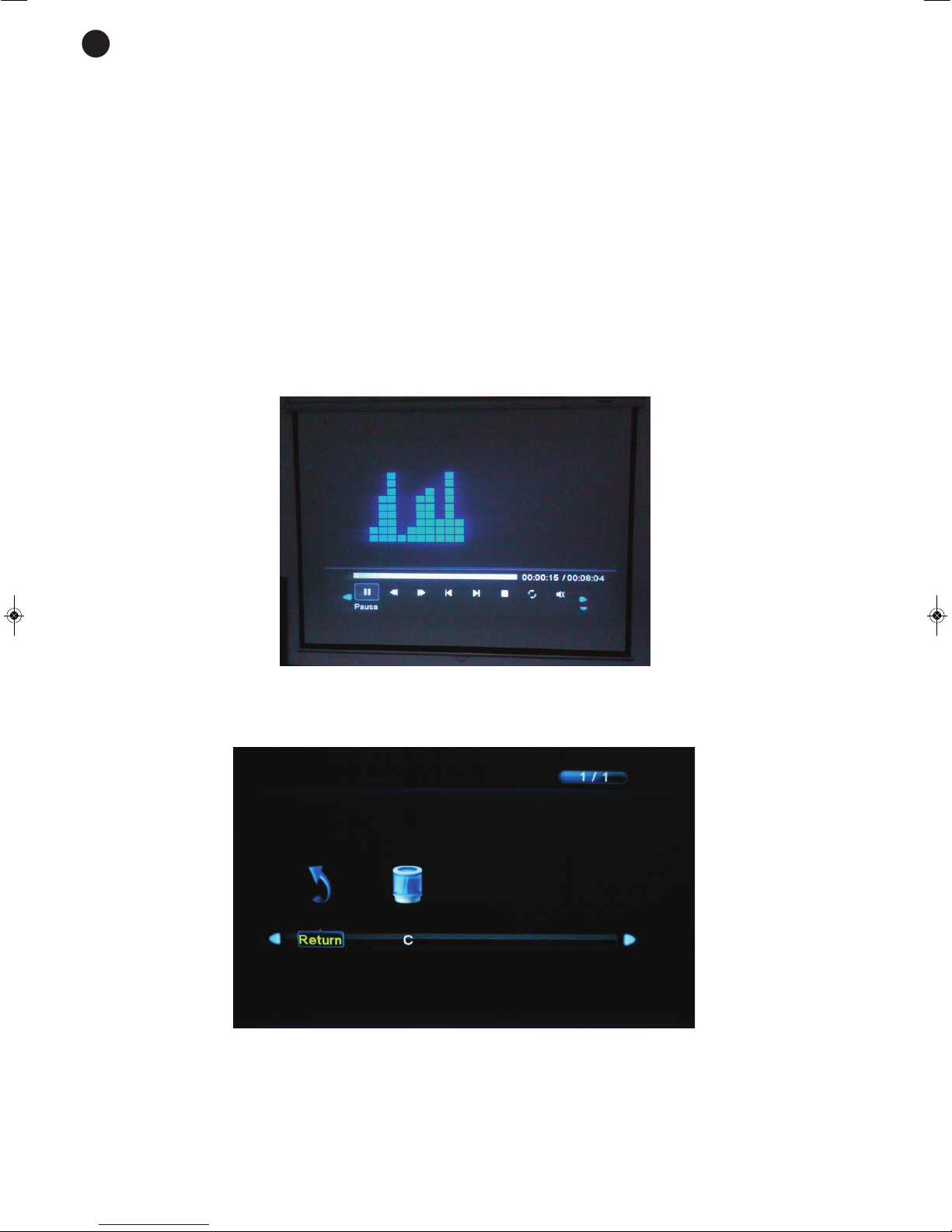

If you wish to access the different possibilities that the audio player offers, press the play/pause (12) button
on the remote control. An image of a level indicator will appear on the screen, it is possible to select different
options:
- Pause: allows playback to be paused.
- Fast Back (FB): fast rewinding of playback.
- Fast Forward (FF): fast forwarding of playback.
- Previous: moves to previous track.
- Next: moves to next track.
- Stop: stops playback.
- Repeat: activates the repetition mode.
- Mute: silences the audio output.
- List: displays the list of tracks contained in the USB storage device.
- Information: displays information about the track being played.
- Go to time: allows you to go to an exact point in a track. Use the number buttons to enter the exact
moment you wish to go to.
To return to the USB menu, place the cursor over the Return option and then press the OK button on the
remote control. Select the Return option again and press OK.
PR-1501_MANUAL_(EN)_20170607-2_Maquetación 1 7/6/17 13:37 Pá ina 16

EN
- 17 -
M VIE M DE

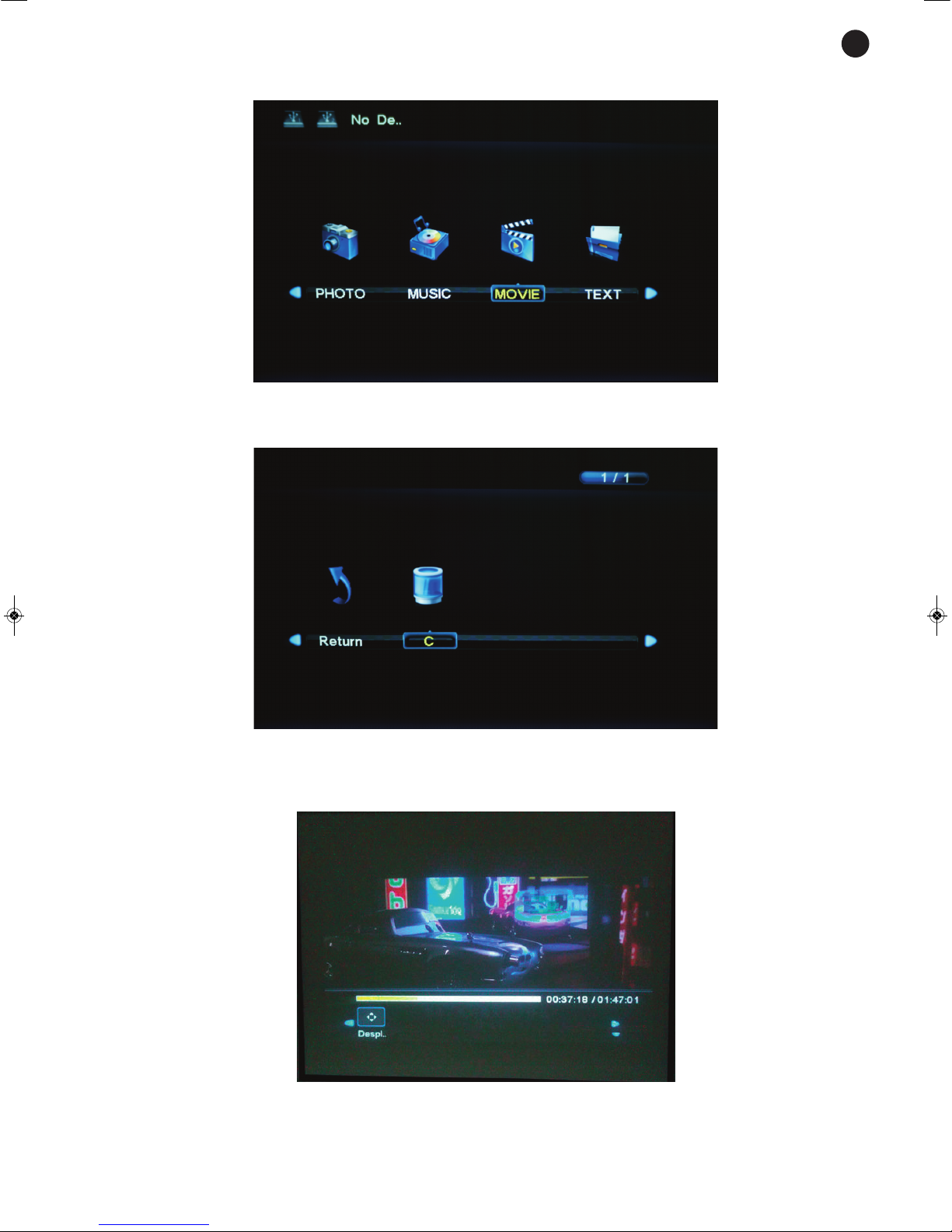

Press the OK button when the cursor is on the Movie option to access the menu. Then, the option to access
the connected USB storage device will appear.
Press the OK button again to access the files contained in the storage device to be able to view the video
files.
PR-1501_MANUAL_(EN)_20170607-2_Maquetación 1 7/6/17 13:37 Pá ina 17

EN
- 18 -
Select the video file you wish to view using the navigation buttons on the remote control. Press the play/pause
(12) button on the remote control to begin playback.
If you wish to access the different possibilities that the video player offers, press the OK button on the remote
control:
- Play/Pause: allows playback to be paused.
- Fast Back (FB): fast rewinding of playback.
- Fast Forward (FF): fast forwarding of playback.
- Previous: positions playback at the start of the current file.
- Next: positions playback at the start of the next file.
- Stop: stops playback.
- Repeat: selects the repetition mode.
- Loop: allows a repetition interval of playback to be selected. Pressing the button once selects the
start of the interval, pressing again establishes the end and from that moment, this interval will be repeated
continuously. Press this same button again to exit.
- List: displays a list of video files.
- Information: displays video file information: resolution, track, subtitle, programme and size.
- Forward: slow forwarding of playback.
- Step forward: frame by frame forwarding of playback.
- Go to time: allows you to go to an exact point in a video file that is being played.
- Zoom +, Zoom -: to zoom in on the video file that is being played.
- Ratio: allows the aspect ratio: 4:3, full.
- Move: with the zoom activated, allows you to move around over the selected image.
To return to the USB menu, place the cursor over the Return option and then press the OK button on the
remote control. Select the Return option again and press OK.
PR-1501_MANUAL_(EN)_20170607-2_Maquetación 1 7/6/17 13:37 Pá ina 18

EN
- 19 -
TEXT MENU

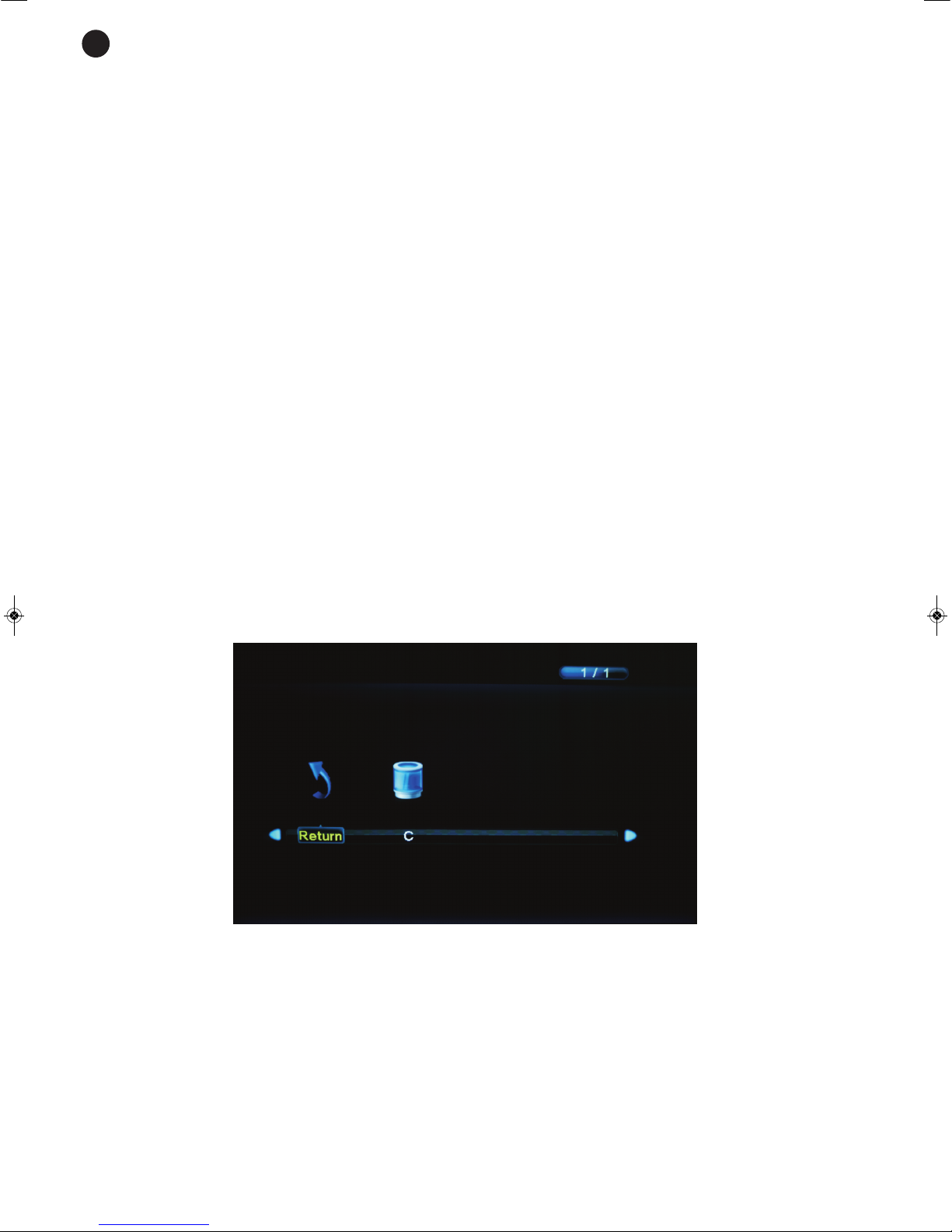

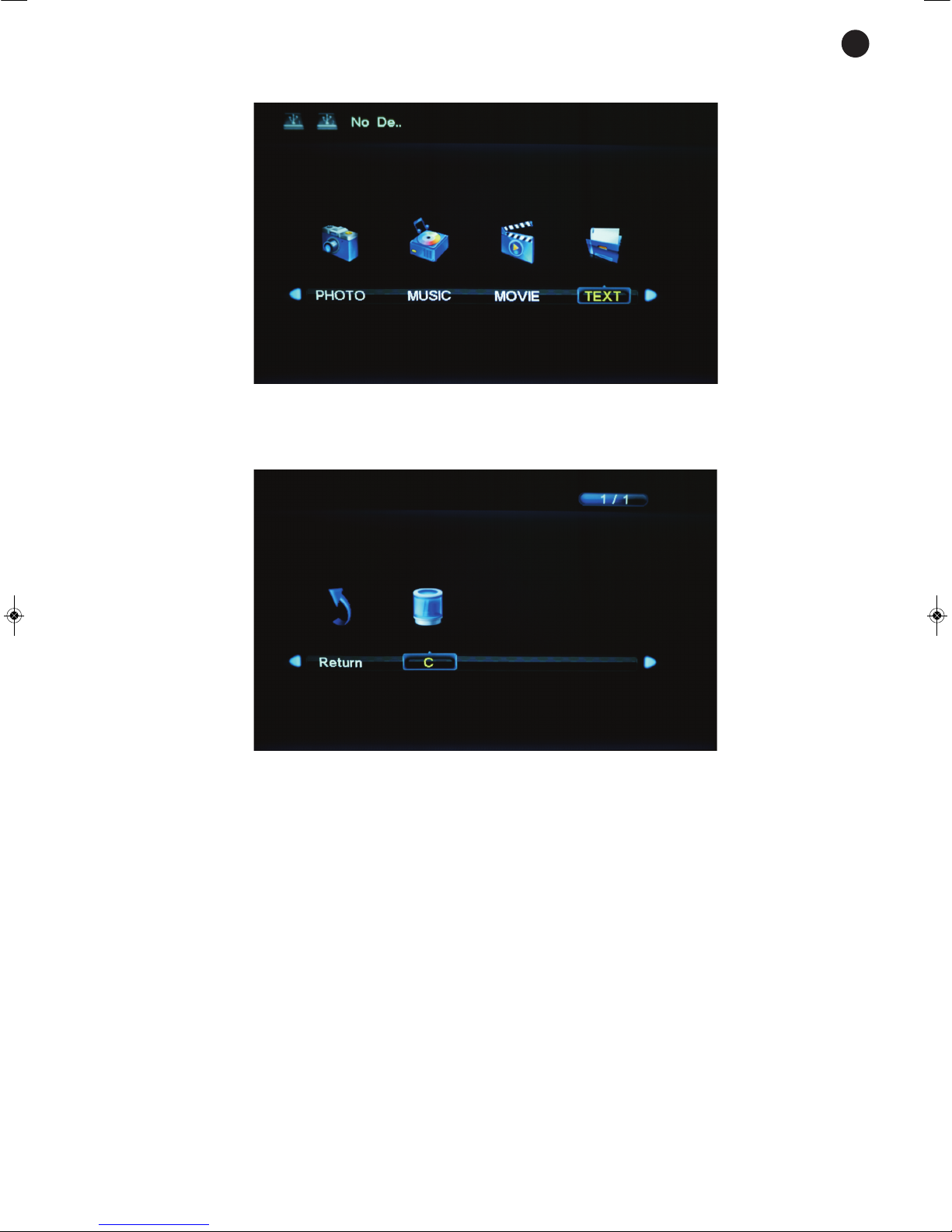

Press the OK button when the cursor is on the Text option to access the menu. Then, the option to access
the connected USB storage device will appear.
Press the OK button to access the files contained in the storage device to be able to view the text files in txt
format.
Once you have chosen the text file you wish to view using the navigation buttons on the remote control or
on the projector itself, press the play/pause (12) button on the remote control to view on the full screen.
If you wish to access the different possibilities offered by the text reader, press the OK button on the remote
control:
- Previous page: go back in the text file.
- Next page: go forward in the text file.
- Previous: displays the previous text file contained in the USB storage device.
- Siguiente: displays the previous text file contained in the USB storage device.
- Stop.
- Music: plays a music file during viewing.
- List: text file list.
- Information: displays text file information: name and size.
PR-1501_MANUAL_(EN)_20170607-2_Maquetación 1 7/6/17 13:37 Pá ina 19

EN
- 20 -
To return to the USB menu, place the cursor over the Return option and then press the OK button on the
remote control. Select the Return option again and press OK.
PR-1501_MANUAL_(EN)_20170607-2_Maquetación 1 7/6/17 13:37 Pá ina 20
