GreenWorks GD40SC38II User manual

DHF410 www.greenworksaustralia.com
Greenworks Australia
A Division Jak Max P/L
380 Foley’s Road Derrimut
Victoria, Australia 3026
2518407AU
GD40SC38II
EN OPERATOR MANUALDETHATCHER/SCARIFIER

1.
3.
2.
4.
4.
1
3
5
6
7
9
8
10
13
12
11
4
2
1023
14
4
16
15
3
5
6
15
7
18
11
17

5.
6.
7.
8.
8
9
19 20
21
22
13
1
2
12

1 Description............................. 2
1.1 Purpose...........................................2
1.2 Overview.........................................2
2 General safety warnings....... 2
2.1 Training........................................... 2
2.2 Preparation..................................... 2
2.3 Operation........................................ 2
2.4 Maintenance................................... 3
3 Symbol.................................... 4
4 Risk levels.............................. 4
5 Recycle................................... 4
6 Installation.............................. 5
6.1 Unpack the machine....................... 5
6.2 Install the lower handle................... 5
6.3 Install the upper handle ................. 5
6.4 Install the collecting box..................5
6.5 Adjust working height......................5
6.6 Install the battery pack....................5
6.7 Remove the battery pack................6
7 Operation................................ 6
7.1 Start the machine............................6
7.2 Stop the machine............................6
7.3 Empty the collecting box.................6
8 Maintenance........................... 6
8.1 General maintenance..................... 6
8.2 Replace the cylinder....................... 6
8.3 Store the machine...........................7
9 Troubleshooting.....................7
10 Technical data........................ 8
11 Warranty..................................8
1
English EN

1 DESCRIPTION
1.1 PURPOSE
The basic version of the machine is a scarifier
intended for use in gardening environments. The blade
cylinder is designed for ripping moss and weeds -
complete with their roots - out of the soil and for
loosening the soil.
With the additional tine cylinder, the machine can be
converted to a lawn dethatcher in just a few steps.
When used as a dethatcher, the machine is primarily
used to remove thatch from small-scale, residential
lawns and home/hobby gardens.

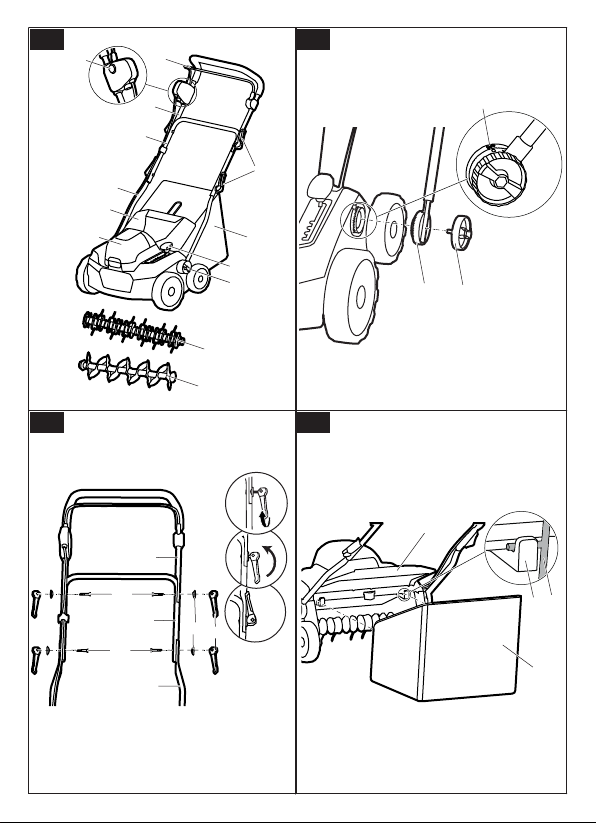

1.2 OVERVIEW
Figure 1-8
1Power lever
2Start button
3Upper handle
4Quick-release
lever
5Middle handle
6Lower handle
7Rear discharge
flap
8Height
adjustment lever
9Battery slot
cover
10 Handle knob
11 Collecting box
12 Tine cylinder
13 Blade cylinder
14 Handle positions
15 Bolt
16 Lever nut
17 Collecting box
suspension
18 Hook
19 Cover opening
button
20 Safety key
21 Screw
22 Cylinder fixation
23 Handle fixation
2 GENERAL SAFETY WARNINGS
WARNING
Read all safety warnings, instructions,
illustrations and specifications provided with
this machine. Failure to follow all instructions listed
below may result in electric shock, fire and/or
serious injury.
Save all warnings and instructions for future
reference.
The term "power tool" in the warnings refers to
your mains-operated (corded) power tool or battery-
operated (cordless) power tool.
2.1 TRAINING
• Read the instructions carefully. Be
familiar with the controls and the
correct use of the machine.
• Never allow children, persons with
reduced physical, sensory or mental
capabilities or lack of experience
and knowledge or people unfamiliar
with these instructions to use the
machine. Local regulations can
restrict the age of the operator.
• Keep in mind that the operator or
user is responsible for accidents or
hazards occurring to other people or
their property.
2.2 PREPARATION
• Wear ear protection and safety
glasses at all times while operating
the machine.
• While operating the machine always
wear substantial footwear and long
trousers. Do not operate the machine
when barefoot or wearing open
sandals. Avoid wearing clothing that
is loose fitting or that has hanging
cords or ties.
• Thoroughly inspect the area where
the machine is to be used and
remove all objects which can be
thrown by the machine.
• Operate the machine in a
recommended position and only on a
firm, level surface.
• Do not operate the machine on
a paved or gravel surface where
ejected material could cause injury.
• Before starting the machine, check
that all screws, nuts, bolts, and other
fasteners are properly secured and
that guards and screens in place.
Replace damaged or unreadable
labels.
• Never operate the machine while
people, especially children, or pets
are nearby.
2.3 OPERATION
• Use the machine only in daylight or
good artificial light.
2
English
EN

• Avoid operating the machine in wet
grass.
• Always be sure of your footing on
slopes.
• Walk, never run.
• Work across the face of slopes,
never up and down.
• Exercise extreme caution when
changing direction on slopes.
• Do not work excessively steep
slopes.
• Use extreme caution when reversing
or pulling the machine towards you.
• Stop the blade(s) if the machine has
to be tilted for transportation when
crossing surfaces other than grass,
and when transporting the machine
to and from the area to be used.
• Never operate the machine with
defective guards or shields, or
without safety devices, for example
deflectors and/ or grass collector, in
place.
• Switch on the motor carefully
according to instructions and with
feet well away from the blade(s).
• Do not tilt machine when switching
on the motor, except if the machine
has to be tilted for starting. In
this case, do not tilt it more than
absolutely necessary and lift only
the part which is away from the
operator. Always ensure that both
hands are in the operating position
before returning the machine to the
ground.
• Do not start the machine when
standing in front of the discharge
opening.
• Do not put hands or feet near or
under rotating parts. Keep clear of
the discharge opening at all times.
• Do not transport the machine while
the power source is running.
• Stop the machine, remove the
disabling device and battery pack.
Make sure that all moving parts have
come to a complete stop
• whenever you leave the machine;
• before clearing blockages or
unclogging chute;
• before checking, cleaning or
working on the machine;
• after striking a foreign object.
Inspect the machine for damage
and make repairs before restarting
and operating the machine; if
the machine starts to vibrate
abnormally (check immediately);
• inspect for damage;
• replace or repair any damaged
parts;
• check for and tighten any loose
parts.
2.4 MAINTENANCE
• Keep all nuts, bolts and screws tight
to be sure the machine is in safe
working condition.
• Check the grass collector frequently
for wear or deterioration.
• On machines with multi blade, take
care as rotating one blade can cause
other blades to rotate.
• Be careful during adjustment of the
machine to prevent entrapment of
the fingers between moving blades
and fixed parts of the machine.
• Always allow the machine to cool
down before storing.
• When servicing the blades be aware
that, even though the power source
is switched off, the blades can still be
moved.
3
English EN

• Replace worn or damaged parts
for safety. Use only genuine
replacement parts and accessories.
• When the machine is stopped for
servicing, inspection, or storage, or
to change an accessory, remove
battery pack, and make sure that
all moving parts are come to a
complete stop. Allow the machine to
cool before making any inspections,
adjustments, etc. Maintain the
machine with care and keep it clean.
• Store the machine out of the reach of
children.
• For appliances with type Y
attachment, the instructions shall
contain the substance of the
following: If the supply cord is
damaged, it must be replaced by
the manufacturer, its service agent or
similarly qualified persons in order to
avoid a hazard.

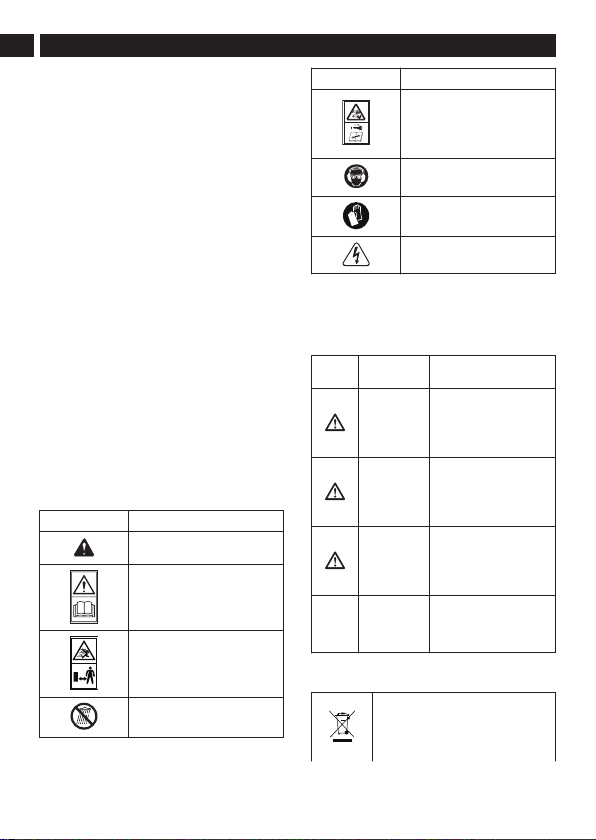

3 SYMBOL
Some of the following symbols may be used on this
product. Please study them and learn their meaning.
Proper interpretation of these symbols will allow you to
operate the product better and safer.
Symbol Explanation
Precautions that involve your
safety.
Read operator's manual.
Keep bystanders away.
Do not expose machine to rain
or wet conditions.
Symbol Explanation
Beware of sharp blades. Blades
continue to rotate after the mo-
tor is switched off. Remove
disabling device before mainte-
nance.
Wear eye and ear protection.
Wear protective gloves.
Beware of electric shock hazard.
4 RISK LEVELS
The following signal words and meanings are intended
to explain the levels of risk associated with this
product.
SYM-
BOL
SIGNAL MEANING
DANGER Indicates an imminent-
ly hazardous situation,
which, if not avoided, will
result in death or serious
injury.
WARNING Indicates a potential-
ly hazardous situation,
which, if not avoided,
could result in death or
serious injury.
CAUTION Indicates a potential-
ly hazardous situation,
which, if not avoided, may
result in minor or moder-
ate injury.
CAUTION (Without Safety Alert
Symbol) Indicates a situa-
tion that may result in
property damage.
5 RECYCLE
Separate collection. You must not dis-
card with usual household waste. If it is
necessary to replace the machine, or if
it is no more use to you, do not discard
it with household waste.
4
English
EN

Separate collection of used machine
and packaging let you recycle materi-
als and use them again. Use of the
recycled materials helps prevent envi-
ronmental pollution and decreases the
requirements for raw materials.
At the end of their useful life, discard
batteries with a precaution for our envi-
ronment. The battery contains material
that is dangerous to you and the en-
vironment. You must remove and dis-
card these materials separately at a
location that accepts lithium-ion batter-
ies.
6 INSTALLATION
WARNING
Do not use accessories that are not recommended
by the manufacturer.
WARNING
Do not put in the safety key or the battery pack until
you finalised the assembly of all the parts.
6.1 UNPACK THE MACHINE
WARNING
Make sure that you correctly assemble the machine
before use.
WARNING
• If parts of the machine are damaged, do not use
the machine.
• If you do not have all the parts, do not operate the
machine.
• If parts are damaged or missing, contact the
service center.
1. Open the package.
2. Read the documentation provided in the box.
3. Remove all the unassembled parts from the box.
4. Remove the machine from the box.
5. Discard the box and packing material in
compliance with local regulations.
WARNING
For your personal safety, do not insert battery before
the tool is assembled completely.
6.2 INSTALL THE LOWER HANDLE
Figure 2
1. Attach the handle fixations to the sides of the
machine.
2. Put the bolts of the handle knobs through the
fixations.
3. Turn the handle knobs clockwise to tighten the
lower handle.
4. Adjust the lower handle in one of the three
positions.
NOTE
Make sure that the two handle knobs are in the
same position.
WARNING
Do not make damage to the cables when you fold or
unfold the handle.
6.3 INSTALL THE UPPER HANDLE
Figure 3
1. Align the holes in the upper handle, the middle
handle and the lower handle.
2. Put the bolts through the holes and lever nuts.
3. Tighten the quick-release levers onto the bolts.
4. Do the same operation on the other side.
6.4 INSTALL THE COLLECTING BOX
Figure 4
1. Open the rear discharge flap and hold it.
2. Hold the collecting box by its handle and put the
collecting box suspensions over the hooks.
3. Close the rear discharge flap.
6.5 ADJUST WORKING HEIGHT
The machine can be set to different working height.
Figure 5
1. Pull the height adjustment lever forwards to
increase the working height.
2. Pull the height adjustment lever backwards to
decrease the working height.
6.6 INSTALL THE BATTERY PACK
Figure 6
5
English EN

WARNING
• If the battery pack or charger is damaged, replace
the battery pack or the charger.
• Stop the machine and wait until the engine stops
before you install or remove the battery pack.
• Read, know, and follow the instructions in the
battery and charger manual.
1. Press the cover opening button to open the
battery slot cover.
2. Align the lift ribs on the battery pack with the
grooves in the battery slot.
3. Push the battery pack into the battery slot until
the battery pack locks into place.
4. When you hear a click, the battery pack is
installed.
5. Close the battery slot cover.
NOTE
The engine starts only when you put in the safety
key.
6.7 REMOVE THE BATTERY PACK
Figure 6
1. Open the battery slot cover.
2. Remove the safety key.
3. Push and hold the battery release button.
4. Remove the battery pack from the machine.
7 OPERATION
WARNING
Wear eye protection during operation.
7.1 START THE MACHINE
Figure 7
1. Put in the safety key and battery.
2. Push and hold the start button.
3. While you hold the start button, pull the power
lever in the direction of the handle bar.
4. Release the start button to start the machine.
7.2 STOP THE MACHINE
Figure 7
1. Release the power lever to stop the machine.
WARNING
Wait until the blades fully stop before you start the
machine again. Do not quickly turn the machine off
and on.
WARNING
Always remove the safety key and battery pack after
you complete the work.
7.3 EMPTY THE COLLECTING BOX
1. Stop the machine.
2. Remove the safety key.
3. Remove the battery pack.
4. Open the rear discharge flap and hold it.
5. Hold the collecting box by its handle and unhook
it from the hooks.
6. Close the rear discharge flap.
7. Empty the collecting box.
8 MAINTENANCE
WARNING
Remove the safety key and battery pack from the
machine before maintenance.
WARNING
Keep the motor and battery pack free from grass,
leaves or too much grease.
CAUTION
Use only approved replacement parts.
CAUTION
Do not let brake fluids, gasoline, petroleum-based
materials touch the plastic parts. Chemicals can
cause damage to the plastic and make the plastic
unserviceable.
CAUTION
Do not use strong solvents or detergents on the
plastic housing or components.
8.1 GENERAL MAINTENANCE
• Before each use, examine the machine for
damaged, missing or loose parts such as screws,
nuts, bolts and caps.
• Tighten correctly all the fasteners and caps.
• Clean the machine with a dry cloth. Do not use
water.
8.2 REPLACE THE CYLINDER
Figure 8
6
English
EN

WARNING
Use only approved replacement cylinder.
WARNING
Wear heavy gloves or wind cloth around the cylinder
when you touch the cylinder.
1. Stop the machine.
2. Make sure that the cylinder fully stops.
3. Remove the safety key and battery pack.
4. Turn over the machine.
5. Untighten the screw to loosen the cylinder
fixation.
6. Open up the cylinder fixation.
7. Lift one end of the cylinder and then pull the other
end out from the drive shaft.
8. Remove the cylinder.
9. Insert one end of a new cylinder into the drive
shaft and then place the other end into the
cylinder fixation.
10. Lock down the cylinder fixation and tighten the
screw to secure the cylinder.
8.3 STORE THE MACHINE
• Remove the safety key.
• Remove the battery pack(s).
• Clean the machine before storage.
• Make sure the motor is not hot when you store the
machine.
• Make sure that the machine does not have loose
or damaged parts. If it is necessary, follow these
instructions:
• Replace the damaged parts.
• Tighten the bolts.
• Speak to a person at an approved service center.
• Store the machine in a dry area.
• Make sure that children cannot come near the
machine.
9 TROUBLESHOOTING
PROBLEM POSSIBLE
CAUSE
SOLUTION
Abnormal noise. Foreign objects
on the cylinder
are hitting the
dethatcher/
scarifier.
Switch off the
dethatcher/
scarifier, wait
until the cylinder
has stopped ro-
tating. Remove
the foreign ob-
jects.
PROBLEM POSSIBLE
CAUSE
SOLUTION
Engine perform-
ance drops.
Soil is too firm. Adjust working
depth.
Housing clog-
ged.
Clean housing.
Cylinder badly
worn.
Replace the cyl-
inder.
Imprecise scari-
fying/ dethatch-
ing result.
Cylinder worn. Replace the cyl-
inder.
Wrong working
depth.
Adjust working
depth.
Motor will not
start.
Battery is not
secure.
Ensure that the
battery is fully
secured in the
machine. Refer
to Install the
Battery section
in this manual.
Battery is not
charged.
Charge the bat-
tery pack ac-
cording to the
instructions in-
cluded with your
model.
Safety key is
not in place.
Insert the safety
key.
The dethatcher
is hard to push.
Blocked by for-
eign objects.
Switch off the
motor, wait until
the tine cylinder
comes to a
complete stop.
Remove the for-
eign objects. Af-
ter approxi-
mately one mi-
nute, switch on
the dethatcher/
scarifier.
The grass is too
high.
Mow the lawn
before de-
thatching/scarif-
ing.
Motor is run-
ning, but cylin-
der is not rotat-
ing.
Belt torn. Contact cus-
tomer service.
* If you cannot find the solution to these problems,
please contact the service center.
7
English EN

10 TECHNICAL DATA
Voltage 40 V
No load speed 3100 RPM
Working path 38 cm
Number of blades 16 Pcs
Scarifying depth -12/-9/-6/-3/6 mm
Dethatching depth -12/-9/-6/-3/6 mm
Weight (without bat-
tery pack)
12 Kg
Battery model G40B4 and other BAF series
Charger model 2910907AU and other
CAF series
11 WARRANTY
(The full warranty terms and conditions can be found
on Greenworks website )
The Greenworks warranty is 4 years on the product,
and 2 years on batteries and chargers (consumer/
private usage) from the date of purchase. This
warranty covers manufacturing faults. A faulty product
under warranty might be either repaired or replaced. A
unit that has been misused or used in other ways then
described in the owner’s manual might be rejected
for warranty. Normal wear, and wear parts are not
considered as warranty. The original manufacturer
warranty is not affected by any additional warranty
offered by a dealer or retailer.
A faulty product must be returned to the point of
purchase in order to claim for warranty, together with
the proof of purchase (receipt).
Our goods come with guarantees that cannot be
excluded under the Australian Consumer Law. You are
entitled to a replacement or refund for a major failure
and compensation for any other resonably foreseeable
loss or damage. You are also entitled to have the
goods repaired or replaced if the goods fail to be of
acceptable quality and the failure does not amount to a
major failure.
8
English
EN

www.greenworksaustralia.com
Rev B
