Hantek DSO5000 Series User manual

DSO5000 Series
Digital Storage Oscilloscope
User Manual

Contents
Contents
CONTENTS.......................................................................................................................................i
COPYRIG T DECLARATION........................................................................................................iv
C APTER 1................................................................................................................SAFETY TIPS 1
1.1 GENERAL SAFETY SUMMARY................................................................................................1
1.2 SAFETY TERMS AND SYMBOLS..............................................................................................2
1.3 TERMS ON PRODUCT...........................................................................................................2
1.4 SYMBOLS ON PRODUCT........................................................................................................2
1.5 PRODUCT SCRAPPING..........................................................................................................2
C APTER 2....................................................................................................................OVERVIEW 3
2.1 BRIEF INTRODUCTION TO DSO5000 SERIES.........................................................................3
2.2 ELP SYSTEM......................................................................................................................3
C APTER 3.........................................................................................GETTING STARTED GUIDE 5
3.1 INSTALLATION.......................................................................................................................5
3.1.1 Power Supply.............................................................................................................5
3.1.2 Power Cord.................................................................................................................5
3.2 FUNCTIONAL C ECK.............................................................................................................5
3.2.1 Power on the oscilloscope..........................................................................................5
3.2.2 Connect the oscilloscope...........................................................................................5
3.2.3 Observe the waveform...............................................................................................6
3.3 PROBE EXAMINATION...........................................................................................................6
3.3.1 Safety.........................................................................................................................6
3.3.2 se of Probe Check Wizard.......................................................................................7
3.4 MANUAL PROBE COMPENSATION..........................................................................................7
3.5 PROBE ATTENUATION SETTING.............................................................................................8
3.6 SELF CALIBRATION...............................................................................................................8
C APTER 4..................................................................................MAIN FEATURE DESCRIPTION 9
4.1 OSCILLOSCOPE SETUP.........................................................................................................9
4.2 TRIGGER..............................................................................................................................9
4.3 DATA ACQUISITION..............................................................................................................11
4.4 WAVEFORM SCALING AND POSITIONING..............................................................................11
4.5 WAVEFORM MEASUREMENT................................................................................................12
C APTER 5......................................................................................................BASIC OPERATION 14
5.1 DISPLAY AREA....................................................................................................................15
5.1.1 XY Format................................................................................................................16
DSO5000 Series Digital Storage Oscilloscope User Manual i

Contents
5.2 ORIZONTAL CONTROLS.....................................................................................................17
5.2.1 Scan Mode Display (Roll Mode)...............................................................................19
5.3 VERTICAL CONTROLS.........................................................................................................19
5.3.1 Math FFT..................................................................................................................21
5.3.1.1 Setting Time-domain Waveform............................................................................21
5.3.1.2 Displaying FFT Spectrum......................................................................................23
5.3.1.3 Selecting FFT Window..........................................................................................23
5.3.1.4 FFT Aliasing..........................................................................................................25
5.3.1.5 Eliminating Aliases................................................................................................25
5.3.1.6 Magnifying and Positioning FFT Spectrum...........................................................25
5.3.1.7 Using Cursors to Measure FFT Spectrum............................................................26
5.4 TRIGGER CONTROLS..........................................................................................................26
5.5 MENU AND OPTION BUTTONS.............................................................................................32
5.5.1 SAVE/RECALL.........................................................................................................33
5.5.2 MEAS RE................................................................................................................34
5.5.3 ACQ IRE.................................................................................................................35
5.5.4 TILITY....................................................................................................................37
5.5.5 C RSOR..................................................................................................................38
5.5.6 DISPLAY...................................................................................................................38
5.6 FAST ACTION BUTTONS......................................................................................................39
5.6.1 A TOSET.................................................................................................................39
5.6.2 Help..........................................................................................................................41
5.6.3 Default Setup............................................................................................................41
5.7 MULTI-FUNCTIONAL KNOBS AND BUTTONS...........................................................................43
5.8 SIGNAL CONNECTORS........................................................................................................43
C APTER 6..........................................................................................APPLICATION EXAMPLES 45
6.1 EXAMPLE 1: TAKING SIMPLE MEASUREMENTS.....................................................................45
6.2 EXAMPLE 2: TAKING CURSOR MEASUREMENTS...................................................................47
6.3 EXAMPLE 3: ANALYZING INPUT SIGNALS TO ELIMINATE RANDOM NOISE...............................50
6.4 EXAMPLE 4: CAPTURING SINGLE-S OT SIGNAL...................................................................51
6.5 EXAMPLE 5: USING X-Y MODE...........................................................................................52
6.6 EXAMPLE 6: TRIGGERING ON PULSE WIDT ........................................................................53
6.7 EXAMPLE 7: TRIGGERING ON VIDEO SIGNAL.......................................................................54
6.8 EXAMPLE 8: USING SLOPE TRIGGER TO CAPTURE PARTICULAR SLOPE SIGNAL....................56
6.9 EXAMPLE 9: USING OVERTIME TRIGGER TO MEASURE LONG PULSE SIGNAL.......................57
6.10 EXAMPLE 10: USING MAT FUNCTIONS TO ANALYZE WAVEFORMS.......................................58
6.11 EXAMPLE 11: MEASURING DATA PROPAGATION DELAY........................................................59
C APTER 7..................................................................................................TROUBLES OOTING 61
7.1 PROBLEM SETTLEMENT......................................................................................................61
C APTER 8.........................................................................................................SPECIFICATIONS 62
8.1 TEC NICAL SPECIFICATIONS...............................................................................................62
DSO5000 Series Digital Storage Oscilloscope User Manual ii

Contents
8.2 ACCESSORIES....................................................................................................................67
C APTER 9..........................................................................................SERVICES AND SUPPORT 69
C APTER 10............................................................................GENERAL CARE AND CLEANING 70
10.1 GENERAL CARE.................................................................................................................70
10.2 CLEANING..........................................................................................................................70
APPENDIX A ARMFUL AND POISONOUS SUBSTANCES OR ELEMENTS...........................71
Appendix B Index...........................................................................................................................72
DSO5000 Series Digital Storage Oscilloscope User Manual iii

Copyright Declaration
Copyright Declaration
All rights reserved; no part of this document may be reproduced or transmitted in any form or by
any means, electronic or mechanical, without prior written permission from antek Technologies
Co., Ltd (hereinafter referred to as ‘ antek’).
antek reserves all rights to modify this document without prior notice. Please contact antek for
the latest version of this document before placing an order.
antek has made every effort to ensure the accuracy of this document but does not guarantee
the absence of errors. Moreover, antek assumes no responsibility in obtaining permission and
authorization of any third party patent, copyright or product involved in relation to the use of this
document.
DSO5000 Series Digital Storage Oscilloscope User Manual iv

Safety Tips
Chapter 1 Safety Tips
1.1 General Safety Summary
Read the following safety precautions to avoid injury and prevent damage to this product or any
products connected to it. To evade potential hazards, use this product only as specified.
Only qualified personnel should perform maintenance.
Avoid fire or personal injury.
Use suitable power cord. Use only the power cord specified for this product and certified for the
country of use.
Connect and disconnect properly. Connect a probe with the oscilloscope before it is connected
to measured circuits; disconnect the probe from the oscilloscope after it is disconnected from
measured circuits.
Ground the product. This product is grounded through the grounding conductor of the power
cord. To avoid electric shock, the grounding conductor must be connected to earth ground. Before
making connections to the input or output terminals of the product, ensure that the product is
properly grounded.
Connect the probe in a right way. The probe ground lead is at ground potential. Do not connect
the ground lead to an elevated voltage.
Check all terminal ratings. To avoid fire or shock hazard, check all ratings and markings on the
product. Refer to the product manual for detailed information about ratings before making
connections to the product.
Do not operate without covers. Do not operate this product with covers or panels removed.
Avoid exposed circuitry. Do not touch exposed connections and components when power is
present.
Do not operate with suspected failures. If you suspect there is damage to this product, have it
inspected by qualified service personnel.
Assure good ventilation.
Do not operate in wet/damp environments.
Do not operate in an explosive atmosphere.
Keep product surfaces clean and dry.
DSO5000 Series Digital Storage Oscilloscope User Manual 1

Safety Tips
1.2 Safety Terms and Symbols
The following terms may appear in this manual:
WARNING. Warning statements point out conditions or practices that could result in
injury or loss of life.
CAUTION. Caution statements identify conditions or practices that could result in
damage to this product or other property.
1.3 Terms on Product
The following terms may appear on the product:
DANGER indicates an injury hazard immediately accessible as you read the marking.
WARNING indicates an injury hazard not immediately accessible as you read the marking.
CAUTION indicates a possible hazard to this product or other property.
1.4 Symbols on Product
The following symbols may appear on the product:
1.5 Product Scrapping
Device Recycling
We need extract and utilize natural resources to produce this device. If you do not reclaim the
DSO5000 Series Digital Storage Oscilloscope User Manual 2
Protective
Ground
(Earth)
Terminal
Measurement
Ground
Terminal
CAUTION
Refer to Manual
Measurement
Input Terminal
Mains
Disconnected
OFF (Power)
Mains
Connected
ON (Power)
igh Voltage

Safety Tips
device in a proper way, some substances it contains may become harmful or poisonous to
environments or human bodies. To avoid them being released outside and to minimize the waste
of natural resources, we suggest you reasonably call back this device to ensure proper recovery
and recycling of most materials within it.
DSO5000 Series Digital Storage Oscilloscope User Manual 3

Overview
Chapter 2 Overview

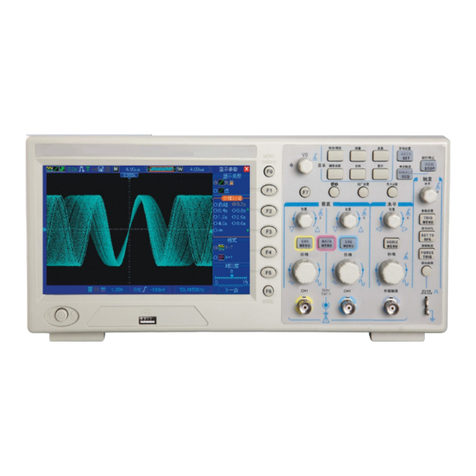

2.1 Brief Introduction to DSO 5000 Series
Model Channels Bandwidth Sample Rate LCD
DSO5102C 2 100M z 500MS/s 7 inch color
DSO5062B 2 60M z 1GS/s 7 inch color
DSO5102B 2 100M z 1GS/s 7 inch color
DSO5202B 2 200M z 1GS/s 7 inch color
Table 2-1 Model List of DSO5000 Series
DSO5000 Series oscilloscopes cover the bandwidths from 60M z to 200M z, and provide
the real-time and equivalent sample rates respectively up to 1GSa/s and 25GSa/s. In addition,
they have maximum 1M memory depth for better observation of the waveform details, and 7 inch
color TFT LCD as well as WINDOWS-style interfaces and menus for easy operation.
What’s more, the plenty menu information and the easy-to-operate buttons allow you to gain
information as much as possible in measurement; the multifunctional knobs and the powerful
shortcut keys help you save a lot of time in operation; the Autoset function lets you detect sine
and square waves automatically; the Probe Check Wizard guides you to adjust the probe
compensation and set the Probe option attenuation factor. By using the three methods the
oscilloscope provides (context-sensitive, hyperlinks, and an index), you may master all operations
on the device in quite a short time so as to greatly improve your efficiency in production and
development.
2.2 elp System
This oscilloscope has a elp system with topics covering all of its features. You can use the elp
system to display several kinds of information:
General information about understanding and using the oscilloscope, such as Using the
Menu System.
Information about specific menus and controls, such as the Vertical Position Control.
Advice to problems you may come across while using an oscilloscope, such as Reducing
Noise.
The elp system provides three methods for you to find the information you want: context-
DSO5000 Series Digital Storage Oscilloscope User Manual 4

Overview
sensitive, hyperlinks, and an index.
Context-Sensitive
Push the ELP front-panel button and the oscilloscope displays information about the last menu
displayed on the screen. The ELP SCROLL LED lights beside the ORIZONTAL POSITION
knob indicate the alternative function of the knob. If a topic uses more than one page, turn the
ELP SCROLL knob to move from page to page within the topic.
yperlinks
Most of the help topics contain phrases marked with angle brackets, such as <Autoset>. They are
links to other topics. Turn the ELP SCROLL knob to move the highlight from one link to another.
Push the Show Topic option button to display the topic corresponding to the highlighted link.
Press the Back option button to return to the previous topic.
Index
Push the front-panel ELP button, and then press the Index option button. Push the Page Up or
Page Down option button until you find the index page which contains the topic you want to view.
Turn the ELP SCROLL knob to highlight a help topic. Press the Show Topic option button to
display the topic.
NOTE: Press the Exit option button or any menu button to remove the Help text from the
screen and return to displaying waveforms.
DSO5000 Series Digital Storage Oscilloscope User Manual 5

Getting Started Guide
Chapter 3 Getting Started Guide
3.1 Installation
To keep proper ventilation of the oscilloscope in operation, leave a space of more than 5cm away
from the top and the two sides of the product.
3.1.1Power Supply
Use a power supply that delivers 90 to 240 VRMS, 45 to 440 z.
3.1.2Power Cord
Use only power cords designed for this product. Refer to 8.2 Accessories for specific standards.
3.2 Functional Check
Follow the steps below to perform a quick functional check to your oscilloscope.
3.2.1Power on the oscilloscope
Plug in the oscilloscope and press the ON/OFF button. Then push the DEFAULT SETUP button.
The default Probe option attenuation setting is 10X.
DSO5000 Series Digital Storage Oscilloscope User Manual 6
The Default Setup button

Getting Started Guide
3.2.2Connect the oscilloscope
Set the switch on the probe to 10X and connect the probe to Channel 1 on the oscilloscope. First,
align the slot in the probe connector with the protuberance on the C 1 BNC and push to connect;
then, turn to right to lock the probe in place; after that, connect the probe tip and reference lead to
the PROBE COMP connectors. There is a mark on the panel: Probe COMP ~5V@1K z.
3.2.3Observe the waveform
Press the AUTOSET button and you should see within a few seconds a square wave of about 5V
peak-to-peak at 1k z in the display. Press the C 1 MENU button twice to remove Channel 1.
Push the C 2 MENU button and repeat Step 2 and Step 3 to observe Channel 2.
DSO5000 Series Digital Storage Oscilloscope User Manual 7
C 1: to connect with the probe PROBE COMP

Getting Started Guide
3.3 Probe Examination
3.3.1Safety
When using the probe, keep your fingers behind the guard on the probe body to avoid electric
shock. Do not touch metallic portions of the probe head while it is connected to a voltage source.
Connect the probe to the oscilloscope and connect the ground terminal to ground before you start
any measurements.
3.3.2Use of Probe Check Wizard
Every time you connect a probe to an input channel, you should use the probe check wizard to
verify that this probe is operating correctly. There are two ways to do this:
1）Use the vertical menu (for example, push the C 1 MENU button) to set the Probe option
attenuation factor.
2）Press the PROBE C ECK button to use the Probe Check Wizard and configure the probe
option attenuation factor properly following menu prompts.
3.4 Manual Probe Compensation
Upon the first connection of a probe and an input channel, you should manually perform this
adjustment to match the probe to the input channel. Uncompensated or miscompensated probes
may lead to errors or faults in measurement. To adjust the probe compensation, follow the steps
below.
1. Set the Probe option attenuation in the channel menu to 10X. Set the switch on the probe to
10X and connect the probe to Channel 1 on the oscilloscope. If you use the probe hook-tip,
ensure it is firmly inserted onto the probe. Attach the probe tip to the PROBE COMP
~5V@1K z connector and the reference lead to the PROBE COMP Ground connector.
Display the channel and then press the AUTOSET button.
DSO5000 Series Digital Storage Oscilloscope User Manual 8

Getting Started Guide
2. Check the shape of the displayed waveform.
3. If necessary, use a nonmetallic screwdriver to adjust the variable capacity of your probe until
the shape of the waveform turns to be the same as the above figure. Repeat this step as
necessary. See the figure below for the way of adjustment.
3.5 Probe Attenuation Setting
Probes are of various attenuation factors which affect the vertical scale of the signal. The Probe
Check function is used to verify if the Probe attenuation option matches the attenuation of the
probe.
As an alternative method to Probe Check, you can push a vertical menu button (such as the C 1
MENU button) and select the Probe option that matches the attenuation factor of your probe.
Make sure that the Attenuation switch on the probe matches the Probe option in the oscilloscope.
Switch settings are 1X and 10X.
When the Attenuation switch is set to 1X, the probe limits the bandwidth of the oscilloscope to
6M z. To use the full bandwidth of the oscilloscope, be sure to set the switch to 10X.
DSO5000 Series Digital Storage Oscilloscope User Manual 9
Compensated correctly
Overcompensated
Undercompensated

Getting Started Guide
3.6 Self Calibration
The self calibration routine helps optimize the oscilloscope signal path for maximum
measurement accuracy. You can run the routine at any time but should always run it if the
ambient temperature changes by 5℃ or more. For a more accurate calibration, please power on
the oscilloscope and wait for 20 minutes until it has adequately warmed up.
To compensate the signal path, disconnect any probes or cables from the front-panel input
connectors. Then, push the UTILITY button, select the Do Self Cal option and follow the
directions on the screen.
.
DSO5000 Series Digital Storage Oscilloscope User Manual 10

Main Feature Description
Chapter 4 Main Feature Description
This chapter provides some general information that you need to learn before using an
oscilloscope. It contains:
1. Oscilloscope setup
2. Trigger
3. Data acquisition
4. Waveform scaling and positioning
5. Waveform measurement
4.1 Oscilloscope Setup
While operating the oscilloscope, you may often use three features: Autoset, saving a setup and
recalling a setup. ereinafter they are introduced one by one.
Autoset: This function can be used to adjust the horizontal and vertical scales of the oscilloscope
automatically and set the trigger coupling, type, position, slope, level and mode, etc., to acquire a
stable waveform display.
Saving a Setup: By default, the oscilloscope will save the setup each time before being closed,
and automatically recall the setup once being turned on. Note: If you modify the setup, please
wait for more than 5 seconds before turning off the oscilloscope to ensure the proper
storage of new settings.) You can save 10 settings permanently in the oscilloscope and reset
them as necessary.
Recalling a Setup: The oscilloscope can recall any of your saved setups or the default factory
setup.
Default Setup: The oscilloscope is preset for normal operations when it is shipped from the
factory. This is the default setup. You may recall this setup at any time for your requirements. To
view the default settings, refer to Section 5. 6 .3.
4.2 Trigger
The trigger determines when the oscilloscope begins to acquire data and display a waveform.
Once a trigger is properly set up, the oscilloscope can convert unstable displays or blank screens
DSO5000 Series Digital Storage Oscilloscope User Manual 11

Main Feature Description
to meaningful waveforms. ere introduce some basic concepts about trigger.
Trigger Source: The trigger can be generated with multiple sources. The most common one is
the input channel (alternative between C 1 and C 2). Whether the input signal is displayed or
not, it can trigger normal operations. Also the trigger source can be any signal connected to an
external trigger channel or the AC power line (only for Edge triggers). The source with the AC
power line shows the frequency relationship between the signal and the AC commercial power.
Trigger Type: The oscilloscope has six types of triggers: Edge, Video, Pulse Width, Slope,
Overtime and Swap.
Edge Trigger uses the analog or digital test circuits for triggering. It happens when the
input trigger source crosses a specified level in a specified direction.
Video Trigger performs a field or line trigger through standard video signals.
Pulse Width Trigger can trigger normal or abnormal pulses that meet trigger conditions.
Slope Trigger uses the rise and fall times on the edge of signal for triggering.
Overtime Trigger happens after the edge of signal reaches the set time.
Swap Trigger, as a feature of analog oscilloscopes, gives stable displays of signals at
two different frequencies. Mainly it uses a specific frequency to switch between two
analog channels C 1 and C 2 so that the channels will generate swap trigger signals
through the trigger circuitry.
Trigger Mode: You can select the Auto or Normal mode to define how the oscilloscope acquires
data when it does not detect a trigger condition. Auto Mode performs the acquisition freely in
absence of valid trigger. It allows the generation of untriggered waveforms with the time base set
to 80ms/div or slower. Normal Mode updates the displayed waveforms only when the
oscilloscope detects a valid trigger condition. Before this update, the oscilloscope still displays the
old waveforms. This mode shall be used when you want to only view the effectively triggered
waveforms. In this mode, the oscilloscope displays waveforms only after the first trigger. To
perform a single sequence acquisition, push the SINGLE SEQ button.
Trigger Coupling: Trigger Coupling determines which part of the signal will be delivered to the
trigger circuit. This can help to obtain a stable display of the waveform. To use trigger coupling,
push the TRIG MENU button, select an Edge or Pulse trigger, and then select a Coupling option.
Trigger Position: The horizontal position control establishes the time between the trigger
position and the screen center.
Slope and Level: The Slope and Level controls help to define the trigger. The Slope option
determines whether the trigger point is on the rising or falling edge of a signal. To perform the
trigger slope control, press the TRIG MENU button, select an Edge trigger, and use the Slope
button to select rising or falling. The TRIGGER LEVEL knob controls the trigger point is on which
position of the edge.
DSO5000 Series Digital Storage Oscilloscope User Manual 12

Main Feature Description
4.3 Data Acquisition
When you acquire an analog signal, the oscilloscope will convert it into a digital one. There are
two kinds of acquisition: Real-time acquisition and Equivalent acquisition. The real-time
acquisition has three modes: Normal, Peak Detect, and Average. The acquisition rate is affected
by the setting of time base.
Normal: In this acquisition mode, the oscilloscope samples the signal in evenly spaced intervals
to establish the waveform. This mode accurately represents signals in most time. owever, it
does not acquire rapid variations in the analog signal that may occur between two samples,
which can result in aliasing and may cause narrow pulses to be missed. In such cases, you
should use the Peak Detect mode to acquire data.
Peak Detect: In this acquisition mode, the oscilloscope gets the maximum and minimum values
of the input signal over each sample interval and uses these values to display the waveform. In
this way, the oscilloscope can acquire and display those narrow pulses that may have otherwise
been missed in Normal mode. owever, noise will appear to be higher in this mode.
Average: In this acquisition mode, the oscilloscope acquires several waveforms, averages them,
and displays the resulting waveform. You can use this mode to reduce random noise.
Equivalent Acquisition: This kind of acquisition can be utilized for periodic signals. In case the
acquisition rate is too low when using the real-time acquisition, the oscilloscope will use a fixed
rate to acquire data with a stationary tiny delay after each acquisition of a frame of data. After
repeating this acquisition for N times, the oscilloscope will arrange the acquired N frames of data
by time to make up a new frame of data. Then the waveform can be recovered. The number of
times N is related to the equivalent acquisition rate.
Time Base: The oscilloscope digitizes waveforms by acquiring the value of an input signal at
discrete points. The time base helps to control how often the values are digitized. Use the
SEC/DIV knob to adjust the time base to a horizontal scale that suits your purpose.
4.4 Waveform Scaling and Positioning
The display of waveforms on the screen can be changed by adjusting their scale and position.
Once the scale changes, the waveform display will increase or decrease in size. Once the
DSO5000 Series Digital Storage Oscilloscope User Manual 13
Trigger slope can be rising or falling
Rising Edge Falling Edge
Trigger level can be
adjusted vertically

Main Feature Description
position changes, the waveform will move up, down, right, or left.
The channel reference indicator (located on the left of the graticule) identifies each waveform on
the screen. It points to the ground level of the waveform record.
Vertical Scale and Position: The vertical position of a waveform can be changed by moving it
up and down on the screen. To compare data, you may align a waveform over another. When you
push the VOLTS/DIV button to change the vertical scale of a waveform, the waveform display will
contract or expand vertically to the ground level.
orizontal Scale and Position: Pretrigger Information
You can adjust the ORIZONTAL POSITION control to view waveform data before the trigger,
after the trigger, or some of each. When you change the horizontal position of a waveform, you
are actually changing the time between the trigger position and the screen center.
For example, if you want to find out the cause of a glitch in your test circuit, you should trigger on
the glitch and make the pretrigger period long enough to capture data before the glitch. Then you
can analyze the pretrigger data and perhaps find the cause. You are allowed to change the
horizontal scale of all the waveforms by turning the SEC/DIV knob. For example, you may want to
see just one cycle of a waveform to measure the overshoot on its rising edge. The oscilloscope
shows the horizontal scale as time per division in the scale readout. Since all active waveforms
use the same time base, the oscilloscope only displays one value for all the active channels.
4.5 Waveform Measurement
The oscilloscope displays graphs of voltage versus time and can help to measure the displayed
waveform. There are several ways to take measurements, using the graticule, the cursors or
performing an automatic measurement.
Graticule: This method allows you to make a quick, visual estimate and take a simple
measurement through the graticule divisions and the scale factor.
For example, you can take simple measurements by counting the major and minor graticule
divisions involved and multiplying by the scale factor. If you counted 6 major vertical graticule
divisions between the minimum and maximum values of a waveform and knew you had a scale
factor of 50mV/division, you could easily calculate your peak-to-peak voltage as follows:
6 divisions x 50mV/division = 300mV.
Cursor: This method allows you to take measurements by moving the cursors. Cursors always
appear in pairs and the displayed readouts are just their measured values. There are two kinds of
cursors: Amplitude Cursor and Time Cursor. The amplitude cursor appear as a horizontal broken
line, measuring the vertical parameters. The time cursor appear as a vertical broken line,
measuring the horizontal parameters.
When using cursors, please make sure to set the Source to the waveform that you want to
DSO5000 Series Digital Storage Oscilloscope User Manual 14

Main Feature Description
measure on the screen. To use cursors, push the CURSOR button.
Automatic Measurement: The oscilloscope performs all the calculations automatically in this
mode. As this measurement uses the waveform record points, it is more precise than the
graticule and cursor measurements. Automatic measurements show the measurement results by
readouts
which are periodically updated with the new data acquired by the oscilloscope
DSO5000 Series Digital Storage Oscilloscope User Manual 15
Cursor
Cursor
