HeliBEST MC6500GOPRO User manual

MC6500GOPRO Camera Gimbal Page 1
MC6500GOPRO
Small Multi-purpose 2 Axis aerial video Camera Gimbal
User ManualUser Manual
User ManualUser Manual
User Manual
This product does not include camera, camera should be prepared by users.
MC6500GOPRO
IMPORTANT: Please read through the entire manual before
attempting to assemble or use the camera gimbal.
DesignedbyHeliBEST

MC6500GOPRO Camera Gimbal Page 2
CAUTIONS
To obtain the best performance of this product, please read through the manual carefully and assemble the
parts according to the detailed instructions. Additional tools you need to use are as follows: 2.0mm allen driver,
small slotted screwdriver or small phillips screwdriver, small clamp and high quality instant adhesive.
Note: Most parts of this camera gimbal need to be adhered by instant adhesive, so please pay attention to the
following points when you using it:
1. proper amount of instant adhesive (Neither too much nor too little);
2. Protect yourself (Don't let the adhesive get into your mouth or eyes, or between your fingers);
3. Absorb the extra undried adhesive by absorbent paper to keep clean appearance of this gimbal;
4. Apply the adhesive on the back of the parts which could help keep the appearance neat and clean;
The parts can be adhered quickly by applying high quality instant adhesive. And the structural strength could
fully meet the requirements in use.
Dimension
96mm
47.5mm
57mm
96mm
Dampers
Dampers
Co-Dampers
DCS2600Digi
DCS2600Digi
Digital Servo
Special for TILT Axis.
DCS3600Digi
DCS3600Digi
Digital Servo
Special for ROLL Axis.

MC6500GOPRO Camera Gimbal Page 3
STEP 1 | Install the ROLL Arm
STEP 2 | Install the Camera Mount
1. Using moderate force, too tight may break the parts
2. Pay attention to the installation direction of the damper as seen above
3. Do not apply too much force when rotate or press the damper output shaft rough, it may break the parts
4. Do not drip the adhesive into the damper output shaft, it may break the parts
Prepare the above parts

MC6500GOPRO Camera Gimbal Page 4
STEP 4 | Install the digital servo to camera gimbal
DCS2600Digi
Digital Servo
Special for TILT Axis.
1
2
3
Please connect the servo to receiver ELE Channel (The CH2 on Futaba is ELE channel) before link the camera mount to
the servo axis, and confirm the appropriate maximum angle and minimum angle (operating range) of the servo.
STEP 3 | Install the rolling actuating arm
1. Pay attention to the installation direction of the parts
2. Apply the adhesive on the back of the joints could keep the appearance neat and clean
3. Do not apply the adhesive on the fingers, to avoid leaving the finger prints on the parts
4. Do not loose your hand until the adhesive dry, to make sure that all the parts are adhered perfectly
Prepare the above parts

MC6500GOPRO Camera Gimbal Page 5
DCS3600Digi
Digital Servo
Special for ROLL Axis. 1
3
2

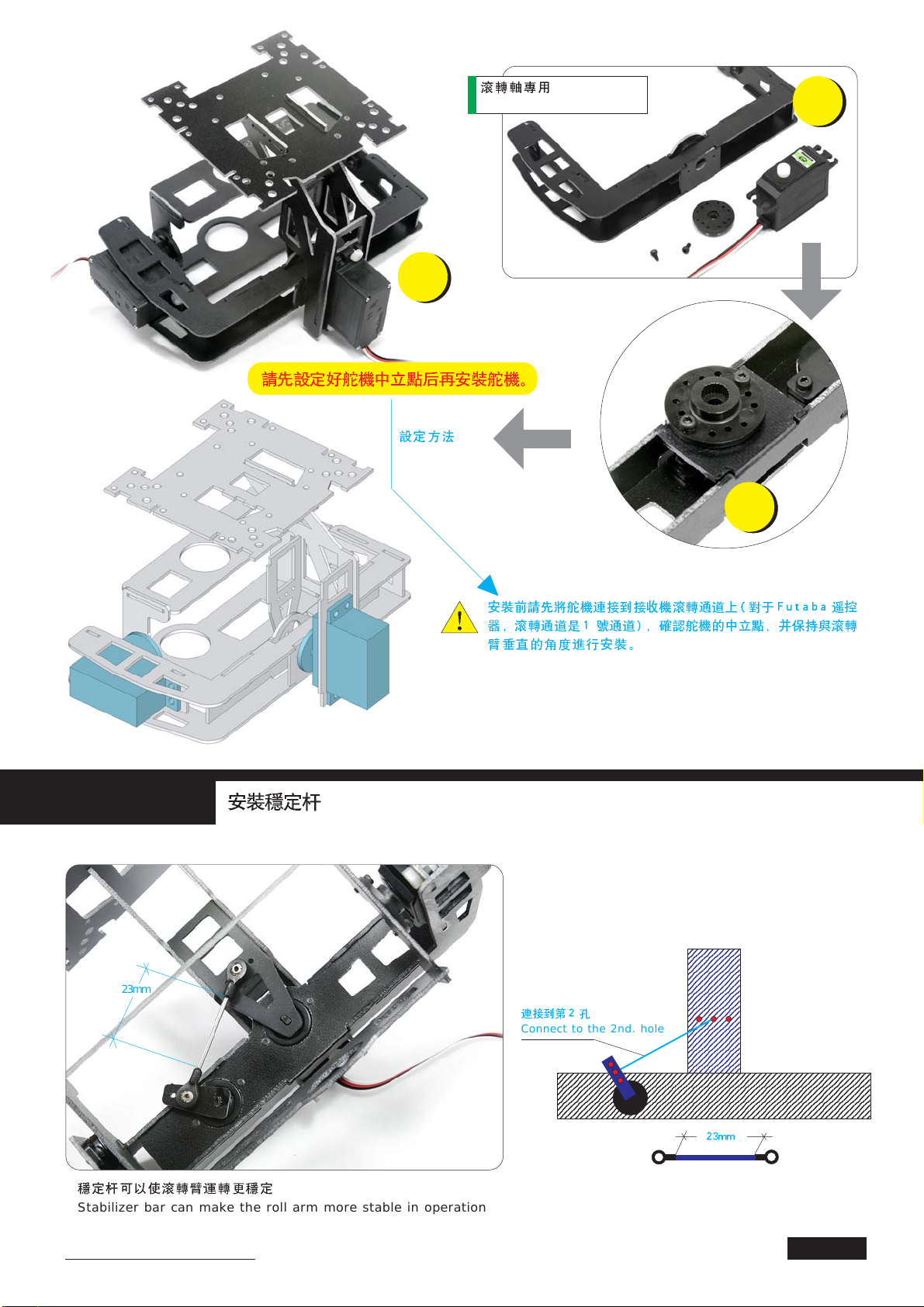

STEP 5 | Install the stabilizer bar
Please connect the servo to receiver's AIL Channel (for
Futaba is CH1) before link the camera mount to the servo
axis, confirm the neutrality point of the servo, then in-
stall while remaining the vertical angle towards the roll
arm.
12345678901
1
234567890
1
1
234567890
1
1
234567890
1
1
234567890
1
1
234567890
1
1
234567890
1
1
234567890
1
1
234567890
1
1
234567890
1
1
234567890
1
1
234567890
1
1
234567890
1
1
234567890
1
1
234567890
1
1
234567890
1
1
234567890
1
1
234567890
1
1
234567890
1
1
234567890
1
1
234567890
1
1
234567890
1
1
234567890
1
1
234567890
1
1
234567890
1
1
234567890
1
12345678901
Connect to the 2nd. hole
