Honeywell 10282 User manual

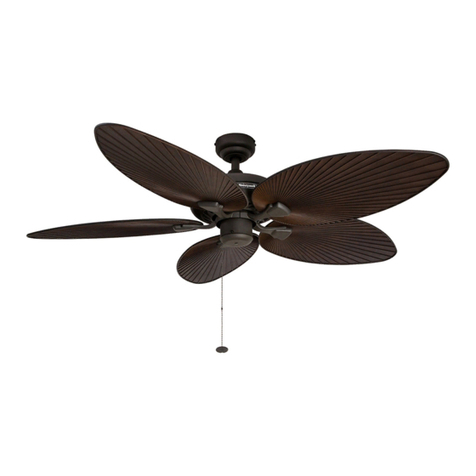

BLUFTON 52” CEILING FAN
MODEL #10282, 10283
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-877-361-3883, Monday - Thursday, 8 am - 6 pm, EST and Friday,
8 am - 5 pm, EST.
Español p. 20
RATED FOR
DAMP LOCATIONS

2
WELCOME
PREPARATION
Before beginning the assembly of this product,
ensure all parts are present. Compare all parts with
the package contents list and hardware contents list.
If any part is missing or damaged, do not attempt to
assemble the product.
After opening the top of the carton, remove the
mounting hardware package from the foam inserts,
then remove the motor from the packaging and place it
on a soft surface, such as a carpet, to avoid damage to
the nish.
Estimated Assembly Time: Approximately 120 minutes
Tools Required for Assembly (not included): Electrical
Tape, Phillips Screwdriver, Pliers, Safety Glasses, Step
Ladder, and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape
Measure, Wiring Handbook, and Wire Cutters
CARE AND MAINTENANCE
At least twice each year, lower the canopy to check the
downrod assembly, and then tighten all screws on the
fan. Clean the motor housing with only a soft brush or
lint-free cloth to avoid scratching the nish. Clean the
blades with a lint-free cloth.
Important: Shut off the main power supply before you
begin any maintenance tasks. Do not use water or a
damp cloth to clean the ceiling fan.
FAN WEIGHT
The net weight of this fan is: 15.97 lbs. (7,24 kg).
TABLE OF CONTENTS
ATTACH YOUR RECEIPT HERE
Serial Number
Purchase Date
Care and Maintenance ........................2
Package Contents ...........................3
Safety Information ...........................4
Mounting Options ............................5
Mounting Bracket Installation ...................6
Standard or Angle Mounting Instructions . . . . . . . . . .7
Closemount Instructions......................10
Wiring ....................................11
Canopy Installation..........................12
Blade Installation ...........................13
Light Kit Installation .........................14
Operating Instructions .......................16
Replacement Parts List ......................17
Troubleshooting ............................18
Limited Lifetime Warranty.....................19

1
2
6
3
7
4
9
8
5
10
11
12
13
14
15
16
3
PACKAGE CONTENTS
Unpack your fan and check the contents. You
should have the following items:
1. Blade (5)
2. Downrod
3. Downrod Pin
4. Downrod Clip
5. Yoke Cover
6. Switch Housing Cap
7. Plug Button
8. Blade Arm (5)
9. Canopy
10. Mounting Bracket
11. Canopy Cover
12. Motor Assembly
13. Switch Housing
14. Light Kit
15. Bulbs (2)
16. Glass Bowl
17. Loose parts bag (not shown) containing:
Mounting hardware, blade attachment
hardware, pull chain extensions, wire
connectors, etc.
18. Owner’s Manual (not shown)

4
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate, or install the product.
• Before you begin installing the fan, disconnect the power by removing fuses or turning off the
circuit breakers.
• Make sure that all electrical connections comply with local codes, ordinances, the National Electrical
Code, and ANSI/NFPA 70-199. Hire a qualied electrician or consult a do-it-yourself wiring handbook if
you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. (2,14 m) from the blades
to the oor and at least 30 in. (76 cm) from the end of the blades to any obstruction.
DANGER
WARNING
WARNING
When using an existing outlet box, make sure
the outlet box is securely attached to the building
structure and can support the full weight of
the fan. Failure to do this can result in serious
injury or death. The stability of the outlet box is
essential in minimizing wobble and noise in the
fan after installation is complete.
To reduce the risk of re or electric shock, do not
use the fan with any solid-state speed-control
device or control the fan speed with a full-range
dimmer switch.
To reduce the risk of re, electric shock, or personal
injury, mount the fan to an outlet box marked
“ACCEPTABLE FOR FAN SUPPORT” and use the
mounting screws provided with the outlet box. Most
outlet boxes commonly used for the support of
lighting xtures are not acceptable for fan support
and may need to be replaced. Consult a qualied
electrician if in doubt. Secure the outlet box directly
to the building structure. The outlet box and its
support must be able to support the moving weight
of the fan, at least 35 lbs. (15,88 kg).
WARNING
CAUTION
CAUTION
To reduce the risk of re, electric shock, or
personal injury, do not bend the blade arms
when installing them, balancing the blades, or
cleaning the fan. Do not insert objects between
the rotating fan blades.
Read all instructions and safety information
before installing your new fan. Review the
accompanying assembly diagrams.
Be sure the outlet box is properly grounded or
that a ground (green or bare) wire is present.
!
!
!
!
!
!
!
!
!
WARNING
If using the fan in a damp location, the fan must
be connected to a supply circuit that is
protected by a Ground Fault Circuit Interrupter
(GFCI) to reduce the risk of personal injury,
electrical shock or death.
! !
!
!
!

5
MOUNTING OPTIONS
Fig. 1
Fig. 2
Fig. 3
1. Your fan has 3 mounting options:
• Standard (Fig. 1)
• Angle (Fig. 2)
• Closemount (Fig. 3)
Note: The fans in gures 1 through 3 are not the
actual fan in your package, they are representation
of the 3 different mounting options.
Important: If using the angle mount, check to
ensure the ceiling angle is not steeper than 16°.
Standard mounting is best suited for ceilings 8 ft.
or higher. For taller ceilings you may want to use a
longer downrod (sold separately).
Angle mounting is best suited for angled or vaulted
ceilings. A longer downrod is sometimes necessary
to ensure proper blade clearance.
Closemount is more suitable for ceilings lower than
8 ft. (2,44 m) high.
2. Ensure the blades of the fan are at least 30 in.
(76 cm) from any obstruction.
3. Check the downrod length to ensure the blades will
be at least 7 ft. (2,14 m) above your oor.

6. Secure the mounting bracket to the outlet box using
screws, spring washers, and at washers provided
with the outlet box (not included) (Fig. 6).
Note: It is very important to use proper hardware
when installing the mounting bracket as it supports
the fan.
Important: If using the angle mount, ensure the
open end of the mounting bracket is installed facing
the peak of the ceiling.
Fig. 5
Fig. 6
Mounting
Bracket
Screws
Mounting
Bracket
Canopy
Mounting Bracket
Screw
5. Loosen all four mounting bracket screws and
completely remove the two mounting bracket
screws from the round holes of canopy. Set aside
for later use. Detach mounting bracket from canopy
(Fig. 5).
Fig. 4
4. Turn off the circuit breakers and wall switch leading
to the fan wire leads (Fig. 4).
WARNING
Failure to disconnect the power supply prior to
installation may result in serious injury or death.
! !
6
MOUNTING BRACKET INSTALLATION

Set Screw
7
STANDARD OR ANGLE MOUNTING INSTRUCTIONS
8. Remove the downrod clip and downrod pin from
the downrod (Fig. 8). Downrod
Clip
Downrod
Pin
Fig. 8
Fig. 7
Fig. 9
Downrod
Canopy
Yoke
Cover
Downrod Pin
Downrod Clip
9. Insert the downrod through the canopy and yoke
cover. Feed the wires from the fan through the
downrod (Fig. 9).
7. Partially loosen the two set screws in the yoke at
the top of the motor housing (Fig. 7).

Fig. 11
Cut Wires
Yoke
Setscrew
8
STANDARD OR ANGLE MOUNTING INSTRUCTIONS
10. Slide the downrod into the yoke of the motor
assembly, align the holes, and reinstall the
downrod pin and downrod clip. Then retighten the
two set screws (Fig. 10).
11. Depending on the length of downrod you use, you
may need to cut the lead wires back to simplify the
wiring. If you decide to cut back the lead wires,
it is suggested that you do so in the following
manner: Take the lead wires and make sure that
you have pulled them all the way through the top
of the downrod and measure 8 in. of lead wire, and
then cut the excess wire off with wire cutters (not
included) (Fig. 11).
12. If you decided to cut back the lead wire in Step 11,
strip 1/2 in. of insulation from the end of the white
wire. Twist the stripped ends of each strand of
wire within the insulation with pliers (not included)
(Fig. 12).
Note: If you did not cut back the lead wires in
Step 11, Step 12 is not necessary and you may
proceed to Step 13 instead.
Downrod
Downrod
Pin Downrod
Clip
Fig. 10
Fig. 12
Stripped
Wires

Slot
Tab
9
STANDARD OR ANGLE MOUNTING INSTRUCTIONS
13. Install the ball end of the downrod into the
mounting bracket opening. Align the slot in the ball
with the tab in the mounting bracket. The downrod
should not rotate if installed correctly (Fig. 13).
Mounting
Bracket Downrod
Ball
Fig. 13
a
WARNING
Failure to align the slot in the downrod with the tab
on the mounting bracket could cause the fan to fall,
which could result in serious injury or death.
!
!

Closemount
Screws
Fig. 15
10
CLOSEMOUNT INSTRUCTIONS
16. Lift the fan and place the hole in the canopy on the
mounting bracket hook during the wiring process
(Fig. 16).
Canopy
Canopy
Hook
Canopy
Cover
Fig. 14
Fig. 16
14. Remove the canopy cover from the bottom of the
canopy (Fig. 14).
Helpful Hint: The downrod, canopy cover and
yoke cover are not used in this type of installation.
Closemount Screw
15. Align the canopy with the holes in the top of motor
assembly. Then, secure the canopy to the top of
the motor assembly using the three closemount
screws from the hardware bag (Fig. 15).

Black (Hot)
White (Neutral)
Bare/Green (Ground)
Black
Blue
White
Green
OFF
Black (live)
Second Wire (live)
White (neutral)
Bare/Green (ground)
Black
Blue
White
Green
OFF OFF
Wire Connector
a
CAUTION
WARNING
If house wires are different colors than referred to in
the following steps, consult a professional electrician
to determine wiring. Incorrect wire connection can
damage the fan and could cause re or injury.
Be sure outlet box is properly grounded or that a
ground (green or bare) wire is present.
! !
!
!
Fig. 17
Fig. 18
17. Connect supply and fan wires according to the
diagram (Fig. 17) and these steps:
• Connect the Green wires from the fan and
mounting bracket to the Bare/Green (ground)
supply wire.
• Connect the Black and Blue wire from the fan to
the Black (hot) supply wire.
• Connect the White wire from the fan to the White
(neutral) supply wire.
Secure all wiring connections with wire connectors
and push all connected wires back into the outlet
box. Important: Ensure black and white wire
connections are on opposite sides of the outlet box.
Note: The black fan wire is power for fan. The blue
fan wire is power for the light. The white wire from
the fan is common/neutral. The green wires from the
fan and mounting bracket are ground wires.
18. (Optional) If a second hot power wire is available
from outlet box, connect it to the blue (light power)
wire from the fan for separate light and fan control
(Fig. 18).
a
WARNING
! !
Ensure black and white wire connections are on
opposite sides of the outlet box.
11
WIRING

12
CANOPY INSTALLATION
Mounting
Bracket
Canopy
Fig. 19
Mounting Bracket
Screw
Mounting
Bracket Screw
19. Lift the canopy up so the partially installed mounting
bracket screws are engaged in the J-slots on each
side of the canopy. Rotate the canopy clockwise
and install the previously removed mounting bracket
screws from Step 5. Tighten all mounting bracket
screws. (Fig. 19).

13
BLADE INSTALLATION
Fig. 22
Blade Screw
Blade Washer
Blade Arm
Blade
Blade Arm
Motor Screw
Fig. 19
Fig. 21
20. Remove motor screws and motor blocks from
underside of the motor assembly. Discard the
motor blocks but save the motor screws for blade
arm attachment (Fig. 20).
Motor Screw
Blade Screw Blade Washer
Motor Screw
Motor Block
21. Partially insert the blade screws along with the
blade washers through the blade and into the
blade arm. Tighten each blade screw with a Phillips
screwdriver (not included) starting with the one
in the middle. Repeat this step for the remaining
blades and blade arms (Fig. 21).
22. Insert two previously removed motor screws
through one blade arm and blade isolator. Insert
the motor screws into the underside of the motor
assembly. Tighten motor screws securely. Repeat
with remaining blade arms, secure each blade arm
before proceeding with to the next (Fig. 22).
Fig. 20
Motor Screw
Motor
Block

14
LIGHT KIT INSTALLATION
23. To install the fan with a light kit:
Remove the three switch housing screws from the
switch housing cap. Then connect the single-pin
connector from the switch housing to the single-pin
connector from the light kit -- white to white and
black to black (Fig. 23).
Fig. 23
Switch
Housing
Switch
Housing
Screw
Switch
Housing
Cap
Fig. 24
Fig. 25
Switch
Housing
Screw
25. Install the bulbs (Fig. 25).
Important: When replacing the bulb, allow bulb
and light kit to cool before touching.
24. Secure the switch housing cap with light kit to
the switch housing using the previously removed
switch housing screws (Fig. 24).
Socket
Switch Housing
Screw
Switch Housing
Screw

Clip
Glass Bowl
Light Kit
15
Grommet
Pull Chain
Fig. 27
Light Pull Chain
Extension
Fan Pull Chain
Extension
27. Feed pull chains through the grommets on each
side of the light kit (Fig 27).
28. Attach the pull chain extensions to fan and light
pull chains (Fig. 28).
Note: When facing the reverse switch, the light pull
chain will be on the left and the fan pull chain will
be on the right. When installing without a light kit,
the pull chain for the light will not be installed.
Fig. 28
Light
Pull Chain
Fan
Pull Chain
Assembly is complete. Turn on the power supply to
the fan.
LIGHT KIT INSTALLATION
Fig. 26
26. Lift glass bowl into the light kit. Ensure the clips
on inner edge of the light kit slide inside the glass
bowl. The glass bowl should snap into place
(Fig 26).

16
OPERATING INSTRUCTIONS
Fig. 29
Fig. 30
Fig. 31
Reverse
Switch
29. Use the reverse switch, located on the side of the
fan, to optimize your fan for seasonal performance
(Fig. 29).
Using a ceiling fan will allow you to raise your
thermostat in the summer and lower your
thermostat in the winter without sacricing comfort.
Important: Wait for the fan to stop before moving
the reverse switch. The reverse switch must be set
either completely up or down in order for the fan to
function correctly. If the reverse switch is set in the
middle position, the fan will not operate.
30. In warmer weather, push the reverse switch
down, which will result in downward airow
creating a wind chill effect (Fig. 30).
31. In cooler weather, push the reverse switch up and
the fan speed to low, which will result in upward
airow that can help move stagnant, hot air off the
ceiling area. By mixing the air, the heat may not
have to run as often and may yield energy savings
(Fig. 31).

REPLACEMENT PARTS LIST
17
For replacement parts, call the customer service department at 1-877-361-3883, 8 a.m. - 6 p.m., EST, Monday -
Thursday, 8 a.m. - 5 p.m., EST, Friday.
A CB
PIECE DESCRIPTION MODEL 10282
PART #
MODEL 10283
PART #
A Blade Arm 10282-A 10283-A
B Blade 10282-B 10283-B
C Glass Bowl 10282-C 10283-C
D
Hardware bag (not shown)
contains: Mounting hardware,
blade attachment hardware,
electrical hardware, pull chains,
wire connectors, etc.
10282-D 10283-D

18
TROUBLESHOOTING
At least twice each year, lower the canopy to check the downrod assembly, and then tighten all screws
on the fan. Clean the motor housing with only a soft brush or lint-free cloth to avoid scratching the nish.
Clean the blades with a lint-free cloth.
Important: Shut off the main power supply before you begin any maintenance tasks. Do not use water or a
damp cloth to clean the ceiling fan.
Problem: The fan does not move
1. Turn the power on or check the fuse.
2. Turn the power off. Loosen the canopy and check all connections.
3. Ensure the connectors from the light kit tter and fan are connected properly.
4. Disable the power supply to the fan motor and re-start the motor.
Problem: The fan is noisy.
1. Check and tighten all screws that hold the fan blades to the blade arms and the motor.
2. Check for cracked blade. Replace the cracked blade, if necessary.
Problem: There is excessive wobbling
1. Check and tighten all screws that hold the fan blades to the blade arms and the blade arms to the motor.
2. Switch one blade with a blade from the opposite side. Or balance the fan using a balancing kit.
3. Turn off the power. Loosen the canopy and verify that the mounting bracket is secure to the
electrical outlet box.
4. The bracket must be ush without movement against the outlet box.
Problem: The fan operates correctly, but the lights are not working (if applicable).
1. Re-install the bulb or replace with new bulbs.
2. Ensure that the single-pin connectors plugs in the light kit tter are connected properly.
3. Turn the power off and check all connections at the ceiling outlet box.
4. The fan comes with a 190W limiter. When the total wattage of the lights is over 190W, the lights do
not work. Replace with bulbs of lower wattage.

19
LIMITED LIFETIME WARRANTY
Subject to the limitations set forth below, Hong Kong China Electric appliance Company (HKC) warrants the fan
motor for this ceiling fan to be free from defects in workmanship and material for the life of the product. Also,
subject to the limitations below, HKC warrants all ceiling fan parts (“ceiling fan parts” excludes the motor and parts
made in whole or in part with glass) to be free from defects in workmanship and material for a period of one year
after the date of purchase by the original purchaser at retail.
All claims must be made by the original purchaser, whether such purchaser purchased the product through a store
or contractor. Ceiling fan part defects must be reported within the rst year from the date of purchase. Parts made in
whole or in part with glass and the nishes of metal and other surfaces are not warranted.
Purchasers are responsible for all costs of removing and reinstalling the product. Any damage to any part caused
by ordinary wear and tear, accident, misuse, or improper installation, is not covered by this warranty. HKC
assumes no responsibility whatsoever for fan installation. Any service performed by a non-licensed electrician will
render the warranty invalid.
HKC’s sole responsibility shall be to repair or replace the motor, parts, or product within the terms stated above.
HKC SHALL NOT BE LIABLE FOR ANY LOSS OR DAMAGE OF ANY KIND, INCLUDING ANY INCIDENTAL
OR CONSEQUENTIAL DAMAGES RESULTING DIRECTLY OR INDIRECTLY, FROM ANY BREACH OF
WARRANTY, EXPRESS OR IMPLIED, OR ANY OTHER FAILURE OF THIS PRODUCT. SOME STATES DO
NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES SO THIS
LIMITATION MAY NOT APPLY TO YOU.
IF THE ORIGINAL PURCHASER CEASES TO OWN THE FAN, THIS WARRANTY IS VOIDED.
Should the purchaser encounter a problem with your fan related to defects in workmanship or materials within the
warranty period associated with the defective part, HKC agrees to replace the defective part without charge, or at
its option, to replace the ceiling fan with a comparable or superior model.
HKC’S WARRANTIES ARE LIMITED TO THE WRITTEN WARRANTIES SET OUT IN THIS HKC CEILING
FAN LIMITED LIFETIME WARRANTY. ALL OTHER EXPRESS AND IMPLIED WARRANTIES, INCLUDING,
WITHOUT LIMITATION, THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE AND THE
IMPLIED WARRANTY OF MERCHANTABILITY ARE DISCLAIMED. SOME STATES DO NOT ALLOW THE
DISCLAIMER OF IMPLIED WARRANTIES, SO THIS DISCLAIMER MAY NOT APPLY TO YOU.
To obtain warranty service, please write down your model number and call Customer Service at
1-877-361-3883 Monday - Thursday, 8 am - 6 pm, EST and Friday, 8 am - 5 pm, EST. Please have a copy
of the receipt as proof of purchase.
The Honeywell Trademark is used under license from Honeywell International
Inc. Honeywell International Inc. makes no representations or warranties with
respect to this product. This product is manufactured for:
9161-EN r121515
Hong Kong China Electric Appliance Manufacture Co., Ltd.
3350 Players Club Parkway, Suite 225
Memphis, TN 38125
1-877-361-3883
This manual suits for next models
1
Table of contents
Other Honeywell Ceiling Fan manuals
