HouseWarmer HW075DVN-1 Quick start guide

21091-0-0606 Page 1
INSTALLATION INSTRUCTIONS
AND OWNER’S MANUAL
GRAVITY TYPE DIRECT VENT
WALL FURNACE
MODELS
HW075DV(N,P)-1
HW130DV(N,P)-1
HW180DV(N,P)-1
EFFECTIVE DATE
JUNE 2006
Do not store or use any gasoline or other flamma-
ble vapors and liquids in the vicinity of this or any
other appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use
any phone in your building.
• Immediately call your gas supplier from a neigh-
bor’s phone. Follow the gas supplier’s instruc-
tions.
• If you cannot reach your gas supplier, call the
fire department.
Installation and service must be performed by a
qualified installer, service agency or the gas sup-
plier.
WARNING: If the information in this manual
is not followed exactly, a fire or explosion may
result, causing property damage, personal in-
jury or loss of life.
INSTALLER: Leave this manual with the appli-
ance.
CONSUMER: Retain this manual for future ref-
erence.
This appliance may be installed in an aftermar-
ket, permanently located, manufactured home
(USA only) or mobile home, where not prohibited
by state or local codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is not
convertible for use with other gasses, unless a cer-
tified kit is used.
WARNING: If not installed, operated and main-
tained in accordance with the manufacturer’s in-
structions, this product could expose you to sub-
stances in fuel or from fuel combustion which can
cause death or serious illness.
DO NOT RETURN THIS PRODUCT TO THE
STORE WHERE YOU PURCHASED IT. IF YOU
ARE MISSING PARTS, OR HAVE ANY PROB-
LEMS, CONTACT EMPIRE COMFORT SYS-
TEMS, INC. AT [phone].

Page 2 21091-0-0606
TABLE OF CONTENTS
SECTION PAGE
Gas Specifications .......................................................................................................... 3
Specifications .................................................................................................................. 3
High Altitude Specifications .......................................................................................... 3
Unit Dimensions ............................................................................................................. 4
Important Safety Information ...................................................................................... 4
Introduction .................................................................................................................... 5
Requirements for Massachusetts .................................................................................. 6
Termination Clearances ................................................................................................ 7
Installation and Assembly ........................................................................................8-15
Installation Overview .................................................................................................8-9
Installation of HouseWarmer Product ..................................................................10-15
Clearances to Combustibles ..................................................................................... 10
Interior Preparation and Installation of the Back of the Unit .............................11-13
Exterior Installation of the Venting .....................................................................13-14
Interior Installation of the Front of the Unit ............................................................ 15
Before Operating the Appliance ............................................................................16-19
Operating Instructions ................................................................................................ 20
Lighting Instructions ................................................................................................... 21
To Turn Off Gas to the Appliance ............................................................................... 21
Parts List ....................................................................................................................... 22
Parts View ..................................................................................................................... 23
Maintenance Instructions ............................................................................................ 24
Troubleshooting ............................................................................................................ 25
How to Order Repair Parts ......................................................................................... 26
HouseWarmer Heating Appliance Limited Warranty ............................................. 26
Notes .............................................................................................................................. 27

21091-0-0606 Page 3
GAS SPECIFICATIONS
MODEL FUEL MAXIMUM INPUT
HW075DV
Propane/LP -- Natural gas
7,500 Btu/hr
HW130DV 13,000 Btu/hr
HW180DV 18,000 Btu/hr
MANIFOLD PRESSURE
Natural gas: 3.5" water column pressure
Propane/LP gas: 10.0" water column pressure
Gas Inlet 3/8"
SUPPLY MINIMUM PRESSURE MAXIMUM PRESSURE
Natural Gas 5.0" W.C.P. 10.5" W.C.P.
LP Gas 11.0" W.C.P. 13.0" W.C.P.
Note: Appliance input ratings are based on sea level operation and need not be changed for operation up to 2,000 feet.
SPECIFICATIONS
MODELS HW075DV HW130DV HW180DV
COMBUSTION ATMOSPHERIC BURNER
STANDARD HEATING SPACE 72 -225 Sq. Ft. 132 - 400 Sq. Ft. 169 - 529 Sq. Ft.
EXTERNAL DIMENSIONS INCHES
HEIGHT 24 5/64"
WIDTH 12 15/64" 19 39/64" 25 19/32"
DEPTH 5 1/32" 5 1/32" 7 1/32"
NET WEIGHT LBS. 21.2 lbs. 35.5 lbs. 53.2 lbs
MAX. GAS CONSUMPTION 7,500 Btu/hr. 13,000 Btu/hr. 18,000 Btu/hr.
TEST POINT PRESSURE NATURAL GAS 3.5" W.C.
PROPANE/LP 10.0" W.C.
SAFETY DEVICES Safety valve (thermocouple)
Warning: This direct vent wall furnace is equipped for Natural or Propane gas. Field conversion is not permitted.
HIGH ALTITUDE SPECIFICATIONS
Model
0-2,000 feet (0-610m) 2,000-4,500 feet (610-1,370m)
Main Burner Orifice/Gas Pressure Main Burner Orifice/Gas Pressure
Natural Gas LP Gas Natural Gas LP Gas
HW075 1.35mm/3.5" .85mm/10.0" 1.27mm/3.5" 0.83mm/10.0"
HW130 1.75mm/3.5" 1.10mm/10.0" 1.67mm/3.5" 1.03mm/10.0"
HW180 2.26mm/3.5" 1.30mm/10.0" 1.83mm/3.5" 1.27mm/10.0"
For altitudes/elevations above 2,000 feet (609.9m), input ratings should be reduced at the rate of 4 percent for each 1,000 feet (305m)
above sea level. Canadian High Altitudes for locations having an elevation above mean sea level between 2,000 feet (609.9m) and 4,500
feet (1,370m), use orifices as indicated in the following table:

Page 4 21091-0-0606
HW075DV
HW130DV
HW180DV
24 5/64”
12 15/16”
19 39/64”
25 19/32”
5 1/32” (HW075DV, HW130DV)
7 1/32” (HW180DV)

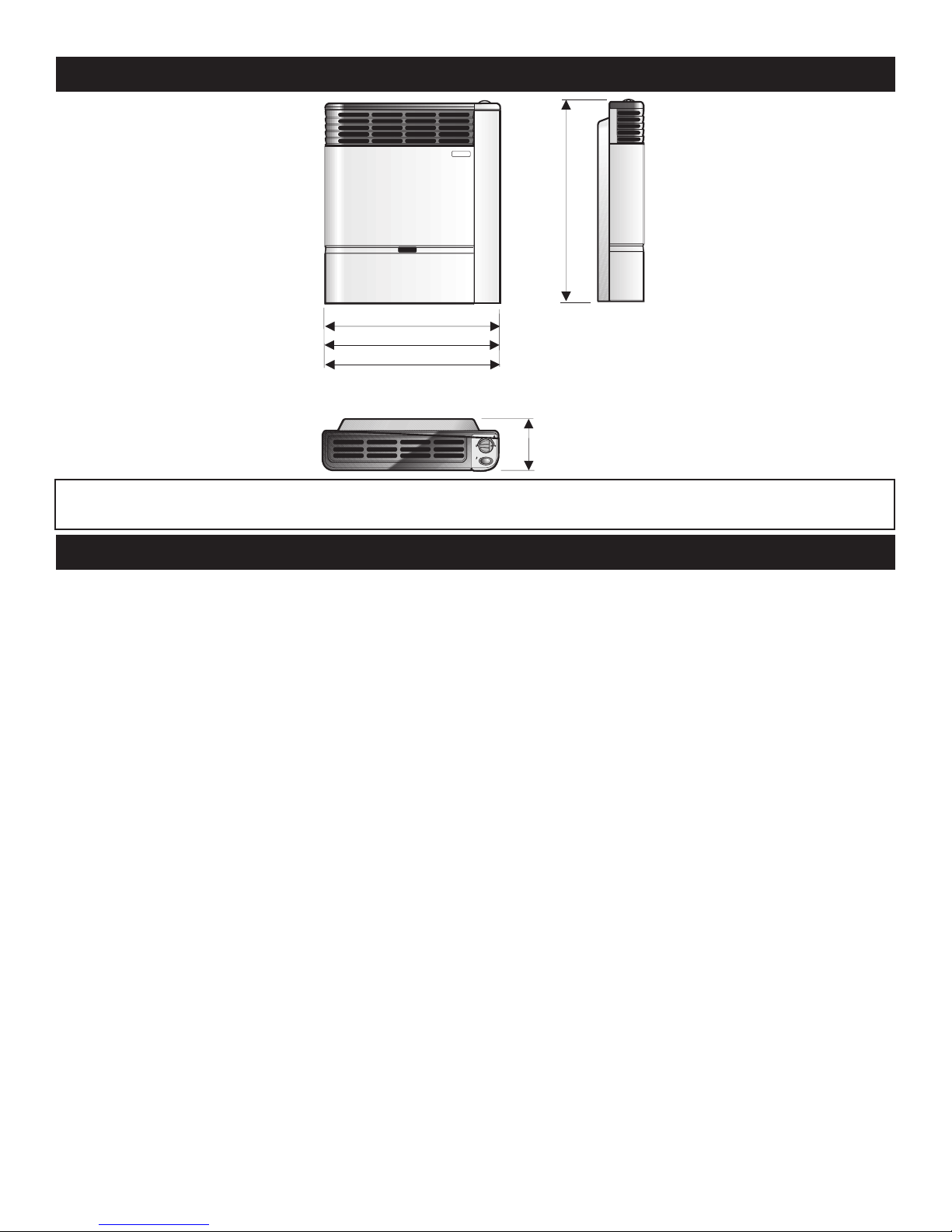

UNIT DIMENSIONS
MAKE SURE THAT APPLIANCE IS SUITABLE FOR THE GAS SUPPLY AVAILABLE: NATURAL GAS
OR PROPANE/LP.
Children and adults should be alerted to the hazards of high surface temperatures and should stay away
to avoid burns or clothing ignition.
Any safety screen or guard removed for servicing must be replaced prior to operating the heater.
Do not use this heater if it has been under water. Immediately call a qualified service technician to inspect
the heater and to replace any part of the control system and any gas control which has been under water.
Young children should be carefully supervised when they are in the same room as the heater.
Installation and repair should be done by a qualified service person. Heater should be inspected before
use and at least annually by a qualified service person.
More frequent cleaning may be required due to excessive lint from carpeting, bedding material etc. It is
imperative that control compartments, burners, and circulating air passageways of the appliance be kept
clean.
Follow State and Local codes for installation.
DO NOT put anything around the furnace that will obstruct the flow of combustion and ventilation air.
DO keep the appliance area clear and free from combustible material, gasoline and other flammable va-
pors and liquids.
DO examine venting system periodically and replace damaged parts.
DO make a periodic visual check of pilot and burners. Clean and replace damaged parts.
CAUTION: Pilot hole cover must be kept tightly closed during operation.
Vent cap hot while furnace is in operation.
IMPORTANT SAFETY INFORMATION

21091-0-0606 Page 5
INTRODUCTION
Always consult your local Building Department regarding regu-
lations, codes or ordinances which apply to the installation of a
direct vent wall furnace.
Instructions to Installer
1. Installer must leave instruction manual with owner after instal-
lation.
2. Installer must have owner fill out and mail warranty card sup-
plied with furnace.
3. Installer should show owner how to start and operate furnace
and thermostat.
Warning:
Any change to this furnace or its control can be danger-
ous. This is a heating appliance and any panel, door or
guard removed for servicing an appliance must be re-
placed prior to operating the appliance.
General Information
This furnace is design certified in accordance with American Na-
tional Standard/CSA Standard Z21.86 and CSA 2.32 by the Ca-
nadian Standards Association as a direct vent wall furnace to be
installed according to these instructions.
Any alteration of the original design, installed other than as
shown in these instructions or use with a type of gas not shown
on the rating plate is the responsibility of the person and com-
pany making the change.
Notice: During initial firing of this unit, its paint will bake out and
smoke will occur. To prevent triggering of smoke alarms, venti-
late the room in which the unit is installed.
Installation in Residential Garages
Gas utilization equipment in residential garages shall be installed
so that all burners and burner ignition devices are located not less
than 18" above the floor. Such equipment shall be located, or
protected, so it is not subject to physical damage by a moving
vehicle.
Qualified Installing Agency
Installation and replacement of gas piping, gas utilization equip-
ment or accessories and repair and servicing of equipment shall
be performed by a qualified agency. The term “qualified agency”
means any individual, firm, corporation or company which either
in person or through a representative is engaged in and is respon-
sible for (1) the installation or replacement of gas piping or (2) the
connection, installation, repair or servicing of equipment, who is
experienced in such work, familiar with all precautions required
and has complied with all the requirements of the authority hav-
ing jurisdiction.
State of Massachusetts: The installation must be made by a
licensed plumber or gas fitter in the Commonwealth of Mas-
sachusetts. The state of Massachusetts requires that a flexible
appliance connector cannot exceed three feet in length.
The installation must conform with local codes or, in the absence
of local codes, with the National Fuel Gas Code ANSI Z223.1/
NFPA 54* Natural Gas and Propane Installation Code, CSA
B149.1.
*Available from the American National Standards Institute, Inc., 11 West 42nd St.,
New York, N.Y. 10036.

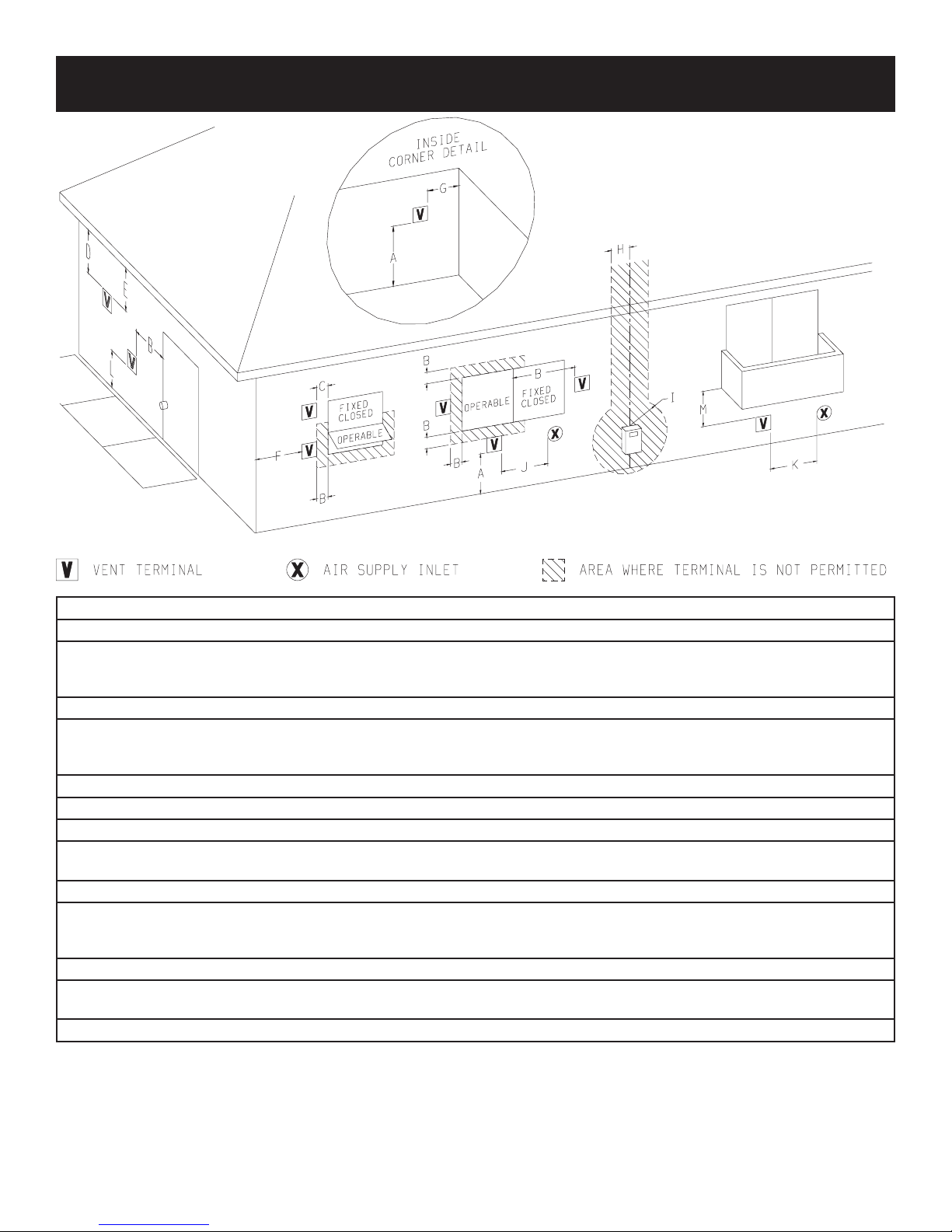

The vent terminal of a direct vent appliance, with an input of
10,000 Btu per hour (3 kW) or less shall be located at least 6"
(150mm) from any air opening into a building, and such an ap-
pliance with an input over 10,000 Btu per hour (3 kW) but not
over 50,000 Btu per hour (14.7 kW) shall be installed with a 9"
(229mm) vent terminal clearance and the bottom of the vent ter-
minal and the air intake shall be located at least 12" (305mm)
above grade.
WARNING: The nearest point of the vent cap should be
a minimum horizontal distance of six (6) feet (1.8m) from
any pressure regulator. In case of regulator malfunction,
the six (6) feet (1.8m) distance will reduce the chance of
gas entering the vent cap.

Page 6 21091-0-0606
REQUIREMENTS FOR MASSACHUSETTS
For all side wall horizontally vented gas fueled equipment
installed in every dwelling, building or structure used in
whole or in part for residential purposes, including those
owned or operated by the Commonwealth and where the
side wall exhaust vent termination is less than seven (7) feet
above finished grade in the area of the venting, including but
not limited to decks and porches, the following requirements
shall be satisfied:
1. INSTALLATION OF CARBON MONOXIDE
DETECTORS. At the time of installation of the side wall
horizontal vented gas fueled equipment, the installing
plumber or gasfitter shall observe that a hard wired
carbon monoxide detector with an alarm and battery
back-up is installed on the floor level where the gas
equipment is to be installed. In addition, the installing
plumber or gasfitter shall observe that a battery operated
or hard wired carbon monoxide detector with an alarm
is installed on each additional level of the dwelling,
building or structure served by the side wall horizontal
vented gas fueled equipment. It shall be the responsibility
of the property owner to secure the services of qualified
licensed professionals for the installation of hard wired
carbon monoxide detectors.
a. In the event that the side wall horizontally vented
gas fueled equipment is installed in a crawl space or
an attic, the hard wired carbon monoxide detector
with alarm and battery back-up may be installed on
the next adjacent floor level.
b. In the event that the requirements of this subdivision
can not be met at the time of completion of
installation, the owner shall have a period of thirty
(30) days to comply with the above requirements;
provided, however, that during said thirty (30) day
period, a battery operated carbon monoxide detector
with an alarm shall be installed.
2. APPROVED CARBON MONOXIDE DETECTORS.
Each carbon monoxide detector as required in accordance
with the above provisions shall comply with NFPA 720
and be ANSI/UL 2034 listed and IAS certified.
3. SIGNAGE. A metal or plastic identification plate shall
be permanently mounted to the exterior of the building
at a minimum height of eight (8) feet above grade
directly in line with the exhaust vent terminal for the
horizontally vented gas fueled heating appliance or
equipment. The sign shall read, in print size no less than
one-half (1/2) inch in size, “GAS VENT DIRECTLY
BELOW. KEEP CLEAR OF ALL OBSTRUCTIONS”.
4. INSPECTION. The state or local gas inspector of the
side wall horizontally vented gas fueled equipment shall
not approve the installation unless, upon inspection,
the inspector observes carbon monoxide detectors and
signage installed in accordance with the provisions of
248 CMR 5.08(2) 1 through
EXEMPTIONS: The following equipment is exempt
from 248 CMR 5.08(2)(a)1 through 4:
1. The equipment listed in Chapter 10 entitled
“Equipment Not Required To Be Vented” in the
most current edition of NFPA 54 as adopted by
the Board; and
2. Product Approved side wall horizontally
vented gas fueled equipment installed in a
room or structure separate from the dwelling,
building or structure used in whole or in part
for residential purposes.
MANUFACTURER REQUIREMENTS - GAS
EQUIPMENT VENTING SYSTEM PROVIDED.
When the manufacturer of Product Approved side
wall horizontally vented gas equipment provides a
venting system design or venting system components
with the equipment, the instructions provided by the
manufacturer for installation of the equipment and the
venting system shall include:
1. Detailed instructions for the installation of the
venting system design or the venting system
components; and
2. A complete parts list for the venting system
design or venting system.
A copy of all installation instructions for all Product
Approved side wall horizontally vented gas fueled
equipment, all venting instructions, all parts lists for venting
instructions, and/or all venting design instructions shall
remain with the appliance or equipment at the completion
of the installation.

21091-0-0606 Page 7
TERMINATION CLEARANCES
Description US Installations1
A Clearance above grade, veranda, porch, deck, or balcony 12 inches (30 cm)
B Clearance to window or door that may be open 6 inches (15 cm) for appliance ≤ 10,000 Btuh (3 kW), 9 inches (23 cm)
for appliances > 10,000 Btuh (3 kW) and ≤ 50,000 Btuh (15 kW), 12
inches (30 cm) for appliances > 50,000 Btuh (15 kW)
C Clearance to permanently closed window *
D Vertical clearance to ventilated soffit located above the terminal
within a horizontal distance of 2 feet (61 cm) from the center line
of the terminal
*
E Clearance to unventilated soffit *
F Clearance to outside corner *
G Clearance to inside corner *
H Clearance to each side of center line extended above meter/regu-
lator assembly
*
I Clearance to service regulator vent outlet *
J Clearance to nonmechanical air supply inlet to building or the
combustion air inlet to any other appliance.
6 inches (15 cm) for appliance ≤ 10,000 Btuh (3 kW), 9 inches (23 cm)
for appliances > 10,000 Btuh (3 kW) and ≤ 50,000 Btuh (15 kW), 12
inches (30 cm) for appliances > 50,000 Btuh (15 kW)
K Clearance to a mechanical air supply inlet 3 feet (91 cm) above if within 10 feet (3 m) horizontally
L Clearance above paved sidewalk or paved driveway located on
public property
*
M Clearance under veranda, porch, deck, or balcony. *
The minimum distance from the center of the outside vent to the nearest inside and outside corner or obstruction or overhang is 18".
1In accordance with current ANSI Z223.1/NFPA 54, National Fuel Gas Code
*For clearances not specified in ANSI Z223.1/NFPA 54 or CSA B149.1, one of the following shall be indicated:
a) A minimum clearance value determined by testing in accordance with section 2.19.6, or;
b) A reference to the following footnote:
“Clearance in accordance with local installation codes and the requirements of the gas supplier.”

Page 8 21091-0-0606
INSTALLATION AND ASSEMBLY
WARNING: Any change to this heater or its control can be dangerous. Provide adequate clearances and
accessibility for purposes of servicing and proper operation.
A manufactured home (USA only) installation must conform with the Manufactured Home Construction and Safety Standard, Title 24
CFR, Part 3280 or, when such standard is not applicable, the Standard for Manufactured Home Installations, ANSI Z225.1.
Due to high surface temperature, keep children, clothing, and furniture away. Keep burner and control compartments clean. See instal-
lation and operating instructions accompanying heater.
INSTALLATION OVERVIEW
WARNING: Improper installation, adjustments, alteration, service, or maintenance can cause property damage, personal injury
or loss of life.
Refer to the owner’s information manual provided with this appliance. Installation and service must be performed by a qualified
installer, service agency, or the gas supplier.
These wall furnace models are designed for direct venting through a wall. Only venting components approved for these furnaces may
be used.
Mark the venting system hole location (as in-
dicated on page 8) and the four holes through
the wall bracket. Drill accordingly. Insert the
four wall anchors provided and tighten the wall
bracket firmly. Use special anchor fasteners if
the heater is to be installed on a wooden (hol-
low) wall. Pull out the control knob, slide the
front cabinet up and out from the rest of the
heater, and disconnect the sparker from the
piezoelectric igniter. Slide the rear panel lower
edge into the wall bracket fingers, and complete
by tightening the four wing nuts. Reconnect
the piezo cable, and complete the assembly.
The heater is now ready to receive the venting
system assembly from the opposite side of the
wall.
Control
Wing Screw Plastic wall anchor
Wall bracket
Piezo cable
IMPORTANT: The venting system must be properly installed to insure proper and safe operation. The venting system
must also be properly re-installed and re-sealed to insure proper and safe operation.

21091-0-0606 Page 9
DIRECT VENTING HORIZONTAL INSTALLATION
Once the place for the installation is selected, refer to the figure below for positioning the “B” hole. Be sure the skirting-
board does not get in the way.

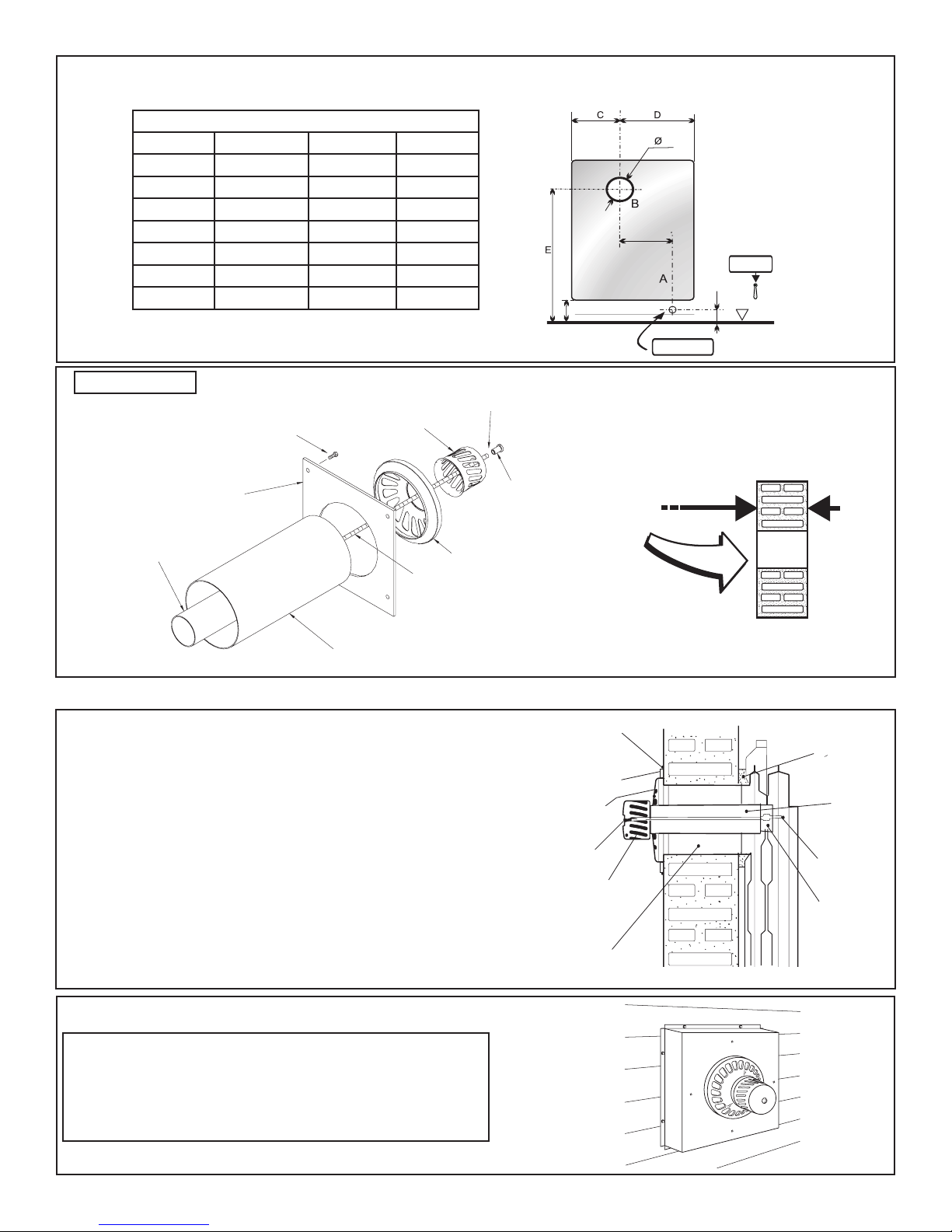

MEASUREMENTS (inches)
Model HW180DV HW130DV HW075DV
C 12 9 5.5
D 13.75 10.5 6.75
E 21 21 22.5
F 11.5 8.75 5
G 5 5 5
H 3.5 3.5 3.5
I 8.25 8.25 6
Valve
Floor line
Gas Outlet
G
F
H
I
TB Sub-assembly This unit is to be installed on wall from 4" to
11.75" thick.
The cap has a hole to insert
the threaded rod easily
through the assembly.
Washer not shown
Blind nut
Air inlet ring
Threaded rod
Air inlet pipe
Gases outlet pipe
Spacer
Screw (4x) Cap
11.75”
IMPORTANT: The appliance’s venting system should be inspected at least once a year and immediately cleaned if necessary.
Insert the threaded rod (from the other side of the wall) through the
air inlet conduit, tightening it to the combustion chamber support.
Place the air inlet ring around the tube sealing it against the spacer.
Insert the cap through the rod and tighten firmly using the blind nut
and washer.
Failure to position these parts in accordance with diagram or
failure to use only parts specifically approved with these appli-
ances may result in property damage or personal injury.
Note: Vinyl siding vent kit, HW822DV, is available from Empire
Comfort Systems, Inc. The depth is 3" (76mm), which enables the
vent cap to be extended away from vinyl siding or projections. The
wall depth plus the additional 3" (76mm) depth of the vinyl siding
vent cap extension should not exceed a total depth of 11.75" (330mm)
for HW130DV and HW180DV.
Silicon-based
Sealant
Air Inlet
Ring
Spacer
Cup
Gasket
Gas
Outlet
Conduit
Air Inlet
Conduit
Threaded
Rod
Threaded
Support
Blind Nut
Warning: When vinyl siding vent kit, HW822DV is added to an
existing installation (furnace is installed) do not attempt to add
sections of pipe to the flue outlet tube or air inlet tube. An air tight
seal is required for both tubes. Refer to Parts List, page 22 to order
tubes.

Page 10 21091-0-0606
INSTALLATION OF HOUSEWARMER PRODUCT
WARNING: Read the installation instructions thoroughly before cutting or drilling any holes for
installation.
WARNING: Do not remove any rating plates attached to the unit.

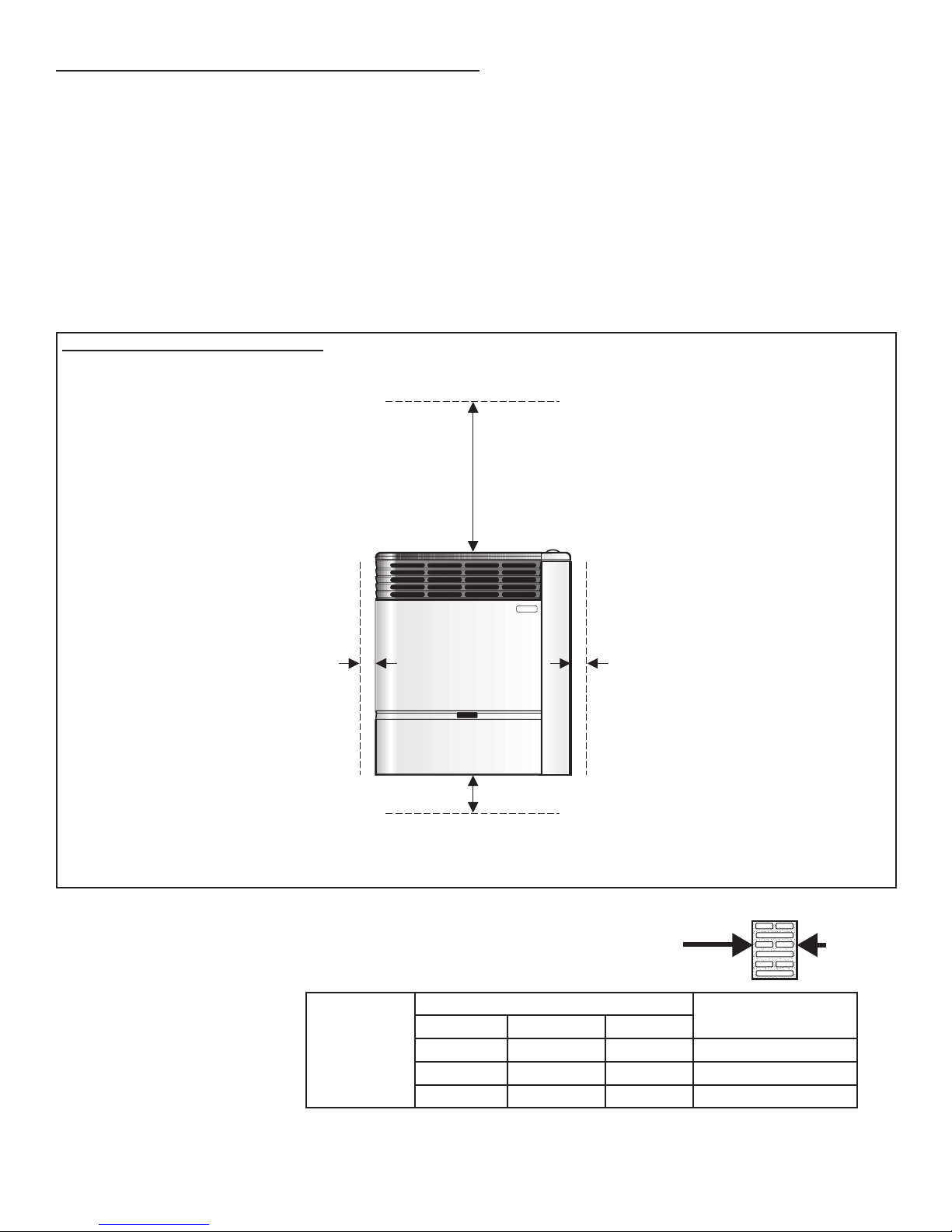

CLEARANCES TO COMBUSTIBLES
Allow clearances (for all models) to adjacent combustible construction.
IMPORTANT: A qualified service person must install this appliance. Installation must conform to local codes, or in the absence of
local codes, with the latest edition of the National Fuel Gas Code, ANSI Z223.1.
2”
20”
2”
5”
-11.75”
WALL
THICKNESS
+
MODELS ACCESSORY
HW180DV HW130DV HW075DV
8" 7.25" 6" THREADED ROD
5/8" 5/8" 5/8" AIR INLET PIPE
4" 3.5" 3.25" GAS OUTLET PIPE
When the wall thickness is less than
11.75", cut the sub-assembly as
specified in the chart. (The measure-
ment is the original wall thickness
plus the added length in the chart)
INSTALLATION AND ANY REPAIRS TO THIS APPLIANCE MUST BE DONE BY A QUALIFIED SERVICE PERSON.
A qualified service person should be called to inspect this appliance annually.
Have all of your appliances checked annually.

21091-0-0606 Page 11

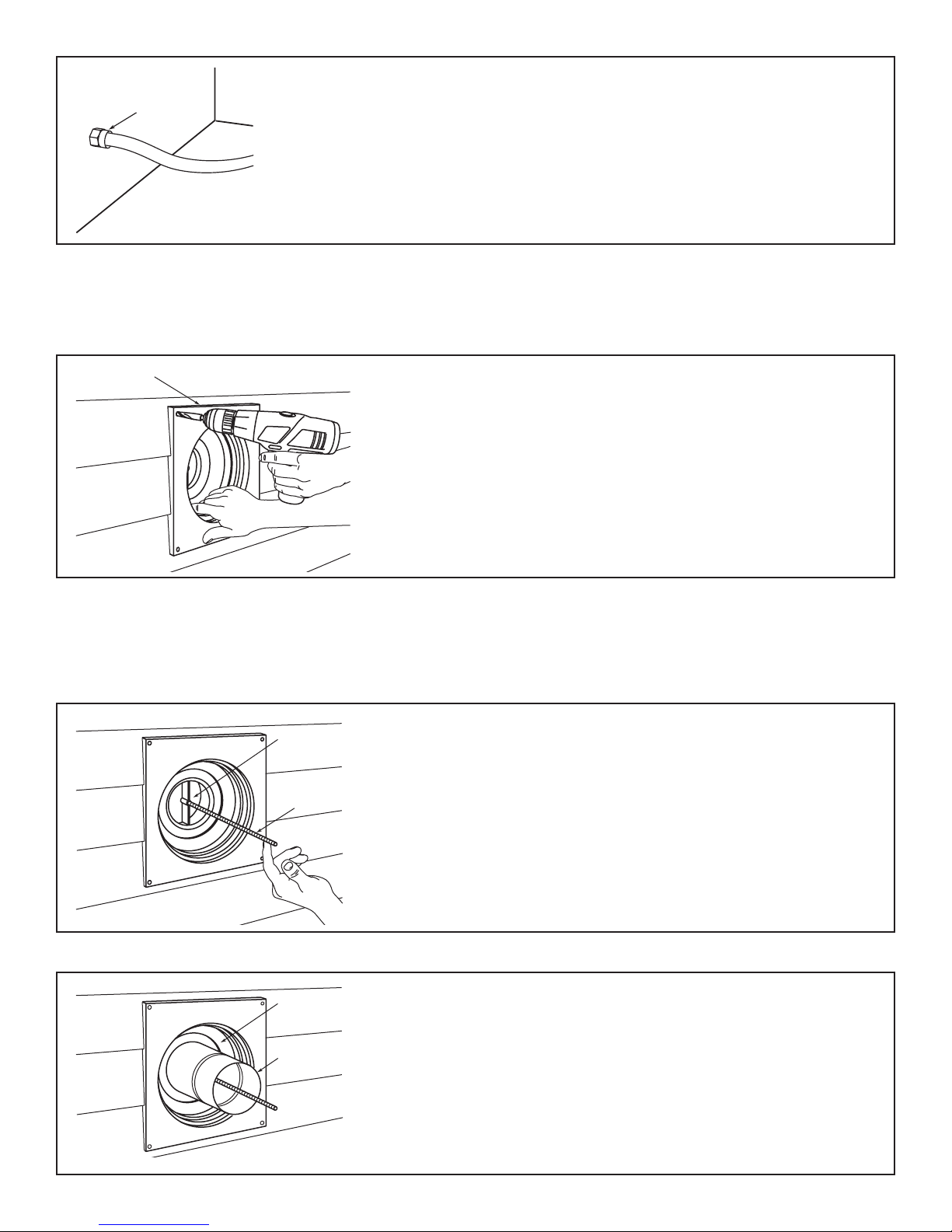

Drill a pilot hole in the flue outlet circle and gas inlet circle so that a
jigsaw can be used to cut the holes out.
Pilot
Hole
Trace the template flue outlet hole and the gas inlet hole onto the wall. Mark the four (4) wall bracket mounting screw holes onto the
wall. The size of the gas inlet hole will depend upon the size of gas pipe coming into the unit. (See page 9, top graphic, items A and B).
The center of the gas inlet hole will be located 6 ¼" from the floor line.
Locate the wall bracket template included in your kit and remove
the perforated sections. Use painters’ tape to secure the wall bracket
template onto the interior wall where the heater will be located.
Wall Bracket
Template
3-1/2”
FLOOR LINE
Remove the template from the wall after the holes are marked. The
hole location markings will be present on the wall.
Marking for Wall Bracket
Mounting Holes - 4 Qty.
Marking for
Flue Outlet
Hole
Marking for
Gas Inlet
Hole
3-1/2”
FLOOR LINE
INTERIOR PREPARATION AND INSTALLATION OF THE BACK OF THE UNIT

Page 12 21091-0-0606

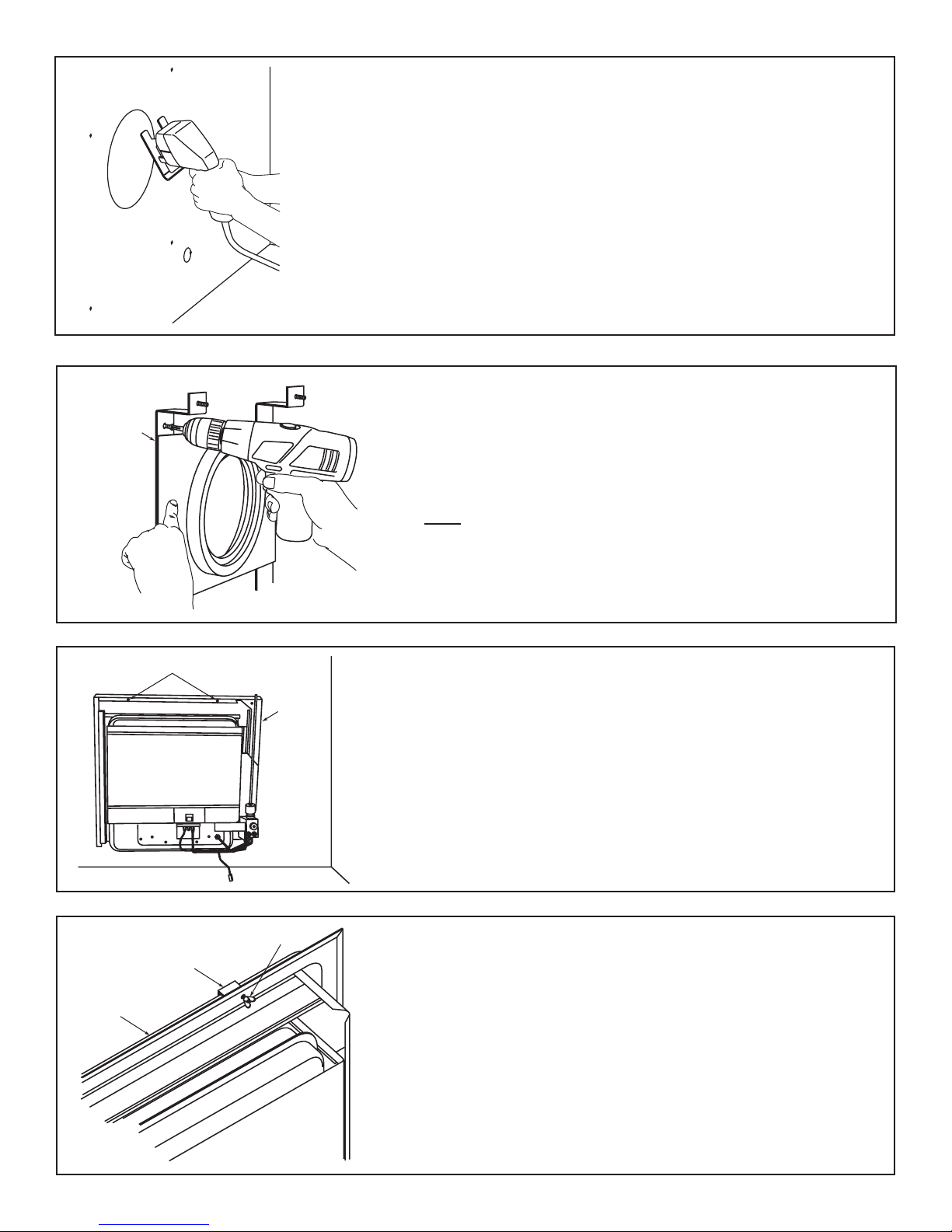

Use a jigsaw to cut the holes out of the wall and discard the inner
circle debris. The wall is now prepared for the installation of the
unit.
Using four (4) wood screws, attach the wall mounting bracket to the
wall.
If installing onto drywall, anchors may need to be used.
Note:
See instruction sheet to install air inlet gasket ring.
Wall Mounting
Bracket
Line up the two (2) screws in the top of the mounting bracket with the
holes in the back of the unit. Slide the back of the unit onto the screws
attaching the back of the unit to the wall.
Back of
Unit
Holes
Secure the back of the unit into place using two (2) wing nuts and
washers.
Wall Mounting
Bracket
Back of
Unit
Wing Nut

21091-0-0606 Page 13
Slide the flue outlet tube over rod so that it fits into the combustion
chamber.
See page 10 for cutting flue tube to proper length.
Flue Outlet
Tube
Combustion
Chamber
EXTERIOR INSTALLATION OF THE VENTING
VENT KIT INSTALLATION
NOTE: Flue outlet tube, air inlet tube, and threaded rod should be measured and cut to the proper length from the back of the unit to the
outside wall of the house. There should be little to no venting showing on the outside of the house. See the table on page 10.
Combustion
Chamber
Threaded
Rod
Install the threaded rod into the combustion chamber.
See page 10 for cutting rod to proper length.
After the back of the unit is attached to the wall, bring the gas line as
shown on page 9, or follw the installation template indications. Fol-
lowing your city, local and state codes, attach the gas line to the unit.
NOTE: The gas line runs THROUGH the wall of the house.
Gas
Line
Center the outside flue outlet spacer over the flue outlet hole on the
exterior wall and attach using four (4) drywall screws.
Flue Outlet
Spacer

Page 14 21091-0-0606
Slide the air inlet ring onto the air inlet tube making sure that the flue
outlet tube comes through the center hole to proper length.
Air Inlet
Ring
Flue Outlet
Tube
Attach the air inlet cap making sure that the threaded rod comes
through the center hole in the cap. Secure the air inlet cap by attach-
ing the washer and brass blind nut to the threaded rod using a screw-
driver, tightening to stabilize the vent kit.
Air Inlet
Cap
Slide the air inlet tube over the flue outlet tube and fit into the
combustion chamber.
See page 10 for cutting air inlet tube to proper length.
Air Inlet
Tube
5/8”
3%
EXTERIOR
SIDE
Insert the air inlet pipe carefully to maintain this element’s shape
intact.
!MAKE SURE THE AIR INLET PIPE IS TILTED 3 PERCENT AS
SHOWN TO AVOID ANY WATER COMING IN.

21091-0-0606 Page 15
INTERIOR INSTALLATION OF THE FRONT OF THE UNIT

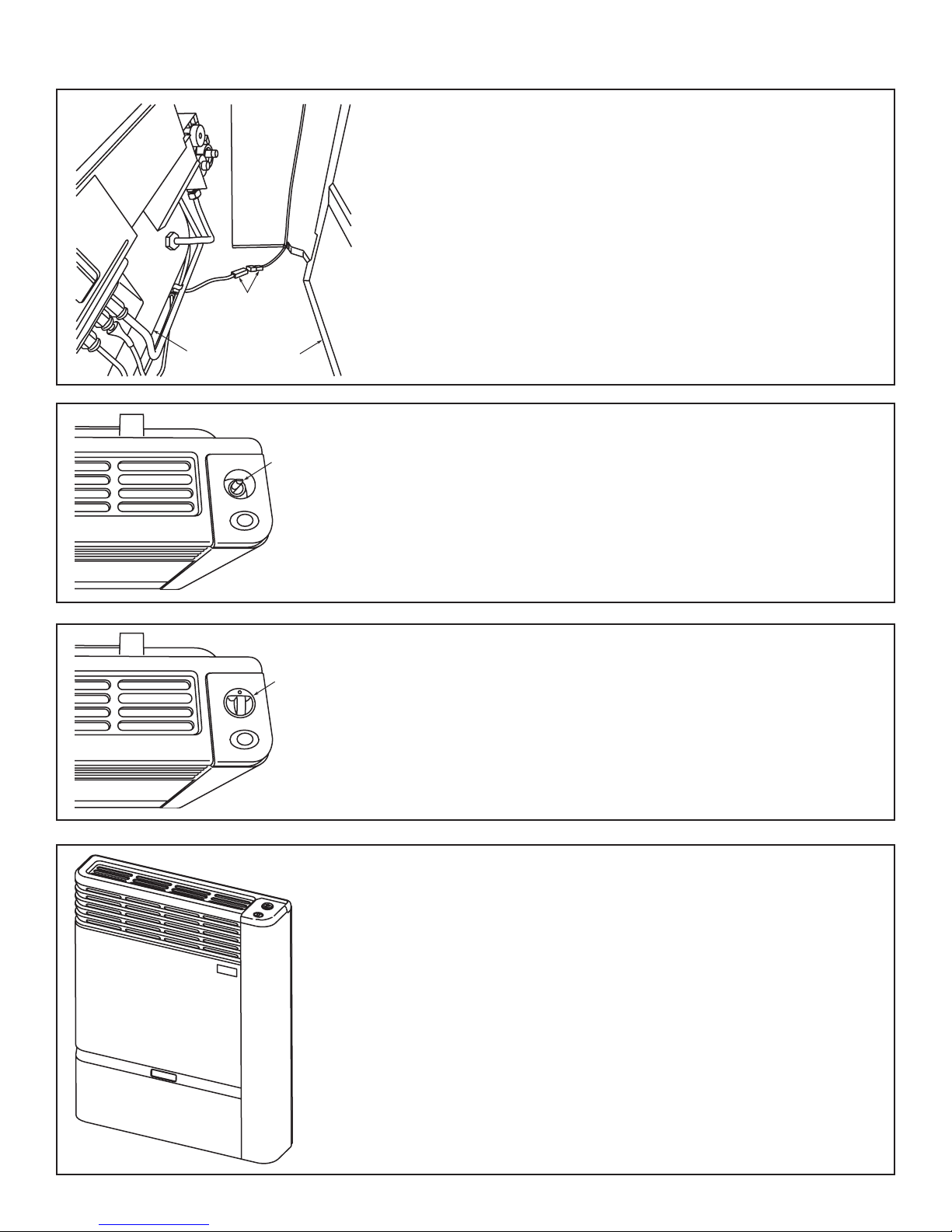

Connect the electrode wires to each other. One electrode wire is on
the front of the unit and the other electrode wire is on the back of the
unit. Once connected, tuck the electrode wires up into the unit when
attaching the front housing so that the electrode wires do not cause a
hazard by hanging down.
Front
of Unit
Electrode
Wires
Back
of Cabinet
Slide the front housing of the unit onto the back of the unit making
sure that the temperature control rod protrudes up through the hole in
the top of the housing.
The two slotted holes in the front housing slide onto the slots of the
bracket to fit snugly.
Temperature
Control Rod
Push the temperature control knob onto the temperature control rod.
Temperature
Control Knob
The HouseWarmer unit is now properly installed.

Page 16 21091-0-0606
Thermostatic
Valve
3/8” NPT
WARNING
Improper installation, adjustments, alterations, service or
maintenance can cause property damage, personal injury or
loss of life. Installation and service must be conducted by a
Qualified Service Person.
Under no circumstances should these heaters be modified.
In case of gas leaks, close gas valve and call your Qualified
Service Person.
ATTENTION INSTALLER:
The appliance must be isolated from the gas supply piping system by closing its equipment shut-off valve during any pressure testing
of the gas supply piping system at test pressures equal to or less than 1/2 psi (3.5 kPa).
The appliance and its appliance main gas valve must be disconnected from the gas supply piping system during any pressure testing of
that system at test pressures in excess of 1/2 psi (3.5 kPa).
BEFORE OPERATING APPLIANCE
DO NOT RECESS INTO WALLS, BOOKCASES, ETC.
CHECK THE FOLLOWING BEFORE OPERATING APPLIANCE
Do not use gases other than those indicated on the heater’s rating
plate
Due to high temperature, the appliances should be located out of
traffic and away from furniture and draperies.
Do not place clothing or other flammable material on or near the
appliance. Do not dry clothes over heater. Blockage of hot air outlet
will cause overheating of appliance, and possible fire.
Description label

21091-0-0606 Page 17
IMPORTANT: Under no circumstances should this appliance be modified. Do not operate this appliance if any parts have been
removed for service.
Do not spray any aerosol near heater when in operation. Do not store
these elements near appliance.
Do not touch grill. Avoid burning yourself.
Avoid blocking air inlet and hot air outlet.
Do not place flammable elements on or near the heater.
SUN T IMES
Thakjdk sakdhfskdf
askdfhasdfasdfml
asdfa;sd;,.sdnfk fkaf‘’
asdfjsasdf vl; asdfjma
sadf’as’adsdlfh;;asdsf
aaskljdfh;osdjf;l ;sdfk
asdf;
‘asdfnasd;f;h;hasdfhh
Thakjdk sakdhf skdf
askdfhasdf asdf ml
asdf a;sd;,.sdnfkfkaf ‘’
asdfjsasdfvl;ma
sadf’as’adsfas;df;
aasld;fioiuasd
’fj‘po asdlfjal;sdfhj ;’’
asdkfjkbasd a;sdfh;f;
Thakjdksakdhfskdf
askdfhasdfasdfml
asdfa;sd;,.sdnfkfkaf‘’
asdfjsasdfvl;ma
sadf’as’adsf as;df;
aasld;fioiuasd
’fj‘poasdlfjal;sdfhj;
asdkfjkbasda;sdfh;f;
Thakjdksakdhfskdf
askdfh asdfasdfml
asdf a;sd;,.sdnfkfkaf‘’
asdfjsasdfvl;masdf
sadf’as’adsf as;df;
aasld;fioiuassdfv][d
’fj ‘poasdlfjal;sdfhj ;’’
asdkfj kbasd a;sdfh ;f ;
Thakjdksakdhfskdf
askdfh asdfasdfml
asdf a;sd;,.sdnfkfkaf‘’
asdfjsasdfvl;m sdlfhjb
sadf’as’adsfas;dasd’pf;
aasld;fioiuasdasd;lk
’fj ‘poasdlfjal;sdfhj ;’’
asdkfj kbasd a;sdfh ;f;

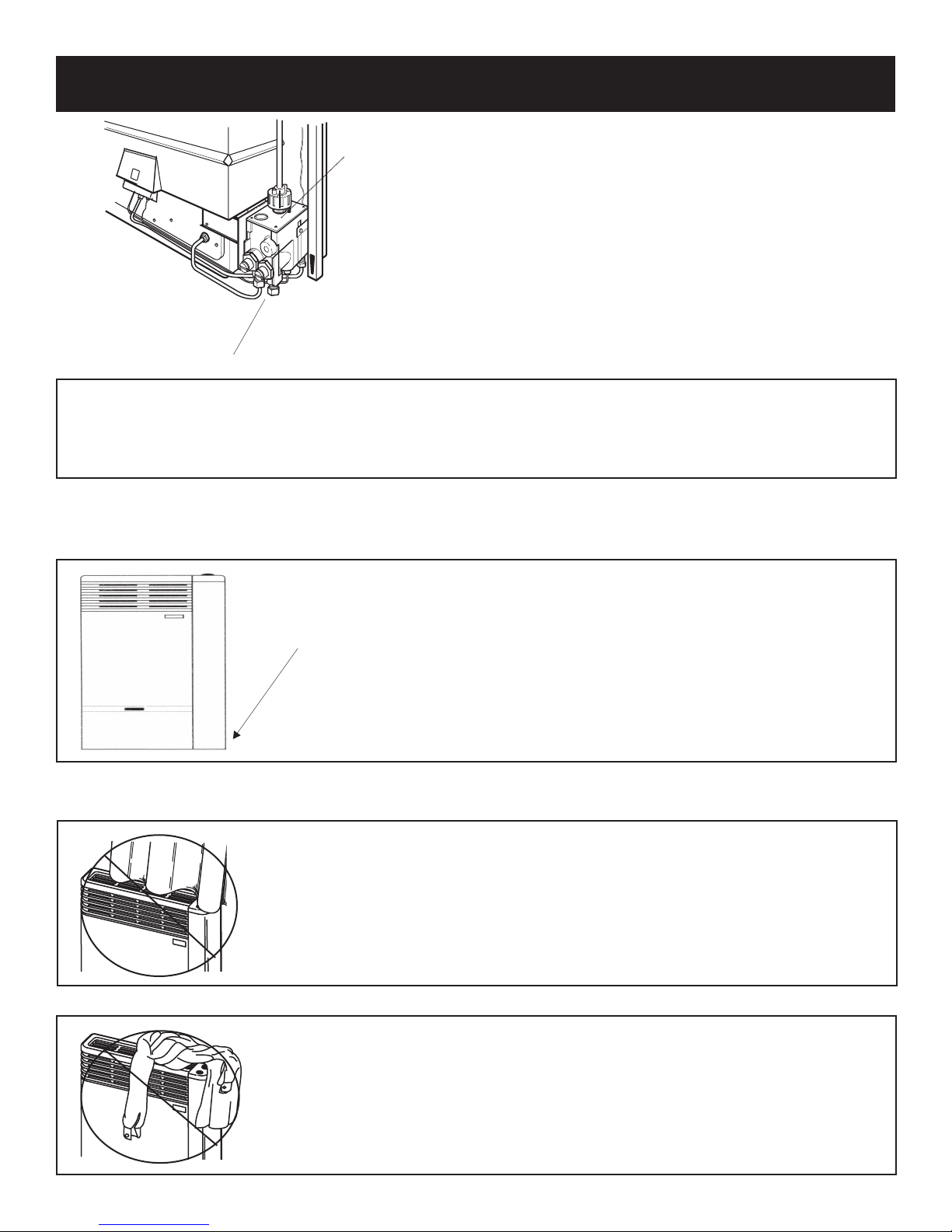

Page 18 21091-0-0606
5” FLOOR LEVEL
(Top surface of carpet, wood, tile, etc...)
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone. Follow the gas
supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
• If you smell gas, shut off control valve, open doors and windows, and do not
use any electrical device. Call our technical department at [phone].
After completion of gas pipe connections, all joints must be checked for gas-tightness by means of leak detector solution,
soapy water or an equivalent solution, as applicable.
CAUTION: Since some leak test solutions, including soapy water, may cause corrosion or stress cracking, all tested pipes
and joints shall be rinsed in water, unless it has been determined that the test solution is a non-corrosive type.
Shut off valve
Any compound used on the threaded gas piping joint shall be resistant to any
action of liquefied petroleum gas.
A shut off valve (or appliance connector valve) must be installed in the gas line
upstream to permit servicing.

21091-0-0606 Page 19
Note: All references must be considered as if the observer is standing in front of the wall and/or appliance.
ATTENTION INSTALLER: INSTRUCT YOUR CUSTOMER ABOUT THE CORRECT
OPERATION OF THE APPLIANCE BEFORE YOU LEAVE.
Air must be exhausted from pipeline by depressing to pilot setting or by loosening gas inlet connection until you smell gas. Qualified ser-
vice persons must conduct this procedure only for the first time the heater is operated, in a well ventilated room, with doors and windows
open. If loosened, tighten gas inlet connection. Check gas inlet connection with a soapy water solution to assure no leaks are present.
Do not regulate primary air burner. They both have been adjusted according to corresponding gas. If burner produces a permanent bright
yellow flame when igniting or when ignited, call: [phone].
Connection
Connect wire from piezo igniter to igniter (arrow). Light the appliance
carefully checking all connections with a soapy water solution to assure
no leaks are present.
Reassemble appliance making sure lower end lids fit into installed
grooves. Place knob in position and push down gently.

Page 20 21091-0-0606
OPERATING INSTRUCTIONS
FOR YOUR SAFETY READ BEFORE LIGHTING
WARNING: If you do not follow these instructions exactly, a fire or explosion may result, causing property damage, personal
injury, or loss of life.
A) This appliance has a pilot which must be lighted by hand. When lighting the pilot, follow these instructions exactly.
B) BEFORE LIGHTING, smell all around the appliance area for gas. Be sure to smell next to the floor because some gas is heavier
than air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
C) Use only your hands to push in or turn the gas control knob. Never use tools. If the knob will not push in or turn by hand, do not
try to repair it; call a qualified service technician. Force or attempted repair may result in a fire or explosion.
D) Do not use this appliance if it has been under water. Immediately call a qualified service technician to inspect the heater and to
replace any part of the control system and any gas control which has been under water.
NOTE: It is normal for the new heater to give off some odor the first time it is lit. This is due to final paint curing and to any un-
detected oil remaining from the manufacturing process. It is recommended that you operate your new wall heater for at least two
(2) hours the first time you use it.
ONCE THE UNIT IS IN OPERATION, CHECK ALL GAS CONNECTIONS WITH A SOAPY WA-
TER SOLUTION. CHECK THE TEST POINT PRESSURE; IT MUST BE 3.5" W.C. FOR NATURAL
GAS AND 10.0" W.C. FOR LP GAS.
