iBell Tools IBL ID 13-80 User manual

IMPACT DRILL | IMPACT DRILL TOOL BOX
ID 13-80|TD13-100

1

2
1. GENERAL POWER TOOL SAFETY WARNINGS __________
2. IMPACT DRILL SAFETY WARNINGS____________________
3. PRODUCT OVERVIEW _________________________________
4. PRODUCT SPECIFICATIONS ___________________________
5. SETUP _________________________________________________
6. PRODUCT FUNCTIONS ________________________________
7. GENERAL OPERATION ________________________________
8. TROUBLESHOOTING __________________________________
TABLE OF CONTENTS
IBL ID13-80|TD13-100
3
6
8
9
10
12
16
18

3
Keep work area clean and well lit. Cluttered or dark areas invite
accidents.
Do not operate power tools in explosive atmospheres, such as
in the presence of flammable liquids, gases or dust. Power
tools create sparks which may ignite the dust or fumes.
Keep children and bystanders away while operating a power
tool. Distractions can cause you to lose control.
Power tool plugs must match the outlet. Never modify the plug
in any way. Do not use any adapted plugs with earthed(grounded)
power tools. Modified plugs and un-matching outlets will increase
the risk of electric shock.
Avoid body contact with earthed or grounded surfaces, such as
pipes, radiators, ranges and refrigerators. There is an increased
risk of electric shock if your body is earthed or grounded.
Do not expose power tools to rain or wet conditions. Water
entering a power tool will increase the risk of electric shock.
Do not abuse the cord. Never use the cord for carrying, pulling or
unplugging the power tool. Keep it away from heat, oil, sharp edges
or moving parts.
When operating a power tool outdoors, use an extension cord
suitable for outdoor use. Use of a cord suitable for outdoor use
reduces the risk of electric shock.
GENERAL POWER TOOL SAFETY WARNINGS
WARNING! Read all safety warnings, instructions,
illustrations and specifications provided with this power tool.
Failure to follow all instructions listed below may result in
electric shock, fire and/or serious injury. Save all warnings and
instructions for future reference. The term “power tool” in the
warnings refers to your mains-operated (corded) power tool or
battery-operated (cordless) power tool
WORK AREA SAFETY
ELECTRICAL SAFETY
IBL ID13-80|TD13-100

4
Stay alert, watch what you are doing and use common sense
when operating a power tool. Do not use a power tool while you
are tired or under the influence of drugs or alcohol. A moment of
inattention while operating power tools may result in serious
personal injury.
Use personal protective equipment. Always wear eye protection.
Protective equipment such as a dust mask, non-skid safety shoes,
hard hat, or hearing protection used for appropriate conditions will
reduce personal injuries.
Prevent unintentional starting. Ensure the switch is in the off-
position before connecting to power source and/or battery pack,
picking up or carrying the tool.
Remove any adjusting key or wrench before turning the power
tool on. A wrench or a key left attached to a rotating part of the
power tool may result in personal injury.
Do not overreach. Keep proper footing and balance at all times.
This enables better control of the power tool in unexpected
situations.
Dress properly, say no to loose clothing or jewellery. Keep your
hair, clothing away from moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts.
If devices are provided for the connection of dust extraction
and collection facilities, ensure these are connected and
properly used. Use of dust collection can reduce dust-related
hazards.
Have your power tool serviced by a qualified repair-person
using only identical replacement parts.This will ensure that the
safety of the power tool is maintained.
When servicing a power tool, use only identical replacement
parts. Follow instructions in the maintenance section of this
manual. Use of unauthorized parts or failure to follow maintenance
instructions may create a risk of shock or injury.
PERSONAL SAFETY
IBL ID13-80|TD13-100
SERVICE

5
Do not force the power tool. Use the correct power tool for your
application. The correct power tool will do the job better and safer
at the rate for which it was designed.
Do not use the power tool if the switch does not turn it on and
off. Any power tool that cannot be controlled with the switch is
dangerous and must be repaired.
Disconnect the plug from the power source and/or the battery
pack from the power tool before making any adjustments,
changing accessories, or storing power tools. Such preventive
safety measures reduce the risk of starting the power tool
accidentally.
Store idle power tools out of the reach of children and do not
allow persons unfamiliar with the power tool or these
instructions to operate the power tool. Power tools are dangerous
in the hands of untrained users.
Keep cutting tools sharp and clean. Properly maintained cutting
tools with sharp cutting edges are less likely to bind and are easier
to control.
Keep handles and grasping surfaces dry, clean and free from oil
and grease. Slippery handles and grasping surfaces do not allow
for safe handling and control of the tool in unexpected situations.
Even if you are operating this product in accordance with all the
safety requirements, potential risks of injury and damage remain.
The following dangers can arise:
Health defects resulting from vibration emission if the product is
being used over long periods of time or not adequately managed
and properly maintained.
Injuries and damage to property due to broken cutting attachments
or the sudden impact of hidden objects during use.
Danger of injury and property damage caused by other objects or
due to natural reactions or calamities.
POWER TOOL USE AND CARE
IBL ID13-80|TD13-100
RESIDUAL RISKS

6
Wear ear protectors when impact drilling. Exposure to noise can
cause hearing loss.
Use auxiliary handle supplied with the tool. Loss of control can
cause personal injury.
Hold power tool by insulated gripping surfaces, when
performing an operation where the cutting accessory may contact
hidden wiring or its own cord. Cutting accessory contacting a “live”
wire may make exposed metal parts of the power tool “live” and
could give the operator an electric shock.
Always wear safety goggles or eye protection when using this
tool. Use a dust mask or respirator for applications which
generate dust.
Secure the material being drilled. Never hold it in your hand or
across legs. Unstable support can cause the drill bit to bind
causing loss of control and injury.
Place the switch in the locked or off position before making any
assembly, adjustments or changing accessories. Such preventive
safety measures reduce the risk of starting the tool accidentally.
Position yourself to avoid being caught between the tool or side
handle and walls or post. When the bit become bound or jammed
in the work, the reaction torque of the tool could crush your hand
or leg.
If the bit becomes bound in the work piece, release the trigger
immediately, reverse the direction of rotation and slowly squeeze
the trigger to back out the bit. Be ready for a strong reaction torque.
The drill body will tend to twist in the opposite direction as the
drill bit is rotating.
Do not grasp the tool or place your hands too close to the spinning
impact drill chuck or drill bit.
When installing a drill bit, insert the shank of the bit well within
the jaws of the chuck. If the bit is not inserted deep enough, the
grip of the jaws over the bit is reduced and the loss of control
is increased.
Do not use dull or damaged bits and accessories. Dull or
damaged bits have a greater tendency to bind in the work piece.

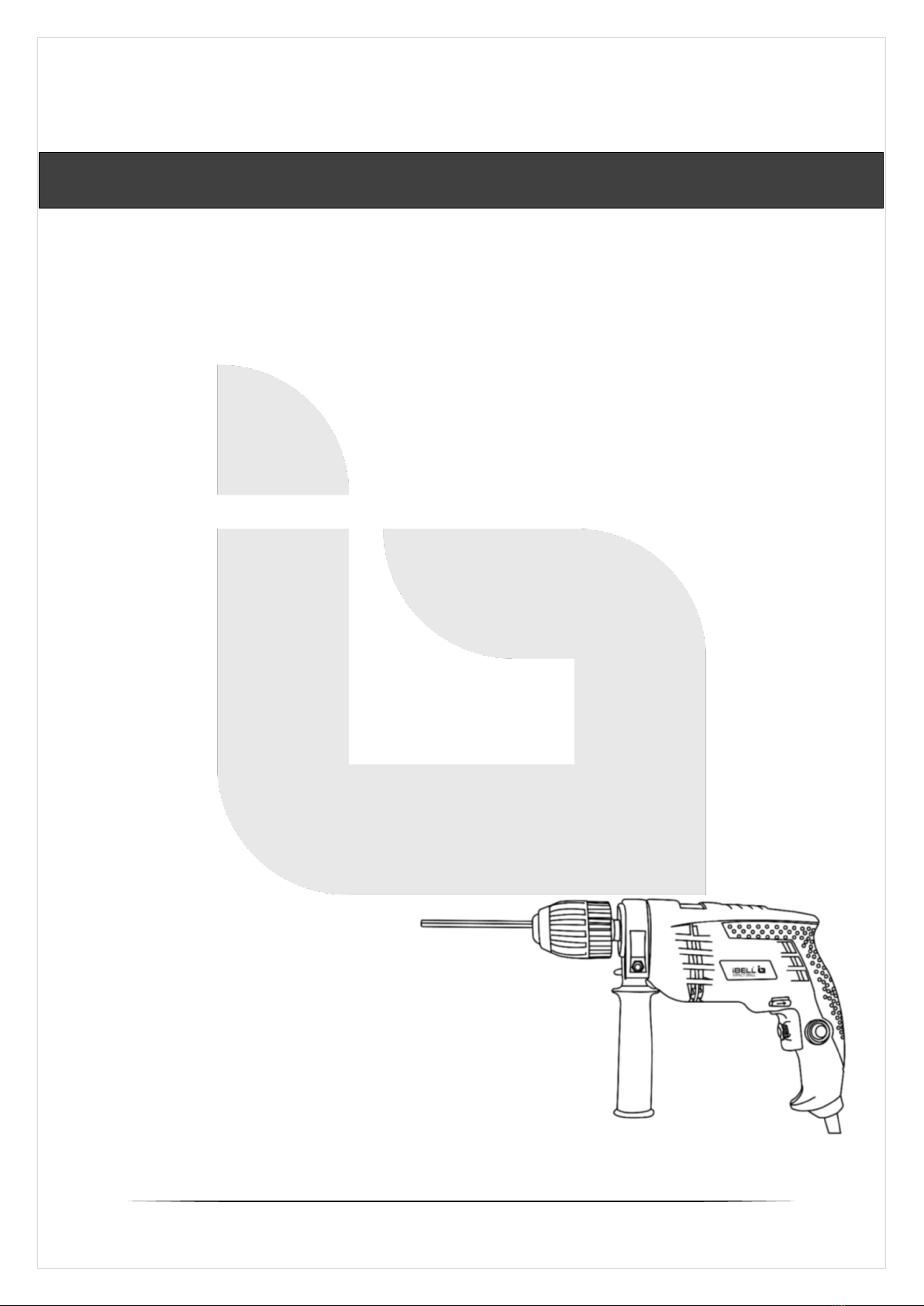

IMPACT DRILL SAFETY WARNINGS
IBL ID13-80|TD13-100

7
When removing the bit from the tool avoid contact with skin and
use proper protective gloves when grasping the bit or accessory.
Accessories may be hot after prolonged use.
Check to see that keys and adjusting wrenches are removed from
the drill before switching the tool “ON”. Keys or wrenches can fly
away at high velocity striking you or bystander.
Do not run the drill while carrying it at your side. A spinning
drill bit could become entangled with clothing and injury may
result.
Avoid bouncing and snagging the wheels, discs or brushes
especially when working corners, sharp edges, etc. This can cause
loss of control and kickback.
On the product or on the packing box, the rating label and within
these instructions you will find among others the following symbols
and abbreviations. Familiarize yourself with them to reduce hazards
like personal injuries and damage to property.

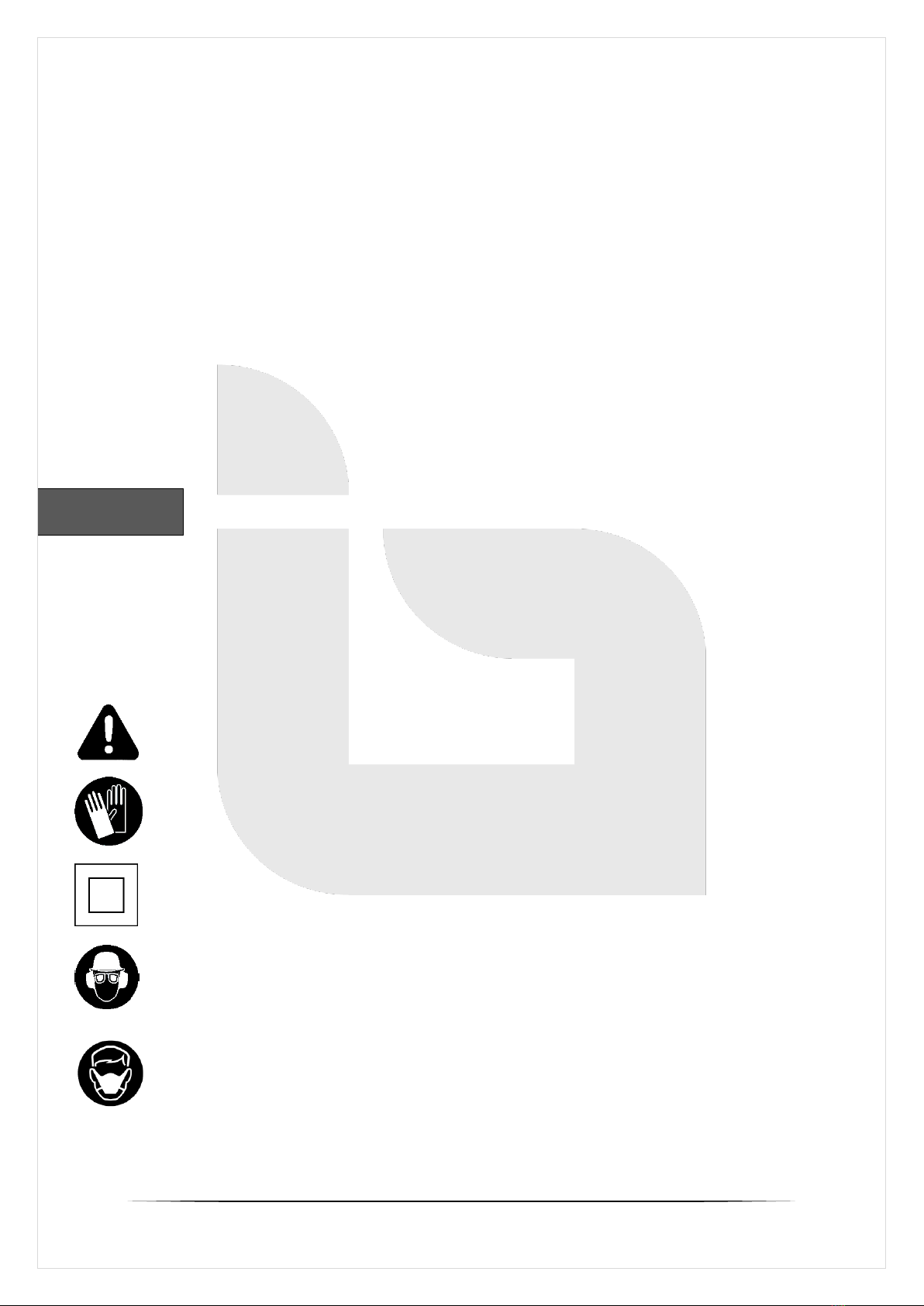

SYMBOLS
Caution / Warning
Wear protective gloves
This product is of protection class II. That means it is
equipped with enhanced or double insulation
Wear hearing and eye protection
Wear dust mask
IBL ID13-80|TD13-100

8

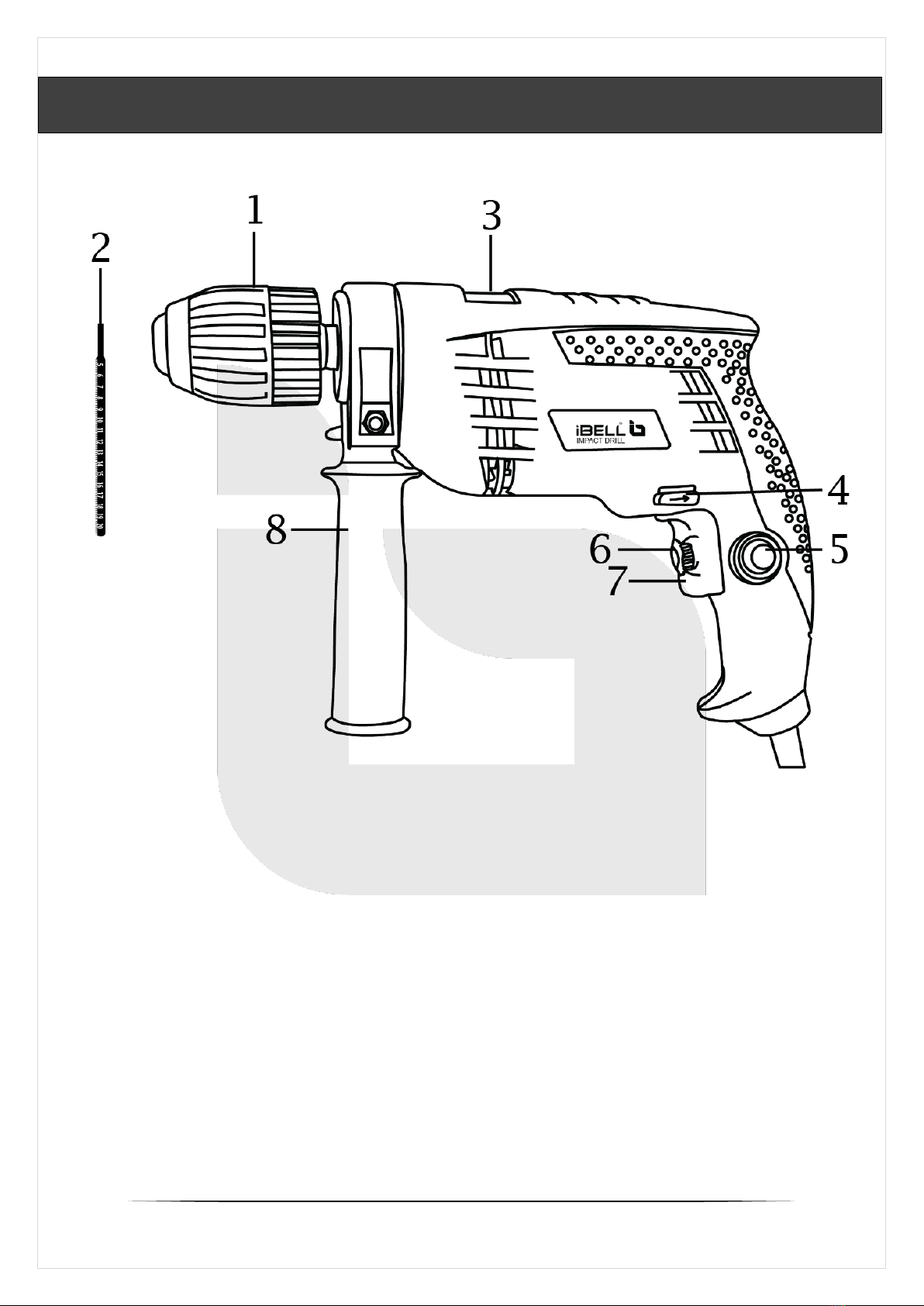

PRODUCT OVERVIEW
1. Chuck
2. Depth gauge
3. Drill/Hammer function selector
4. Forward/Reverse rotation control lever
5. Switch lock on button

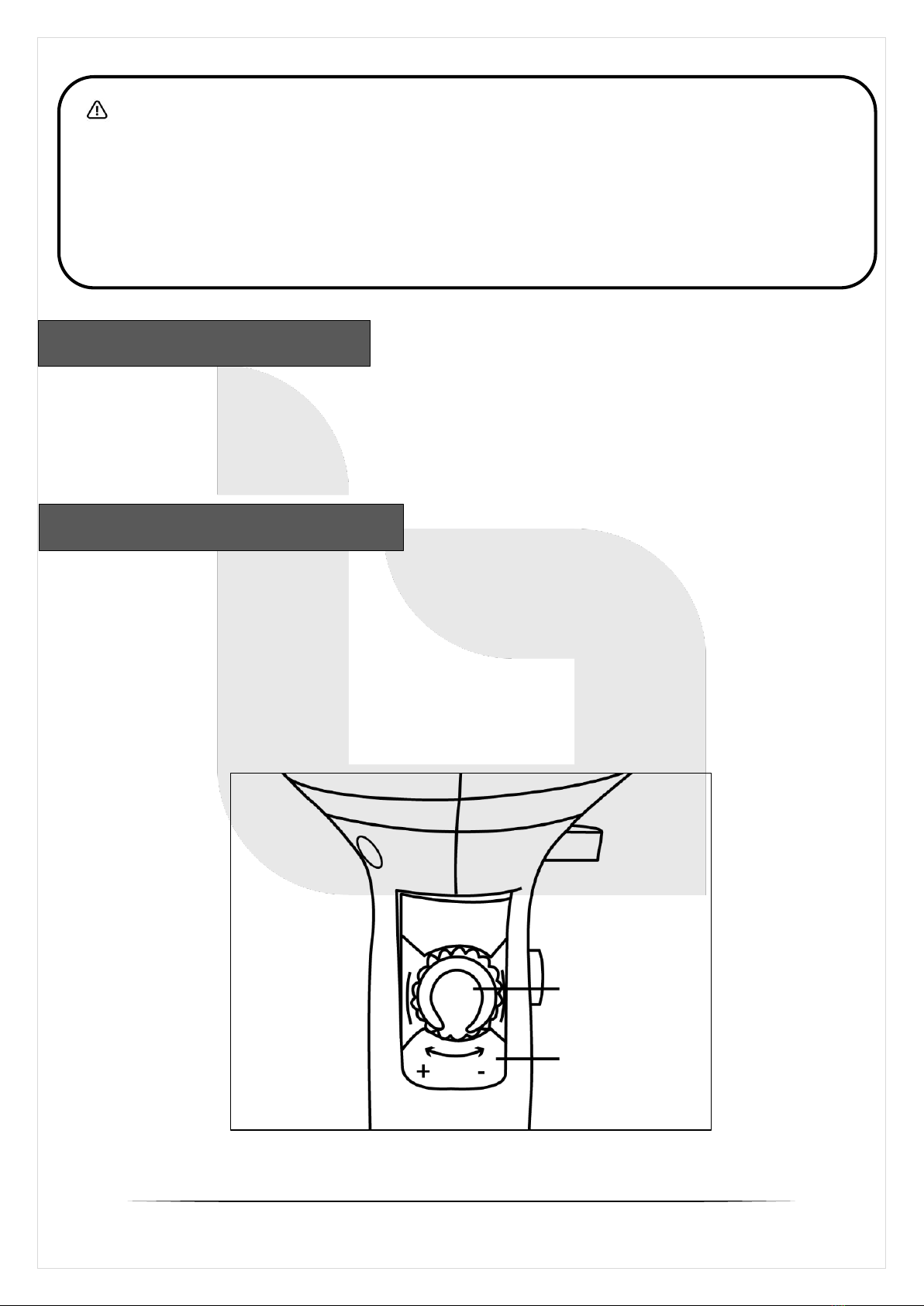

6. Variable speed control
7. ON/OFF Switch
8. Auxiliary Handle
IBL ID13-80|TD13-100

9
Rated voltage
Rated Input Power
Rated no load speed
Weight
Chuck capacity
Drilling capacity
Protection class
Auxiliary handle : 1
Depth gauge : 1
HSS drill bit : 3
Wood drill bit : 3
Masonry drill bit : 3
Along with the above mentioned accessories, Screwdrivers,
Adjustable wrench, Sockets for tightening and loosening nuts,
Screw-driving bits, Combination player, Measuring tape, Spirit level
etc., are available in the tool box. (only in TD13-100)
: 230V~50Hz
: 650W
: 0-2800 rpm
: 1.77 Kg
: 13 mm
: Wood
Steel
Concrete
: Class II
IBL ID13-80|TD13-100
PRODUCT SPECIFICATIONS
ACCESSORIES
- 25 mm
- 12 mm
- 13 mm
IBL ID13-80
IBL TD13-100

10
Unpack all parts and lay them on flat, stable surface. Remove all
packing materials. Make sure the delivery contents are complete
and free of any damage. If you find that parts are missing or
show damage, do not use the product but contact your dealer.
Using an incomplete or damaged product represents a hazard to
people and property.
Ensure that you have all the accessories and tools needed for
assembly and operation. This also includes suitable personal
protective equipment.
The product is intended for driving in, loosening screws as
well as for drilling in wood, steel, concrete and also for
hammering. It should not be used for working on materials that
are dangerous to health.
This tool has a chuck capacity of 13 mm that can be used for
screwing and unscrewing, and a drilling capacity of 12 mm for
steel, 13mm for concrete and 25 mm for wood.
For safety reasons it is essential to read the entire instruction
manual before first operation and to observe all the instructions
mentioned in it.
SETUP
UNPACKING AND ENSURING
WARNING! The product must be fully assembled before
operation! Do not use a product that is only partly assembled or
assembled with damaged parts! Follow the assembly instructions
step-by-step and use the pictures provided as a visual guide to
easily assemble the product! Do not connect the product to power
supply before it is completely assembled!
INTENDED USE
IBL ID13-80|TD13-100

11
Different drill and driver bits can be used with this product
depending on the material being worked with.
INSERTING PROCEDURE:
1. Turn the chuck sleeve anticlockwise until the chuck jaws are opened
wide enough to insert the drill bit.
2. Insert the drill bit all the way to the stop. If using a 25 mm driver bit,
insert it into the socket of a bit holder.
3. Turn the chuck sleeve clockwise until the drill bit is properly fastened
in the chuck jaws.
REMOVING/REPLACING:
Turn the chuck sleeve anticlockwise until the chuck jaws are opened
wide enough to remove the bit.
Remove the bit and insert a new one as described above if desired.
DRIVER/DRILL BITS
IBL ID13-80|TD13-100
WARNING! Always use drill bits according to the intended use!
Never use a drill bit intended for working on wood for working on
steel or vice versa! Observe the technical requirements of this
product when purchasing and using drill bits! Some drill bits become
hot during use, handle them carefully! Wear protective gloves!
- 1 - - 2 - - 3 -

12
Change the rotational direction from forward to reverse by pressing
the forward /reverse rotation control (4).
1. Move the forward/reverse rotation control switch (4) to the left
(as seen from the operator position) in order to use the product in a
clockwise rotational mode.
2. Move the forward/reverse rotation control switch to the right (as
seen from the operator position) in order to use the product in
anticlockwise rotational mode.
3. Move the rotation control switch to the centre position to lock the
ON/OFF switch and avoid accidental starting.
PRODUCT FUNCTIONS
FORWARD / REVERSE ROTATION CONTROL
IBL ID13-80|TD13-100

13
The variable speed gear control (7) is used to switch between two
working modes. When the gear is set to position ‘1(-)’, the speed will
decrease and the drill will have greater power* and torque. When
the gear is set to position ‘2(+)’, the speed will increase and the drill
will have less power* and torque.
WARNING! Only change the rotational direction when the product
is switched off and has come to a complete stop! Always ensure that the
forward/reverse rotation control is adjusted to the correct position
depending on the intended operation! Always push the forward/reverse
rotation control as far as it will go! Do not use the product with the
control switch in any other intermediate position!
TWO-SPEED GEAR CONTROL
IBL ID13-80|TD13-100
Switch the device ON by pressing the ON/OFF switch (6) and OFF by
releasing the switch. It is also a variable speed switch that delivers
higher speed and torque with increased trigger pressure.
ON/OFF TRIGGER SWITCH
7
6

14
Mode
Description
For drilling in wood, steel and concrete
For light hammer drilling
MODE ADJUSTMENT
It is possible to adjust the mode operation (3) to hammering or
drilling. When drilling masonry and concrete push the action
select switch into the hammer position. When drilling wood, metal
or plastic push the switch into the drill position.
SWITCH LOCK-ON BUTTON
Press ON/OFF switch then lock-on button,
release ON/OFF switch first and lock-on
button second. Your switch is now locked on
for continuous use. To switch off your tool
just depress and release the ON/OFF switch.
IBL ID13-80|TD13-100

15
Slide the handle onto the drill and
rotate to the desired working
position. To clamp the auxiliary
handle, rotate the handgrip clockwise.
To loosen the auxiliary handle, rotate
the handgrip anticlockwise. Use the
nut knob also to tighten/loosen.
Always use the auxiliary handle.
AUXILIARY HANDLE
INSTALLING THE DEPTH GAUGE
The depth gauge can be used to set a constant depth to drill. To
use the depth gauge, loosen the nut knob section on the handle.
Insert the depth gauge through hole in handle. Slide the depth
gauge to required depth and tighten fully.
IBL ID13-80|TD13-100
Nut
knob

16
Check the product as well as accessories for damage before each
use. Do not use the product if it is damaged or shows wear.
Double check that the accessories and attachments are properly
fixed.
Always hold the product on its main handle as well as the
auxiliary for operation. Keep the handle dry to ensure safe
support.
Switch the product off immediately if you are disturbed while
working by other people entering the working area. Always let the
product come to complete stop before putting it down.
Do not overwork yourself. Take regular breaks to ensure you can
concentrate on the work and have full control over the product.
Set the torque ring to drilling/ hammering mode when drilling
into wood, plastic, steel or hammering into concrete etc.,
Always hold the product perpendicular to the point to be drilled.
Holding at an angle may cause slipping/jamming of the drill bit.
Always place the drill tip directly on the point to be drilled first
and then switch the product on.
Pre-drill larger holes with a small diameter drill bit first. Doing so
makes drilling with a larger diameter drill bit easier.
Do not always drill at top speed. This unnecessarily increases the
wear and tear of the product and drill bit.
Remove blocked and stuck drill bits by changing the rotational
direction.
On plastics and steel, punch the drilling point before operation in
order to avoid slipping of the drill.
Use suitable drill bit for drilling into concrete.
GENERAL OPERATION
DRILLING/ HAMMERING
IBL ID13-80|TD13-100

17
Keep the product clean. Remove debris from it after each use and
before storage.Do not use chemical, alkaline, abrasive or other
aggressive detergents or disinfectants to clean this product as
they might be harmful to its surfaces. Regular and proper
cleaning will help ensure safe use and prolong the life of the
product. Clean the product with a dry cloth. Use a brush for areas
that are hard to reach.
Always store the product in a place that is inaccessible to
children. We recommend using the original package for storage
or covering the product with a suitable cloth or enclosure to
protect it against dust.
Before and after each use, check the product and accessories (or
attachments) for wear and damage.
Inspecting the drill bits; Since use of a dull tool will cause motor
malfunctioning and degraded efficiency, replace the drill bits
with a new one or re-sharpen when abrasion is noted.
This product does not contain any parts that can be repaired
by the consumer. Contact an authorised service centre or a
similarly qualified person to have it checked and repaired.
CLEANING AND STORAGE
MAINTENANCE AND REPAIR
WARNING! Always switch the product off, disconnect the product
from the power supply and let the product cool down before
performing inspection, maintenance and cleaning work! Only perform
repairs and maintenance work according to these instructions! All
further works must be performed by a qualified specialist!
IBL ID13-80|TD13-100

18
Suspected malfunctions are often due to causes that the users can
fix themselves, therefore check the product using this section. In
most cases the problem can be solved quickly.
Problem
Possible Cause
Solution
1. Product does
not start
1.1 No power supply
1.2 Product damaged
1.3 Other electrical
defect to the
product
1.1 Check the plug on
the power supply
1.2 Check it by an
electrician
1.3 Check it by an
electrician
2. Unsatisfactory
result
2.1 Drill bit is worn
2.2 Drill bit not
suitable for
intended operation
2.1 Replace with a new
one
2.2 Use suitable driver
bit
3. Product
suddenly
stops
3.1 Product overloaded
3.1 Remove the
product from
the work-piece and
switch it on again
TROUBLESHOOTING
WARNING! Only perform the steps described within these
instructions! All further inspection, maintenance and repair work must
be performed by an authorised service centre or a similarly qualified
specialist if you cannot solve the problem yourself!
IBL ID13-80|TD13-100

19
Do not dispose this product by normal household waste, but take it to a collection
point and recycling of electrical and electronic equipment. This is indicated by the
symbol on the product, user manual or packaging. Re-use, material utilization or
other forms of old appliances, you make an important contribution in protecting our
environment.
Waste electrical products should not be disposed of with
household waste. Please recycle where facilities exist. Check
with your Local Authority or local store for recycling advice.
CONTACT US
HiTech Machineries & Equipments
IV/540E, Thottumugham, P.O, Aluva
Ernakulam(Dist), Kerala, India- 683105
Toll Free : 1800 103 4090
Whatsapp : [phone]
Website : www.ibelltools.com
Email : [email protected]
