IFB DC 193L User manual

CONTENTS
SAFETY INFORMATION 2
B) Safety of children and vulnerable persons
A) General safety Information 2
2
2
3
3
3
4
4
4
4
4
5
5
5
C) Safety instructions to prevent risk of fire
E) Advice for saving power with refrigeration appliances
D) Food storage & food handling guidelines
01
IMPORTANT INFORMATION ON THE USE OF APPLIANCE 2
02
WARNING
03
04
F) Before using the appliance for the first time
INSTALLATION INFORMATION 3
3

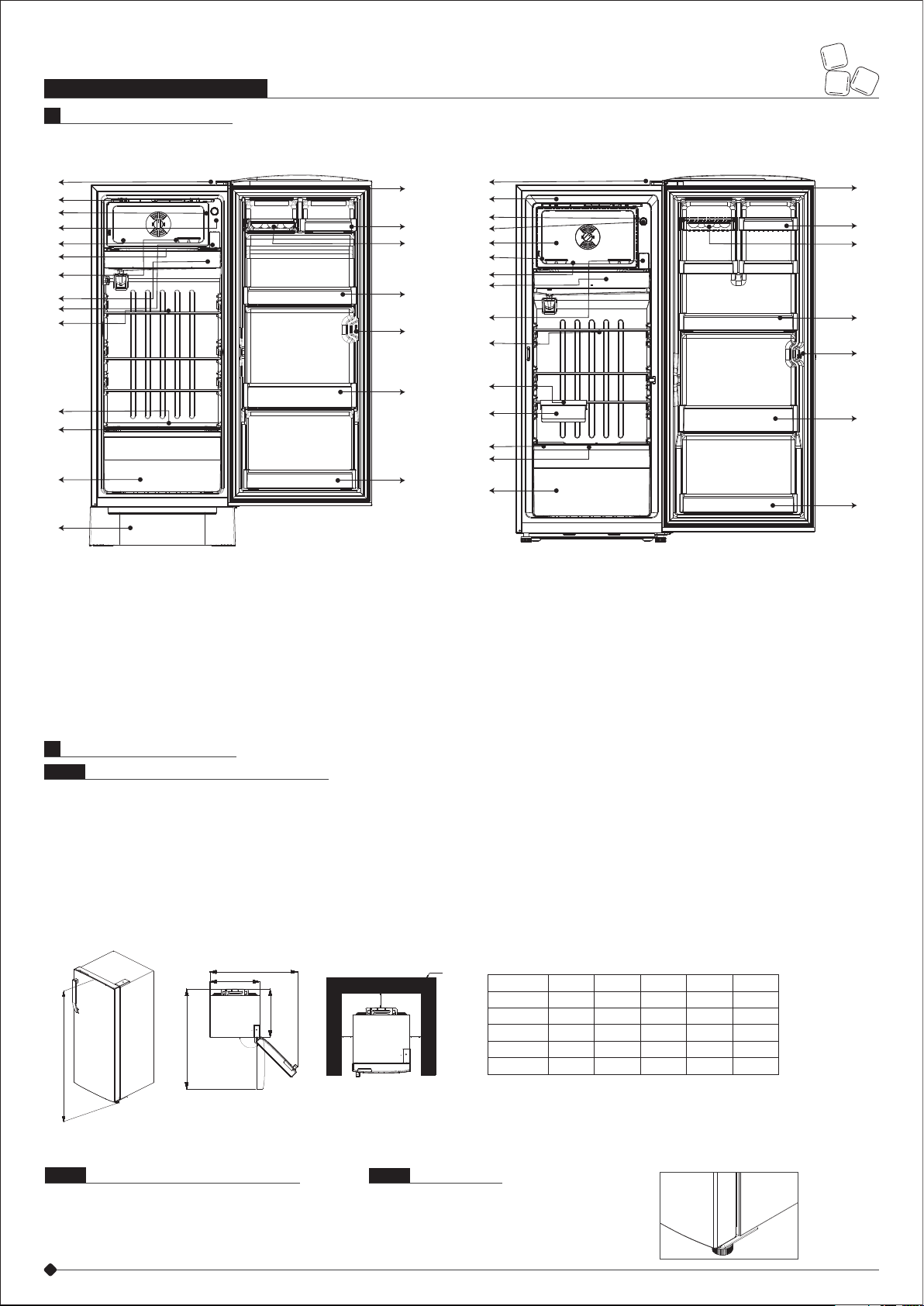

G) Description of the Appliance
H) Installation of refrigerator
i. Guidelines for selecting refrigerator installation site
ii. Protect Flooring while installation
iii. Adjust the levelling feet
iv. Connecting Appliance to Power source

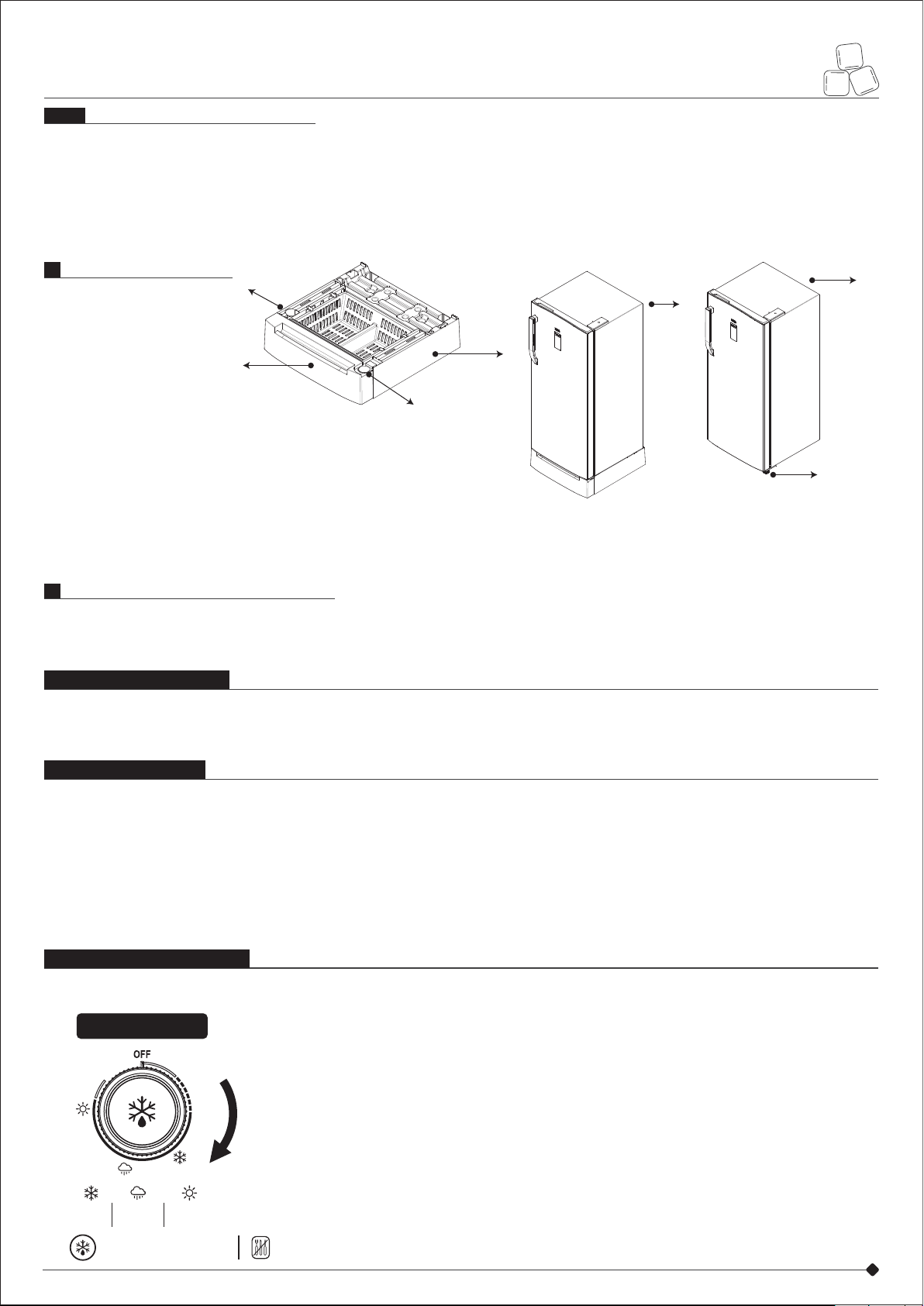

I) Pedestal Installation Guide
J) Instructions for relocating the refrigerator
Please read the User manual thoroughly before operating the appliance and retain it safely for future reference.
AGENERAL SAFETY INFORMATION
CSAFETY INSTRUCTIONS TO PREVENT RISK OF FIRE
BSAFETY OF CHILDREN AND VULNERABLE PERSONS
1. SAFETY INFORMATION
• It is customer’s responsibility to use the product with care and precautions as this manual does
not cover all the possible situation that may arise.
• This appliance is intended solely for household with the sole purpose of storing food and drinks
at low temperature.
• Don’t connect a fridge to the electricity supply until all packaging has been removed.
• Always ensure that the area you are placing the refrigerator is free of flammable materials such
as EPS, gas cylinder, and make sure that the
ventilation openings provided in the appliance are clear of obstructions.
• Make sure you don’t trap the mains cable beneath the fridge when putting it in position.
• After installation, the Plug of the refrigerator must be accessible to disconnect the appliance in
• Plug the appliance into a grounding socket: the appliance must be correctly connected to an
approved earthing system.
• Never use a loose power plug. It can cause an electric shock or catch fire due to an electrical
short circuit.
• Do not use single/multi adapters or extension cords.
• In order to avoid a hazard, installation and maintenance, including Power cable replacement,
must be carried out by a qualified technician, in compliance with the manufacturer’s
instructions and the local safety regulations in force. Do not repair or replace any part of the
appliance unless specifically stated in the user manual.
• Do not use a heater or any sharp edge equipment to defrost ice build up inside the freezer.
• In case of gas leakage, ventilate the room instead of unplugging the refrigerator:
case of emergency situations such as gas leakage, fire etc.
• Never block the interior or exterior ventilation openings of the refrigerator. Allow 100mm or more
clearance over wall, side and rear plate of the refrigerator for air circulation
• Indoor refrigerators should not be stored outside as they are not designed for safe operation in
an outdoor environment.
• Don’t place a refrigerator source such as cookers, radiators, OTG or in direct sunlight, as this
will affect performance of the refrigerator.
• This manual covers various models and in case of any queries, please contact IFB service
centre.
WARNING REGARDING THE REFRIGERANT
• This appliance contains a small amount of isobutane refrigerant (R600a), which is flammable.
• In case of transportation or installation of the appliance, meticulous care is required to prevent
any damage to the cooling system of the refrigerator. A gas leak is not hazardous
to the environment, but it could cause eye injury or fire.
• In case of a gas leak, ventilate the room thoroughly, disconnect the appliance from the power
mains, and call a service technician.
• To prevent the creation of flammable gas- air mixture from the leak in the refrigerating circuit,
should be in a room of more than 1m³ per 8g of R600a refrigerant inside the appliance.
The amount of refrigerant is shown on the identification plate inside the appliance.
• This appliance is not intended to use by children without supervision and adequate
knowledge.
• This appliance can be used by children aged 8+ years and persons with reduced physical,
sensory or mental capabilities or lack of experience and knowledge if they have
been given instructions concerning use of the appliance in a safe way and understand the
hazards involved.
• To avoid the risk of children becoming trapped and suffocating, do not allow them to play or
hide inside the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• WARNING: Improper use can cause physical damage and personal injury.
Explosion or fire may occur.
• Never install the refrigerator at a humid place or the place where water splashes easily: Short
circuit or fire may occur if you do it.
• If there is a burning smell from the refrigerator, unplug it immediately. It is very dangerous to
leave the refrigerator running abnormally.
• Do not place heavy things on top or in close vicinity of the refrigerator ie. Liquid storage bins,
burning candles, plastic/cloth refrigerator cover as it can cause fire due to short circuit.
• Do not plug or unplug the power cord with wet hands, as there is risk of electric shock.
• Unplug and clean the plug with dry cloth if found dirty: Dusty and dirty plug may cause fire.
• Clean behind your refrigerator regularly to keep lint and dust free.
• Never use any flammable aerosol spray or any flammable substances near the appliance.
R600a
SERVICE INFORMATION
05 5
5
5
6
6
7
7
7
8
8
8
SPECIAL FEATURES
06
TEMPERATURE CONTROL SETTING
07
FEATURE USAGE INFORMATION
08
USER INTERFACE CONTROLS
09
ERROR CODE DISPLAY
10
TROUBLESHOOTING GUIDE
11
CLEANING AND MAINTENANCE
12
HELPFUL HINTS
13
DISPOSAL OF OLD APPLIANCE
14
WARRANTY & TERMS AND CONDITIONS
15
2

4. INSTALLATION INFORMATION
FBEFORE USING THE APPLIANCE FOR THE FIRST TIME
CLASS AMBIENT TEMPERATURE RANGE (°C)
IEC 62552 (ISO 15502)
SN (Subnormal) From +10°C to +32°C
N (Normal) From +16°C to +32°C
ST (Subtropical) From +16°C to +38°C
T (Tropical) From +16°C to +43°C
Table-1
• Before connecting the appliance to the main power source, please read carefully theinstructions
for use which describe the appliance and its correct and safe use.
• Check for any damage or irregularities on your appliance. If you find your appliance is damaged,
notify the retailer from which you have purchased the appliance.
• Before connecting the appliance to the main power source, let the appliance rest in an upright
position for a min. 6 hours. This will reduce the possibility of operation faults because of
transportation on the cooling system.
• The appliance will operate correctly if the environment temperature is in the interval specified in
the table.
• Note: The cooling performance and power consumption of the refrigerator may be affected by
the ambient temperature, the door opening frequency, and the location of the refrigerator. We
recommend the temperature settings as appropriate.
• After the installation, the appliance mains plug should be accessible!
• Do not place the refrigerator near other appliances or devices which radiate heat, such as a
cooker, a stove, a room heater, water heater etc., and do not expose it to direct sunlight. The
appliance should stand at least 3 cm away from an electric or gas cooker or at least 50 cm away
from an oil or solid fuel stove. If the distance between such source of heat and the appliance is
smaller, use an insulating panel.
• Connect the appliance to the main power source using the power cord. The wall outlet should be
fitted with a ground contact (safety socket). Nominal voltage and frequency are
indicated on the rating plate/label with basic information on the appliance.
• The appliance must be connected to the main power source and grounded in compliance with
the electrical standards and regulations.
3
2. IMPORTANT INFORMATION ON THE USE OF APPLIANCE
EADVICE FOR POWER SAVING OF APPLIANCE
DFOOD STORAGE & FOOD HANDLING GUIDELINES
• Correct use of the appliance, appropriate packaging, maintaining the right temperature, and
observing the food hygiene standards have a decisive impact on the quality of food storage.
• Observe the expiry dates for the food, indicated on the packaging.
• Do not store inflammable, volatile, and explosive substances in the refrigerator as it is not
designed for chemical or scientific
laboratory usage purposes.
• Bottles with high alcohol content should be tightly sealed and stored in an upright position.
• Food stored in the refrigerator should be kept in closed containers
or in appropriate packaging to prevent it from emitting or receiving odors and humidity.
• Do not put large utensils on the shelf that may block the proper door closing which leads to
energy loss.
• If you are leaving home for a longer period of time, remove perishables from the refrigerator.
• When purchasing deep-frozen food, comply with the following: Check the expiry date & Use the
deep-frozen food before the expiry date.
• Install the appliance as specified in the instruction manual.
• Keep the right temperature setting to avoid excessive running of the compressor.
• Do not place appliance in direct sunlight and avoid placement near direct heat source.
• Do not open the door more often than necessary.
• Do not keep the door open for a longer duration to avoid ice formation in the freezer.
• keep sufficient space around the appliance.
• Back of the appliance or wire Condenser unit should be kept clean.
• Ensure proper door closed with right gasket sealing
• Before placing the food in the refrigerator, allow it to cool down to room temperature.
• Thaw any frozen food in the refrigerator ,thereby allowing to cool other foods with this low
temperature.
• Danger of frostbite: Do not touch or put frozen food immediately in the mouth, as it may cause
frostnip or frostbite.
• Do not store Glass bottles, cans or canned food in the freezer compartment: They can be
broken or exploded due to thermal shock.
• During a malfunction of the refrigerator/freezer if food is stored too long inside, discard them, it
can cause food poisoning.
• In case of an error or power supply failure, do not open the door frequently to avoid cooling loss.
Please check with the local Electricity office to know how long the power shutdown lasts. If it is
longer than 24 hours, please remove all frozen foods and decide accordingly.
• Unpleasant odor warns of lacking cleanliness of the appliance or perished contents.
• Frequent opening of the refrigerator/ freezer door or prolonging the cleaning time of the
refrigerator/freezer may result in reduced storage life of food as these malpractices will alter the
performance of the refrigerator.
• Avoid excessive stuffing inside refrigerator to Keep proper gaps for air circulation behind glass
shelf
• Ensure proper defrosting after every 3 days or incase of excess ice.
This appliance intended to be used in household and similar applications such as
1. Staff kitchen areas in shops, offices, and other working
environments.
2. Farm houses and by clients in hotels, motels and other
residential type environments.
3. Catering and similar non retail applications
4. Bed and breakfast type environment.
3. WARNING
• Connect the appliance to the main power source, with the cord anchorage facing downwards.
• Do not plug or unplug the power cord with wet hands, as there is risk of electric shock.
• If the socket is loose in gripping the plug , fix the issue first and then secure the plug firmly.
• Hold the plug grip firmly and pull the plug out from the outlet.
• Do not use the power cord to place or hang objects , and do not bend the cord as it can cause
physical damage to the power cord.
• After the installation, the appliance mains plug should be accessible.
• Do not use single/multi adapters or extension cords
• The appliance must be connected to the main power source and grounded in compliance with
the electrical standards and regulations.
• Do not pour water on the refrigerator/freezer directly.
• Never use any flammable aerosol spray or any flammable substances near the appliance.
• Contact the IFB Service centre incase of excessive dust built up at the back of the refrigerator or
if there are situations where excessive water enters the refrigerator.
• Plug the appliance into a grounding socket: the appliance must be correctly connected to an
approved earthing system.
• Check if there is any leakage current by the professional electrician for safety reasons.
• Never use gas pipes , telephone lines or other potential lightning attractors as an electrical
ground.
• This appliance is intended solely for household purposes with the sole purpose of storing food
and drinks at low temperature.
• Do not store inflammable, volatile, and explosive substances in the refrigerator as it is not
designed for chemical or scientific laboratory usage purposes.
• Use external door handle / built in Pocket handle to open and close the refrigerator, it is not
recommended to open the door holding door sides or accessible gaps provided, you can hurt
your hand while following malpractices.
• This appliance is not intended to use by children without supervision and adequate knowledge.
• This appliance can be used by children aged 8+ years and persons with reduced physical,
sensory or mental capabilities or lack of experience and knowledge if they have been given
instructions concerning use of the appliance in a safe way and understand the hazards involved.
• Keep the packaging material away from the children's reach as they can use the packaging as a play
to cover themselves which could be fatal to life.
• To avoid the risk of children becoming trapped and suffocating, do not allow them to play or hide
inside the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• WARNING: Improper use can cause physical damage and personal injury.
• Do not use excessive pressure on door handles, or hang any load
on the door like shopping bags etc, there is danger of refrigerator door misalignment or
unbalanced product might fall off.
• Avoid placing the refrigerator to direct sunlight, near to heat source such as gas stove etc. as it
can weaken the refrigerator cooling performance.
• Do not contact unauthorized service providers to carry out services for the appliance. The
company will not hold any responsibility if there is any irreversible issue arising out of such
malpractices.
• Do not try to replace the cord or attempt service on your own.
• Do not place heavy things on top or in close vicinity of the refrigerator ie. Liquid storage bins,
burning candles, plastic/cloth refrigerator cover as it can cause fire due to short circuit.
• Do not reach out your hands or legs under the Refrigerator (when cleaning under the
refrigerator),You will get hurt by rough edges and parts under the refrigerator.
• Prevent overloading the door bin, as there is risk of bottles titling off if they are not properly kept.
• Do not use a heater or hair drying to blow hot air or any sharp edge equipment to defrost ice
buildup inside the freezer.
• Do not place any odor removal lighted gadgets inside the refrigerator.
• Place the shelf in the correct position until the shelf stopper position, if the shelf is placed upside
down there will be cooling inefficiency /danger of shelf slipping off causing injury.
• Do not place bottles one above another in the bottle storage space, place them in the row ,
upright position secured in the shelf.
• In case of gas leakage, ventilate the room instead of unplugging the refrigerator: Explosion or
fire may occur.
• Check for any damage or irregularities on your appliance. If you find your appliance is damaged,
notify the retailer from which you have purchased the appliance.
• This appliance contains a certain amount of Isobutane refrigerant (R600a), a natural gas with
not only high environmental compatibility but also combustibility.
• In case of transportation or installation of the appliance, meticulous care is required for no parts
of the refrigerating circuit to be damaged. Refrigerant squirting out of the pipes could ignite or
cause eye injury.
• If a leak is detected, avoid any naked flames or potential sources of ignition and ventilate the
area for several minutes.
• Please tie the extra length of the power cord at the back of the refrigerator and make sure you
don’t trap the mains cable beneath the fridge when putting it in position.
• C-Pentane is used as an insulation blowing gas. The flammable insulation blowing gasses
require a special disposal procedure. Do not try to separate any components from the
refrigerator.
• For detailed information on product disposal, please contact the relevant municipal body in
charge of waste management, your waste disposal service, or the store where you bought the
product.
• Do not allow children to play with the appliance kept for disposal, supervise the children so that
they don’t harm themselves by locking themselves in the refrigerator.

GDESCRIPTION OF THE APPLIANCE
Interior Features of DC 193L / 203L / 212L
• This manual covers different models. The appliance purchased by you may have some
or all of the above features.
• This manual covers different models. The appliance purchased by you may
have some or all of the above features.
16
17
19
20
21
22
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
18
15
16
18
19
20
21
13
14
12
11
10
8
9
7
6
5
4
3
2
1
17
Interior Features of DC 228L / DC 257L
1. DOOR HINGE COVER
2. FREEZER FRAME
3. TEMPERATURE CONTROL KNOB
4. DEFROST BUTTON
5. FREEZER BACK PLATE
6. FREEZER DOOR
7. ICE TRAY
8. CHILL TRAY
9. LIGHT COVER
10. TOUGHENED GLASS SHELF
11. HEALTHY FRESH CRISPER COVER
1. DOOR HINGE COVER
2. FREEZER FRAME
3. TEMPERATURE CONTROL KNOB
4. DEFROST BUTTON
5. FREEZER BACK PLATE
6. FREEZER DOOR
7. ICE TRAY
8. CHILL TRAY
9. LIGHT COVER
10. TOUGHENED GLASS SHELF
11. SLIDE BIN FRAME
12. HUMIDITY CONTROL SLIDER
13. HEALTHY FRESH CRISPER
14. PEDESTAL
15. GASKET
16. MULTI USE HALF BIN
17. EGG TRAY
18. FULL BIN
19. DOOR LOCK
20. XL BOTTLE BIN
21. BOTTOM BIN
12. SLIDE BIN TRAY
13. HEALTHY FRESH CRISPER COVER
14. HUMIDITY CONTROL SLIDER
15. HEALTHY FRESH CRISPER
16. GASKET
17. MULTI USE HALF BIN
18. EGG TRAY
19. FULL BIN
20. DOOR LOCK
21. XL BOTTLE BIN
22. BOTTOM BIN
Caution: please tie the extra length of the power cord at the back of the refrigerator and make sure you don’t trap the mains cable beneath the fridge when putting it in position.
Refer Table 2 for dimensions
STEP 2: PROTECT FLOORING WHILE INSTALLATION
Table-2
100
100
100
WALL
135
0
A
B
C
D
E
HINSTALLATION OF REFRIGERATOR
STEP 1: GUIDELINES FOR SELECTING INSTALLATION SITE
• Install the appliance in a dry and well ventilated room.
Solid and level floor
• Unleveled floor will cause vibration and noise while operating the refrigerator.
• The Refrigerator should not be installed on the floor covered with carpet.
• Adjust the refrigerator leveling legs as per the floor to prevent issues like door misalignment,
refrigerator malfunctioning.
Shady and humid place
• Avoid placing the refrigerator to direct sunlight, near to heat source such as gas stove etc. as it
can weaken the refrigerator cooling performance.
• Avoid placing the refrigerator close to a sink and near a water source that can cause rust and
corrosion.
• Avoid locations where moisture can cause electrical problems.
• The surface to install the refrigerator must be strong enough to
support a fully loaded refrigerator.
• To protect the floor, put a large piece of cardboard on each leg of
the refrigerator along the movement path of the Refrigerator
• Once the refrigerator is in its final position remove cardboard, do
not move refrigerator unless necessary to protect the floor.
STEP 3: ADJUST THE FEET
• There are two leveling legs under each front corner of the
refrigerator.
• Turn leveling feet clockwise to raise the refrigerator and turn it
anti-clockwise to lower it.
• Use shims under the rear corners if necessary
4
4. INSTALLATION INFORMATION
Note : All the dimensions are in mm.
Model A B C D E
DC 193L 1102 927 534 535 1224
DC 203L 1102 927 534 535 1274
DC 212L 1102 927 534 535 1329
DC 228L 1167 1018 554 580 1397
DC 257L 1167 1018 554 580 1537
• Avoid placing the refrigerator just beneath the ceiling fan as it can cause frost
formation inside the freezer.
The space required for installing the appliance is shown below. (unit: mm)
More than 100 mm from left, right, back sides and 250 mm from
top is required for good ventilation. Insufficient space causes
noise due to vibration, weakening of refrigerating cooling and
waste of electricity.

5
STEP 4: CONNECTING APPLIANCE TO POWER SOURCE
JINSTRUCTIONS FOR RELOCATING THE REFRIGERATOR
IPEDESTAL INSTALLATION GUIDE
1. Pedestal Basket
2. Pedestal Bottom Base
3. Provision for Levelling leg insertion
4. Refrigerator
5. Levelling Leg
6. Pedestal installed refrigerator
6
4
5
2
3
1
3
By completing the following steps, the refrigerator should be fully functioning.
• Plug the power cord into the wall socket to turn the refrigerator ON.
• Open the door to check the interior light is ON.
• Set the temperature at “Summer” setting and wait for 1 hour.
• Wait until the refrigerator reaches the set temperature . Now the refrigerator is ready for use.
HOME INVERTER
Home inverter Specifications.
For Standard Compressor - 2000VA Capacity along with 120Ah
Capacity battery.
For Invertor Compressor - 1500VA Capacity along with 120Ah
Capacity battery.
• Unpack the pedestal box and take out the pedestal.
• Choose an appropriate location for installing the refrigerator and place the pedestal there.
• Ensure that the pedestal is placed on a flat surface.
• Carefully lift the refrigerator and place the legs exactly on the space provided in the pedestal.
• After installation, ensure that the gaps on both sides of the refrigerator are even.
• Switch on the power supply.
• Empty the Refrigerator before relocating.
• Defrost the fridge, and wipe the refrigerator with a clean dry cloth.
• Unplug the refrigerator. Remove the power cord cable and secure it with a tie belt.
• Protect the floor- refer to the instructions mentioned in installation of appliance: step 2 Floor
protection instructions to be followed while moving the appliance.
Notes:
1. Inverter should be in “ON” condition and battery shall be fully charged.
2. Ensure Refrigerator power supply socket is connected to the inverter supply.
3. While using home inverter, the refrigerator will work on basic cooling requirement.
4. Depending on the number of appliances connected to inverter, it may affect on the
performance of the refrigerator.
5. For better performance of refrigerator, it is suggested to switch of other connected
appliances.
6. It is suggested to check the quality of food before consumption.
7. Frozen food items may get soften like Ice cream, Green Peas etc when appliance is
connected to home inverter, so it is gested to change the temperature setting accordingly.
• Avoid moving the refrigerator once the pedestal is installed as it can damage either the pedestal
or unbalancing the Refrigerator leading it to fall.
• In case of the refrigerator being used without a pedestal, check whether both legs of the
refrigerator are placed correctly and leveled properly with the ground.
• Caution: The Refrigerator must always be unplugged from any power source before & during the
installation of pedestal
• Reassemble and reconnect in the new house.
• Handover the appliance along with the manual to the new user?
• Relocation of the appliance in the same house or within 10 kms vicinity is permissible , if product
is relocated in different state, then the manufacturer will not be responsible for the product
malfunctioning , also the product warranty will be voided.
OPERATIONS
1. TEMPERATURE SETTING
1 - 2 4 - 7
Winter Summer
2 - 4
Monsoon
ON
1
2
3
4
5
6
7
SUPER
COOL
ECO
5. SERVICE INFORMATION
6. SPECIAL FEATURES
7. TEMPERATURE CONTROLS
REPLACEMENT OF LED LAMP:
In case of LED Lamp failure which is not user serviceable part, Contact an authorized
IFB Service Centre which is near to your locality.
GASKET REMOVAL/DISCARDING METHOD:
• Gently hold one corner of the gasket and pull out the gasket from its grooves.
CONVERTI-COOL WITH COPPER BOOST*
Customer can choose to control according to their requirement for;
• Fast Bottle cooling time & Energy Saving
• Fast Ice Making & More thermal retention
ALUMINUM INFUSED ICE TRAY**
Aluminum particles are infused into the Ice tray to facilitate faster ice making.
ANTIBACTERIAL GASKET
Antibacterial gaskets help in preventing the growth of bacteria and mold.
CABINET SLIDING BIN**
A convenient storage space designed to slide into any location on the refrigerator shelf as
chosen by the customer.
MOISTURE BALANCED CRISPER
Honeycomb structure on crisper cover helps in maintaining moisture levels for fruits/vegetable
freshness.
• To insert back, place the gasket along the groove first and then
push it back in.
POWER CORD:
• Contact the service centre to replace Power Cord if you find damage, heating up ETC.
• Do not try to replace the cord or attempt service on your own.
WHITE LED BULB*
The refrigerator compartment is illuminated by a bright white light that is visually pleasing to the
eyes.
CHILLER WITH MOISTURE CONTROL
Chiller with honeycomb structure retains the moisture formed below the chiller.
TOUGHENED GLASS SHELVES
Toughened Glass shelves can sustain a load which is ideal for larger/heavier utensils.
PEDESTAL WITH DRAWER**
Easily accessible pedestal drawer that can store up to 5 kg of onions & potatoes.
LOCK
A push-and-rotate key mechanism is provided to secure the
refrigerator, which is simple and easy to use.
**In select models only
When you require Fast ice or when large quantities of foods are to be stored inside, rotate the
temperature control knob provided in the freezer to Summer (5-6) setting. When quantity of foods
stored in refrigerator are low, rotate the temperature control knob provided in the freezer to Winter
(1-2) setting. To account for the various factors that can influence the refrigerator temperature such
as the position, ambient temperature, frequency of door openings, relative humidity, temperature
at which food is stored etc, change the settings accordingly with temperature control knob. Setting
the temperature lower than the requirement is not recommended as it increases energy consumed
by the refrigerator
Do not use sharp
object to remove ice
Press Defrost button in case of
excess ice or every three days
ECO MODE:
This mode saves power consumption and also called as Vacation Mode.
**Recommended not to use this mode in case of high usage condition or in Summer.
SUPER COOL:
This mode is used to cool the items faster in Refrigerator compartment, also you can
say party Mode.
**Recommended not to use this mode for 6 hours max. in case of Refrigerator
compartment has load.
Temp Control

Temperature
select button
Mode select
button
Defrost
select button
3.
2.
1.
Fast Ice - When select Fast Ice mode by Mode button,
Fast Ice mode is activated. It is use for making ice faster,
Refrigerator set point temp adjust to coldest setting to get
the high-cooling in freezer compartment (Freezer back
plate Knob Position : Max).
Power Saver Mode - When select Power Saver mode
by using Mode button, Power Saver mode is activated.In
this mode refrigerator will run at least cold condition like
in case of very less usage which will make Refrigerator
consume less electricity.
WiFi FUNCTION
Press and hold the Temp and Mode buttons simultaneously for
3s to enable Wi-Fi function. After the Wi-Fi function is
triggered, the Wi-Fi module starts to configure the network,
and the Wi-Fi indicator LED turns off, flashes or lights up
according to the network configuration state. In this mode,
Customer can control remotely refrigerator through
mobile/tablet via IFB app.
SMART SENSE
Smart Sense will be activated automatically according to the
Refrigerator Cooling requirement. When this mode is
activated, the Smart Sense icon will turn ON. If the temp of
refrigerator become high after door open/load increase or
after power failure or door open, fast cool indicator turn on to
indicate unit is working for pulldown the temp faster.
DEFROST
When the system needs defrost, the E-Defrost indicator LED
lights up, press and hold the Defrost button for 3s to activate
defrost. Once the defrost is activated, the E-Defrost indicator
LED
will turn off.
9. USER INTERFACE CONTROLS
9. USER INTERFACE CONTROLS
The User Interface (UI) is used to select the cooling control (Bars shown on the Left Side of the UI),
select different Modes (Modes shown on the Right Side of the UI) and special Modes (shown at
the bottom of the UI).
COOLING CONTROL SETTING
Press the Temp button to control the cooling control shown on the top left side of the display UI.
Coldest Setting - When all the bars glow it means the Coldest Setting i.e. for Summer.
Mid Setting - When three bar glows it means Mid setting i.e. for Monsoon.
Warmest Setting - When Single bar glows it means Warmest setting i.e. for Winter.
Auto Cool - When Auto Cool mode is selected by Mode button, Auto Cool mode is activated.In
auto mode, set temp will change automatically based on ambient temp/door opening
pattern/Internal load and product will maintain ideal storage refrigerator temp.
Turbo Cool - When Turbo Cool mode is selected by Mode button, Turbo Cool mode is
activated. It is use for making refrigerator colder side in high usage condition. The Refrigerator
set point temp adjust to coldest setting to get the high-cooling in Refrigerator compartment
(Freezer back plate Knob Position : Min).
MODE SETTING
Press the Mode button, the current cooling mode will be changed. The setting mode switches in
the order of "Flexi (Temp)
Auto Cool- Turbo Cool-Fast Ice-Power Saver-Smart Sense
For Wi-Fi Mode Selection:
Press & hold Temp & Mode for 3 seconds.
Frost formation happens inside the freezer due to the condensation of surrounding moist air on the cold surfaces of freezer. Accumulation of excess frost acts
as an insulator thus reducing the cooling efficiency of refrigerator. Before defrosting, it is necessary to remove all the stored food items from the freezer as well
as the chiller which is placed below the freezer area. Frost thickness should not exceed red color defrost indicator cap in freezer. Push the button given on the
center of the temperature control knob to initiate defrosting. Once initiated the frost will melt and changes into water which will then flow through designed path
and gets collected on the defrost water tray provided at the back of refrigerator. Refrigerator will automatically start after completing defrosting process. It is
advisable to perform defrosting after every three days. During hot & humid conditions you may increase the frequency of defrosting to reduce the frost content
in freezer. Over accumulation of frost can lead to spillage of water from defrost water tray to ground/floor after defrosting. Strictly avoid the usage of any form of
sharp edged tools such as knife, screw driver etc to scrape of frost present in the freezer as it can damage the evaporator circuit and hence the cooling
process.
2. DEFROSTING
Gently fill the cubes to the top level in the given Ice tray with water. Open the Freezer door and place the Ice tray inside the freezer
3. ICE MAKING
1. Rotate the knob given in the Freezer
backplate to Cool Max position to get the
designed normal freezer temperature and
sufficient cold air goes refrigerator
compartment to improve bottle cooling
speed and energy consumption.
2. Rotate the knob given in the
Freezer backplate to Freeze Max
position to get the freezer
temperature much more colder
temperature to improve freezing
time inside Freezer
1. Cool Max position
2. Freeze Max position
3. Knob
1. 2.
3.
8. FEATURE USAGE INFORMATION
7. TEMPERATURE CONTROLS
CONVERTI COOL WITH COPPER BOOST
• Freezer back plate with damper mechanism is
given for varying air flow from freezer to the
refrigerator and providing freezer temperature
control knob for customer flexibility.
• Improve Ice making & bowl cooling time in
freezer compartment with Freeze Max position
• Improved bottle cooling speed & saving energy
consumption in refrigerator compartment with
Cool Max position.
6

When multiple errors occur, the display board alternately displays the normal interface and all error codes at intervals of 2s, like "normal interface"->"Error1"->"Error2""->"normal interface".
• When there is an error in the system, the display board will periodically display all errors and the current status (referring to the display of set temperature and mode) according to the table below.
Error Description Error Code LED flashes Error Indicating Area
Communication error No Led Flashes All Flashes
Freezer evaporator sensor error LED1~LED5 Flashes All Flashes
Ambient sensor error LED1~LED6 Flashes All Flashes
Main board power supply voltage
lower than 90V LED1~LED7 Flashes All Flashes
Main board power supply voltage
higher than 310V LED1~LED8 Flashes All Flashes
Any Compressor running error LED1~LED9 Flashes All Flashes
Table-3
10. ERROR CODE DISPLAY
Before calling for service, check for the following observations and their potential reasons And suggestions to try out:
11. TROUBLESHOOTING GUIDE
CLEANING
• Cleaning and user maintenance shall not be done by children.
• Before cleaning, unplug the appliance from the power mains – switch off the appliance and
unplug the power cord from the wall outlet.
• Remove all the food items stored before cleaning the refrigerator.
• Use a soft cloth to clean all surfaces. Cleaners that contain abrasive substances, acids, or
solvents are not suitable for cleaning as they may damage the surface.
• Clean the appliance exterior with water or a mild appliance cleaner.
• Powder Coated and Aluminium surfaces may be cleaned with lukewarm water to which you
have added a mild detergent.
• Use of cleaners with low alcohol content is allowed (e.g. window cleaners).
• Do not use cleaners containing alcohol for cleaning plastic materials. Spills of cooking oil,
butter, etc. can cause plastic parts to crack.
• Appliance interior can be cleaned with lukewarm water to which you can add some vinegar.
To keep the inside of the appliance clean without odor or dirt, regular cleaning is required at
least once a month.
• Do not wash the parts of appliance interior equipment in a dishwasher as they may be
damaged.
• A drainage system and a water collecting basin for discharging the water from thawed frost
deposits are located underneath the cooling panel that cools the refrigerator interior.
• The water drain system and the opening may be clogged.
• Inspect them often and clean if necessary (e.g. with a plastic straw).
• Do not pour water on the refrigerator/freezer directly.
• Frost or ice build-up, 3–5 mm thick, will increase power consumption. Therefore, it should be
regularly removed. Do not use any sharp objects, solvents, or sprays.
12. CLEANING & MAINTENANCE
• The condenser unit mounted on the (exterior) back wall should always be kept clean, free of
dust or deposits resulting from kitchen smoke or fumes. Occasionally clean the dust using a
soft non-metal brush or a vacuum cleaner.
• Caution: Condenser unit will be hot to touch so do not touch it with bare hands.
• After cleaning, switch the appliance back on and insert the food.
• Wipe off the water from the floor, if there is any spillage while cleaning the refrigerator or
during the defrost cycle.
• Caution needs to be taken during cleaning to prevent the entry of water into the electrical
components such as light bulb, switch etc. Usage of acids, solvents or abrasive powders
needs to be strictly avoided as it can tarnish the refrigerator surfaces.
• Ensure that the gasket is rightly placed and the door properly closed to prevent the entry of
cockroaches & other insects that can be harmful to your stored food items.
Precautions to be followed while handling the refrigerator:
• Use door handles to open and close the refrigerator, it is not recommended to open the door
holding door sides or
• Accessible gaps provided on the use, you can hurt your hand while following malpractices.
• Do not use excessive pressure on door handles, or hang any load on door like shopping bags
etc, there is danger of refrigerator door misalignment or unbalanced products might fall
off.
• Foods should not protrude from the shelves. They can fall and hurt your feet or not close the
door properly affecting the performance of the refrigerator.
• Prevent overloading the door bin, as there is risk of bottles titling off if they are not properly
kept.
• Do not reach out your hands or legs under the Refrigerator (when cleaning under the
refrigerator),You can be hurt by rough edges and parts under the refrigerator.
7
ACCESSORIES HANDLING & CARE
Gently hold the chiller provided in
Refrigerator compartment from the front
side. Tilt it slightly from the front side to
down and take out the chiller slowly.
Gently hold the shelf provided in
Refrigerator compartment from the front
side properly. Tilt it slightly from the front
side to down and take out the shelf slowly.
Gently hold the Door Bins provided in
Refrigerator compartment from the side
walls.Now lift the Door bin towards upward
direction until it is out of its holding area.
Gently hold the Vegetable crisper provision
at the top of front wall. Now pull the vegetable
crisper forward to fill vegetables or take out
completelybased on your requirement.
CHILLER GLASS SHELVES DOOR BINS
VEGETABLE CRISPER
Symptoms Solution
Refrigerator does not work
properly/does not get cold enough
• Check the refrigerator is plugged and switched ON power supply
• Check that the refrigerator is placed in such a way that there are proper clearances on the side and top surfaces as mentioned above.
• Check if the refrigerator is exposed to direct sunlight or is in close proximity to Gas range / Stove/ OTG or any heat source.
• Check whether the temperature setting is at “Winter” condition, if it is then change setting back to “Monsoon / Summer” condition
depending on your requirement.
• Check the air gaps behind the glass shelves are blocked due to excess storage inside the refrigerator.
• Check if the refrigerator loaded with hot food.
• Check if the door is kept opened.
• Check whether the temperature setting is at “Summer” condition, if it is then change settings back to “Winter / Monsoon” based on weather
condition and your requirement.
• Check the placement of high liquid containing food ( curries) near coldest area of the compartment.
• Ensure that the refrigerator is not placed directly beneath ceiling fan.
• Moisture can be formed during the rainy season or through continuous hot and humid days. Wipe out the surface with a dry cloth.
• Make sure that doors are not left open for long time If possible, reduce the frequency of back to back door openings which will increase the chances of
moisture entry inside the refrigerator
• Avoid placing moist food inside the refrigerator without lid
• Ensure adequate spacing behind refrigerator with the walls of room in which it is placed.
• Make sure that the floor is firm and refrigerator is levelled properly on it.
• This sound is due to the Refrigerant R600a gas flow and it happens when compressor starts and stops which is part of normal operation of Refrigerator
• Such case happens when you open the door right after closing it. Do not try to force the doors to open; wait for some time before trying again.
• Side part of the appliance may feel warm because of the skin condenser provided to prevent moisture formation which is not a product failure.
• Ensure that foods with strong odor are kept wrapped.
• Check if the food placed inside the refrigerator is spoiled/ near to spoil.
• Practice regular cleaning inside of the refrigerator to avoid bad odor
.
Food freezes in the refrigerator
compartment
Moisture formation outside the
refrigerator
Sounds like water fl owing in the
refrigerator/ freezer section
Doors do not open easily
Side of the Refrigerator feels warm
Bad odor coming from inside the
refrigerator
Moisture formation inside the
refrigerator
Refrigerator sounds noisy

8
This product is environmentally sound and sustainable free from Pb, Cd, Cr+6, Hg, PBBs and PBDEs
Restricted in accordance with the Directive.
IFB REFRIGERATORS, TERMS AND CONDITIONS
For safety and as a standard operating practice, it is important to install the Refrigerator with an MCB provided supply, with proper provision of electrical earthing done. Always ensure that the MCB is in ON
condition and not in a bypass condition.
ONE YEAR STANDARD WARRANTY*
IFB Refrigeration Ltd (IFB) (the Company) warrants to the original domestic purchaser of this Refrigerator (appliance) that it is free from defects in workmanship and materials. During 12 months, starting
from the date of purchase of the Refrigerator, all the parts of the Refrigerator which prove to be defective as a result of workmanship and/or materials, shall be replaced or repaired free of charge (except for
the parts described in this warranty as beyond the scope of the above) on intimation to the Company/Company's authorized service centre nearest to the place where the appliance is installed. Plastic and
rubber parts, sheet metal/paint affected by environment led rusting on exposure are not covered under the warranty.
ADDITIONAL WARRANTY PARTS
Compressor after Expiry of Standard Warranty of 1 year, an additional warranty of 9 years will be provided on the compressor. During this additional warranty period, IFB will repair/replace the compressor.
This is subject to an inspection by IFB of the compressor and proof that the Refrigerator has been serviced only by IFB's authorized service franchisee. The repair/replacement shall be valid for
manufacturing defects only, gas charging and labour costs will be chargeable.
FOUR YEARS SUPER WARRANTY ON PRODUCT*
Super Warranty of 4 years may be purchased by the customer by paying additional amount as Prevalent at the time of installation/purchase (as per the Company's prevalent scheme) or by calling IFB
customer care. This will be valid only within 90 days of the product purchased. During this super warranty period, functional parts other than sheet metal and plastic parts shall be covered for replacement/
repairs. Any additional expenses or visit charges shall be extra and is not covered under the scope of super warranty. This will be subject to inspection by IFB and proof that the Refrigerator has been
serviced only by the authorized service franchise of IFB. Plastic and rubber parts, sheet metal/paint affected by environment led rusting on exposure are not covered under the scope of super warranty.
Super warranty shall be applicable on models as decided by IFB.
Note: IFB shall not honour any warranty/super warranty related claims for the Refrigerator installed and/or serviced/repaired or parts modified by unauthorized service providers.
14. DISPOSAL OF OLD APPLIANCE
15. WARRANTY CARD
Suggestion for storing foods
• Always clean fruits and vegetables prior to refrigeration. They should be washed and wiped dry
before storing.
• Packed foods should be wiped clean before storing as to avoid adjacent foods from spoiling.
• Do not refreeze food items once they have been thawed. This can cause loss of taste and
nutrition.
In case of power failure
• Do not open and shut the door as long as you can. There is no problem storing the food inside
for about 2~3 hours even in midsummer.
• In case of predicted power failure, do not store any more food and make as much ice as you can
to put it on the upper shelf of the fresh food compartment. The inside would be kept cold.
When not using for a long time
• Clean the inside and leave the doors open for 2~3 days in order to prevent mold development or
odor saturation.
• To get more space, you can remove drawers since it does not affect the thermal and mechanical
characteristics.
• Your device is equipped with a maintenance free LED light. Any repair work on the lighting must
only be carried out by a qualified electrician.
• Allow hot food to cool before storing in the refrigerator as it can spoil other food items and lead
to higher energy consumption.
• Do not block Drain Funnel with food. Obstruction can cause uneven cooling within the
refrigerator.
• Do not open the door frequently / Do not keep the door open for a long time as it can cause rise
in temperature of the refrigerator/freezer compartment and also leads to higher energy
consumption.
• For retaining freshness of vegetables (other than leafy vegetables) for longer durations, it is
advisable to store them in food grade poly-bags.
Packaging is made of environmentally friendly materials that can be recycled,
disposed of, or destroyed without any hazard to the environment.
The symbol on the product or its packaging indicates that the product should not
be treated as normal household waste. The product should be taken to an
authorized collection centre for waste electric and electronic equipment
processing. Correct disposal of the product will help prevent any negative effects
on the environment and health of people which could occur in case of incorrect
product removal. For detailed information on removal and processing of the
product, please contact the relevant municipal body in charge of waste
management, your waste disposal service, or the store where you bought the
product. For more detailed information about recycling contact IFB Care. This
way, the appliance recycling organized by IFB Care will be done according
to E-waste Rules published by the Government of india.
Instructions for removing an obsolete appliance:
1) Disconnect the appliance from the power mains.
2) Do not damage the refrigerant circuit to prevent pollution.
3) C-Pentane is used as an insulation blowing gas. The flammable
insulation blowing disposal procedure. Do not try to separate any
components from the refrigerator.
4) Do not allow children to play with the appliance.
The one-year warranty and additional four years Super Warranty are subject to the following
1. This warranty is not valid in case of the following events:
a) The warranty card is not fully filled in and signed at the time of purchase/ Company's authorized
franchisee/dealer/service engineer.
b) If the completed warranty card is not presented to the authorized personnel at the time of
service/repair. Customers may be asked to furnish proof of ownership and date of purchase by
showing the sales receipt/purchase invoice. The warranty claims as accepted will be only for the
original purchaser.
c) The warranty is non-transferable to anyone who subsequently purchases, leases or otherwise
obtains the product from the original purchaser. If the appliance is not used in accordance with
the manufacturer's instructions given in the user manual.
d) If the Refrigerator has been installed, serviced, repaired, opened or tampered with by
unauthorized personnel.
e) If defects arise/are caused by accidents, alteration, misuse, neglect, abuse, substitution of
original components with spurious/non genuine components, use of/application of harmful
chemicals on machine, attack by household pest/rodents, fire, flood, earthquake, lightning.
and/or any other acts of God/natural calamities.
f) If defects arise with optional accessories like stabilizer, covers, extended power cables, external
refrigerator stands, control knobs, electrical plugs, other detachable parts etc.
g) If damages occur owing to improper electrical circuits outside the Refrigerator or by any external
electrical supply thereof. This includes failures due to erratic power supply, fluctuations beyond
rated voltage + 10% voltage and frequency of 50 Hz + 3%, AC power supply systems.
TERMS AND CONDITIONS
h) If the Refrigerator is run frequently on power back-up or solar power.
i) If the Refrigerator serial number on the appliance is defaced, missing or altered.
j) If the appliance is taken out of the territory of the Republic of India.
k) This warranty will automatically terminate on the expiry of the warranty period of 12 months or
extended warranty (optional) as per the scheme, even if the Refrigerator has not been in use for
any time during the warranty period or extended warranty period for any reason.
2. This Warranty does not cover normal wear and tear, any type of corrosion, rust, stains,
scratches, peeling paint, dents on the body. Also, the company is not liable for any incidental or
consequential damages.
3. Parts replaced or repaired under Standard and Extended warranties are warranty throughout the
remaining of the original warranty period.
4. The company is not liable for any delay in servicing owing to reasons beyond the control of the
company or any of its authorised service centres.
5. The warranty is not applicable if the Refrigerator is used for commercial / semi commercial
purposes.
6. For any service under warranty beyond city/town/municipal limits from the Company/authorised
service centres, a fixed charge as per the Company’s norm will be collected from the customer.
In addition to the actual to and from charges by the shortest route. Alternatively, the customer
may bring the appliance to the nearest service centre for carrying out the necessary repairs,
at customers own cost.
7. The warranty does not cover regular maintenance.
13. HELPFUL HINTS
CUSTOMER DETAILS CUM WARRANTY CARD
Mobile No.
Product Serial No.
Name
Address in Full
Telephone No.
Dealer Name & Address
Date of Purchace
Model No.
Cutomer’s Signature & Date
( I accept the Terms & Conditions of warranty)
Customer copy (to be retained by customer)
Dealer’s Signature with rubber Stamp
For any assistance, reach us at 080 695 45678 | 080 458 45678 or WhatsApp [phone]
