Corner Cabinets Mirrors with
Shaver Sockets and Sensors
(Model Numbers: 100877K145, K146, K147, K148)
Thank you for purchasing our illuminated mirror cabinet(s).
To avoid product damage, personal injuries, carefully read, understand, and follow all
the Instructions in this installation guide before installing the product.
Save this manual for future reference.

Diamond X Collection | www.illuminated-mirrors.uk.com
Model: Corner Sensor Cabinets
INSTRUCTION MANUAL
3
WARNING!
To avoid the risk of electrocution, please turn off the electricity
supply mains before commencing the installation.

Diamond X Collection | www.illuminated-mirrors.uk.com
Model: Corner Sensor Cabinets
INSTRUCTION MANUAL
4
CONTENT
I. STANDARDS
a. Safety Instructions
b. IP Rating
c. Bathroom Zones
II. MIRROR CABINET PARTS
III. STEP-by-STEP INSTALLATION
Step 1: Remove top mirror panel carefully with a screw driver.
Step 2: Remove LED strip / Fluorescent bulb to gain access to the cable entry hole.
Step 3: Offer the cabinet up to the required position and mark the holes on to the wall for
drilling (Cabinet is heavy and we suggest 2 people for this job).
Step 4: Pull the 240volt connection cable through the rubber grommet on the back plate and
fix your mirror cabinet using the supplied screws
Step 5: Re-fix top mirror panel on to the cabinet.
Step 6 (If required):
Adjust hinges: In case of loosened mirror door and the hinge during the transit.
a. Sideways Positioning
b. Inward Positioning
Please note: Cabinet door can only be adjusted when cabinet is fitted to the wall.
Hinges will not adjust otherwise.
Step 7: Add glass shelves.
Step 8: Your cabinet is ready to use.
IV. CARE AND CLEANING
V. FAQs

Diamond X Collection | www.illuminated-mirrors.uk.com
Model: Corner Sensor Cabinets
INSTRUCTION MANUAL
5
I. STANDARDS
a. Safety Instructions
Installation of this product can require a qualified electrician. If necessary, hire or
consult a qualified electrician in accordance with the current IEE Wiring Regulations
and UK Building Regulations for assistance before continuing.
Please turn off the electricity supply mains before commencing the installation.
This light fitting is a Class I product and therefore must be earthed.
Always use the correct type and wattage bulb; never exceed the stated/rated wattage as
this could overheat the transformer.
b. IP rating
The IP Code (or Ingress Protection Rating,sometimes also interpreted as
International Protection Rating) consists of the letters IP followed by two digits or one
digit and one letter and an optional letter. These two digit numbers refer to the level of
protection the product has and it is important that you choose fittings with correct ratings
according to where they are installed within the bathroom.
c. Bathroom Zones

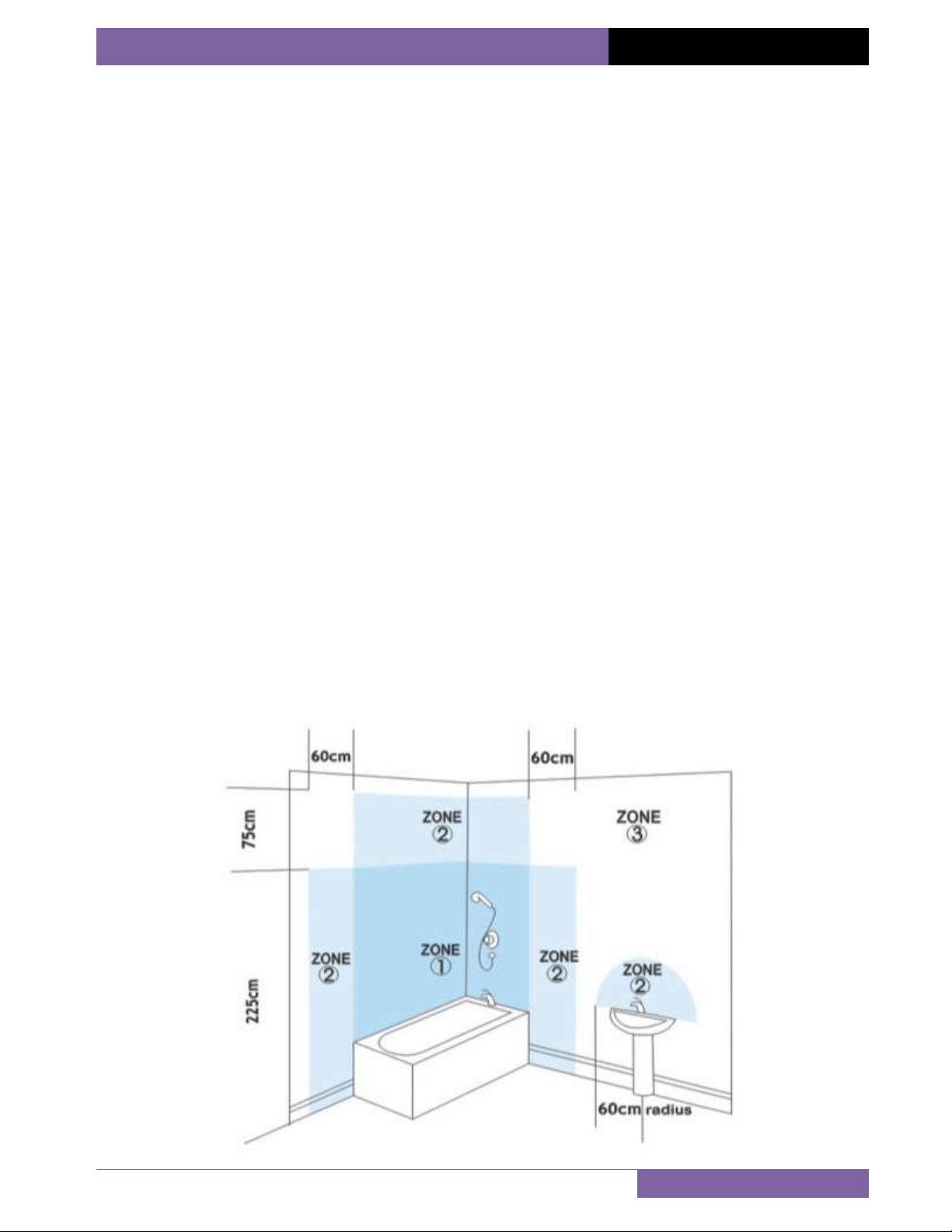

Our illuminated mirror cabinet has special protection against the ingress of moisture
and is manufactured to meet IP44 standard, thereby making it suitable for use in Zones 2
and 3 of a bathroom with reference to the below diagram.

Diamond X Collection | www.illuminated-mirrors.uk.com
Model: Corner Sensor Cabinets
INSTRUCTION MANUAL
6
II. CABINET PARTS

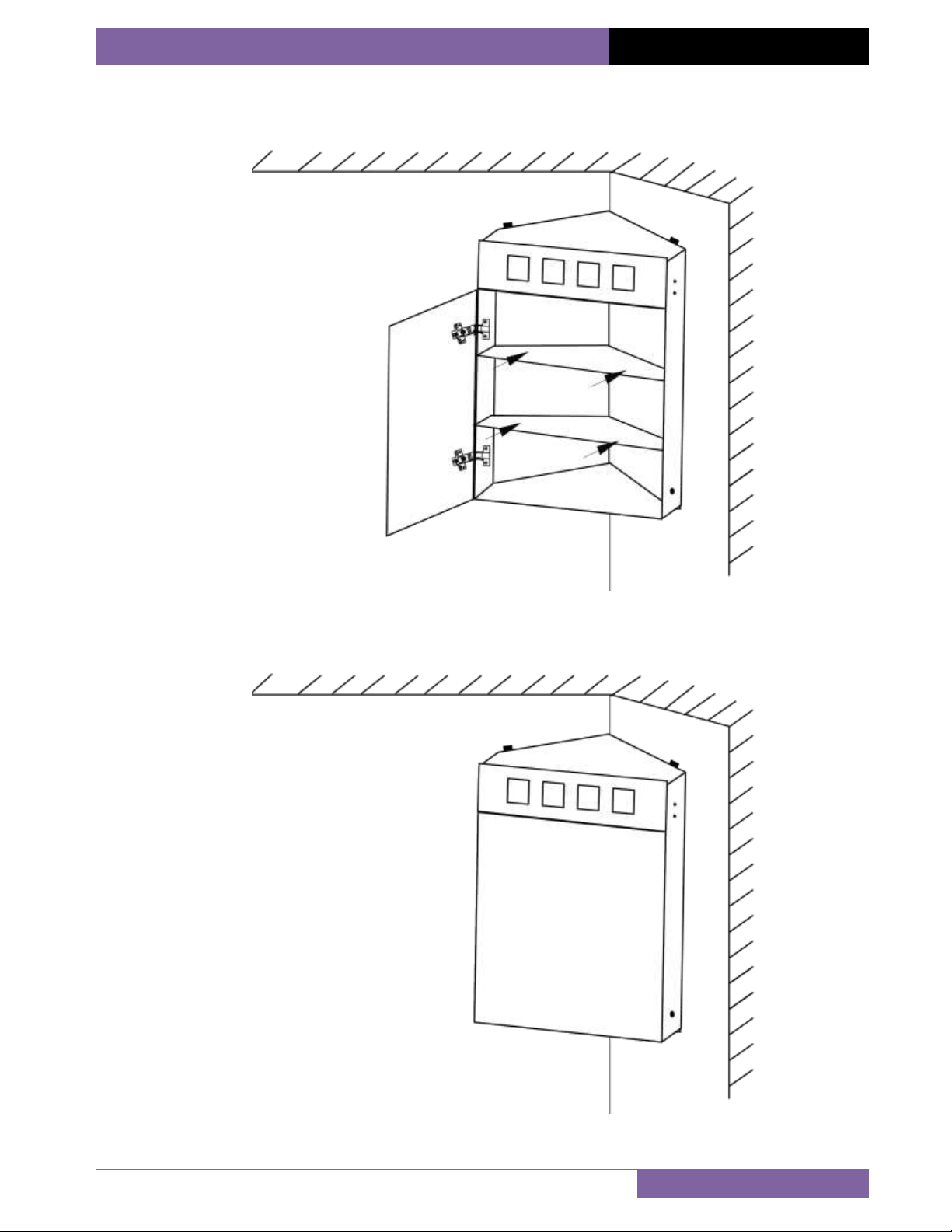

(Figure i) –Corner Cabinet with closed door.
(Figure ii) –Corner Cabinet with open door.

Diamond X Collection | www.illuminated-mirrors.uk.com
Model: Corner Sensor Cabinets
INSTRUCTION MANUAL
7
III. INSTALLATION
Please turn off the electricity supply mains before commencing the installation.
Wiring Colours:
Earth (E)
GREEN
Neutral (N)
BLUE
Live (L)
BROWN
Step 1:
Remove top mirror panel with a screw driver.
Step 2:
Remove LED strip / Fluorescent bulb to gain access to the cable entry hole.

Diamond X Collection | www.illuminated-mirrors.uk.com
Model: Corner Sensor Cabinets
INSTRUCTION MANUAL
8

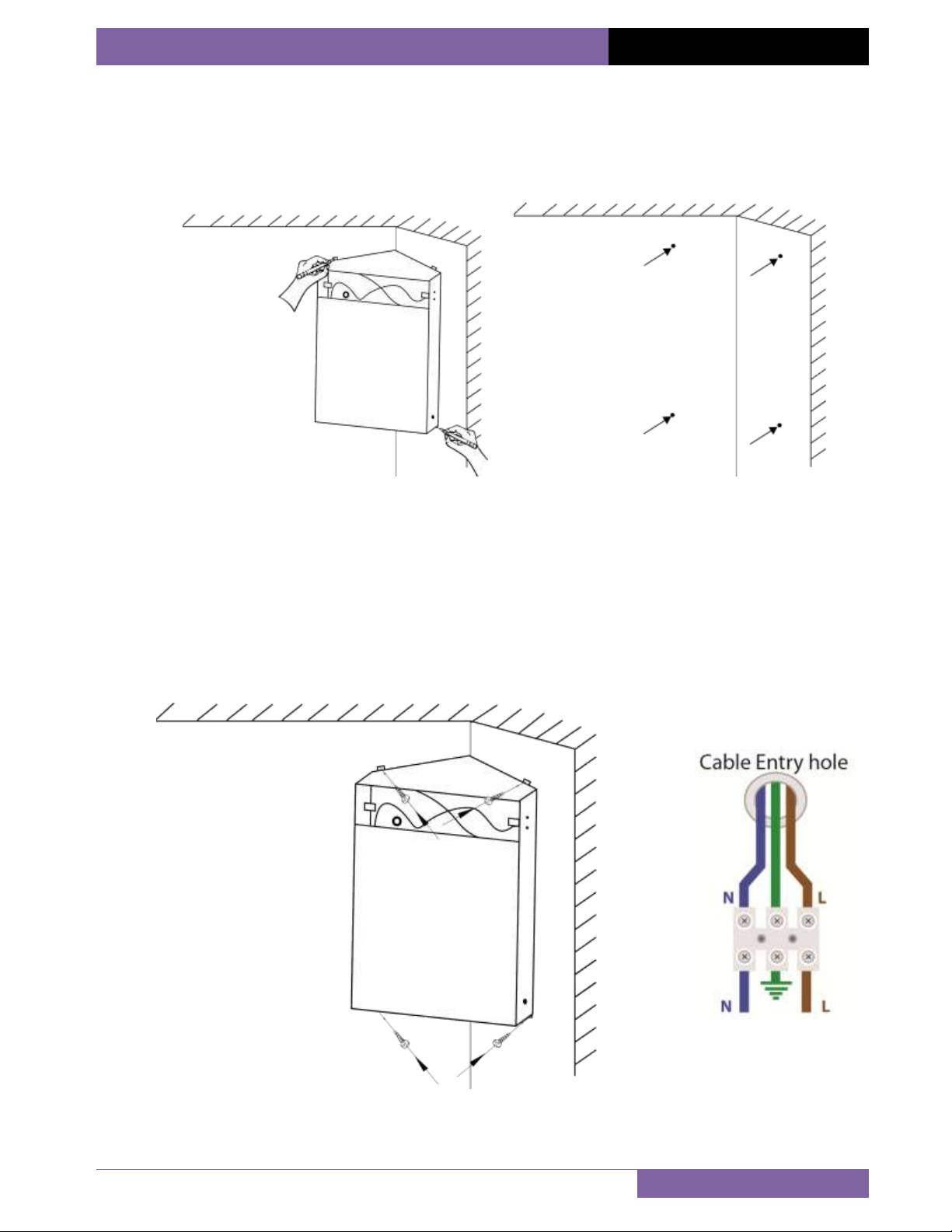

Step 3:
Offer cabinet up to required fixing position and mark the holes for drilling using a
pencil.
Step 4:
Pull the 240volt connection cable through the rubber grommet on the back plate.
And fix your mirror cabinet using the supplied screws to the wall.
Note: Cabinet is heavy and we suggest 2 people for this job.

Diamond X Collection | www.illuminated-mirrors.uk.com
Model: Corner Sensor Cabinets
INSTRUCTION MANUAL
9
Step 5:
Refix top mirror panel on to the cabinet.
Step 6 (If required):
In case of loosened mirror door and the hinge during the transport, please adjust hinge
and mirror door using a screw driver with the following illustrating diagrams.
Please note cabinet door can only be adjusted when cabinet is fitted to the wall. Hinges
will not adjust otherwise.
(a) Sideways Positioning
Using a screw driver loosen the Screw.1 in anti-clockwise direction as shown in
the below diagram.

Diamond X Collection | www.illuminated-mirrors.uk.com
Model: Corner Sensor Cabinets
INSTRUCTION MANUAL
10
After loosening Screw.1, please move the mirror door to the left or to the right, and
make sure the mirror door is in the middle between two side mirror panels as show in
the below diagram.
After making sure that the mirror door is in the middle between two side mirror
panels, please tighten the Screw.1 in clock-wise direction with the help of a screw
driver, as shown below.

Diamond X Collection | www.illuminated-mirrors.uk.com
Model: Corner Sensor Cabinets
INSTRUCTION MANUAL
11
(b) Inward Positioning
Using a screw driver rotate Screw.2 to the left or to the right hand side, as shown
below.
Mirror door will be moved inwards or outwards from the cabinet by adjusting Screw.2
towards the left-hand side or right-hand side respectively, as shown below.

Diamond X Collection | www.illuminated-mirrors.uk.com
Model: Corner Sensor Cabinets
INSTRUCTION MANUAL
12
Step 7:
Add glass shelves.
Step 8:
And your cabinet is ready to use!

Diamond X Collection | www.illuminated-mirrors.uk.com
Model: Corner Sensor Cabinets
INSTRUCTION MANUAL
13
IV. CARE AND CLEANING
Please be aware when cleaning the mirror surface, do not to use abrasive materials as
these will damage the overall finish.
V. FAQs
1. On/Off Infra-Red Sensor?
All our LED Mirrors include Infra-Red on/off Sensor, simply wave your hand to the
sensor and it will instantly powers up the lights and demister pad. You need to wave your
hand 3-6 inches away to On/Off your mirror cabinet.
2. Where is the sensor located?
The sensor is located on the bottom right of the frame and not on the front of the
glass.
3. Can I isolate the sensor so the led's come on with my bathroom lighting?
Yes, just call us for instructions and we shall email them to you, it's extremely easy!
4. How the Shaver Socket Works?
Shaver Mirrors include a 240 Volt shaver socket for the use of electric shavers and
toothbrushes. The shaver socket includes its own on/off rocker switch which works
separately from the lights and demister pad.
5. Is the mirror tinted glass?
No, the mirror is perfectly clear reflective mirror glass.
6. Is the mirror CE & ROHS certified?
